Product Type	Jigsaw
Model	FDP 200451-E
Brand	Fieldmann
Power Source	Corded electric
Voltage	220-240 V
Frequency	50 Hz
Power Rating	450 W
No-Load Speed	0–3000 min⁻¹
Max Cutting Depth in Wood	55 mm
Max Cutting Depth in Steel	6 mm
Mitre Angle	0–45° (left or right)
Blade Type	Standard jigsaw blades (T-shank)
Dust Extraction	Yes, via dust extraction outlet
Weight	Approx. 2.5 kg
Dimensions (L×W×H)	Approx. 250×200×80 mm
Safety Features	Double insulation, lock-on button, protective guard
Double Insulated	Yes
Variable Speed	No (single speed)
Soft Grip Handle	Yes
Included Accessories	Parallel edge guide, 1 saw blade, hexagon key, warranty card, instruction manual
Warranty Period	24 months

Frequently Asked Questions - FDP 200451-E Fieldmann

How do I change the saw blade on the Fieldmann FDP 200451-E?

Disconnect the saw from the mains. Loosen the saw blade clamping screws (8) through the slot on the safety guard using the supplied hexagon key. Remove the old blade, insert a new one, and retighten the screws. Ensure the back of the blade engages in the guide roller slot.

How can I adjust the soleplate for bevel cuts?

Loosen the two screws (10) under the soleplate. Adjust the soleplate to the desired angle (0–45° left or right) and retighten the screws. The angle can be read on the scale on top of the soleplate.

Can the saw be locked for continuous operation?

Yes, press the lock-on button (2) while depressing the ON/OFF switch trigger (1). Release the trigger, and the saw will run continuously. To stop, press and release the trigger again.

What safety equipment should I use when operating this jigsaw?

Always wear safety glasses, hearing protection, and a dust mask if necessary. Use protective gloves and ensure the workpiece is clamped securely. Keep the work area clean and well-lit.

What materials can I cut with this jigsaw?

The saw can cut wood (up to 55 mm), steel (up to 6 mm), and plastic. For metal, lubricate with cutting oil. For plastic, make a test cut first.

How do I maintain the jigsaw?

Keep the saw clean and ventilation slots unblocked. Regularly lubricate the guide roller with a drop of oil. Check and tighten all screws, especially blade clamping screws. Replace worn carbon brushes through an authorized service center.

The saw blade is stuck or not cutting properly. What should I do?

Ensure the blade is sharp and correctly installed. Check that the back of the blade engages in the guide roller slot. Do not force the saw; let the blade do the work. If the blade is dull, replace it.

Is the jigsaw double insulated?

Yes, the tool is double insulated, so it does not require a grounded outlet. However, always use the correct voltage and a residual current device (RCD) for outdoor or damp areas.

How do I connect a vacuum extractor?

The jigsaw has a dust extraction outlet (3). Connect a suitable vacuum hose to this outlet. Ensure the vacuum is compatible and switched on during operation.

What is the warranty coverage for this product?

Fieldmann offers a 24-month warranty from the date of purchase for domestic use. It covers material and manufacturing defects. Normal wear, misuse, or unauthorized repairs are not covered. Keep the purchase receipt and warranty card.

USER MANUAL FDP 200451-E Fieldmann

Abstract black-and-white spiral pattern with no text or symbols

FIELDMANN®

Home & Garden Performance

Green FELDMANN power shaver with black handle and orange button, no visible text or symbols on body

FDP 200451-E

English 5-16

Čeština 17-28

Slovenčina 29-40

Magyarul 41-52

Polski 53-64

1

2

3

4

Electrical Jig Saw

USER'S MANUAL

Thank you for your purchase of the electrical jig saw. For your personal safety, read and understand the Instruction Manual before using. Keep the Instruction Manual in a safe place for future reference.

TABLE OF CONTENTS

1. GENERAL SAFETY INSTRUCTIONS ......6
2. SYMBOLS....7
3. MACHINE DESCRIPTION AND ITEMS DELIVERED 8
4. GENERAL SAFETY INSTRUCTIONS 8
5. SPECIFIC SAFETY INSTRUCTIONS....11
6. HEARING PROTECTION....12
7. USE 12
8. MACHINE CARE 14
9. WARRANTY 14
10. TECHNICAL SPECIFICATIONS....14
11. DISPOSAL....15

1. GENERAL SAFETY INSTRUCTIONS

WARNING!

Carefully read the instruction manual before use.

Important safety warnings

* Unpack the product carefully and be sure not to throw away any part of the package before having found all components of the product.
* Keep the product in a dry place out of reach of children.
Read all cautions and instructions. The failure to adhere to warning cautions and instructions may result in an accident, fire and/or a serious injury.

Packaging

The product is placed in a package preventing damage during transport. This package is a raw material therefore it can be handed-over for recycling.

Instructions for use

Before beginning to work with the machine, read the following safety rules and instructions for use. Familiarize with operating elements and the proper use of the device. Keep the manual in a safe place for future reference. We recommend keeping the original package including the inner packaging materials, cash voucher and guarantee card for a period of warranty at minimum. For a case of transportation, pack the machine into the original box from the manufacturer, thus ensuring a maximum protection of the product during a possible transport (e.g. moving or sending into a service station).

Note: If you hand the machine over to next persons, hand it over together with the manual. Adherence to the attached instructions for use is a precondition for the proper use of the machine. The operation manual includes also instructions for operation, maintenance and repairs.

The manufacturer does not take any responsibility for accidents or damages resulting from the failure to adhere to this manual.

2. SYMBOLS

The product complies with the applicable standards and regulations.

Icon of a person using a laptop inside a black circle (no text or symbols)

Read the Instruction Manual attentively prior to use.

Simple geometric diagram with two concentric squares (no text or symbols)

Double-insulated.

Simple icon of a person wearing sunglasses inside a black circle (no text or symbols)

Use eyes protective equipment

Black circular icon with a white headset silhouette (no text or symbols)

Use ears protective equipment

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Subjected to recycling

3. MACHINE DESCRIPTION AND ITEMS DELIVERED

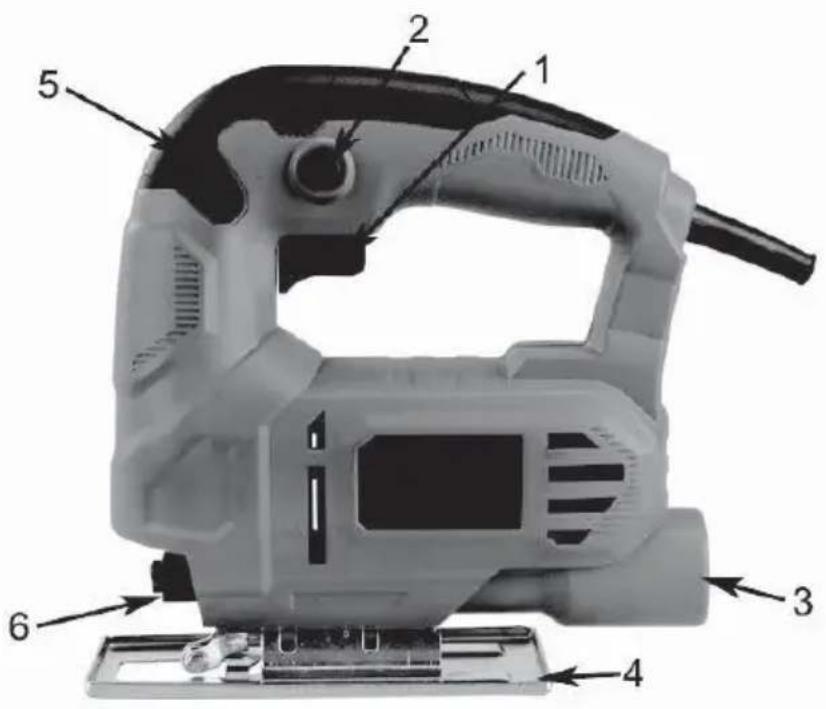

Machine Description (See fig. 1)

1. ON/OFF switch
2. Lock-on button
3. Dust extraction outlet
4. Soleplate
5. Soft skin

6. Saw blade holder

7. Guide roller

8. Clamping screw for blade holder
9. Saw blade
10. Clamping screw for soleplate
11. Hexagon key

Items Delivered

Remove all contents from the box and inspect to ensure no damage was incurred during shipping, and that the items listed below are included.

Jig saw
Parallel edge guide
1 saw blade
Warranty card
* Instruction Manual

Should the components be missing or damaged, contact the dealer of the machine.

4. GENERAL SAFETY INSTRUCTIONS

Please read these safety instructions carefully, remember them and keep them in a safe place

WARNING!

When using electric machinery and power tools, it is important to abide by and adhere to the following safety instructions for reasons of protection against injury caused by electric current, injury of persons and risk of starting fi res. The term "power tools" used in the instructions below refers to power tools that are plugged into a power supply (by a power cord) as well as tools running on a battery pack (cordless). Keep all warnings and instructions for further use.

Work environment

* Keep the work area clean and well lit. Untidiness and dark places on the job site are usually causes of accidents. Store tools that are not used.
Do not use power tools in an environment where there is risk of starting a fire or explosion; this refers to places where there are flammable liquids, gases or dust. Sparks form on the power tool's commutator, which can cause dust or fume ignition.

When using power tools, unauthorized persons, especially children, should be denied entry to the job site! In case you are interrupted, you can lose control of the current activity. In any case, do not leave the power tool without supervision. Prevent animals from approaching the equipment.

Electrical safety

The power tool's power plug must correspond to the power outlet. Never alter the plug in any way. If the tool's plug has a safety peg, never use an adapter of any kind. Undamaged plugs and corresponding outlets prevent the risk of injury by electric current. If the power cord is damaged, it must be replaced by a new power cord that can be obtained from an authorized service centre or the importer.
Avoid bodily contact with grounded items, e.g. piping, radiators, kitchen ranges and refrigerators. The risk of injury by electric current is greater if your body is connected to the ground.
Do not expose power tools to rain, moisture or dampness. Never touch power tools with wet hands. Never wash power tools with running water and never submerse them into water.
Do not use the power cord for any other purpose than originally intended. Never carry or pull the power tools by the power cord. Do not pull the plug out of the outlet by pulling on the cord. Avoid mechanical damage to the power cord by sharp or hot objects.
Power tools were manufactured exclusively for the AC power supply. Always check if the electrical voltage corresponds to the data printed on the tool's serial number label.
* Never work with a tool that has a damaged power cord or plug, or that has fallen on the ground and is damaged in any way.
In the case of using an extension cord, always check that its technical parameters correspond to the data printed on the tool's serial number label. If the power tool is used outdoors, use an extension cord that is appropriate for exterior use. When using an extension cable drum, the cord must be unwound to prevent the cord from overheating.
If the power tool is used in moist areas or outdoors, it is permitted to use it only if it is plugged into an electric circuit with a residual current device <30 mA. Using a circuit with an RCD lowers the risk of injury by electric current.
Grasp hand power tools at the designated isolated grip areas because, during operation, one may come into contact with the cutting or drilling fittings with a hidden conductor or with the power cord.

Personal safety

When using a power tool, be careful and alert, pay special attention to the activity you are doing. Concentrate on your work. Do not work with power tools if you are tired or if you are under the influence of drugs, alcohol or medication. When using power tools, even a momentary lapse in attentiveness can lead to severe personal injury. Do not eat, drink or smoke while working with power tools.
Use protective gear. Always use eye protection. Use protective gear corresponding to the type of work you are doing. Protective gear such as respirators, safety shoes with antiskid treatment, head protection or ear protection, used in accordance with working conditions, lower the risk of personal injury.
Avoid unintentional operation of tools. Do not carry tools that are plugged into the electric grid with your fi nger on the switch or release trigger. Before connecting the tool to a power supply, make sure that the switch or release trigger are in the "off" position. Carrying tools with your fi nger on the switch or plugging the tool into an outlet with the switch in the "on" position can cause serious injury.
Before turning tools on, remove all adjustment wrenches and tools. The adjustment wrench or tool that stays connected to the rotating part of the power tool can cause personal injury.

Always stand firmly and keep your balance. Work only in places that you can reach safely. Never overestimate your own strength. Do not use power tools if you are fired.
* Dress appropriately. Use working clothes. Do not wear loose clothing or jewellery. Make sure that your hair, clothing, gloves or other body parts do not come overly close to rotating or heated parts of the power tool.
Connect the equipment to the dust exhaust. If the tool offers the possibility to connect equipment for capturing dust or dust suction, make sure that it is properly connected and used. Using this equipment can reduce danger resulting from dust.
* Firmly fasten the workpiece. Use a carpenter's clamp or vice to secure the piece you will be cutting.
Do not use power tools if you are under the influence of alcohol, drugs, medication or other narcotics or addictive substances.
This equipment is not intended to be used by persons with limited physical, sensory or mental abilities (including children) or persons with insufficient experience and knowledge, unless they are supervised or received instructions to use the equipment from a person responsible for his/her safety. Children must be supervised in order to ensure that they are not playing with the equipment.

Using power tools and their maintenance

* Always disconnect the power tool from the electric grid if there is any problem during work, before every cleaning or maintenance, during every shift and after finishing work! Never work with power tools if they are damaged in any way.
If the tool starts emitting abnormal noises or odours, immediately stop working.
Do not overload power tools. The power tool will function better and more safely if it operates at speeds for which it was designed. Use correct tools that are designated for the given activity. The correct tool works better and more safely.
Do not use power tools that cannot be turned on safely and cannot be turned on and off with a control switch. Using this type of tool is dangerous. Faulty switches must be repaired at a certified service centre.
* Disconnect the tool from the power supply before you start setting, changing accessories or maintenance. This measure will prevent the risk of accidental start-up.
Store unused power tools so that they are out of the reach of children and unauthorized persons. Power tools in the hands of inexperienced users can be dangerous. Store power tools in a dry and safe place.
Keep power tools in good condition. Regularly check the setting of moving parts and their movability. Check if the protective cover or other parts that can limit the safe functioning of the power tool are not damaged. If the tool is damaged, ensure its proper repair before the next use. Many injuries are caused by poorly maintained power tools.
Keep cutting tools sharp and clean. Properly maintained and sharpened tools make work easier, limit the risk of injury and work with them is much more easily controlled. Using other accessories than those listed in the instruction manual can cause damage to the tool and can cause injury.
Use power tools, accessories, work tools, etc. in accordance with these instructions and in a way that is described for the specific power tool and with regard to the given working conditions and the type of job. Using tools for other purposes than those intended can lead to dangerous situations.

Using cordless tools

Before inserting the battery, make sure that the switch is in the "O-off" position. Inserting the battery into a running tool can cause dangerous situations.
* To charge the battery, only use chargers that are specified by the manufacturer. Using a charger for a different kind of battery can cause damage to the battery and result in fire.

Only use batteries that are designated for the given tool. Using other batteries can cause injury or result in fire.
If the battery is not used, store it away from metal objects such as clamps, wrenches, screws and other small metal objects that could cause the connection of one battery contact with the other. Short-circuiting the battery can cause injury, burns or fire.
* Handle batteries with care. In the case of improper care, chemical substances can leak from the battery. Avoid coming into contact with this substance and if you do come into contact with it, rinse the affected area under running water. If the chemical substance comes into contact with the eye, immediately seek out medical attention. The chemical substance from the battery can cause serious injury.

Service

Do not change parts of the tool, do not perform repairs on your own and do not interfere with the tool's construction in any way. Leave tool repairs to qualified persons.
* Each repair or product modification performed without our company's permission is inadmissible (it can cause injury or harm to the user).
* Always leave tools to be repaired in a certified service centre. Use only original or recommended spare parts. This will ensure your and your tool's safety.

5. SPECIFIC SAFETY INSTRUCTIONS

⚠ WARNING! Before use, please read these safety Instructions and store them with care.

Please ensure that the voltage of the mains power supply corresponds to the value stated on the type plate. The tool is equipped with a two-pole lead and plug!
* Wear safety glasses and a face or dust mask if the cutting or drilling operation is dusty. When using the tool for extended periods, or where the noise level is high, use adequate hearing protection.
If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Always empty the dust collection bag when full.
Use clamps or a vice to hold the work piece. It is safer than using your hand and frees both hands to operate the tool.
* Ensure the power cord is arranged so that it cannot be tripped over, stepped on or have heavy weights rested on it; and make sure that the cord will not be subjected to any damage.
A risk of injury exists in the case that instructions in this manual are not followed.
The jigsaw complies with valid technical regulations and norms.
When working with the jigsaw, the protective cover must always be pushed down.
* Regularly check both screws on the clamp of the saw blade.
Do not use damaged or worn saw blades.
* Regularly check the setting of the guide pulley.
Do not turn the saw on if the saw blade slid into the workpiece.
* Never overload the saw so much that the engine ceases.
* Never try to stop the movement of the saw blade, even when the engine is turned off.
The saw blade itself is removed very quickly. The blade's teeth are very sharp.
* Never aim the saw at another person.
Use protective gear against noise, dust and vibrations!!!
⚠ WARNING! Keep these safety instructions!!!

6. HEARING PROTECTION

WARNING!

In case the sound pressure level exceeds the value of 85.0 dB(A), wear adequate hearing protection to avoid damage to your hearing!

7. USE

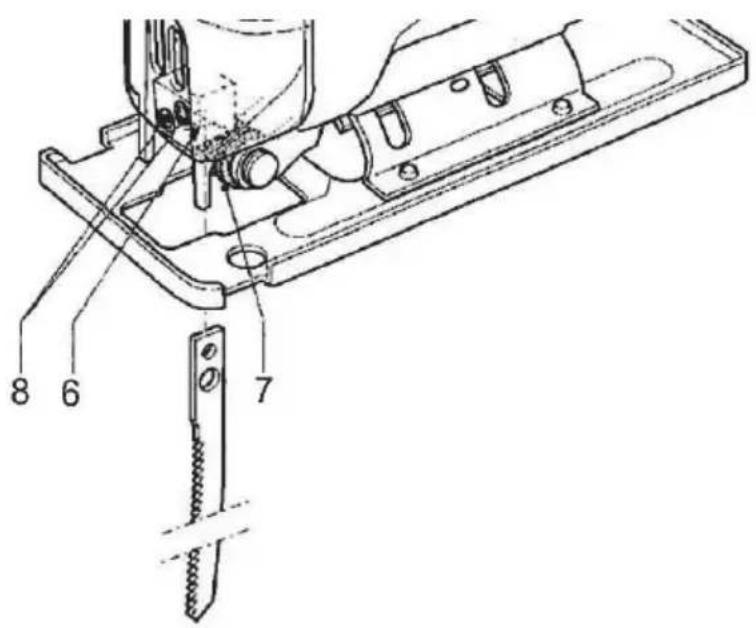

Replacing saw blades (See Fig.2)

Disconnect the saw from the mains. Loose the saw blade clamping screws (8) through the slot on the safety guard (5) by the aid of hexagon key supplied with the tool. Remove the blade from the holder, insert a replacement and retighten the screws. Pull the saw blade to chce that it is correctly positioned and locked in place. Make sure that the back of the saw blade engages in the slot of the guide roller (7). Connect the saw to the mains. Retain hexagon key in holder on saw to avoid losing it.

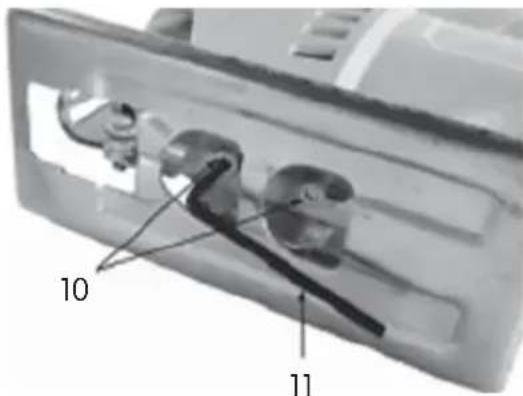

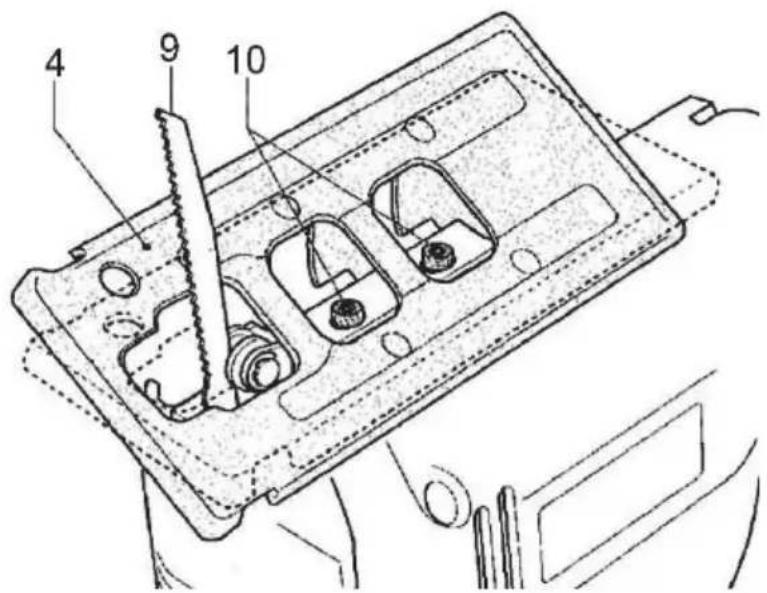

Adjusting the soleplate (See Fig. 4)

The soleplate (4) can be adjusted 45^ (left or right) in relation to the saw direction to facilitate contour sawing. (See Fig. 3). Loosen the two screws (10) under the soleplate, adjust the plate to the desired angle and retighten the screws. Angle setting can be seen on scale on top of the soleplate.

Switch on and off

Connect the plug to the power supply. To start the tool, depress the ON/OFF switch trigger (1). When you release the switch trigger, the tool turns off.

Note: For continuous operation, the switch button can be locked by pressing the lock-on button (2) at the same time as the switch trigger. The lock-on button can be release by pressing the ON/OFF switch trigger again.

General

Never use a blade unsuitable for the task and item to be cut.
Hold the saw in front of you with a firm grip on the handle.
- Ensure that the saw blade is not touching anything and that the power cable is not in the way when starting the saw.
Make sure that the item is clamped tight, and that the saw line is clearly marked.
Connect the vacuum extractor nozzle to an extractor system where possible.
* Start the saw. Place the soleplate on the item, and let the saw blade touch the saw line.
Saw, but do not place more pressure on the blade than is necessary. Avoid lateral pressure on the blade.
* Special notes on jig sawing
* Place the soleplate on the item so the saw blade is vertical and correctly positioned in relation to the saw line without touching it.
* Start the saw and tilt it carefully while supporting it using the soleplate until the blade touches the item at the saw line.

Let the blade work through the item, continuing to tip the saw downwards until the sole is flush to the item and the blade is perpendicular to it. If necessary, drill a hole of suitable diameter in the item for use as starting point.

Sawing wood

Check that the item does not contain nails or other metal objects. Always wear a mask.

Sawing metal

We recommend lubricating the material and saw blade with cutting oil to protect the tool and avoid overheating. Support the item with wooden blocks on either side.

Sawing plastic

Make a test cut first to check if the material can tolerate the heat generated by sawing.

Important!

Check all screws on the saw regularly, particularly those that hold the blade. Tighten if required. Check regularly that the carbon brushes are in a good condition. If the carbon brushes are worn, they should be replaced.

Lubrication (Fig. 2)

Regularly apply a drop of oil to lubricate the guide roller (7).

Cleaning and maintenance

Caution: always be sure that the tool is switched off and unplugged before attempting to perform inspection for maintenance.

In order to maintain product reliability and safety, repairs, replacement, any other maintenance or adjustment, and carbon brush inspection and replacement should be performed by specialized work shop.

Wipe the saw using a well-wrung cloth after use, and always keep the surface and ventilation holes free of dirt. Keep the soleplate free of dirt to avoid the saw cutting incorrectly.

Never use corrosive or abrasive cleaning agents, as they may attack the plastic parts of the saw.

When the carbon brushes wear out the tool will spark and/or stop. The brushes are a wearing component of the tool and should be replaced prior to the carbon wearing out fully. Always replace both brushes at the same time.

CAUTION: the carbon brushes must be replaced by a pair similar carbon brush available through the after-sales service organization or qualified professional person.

CAUTION: Always disconnect the machine from the power supply before removing any electrical covers.

⚠️ CAUTION: Do not use cleaning agents to clean the plastic parts of the tool. A mild detergent on a damp cloth is recommended. Water must never come into contact with the tool.

8. MACHINE CARE

Overload

Never use excessive force when cutting. Too much pressure reduces the speed of the machine, and the required power is greatly reduced. This may result in overload which can damage the motor of the machine. When the machine becomes too hot, allow it to run for two minutes at no load and then interrupt working for a short time. Clean the machine with a clean cloth and a brush. Ensure that the ventilation slots are not blocked.

9. WARRANTY

The Warranty Card shall be valid only when submitted together with the purchase receipt.

Keep the both documents in a safe place. To lodge a warranty complaint, turn to your dealer or a service centre. The warranty shall apply to all product defects and faults that occurred during the warranty period and were demonstrably attributable to material or manufacturing defects. In such cases the product shall be repaired and/or adjusted. The warranty shall not apply to standard wear of the product, as well as to faults attributable to overloading, using of inappropriate accessories or improper operation of the product.

10. TECHNICAL SPECIFICATIONS

Voltage 220V 50Hz	~
Power rating 450W
No-load speed 0–3000/min
Max. Cutting depth in
Wood 55 mm
Steel 6 mm
Mitre angle 0–45°

Instructions Manual - language version only.

11. DISPOSAL

INSTRUCTIONS AND INFORMATION ON DISPOSING OF USED PACKAGING MATERIALS

Put any used package material to the place determined by the municipality for waste disposal.

DISPOSAL OF USED ELECTRIC AND ELECTRONIC EQUIPMENT

This symbol on products or accompanying documents means that used electric or electronic products must not be put to ordinary municipal waste. Hand over such products to determined collection points for proper disposal, restoration and recycling. Alternatively, in some countries of the European Union or other European countries you can return your products to your local dealer when you buy an equivalent new product. By dutiful disposal of this product you can preserve precious natural resources and you help prevent any potential adverse effects on the environment and human health which could be the results of wrong waste disposal. Ask your local authority or the nearest collection point for additional details. In case of improper disposal of this waste kind penalties can be imposed in accordance with national regulations.

For companies in the European Union countries

Should you want to dispose of electric and electronic devices, ask your dealer or vendor for necessary information. Disposal in other countries outside the European Union. Should you want to dispose of this product, ask your local authorities or your dealer for necessary information about disposal method.

This product fulfi is all basic requirements of the EU directives that apply to it.

Text, design and technical specifications can change without prior notice and we reserve the right for their change.

User manual in the original language.

Abstract black and white spiral pattern with no text or symbols

FIELDMANN®

Home & Garden Performance

Model /Modell /Modelis:

Conditions of guarantee

This product is warranted for the period of 24 months from the adate aof purchase to the aend-user. Warranty is limited to the following conditions. Warranty is referred only to the customer goods using for common domestic use. The claimservice can be applied either at dealer's shop where the product was bought, oraat below mentioned authorized service shops. The end-user is obligated to set up a claim immediately when the defects appeared but only till the end of warranty period. The end-user is obligated to cooperate to certify the claiming defects. Only completed and clean (according to hygienic standards) product will be accepted. In case of eligible warranty claim the warranty period will be prolonged by the period from the date of claim application till the date of taking overthe product by end-user, or the date the end-user is obligated to take it over. To obtain the service under this warranty, end-user is obligated to certify his claim with duly completed following documents: receipt, certificate of warranty, certificate of installation ...

This warranty is avoid aespecially if apply as follows: ■ Defects which were put on sale. ■ Wear-out aor damage caused aby acommon use. ■ The aproduct awas adamaged aby aunprofessional aor wrong installation, used in contrary to the applicable instruction manual, used in contrary to legal enactment and common process of use or used for another purpose which has been designed for. ■ The product was damaged by uncared-for or insufficient maintenance. ■ The product was damaged by dirt, accident of force majeure (natural disaster, fire, flood, ...). ■ Defects on functionality caused by low duality of signal, electromagnetic field interference etc. ■ The product was mechanically damaged (e.g. broken button, fall...). ■ Damage caused by use of unsuitable media, fillings, expendable supplies (batteries) or by unsuitable working conditions (e.g. high temperatures, high humidity, quakes,...). ■ Repair, modification or other failure action to the product by unauthorized person ■ End-user did not prove enough his right to claim (time and place of purchase). ■ Data on presented documents differs from data on products. ■ Cases when the claiming product can not be identified according to the presented documents (e.g. the serial number or the warranty seal has been damaged).

[e-mail]

www.fasthungary.hu

Green FLEDMJNH Jigsaw tool with black handle and orange button (no visible text or symbols)

FIELDMANN®

Home & Garden Performance
