Product Type	Inverter welding machine (MMA/TIG)
Model	ES 150 Turbo
Brand	Herkules
Input Voltage	230 V ± 15% / 50-60 Hz
Input Power	4.5 kVA
Welding Current Range	10 - 150 A
Duty Cycle (40°C)	60% @ 150 A
Welding Processes	MMA (Stick), TIG (Lift/High Frequency)
Electrode Diameter	1.6 - 4.0 mm
No-Load Voltage	65 V
Protection Class	IP21
Insulation Class	F
Cooling	Forced air (fan)
Dimensions (L x W x H)	350 x 140 x 260 mm
Weight	5.5 kg
Accessories Included	Welding torch, electrode holder, ground clamp, brush/hammer
Safety Features	Overheating protection, overcurrent protection, fan delay
Maintenance	Regularly clean dust from fan and vents; check cable connections
Repairability	Replaceable fan, power module; service by qualified technician
Standards	EN 60974-1, EN 60974-3

Frequently Asked Questions - ES 150 Turbo Herkules

What welding processes can the ES 150 Turbo perform?

The ES 150 Turbo supports MMA (Stick) welding and TIG welding (lift arc or high frequency start, depending on model). It is ideal for steel, stainless steel, and some non-ferrous metals.

What is the maximum electrode diameter for MMA welding?

The machine can use electrodes from 1.6 mm up to 4.0 mm for MMA welding. For thicker electrodes, ensure sufficient current setting.

How do I set the welding current?

Turn the current adjustment knob on the front panel. The range is from 10 A to 150 A. Start low and increase gradually while testing on scrap material.

Is TIG welding possible without a gas cylinder?

The ES 150 Turbo supports lift TIG, which does not require high-frequency start but still needs shielding gas (argon). For TIG, connect a torch with gas valve and a gas supply.

What does the duty cycle mean?

Duty cycle is the percentage of a 10-minute period that the welder can operate at a given current without overheating. For the ES 150 Turbo, it is 60% at 150 A, meaning 6 minutes welding, 4 minutes resting.

Can I use this welder on a generator?

Yes, but the generator must provide clean, stable power. Minimum generator capacity should be 5 kVA. Avoid using with sensitive electronics.

What safety precautions should I take?

Always wear a welding helmet with proper shade, gloves, and protective clothing. Ensure good ventilation. Disconnect power before opening the case. Do not touch electrodes or work pieces while welding.

How do I clean and maintain the ES 150 Turbo?

Periodically blow out dust from the internal fan and vents with compressed air. Check cables for damage. For TIG, clean the torch head. Have a qualified technician service the machine annually.

What causes the welder to overheat?

Overheating can be due to exceeding the duty cycle, blocked air vents, or high ambient temperature. The machine has thermal protection that will shut it down until it cools. Ensure proper ventilation.

Where can I find spare parts for the ES 150 Turbo?

Spare parts such as fan, power module, front panel, and cables are available through authorized Herkules service centers or online retailers. Use only genuine parts for safety.

USER MANUAL ES 150 Turbo Herkules

Electric welding transformer ES 150 Turbo

Art.-No.: 15.440.43

Bar-Code: 4006825511567

Sales Unit: 1 pc

Electric welding transformers are especially used for joining by welding of flat-iron, angle iron, tubes or similar material. One great advantage of electric welding is, that the materials might not be warmed up and welding can be started directly at the requested position. Work pieces with various strength can also be welded with each other without any problems.

Features:

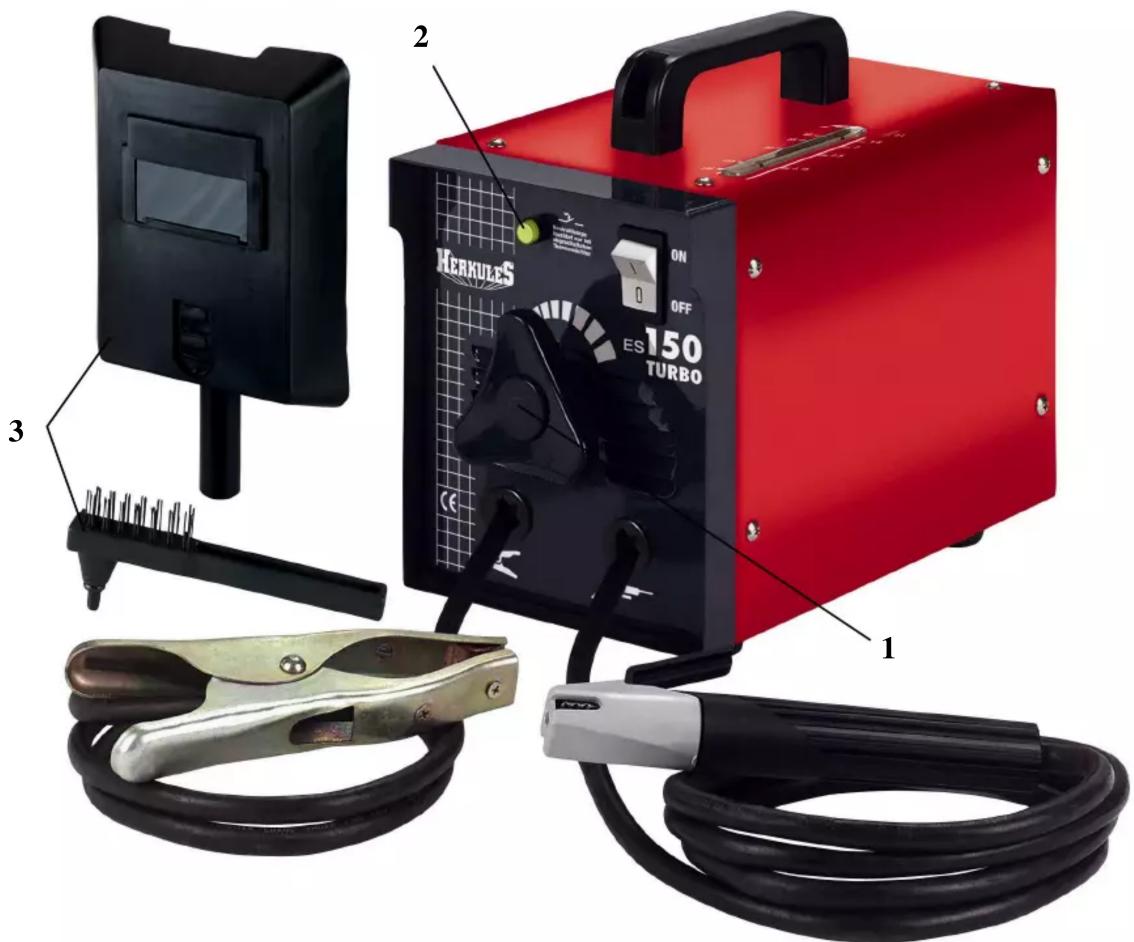

• Continuous adjustable welding current (1)
• Thermal cut-out with control lamp (2)
• Complete with welding accessory (3)
• Portable

Technical data:

• I _kmax : 140 A
• Electrodes: ∅ 2,0 - 2,5 mm
• No.load voltage: 45-48 V
• Mains: 230 V \~ 50 HZ
• Fuse: 16 A
• Weight: 15.08 kg
• Packing dimensions: 405 x 285 x 220 mm

with turbo cooling
