Product Type	Built-in Microwave Oven with Grill and Crisp functions
Brand	Whirlpool
Model	W67 MN840 NB
Power Supply	220-240 V, 50/60 Hz
Microwave Power Levels	750 W, 500 W, 350 W, 160 W, 0 W
Grill Function	Yes, for browning and grilling
Crisp Function	Yes, with special Crisp plate
Combination Cooking	Microwave + Grill
Jet Defrost	Yes, weight-based defrosting
Minuteminder (Timer)	Yes, up to 99 minutes 59 seconds
Display	Digital, time of day and cooking settings
Interior Light	Yes
Turntable	Glass turntable, removable
Accessories Included	Turntable, turntable support, wire rack, Crisp plate, Crisp plate handle
Cleaning Instructions	Interior and exterior: damp microfibre cloth; accessories dishwasher safe except Crisp plate
Safety Lock	Automatic child lock when not in use
Automatic Pause	When door is opened
QR Code	For additional information and registration

Frequently Asked Questions - W67 MN840 NB WHIRLPOOL

How do I set the clock on my Whirlpool W67 MN840 NB oven?

Press the Stop button until the hour digits flash. Use the up/down buttons to set the hour, press Start to confirm, then set minutes and press Start again.

Can I use metal containers in this microwave oven?

No, metal containers are not suitable for microwave cooking. Use microwave-safe glass, ceramic, or plastic containers.

How does the Jet Defrost function work?

Press the Jet Defrost button, set the weight of the food using the up/down buttons, then press Start. The oven will pause briefly during defrosting to allow you to turn the food.

What is the Crisp function and how do I use it?

The Crisp function browns food on both top and bottom using a special Crisp plate. Place the food directly on the plate and select the Crisp function. Preheat the plate for 2-3 minutes if needed.

How do I clean the interior of the oven?

Clean interior surfaces with a damp microfibre cloth. For tough stains, use a mild pH-neutral detergent. Avoid abrasive cleaners. The grill does not require cleaning as heat burns off residue.

Why is my oven not working?

Check if there is a power cut or if the oven is disconnected. If the display shows 'Err', contact the after-sales service with the code following 'Err'.

Can I use the wire rack with microwave functions?

The wire rack is for grill and combination cooking only. Do not use it with microwave-only functions as it may cause arcing.

How do I set the Minuteminder timer?

Select Minuteminder, set the desired time using up/down buttons, set power to 0 W, then press Start. The timer will count down without cooking.

What accessories are dishwasher safe?

The turntable, turntable support, and wire rack are dishwasher safe. The Crisp plate should be hand-washed with mild detergent.

How do I preheat the Crisp plate?

Select the Crisp function with no food, and preheat for 2-3 minutes. Do not exceed the recommended preheating time to avoid damage.

USER MANUAL W67 MN840 NB WHIRLPOOL

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT

In order to receive a more complete assistance, please register your product on www.whirlpool.eu/register

Before using the appliance carefully read the Safety Instruction.

PLEASE SCAN THE QR CODE ON YOUR APPLIANCE IN ORDER TO REACH MORE INFORMATION

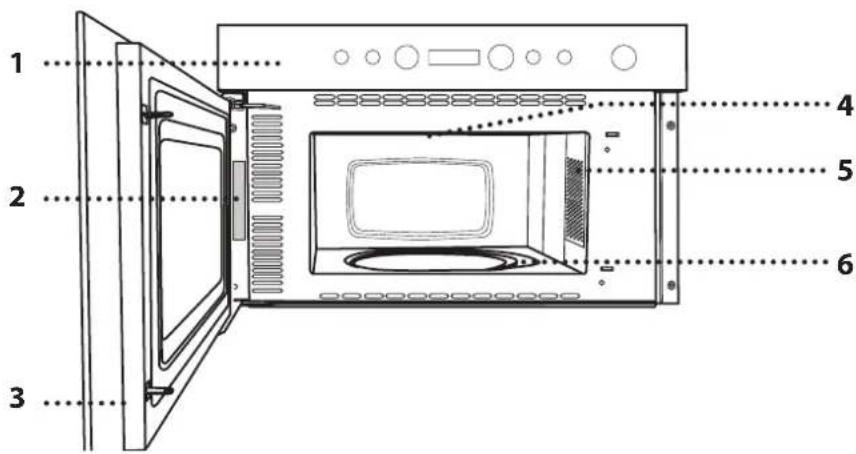

PRODUCT DESCRIPTION

1. Control panel
2. Identification plate (do not remove)
3. Door
4. Grill
5. Light
6. Turntable

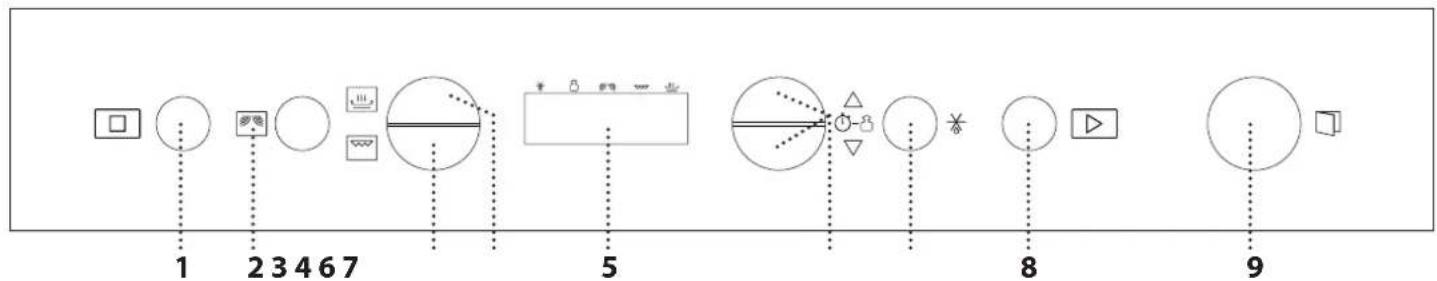

CONTROL PANEL DESCRIPTION

1. STOP

For stopping a function or an audible signal, cancelling the settings and switching off the oven.

2. MICROWAVE FUNCTION/POWER

For selecting the microwave function and setting the required power level.

1. GRILL FUNCTION

2. CRISP FUNCTION

3. DISPLAY

4. • / - BUTTONS

For adjusting the settings of a function (e.g. length, weight).

1. JET DEFROST FUNCTION
2. START
   For starting a function.
3. DOOR OPENING BUTTON

ACCESSORIES

TURNTABLE

Placed on its support, the glass turntable can be used with all cooking methods.

The turntable must always be used

as a base for other containers or accessories.

TURNTABLE SUPPORT

Only use the support for the glass turntable.

Do not rest other accessories on the support.

WIRE RACK

This allows you to place food closer to the grill, for perfectly browning your dish. Place the wire rack on the turntable, making sure that it does not come into contact with other surfaces.

The number and the type of accessories may vary depending on which model is purchased.

There are a number of accessories available on the market. Before you buy, ensure they are suitable for microwave use and resistant to oven temperatures.

Metallic containers for food or drink should never be used during microwave cooking.

CRISP PLATE

Only for use with the designated functions. The Crisp plate must always be placed in the centre of the glass turntable and can be preheated when empty, using the

special function for this purpose only. Place the food directly on the Crisp plate.

HANDLE FOR CRISP PLATE

Useful for removing the hot Crisp plate from the oven.

Other accessories that are not supplied can be purchased separately from the After-sales Service.

Always ensure that foods and accessories do not come into contact with the inside walls of the oven.

Always ensure that the turntable is able to turn freely before starting the oven. Take care not to unseat the turntable whilst inserting or removing other accessories.

FUNCTIONS

MICROWAVE

For quickly cooking and reheating food or drinks.

750 W	Quickly reheating drinks or other foods with a high water content or meat and vegetables.
500 W	Cooking fish, meaty sauces, or sauces containing cheese or egg. Finishing off meat pies or pasta bakes.
350 W	Slow, gently cooking. Perfect for melting butter or chocolate.
160 W	Defrosting frozen food or softening butter and cheese.

0 W When using the minuteminder only.

GRILL

For browning, grilling and gratins when used alone. We recommend turning the food during cooking. For best results, preheat the grill for 3-5 minutes. For quickly cooking and gratinating dishes, combines with microwaves.

- GRILL + MW

For quickly cooking entrées (even au gratin) using both microwaves and the grill. It is useful for cooking food like lasagne, fish and potato gratins.

Required accessory: Wire rack

CRISP

For perfectly browning a dish, both on the top and bottom of the food. This function must only be used with the special crisp plate. This function must only be used with the special Crisp-plate provided, which must be placed at the centre of the glass turntable. It is recommended to preheat the plate for 2-3 minutes before cooking any food items that do not require long cooking times, like pizza or desserts.

DURATION (min) RECOMMENDED FOR

3 - 4 Cookies (8- 10 pieces)

7 - 8 Frozen pizza (350 g)

7 - 9 Sponge cake (500 g)

8 - 10 Fish fingers (8 pieces)

9 - 10 Pizza (350 g)

10 - 14 French fries (200 - 300g)

13 - 15 Quiche Lorraine (500 g)

Required accessory: Crisp plate, handle for the crisp plate.

DAILY USE

. SELECT A FUNCTION

Simply press the button for the function you require to select it.

. SET THE LENGTH

After selecting the function you require, use △ or to set the length for it to run.

The time can be changed during cooking by pressing △ or ▽ or by increasing the length for 30 seconds each time by pressing ▶.

Press as many times as required to select the power level for the microwave.

To use the microwave in combination with the grill, select the "Grill" function by pressing ▼ and then use ▼ to set the microwave power.

Please note: You can also change this setting during cooking by pressing 📋.

.JET DEFROST

Press, then use or to set the weight of the food. During defrosting, the function will pause briefly to allow

you to turn the food. Once the operation is complete, close the door and press ▶.

. ACTIVATE THE FUNCTION

Once you have applied the settings you require, press ▶ to activate the function.

Every time the ▶ button is pressed again, the cooking time will be increased by a further 30 seconds.

You can press at any time to stop the function that is currently active.

JET DEFROST

For quickly defrosting various different types of food simply by specifying their weight. Food should be placed directly onto the glass turntable. Turn the food when prompted. Food should be placed directly onto the glass turntable. Turn the food when prompted. A standing time after defrosting always improves the result.

. JET START

When the oven is switched off, press to activate cooking with the microwave function set at full power (750 W) for 30 seconds.

.PAUSE

To pause an active function, for example to stir or turn the food, simply open the door.

To start it up again, close the door and press ▶.

.SAFETY LOCK

This function is automatically activated to prevent the oven from being switched on accidentally. Open and

close the door, then press ▶ to start the function.

. SET THE TIME OF THE DAY

Press until the two digits for the hour (on the left) starting flashing.

Use △ or to set the correct hour

and press ▶ to confirm: The minutes will flash on the display. Use △ or to set the minutes and press to ▶ confirm.

Please note: You may need to set the time again following lengthy power outages.

. MINUTEMINDER

The display cas be used as a timer. To activate the function and set the length of time you require, use △ or .Press to set the power to 0 W, then press to ▶ activate the countdown.

Please note: The timer does not activate any of the cooking cycles. To stop the timer at any time, press ☐.

CLEANING

Make sure that the appliance has cooled down before carrying out any maintenance or cleaning.

Never use steam clening equipment.

Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance.

INTERIOR AND EXTERIOR SURFACES

• Clean the surfaces with a damp microfibre cloth. If they are very dirty, add a few drops of pH-neutral detergent. Finish off with a dry cloth.
• Clean the glass in the door with a suitable liquid detergent.
• At regular intervals, or in case of spills, remove the turntable and its support to clean the bottom of the oven, removing all food residue.
• The grill does not need to be cleaned as the intense heat burns away any dirt. Use this function on a regular basis.

ACCESSORIES

All accessories are dishwasher safe with the exception of the crisp plate. The crisp plate should be cleaned using water and a mild detergent. For stubborn dirt, rub gently with a cloth. Always leave the crisp plate to cool down before cleaning.

TROUBLESHOOTING

Problem Possible cause Solution
The oven is not working.	Power cut.Disconnection from the mains.	Check for the presence of mains electrical power and whether the oven is connected to the electricity supply.Turn off the oven and restart it to see if the fault persists.
The display is showing “Err”. Software fault.		Contact you nearest After-sales Service Centre and state the letter or number that follows “Err”.

Policies, standard documentation and additional product information can be found by:

• Using the QR code in your appliance
- Visiting our website docs.whirlpool.eu
• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.
