Product Type	Freezer (Upright)
Brand	Guzzanti
Model	GZ 91
Dimensions (H x W x D)	Approx. 85 x 60 x 60 cm
Net Weight	Approx. 50 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	Approx. 100 W
Energy Class	E (typical for older models)
Freezing Capacity	Up to 10 kg per 24 hours
Storage Capacity	Approx. 200 liters
Temperature Range	-18°C (adjustable)
Noise Level	Approx. 42 dB
Defrost Type	Manual / No Frost (typical)
Interior Light	Yes
Door Reversibility	Yes
Castors / Feet	Adjustable feet
Lockable Door	Optional
Refrigerant	R600a
Climate Class	ST (subtropical)
Freezer Star Rating	4 stars (****)
Maintenance & Cleaning	Defrost regularly, clean interior with mild detergent
Safety Features	Thermostatic control, door alarm (optional)
Spare Parts Availability	Contact authorized service, typical supply for 10 years
Repairability Index	Score of 7.5/10

Frequently Asked Questions - GZ 91 Guzzanti

How do I install the Guzzanti GZ 91 freezer?

Place the freezer on a level, stable surface away from heat sources. Allow at least 10 cm clearance around the unit for ventilation. Plug into a grounded outlet. Let it stand for 2 hours before turning on.

What is the optimal temperature setting for the freezer?

The recommended temperature is -18°C for long-term food storage. Adjust using the thermostat dial. Avoid frequent changes to maintain efficiency.

How do I defrost the GZ 91?

If your model is manual defrost, turn off the freezer, remove food, and let ice melt. Use a plastic scraper if needed. Do not use sharp objects or heaters. Dry thoroughly before restarting.

How often should I clean the freezer?

Clean the interior every 3-4 months or when spills occur. Use a mild soap solution and warm water. Wipe the door seals regularly. Unplug before cleaning.

What should I do during a power outage?

Keep the door closed. A full freezer can keep food frozen for about 24 hours. Avoid opening unless necessary. Once power resumes, check food condition.

Why is the freezer making noise?

Normal operation includes sounds from the compressor, fan, and refrigerant flow. Ensure the freezer is level and not touching walls. If loud or unusual, check for loose parts.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the manual for step-by-step instructions. You will need a screwdriver and possibly a wrench. Ensure proper alignment after reversal.

How do I adjust the temperature?

Turn the thermostat dial inside the freezer. Higher numbers mean colder settings. Start at a medium setting and adjust based on your needs. Allow 24 hours for stabilization.

Is the freezer suitable for outdoor use?

No, the GZ 91 is designed for indoor use only. It should be kept in a dry, well-ventilated area with ambient temperatures between 10°C and 38°C.

Where can I find spare parts for my Guzzanti freezer?

Contact an authorized Guzzanti service center or visit the official website. Common parts like shelves and thermostats are available. Provide the model number GZ 91.

USER MANUAL GZ 91 Guzzanti

Line drawing of a refrigerator with top shelf and side arm (no text or symbols)

Line drawing of a mechanical component with a circular inset showing a labeled part (no text or symbols present)

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

Line drawing of a vehicle with a circular inset showing a mechanical component (no text or symbols)

Simple line drawing of a rectangular frame with circular arrows indicating rotation or movement (no text or symbols)

Simple line drawing of a desk with a lamp and a small circular icon (no text or symbols)

Simple line drawing of a rectangular desk with a lid and a circular label containing the number 4 (no text or symbols on the desk itself)

Instalace madla

Požadovaný prostor

Umístění

Line drawing of a hand placing a rectangular object on a shelf (no text or symbols)

Symbol of a trash bin crossed with two diagonal lines, representing no waste or discharge (no text or labels)

Line drawing of a simple refrigerator with top and side views (no text or symbols)

Line drawing of a mechanical component with a labeled inset showing a magnified view (no text or symbols present)

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

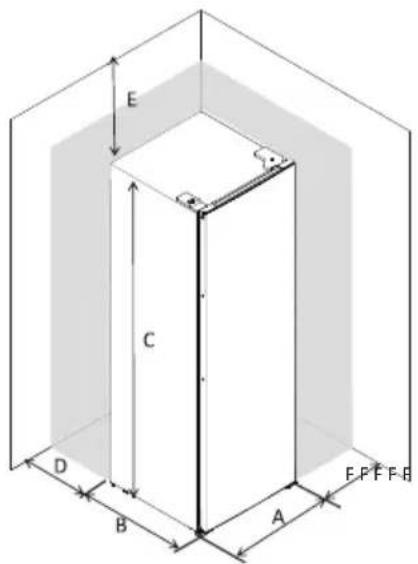

Požadovaný priestor

• Dvere nechajte dostatočne otvorené.

A	480
B	450
C	850
D	min=6
E	min=50
F	min=50
G	960
H	930

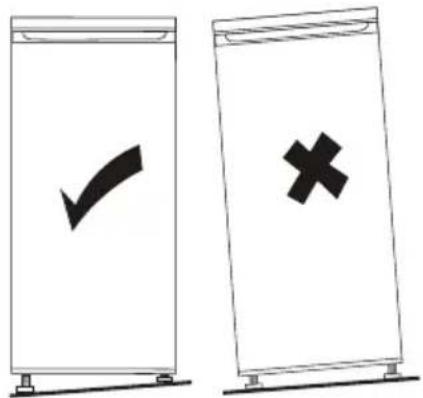

Vyrovnanie spotrebiča

Umiestnenie

Tento spotrebič inštalujte na miesto, kde okolitá teplota zodpovedá klimatickej triede uvedenej na typovom štítku spotrebiča:

pre chladiace spotrebiče s klimatickou triedou:

Line drawing of a hand holding a shelf with a ruler, no text or symbols present

Pure diagram of a toggle switch or lever mechanism without any text, numbers, or symbols

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Line drawing of a simple refrigerator with top and side legs (no text or symbols)

Line drawing of a mechanical component with a circular inset showing a labeled part (no text or symbols present)

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

Wymagana przestrzeń

Lokalizacja

Line drawing of a hand placing a rectangular object on a shelf (no text or symbols)

Pure diagram of a toggle switch or lever mechanism without any text, numbers, or symbols

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

Line drawing of a refrigerator with top panel and side arm (no text or symbols)

Line drawing of a mechanical component with a circular inset showing a labeled part (no text or symbols present)

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

Elhelyezés

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Line drawing of a simple kitchen appliance with a lid and handle (no text or symbols)

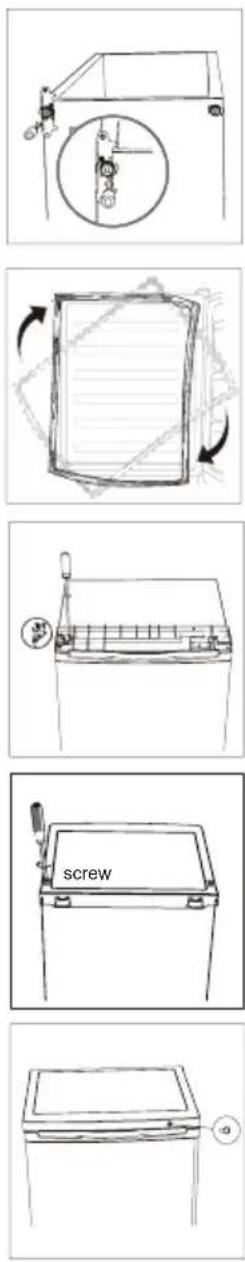

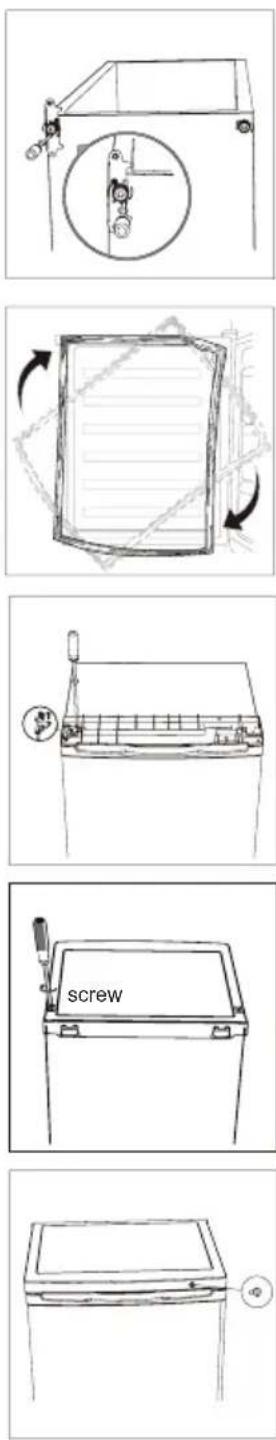

1. Odstranite levi zgornji pokrov vijakov.

Line drawing of a mechanical device with a dial indicator and a circular label (no text or symbols)

1. Prestavite pokrov z leve na desno stran. Dvignite zgornja vrata in položite jih na mehko površino, da se ne poškodujejo.

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

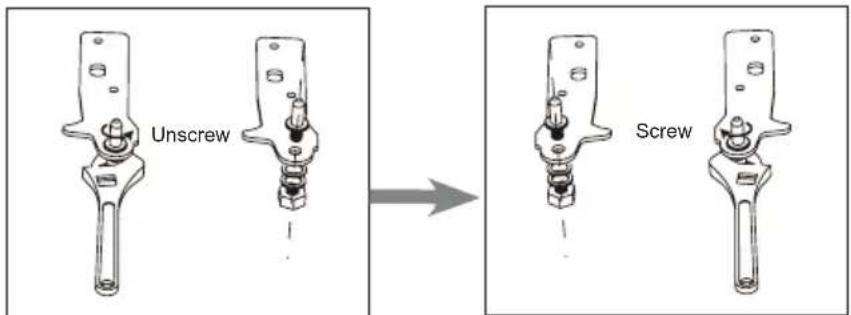

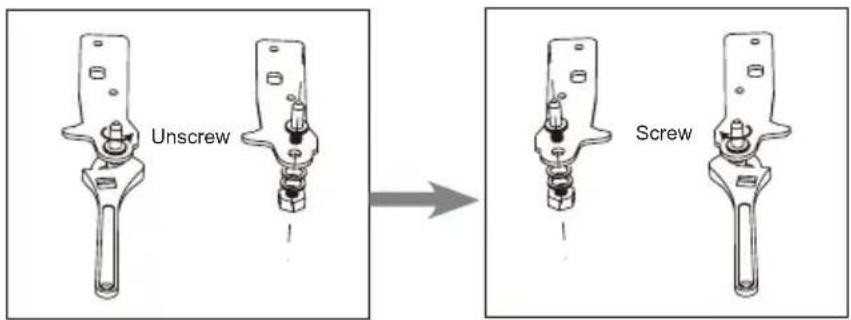

1. Odvijte in odstranite zatič tečaja, obrnite nosilec in ga zamenjajte.

1. Namestite nosilec tako, da se prilega zatiču tečaja. Premaknite obe nastavljivi nogi.

2. Ponovno namestite vrata. Preden končno privijete zgornji tečaj, se prepričajte, da so vrata vodoravno in navpično poravnana, da so tesnila pravilno nameščena na vseh straneh.

3. Namestite nosilec tečaja in privijte ga na zgornji del aparata.

4. Po potrebi ga privijte s ključem.

5. Namestite pokrov tečaja in pokrov vijaka.

6. Odstranite tesnilo vrat, obrnite ga in znova pritrdite.

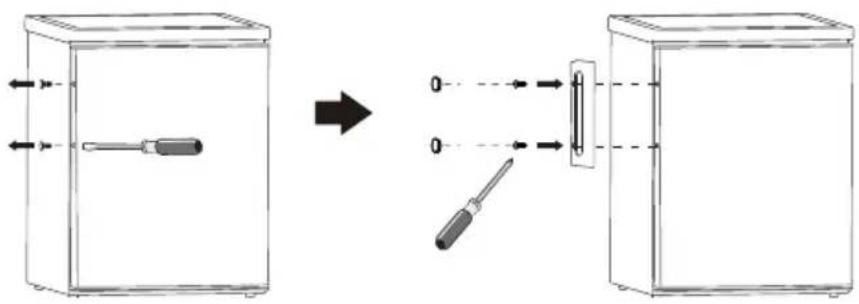

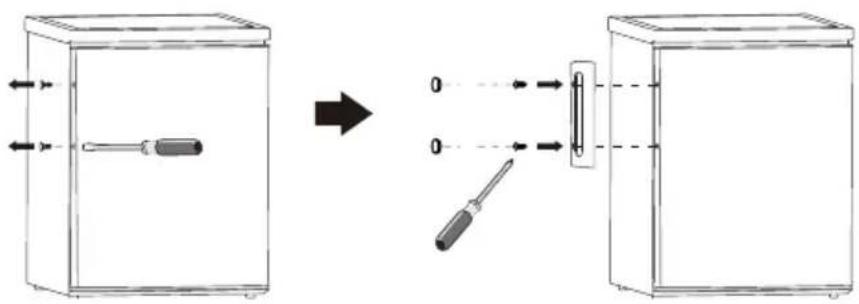

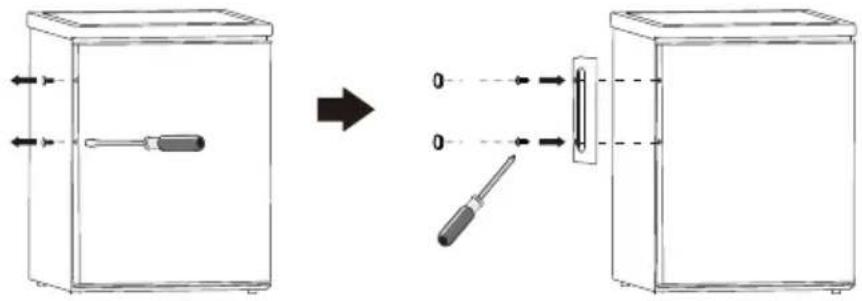

Namestitev ročaja

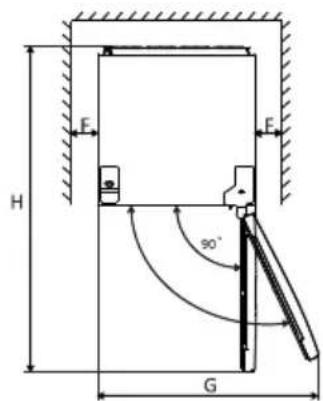

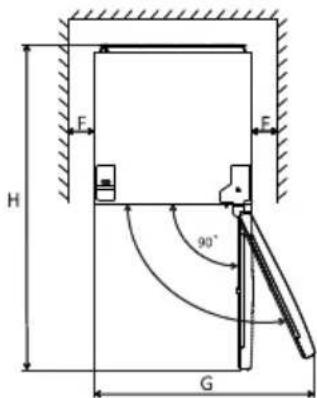

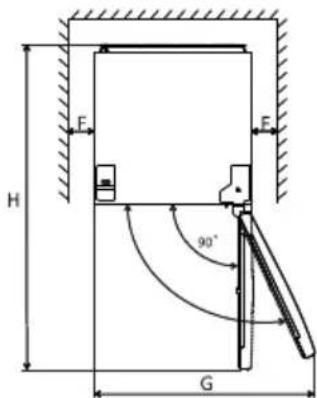

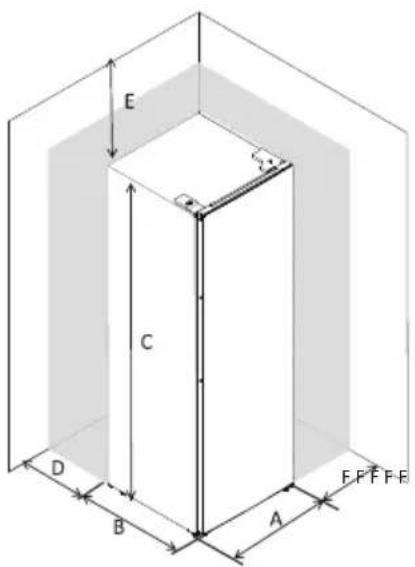

Zahteve glede prostora

- Vrata se morajo popolnoma odpirati.

A	480
B	450
C	850
D	min=05
E	min=50
F	min=50
G	960
H	930

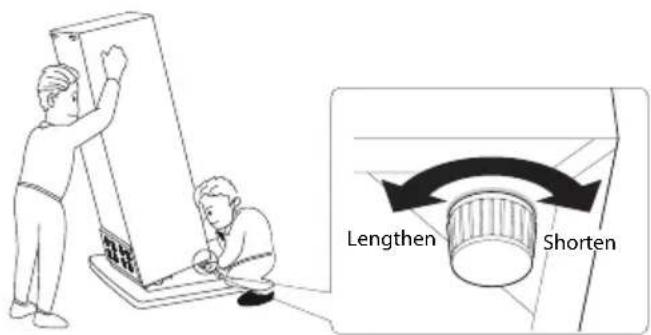

Uravnoteženje aparata

Namestitev

Aparat namestite na mestu, kjer temperatura okolice ustreza klimatskemu razredu, ki je naveden na tablici: za hladilne aparate s klimatskim razredom:

Line drawing of a hand adjusting a shelf with a wooden board (no text or symbols)

Koristni nasveti in namigi

Pure diagram of a toggle switch or lever mechanism without any text, numbers, or symbols

Odpravljanje težav

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Disposal of the appliance

Line drawing of a simple kitchen appliance with a lid and handle (no text or symbols)

Line drawing of a mechanical component with a hanging pin and a circular label (no text or symbols)

Technical line drawing of a mechanical device with a circular inset showing internal components (no text or symbols)

Notwendiger Freiraum

Standortauswahl

Line drawing of a hand holding a shelf with a ruler, no text or symbols present

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children should be supervised to ensure that they do not play with the appliance.
  • Children aged from 3 to 8 years are allowed to load and unload this appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING! Do not damage the refrigerant circuit.

WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.

WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot. ^1)

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

• avoid open flames and sources of ignition
• thoroughly ventilate the room in which the appliance is situated
• It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.
  • This appliance is intended to be used in household and similar applications such as
• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING! Any electrical components(plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.

WARNING! The light bulb supplied with this appliance is a "special use lamp bulb" usable only with the appliance supplied. This "special use lamp" is not usable for domestic lighting!

1) If there is a light in the compartment.

• Power cord must not be lengthened.
• Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.

• Make sure that you can come to the mains plug of the appliance.

• Do not pull the mains cable.

• If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

• You must not operate the appliance without the lamp.

• This appliance is heavy. Care should be taken when moving it.

- Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.

- Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

• Do not put hot on the plastic parts in the appliance.
• Do not place food products directly against the rear wall.
• Frozen food must not be re-frozen once it has been thawed out.
• Store pre-packed frozen food in accordance with the frozen food manufacture,s instructions.
• Appliance's manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance. ^1)
• Ice lollies can cause frost burns if consumed straight from the appliance.
  • To avoid contamination of food, please respect the following inst ruct ions
• Opening the door for long periods can cause a significant increase of the temperature in the compartment soft he appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean watertanksifthey have not been used for 48h; flush thew a ter syst em connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two - star frozen-food compartment s( if they are present ed in the appliance) are suitable for storing pre-froz en food, storing or making ice-cream and making ice cubes.
• One-, two-and-three-star compartments(if they are presented in the appliance) are not suitable for the freezing of fresh food.
• If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
- Do not clean the appliance with metal objects.
- Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
- Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance. ^2)

1) If there is a freezer compartment.
2) If there is a fresh-food storage compartment.

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
  • The appliance must not be located close to radiators or cookers.
  • Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
  • This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energy saving

• Don't put hot food in the appliance;
• Don't pack food close together as this prevents air circulating;
• Make sure food don't touch the back of the compartment(s);
• If electricity goes off, don't open the door(s);
• Don't open the door(s) frequently;
• Don't keep the door(s) open for too long time;
• Don't set the thermostat on exceeding cold temperatures;
• Some accessories, such as drawers, can be removed to get larger storage volume and lower energy consumption.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger. The materials used on this appliance marked by the symbol are recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging materials

The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it.

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.

2. Cut off the mains cable and discard it.

⚠ WARNING! During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

Note: Above picture is for reference only. Real appliance probably is different.

Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.

• Ensure the unit is unplugged and empty.
• To take the door off, it is necessary to tilt the unit backwards. You should rest the unit on something solid so that it will not slip during the door reversing process.
• All parts removed must be saved to do the reinstallation of the door.
  • Do not lay the unit flat as this may damage the coolant system.

• It's better that 2 people handle the unit during assembly.

• Remove two screws at rear side of top cover.

• Remove top cover and thermostat knob, then place it aside.

• Unscrew top hinge and then remove door and place it on a soft pad to avoid scratch.

• Unscrew bottom hinge. Then remove the adjustable feet from both side.

Line drawing of a refrigerator with top panel and side arm (no text or symbols)

Line drawing of a mechanical component with a circular inset showing a labeled part (no text or symbols present)

Technical line drawing of a mechanical device with a circular inset showing a lever mechanism (no text or symbols)

1. Unscrew and remove the bottom hinge pin, turn bracket over and replace it.

1. Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet.

2. Detach the Fridge and the Freezer door gasket and then attach them after rotating.

3. Place the door back on. Ensure the door is aligned horizontally and vertically, so that the seals are closed on all sides before finally tightening the top hinge.

4. Put the top cover and fix it with 2 screws on the back.

5. Fix the thermostat knob.

Install door handle

Space Requirement

- Keep enough space of door open.

A	480
B	450
C	850
D	min=05
E	min=50
F	min=50
G	960
H	930

Levelling the unit

To do this adjust the two levelling feet at front of the unit.

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

for refrigerating appliances with climate class:

• extended temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C; (SN)
• temperate: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C:(N)
• subtropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C:(ST)
• tropical: this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C; (T)

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc.

WARNING! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives.

Temperature setting recommendation

Temperature Setting Recommendation
Environment	Freezer compartment Fridge compartment
Summer	/
		Set on 3~4
Normal	/
		Set on 3~4
Winter	/
		Set on 2~3

• Information above give users recommendation of temperature setting

Impact on Food Storage

• Under Recommended setting, the best storage time of fridge is no more than 3 days.
• The best storage time may reduce under other settings.

Daily use

Position different food in different compartments according to be below table

Refrigerator compartments Type of food
Door and balconies • Food with natural preservatives, such as jams, juices, drinks, condiments. • Don’t store perishable foods.
Crisper • Fruit, herbs and vegetables should be placed separately in the crisper bin. • Don’t store bananas, onions, potatoes, garlic in the refrigerator.
Fridge shelf • Daily products eggs;	• Foods that do not need cooling, such as ready to eat foods deli meat, leftovers.
Freezer compartment • foods foe long-term storage.

This refrigerating appliance is not suitable for freezing foodstuffs.

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Temperature Setting

• Plug on your appliance. The internal temperature is controlled by a thermostat. There are 6(8)settings . 1 is warmest setting and 5 (7)is coldest setting and 0 is off.
• The appliance may not operate at the correct temperature if it is in a particularly hot or if you open the door often.
• This refrigerating appliance is not suitable for freezing foodstuffs.

Accessories

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Line drawing of a hand holding a shelf with a ruler, no text or symbols present

Helpful hints and tips

Hints for fresh food refrigeration

To obtain the best performance:

• Do not store warm food or evaporating liquids in the refrigerator
• Do cover or wrap the food, particularly if it has a strong flavour

Hints for refrigeration

Useful hints:

• Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.
• For safety, store in this way only one or two days at the most.
• Cooked foods, cold dishes, etc...: these should be covered and may be placed on any shelf.
• Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
• Butter and cheese: these should be placed in special airtight containers or wrapped in aluminum foil or polythene bags to exclude as much air as possible.
• Milk bottle: these should have a cap and should be stored in the balconies on the door.
• Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

CAUTION! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

• Do not allow such substances to come into contact the appliance parts.
• Do not use any abrasive cleaners
- Remove the food from the freezer. Store them in a cool place, well covered.
- Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
- Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
• After everything is dry place appliance back into service.

Replace the lamp

- The internal light is a LED type. To replace the lamp, please contact qualified technician.

Troubleshooting

CAUTION! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem Possible	cause Solution
Appliance does not work.	Temperature regulation knob is set at number “0”.	Set the knob at other numberto switch on the appliance.
	Mains plug is not plugged in or is loose.	Insert mains plug.
	Fuse has blown or is defective. Check fuse, replace if necessary.
	Socket is defective.	Mains malfunctions are to be corrected by an electrician.
The food is too warm.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Appliance cools too much.	Temperature is set too cold.	Turn the temperature regulation knob to a warmer setting temporarily.
Unusual noises.	Appliance is not level. Re-adjust the feet.
	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
Water on the floor. Water drain hole is blocked. See the Cleaning section.
Side panels are hot.	It's normal. Heat exchange parts are in the sides.	Take gloves to touch sides.

If the malfunction shows again, contact the Service Center.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC EQUIPMENT

Symbol of a trash bin crossed with no text or numbers, representing environmental restriction (no text present)

This symbol on products or original documents means that used electric or electronic products must not be added to ordinary municipal waste. For proper disposal, renewal and recycling hand over these appliances to determined collection points. Alternatively, in some European Union states or other European countries you may return your appliances to the local retailer when buying an equivalent new appliance. Correct disposal of this product helps save valuable natural resources and prevents potential negative effects on the environment and human health, which could result from improper waste disposal. Ask your local authorities or collection facility for more details. In accordance with national regulations penalties may be imposed for the incorrect disposal of this type of waste.

For business entities in European Union states

If you want to dispose of electric or electronic appliances, ask your retailer or supplier for the necessary information.

Disposal in other countries outside the European Union.

This symbol is valid in the European Union. If you wish to dispose of this product, request the necessary information about the correct disposal method from the local council or from your retailer.
