LX20 - Motion detector Elektrobock - Free user manual and instructions
Find the device manual for free LX20 Elektrobock in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Motion Detector |
| Model | LX20 |
| Brand | Elektrobock |
| Installation Type | Ceiling Mount |
| Detection Method | Passive Infrared (PIR) |
| Detection Angle | 180° |
| Detection Range | Up to 12 meters (depending on mounting height) |
| Power Supply | 230V AC, 50Hz |
| Power Consumption | < 0.5W (standby) |
| Dimensions (H x W x D) | 100 mm x 80 mm x 60 mm |
| Weight | 0.1 kg |
| IP Rating | IP20 (indoor use) |
| Operating Temperature | -10°C to +40°C |
| Adjustable Time Delay | 10 seconds to 15 minutes |
| Adjustable Light Sensor | Yes (3 lux to 2000 lux) |
| Mounting Height | 2.0 to 4.0 meters |
| Output Load | Max 1000W (incandescent), 300W (LED) |
| Cleaning | Wipe with dry cloth; do not use solvents |
| Safety | Disconnect power before installation or maintenance |
| Spare Parts | Not available; device must be replaced if defective |
| Repairability | Non-repairable; contact manufacturer for warranty |
Frequently Asked Questions - LX20 Elektrobock
How do I install the LX20 motion detector?
Mount the detector on the ceiling using the provided screws. Connect the wires to the terminal block: L (live), N (neutral), and load. Ensure the power is off before installation. Set the desired time delay and light level using the switches.
What is the detection range of the LX20?
The detection range is up to 12 meters when mounted at a height of 2.0 to 4.0 meters. The detection angle is 180 degrees.
How do I adjust the time delay?
Use the built-in potentiometer or DIP switches (refer to the manual). Typical settings range from 10 seconds to 15 minutes.
Can the LX20 be used outdoors?
No, the LX20 has an IP20 rating, making it suitable only for indoor use. Exposure to moisture or dust may damage the device.
What should I do if the sensor does not detect movement?
Check the power supply, ensure the light level setting is appropriate (sensor may be disabled in daylight), and verify that the detection zone is not obstructed. Also, confirm that the mounting height is within 2-4 meters.
How do I clean the motion detector?
Use a soft, dry cloth to wipe the surface. Do not use any chemicals or abrasive cleaners. Avoid spraying liquid directly on the device.
What type of load can the LX20 control?
The LX20 can control resistive loads up to 1000W (incandescent) and LED loads up to 300W. Ensure the total load does not exceed the maximum rating.
How do I reset the LX20 to factory settings?
Turn off the power for at least 10 seconds, then turn it back on. This will reset the device to default settings. If the issue persists, consult the manual.
Why does the light turn on and off repeatedly?
This may be due to a too short time delay setting or interference from other heat sources (e.g., heaters). Increase the time delay or reposition the sensor away from heat sources.
Is the LX20 compatible with LED bulbs?
Yes, but ensure the total LED load does not exceed 300W. Some LED drivers may cause flickering; in that case, try using a different brand or adjust the light sensor setting.
User questions about LX20 Elektrobock
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Motion detector in PDF format for free! Find your manual LX20 - Elektrobock and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. LX20 by Elektrobock.
USER MANUAL LX20 Elektrobock
STROPNÍ POHYBOVÉ ČIDLO LX 20

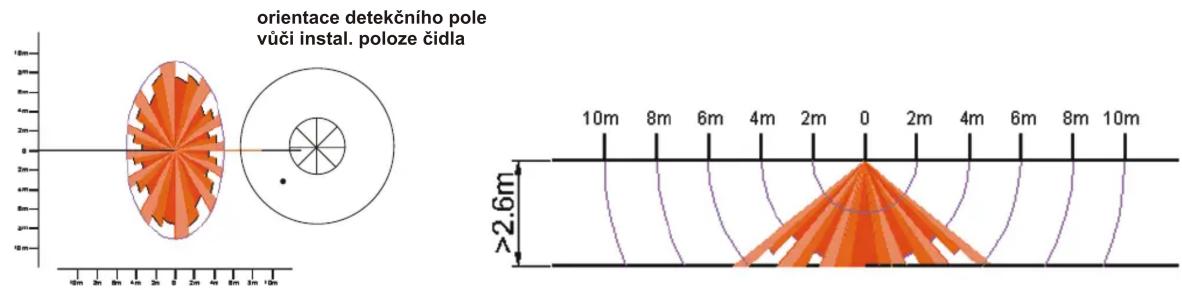

Detekční pole:
Funkce přepínače:
