Product Type	Garden Hose
Brand	Holzmann
Model	WSR15M
Category	Garden Hose
Length	15 m (49.2 ft)
Diameter	1/2 inch (12.7 mm)
Material	PVC with reinforcement
Connector Type	3/4 inch GHT standard
Max Working Pressure	8 bar (116 psi)
Temperature Range	-5°C to 60°C (23°F to 140°F)
Weight	Approx. 1.5 kg (3.3 lbs)
UV Resistant	Yes
Kink Resistant	Yes
Anti-Burst	Yes
Flexibility	High flexibility even in cold weather
Maintenance	Clean with mild soap and water; store in a cool, dry place away from direct sunlight
Safety	Do not exceed maximum pressure; keep away from sharp objects and heat sources
Spare Parts Available	Replacement connectors, washers, and repair kits
Reparability	Yes, user-repairable with common tools
Warranty	2 years (subject to terms)

Frequently Asked Questions - WSR15M Holzmann

What is the length of the WSR15M garden hose?

The WSR15M hose is 15 meters (49.2 feet) long, ideal for typical garden use.

Is the hose UV resistant?

Yes, the hose is UV resistant, which helps prevent damage from prolonged sun exposure.

Can I use the hose with hot water?

The hose can handle water up to 60°C (140°F). Do not use water hotter than this to avoid damage.

What type of connectors does it use?

It uses standard 3/4 inch GHT (garden hose thread) connectors, compatible with most faucets and accessories.

How do I clean the hose?

Clean with mild soap and water, rinse thoroughly, and let dry before storing in a cool, dry place.

Is the hose safe for drinking water?

The material is not certified for drinking water. Use only for gardening and general outdoor purposes.

What is the maximum pressure?

The maximum working pressure is 8 bar (116 psi). Exceeding this may cause bursting.

How do I repair a leak?

For small leaks, use a hose repair kit to replace the damaged section or connector. Ensure the hose is dry before repair.

Can I use it with a pressure washer?

It is not recommended for pressure washers, as the hose may not withstand high output pressure. Use a dedicated high-pressure hose instead.

Where can I find spare parts?

Spare parts like connectors, washers, and repair kits are available from Holzmann dealers or online retailers.

USER MANUAL WSR15M Holzmann

Exterior view of a WSR 15M water pump with red and gray components (no text or symbols on the pump body)

WSR 15M

1 INHALT /INDEX

9.1 Intended Use....8
9.2 Security instructions .... 8

10 ASSEMBLY 8

11 OPERATION 9

11.1 Operation instructions....9
11.2 Operation 9
11.3 Unroll the hose....9
11.4 Roll up the hose....9
11.5 Disposal....9

13 ERSATZTEILE / SPARE PARTS 10

EC-CONFORM: This product complies with EC-directives

DE

READ THE MANUAL! Read the user and maintenance manual carefully and get familiar with the controls in order to use the machine correctly and to avoid injuries and machine defects.

DE

ATTENTION! Note safety signs

DE

Warning against thrown-off items when open the spring cover!

6 BETRIEB

This manual contains information and important instructions for the installation and correct use of the mortising machine LBM 250C.

Following the usual commercial name of the device (see cover) is substituted in this manual with the name "machine".

This manual is part of the product and shall not be stored separately from the product. Save it for later reference and if you let other people use the product, add this instruction manual to the product.

Please read and obey the security instructions!

Before first use read this manual carefully. It eases the correct use of the product and prevents misunderstanding and damages of product and the user's health.

Due to constant advancements in product design, construction pictures and content may diverse slightly. However, if you discover any errors, inform us please.

Technical specifications are subject to changes!

Please check the product contents immediately after receipt for any eventual transport damage or missing parts.

Claims from transport damage or missing parts must be placed immediately after initial product receipt and unpacking before putting the product into operation.

Please understand that later claims cannot be accepted anymore.

Copyright

© 2016

This document is protected by international copyright law. Any unauthorized duplication, translation or use of pictures, illustrations or text of this manual will be pursued by law. Court of jurisdiction is the Landesgericht Linz or the competent court for 4170 Haslach, Austria!

Customer service contact

The WSR 15M has been designed for use in private households and is not intended for commercial use.

The manufacturer is not responsible for any damages that may occur on account of improper use or wrong operations.

The WSR 15M is used for:

Connecting with a domestic water supply

After use, the hose can be recoiled automatically by one simple pull. The WSR 15M is mounted to the wall with the enclosed wall mount. It has a variable swivel range of up 180 degrees.

9.2 Security instructions

	This product is not intended for use by persons (including children) with limited physical, sensoric or mental capacities or lack of experience and/or skills, unless such persons are accompanied and supervised by a person in charge of their safety or if they received precise instructions on the use of this product. Children should be supervised to prevent them from playing with the product.
	STORAGE NOTES: · Ensure that the hose is completely drained prior to storing it. · Store the appliance in a frost free area.

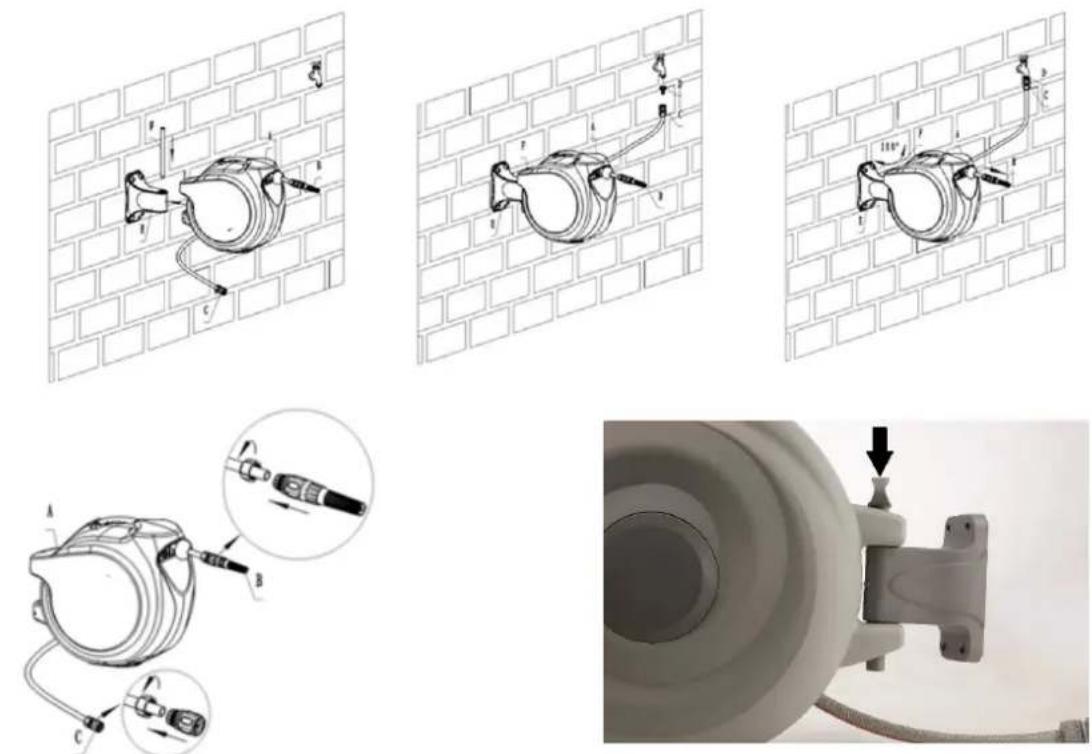

10 ASSEMBLY

Assemble the wall mount near a domestic water supply! The installation (see figure) is depending on the mounting location and height selectable. Mind the right dimension when drilling the holes.

11 OPERATION

11.1 Operation instructions

• If the hose is rolled out in full length try not to pull further since the hose could be ruptured in the process and can harm you because of thereby malfunction.
• Make sure the hose has free return play. It should not be too dirty when it is coiled to ensure the proper function of the automatic retraction/recoiling.

11.2 Operation

The return spring controls the automatic winding mechanism - a locking mechanism which locks the pulling out of the hose. The hose can be fixed at the selected length. You can mount the WSR 15M with the pin to the wall mount but by retaining the pin a mobile use of the WSR 15M is possible.

The water hose of WSR 15M is kink-resistant. Turn off the water supply before you roll up the tube!

After work you roll up the hose completely. Do not expose the hose in the blazing sun or cold temperature for a long time because that can damage the flexibility of the hose and the rolling up would be more complicated.

NOTICE

The usage of certain solutions containing ingredients damaging metal surfaces well as the use of scrubbing agents will damage the machine surface!

Clean the machine surface with a wet cloth soaked in a mild solution

11.3 Unroll the hose

Pull the hose out to the desired length (min. 1,5m). The stop function of the hose box can be activated in and can be noticed by a clicking sound.

11.4 Roll up the hose

Pull the hose 30cm faster so you do not hear a ratcheting noise. Hold the water hose in hand until it is fully rolled up.

If the hose is released during roll up the hose end would be uncontrolled. Yourself and others can thereby hurt or damage property. Therefore never release the hose when rolling up. Maintain control the hose end always till finishing the rolling up.

11.5 Disposal

Do not dispose the WSR 15M in residual waste. Contact your local authorities for information regarding the available disposal options. When you buy at your local dealer for a replacement unit, the latter is obliged to exchange your old.

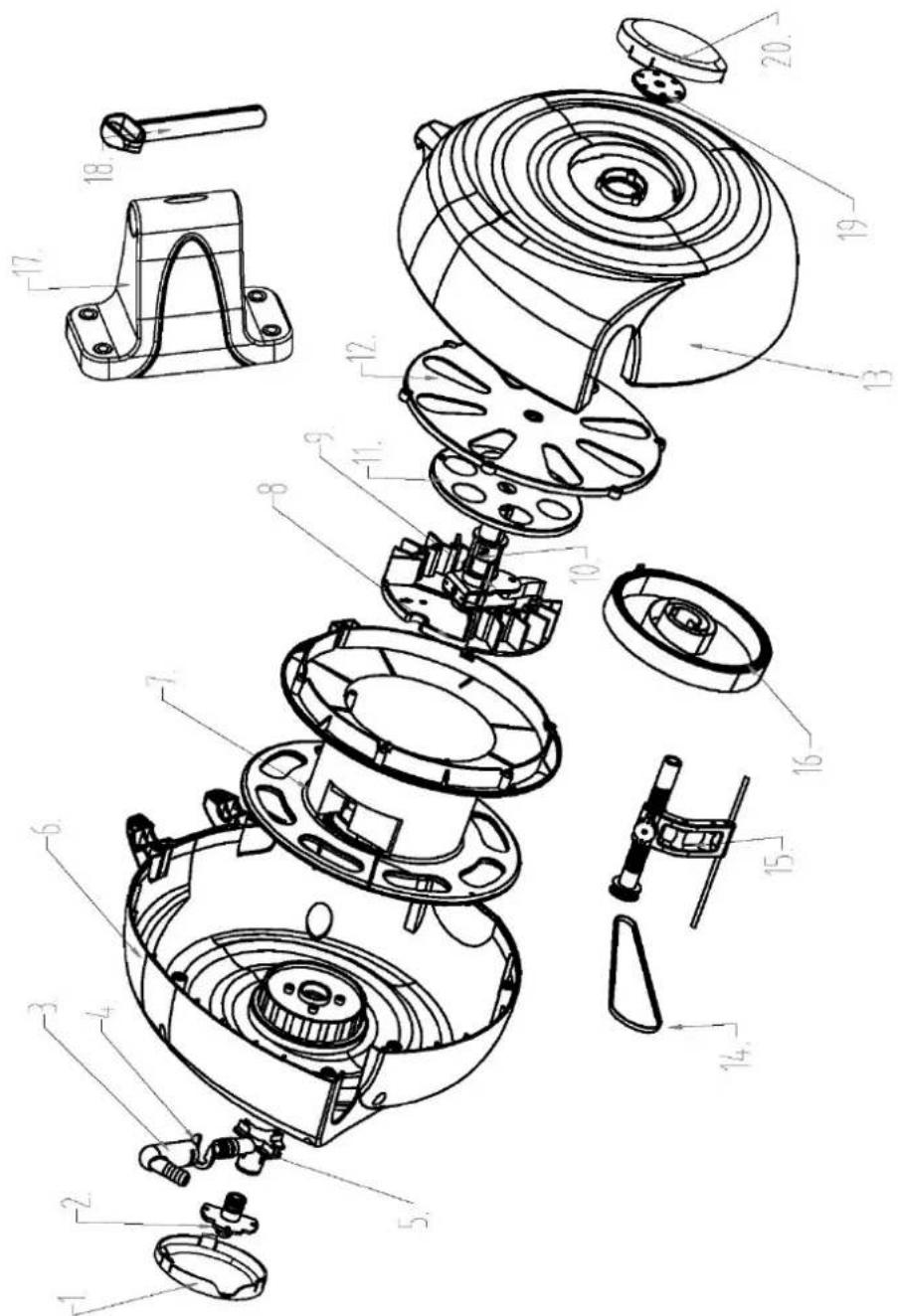

13 ERSATZTEILE / SPARE PARTS

With original HOLZMANN spare parts you use parts that are attuned to each other shorten the installation time and elongate your products lifespan.

I MP OR T AN T

The installation of other than original spare parts voids the warranty!

So you always have to use original spare parts

When you place a spare parts order please use the service formular you can find in the last chapter of this manual. Always take a note of the machine type, spare parts number and partname. We recommend to copy the spare parts diagram and mark the spare part you need.

You find the order address in the preface of this operation manual.

no	Spare part name	no	Spare part name
1	left side cover	11	spring housing cover
2	inlet hose connector 1	12	spring housing
3	inlet hose connector 2	13	right housing
4	snap joint	14	belt
5	outlet hose connector	15	hose guider
6	left housing	16	spring
7	reel	17	mounting bracket
8	ratchet lock component 1	18	connector of mounting bracket
9	ratchet lock component 2	19	preloader
10	center shaft	20	right side cover

14 EG-KONFORMITÄTSERKLÄRUNG/CE-CERTIFICATE OF CONFORMITY

Hereby we declare that the above mentioned machines meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.

(applicable from 01.03.2016)

Please consult our troubleshooting section for initial problem solving. Feel free to contact your HOLZMANN reseller or us for Customer Support!

Warranty claims based on your sales contract with your HOLZMANN retailer, including your statutory rights, shall not be affected by this guarantee declaration. HOLZMANN-MASCHINEN grants guarantee according to following conditions:

A) The guarantee covers the correction of deficiencies to the tool/product, at no charge, if it can be verified adequately that the deficiencies were caused by a material or manufacturing fault.
B) The guarantee period lasts 12 months, and is reduced to 6 months for tools in commercial use. The guarantee period begins from the time the new tool is purchased from the first end user. The starting date is the date on the original delivery receipt, or the sales receipt in the case of pickup by the customer.
C) Please lodge your guarantee claims to your HOLZMANN reseller you acquired the claimed tool from with following information:

Original Sales receipt and/or delivery receipt

Service form (see next page) filed, with a sufficient deficiency report

for spare part claims: a copy of the respective exploded drawing with the required spare parts being marked clear and unmistakable.

D) The Guarantee handling procedure and place of fulfillment is determined according to HOLZMANNs sole discretion in accordance with the HOLZMANN retail partner. If there is no additional Service contract made including on-site service, the place of fulfillment is principally the HOLZMANN Service Center in Haslach, Austria.

Transport charges for sending to and from our Service Center are not covered in this guarantee.

E) The Guarantee does not cover:

• Wear and tear parts like belts, provided tools etc., except to initial damage which has to be claimed immediately after receipt and initial check of the product.
• Defects in the tool caused by non-compliance with the operating instructions, improper assembly, insufficient power supply, improper use, abnormal environmental conditions, inappropriate operating conditions, overload or insufficient servicing or maintenance.
• Damages being the causal effect of performed manipulations, changes, additions made to the product.
• Defects caused by using accessories, components or spare parts other than original HOLZMANN spare parts.
• Slight deviations from the specified quality or slight appearance changes that do not affect functionality or value of the tool.
• Defects resulting from a commercial use of tools that - based on their construction and power output - are not designed and built to be used within the frame of industrial/commercial continuous load.
  F) Claims other than the right to correction of faults in the tool named in these guarantee conditions are not covered by our guarantee.
  G) This guarantee is voluntary. Therefore Services provided under guarantee do not lengthen or renew the guarantee period for the tool or the replaced part.

SERVICE

After Guarantee and warranty expiration specialist repair shops can perform maintenance and repair jobs. But we are still at your service as well with spare parts and/or product service. Place your spare part / repair service cost inquiry by filing the SERVICE form on the following page and send it:

via Mail to [e-mail]

or via Fax to: [phone]

17 PRODUKTBEOBACHTUNG PRODUCT EXPERIENCE FORM

We observe the quality of our delivered products in the frame of a Quality Management policy.

Your opinion is essential for further product development and product choice. Please let us know about your:

• Impressions and suggestions for improvement.
• experiences that may be useful for other users and for product design
• Experiences with malfunctions that occur in specific operation modes

We would like to ask you to note down your experiences and observations and send them to us via FAX, E-Mail or by post:

service inquiry spare part inquiry guarantee claim

Please describe amongst others in the problem: What has cause the problem/defect, what was the last activity before you noticed the problem/defect? For electrical problems: Have you had checked you electric supply and the machine already by a certified electrician?

3. Bitte beachten

Additional information

INCOMPLETELY FILLED SERVICE FORMS CANNOT BE PROCESSED! FOR GUARANTEE CLAIMS PLEASE ADD A COPY OF YOUR ORIGINAL SALES / DELIVERY RECEIPT OTHERWISE IT CANNOT BE ACCEPTED. FOR SPARE PART ORDERS PLEASE ADD TO THIS SERVICE FORM A COPY OF THE RESPECTIVE EXPLODED DRAWING WITH THE REQUIRED SPARE PARTS BEING MARKED CLEARLY AND UNMISTAKABLE. THIS HELPS US TO IDENTIFY THE REQUIRED SPARE PARTS FASTLY AND ACCEL- ERATES THE HANDLING OF YOUR INQUIRY.
