Product Type	LED Floodlight
Brand	Emos
Model	ZS2611
Category	LED Floodlight
Power Consumption	10 W
Input Voltage	220–240 V~
Luminous Flux	800 lm
Lifespan	25,000 h
IP Rating	IP65
Dimensions (L x W x H)	135 × 135 × 55 mm
Weight	0.42 kg
Maximum Projected Area	240 cm²
Mounting Method	Wall-mounted on solid surface
Installation Height	2.3–3 m
Suitable for	Indoor and outdoor use
Protection Glass	Must be used; do not operate without protection glass
Earthing Required	Yes, for protection against dangerous contact voltage
Maintenance	Switch off and allow to cool before cleaning; clean with soft moistened cloth; do not submerge in water
Cleaning Instructions	Use a soft damp cloth; never immerse in water or other liquids
Disposal	Do not dispose with unsorted municipal waste; use collection points for electronic waste

Frequently Asked Questions - ZS2611 Emos

How do I install the Emos ZS2611 LED floodlight?

Mount the lamp firmly onto a solid surface such as a wall (see figures 1-3 in the manual). Install at a height of 2.3–3 m. Connect a 220–240 V~ power cable to the terminal strip terminals. Ensure the connecting wire is not live before connecting.

Can the ZS2611 be used outdoors?

Yes, it has an IP65 rating, making it suitable for outdoor use.

What is the IP rating and what does it mean?

IP65 means the floodlight is dust-tight and protected against water jets from any direction.

How long does the LED last?

The LED lifespan is 25,000 hours.

What is the light output of the ZS2611?

It produces a luminous flux of 800 lumens.

Is the floodlight dimmable?

The manual does not specify dimming capability; it is likely not dimmable.

How do I clean the floodlight?

Before cleaning, switch off and let it cool. Use a soft moistened cloth. Never submerge the lamp in water or other liquids.

What safety precautions should I take?

Install at least 1 m away from the object or surface to be lit. If mounted below a roof, keep a minimum 0.2 m distance from the top of the floodlight to the roof. Always use the protection glass. Only an authorized person should connect the power.

How do I dispose of the floodlight?

Do not throw it in unsorted municipal waste. Use collection points for sorted waste or electronic appliances to prevent environmental damage.

What are the dimensions and weight?

Dimensions are 135 × 135 × 55 mm, and weight is 0.42 kg.

USER MANUAL ZS2611 Emos

Technical drawing of a rectangular component with internal diagonals and a 135-unit height dimension (no text or symbols)

ZS2621

Technical line drawing of a square frame with internal grid pattern and dimension label (166 mm), no readable text or symbols beyond the dimension line.

ZS2631 ZS2641

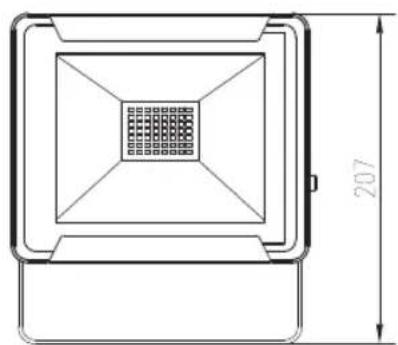

Technical line drawing of a square frame with internal grid pattern and dimension label (207) — no readable text or symbols beyond the dimension marker.

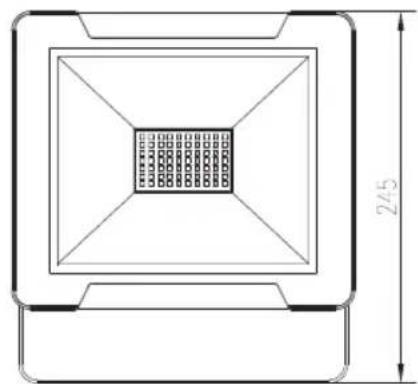

Technical drawing of a square mechanical component with internal grid pattern and dimension label (245 mm), no readable text or symbols beyond the dimension line.

IDEO

Type Input	voltage	Max. power	Life span	Luminous flux	Dimensions Weight	Maximum projected area
ZS2611		10 W 25	000 h 800 lm	135 × 135 × 55 mm	0,42 kg 240 cm
ZS2621 20 W	25 000 h 1600 lm 166220 h 2400 AC	× 158 × 55	mm 0,57 kg	240 cm
ZS2631 30 W	25 000 h 50 h 400 lm 20725 000 h 4 000 lm 245	× 196 × 61	mm 0,92 kg	400 cm
ZS2641 50 W		× 235 × 61	mm 1,4 kg	400 cm^2

GB LED Floodlight SMD

LED reflector is designed for indoor and outdoor use to be mounted on a firm ground.

Ingress Protection IP65 – for outdoor use

Mounting

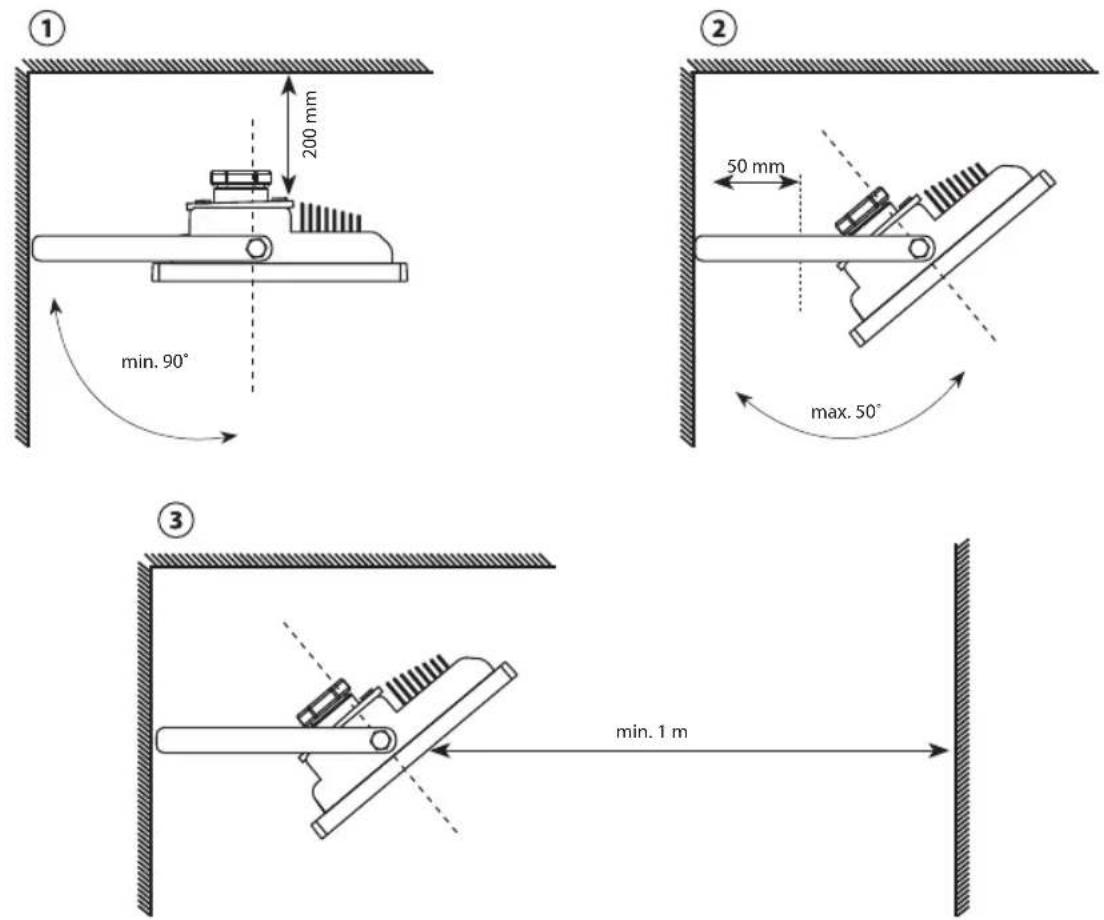

Mount the lamp firmly onto a solid basis, for example a wall (fig. 1, 2, 3).

Installation height 2.3–3 m.

Direct the reflector as shown on fig. 1 and 2.

Connect a 220–240 V\~ power cable to the respective terminals of the terminal strip.

Maintenance instructions:

Before maintenance, switch off the lamp and wait until it is cooled.

Clean it with a soft moistened cloth.

Never submerge the lamp in water or other liquids.

During maintenance, observe general rules for occupational safety, and be very careful.

WARNING

• The reflector is designed entirely for firm mounting.
• Before connecting to the 220–240 V\~ make sure that the connecting wire is not under voltage. This operation can be carried out only by an authorized person.
• Respect a minimum distance of 1m between the appliance and the object or surface which you wish to lighten.
• If you place the reflector below the roof, keep the minimum 0.2m distance measured from the upside of the reflector to the bottom of the roof.
• Do not use the reflector without the protection glass.
• The protection from dangerous contact voltage is ensured by „earthing“.

GB Do not throw electric appliances into unsorted municipal waste, use collection points of sorted waste! Dangerous substances from electric appliances deposited in landfills can leak into underground waters, reach the foodchain and damage your health and well-being. For actual information about collection points, contact the local authorities.
