ZS2631 - Monitor Emos - Free user manual and instructions

Product Type	LED Floodlight
Brand	Emos
Model	ZS2631
Power Consumption	30 W
Lifespan	25,000 hours
Luminous Flux	4,000 lm
Dimensions	245 × 196 × 61 mm
Weight	0.92 kg
Maximum Projected Area	400 cm²
Ingress Protection	IP65 (suitable for outdoor use)
Mounting Height	2.3–3 m
Input Voltage	220–240 V~
Connection Wires	L (brown live), N (blue neutral), G (green/yellow earth)
Installation	Firm mounting on solid surface; minimum 1 m distance to illuminated object; 0.2 m clearance from roof
Maintenance	Clean with soft damp cloth; do not submerge; switch off and cool before maintenance
Safety	Do not use without protection glass; earthing ensures protection; only authorized personnel for electrical connection
Disposal	Do not dispose with unsorted waste; use collection points for electrical appliances

Frequently Asked Questions - ZS2631 Emos

How do I install the Emos ZS2631 floodlight?

Mount the lamp firmly onto a solid base (e.g., wall) at a height of 2.3–3 m. Connect a 220–240 V~ power cable to the terminal strip: L (brown live), N (blue neutral), G (green/yellow earth). Direct the reflector as shown in figures 1 and 2.

What is the IP rating of this floodlight?

The Emos ZS2631 has an IP65 rating, meaning it is dust-tight and protected against water jets, making it suitable for outdoor use.

Can I use the floodlight without the protection glass?

No, you must never use the reflector without the protection glass. The glass is essential for safety and to maintain the IP rating.

How do I clean the floodlight?

Before cleaning, switch off the lamp and wait until it cools down. Clean it with a soft moistened cloth. Never submerge the lamp in water or other liquids.

What is the minimum distance from the illuminated object?

Respect a minimum distance of 1 meter between the floodlight and the object or surface you wish to illuminate to avoid overheating or fire risk.

What are the dimensions and weight of the ZS2631?

The dimensions are 245 × 196 × 61 mm and the weight is 0.92 kg.

How long does the LED last?

The LED has a lifespan of 25,000 hours under normal operating conditions.

Can I install the floodlight under a roof?

Yes, but keep a minimum distance of 0.2 m from the top of the reflector to the underside of the roof to allow proper heat dissipation.

Who can perform the electrical connection?

The electrical connection must be carried out only by an authorized person to ensure safety and compliance with regulations.

How should I dispose of the floodlight at end of life?

Do not throw it in unsorted municipal waste. Take it to a collection point for electrical and electronic waste to prevent environmental harm.

USER MANUAL ZS2631 Emos

Technical drawing of a rectangular component with internal diagonals and a 135-unit height dimension (no text or symbols)

ZS2621

Technical drawing of a square frame with internal grid pattern and dimension label (166), no readable text or symbols beyond the dimension line.

ZS2631 ZS2641

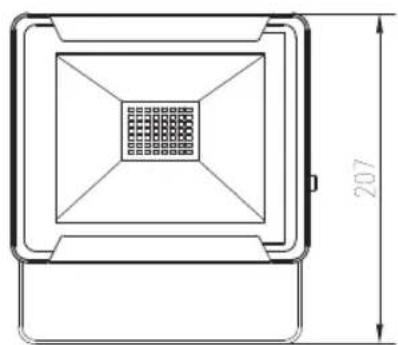

Technical line drawing of a square mechanical component with internal grid pattern and dimension label (207) — no text or symbols present.

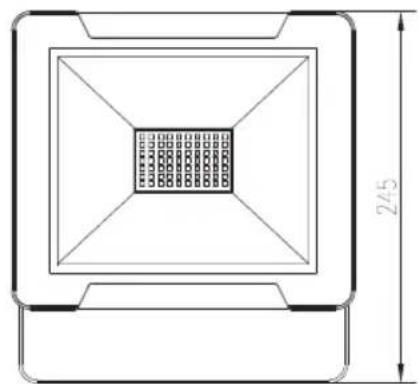

Technical drawing of a square mechanical component with internal grid pattern and dimension label (245 mm), no readable text or symbols beyond the dimension line.

IDEO

Type Input	voltage	Max. power	Life span	Luminous flux	Dimensions Weight	Maximum projected area
ZS2611		10 W 25	000 h 800 lm	135 × 135 × 55 mm	0,42 kg 240 cm
ZS2621 20 W	25 000 h 1600 lm 166220 h 2400 AC	× 158 × 55	mm 0,57 kg	240 cm
ZS2631 30 W	25 000 h 50 h 400 lm 20725 000 h 4 000 lm 245	× 196 × 61	mm 0,92 kg	400 cm
ZS2641 50 W		× 235 × 61	mm 1,4 kg	400 cm^2

GB LED Floodlight SMD

LED reflector is designed for indoor and outdoor use to be mounted on a firm ground.

Ingress Protection IP65 – for outdoor use

Mounting

Mount the lamp firmly onto a solid basis, for example a wall (fig. 1, 2, 3).

Installation height 2.3–3 m.

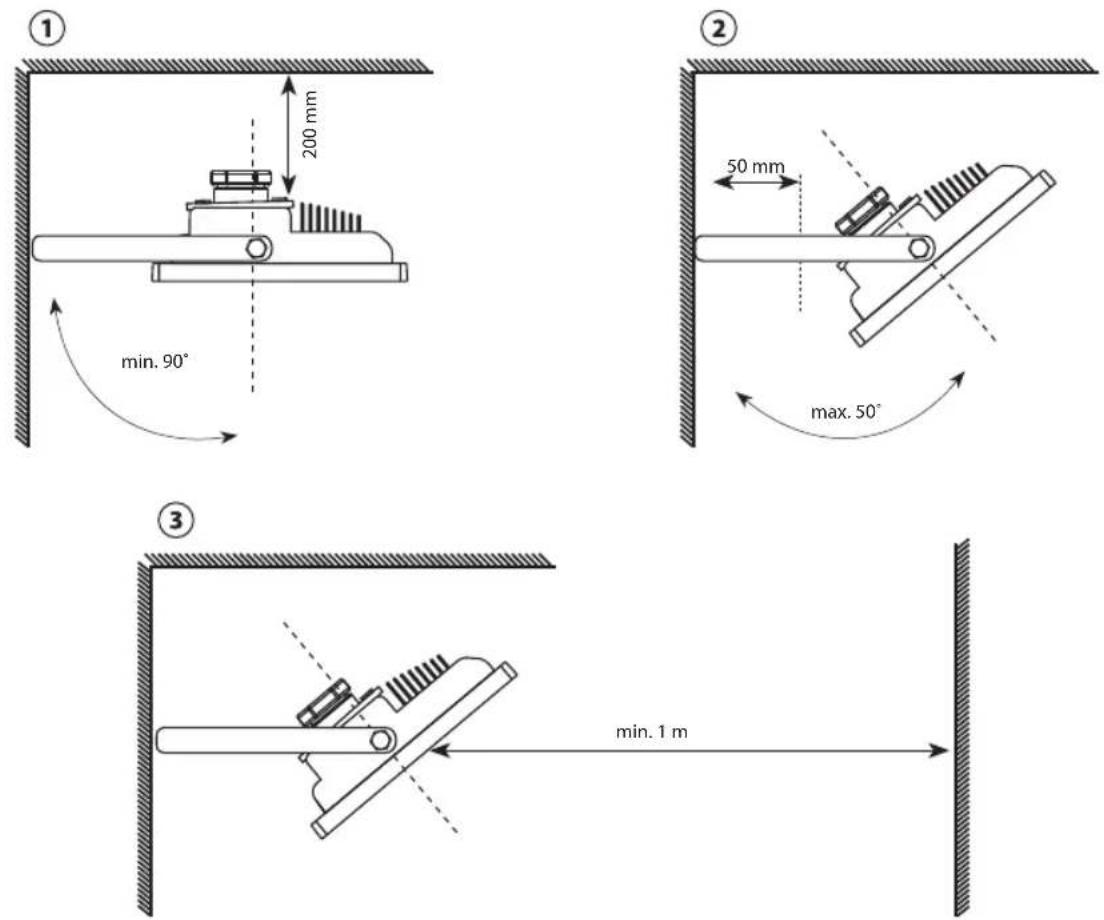

Direct the reflector as shown on fig. 1 and 2.

Connect a 220–240 V\~ power cable to the respective terminals of the terminal strip.

Maintenance instructions:

Before maintenance, switch off the lamp and wait until it is cooled.

Clean it with a soft moistened cloth.

Never submerge the lamp in water or other liquids.

During maintenance, observe general rules for occupational safety, and be very careful.

WARNING

• The reflector is designed entirely for firm mounting.
• Before connecting to the 220–240 V\~ make sure that the connecting wire is not under voltage. This operation can be carried out only by an authorized person.
• Respect a minimum distance of 1m between the appliance and the object or surface which you wish to lighten.
• If you place the reflector below the roof, keep the minimum 0.2m distance measured from the upside of the reflector to the bottom of the roof.
• Do not use the reflector without the protection glass.
• The protection from dangerous contact voltage is ensured by „earthing“.

GB Do not throw electric appliances into unsorted municipal waste, use collection points of sorted waste! Dangerous substances from electric appliances deposited in landfills can leak into underground waters, reach the foodchain and damage your health and well-being. For actual information about collection points, contact the local authorities.
