VK 171 - Kettle HYUNDAI - Free user manual and instructions

Product Type	Electric Kettle
Brand	Hyundai
Model	VK 171
Dimensions (cm)	22.5 x 22.8 x 16
Weight (kg)	Approx. 0.9
Power Input (W)	2200
Power Supply	AC 220-240V, 50/60 Hz
Protection Class	I
Maximum Capacity (L)	1.7
Minimum Water Level	Indicated inside kettle
Material	Stainless steel inner and heating bottom; double-wall body
Auto Shut-off	Yes, via steam sensor after boiling
Boil-Dry Protection	Yes, thermal safety lock
Control Light	Yes, indicates operation
Lid Type	Push-button lock, snap close
Stand	Removable, with central connector
Cord Length (approx.)	0.75 m
Cleaning & Decalcification	Use citric acid solution; wipe exterior with damp cloth
Safety Features	Automatic shut-off, boil-dry protection, double-wall insulation
Spare Parts & Repairability	Only authorized service; no user-serviceable parts

Frequently Asked Questions - VK 171 HYUNDAI

What is the maximum capacity of the Hyundai VK 171 kettle?

The maximum capacity is 1.7 liters. Do not fill above the MAX mark.

Can I boil other liquids besides water?

No, the kettle is intended for heating water only. Do not add tea, coffee, or other ingredients.

How does the auto shut-off work?

The kettle has a steam sensor that automatically switches off the appliance once the water reaches boiling point.

What should I do if the kettle does not turn off?

Ensure the lid is closed properly. If the issue persists, unplug and contact an authorized service. Do not attempt to repair yourself.

How do I clean and descale the kettle?

Use a solution of 50 g citric acid and water up to 3/4 max. Boil, let sit for 10 minutes, then rinse thoroughly. Repeat if needed.

Is it safe to touch the kettle after boiling?

The double-wall insulation keeps the outer surface cool, but avoid the spout and steam to prevent burns.

Can the kettle be immersed in water?

No, never immerse the kettle or stand in water or other liquids. Only wipe the exterior with a damp cloth.

Why does water sometimes leak from the bottom?

If the kettle is tilted backwards when full, water may escape from the bottom. This is normal and does not affect safety. Avoid tilting.

What is the power consumption when not in use?

The off-mode power consumption is 0.00 W. Unplug for safety when not in use.

Where can I get replacement parts?

Only authorized service centers can provide genuine parts. Do not use non-original parts.

USER MANUAL VK 171 HYUNDAI

White hydrogen Phoenix 1995 water heater with perforated design and 'HYUN JIAI' branding (no visible text on device body)

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI / INSTRUCTION MANUAL HASZNÁLATI ÚTMUTATÓ

Rychlovarná konvice / Rýchlovarná kanvica / Czajnik elektryczny Electric kettle / Háztartási vízforraló kanna

NÁVOD K OBSLUZE

Dear customer, thank you for purchasing our product. Keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. SAFETY WARNING

• Before the first use, read the instructions for use carefully, look at the picture and store the instructions for use for the future. Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.
• Check whether the data on the type label correspond with the voltage in your socket. The power cord plug has to be connected to the properly connected and grounded socket according to the national standard.
• This product can be used by children at the age of 8 years and older if they are supervised or if they were instructed regarding use of the appliance in a safe way and if they understand possible risks. User cleaning and maintenance must not be performed by children if they are younger than 8 year and unsupervised. Children younger than 8 years must be kept out of reach of the appliance and its power cord.
• The device may be used by persons with reduced physical or mental abilities or lack of experience and knowledge only if they are under supervision or they have been instructed about using the appliance safely and understand the potential dangers.
• Children must not play with the appliance.
• Use the electric kettle with the stand designed for this type only.
• Never immerse the electric kettle and the stand in water and other liquids (even partially)!
• If the power cord of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.
• Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged or if it fell to water. In this case take the appliance to a special service to check its safety and proper function.
• The electric kettle is intended for heating the maximum of 1.7 l of water. If the water level exceeds the maximum recommended amount, hot water may be splashing out.
• WARNING: Do not open the lid if the water is boiling or if it is hot.
• CAUTION – Do not use the appliance with a program, time switch or any other part that turns the appliance on automatically as there is a risk of fire if the appliance is not covered or placed properly.
• When the appliance is in operation, prevent pets, plants or insects to get in contact with it.
• Do not plug the fork of the supply cord into the power outlet and do not unplug the cord with wet hands or by pulling by the supply cord!
• This appliance is not intended for outdoor use.

• The appliance is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!

• Never leave the appliance unsupervised and check it during the whole time of water heating!

• Use the electric kettle with the stand designed for this type only and only for its intended purpose.
• Do not place any objects on the appliance.
• The electric kettle cannot be used for heating other liquids than water! Never insert into the kettle tea bags, tea leaves or any other ingredients for the beverage!
• Use the appliance in the working position only at places with no risk of turning over and in sufficient distance from heat sources (e.g. heater, stove, cooker, oven, grill), flammable objects (e.g. curtains, drapes, etc.) and wet surfaces (e.g. sinks, wash basins, etc.). Never place the kettle on the cooker, etc.
• Do not place the appliance near objects or under objects which could get damaged by steam, e.g. walls, kitchen cupboards, sideboards, paintings, or curtains. Leaking steam could damage them.
• Do not use the appliance in an environment saturated with explosive or flammable steams.
• There must be water in the electric kettle before putting into operation. Do not fill the electric kettle with water if it is on the stand.
• Thanks to its two layers, the majority of the surface is insulated. That is why you can put your hand on it, even after water is boiled. Nevertheless, it is strongly recommended not to touch the spout and pay attention to the steam.
  – Before switching on the kettle ensure that the water level is between MIN and MAX marks
• Prevent injuries when handling (e.g. by hot water, steam).
• If you are not going to use the electric kettle for longer time, we recommend unplugging the stand from power supply by taking the fork of the power cord out of the socket.
• The appliance is equipped with the heat safety lock which disconnects power supply if the steam sensor fails, if water boils away or if an empty kettle is turned on. If it happens, unplug the appliance from power supply and let it cool down. Do not fill the kettle with cold water in order to cool it down quickly. It could reduce life of the heating element.
• Check the condition of the power cord of the appliance regularly.
• Never put the power cord on hot surfaces or do not let it hang over the edge of a table or a work top. Plugging or pulling the power cord e.g. by children can result in tilting over or drawing the appliance down and serious injury!
• The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges.
• If you need to use an extension cord, it has to be uncorrupted and it has to comply with the valid standards.
• Use this appliance only for the purpose for which it was designed as specified in this user's manual. Never use the appliance for any other purpose.
• WARNING: There is a risk of injury in case of incorrect use (not in accordance with the manual) of the appliance.
• The producer is not responsible for damage caused by improper use of the appliance (e.g. burning, scalding, fire) and its guarantee for the appliance does not apply to situations when the safety warnings above are not complied with.

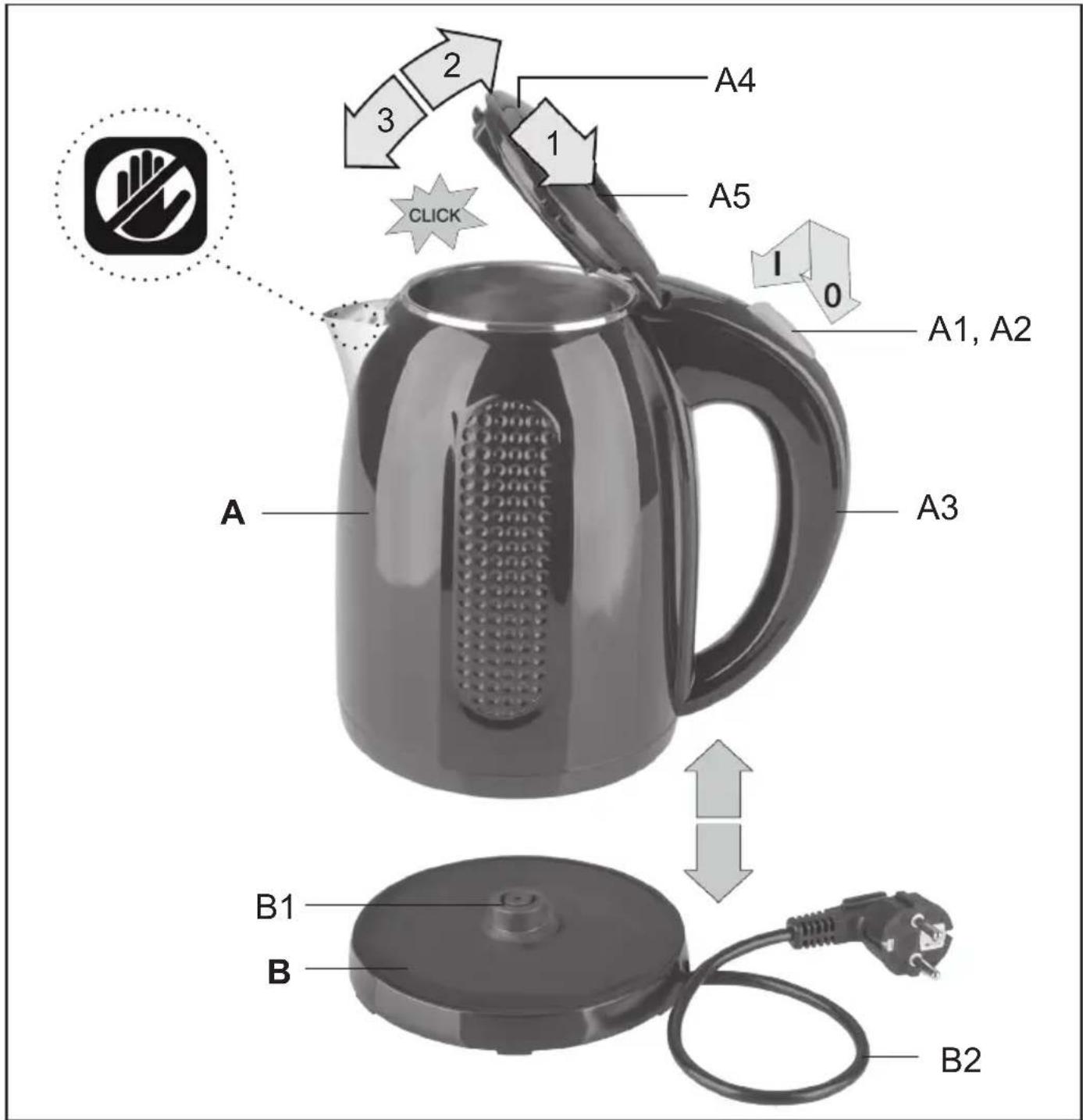

II. DESCRIPTION OF THE APPLIANCE

A - electric kettle

A1 – off/on button 0/I (steam sensor switch*) A4 – lid

A2 – control light A5 – lid lock button

A3 – handle

B – removable stand

B1 – central connector B2 – power cord

* The steam sensor ensures automatic switch off the appliance after reaching the boiling point.

III. INSTRUCTIONS FOR USE

Before the first use, fill the electric kettle with clean water to the maximum level, turn it on and let the water boil. Then pour out the water and repeat the procedure several times (at least five times).

APPLICATIONS

Plug the fork of the power cord to the electric socket. Hold the kettle A on the handle A3. Open the lid A4 by pressing the lock button A5. Fill the kettle with drinking water. The minimum and maximum amount of water is marked inside the kettle. Close the lid by snapping. Put the electric kettle on the stand and turn it to the I position by the A1 button. Function of the electric kettle is signaled with the control light A2.

After boiling the appliance switches off automatically. Before reaching the boiling point, you can switch off the appliance by turning the A1 button to the 0 position.

Always use fresh drinking water for boiling.

ATTENTION

• When heating water, the lid must be closed, otherwise the kettle will not turn OFF.
• In bigger tilting of the electric kettle backwards, particularly when it is filled up to maximum, water can flow out from the electric kettle in the bottom part of the kettle.
  This does not affect safety or other functions and it does not mean any failure of the electric kettle. In the case of tilting the electric kettle with hot water there is a risk of scalding. Therefore do not tilt the electric kettle.
• If the kettle was removed from the stand during boiling, remains in ON position.
  This means that if you put it back on the stand, it will immediately continue in heating.

IV. MAINTENANCE

Unplug the appliance from power supply by taking the fork of the power cord out of the socket! Clean the kettle only when it is cooled down! Do not use rough and aggressive detergents (e.g. sharp objects, scrapers, diluting agents or other solvents)! For cleaning the cover, use detergents for cleaning plastic surfaces. Clean the surface by wiping it with a soft and wet cloth. The inner casing of the electric kettle and the heating bottom is made of top-quality stainless steel, but in common use, impurities from water get stuck on them (water scale), particularly above the heating element. It is not rust or another material defect of the kettle container and the appliance is not subject to a complaint for this reason. If the power cord is soiled, wipe it with a wet cloth.

Cleaning the kettle

In the hard water area, it is important to do the decalcification regularly to keep the kettle in good working condition, because too much scale inside may cause the kettle fail to work. For the best performance of your kettle, decalcify the unit from time to time. The frequency depends on the hardness of your tap water and how many times you have used the kettle. Decalcification will clean the interior of the unit.

This may be done in the following manner:

Put about 50 g of citric acid into the kettle with limescale sediment. Fill the kettle half with water and stir. After dissolving, fill it up to 34 of maximum amount of water. Place the kettle on the stand and turn on. Turn off the kettle before reaching boiling point, let the solution work for 10 minutes and then pour it out. Rinse the kettle thoroughly with clean water. In case of very thick sediments, you can repeat the process.

V. TECHNICAL DATA

• Input 2200 W; max. capacity 1.7 liters
  • Weight (kg) approximately 0.9; size, (cm) 22,5 x 22,8 x 16;
  • Protection class of the appliance I.
• Input in off mode is 0.00 W

Expert service must do the large maintenance or to intervene into inside parts of the appliance! Non-observance of the instructions of the manufacturer cancels the right for guarantee repair!

VI. LEGISLATIVE & ECOLOGY

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO A QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS. TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems).

This symbol on the product or on its packaging indicates that this product (or battery/accumulator) shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this

product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.
