VK 780 - Kettle HYUNDAI - Free user manual and instructions

Product Type	Electric Kettle
Brand	Hyundai
Model	VK 780
Capacity	1.7 L
Power	2200 W
Voltage	220-240 V
Frequency	50/60 Hz
Material	Stainless Steel
Body Finish	Brushed Stainless Steel
Lid Type	Flip-lock lid
Spout	Gooseneck spout for precise pouring
Filter	Removable and washable limescale filter
Base	360° swivel cordless base
Indicator Light	Illuminated on/off switch
Auto Shut-off	Yes, when water boils or kettle is empty
Boil-dry Protection	Yes
Overheat Protection	Yes
Cord Storage	Built-in cord wrap under base
Dimensions (W x D x H)	22 x 18 x 24 cm
Weight	1.2 kg
Cleaning	Wipe with damp cloth; descale regularly
Spare Parts Availability	Replacement filters and lids available
Warranty	2 years

Frequently Asked Questions - VK 780 HYUNDAI

How do I descale my Hyundai VK 780 kettle?

Fill the kettle with a mixture of equal parts water and white vinegar, boil, let it sit for 30 minutes, then rinse thoroughly. Alternatively, use a commercial descaling solution. Always rinse well before next use.

What is the capacity of the VK 780?

The kettle has a 1.7 liter capacity, ideal for making up to 7 cups of tea or coffee.

Can I leave water in the kettle after boiling?

It is recommended to empty the kettle after each use to prevent limescale buildup and maintain performance. If you leave water, boil it again before drinking.

How do I clean the filter?

The removable limescale filter can be washed under running water with a soft brush. For stubborn scale, soak in vinegar solution before rinsing.

Does the kettle have automatic shut-off?

Yes, the VK 780 features auto shut-off when water reaches boiling point and also if the kettle is switched on without water (boil-dry protection).

What is the power consumption?

The kettle operates at 2200 watts, ensuring fast boiling. It is designed for 220-240V electrical outlets.

Is the body of the kettle cool to touch?

The outer surface may become warm during operation, but the stainless steel construction with insulation helps keep the handle cool.

Can I use the kettle with extension cords?

It is not recommended. Plug the kettle directly into a wall outlet. If you must use an extension cord, ensure it is rated for at least 13 amps and fully unwound.

How long does it take to boil?

Boiling a full 1.7 liters typically takes about 3-4 minutes depending on starting water temperature and voltage.

What should I do if the kettle does not turn on?

First, check that the base is plugged in and the kettle is seated properly. Ensure the cord is not damaged. If it still does not work, contact Hyundai customer service.

USER MANUAL VK 780 HYUNDAI

Hyundai 1.7L water heater with ice cubes, labeled 'HYUNDAI' (no other text or symbols visible)

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI / INSTRUCTION MANUAL HASZNÁLATÍ ÚTMUTATÓ

Skleněná rychlovarná konvice s regulací / Sklenená varná kanvica s reguláciou / Szklany czajnik z regulacją / Electric kettle with regulation / Üveg vízforraló szabályozással

1

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. SAFETY WARNING

GENERAL PROVISIONS:

- Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.

- Check whether the data on the type label correspond with the voltage in your socket. The power cord plug has to be connected to the properly connected and grounded socket according to the national standard.

- This product can be used by children at the age of 8 years and older if they are supervised or if they were instructed regarding use of the appliance in a safe way and if they understand possible risks. User cleaning and maintenance must not be performed by children if they are younger than 8 year and unsupervised. Children younger than 8 years must be kept out of reach of the appliance and its power cord.

- The device may be used by persons with reduced physical or mental abilities or lack of experience and knowledge only if they are under supervision or they have been instructed about using the appliance safely and understand the potential dangers.

- Children must not play with the appliance.

- The electric kettle is intended for heating the maximum of 1.7 l of water. If the water level exceeds the maximum recommended amount, hot water may be splashing out.

- WARNING: Do not open the lid if the water is boiling or if it is hot.

- WARNING: Position the lid so that steam is facing away from the handle.

- CAUTION – Do not use the appliance with a program, time switch or any other part that turns the appliance on automatically as there is a risk of fire if the appliance is not covered or placed properly.

- When the appliance is in operation, prevent pets, plants or insects to get in contact with it.

- Do not plug the fork of the supply cord into the power outlet and do not unplug the cord with wet hands or by pulling by the supply cord!

- Use the electric kettle with the stand designed for this type only and only for its intended purpose.

- Prevent injuries when handling (e.g. by hot water, steam).

- The appliance is equipped with the heat safety lock which disconnects power supply if the steam sensor fails, if water boils away or if an empty kettle is turned on. If it happens, unplug the appliance from power supply and let it cool down. Do not fill the kettle with cold water in order to cool it down quickly. It could reduce life of the heating element.

- Use this appliance only for the purpose for which it was designed as specified in this user's manual. Never use the appliance for any other purpose.

- The producer is not responsible for damage caused by improper use of the appliance (e.g. burning, scalding, fire) and its guarantee for the appliance does not apply to situations when the safety warnings above are not complied with.

USE OF THE APPLIANCE:

• Use the electric kettle with the stand designed for this type only.
• Never immerse the electric kettle and the stand in water and other liquids (even partially)!
• Never leave the appliance unsupervised and check it during the whole time of water heating!
• This appliance is not intended for outdoor use.
• The appliance is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!
• Use the appliance in the working position only at places with no risk of turning over and in sufficient distance from heat sources (e.g. heater, stove, cooker, oven, grill), flammable objects (e.g. curtains, drapes, etc.) and wet surfaces (e.g. sinks, wash basins, etc.).
• Do not place the appliance near objects or under objects which could get damaged by steam, e.g. walls, kitchen cupboards, sideboards, paintings, or curtains. Leaking steam could damage them.
• Do not use the appliance in an environment saturated with explosive or flammable steams.
• There must be water in the electric kettle before putting into operation. Do not fill the electric kettle with water if it is on the stand.
• Do not touch outer surfaces during operation of the kettle, they are hot and there is a risk of getting burned. Do not touch the lid during and after cooking!
  – Before switching on the kettle ensure that the water level is between MIN and MAX marks
• If you are not going to use the electric kettle for longer time, we recommend unplugging the stand from power supply by taking the fork of the power cord out of the socket.
• According to the type of your kettle, the surface is ceramic or glass. These materials are very fragile, pay special attention when handling, operation, maintenance and storage to avoid injury. Never use the kettle if it is broken, cracked or shows signs of any damage or fissure.

POWER CORD:

• If the power cord of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.
• Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged or if it fell to water. In this case take the appliance to a special service to check its safety and proper function.
• Never put the power cord on hot surfaces or do not let it hang over the edge of a table or a work top. Plugging or pulling the power cord e.g. by children can result in tilting over or drawing the appliance down and serious injury!
• The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges.

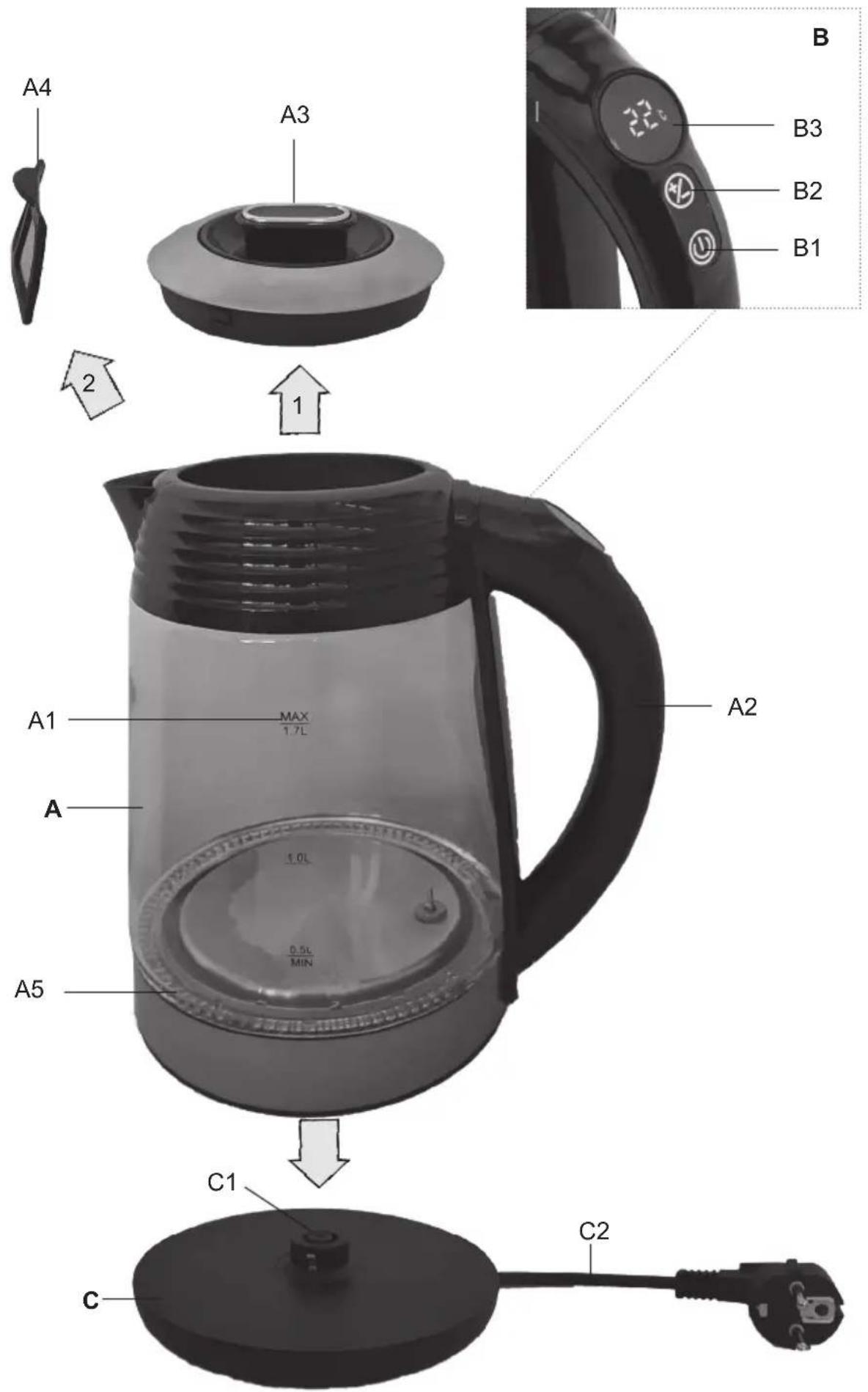

II. DESCRIPTION OF THE APPLIANCE

A – electric kettle

A1 – water gauge A4 – filtration sieve

A2 – handle A5 – signal lights

A3 – lid

B - control panel \*

B1 - ON/OFF switch; 100°C
B2 – temperature setting button / KEEP WARM
B3 – LED display (shows settings + current water temperature)

C - removable stand

C1 - central connector
C2 – supply cord

* The control electronics ensures the appliance turns off automatically after the set temperature or boil of water has been reached.

III. INSTRUCTIONS FOR USE

Remove all the packing material and take out the electric kettle with the stand. Remove all possible adhesion foils, stick-on labels or paper from the appliance. Before the first use, fill the electric kettle with clean water to the maximum level, turn it on and let the water boil. Then pour out the water and repeat the procedure several times (at least five times).

APPLICATIONS

Unwind the necessary length of the power cord C2 from the storage space of the stand C. Place the stand on a suitable surface, in the height of about 85 cm, out of reach of children and incapacitated persons and plug the fork of the power cord to the electric socket. Grasp the handle A2 of the kettle, remove the lid A3 by sliding it out and fill the kettle with fresh drinking water. Minimum and maximum water level is indicated by the watermark A1. Snap the lid A3 back onto its place and position the kettle filled with water onto the removable base C (you will hear a signal sound).

A) Water heating to 100°C

Press the button B1 to automatically switch on the kettle to a temperature of 100 °C ; the background colouring of the signal lights A5 will come on. By pressing the button B1 repeatedly, the kettle will switch off. As soon as the required temperature is reached, the kettle will switch off.

B) Water heating to a temperature of 40-90°C

Press the button B2 repeatedly to set the required temperature from the following options: 40-50-60-70-80-90-100°C. To active the heating, B1 button must be pressed. As soon as the required temperature is reached, the kettle will switch off. During the heating process, you can change the selected temperature by pressing the temperature selection button B2.

Please consider the following tips as examples and inspiration not intended to provide complete instructions, but just to show the possibilities of heating of various liquids. Water temperatures are only approximate and may vary according to personal taste, quantity, type, quality and age of the used tea, coffee, etc.

• 40 °C = infant formula milk,
- 50^ = baby foods
- 60^ = hot beverages,
- 70^ = green teas,
- 80^ = white teas,
- 90^ = oolong teas, coffee, instant drinks, soups,
- 100^ = black, herbal teas.

Note

To ensure maximum accuracy of the temperature set, which is lower than 100 °C , we recommend heating no less than 0.7 litres of water (preferably more than 1 litre).

Always use fresh drinking water for boiling. The temperature and time heating depends on the amount of water and the initial temperature of water. For the correct temperature setting, follow the manufacturers' instructions that are described on food packages (e.g. tea, coffee, instant drinks, soaps, etc.).

Note

• Lifting the kettle off the stand cancels all the set functions.
• If you set a heating temperature which is lower than the current water temperature, you will hear two signal sounds and the kettle will switch off.
• If you are preparing food for very young children (e.g. to 40^ ), the water must be heated to a boil ( 100^ ) first. Wait until the water cools down and check its temperature before serving. The recommended safe temperature food for children is max. 40^ .

C) KEEP WARM function

The function can be activated by holding the button B2 for a longer time (approx. 3 seconds) - icon is displayed. Then follow the instructions in points A) and B). The maximum time during which the temperature is kept warm is approximately 2 hours and it is indicated by the signal light A5 flashing. The function can be deactivated at any time by pressing the B1 button.

ATTENTION

• When heating water, the lid must be closed, otherwise the kettle will not turn OFF.
• In bigger tilting of the electric kettle backwards, particularly when it is filled up to maximum, water can flow out from the electric kettle in the bottom part of the kettle. This does not affect safety or other functions and it does not mean any failure of the electric kettle. In the case of tilting the electric kettle with hot water there is a risk of scalding. Therefore do not tilt the electric kettle.
• Recommendation: When the kettle is not used, do not place it on the stand connected to the mains. If you are going not to use the kettle for a long time, unplug the power cord from the wall socket.
• If the kettle was removed from the stand during boiling, remains in ON position. This means that if you put it back on the stand, it will immediately continue in heating.

IV. MAINTENANCE

Unplug the appliance from power supply by taking the fork of the power cord out of the socket! Clean the kettle only when it is cooled down! Do not use rough and aggressive detergents (e.g. sharp objects, scrapers, diluting agents or other solvents)! The casing of the electric kettle is made of top-quality glass and the heating bottom is made of top-quality stainless steel, but in common use, impurities from water get stuck on them (water scale), particularly above the heating element. It is not rust or another material defect of the kettle container. If you leave tea to infuse in the kettle, you will need to clean the kettle more frequently.

Cleaning the kettle

In the hard water area, it is important to do the decalcification regularly to keep the kettle in good working condition, because too much scale inside may cause the kettle fail to work. For the best performance of your kettle, decalcify the unit from time to time. The frequency depends on the hardness of your tap water and how many times you have used the kettle. Decalcification will clean the interior of the unit.

This may be done in the following manner:

Put about 50 g of citric acid into the kettle with limescale sediment. Fill the kettle half with water and stir. After dissolving, fill it up to 34 of maximum amount of water. Place the kettle on the stand and turn on. Turn off the kettle before reaching boiling point, let the solution work for 10 minutes and then pour it out. Rinse the kettle thoroughly with clean water. In case of very thick sediments, you can repeat the process. Clean the kettle regularly!

Cleaning the sieve (A4)

Take the sieve from the kettle. Clean it from possible sediments in running water using a fine brush. Then put the sieve back in the opposite way.

V. TECHNICAL DATA

Voltage (V) shown on the type label of the appliance

Absorbed power (W) shown on the type label of the appliance

Max. volume (l) 1.7

Weight (kg) approximately 0.9

Protection class of the appliance I.

Size, (mm): 260 x 210 x 160

Input in off mode is < 0.50 W

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

Replacement of parts that require intervention in the electric part of the appliance must be carried out by a specialized service! Failure to comply with the instructions of the manufacturer will lead to expiration of the right to guarantee repair!

VI. LEGISLATIVE & ECOLOGY

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS

TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER.

ALWAYS APPEAL TO A QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS

UNDER A DANGEROUS TENTION.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems).

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling

of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

WARNINGS AND SYMBOLS USED ON THE APPLIANCE, PACKAGING OR IN THE INSTRUCTIONS MANUAL:

HOUSEHOLD USE ONLY; DO NOT IMMERSE IN WATER OR OTHER LIQUIDS;

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

The ⚠ symbol indicates a WARNING.
