VC 007 - Vacuum Cleaner HYUNDAI - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Brand	Hyundai
Model	VC 007
Bag Capacity	2.5 L
Maximum Power Consumption	2000 W
Suction Power	400 air Watt
Filtration System	HEPA 13 filter
Noise Level	76 dB(A)
Power Cord Length	6 m
Operating Radius	9 m
Dimensions (W x D x H)	40 x 25 x 30 cm
Net Weight	5.2 kg
Bag Type	Paper dust bag
Motor Protection Filter	Washable foam filter
Exhaust Filter	Microfilter
Accessories Included	Crevice nozzle, brush nozzle, upholstery nozzle, floor nozzle
Power Supply	220-240 V, 50/60 Hz
Maintenance	Replace bag when full; clean filters regularly
Safety Features	Overheating protection, auto shut-off
Cable Rewind	Automatic

Frequently Asked Questions - VC 007 HYUNDAI

How often should I replace the dust bag?

Replace the dust bag when the bag-full indicator shows red, or at least every 3-4 weeks depending on usage. Use only original Hyundai paper dust bags for optimal performance.

How do I clean the HEPA filter?

Turn off and unplug the vacuum. Open the filter compartment, remove the HEPA filter. Tap it gently to remove dust. Do not wash it; replace it every 6-12 months. The foam motor protection filter can be washed with warm water and air-dried completely before reuse.

What should I do if the vacuum loses suction?

Check if the dust bag is full or the filters are clogged. Also inspect the hose and nozzle for blockages. Empty/clean as needed. If problem persists, check for blockages in the tube.

Can I use the vacuum without a dust bag?

No, the vacuum is designed to work with a dust bag. Operating without a bag can damage the motor and void the warranty. Always ensure a properly installed dust bag is in place.

How do I change the dust bag?

Unplug the vacuum. Open the bag compartment lid. Remove the full bag by pulling the cardboard tab. Insert a new bag ensuring it clicks into place. Close the lid until it latches. For detailed steps, refer to the user manual page 12.

What is the correct way to store the vacuum?

Store the vacuum in a dry place away from direct sunlight. Wrap the power cord around the cord hooks. Keep the hose and attachments in the accessory holder. Ensure the vacuum is upright and stable to prevent damage.

Why does the vacuum turn off by itself?

This may be due to overheating. Check for blockages or a full bag. The vacuum has an automatic shut-off for safety. Allow it to cool for about 30 minutes before restarting. If it happens frequently, check filters and bag.

Can I vacuum liquids with this model?

No, the VC 007 is a dry vacuum cleaner only. Do not vacuum water or wet substances to avoid electric shock and damage.

How do I adjust the suction power?

Suction power can be adjusted via the electronic slider on the vacuum body. For delicate surfaces like curtains, use low suction. For carpets, use maximum. Refer to the control panel section in the manual.

Where can I buy replacement parts?

Visit the Hyundai website or contact authorized service centers. Use only genuine Hyundai parts to ensure compatibility and safety. Part numbers are listed in the manual.

USER MANUAL VC 007 HYUNDAI

Black HUANAN vacuum cleaner with decorative floral pattern (no visible text or symbols)

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI / INSTRUCTION MANUAL HASZNÁLATÍ ÚTMUTATÓ

SÁČKOVÝ VYSAVAČ / VRECKOVÝ VYSÁVAČ / BAG VACUUM CLEANER / ELEKTROMOS PADLÓPORSZÍVÓ / ODKURZACZ WORKOWY

CE

1

	B1	A B
	B2	C D
	B3	E F G
	B4	H

VIII. PRAWODAWSTWO I EKOLOGIA

OSTRZEŻENIE: ABY UNIKNAĆ NIEBEZPIECZEŃSTWA POŻARU LUB PORAŻENIA PRĄDEM ELEKTRYCZNYM, NIE WOLNO WYSTAWIAĆ SPRZĘTU NA DZIAŁANIE DESZCZU BADŹ WILGOCI. URZĄDZENIE ODBIORCZE ZAWSZE WYŁĄCZYĆ Z GNIAZDKA, KIEDY NIE JEST UŻYWANE LUB PRZED NAPRAWĄ. W URZĄDZENIU NIE MA ŻADNYCH CZĘŚCI, KTÓRE BY MÓGŁ ODBIORCASAMODZIELNIE

NAPRAWIAĆ.NAPRAWĘ SPRZĘTU NALEŻY ZLECIĆ ODPOWIEDNIO PRZYGOTOWANEMU SERWISU AUTORYZACYJNEMU. URZĄDZENIE ZNAJDUJE SIĘ POD NIEBEZPIECZNYM NAPIĘCIEM.

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. SAFETY WARNING

GENERAL PROVISIONS:

• Before the first use, read the instructions for use carefully, look at the illustrations and store the instructions for use for the future. Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.
• This appliance may only be used by children aged 8 years or older, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children younger than 8 years must be kept out of reach of the appliance and its power cord.
• Before replacing accessories or any accessible parts that move while using, before assembly and disassembly, before cleaning or maintenance, when you let the appliance unattended or if you finish the work with the appliance, switch off the appliance and disconnect it from the mains by unplugging the power cord plug from electrical socket.
• The appliance is designated to be used indoor only.
• Never immerse the appliance in water (not even partially) and do not wash it under running water!
• Do not put fingers or other things to input and output vents of the appliance.
• In order to ensure safety and proper function of the appliance, use only original spare parts and accessories approved by the manufacturer.
• Only use this appliance for the purpose it was designed for, as specified in this manual.
• The manufacturer is not responsible for damage caused by improper use of the appliance and the accessories and its warranty for the appliance does not apply in situations when the safety warnings above are not complied with.

USE OF THE APPLIANCE:

• The product is only intended for home use and similar purposes (in shops, offices and similar workplaces, at hotels, motels and other residential environments, and in facilities providing bed and breakfast). It is not intended for commercial use!
• The appliance must not be used in damp or wet environment and in any environment with the danger of fire or explosion.
• The vacuum cleaner is not suitable for vacuuming substances that can harm human health.
• Do not use the appliance to vacuum water, liquids or aggressive fluids!
• Do not vacuum wet or moist floor coverings, and do not use the vacuum cleaner outdoor!
• Do not vacuum sharp objects (e.g. glass, shatter), hot, flammable, explosive items (e.g. ash, hot cigarette butts, gasoline, thinners and aerosol vapours) or greases (e.g. fats, oils), caustic agents (e.g. acids, solvents).
• The paper or synthetic bags are disposable which means that once they are foul, they cannot be cleaned and re-used! If the paper or synthetic bag is cleaned mechanically, it can

damage, besides other things, the inner filtration layers which results in a loss of filtration and mechanical properties of the bag.

• Do not use the vacuum cleaner to vacuum dirt produced during/after construction such as plasterboard dust, fine sand, cement, dust from construction, parts of plaster etc.
• WARNING: There is a risk of injury in case of incorrect use (not in accordance with the manual) of the appliance.

ACCESSORIES AND ASSEMBLY OF THE APPLIANCE:

- Do not put the suction nozzle or the tube end or accessories close to eyes and ears and do not insert them into body orifices!

POWER CABLE:

• Check whether the data on the type label corresponds with the voltage in your socket. The power cord plug may only be connected to the electrical socket complying with the applicable standards.
• If the power cord of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person.
• Always disconnect the appliance from power by unplugging the power cord from the electrical socket, if the appliance is left unattended and before assembly, disassembly or cleaning.
• Never use the appliance if the power cord or power plug are damaged, if the appliance is not correctly operating or if it has fallen on the floor and been damaged, or if it has fallen into water.
• Do not apply force to unwind the cord beyond the red mark.
• Do not unplug the power plug by pulling the power cord or the vacuum cleaner unit.
• When winding the cord, hold the plug to prevent lashing of the cord around and to prevent possible injury.
• The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges.
• Check the condition of the power cord of the appliance regularly.

II. EQUIPMENT AND ACCESSORIES (Fig. 1)

A – vacuum cleaner

A1 - ON/OFF () button

A2 – power cord winding button

A3 – knob for suction power regulation

A4 – suction vent

A5 – lid

A6 – lid lock

A7 – handle

A8 – depression for attachment of accessories

A9 – full filter signaling

A10 – power cord

A11 – rear wheels

A12 – plastic fixture for the dustbag

A13 – dust bag

A14 – grille for the input filters

A15 – input filter

A16 – exhaust grid

A17 – output HEPA filter

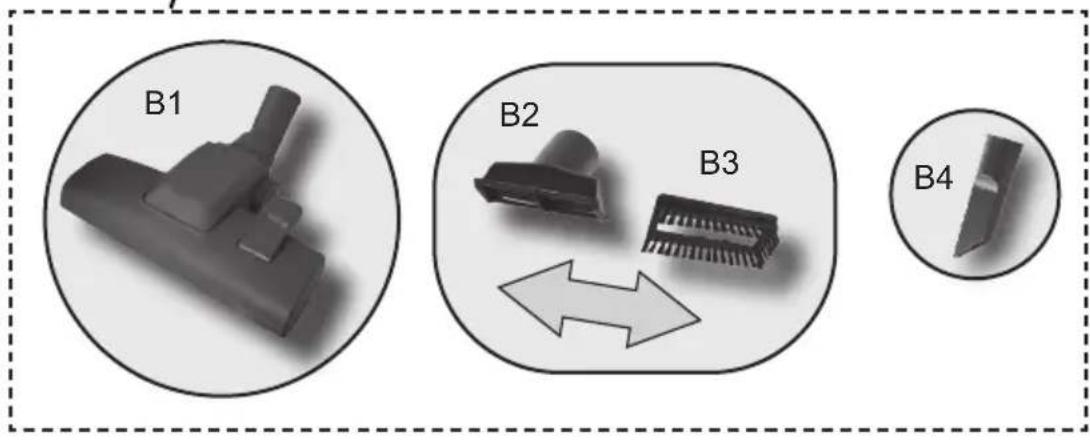

B - accessories

B1 - floor nozzle

B2 – upholstery nozzle

B3 - brush

B4 – crevice nozzle

B5 – suction hose

B6 – suction tube

B7 – telescopic suction tube locking

III. VACUUM CLEANER PREPARATION

Remove all packing material, take out the vacuum cleaner and the accessories. Remove all possible adhesion foils, stick-on labels or paper from the appliance.

VACUUM CLEANER ASSEMBLY

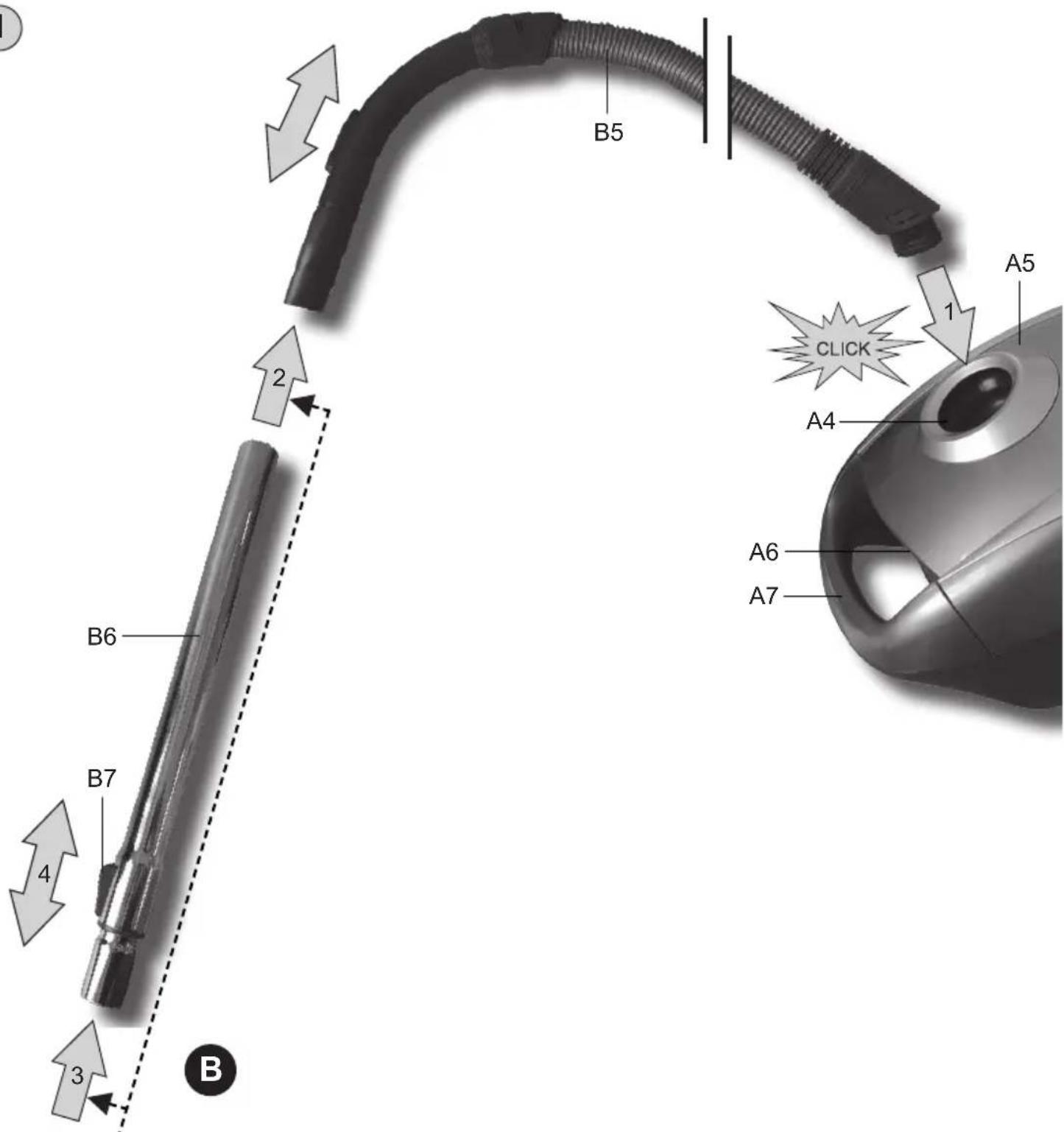

When assembling the vacuum cleaner, follow the procedure indicated in Fig. 1. Choose appropriate accessories as required (B1 - B4) (Fig. 4). The telescopic suction tube C8 can be set to an optimum length to suit the user's height.

Note

When the plastic fixture A12 with the dust bag A13 is properly fitted in the suction compartment of the vacuum cleaner, the mechanical safety lock is released and the vacuum cleaner cover can be closed.

IV. USE OF VACUUM CLEANER

Before use, unwind (by pulling) the power cable A10 from the vacuum cleaner to a required length and plug the vacuum cleaner to the mains.

CONTROL

A1 button - vacuum cleaner ON/OFF switch

A2 button - when pressed and held, the unwound part of the power cable rewinds back inside

Knob A3 - by turning it to the right, you increase the suction power

- by turning it to the left, you reduce the suction power

V. REPLACEMENT OF THE DUSTBAG AND FILTERS

Caution

• Maximum suction performance can be achieved when the filters are clean and the dustbag is empty.
• When you have replaced the dustbag about five times, the filters need to be cleaned, or replaced.
• When you are vacuuming very fine dust, the dustbag and filter pores might get clogged. This reduces the air flow and deteriorates the suction performance.
  In such a case, the dustbag needs to be replaced as soon as possible (even though it might not be full yet) and the filters must be cleaned or replaced.
  – Used dustbags and filters are to be disposed of with regular household waste.

DUSTBAG REPLACEMENT

Full bag indicator

If the A9 indicator is permanently coloured, the dustbag needs to be replaced. If the indicator A9 is activated occasionally when you are vacuuming, you can ignore it.

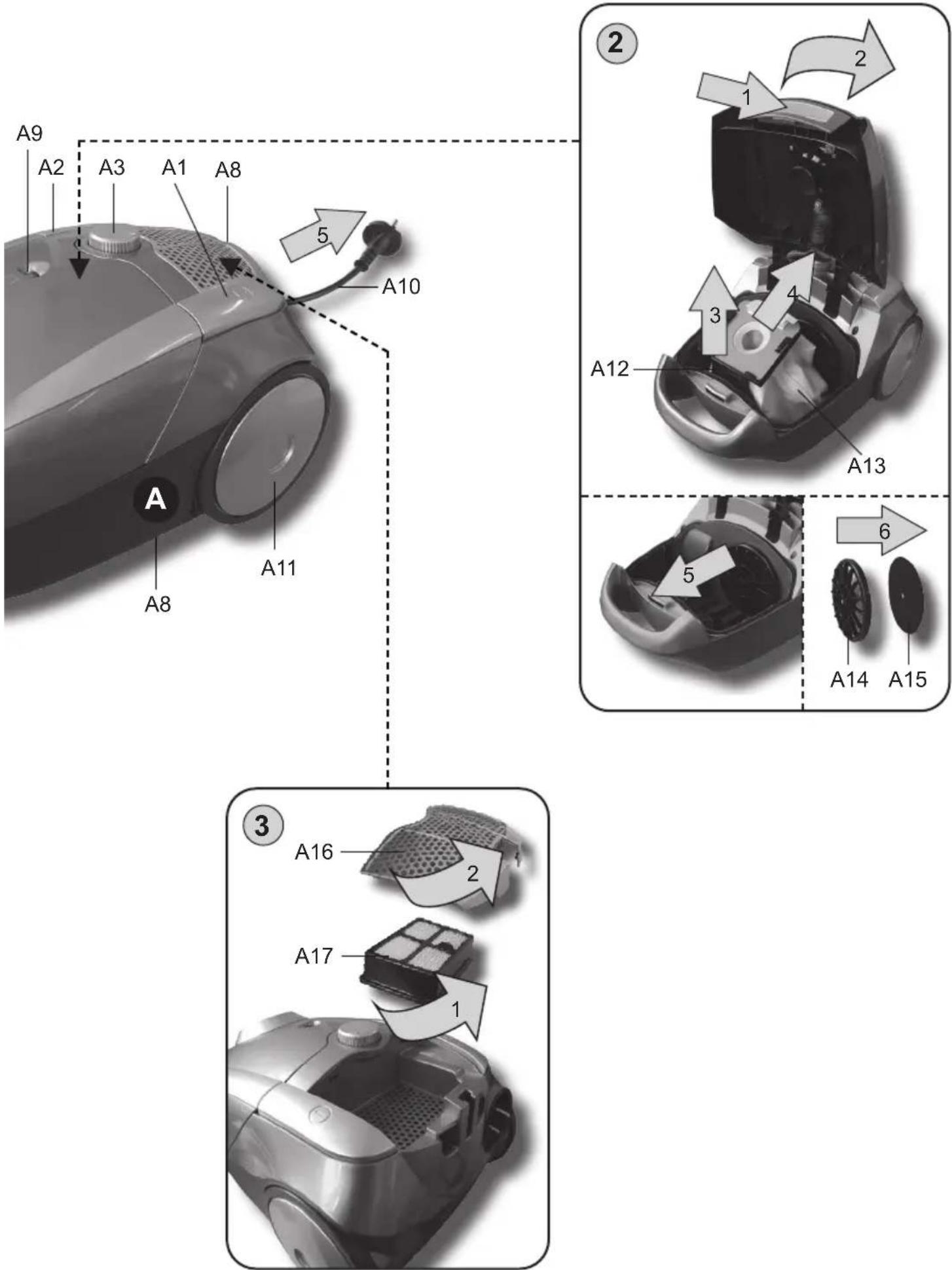

To remove the dustbag, follow the procedure indicated in Fig. 2. To fit a new dustbag in the vacuum cleaner, proceed in reverse order.

INPUT FILTER REPLACEMENT

To remove the input filter, follow the procedure indicated in Fig. 2. To fit a new input filter in the vacuum cleaner, proceed in reverse order. A used filter is to be disposed of with regular household waste.

OUTPUT FILTER REPLACEMENT

To remove the input filter, follow the procedure indicated in Fig. 3. To fit a new output filter in the vacuum cleaner, proceed in reverse order. A used filter is to be disposed of with regular household waste.

VI. CLEANING AND MAINTENANCE

Treat surface of the appliance with a soft and damp cloth, do not use coarse and aggressive detergents!

Accessories

After any vacuuming it is recommended to check visually the brushes or collectors for possible impurities. If there are some impurities, remove them.

Input and output filters

Rinse the input filters A15 under running water. Allow them to dry out properly before re-use. Shake out the input HEPA filter A17 gently, or blow it out. If the HEPA filter is very dirty, you can rinse it under running lukewarm water. Allow it to dry out properly.

Caution

• If you clean the HEPA filter with water, its filtration properties will deteriorate.
  The filter cannot be washed more than three times. After that, a new filter needs to be purchased.
• We recommend that you replace the HEPA filter twice a year. The other filters are to be replaced if they cannot be properly cleaned any more, or if they are damaged.
• If the filters are not cleaned or replaced, it might result in damaging the vacuum cleaner!

Other parts

Clean the telescopic suction tube B6, suction hose B5 with a wet cloth. Rinse the plastic grids A14 and A16 under running water. Allow all the parts to dry out properly before re-use.

VII. TECHNICAL DATA

Voltage (V) / Input (W) specified on the type label of the appliance Protection class of the appliance II.

Weight (kg) approx. 3.1

Size of the product (mm) 365 x 255 x 200

Sound power level 77 dB(A)

Input in off mode is 0.00 W

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

Replacement of parts that require intervention in the electric part of the appliance must be carried out by a specialized service! Failure to comply with the instructions of the manufacturer will lead to expiration of the right to guarantee repair!

VIII. LEGISLATIVE & ECOLOGY

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO A QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

Disposal of old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems).

This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.

WARNINGS AND SYMBOLS USED ON THE APPLIANCE, PACKAGING OR IN THE INSTRUCTIONS MANUAL:

HOUSEHOLD USE ONLY; DO NOT IMMERSE IN WATER OR OTHER LIQUIDS;

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

The symbol indicates a WARNING.
