PHFS 6100 - Sander Philco - Free user manual and instructions

Product Type	Electric Food Slicer
Brand	Philco
Model	PHFS 6100
Rated Voltage	230 V~
Rated Frequency	50 Hz
Rated Power Input	150 W
Safety Class	Class I
Noise Level	64 dB(A)
Cutting Thickness Adjustment	0–22 mm
Cutting Disc Material	High-quality stainless steel (self-sharpening)
Speed Control	Variable speed slider (slower for soft foods, faster for hard foods)
Operation Modes	Constant mode (position I) and Pulse mode (position II)
Maximum Continuous Operation	10 minutes (then 15 minutes rest required)
Food Pusher	Integrated with finger guard for safe operation
Removable Cutting Disc	Yes, released via blade cover release button, tightened with included plastic key
Cleaning	Removable parts (food pusher, sliding plate, cutting disc) washable with warm water and mild detergent; drive unit must not be submerged
Storage	Store in dry place, out of children's reach
Intended Use	Household use only; not for industrial or outdoor use
Not Suitable For	Hard baked goods, frozen food, food in foil, meat with bones, fruit with hard stones

Frequently Asked Questions - PHFS 6100 Philco

What foods can I slice with the Philco PHFS 6100?

The slicer is designed for general food slicing. Avoid hard baked goods, frozen food, meat with bones, fruit with hard stones, and food wrapped in plastic or aluminum foil.

How do I adjust the cutting thickness?

Turn the cutting thickness adjustment dial to the desired position (0–22 mm).

What is the maximum operating time?

Do not operate the slicer for more than 10 minutes continuously. After that, let it rest for at least 15 minutes before using again.

How do I clean the cutting disc?

Press the blade cover release button to remove the cover. Use the included plastic key to loosen the disc (turn left). Wash the disc in warm water with mild detergent, then dry thoroughly. Reinstall and tighten with the key (turn right).

Can I submerge the slicer in water?

No. Never submerge the drive unit in water or any other liquid. Only removable parts (food pusher, sliding plate, cutting disc) can be washed in water.

What does the pulse mode do?

Pulse mode (position II) runs the slicer only while you hold the power switch. Releasing it stops the blade immediately, giving you more control.

Is the cutting disc self-sharpening?

Yes, the cutting disc is made of high-quality materials with self-sharpening properties, so no additional sharpening is needed.

What safety features does the slicer have?

The slicer includes a food pusher with finger guard, a blade cover, and a safety release button. Always use the pusher and never touch the rotating blade.

Why does the blade not rotate when I switch it on?

Ensure the power cord is plugged in and the cutting thickness dial is set above 0. Also check that the blade cover is properly locked. If still not working, consult a service center.

How do I store the food slicer?

Clean and dry all parts before storage. Store in a dry place out of reach of children. Set the thickness dial to 0 and ensure the power cord is neatly wrapped.

USER MANUAL PHFS 6100 Philco

Famous for Quality the World Over

Exterior view of a PHILCO printer with open lid and control panel (no visible text or symbols)

PHFS 6100

Food Slicer

User's Manual

Návod k obsluze

Návod na obsluhu

Instrukcja obstugi

Használati útmutató

Dear customer,

thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user's manual.

CONTENTS

PART 1: IMPORTANT SAFETY INSTRUCTIONS....2
PART 2: DESCRIPTION OF THE ELECTRIC FOOD SLICER....3
PART 3: BEFORE FIRST USE ....4
PART 4: ASSEMBLING THE ELECTRIC FOOD SLICER....4
PART 5: USING THE ELECTRIC FOOD SLICER....4
PART 6: CLEANING AND MAINTENANCE....5
- Removing the cutting disc....5
PART 7: STORAGE....5
PART 8: TECHNICAL SPECIFICATIONS....5

PART 1: IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND STORE FOR FUTURE USE.

• This appliance may be used by persons with physical or mental impairments or by persons with limited experience or knowledge if they are properly supervised or have been informed about how to use of the product in a safe manner and understand the potential dangers.
• Children may not operate this appliance or play with it. Keep this appliance and the power cord out of reach of children.
• Before connecting this appliance to a power socket, make sure the voltage stated on the label of the product corresponds to the voltage in your wall socket.
• Never use accessories, which have not been supplied with this appliance or which have not been explicitly recommended by the manufacturer for this appliance.
  • This appliance is designed for household use.
• Do not use the appliance in an industrial environment or outdoors!
• Do not place the appliance on window sills or on unstable surfaces. Only place the appliance on an even, dry and stable surface.
• Do not place the appliance in the vicinity of an open flame or appliances that are sources of heat.
• Ensure that the power plug contacts do not come into contact with water or moisture.
• Do not wash the drive unit under running water or submerge it in water or another liquid.
• Only use the appliance for slicing food excluding hard baked goods, frozen food, food in plastic or aluminium foils, meat with bones, fruit with hard stones, etc.
• Before every use check that the slicing disc is properly attached to the appliance.
• For pushing food against the cutting disc use only the food pusher supplied with this appliance.
• Do not touch the rotating cutting disc.
• If food gets stuck on the cutting disc, clean it using a plastic spatula. Before cleaning the appliance, turn it off and disconnect it from the power outlet.
• Do not insert your fingers or any other items, such as knives, forks, etc. into the area between the cutting thickness setting plate and the cutting disc.
• Check that the cutting disc has come to a complete stop before taking away the food.
• The maximum time of non-stop operation is 10 minutes. After 10 minutes of operation leave the appliance idle for 15 minutes.
• Always disconnect the appliance from the power socket if you will not be using it and if you are leaving it without supervision, before assembly, disassembly or cleaning.
• Do not disconnect the appliance from the power socket by pulling on the power cord. This could damage the power cord or the power socket. Disconnect the cord from the power socket by gently pulling out the plug of the power cord.
• Pay increased attention when handling the cutting disc to prevent injury caused by the blade.
• If the power cord is damaged, have it replaced at an specialised service centre. It is forbidden to use the appliance if it has a damaged power cord or plug.
• To avoid the danger of injury by electrical shock, do not repair the appliance yourself or make any adjustments to it. Have all repairs or adjustments of the appliance performed at an authorised service centre. Tampering with the appliance during the warranty period may void the warranty policy.

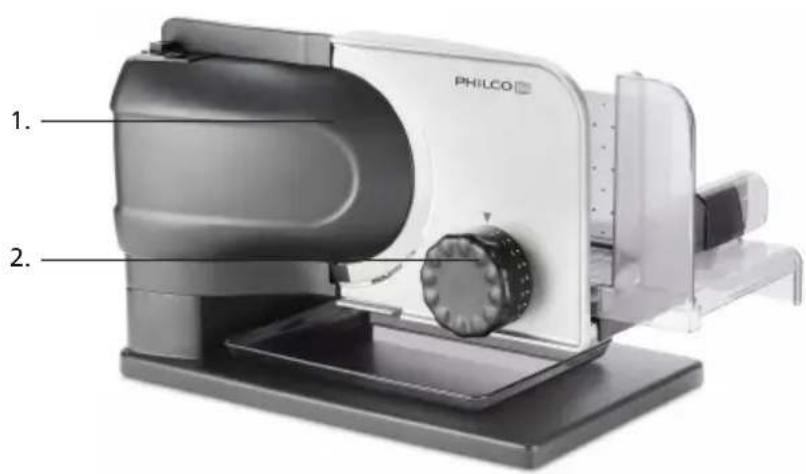

PART 2: DESCRIPTION OF THE ELECTRIC FOOD SLICER

1. Drive unit
2. Cutting thickness adjustment dial (0-22 mm)
3. Blade cover
4. Cutting thickness setting plate
5. Cutting disc
6. Food pusher with a finger guard
7. Sliding plate
8. Guide plate with side groove
9. Power switch (constant/pulse)
10. Speed adjustment slider
11. Blade cover release button

PART 3: BEFORE FIRST USE

Take the appliance and its accessories out of the packaging materials. Store packaging material for possible future use. Wash removable accessories that come into contact with food using water and kitchen detergent. Then thoroughly rinse them under flowing water and dry thoroughly with a wiping cloth. More information found in chapter "Cleaning and maintenance".

ATTENTION: Be careful when handling the cutting disc to prevent injury caused by the blade.

PART 4: ASSEMBLING THE ELECTRIC FOOD SLICER

• Always place the food slicer on an even, dry and stable surface.
- Seat the sliding plate on to the guiding plate with groove and push gently until the lugs on the sliding plate fit into the grooves of the guide plate. The sliding plate is correctly seated when it can freely move back and forward.
- Attach the food pusher on to the sliding plate with a finger guard.
- Connect the power cord plug to a power socket.

Be careful when handling the cutting disc to prevent injury caused by the blade.

PART 5: USING THE ELECTRIC FOOD SLICER

• Set the cutting thickness adjustment dial to the required position.
• Place food on the sliding plate so that it is located between the food pusher and the cutting thickness setting plate.
• Using the speed adjustment slider, set the required cutting speed. When cutting softer food, use a lower speed, when cutting harder food, you can use a higher speed.
• Using the power switch, start the food slicer. Position I serves to start the constant mode, position II serves to start the pulse mode.
• Move the sliding plate back and forward and using the food pusher, move the food towards the cutting thickness setting plate. The cut slices will fall on to a food plate.
• If the food slicer is running in the constant mode, turn it off by switching the power switch to position O. If the food slicer is running in the pulse mode, turn it off by releasing the pressed power switch in position II.
• Before taking away slices or remains of sliced food, ensure that the cutting disc has come to a complete stop.
  • After finishing using the appliance, disconnect it from the power socket.

ATTENTION: Never use the electric food slicer for more than 10 minutes non-stop.

The speed adjustment slider can variably adjust the rotation speed of the cutting disc, in the top position the cutting disc rotates slower, in the bottom position it rotates faster.

PART 6: CLEANING AND MAINTENANCE

• Before cleaning the appliance, always turn it off and disconnect it from the power outlet. Set the cutting thickness adjustment dial to position O.
• After each use remove any food remains from the food slicer. Clean parts that come into contact with food using a wiping cloth dipped in clean water and then dry with a wiping cloth.
• For a more thorough clean, disassemble the food pusher, the sliding plate and the cutting disc. Clean these parts using warm water and kitchen detergent. Then thoroughly rinse under running water and dry them.
• Do not use abrasive cleaning agents, sponges with steel wool or steel wool.
• Under no condition submerge the appliance in water or any other liquid.

Removing the cutting disc

• Press the blade cover release button to release the blade cover and take it off.
• Using the included plastic key, release the centre of the cutting disc (by turning to the left).
• Hold the cutting disc and wash it thoroughly. Pay extra attention when handling the cutting disc.
• Using a dry wiping cloth or a soft brush, clean the area behind the blade.
• Reinstall the clean cutting disc using the included plastic key to tighten it in place (by turning to the right).
• Thanks to special sharpening and high quality materials, the cutting disc disc will remain sharp for a long time without the need for additional sharpening.

PART 7: STORAGE

If you will not be using the appliance, store it in a dry place out of children's reach.

PART 8: TECHNICAL SPECIFICATIONS

Rated voltage range....230 V\~
Rated frequency.... 50 Hz
Rated power input....150 W
Safety class (for electric shock protection)....
Noise level....64 dB(A)

The declared noise emission level of the appliance is 64 dB(A), which represents a level A of acoustic power with respect to a reference acoustic power of 1 pW.

Glossary of technical terms

Safety class for electric shock protection:

Class I – Electric shock protection is provided by double or heavy-duty insulation.

Changes to text and technical parameters are reserved.

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Dispose of packaging material at a public waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection centre for further details. The improper disposal of this type of waste may fall subject to national regulations for fi nes.

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

Manufacturer/Importer:

Fast ČR, a.s.

CZ-10000; CZECH REPUBLIC
