Crystela Digi - Kettle Eta - Free user manual and instructions

Product Type	Electric kettle with temperature regulation
Brand	Eta
Model	Crystela Digi (eta 7153)
Dimensions (mm)	160 x 220 x 220
Weight (kg)	Approx. 1.2
Power Supply	230 V / 2200 W (typical, see type label)
Max Capacity (L)	1.7
Material	Glass body, stainless steel heating bottom
Temperature Settings	50°C, 70°C, 80°C, 90°C, 100°C
Keep Warm Function	Yes, maintains set temperature for 30 minutes
Auto Shut-off	Yes, when water boils or reaches set temperature
Boil-Dry Protection	Yes, thermal safety lock
Cordless Base	Yes, removable stand with central connector
Filter	Removable sieve filter
Water Level Indicator	Yes, with MIN/MAX marks
Cleaning	Descaling with citric acid; clean filter with brush
Safety Features	Auto shut-off, boil-dry protection, cool-touch handle
Standby Power	< 1.0 W
Warranty	Subject to terms, repair by authorized service

Frequently Asked Questions - Crystela Digi Eta

How do I use the Keep Warm function?

Select the desired temperature using the B2 button, then press and hold the B1 button until you hear a sound. The kettle will maintain the temperature for 30 minutes. The signal light B3 will flash during this period.

Can I heat other liquids besides water?

No, the kettle is designed for heating drinking water only. Do not insert tea bags, coffee, or other ingredients directly into the kettle.

How do I clean the kettle?

For descaling, fill the kettle with a solution of 50 g citric acid and water, boil it, let it sit for 10 minutes, then rinse thoroughly. Clean the sieve filter under running water with a fine brush.

What does the safety lock do?

The thermal safety lock automatically disconnects power if the steam sensor fails, water boils away, or the kettle is turned on empty. Unplug and let it cool before reuse.

What are the temperature settings for different beverages?

50°C for baby food, 70°C for green tea, 80°C for white tea, 90°C for oolong tea/coffee/instant drinks, and 100°C for black/herbal tea.

Can I open the lid while water is boiling?

No, do not open the lid when water is boiling or hot to avoid scalding.

How much water should I put in?

The water level must be between the MIN and MAX marks on the water gauge. Maximum capacity is 1.7 liters.

What should I do if the kettle doesn't turn on?

Ensure the kettle is properly placed on the stand and plugged in. Check the power outlet. If the thermal safety lock has activated, unplug and let it cool before retrying.

How do I cancel the heating or keep warm function?

Press the B1 (ON/OFF) button at any time to cancel the current operation. Lifting the kettle off the stand also cancels all set functions.

Is the kettle cordless?

Yes, the kettle is cordless and sits on a removable stand with a central connector. The stand has a cord that plugs into the wall.

USER MANUAL Crystela Digi Eta

Electric kettle with regulation • USER MANUAL

GB 17-23

Exterior view of a modern glass coffee maker with engraved branding (no readable text beyond branding)

CZ I. BEZPEČNOSTNÍ UPOZORNĚNÍ 3

II. POPIS SPOTŘEBIČE 6

III. POKYNY K OBSLUZE 6

IV. ÚDRŽBA 8

V. EKOLOGIE 8

KEEP WARM (prihrievanie)

Electric kettle with regulation

eta 7153

Crystela Digi

INSTRUCTIONS FOR USE

Dear customer, thank you for purchasing our product. Keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. SAFETY WARNING

GENERAL PROVISIONS:

- Before the first use, read the instructions for use carefully, look at the illustrations and store the instructions for use for the future. Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.

- Check whether the data on the type label correspond with the voltage in your socket. The power cord plug has to be connected to the properly connected and grounded socket according to the national standard.

- This product can be used by children at the age of 8 years and older if they are supervised or if they were instructed regarding use of the appliance in a safe way and if they understand possible risks. User cleaning and maintenance must not be performed by children if they are younger than 8 year and unsupervised. Children younger than 8 years must be kept out of reach of the appliance and its power cord.

- The device may be used by persons with reduced physical or mental abilities or lack of experience and knowledge only if they are under supervision or they have been instructed about using the appliance safely and understand the potential dangers.

- Children must not play with the appliance.

- The electric kettle is intended for heating the maximum of 1.7 l of water. If the water level exceeds the maximum recommended amount, hot water may be splashing out.

- WARNING: Do not open the lid if the water is boiling or if it is hot.

- CAUTION – Do not use the appliance with a program, time switch or any other part that turns the appliance on automatically as there is a risk of fire if the appliance is not covered or placed properly.

- The kettle may not be used without the filter sieve.

- When the appliance is in operation, prevent pets, plants or insects to get in contact with it.

- Do not plug the fork of the supply cord into the power outlet and do not unplug the cord with wet hands or by pulling by the supply cord!

- Use the kettle with the stand designed for this type only and only for its intended purpose.

- Prevent injuries when handling (e.g. by hot water, steam).

- The appliance is equipped with the heat safety lock which disconnects power supply if the steam sensor fails, if water boils away or if an empty kettle is turned on. If it happens, unplug the appliance from power supply and let it cool down. Do not fill the kettle with cold water in order to cool it down quickly. It could reduce life of the heating element.

- Use this appliance only for the purpose for which it was designed as specified in this user's manual. Never use the appliance for any other purpose.

- All text in other languages and pictures shown on the packaging, or the product itself, are translated and explained at the end of this language mutation.

• WARNING: There is a risk of injury in case of incorrect use (not in accordance with the manual) of the appliance.
• The producer is not responsible for damage caused by improper use of the appliance (e.g. burning, scalding, fire) and its guarantee for the appliance does not apply to situations when the safety warnings above are not complied with.

USE OF THE APPLIANCE:

• Use the electric kettle with the stand designed for this type only.
• Never immerse the electric kettle and the stand in water and other liquids (even partially)!
• The kettle may not be used without the filter sieve.
• Never leave the appliance unsupervised and check it during the whole time of water heating!
• This appliance is not intended for outdoor use. Do not place any objects on the appliance.
• The appliance is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!
• The electric kettle cannot be used for heating other liquids than water! Never insert into the kettle tea bags, tea leaves or any other ingredients for the beverage!
• Use the appliance in the working position only at places with no risk of turning over and in sufficient distance from heat sources (e.g. heater, stove, cooker, oven, grill), flammable objects (e.g. curtains, drapes, etc.) and wet surfaces (e.g. sinks, wash basins, etc.).
• Do not place the appliance near objects or under objects which could get damaged by steam, e.g. walls, kitchen cupboards, sideboards, paintings, or curtains. Leaking steam could damage them.
• Do not use the appliance in an environment saturated with explosive or flammable steams.
• There must be water in the electric kettle before putting into operation. Do not fill the electric kettle with water if it is on the stand.
• Do not touch outer surfaces during operation of the kettle, they are hot and there is a risk of getting burned. Do not touch the lid during and after cooking!
• According to the type of your kettle, the surface is ceramic or glass. These materials are very fragile, pay special attention when handling, operation, maintenance and storage to avoid injury. Never use the kettle if it is broken, cracked or shows signs of any damage or fissure.
  – Before switching on the kettle ensure that the water level is between MIN and MAX marks
• If you are not going to use the electric kettle for longer time, we recommend unplugging the stand from power supply by taking the fork of the power cord out of the socket.

POWER CORD:

• If the power cord of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.
• Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged or if it fell to water. In this case take the appliance to a special service to check its safety and proper function.
• Check the condition of the power cord of the appliance regularly.
• Never put the power cord on hot surfaces or do not let it hang over the edge of a table or a work top. Plugging or pulling the power cord e.g. by children can result in tilting over or drawing the appliance down and serious injury!

• The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges.
• If you need to use an extension cord, it has to be uncorrupted and it has to comply with the valid standards.

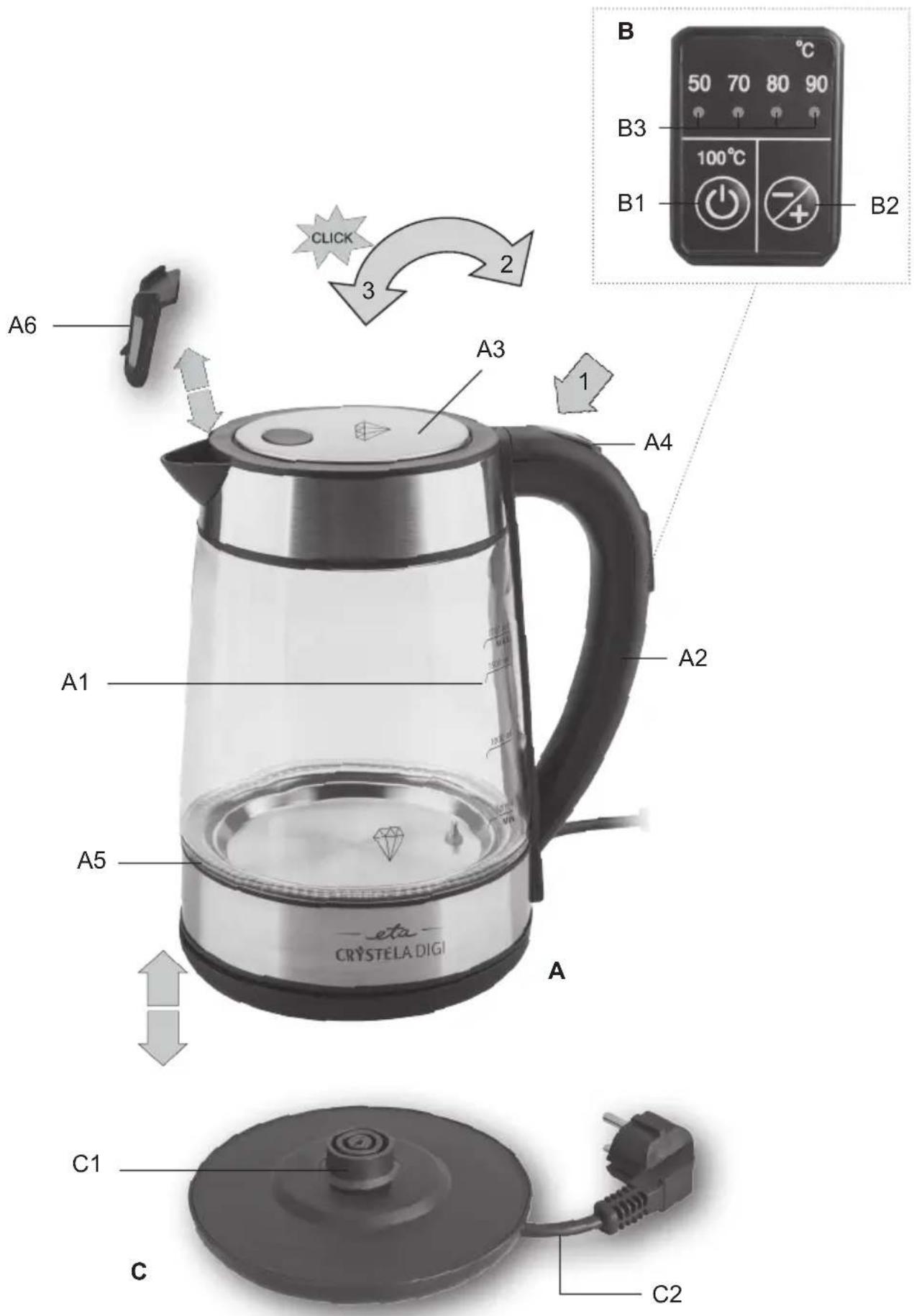

II. DESCRIPTION OF THE APPLIANCE

A - electric kettle

A1 – water gauge A4 – lid lock button

A2 – handle A5 – signal lights

A3 – lid A6 – filtration sieve

B - control panel \*

B1 - ON/OFF switch; 100°C/KEEP WARM

B2 – temperature setting button

B3 – signal lights indicating the selected temperature / KEEP WARM function

C - removable stand

C1 - central connector

C2 - supply cord

* The control electronics ensures the appliance turns off automatically after the set temperature or boil of water has been reached.

III. INSTRUCTIONS FOR USE

Remove all the packing material and take out the electric kettle with the stand. Remove all possible adhesion foils, stick-on labels or paper from the appliance. Before the first use, fill the electric kettle with clean water to the maximum level, turn it on and let the water boil. Then pour out the water and repeat the procedure several times (at least five times).

APPLICATIONS

Unwind the necessary length of the power cord C2 from the storage space of the stand C. Place the stand on a suitable surface, in the height of about 85 cm, out of reach of children and incapacitated persons and plug the fork of the power cord to the electric socket (you will hear a signal sound and signal light indicators will flash).

Hold the kettle A on the handle A2. Open the lid A3 by pressing the lock button A4. Fill the kettle with drinking water. Minimum and maximum water level is indicated by the watermark A1. Close the lid by snapping and position the kettle filled with water onto the removable base C (you will hear a signal sound and the signal light indicators A5 will flash).

A) Water heating to 100°C

Press the button B1 to automatically switch on the kettle to a temperature of 100 °C ; the background colouring of the signal lights A5 will come on. By pressing the button B1 repeatedly, the kettle will switch off.

As soon as the required temperature is reached, the kettle will switch off.

B) Water heating to a temperature of 50 - 90°C

Press the button B2 repeatedly to set the required temperature from the following options: 50-70-80-90°C; the selected temperature is indicated by the appropriate signal light indicator B3.

Confirm the selected temperature by pressing the button B1 which will put the kettle on; at the same time, the background colouring of the signal lights A5 will come on. As soon as the required temperature is reached, the kettle will switch off. During the heating process, you can change the selected temperature by pressing the temperature selection button B2.

KEEP WARM (heating up)

Select the required temperature using the button B2 first and then keep the button B1 pressed. You will hear a sound signal and the appropriate signal light indicator B3 will start flashing. As soon as the required temperature is reached, heating will switch off, while the light indicator B3 remains flashing. For 30 minutes, the kettle will maintain the temperature you have set; after that, you will hear two short signal sounds and the kettle will switch off completely.

Notes

- Water heating, including the KEEP WARM function, can be cancelled at any time using the button B1.

Please consider the following tips as examples and inspiration not intended to provide complete instructions, but just to show the possibilities of heating of various liquids. Water temperatures are only approximate and may vary according to personal taste, quantity, type, quality and age of the used tea, coffee, etc.

• 50^ = baby food,
• 70^ = green tea,
• 80^ = white tea,
• 90^ = oolong teas, coffee, instant drinks, soup,
• 100^ = black, herbal tea.

Note: To ensure maximum accuracy of the temperature set, which is lower than 100^ C, we recommend heating no less than 0.7 litres of water (preferably more than 1 litre).

Always use fresh drinking water for boiling. The temperature and time heating depends on the amount of water and the initial temperature of water. For the correct temperature setting, follow the manufacturers' instructions that are described on food packages (e.g. tea, coffee, instant drinks, soap, etc.).

Note

– Lifting the kettle off the stand cancels all the set functions.
- If you set a heating temperature which is lower than the current water temperature, you will hear two signal sounds and the kettle will switch off. However, if you activate the KEEP WARM function when setting a temperature which is lower than the current temperature, the kettle will maintain the temperature at the value you have set (i.e. it will wait till the water temperature drops to this value and maintain it).
- If you are preparing food for very young children (e.g. to 50 °C), the water must be heated to a boil (100 °C) first. Wait until the water cools down and check its temperature before serving. The recommended safe temperature food for children is max. 40 °C.

IV. MAINTENANCE

Unplug the appliance from power supply by taking the fork of the power cord out of the socket! Clean the kettle only when it is cooled down! Do not use rough and aggressive detergents (e.g. sharp objects, scrapers, diluting agents or other solvents)! The casing of the electric kettle is made of top-quality glass and the heating bottom is made of top-quality stainless steel, but in common use, impurities from water get stuck on them (water scale), particularly above the heating element. It is not rust or another material defect of the kettle container.

Cleaning the kettle

Pour about 50 g citric acid to the kettle with the water scale sediment. Fill the kettle to about one half and mix. After it dissolves, fill the kettle to 3/4 of the maximum amount of water. Place the electric kettle on the stand and turn it on. Before boiling, turn off the kettle, let the solution take effect for about 10 minutes and then pour it out. Clean the kettle thoroughly with clean water. Repeat the whole procedure if the kettle is too soiled. Clean the electric kettle regularly!

Cleaning the sieve (A6)

Take the sieve from the kettle. Clean it from possible sediments in running water using a fine brush. Then put the sieve back in the opposite way.

V. ENVIRONMENT

Printed signs of materials used for manufacture, packing, components and accessories, as well as their recycling, are on all the pieces if their dimensions enable it. The symbols on the product or in the accompanying documentation mean that the used electric or electronic products must not be disposed together with municipal wastes. Please, hand them over to the collection points designed for their correct disposal, where they will be accepted free of charge. By correct disposal of this product you can help to preserve valuable natural resources and help to prevent possible negative impacts to the environment and to human health, which could be the results of incorrect waste disposal. For further details ask the municipal authorities or the nearest collecting point. Penalties can be charged for incorrect disposal of such wastes, according to national regulations. If the appliance is to be put out of operation definitely, we recommend cutting off the feeder cable, to disable its use.

Expert service must do the large maintenance or to intervene into inside parts of the appliance!

Non-observance of the instructions of the manufacturer cancels the right for guarantee repair!

VI. TECHNICAL DATA

Voltage (V) shown on the type label of the appliance

Absorbed power (W) shown on the type label of the appliance

Max. volume (I) 1.7

Protection class of the appliance I.

Weight (kg) approximately 1.2

Size of the product (mm) 160 x 220 x 220

Input in standby mode is < 1,00 W.

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

WARNINGS AND SYMBOLS USED ON THE APPLIANCE, PACKAGING OR IN THE INSTRUCTIONS MANUAL:

HOT. HOUSEHOLD USE ONLY. DO NOT IMMERSE IN WATER OR OTHER LIQUIDS. TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

The ⚠ symbol indicates a WARNING.

B1 - BE/KI gomb; 100 °C/KEEP WARM
