Product Type	Power Supply Unit
Brand	Cooler Master
Model	MWE 700 White V2
Category	ATX Power Supply
Wattage	700 W
Efficiency Rating	80+ White
Form Factor	ATX
Dimensions (W x H x D)	150 x 86 x 140 mm
Weight	2.2 kg
Fan Size	120 mm
Fan Type	Sleeve Bearing
Modularity	Non-Modular (Fixed Cables)
Main Connector	1 x 24-pin ATX
CPU Power Connector	1 x 4+4-pin (EPS12V)
PCIe Power Connectors	2 x 6+2-pin (PCIe)
SATA Connectors	6
Molex Connectors	3
Protection Features	OVP, OCP, OPP, SCP, OTP
AC Input Voltage	100-240 V (Full Range)
DC Output (Single +12V Rail)	58 A (696 W)
Operating Temperature	0°C to 40°C
Warranty	3 Years
Compliance	ErP Lot 6, RoHS
Included Cables	AC Power Cord, Cable Ties

Frequently Asked Questions - MWE 700 White V2 COOLER MASTER

Is the MWE 700 White V2 compatible with my system?

The MWE 700 White V2 is an ATX power supply, compatible with most standard ATX cases. Ensure your case supports ATX PSUs and that the 700W wattage is sufficient for your components.

Is this power supply modular?

No, the MWE 700 White V2 is a non-modular power supply, meaning all cables are permanently attached.

What is the efficiency rating of the MWE 700 White V2?

It has an 80+ White efficiency rating, guaranteeing at least 80% efficiency at typical loads.

Does the PSU have a fan and is it silent?

Yes, it features a 120mm sleeve bearing fan. It is not designed for silent operation but offers a balance between cooling and noise.

What protections does the MWE 700 White V2 include?

It includes Over Voltage Protection (OVP), Over Current Protection (OCP), Over Power Protection (OPP), Short Circuit Protection (SCP), and Over Temperature Protection (OTP).

How many PCIe connectors does it have?

It has two 6+2-pin PCIe connectors, suitable for most mid-range graphics cards.

What is the warranty period for the MWE 700 White V2?

Cooler Master provides a 3-year warranty for this power supply.

Can this PSU handle a dual GPU setup?

With two PCIe connectors, it can support dual GPUs only if each GPU requires a single connector, but 700W may be insufficient for high-end dual GPUs.

What is the cable length for the main ATX connector?

The main 24-pin ATX cable is approximately 50 cm (20 inches) long, suitable for standard mid-tower cases.

Is the PSU compatible with sleep modes and modern power saving?

Yes, it complies with ErP Lot 6, ensuring low power consumption in standby modes.

USER MANUAL MWE 700 White V2 COOLER MASTER

Black power supply unit with fan and ventilation grille (no visible text or symbols)

FEATURES

Single +12V Rail : All power comes from a single +12V source, ensuring consistent output through all connected cables.

120mm HDB Fan : The 120mm HDB fan employs responsive fanspeed control, limiting noise to specific cooling requirements during use.

DC-to-DC Technology : The DC-to-DC + LLC circuit design offers reliable, stable output to all connected components.

Silent Mode : The fan will not spin under lower loads or in standby mode, ensuring a quiet user experience during casual operation.

Flat Black Cables: The flat cables take up less space and are easier to manipulate within the chassis.

3 Year Warranty : This unit comes with a standard limited manufacturing warranty of 3 years from the date of purchase.

PACKAGE INFORMATION

Cable Type	EAN	UPC
AU	4719512083079	884102055560
BR	4719512083086	884102055577
EU	4719512083055	884102055546
P	4719512083116	884102055607
KR	4719512083093	884102055584
ST	4719512083062	884102055553
TW	4719512083109	884102055591
JK	4719512083048	884102055539
JS	4719512083031	884102055522

Nett Weight	1.498 kg / 3.303 lb
Gross Weight	1.896 kg / 4.18 lb
Package Dimensions	245 x 190 x 110mm (9.65 x 7.48 x 4.33")
Carton Dimensions	570 x 260 x 215mm (22.44 x 10.24 x 8.46")
Unit / Carton	5 pcs
Carton / Pallet	32 pcs

The MWE White offers 80 Plus Standard certification, guaranteeing an average efficiency of 85% at typical load. The DC-to-DC + LLC circuit design allows the unit to convert power from the single +12V rail reliably, efficiently, and safely for a better overall user experience. The thermally sensitive HDB fan cools based on temperature, adjusting constantly as the system's needs change. Not only does this waste less power but it also creates a quieter overall user experience by not running the fan at maximum noise level when not needed. For a great entry level computing experience, choose the MWE White.

SPECIFICATIONS

Product Name		MWE 700 White 230V V2
Item Code		MPE-7001-ACABW
ATX Version		Intel ATX 12V V2.52
PFC		Active PFC
Input Voltage		200-240V
Input Current		6A
Input Frequency		50-60Hz
Dimensions (L x W x H)		140 x 150 x 86mm
Fan Size		120
Fan Bearing		HDB
Fan Speed		2400 RPM
Noise @ 20%		11.12dB-A
Noise @ 50%		20.4dB-A
Noise @ 100%		40.8dB-A
Efficiency		85% Typically
80 PLUS Rating		80 PLUS Standard 230V EU
ErP 2014 Lot 3		Yes
Operating Temperature		40°C
Power Good Signal		100 -500ms
Hold Up Time		>14ms at 100% full load@230Vac
MTBF		>100,000 hours
Protections		OVP / OPP / SCP / UVP / OTP
Regulatory		CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB
Connectors	ATX 24 Pin	x1
	EPS 4+4 Pin	x1
	EPS 8 Pin	x1
	SATA	x6
	Peripheral 4 Pin	x3
	PCI-e 6+2 Pin	x4

AC INPUT	200-240V~ 6A 50-60Hz
DC OUTPUT	+3.3V	+5V	+12V	-12V	+5Vstb
	20A	20A	58A	0.3A	3A
TOTAL POWER	120W		696W	3.6W	15W
	700W

FEATURES

All power comes from a single +12V source, ensuring consistent output through all connected cables.

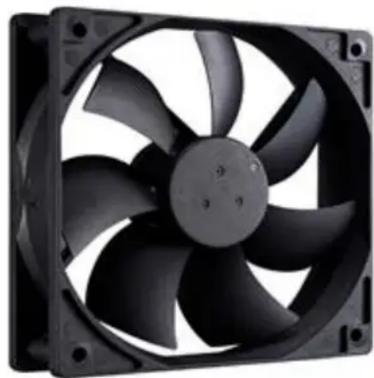

Close-up of a black CPU fan with visible blades and mounting holes (no text or symbols)

The 120mm HDB fan employs responsive fanspeed control, limiting noise to specific cooling requirements during use.

The DC-to-DC + LLC circuit design offers reliable, stable output to all connected components.

This certification guarantees a typical efficiency of 85% under normal operating conditions.

The flat cables take up less space and are easier to manipulate within the chassis.

This unit comes with a standard limited manufacturing warranty of 3 years from the date of purchase.
