Product Type	Portable Air Conditioner
Brand	Teesa
Model	Cool Touch C500 TSA8041
Cooling Capacity	Approx. 5000 BTU/h
Power Supply	220-240 V~ 50 Hz
Power Consumption	~ 500 W
Dimensions (W x D x H)	45 x 35 x 70 cm
Weight	~ 12 kg
Noise Level	≤ 55 dB(A)
Airflow Rate	300 m³/h
Refrigerant	R290
Modes	Cool, Fan, Dehumidify
Fan Speeds	3 (Low, Medium, High)
Timer	1-24 hours
Remote Control	Yes (included)
Air Filter	Washable dust filter
Drainage	Continuous or manual
Exhaust Hose Length	1.5 m
Window Kit Included	Yes
Maintenance	Clean filter every 2 weeks; drain water as needed
Safety	Overheat protection, auto shut-off
Spare Parts / Repairability	Filters, remote, hose available; user serviceable filter only
General Info	Designed for rooms up to 20 m²

Frequently Asked Questions - Cool Touch C500 TSA8041 Teesa

How do I install the air conditioner?

Place the unit near a window or door. Attach the exhaust hose to the unit and the window kit. Seal the opening with the window kit. Plug into a grounded outlet. Refer to the installation guide in the manual.

How often should I clean the filter?

Clean the washable filter every 2 weeks for optimal performance. Use a vacuum or rinse with water and let dry completely before reinstalling.

Why is the air conditioner not cooling?

Check if the filter is dirty, the exhaust hose is blocked or not sealed, the room is too large, or the set temperature is too high. Also ensure the unit is not in fan-only mode.

Can I use an extension cord?

It is not recommended. Plug directly into a dedicated grounded outlet. Using an extension cord may cause voltage drop and damage the compressor.

How does the dehumidify mode work?

In dehumidify mode, the unit removes moisture from the air without strong cooling. The fan runs at low speed. Water is collected in the internal tank or drained continuously via a hose.

What does the timer function do?

The timer allows you to set the unit to turn on or off after a specified delay (1-24 hours). Use the remote control or panel to program it. This can save energy.

How do I drain the water?

In cool mode, water may accumulate. If the internal tank is full, a warning will appear. You can either drain manually via the bottom plug or attach a hose for continuous drainage.

Is the remote control included?

Yes, the unit comes with a remote control for convenient operation. Batteries are usually not included (typically 2x AAA).

What should I do if the unit turns off unexpectedly?

Check if the timer was set, the room temperature reached the set point, or the unit overheated. If overheat protection triggers, turn off and wait 30 minutes. Also ensure the filter is clean.

Can I use the air conditioner in winter?

The unit is designed for cooling only, not heating. For winter use, it can be used in fan mode to circulate air, but it will not heat the room.

USER MANUAL Cool Touch C500 TSA8041 Teesa

Thank you for purchasing TEESA appliance. Please read this operation instruction carefully before use, and keep it for future use. Distributor does not take responsibility for damages caused by inappropriate handling and use of the product.

SAFETY INSTRUCTIONS

In order to reduce the risk of fire, electric shock, or any other injury, follow basic safety precautions applied when using any electrical device, including the following:

1. Read this instruction manual carefully, even if you are familiar with the appliance. Keep the manual for future reference.
2. Before connecting the appliance to power supply socket, make sure the voltage indicated on the appliance corresponds to the voltage in the power supply socket.
3. Place the device on flat, stable surface.
4. Protect this device from shock and being dropped.
5. Clean and store this appliance in accordance to instructions listed in "Cleaning" and "Storage" section.
6. ALWAYS turn off the device:

• if it's not operating correctly,
- if there's an uncommon voice when using,
• before disassembling the device,
• before cleaning,
- when not in use.

1. When you disconnect the power cord of the appliance, grasp and pull the plug, not the cord/cable.
2. This appliance may be used by children who are above 8 years old and by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they are supervised and guided by a person who is responsible for their safety in a cautious manner, and all the safety precautions are understood and followed. Children should not play with this device. Children should not perform cleaning and servicing of the device unsupervised.
3. Keep the appliance out of the reach of children.
4. Keep the device and its cord/cable away from heat, water, moisture, sharp edges and any other factor which may damage the appliance or its cord.
5. Do not place the appliance in water or any liquid; nor handle/use it with wet or moist hands.
6. Do not use the product for purposes different from displayed in this operating manual.

7. Do not use unauthorized accessories.

8. Appliance for home use; do not use it for commercial or industrial purposes. Device for indoor use only.

9. DO NOT use this device if the cord or the plug is damaged, or the appliance is broken.

10. Do not attempt to repair this appliance yourself. Only authorized and qualified personnel may repair this device. Never disassemble this device.

11. Place this device on a flat and stable surface.
    • For best results, place the cooler on a raised surface such as a table or work surface.
    • Do not use this device near radiators or electrical appliances.
    • Do not move, tilt or turn the device when it is filled with water.

12. Fill the water tank only with clean water (for better cooling effect, use cold water).
    • Do not insert your fingers, pencils or other objects into the grids.
    • Do not cover or block the air intake and outlet grills.

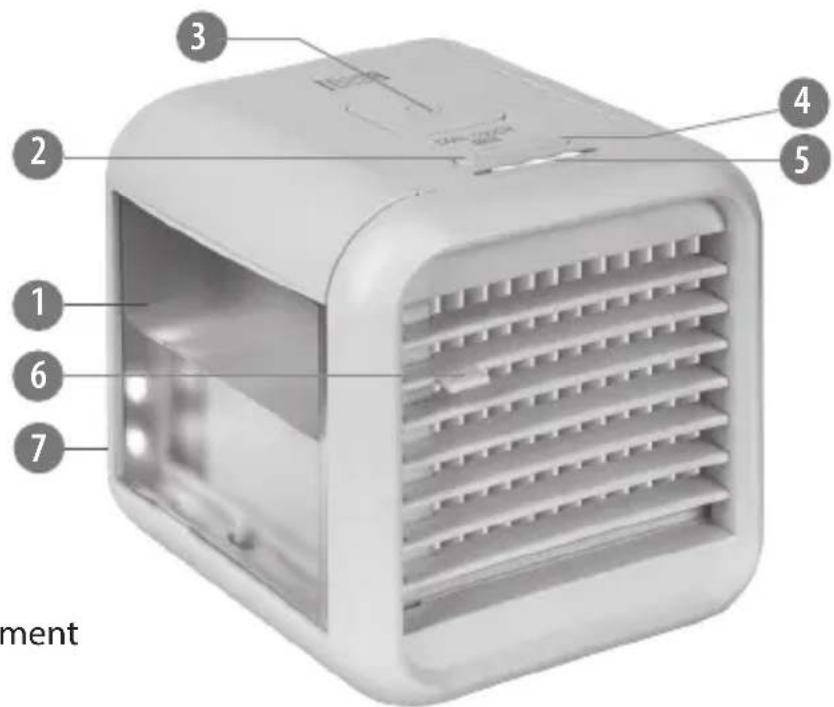

PRODUCT DESCRIPTION

1. Water tank
2. Fan speed button
3. Power button
4. Backlight button
5. Indicator
6. Airflow direction adjustment
7. micro USB power socket

OPERATION

For best cooling effects, place this air cooler within a meter away from you with its front grid facing you. It is not design to cool large areas such as a room. Use it rather to cool your personal area.

1. Open the water tank and fill it with water.
   TIP: Water tank is detachable. If you want, you can detach it from the device to fill it with water then place it back.
2. Connect the air cooler to the power mains or a compatible PC USB port.
3. Press the power button to turn on the device.
4. Set the fan speed by pressing the fan speed button. There are three speeds available: low, medium and high. The indicator shows which speed is currently running.
5. Set the backlight by pressing the backlight button.
6. Use the lever on the front grid to set the vertical direction of the airflow.
7. Press the power button to turn off the device and disconnect it from power supply.

CLEANING AND STORAGE

• Prior to cleaning disconnect the device from power mains.
- Clean the appliance with a soft and dry cloth. Do not use any abrasives or cleaning agents to clean this appliance.
• Make sure to wipe the device dry after cleaning.

If you are not going to use the air cooler for a long period of time, empty the water tank, turn on the unit and set the highest speed for at least 4 hours. This operation dries the filter and the inside of the unit. If the unit remains wet for a long period of time it will be damaged by the appearance of mold.

SPECIFICATION

3 fan speed settings 7 backlight colors Cools, humidifies and purifies air Vertical adjustment of the airflow Portable and compact Anti-slip feet

Water tank capacity: 450 ml Power: 8 W Power supply: 5 V; 2 A Weight: 1 kg Dimensions: 190x180x170 mm In set: USB cable, user's manual

English Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract This product should not be mixed with other commercial wastes for disposal.

Made in China for LECHPOL ELECTRONICS Sp. z o.o. Sp.k., ul. Garwolińska 1, 08-400 Miętne.
