LKK-90 - Fridge Ravanson - Free user manual and instructions
Find the device manual for free LKK-90 Ravanson in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Compressor Refrigerator |
| Model | Ravanson LKK-90 |
| Capacity | 90 Liters |
| Dimensions (H x W x D) | 85 x 47 x 50 cm |
| Net Weight | Approx. 19 kg |
| Power Supply | 220-240 V, 50 Hz |
| Energy Class | A (EU 2010) |
| Refrigerant | R600a (Isobutane) |
| Climate Class | N-ST (16-38°C) |
| Temperature Range | 0°C to 8°C (adjustable thermostat) |
| Defrosting | Manual |
| Noise Level | ≤ 40 dB(A) |
| Interior Light | Yes, LED |
| Shelves | 3 removable glass shelves |
| Door Storage | 3 door balconies + 1 egg tray |
| Vegetable Crisper | 1 drawer |
| Reversible Door | Yes, user adjustable |
| Leveling Feet | 2 adjustable front feet |
| Cooling System | Static with automatic thermostat |
| Cleaning | Wipe with soft cloth and mild detergent |
| Spare Parts | Compressor, shelves, door gaskets, thermostat |
| Repairability Index | 7.5/10 (spare parts available) |
| Included Accessories | Egg tray, ice cube tray |
| Safety | Ventilation space required, do not tilt beyond 45° |
Frequently Asked Questions - LKK-90 Ravanson
How do I install the Ravanson LKK-90 refrigerator?
Place the fridge on a level surface, leave at least 10 cm clearance around for ventilation, and wait 4 hours after transport before powering on.
What is the recommended temperature setting?
Turn the thermostat dial to a mid-setting (e.g., 3-4) for a temperature of about 4-5°C in the fridge compartment.
Why is my refrigerator not cooling properly?
Check if the door is sealing properly, the thermostat is set correctly, and the condenser coils are clean. Also ensure the fridge is not overstocked.
How do I defrost the freezer compartment?
Turn off the fridge, remove food, and leave the door open. Scrape off ice gently; do not use sharp objects. Clean and dry before restarting.
The fridge is making strange noises. Is it normal?
Some sounds like compressor hum, refrigerant flow, or clicking are normal. If you hear loud rattling, check if the fridge is level and items are stable.

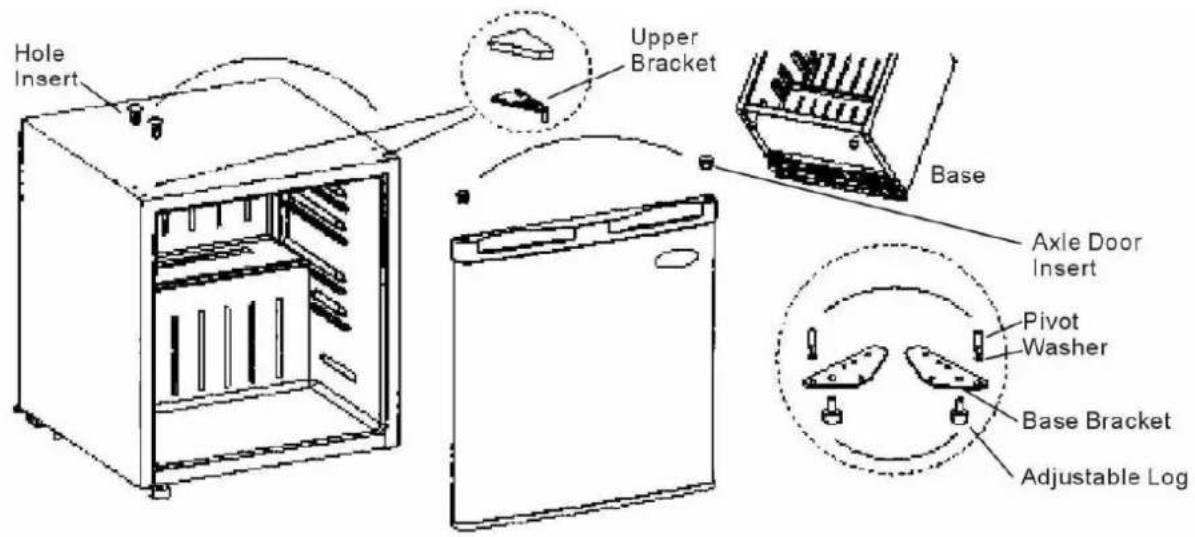

Can I reverse the door swing?
Yes, the door is reversible. Use a screwdriver to detach the hinges and follow the instructions in the manual to reattach on the opposite side.
How do I clean the refrigerator?
Unplug the fridge, remove shelves and drawers, wash them with warm soapy water. Wipe the interior with a damp cloth and mild detergent. Dry thoroughly before reconnecting.
What should I do during a power outage?
Keep the door closed. A full fridge stays cold for about 4 hours. Do not refreeze thawed food unless it still feels cold.
How can I save energy with this fridge?
Place it away from heat sources, allow hot foods to cool before storing, and avoid frequent door openings. Keep the coils clean and the door seals tight.
Where can I find spare parts or get repairs?
Contact Ravanson customer service or check authorized service centers. Common parts like shelves and door gaskets are available online.
