Product Type	Refrigerator-freezer
Model	LKK-120RC (also LKK-120RP, LKK-120RB)
Brand	Ravanson
Energy Class	F
Climate Class	N, ST (16°C to 38°C)
Rated Voltage	220-240 V ~ 50 Hz
Rated Current	0.8 A
Coolant	R600a (isobutane), 26 g
LED Power	1 W
Compressor Protection	Class I, grounded plug
Total Net Volume	Approx. 120 L
Freezer Compartment	For storing frozen food, manual defrost
Refrigerator Compartment	With crisper drawer, bottle compartments
Thermostat Control	Rotary knob (0-5), manual
Defrosting	Manual defrost required (ice layer >3-5 cm)
Ice Making	Ice tray included
Adjustable Feet	Yes, for leveling
Minimum Clearance	10 cm sides/back, 20 cm top, 160° door opening
Weight	Approx. 28 kg (estimate)
Dimensions (W x D x H)	Approx. 50 x 55 x 85 cm (estimate)
Installation	Freestanding, not built-in
Warranty	24 months (minimum)
Maintenance	Clean with soft damp cloth and mild detergent; do not use abrasives
Spare Parts Availability	Contact authorized service (Quadra-Net network)
Safety Features	Grounded plug, R600a flammable gas warning, child safety locks? Not specified

Frequently Asked Questions - LKK-120RC Ravanson

What should I do if the refrigerator stops working?

Check that the thermostat is not set to '0', the plug is firmly inserted, the power supply is on, and wait at least 5 minutes after a power outage before restarting. Also ensure the device is level and not touching walls.

Why is my refrigerator not cooling enough?

Possible causes: too much food or tight arrangement blocking airflow, exposure to sunlight or high ambient temperature, location near a heat source, frequent door openings, insufficient ventilation (minimum 10 cm clearance on sides and back). Also check that the door seals are clean and close properly.

Why is there frost build-up in the freezer?

Frost is normal; manually defrost when ice layer reaches 3-5 cm thick. Turn thermostat to '0', unplug, remove food, and let ice melt. Speed up by placing a bowl of hot water inside. Do not use metal tools or electric heaters. Clean and dry before restarting.

Why is my refrigerator making loud noises?

Normal sounds include water running (refrigerant flow) and tapping from thermal expansion. If unusually loud, ensure the refrigerator is level on a solid surface and not touching walls. If noise persists, contact service.

How do I replace the interior light bulb?

Set thermostat to '0' and unplug the refrigerator. Remove food from top shelf and pull it forward. The bulb is behind the light cover at the rear of the thermostat housing. Twist off the old bulb and replace with a new one of the same type (LED, 1 W). Replace the cover.

Can I freeze fresh food in this refrigerator?

The freezer compartment is suitable for storing frozen food and making ice. For freezing fresh food, set thermostat to position 4 or 5 for fast freezing, but note that the manual states it is not intended for freezing fresh foodstuffs. Use the freezer for short-term storage of frozen items.

How to clean the refrigerator?

Unplug the refrigerator. Clean interior and exterior with a soft damp cloth and mild neutral detergent. Do not use hot water, solvents, alcohol, benzene, or abrasive cleaners. Pay attention to door seals. Dry thoroughly. For exterior condensation, wipe dry.

What does the thermostat setting mean?

Thermostat has positions 0 (off) to 5. Lower numbers (e.g., 1) give higher temperature (less cooling), higher numbers (e.g., 5) give lower temperature (more cooling). Position 5 is for fast freezing. Normal setting is between 2 and 4 depending on ambient temperature.

Why is there moisture or condensation on the outside?

Condensation on the exterior is normal in high humidity. Wipe with a dry cloth. Ensure the door is closed properly and the seals are clean. If persistent, check for proper ventilation and leveling.

What should I do if I smell gas or suspect a refrigerant leak?

If the refrigerant circuit is damaged, avoid open flames and sparks. Immediately ventilate the room. Unplug the device if safe. Contact the manufacturer's service center. The refrigerant is isobutane (R600a), which is flammable but environmentally friendly.

USER MANUAL LKK-120RC Ravanson

Line drawing of a simple refrigerator with a handle and top panel (no text or symbols)

MODEL:

LKK-120RP; LKK-120RB; LKK-120RC

Producent:

Ravanson

Ravanson Ltd Sp. z o.o. ul. Mazowiecka 6, 09-100 Płońsk, Polska

tel.: [phone], fax: [phone]

PL

Pure technical diagram of a mechanical component with no visible text, numbers, or symbols

ROZWIĄZYWANIE PROBLEMÓW

INFORMACJE DODATKOWE

Before first use, always read the safety instructions and warnings included in this guide.

Failure to observe the below mentioned safety warnings and safety guidelines for may cause to electric shock, fire and/or serious injuries.

Keep safety instructions and warnings at hand for future reference.

GENERAL SAFETY GUIDELINES

This device may be used by children above the age of 8 and by persons with reduced physical, sensory, or mental capacity or persons inexperienced or unacquainted with the device under supervision only or in a safe way as per the manual and provided they understand the hazards related to the device. Children must not play with the device. Cleaning and maintenance must not be performed by unsupervised children.

Children are not aware of dangers that may arise during the use of electric devices.

Never use a damaged machine. Do not operate the appliance with a damaged cord.

Damaged power cord must be replaced by manufacturer, authorized service centre or other qualified persons in order to avoid risk.

Do not allow the power cord to touch sharp edges or hot surfaces.

The plug must fit the socket.

The plug must not be modified in any way.

The device is designed for indoor use only. It cannot be used or stored in places exposed to weather factors. Avoid rain or moisture when using the appliance.

To clean use soft damp (not wet) cloth with mild detergent.

Do not use solvents, petrol or other and other measures that would damage the device.

Transport and store the device in the vertical position, in the original packaging, protecting against mechanical damage, moisture and dirt.

The appliance must be repaired by a qualified person using only original spare parts.

The vent openings in the housing or in the compartments

surrounding thereof must be completely unobstructed and free of any obstacles.

Make sure there is at least 10 cm of free space on the sides of the device and 10 cm at the back when positioning it. This will provide adequate ventilation.

Do not use mechanical devices or other means to accelerate defrosting process, other than those recommended by the manufacturer.

Take care not to damage the cooling circuit.

Do not use electrical appliances inside the food storage compartments if they are not of the type recommended by the manufacturer.

Do not operate the device with wet hands standing on a wet surface to avoid electric shock or electrocution.

It is advisable to connect the device to mains via an RCD with the maximum sensitivity of 30 mA.

CAUTION! The device is not designed to be used with a timer or an independent remote control system

Do not store hot food or beverages in the refrigerator until they reach room temperature.

Close the door immediately after putting items into the refrigerator to prevent a rapid increase in temperature inside.

Keep the device away from heat sources or direct sunlight.

Position the device on a flat and stable surface. Do not put it on any soft material.

Do not put any devices on the refrigerator.

Do not store substances that can readily evaporate, ignite, or explode, such as a ether, methanol, or gasoline.

Extremely flammable gas. Keep out of reach of children. Protect from sunlight. Store in a well-ventilated place.

CAUTION! Flammable material – the risk of fire! Keep the device away from ignition sources

The refrigerator contains flammable but environmentally friendly natural gas isobutane (R600a).

Gas (R600 a) is flammable. Before connecting, make sure that the refrigerant circuit is not damaged.

If damaged:

- avoid open flames

- immediately ventilate the room where the refrigerator is located.

PLEASE NOTE!

Despite proper use of the device and following all safety guidelines, some specific residual risks cannot be completely eliminated.

PURPOSE AND CONSTRUCTION

The device is intended for use in domestic or similar environments, such as: - kitchens in shops, offices and other working environments - households and by clients in hotels, motels and other residential environments

Refrigerator-freezer is designed for storing and freezing food.

This refrigerating appliance is not intended to be used as a built-in appliance.

This refrigerating appliance is not suitable for freezing foodstuffs

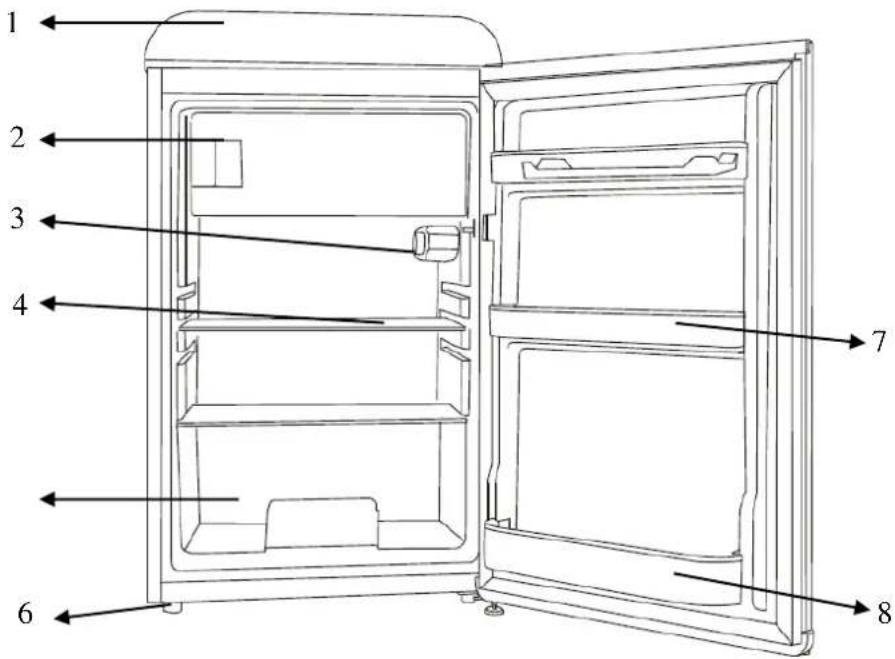

1. Upper cover
2. Freezer compartment
3. Thermostat
4. Refrigerator compartment
5. Crisper drawer
6. Legs
7. Small bottle compartment
8. Large bottle compartment

TECHNICAL PARAMETERS

Nominal voltage: 220-240 V

Nominal frequency: 50 Hz

LED rated power: 1 W

Rated current 0,8 A

Protection rating: I

Climate class: N, ST

Coolant/ mass: R600a/ 26 g

Insulation gas:

C 5H10

Energy class: F

CHARACTERISTICS OF CLIMATE CLASSES

Climate class Air temperature

SN (extended - moderate) from +10°C to +32°C

N (moderate) from +16°C to +32°C

ST (sub -tropical) from +18°C to +38°C

T (tropical) from +18°C to +43°C

PREPARATION FOR WORK

1. Remove all safety elements.
2. Refrigerator should be set on a level surface. Whenever required, adjust the level using adjustable feet.
3. To ensure appropriate ventilation, position the fridge ensuring the following distance from the walls and other objects: back and sides of the fridge at least 10 cm, the top at least 20 cm. Leave enough space to open the fridge door to the angle of 160^ .
4. The fridge should be placed far from any heat sources (cooker, radiator, stove) and it should not be exposed to direct sunlight.
5. The fridge cannot be located near flammable or explosive materials such as gas, petrol, alcohol etc. Do not store the above-mentioned materials in the fridge.
6. Do not place the fridge in areas with high moisture.
7. After setting the refrigerator in a suitable place, wait at least 2h before connecting it to the power supply.
8. Make sure that the power source to which you want to connect the device meets the specifications given on the nameplate. This device is equipped with a grounded type plug and must be plugged into a grounded type outlet. If any power flickers take place, connect a special device to the fridge, controlling the power automatically.
9. The power cord should not be extended or wound when the device is on. Moreover, take care the power cord is not placed too close to the compressor at the fridge back. The operating compressor generates high temperature and can damage the power cord.
10. In case of accidental disconnection from the power supply wait at least 5 minutes before restarting.

First use

After connecting the refrigerator to a power source switch the thermostat knob to the position between 1 and 5. The refrigerator will start working. Close the door, after about 30 minutes the housing of the refrigerator on the right or left side should be warm, and the temperature in the cooling chamber should decrease. This means proper operation of the compressor.

Thermostat

Refrigerator is controlled by thermostat. In "0" position refrigerator stops working. For positions "1 to 5", the lower setting, the higher cooling temperature. The refrigerator should be set at a higher level for the user. The level "5" is suitable for fast freezing. After rapid freezing it is recommended to bring the thermostat to its normal operating position.

Preparation of ice

Pour drinking water to the ice container and put it in the freezer. Set the thermostat knob in position 4/5.

Cooling chamber

The temperature of the cooling chamber is about 0^ C - 10^ C. It is suitable for storage of vegetables, fruit, drinks for a short time.

Freezer

The freezer temperature is about -18^ . It is suitable for storage of frozen fish, meat and other products, which require longer storage time.

FOOD STORAGE

It is recommended to keep food in sealed containers intended for contact with food, in order to prevent influence of other odours.

Food should not be placed too closely to allow free air flow.

Do not put hot food in the refrigerator. Cool to room temperature beforehand.

Minimize the frequency and time of opening the refrigerator door and keeping it opened.

If the food be cleaned before putting into the refrigerator, wash it, dry it and then put to the refrigerator.

DEFROSTING AND CLEANING

If the ice layer inside the fridge and freezer chambers gets about 3-5 cm thick, the device should be defrosted.

The device requires manual defrosting. To defrost you should:

√ Set the thermostat to "0" and unplug the device.
√ Remove food from the fridge and freezer chambers.
√ Open the door to let the ice melt. To speed up the defrosting process, you can place a bowl with hot water on the shelf and close the door of the fridge and freezer.

Do not use metal tools or electric heaters to accelerate the defrosting process.

√ Remove water from the fridge and freezer with a soft cloth. Clean the device inside and outside using a soft, wet cloth with a neutral washing agent. Dry the chambers.

Do not pour water over the outer part of the refrigerator. This can damage the insulation layer. It is forbidden to wash with hot water, acid, alkalis, gasoline, benzene, caustic means, alcohol or abrasives.

√ Place food in the fridge and freezer, set the thermostat to the desired position and plug the device.

To ensure hygiene, clean the fridge interior with sufficient frequency. To do this:

√ unplug the power cord from the electrical outlet
√ wash with a soft damp cloth with a neutral detergent
√ dry afterwards.

Pay special attention to keep the rubber seals at the door in the appropriate condition. They should always be clean.

If the device is not used for an extended period of time, remove clothes, clean the fridge and freezer chamber and dry them. The door should remain open.

REPLACING THE BULB

Before replacing the light bulb set the thermostat knob to the "0" position and disconnect the refrigerator from the power supply. Remove the food from the top shelf and pull shelf forward. A bulb is located at the rear of the thermostat housing. Open light cover. Twist off a burnt bulb, twist in a new one and replace the bulb cover.

Diagram of a mechanical device with rotating components and a pointer (no text or symbols)

TROUBLESHOOTING

Laudable sound of running water is normal for working compressor.

Laudable tapping is a reaction to sudden changes of temperature.

Hot compressor – during operation, the compressor's temperature can reach 90°C

Hot side wall of the refrigerator – during operation, both sides of the refrigerator can achieve an average temperature of 55^ C.

Brumous deposit appears on the outer part of the refrigerator. This is normal due to the high humidity. A freezer should be dried.

Check before calling for service:

Refrigerator stopped working

• thermostat knob is not set to "0".
• a plug is well inserted to the socket
• power supply is on
• the device starts working within 5 minutes after the last power off.

Refrigerator's work is not effective

• too much food in the fridge or food arranged too tightly which prevents air flow
• the device is set in the sun an ambient temperature is too high
• fridge located near a radiator or other heat-emitting devices
• food in the refrigerator/freezer is too warm
• not closed door of the refrigerator/freezer
• frequent opening of the door of the refrigerator/freezer
• fridge ventilation is insufficient. There can be an insufficient distance between the fridge and the surrounding walls/furniture/other devices.

Food in the refrigerator chamber is too much chilled

• position of thermostat is too high
• food with high water content was placed directly over the cold air inlets. This is not a symptom of incorrect device operation.

Refrigerator-freezer is too noisy

- the device is not level

- the device touches the wall.

If the above-mentioned advice does not solve the problem, contact the repair service. Don't repair on your own.

WARNING! If, despite compliance with the specified rules, a refrigerator-freezer is not working properly, inform the manufacturer's authorized service centre.

WARNING! If an electric shock (tingling) is sensed after touch a refrigerator-freezer housing, immediately turn it off and ask a certified electrician to check the protective circuit in the socket

The current list of service points can be found at: www.ravanson.pl Service is provided by the Quadra-Net network, please visit: www.quadra-net.pl And the helpline number: 61 853 44 44

TRANSPORTATION

Transport (carry) only in vertical position. A tilt should not exceed 45^

Transport in a package protecting from humidity, dust and mechanical damages.

NOTE!

The illustrations and descriptions may differ from reality depending on the product model.

Manufacturer reserves the right to change the technical parameters of the device without notice.

The producer reserves the right to mistakes and misprints.

ADDITIONAL INFORMATION

The minimum warranty period offered by the manufacturer: 24 months

A link to the manufacturer's website where the information is available from point 4 lit. a) of the Annex to Commission Regulation (EU) 2019/2019: www.ravanson.pl

The symbol presented below indicates that the used equipment cannot be placed together with other household waste. The user is obliged to bring this item to the waste electrical and electronic equipment collection point where a suitable system is created to allow safe disposal of these items.

Dangerous components present in electrical and electronic equipment have negative consequences for the environment and human health therefore correct handling of the equipment is very important. Certain

substances which may adversely affect the environment over the life of the product and after use have been limited in this device.

Pure mechanical diagram showing a rotating component with no text or symbols

PROBLEMLÖSUNG

Simple line drawing of a mechanical device with rotating components and a pointer (no text or symbols)

Simple line drawing of a mechanical device with no text or symbols

ŘEŠENÍ PROBLÉMŮ

Pure mechanical diagram showing a rotating component with no text or symbols

RIEŠENIE PROBLÉMOV

NAMEMBNOST IN SESTAVA

Pure technical diagram of a mechanical component with no visible text, numbers, or symbols

REŠEVANJE PROBLEMOV

Slišni zvok tekoče vode je normalen pojav, kadar kompresor deluje.

Pure technical diagram of a mechanical component with no text, numbers, or symbols

PROBLEMŲ ŠALINIMAS

Diagram of a mechanical device with rotating shaft and gear mechanism (no text or symbols)

PROBLEEMIDE LAHENDAMINE

Pure technical diagram of a mechanical component with no text, numbers, or symbols

PROBLÉMAMEGOLDÁS

Pure technical diagram of a mechanical device with no text, numbers, or symbols
