Artik 2 VU9050 - Ventilateur domestique TEFAL - Free user manual and instructions

Brand	Tefal
Model	Artik 2 VU9050
Product Type	Domestic Table Tower Fan
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	Approximately 40-60 W
Speed Settings	3 speeds (1, 2, 3)
Oscillation	Horizontal oscillation (on/off)
Timer	1, 2, or 4 hours auto shut-off
Special Modes	Variation (random cyclical speeds) and Reduction (progressively slower speeds)
Control Type	Buttons (A, B, C, D, E)
Safety Features	Double insulation (Class II), do not immerse in water
Cleaning	Unplug before cleaning, wipe with damp cloth, no abrasive products
Storage	Store in a dry place when not in use
Material	Plastic (typical)
Color	Black
Height	Approximately 80 cm
Base Diameter	Approximately 30 cm
Weight	Approximately 4 kg
Warranty	Standard manufacturer warranty (contact service center)
Spare Parts & Repairability	Contact approved service centers; do not dismantle yourself

Frequently Asked Questions - Artik 2 VU9050 TEFAL

How do I set the timer on the Tefal Artik 2 VU9050?

Press button D repeatedly to cycle through the options: 1 hour, 2 hours, or 4 hours. The corresponding light will indicate the selected timer. To cancel, press button D again until all lights are off.

How do I clean the fan?

Always unplug the fan before cleaning. Use a slightly damp cloth to wipe the exterior. Never use abrasive products or allow water to enter the appliance.

The fan does not oscillate. What should I do?

Press button C to activate horizontal oscillation. Press it again to stop. If oscillation still doesn't work, contact an approved service center.

Can I use the fan in a bathroom or near water?

No. The fan is not designed for humid environments. Never allow water to get into the appliance and do not touch it with wet hands.

What should I do if the fan stops working?

Check the power cord and plug. If the problem persists, do not dismantle the fan yourself. Contact an approved service center for repair.

How do I change the fan speed?

Press button A to cycle through the three speed settings (1 to 3). The corresponding light will indicate the current speed.

What is the Variation mode?

In Variation mode, the fan automatically cycles through random speeds every 80 seconds. Press button B once to activate; press again for Reduction, or a third time to turn off special modes.

What is the Reduction mode?

In Reduction mode, the fan progressively reduces speed every 30 minutes. This is useful for nighttime use. Activate by pressing button B twice.

How should I store the fan when not in use?

Unplug the fan and store it in a dry environment. Ensure it is clean and free of dust before storing.

Is the fan safe for children?

Children over 8 years can use the fan under supervision. Ensure children do not insert fingers or objects through the safety grids. Keep the fan out of reach of young children.

USER MANUAL Artik 2 VU9050 TEFAL

Exterior view of a black Tefal air purifier with control panel and ventilation grille (no visible text or symbols)

EN

TH

MS

VI

ZH

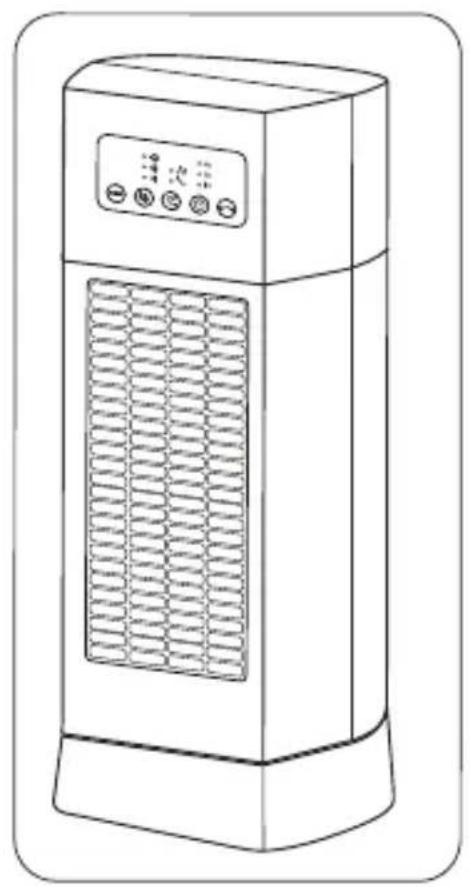

Electronic table tower fan

TH • พัดลมทาวเวอร MS • Elektronik meja kipas menara

VU9050

www.tefal.com

1800134191/01

Line drawing of a portable air conditioner unit with control panel and ventilation grille (no text or symbols)

Illustration of a hand inserting a plug into a portable air conditioner unit (no text or symbols present)

Please read the instruction manual and safety instructions carefully before using the appliance and keep the instruction manual for reference.

WARNINGS

For your safety, this appliance complies with all applicable standards and regulations (Low Voltage, Electromagnetic Compatibility, Environmental directives, etc.).

Before use, always check that the appliance, plug and power cord are in good condition.

This appliance is not designed to be used by persons (including children) with reduced physical, sensory or mental capacities, or lacking experience or knowledge, unless they are supervised, or given prior instructions relating to the use of the appliance, by a person responsible for their safety.

Children must be supervised to ensure that they do not play with the appliance.

This appliance can be used by children over 8 years old and by persons with reduced physical, sensory or mental capacities, or lacking experience or knowledge, only if they are properly supervised or if they have received instructions on how to use the appliance safely and they understand the implicit risks. Children should not be allowed to play with the appliance. Children should not clean or perform maintenance procedures on the appliance unless they are supervised by an adult.

Children should be supervised to ensure they do not put their fingers through the safety grids.

Do not use the appliance in a dusty room or a location where there is a risk of fire.

Do not pull on the power cord or the appliance, even when unplugging it from a wall socket. Always unroll the power cord completely before use.

If the power cord is damaged it must be replaced by the manufacturer, the manufacturer's after-sales service department or a similarly qualified person, to avoid danger.

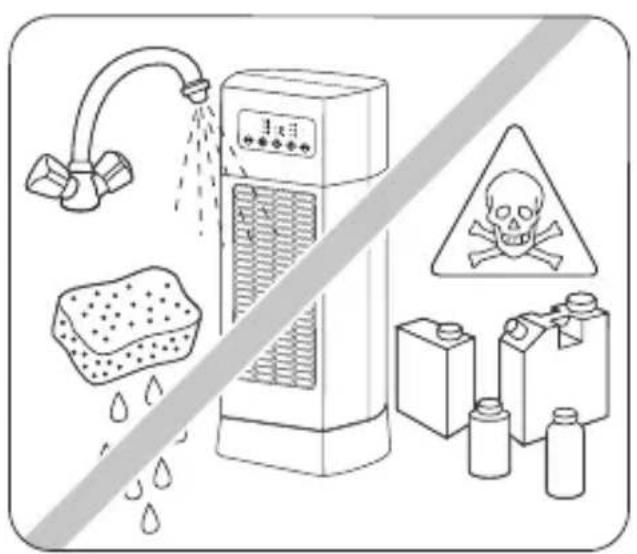

Do not use your appliance near inflammable objects or products. In general, you should always place the appliance at least 50 cm away from any object (wall, curtains, aerosol, etc.).

This appliance is designed for household use only. It should not be used for industrial applications.

Do not touch the appliance with wet hands.

Never allow water to get into the appliance.

Never put objects inside the appliance (e.g. needles, etc.).

WARRANTY

The warranty will not apply in cases of damage resulting from incorrect use.

VERY IMPORTANT

NEVER ALLOW WATER TO GET INTO THE APPLIANCE.

DO NOT TOUCH THE APPLIANCE WITH WET HANDS.

Before use, always ensure that:

• the appliance is placed on a stable support,
• the appliance is in the correct operating position (on its stand),
• your appliance does not have a disconnect system.

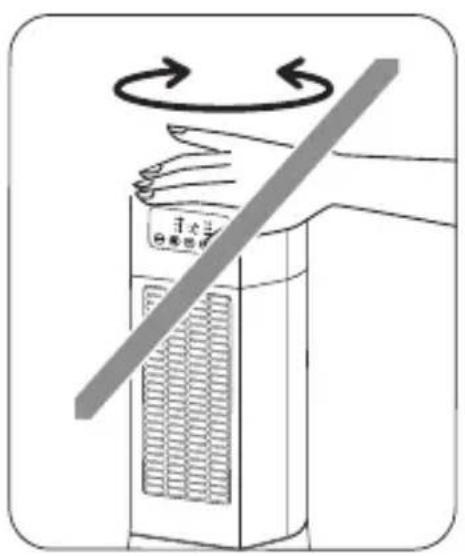

DO NOT ATTEMPT TO FORCE OSCILLATION MANUALLY.

VOLTAGE

Before first use, ensure that the voltage, frequency and power of your appliance are suitable for your electrical supply.

Your appliance can function using an unearthed plug. It is a class II appliance (double electrical insulation ☐)

The installation and use of the appliance must, however, comply with the standards in force in your country.

OPERATING INSTRUCTIONS

Before use, always ensure that:

• the appliance is placed on a stable horizontal support,
• the appliance is positioned in accordance with the instructions in this manual.

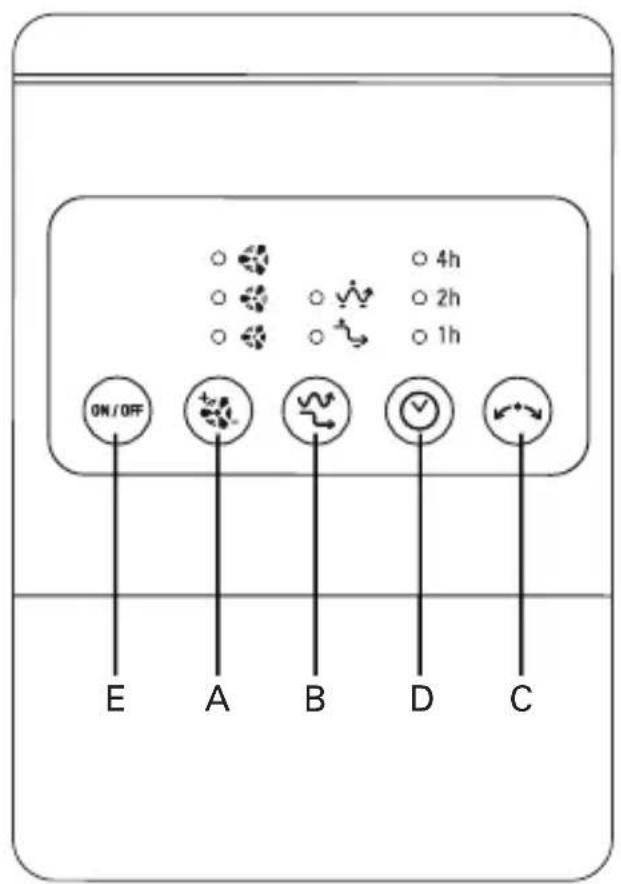

Buttons B, C and D, as described below, can only be used once the appliance has been switched on and may be used simultaneously.

• Button C, oscillation control:
• If you press button C once, the fan will oscillate horizontally.
• To stop the oscillation, press button C again.

- Button D, programming the automatic shut-off of the appliance:

You have 3 choices: 1, 2 or 4 hours of operation.

- If you press button D once, the 1-hour timer starts and the 1-hour light comes on.

- If you press button D a second time, the 2-hour timer starts and the 2-hour light comes on.

- If you press button D a third time, the 4-hour timer starts and the 4-hour light comes on. To switch off the 'TIMER' function, press button D again.


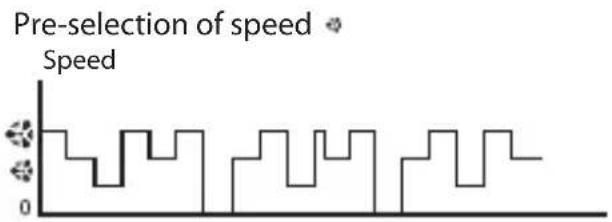

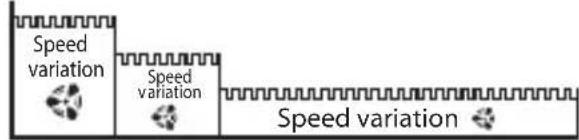

VARIATION :REDUCTION :Random cyclical speeds (80-second duration)	Random cyclical speeds (80-second duration)+ progressively slower speeds every 30 minutes
Pre-selection of speed ◆Pre-selection of speed ◆Speed	Pre-selection of speed ◆0Pre-selection of speed ◆0 30 minutesPre-selection of speed ◆0 30 minutes 60 minutes

Pre-select the starting speed according to your requirements (see table above), then select the REDUCTION or VARIATION mode (according to the instructions below):

• If you press button B once, the appliance goes into VARIATION mode and the 'VARIATION' light comes on.
• If you press button B a second time, the appliance goes into REDUCTION mode and the 'REDUCTION' light comes on.
• To switch this function off, press button B a third time.

- Button A, speed selection:

• If you press button A once, the appliance is set to speed 1 and the light comes on.
• If you press button A a second time, the appliance is set to speed 2 and the light comes on.
• If you press button A a third time, the appliance is set to speed 3 and the light comes on
• If you press button A again, the appliance goes back to speed 1 and the light comes on.

- Button E, immediate stop/start button for the appliance.

IMPORTANT: You are advised to unplug the appliance when not in use.

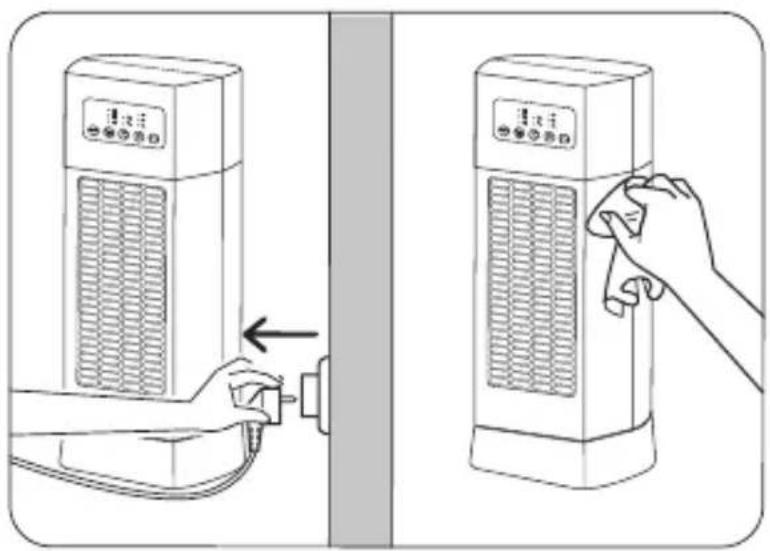

MAINTENANCE

You must unplug your appliance before maintenance.

It can be cleaned with a slightly damp cloth.

IMPORTANT: never use abrasive products which could damage the surface of the appliance.

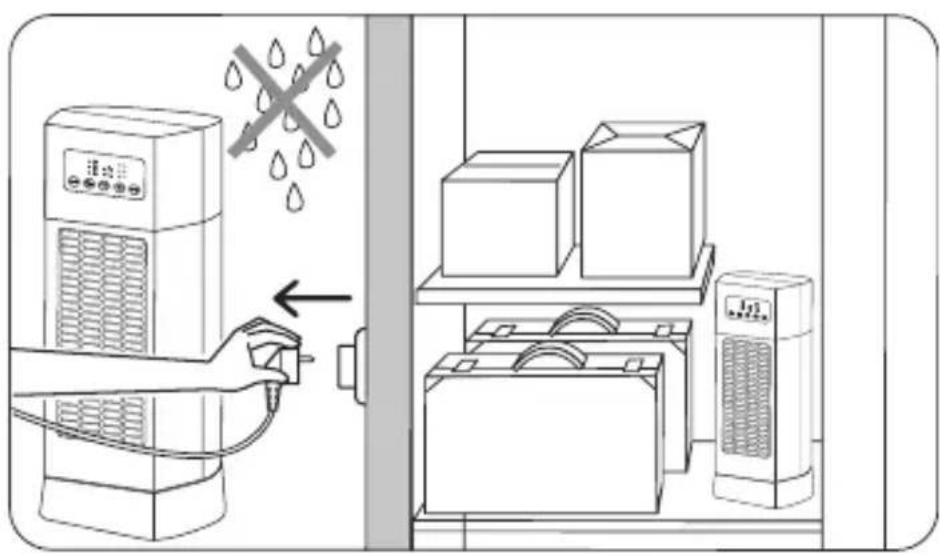

STORAGE

Store your appliance in a dry environment when not in use.

TROUBLESHOOTING

If your appliance is not working properly or is damaged, contact one of the Approved Service Centres in our network.

Never dismantle the appliance yourself. A poorly repaired appliance may be dangerous for the user.

HELP PROTECT THE ENVIRONMENT!

Your appliance contains several materials which may be recovered or recycled. Leave the appliance at a local civic waste collection point or at an approved service centre, where it will be disposed of properly.
