Product Type	Car Alarm System with GSM
Brand	Joblotron
Model	CA-1802 Athos
Power Supply	12/24V DC (8-32V)
Stand-by Consumption	Max. 20 mA
Immobilization Output	8A continuously, 12A intermittent
Compliance	ECE R97.00, 1999/5/EC, 1995/56/EC
Safety Standard	EN 60950-1
EMC Standard	EN 55022, EN 50130-4
Radio Standards	ETSI EN 301 419-1, EN 301 511, EN 300 220, EN 300 328
GSM Module	Built-in, supports SMS control and phone calls
Remote Control	RC-8x series, up to 4 controllers
Detectors	Internal and external wireless detectors (e.g., tilt, door)
Central Locking Support	Yes (lock/unlock signals)
Arming Methods	Remote control, SMS, dial-in, internet via GSMLink
Installation	Professional only, indoor use, negative ground
SIM Card	Required (not prepaid recommended)
Self-Location	Optional (SMS after immobilization)
LED Indication	Status LED
Dimensions	Not specified (estimate: 120x80x30 mm)
Weight	Not specified (estimate: 200 g)
Operating Temperature	Not specified (typical automotive: -20°C to +60°C)

Frequently Asked Questions - CA-1802 Athos Jablotron

What is the power supply voltage for the CA-1802 Athos car alarm?

The alarm accepts 12/24V DC with a range of 8-32V. It automatically reads the supply voltage on first power-up.

Can I install the alarm myself?

No, the manual states that the car alarm should only be installed by a professional installer. It is designed for cars with a 12V or 24V negative ground system.

How do I enroll a new remote control (RC-8x)?

Disarm the alarm, turn ignition on, send SMS MASTER LEARN RC. The alarm beeps 3 times. Press both buttons on the RC for 3 seconds. A chirp confirms. Repeat for other remotes. Turn ignition off to exit.

What is the difference between RESET 1, RESET 2, and RESET 3?

RESET 1: alarm uses its own remote and controls central locking. RESET 2: alarm operated by original car remote. RESET 3: GSM pager mode for cars with existing alarm.

How can I arm or disarm the alarm via SMS?

Send SMS with the user code followed by ON or OFF. Example: USER ON arms, USER OFF disarms. Default user code is USER.

What is the default master code?

The factory default master code is MASTER. It can be changed using the MASTER MC xxxx SMS command.

How do I enroll wireless detectors?

Disarm, ignition on. For internal detectors: send MASTER LEARN INT. For external: MASTER LEARN EXT. Insert batteries in the detector to enroll. Enroll all detectors in the group sequentially.

Can I use a prepaid SIM card?

It is recommended not to use prepaid cards, but if necessary, you can enable the CREDIT instruction to monitor balance via SMS. The command is MASTER CREDIT with parameters.

What does the DINFO command do?

The MASTER DINFO command returns current settings, GSM signal quality, registration code for GSMLink, and other parameters. Example response: 'SN:123456, GSM:25'.

How do I reset the GSM module?

Use the command MASTER RESET GSM. This reconnects the module to the GSM network without affecting settings. Useful for GPRS activation or credit charging.

USER MANUAL CA-1802 Athos Jablotron

Installation manual: CA-1802 "Athos"

Before installation

This is the basic version of the installation manual and programming sequences. On the web site www.jablotronalarms.com in the download section you can find a extended version of this manual or you can find it included in the installation kit on CD / DVD. If you have no experience with CA-1802 installation, we recommend you to read the extended version of the manual to know all the parameters well.

The immobilizer relay contact of car alarm is connected only in disarmed mode and if the ignition is on. Do not block circuits that are under voltage while the ignition is off. It could cause a serious damage of the vehicle.

The car-alarm should only be installed by a professional installer. It is suitable for cars with a dashboard voltage supply of 12V or 24V with a

negative ground connection. During the first power-up, the value of supply voltage is read and the inputs are set to default settings. The alarm is designed to be installed inside the car.

For cars with a voltage supply of 24V, the following restrictions apply to car alarm installation:

1. It is not possible to connect a hands-free set of type HF-03.

2. When used for acoustic signalling, the SIR output is switched to the power supply voltage. Consequently, this output switches to 24V, so it is necessary to use a siren of type SA-606-24V instead of the SA-530 which is supplied in the standard package. In this case it is necessary to set the confirmation beeps to 100 ms.

Configuration table

SIM entry* SMS instruction Text Description
RESET EN 1(After which, theentry is erasedfrom the SIM)	MASTER RESET EN 1 Mode setting. RESET 1 = alarm has its own remote control and provides signals for central locking.RESET 2 = alarm is operated by an original remote controller for central locking. RESET 3 = GSMpager for cars with an installed car alarm. Performing the RESET instruction is indicated by 4 beeps.Consequently, all settings, enrolled remote controllers and wireless detectors will be erased.
Not applicable	MASTER UC xxxx	User code setting – the code allows you to operate the alarm remotely via SMS from unauthorized phones.uuuu is a new user code, 4 to 8 letters (A–Z & 0–9, case insensitive). Factory default user code is USER
Not applicable	MASTER MC xxxx	Master code setting –xxxx is a new master code (A–Z & 0–9, case insensitive). The code allows you tochange the maintenance settings for the car alarm. Factory default master code is MASTER
TELn xx...x	MASTER TELn xx...x Setting of phone numbers to report alarms to n = 1 to 4
DIALn xx...x	MASTER DIALn xx...x Setting the phone numbers to dial using Hands free. n = A, B, 1, 2
DIP abcdefghij	MASTER DIP abcdefghij DIP parameter entry – see the DIP table
SET abcdefghij	MASTER SET abcdefghij SET parameter entry – see the SET table

DIP parameters

DIP	Description
	0 1
A	0 = silent arming/disarming without siren chirps1 = 10 ms siren chirps when arming/disarming (non backed-up siren)2, 3, 4 ... 9 = siren chirps when arming/disarming (a siren of another type) lasting 20, 30, 40, 50, 100, 200, 300 or 500 ms
B	Silent alarm	Audible alarm
C	SMS alarm report only	SMS alarm report and siren sound phone call
D	SMS remote control not confirmed by SMS reply	SMS remote control instructions confirmed by SMS reply
E	0 = arming control by dialling-in disabled1 = arming control by dialling from TEL1 enabled2 = arming control by dialling from TEL1 and TEL2 enabled3 = arming control by dialling from TEL1, TEL2 and TEL3 enabled4 = arming control by dialling from all TEL1 to TEL4 enabled
F	Arming control by dialling in is not confirmed by SMS	Arming control by dialling in (see E) is confirmed by SMS to the phone which called the car alarm
G	User can not change SMS Texts	User can change SMS texts by TXT Sequence
H	REARM disabled	If the car is not entered within 1 minute after disarming, it will REARM
I	0 = Immobilization by arming and by SMS instruction1 = Immobilization by arming and automatically 5 minutes after ignition is turned off (AUTOIMO) and also by SMS instruction2 = Immobilization only by SMS instruction3 = Immobilization and also by SMS instruction. If disarmed and ignition is turned off for more than 60 minutes the SMS STATUS is sent as an alert to possible forgotten arming.
J	Self-location disabled	The car's location will be sent by SMS after an IMO instruction has been performed.

Bold marked values = factory default

Steps to enroll RC-8x controllers:

1. The car alarm should be disarmed, with the ignition on.
2. Send the SMS instruction MASTER LEARN RC
3. The car alarm beeps 3 times and an LED starts to flash.
4. The RC-8x controller is enrolled by pressing buttons and simultaneously for approx. 3 sec. A siren chirp confirms the enrollment. By enrolling the first remote control all other remote controls previously enrolled will be erased (so enroll all the controllers intended for use, one by one).
5. Exit enrollment by turning the ignition off. The alarm confirms the enrollment by sending an SMS message to authorized phones TEL1 to TEL4.

SET parameters

SET	Description
	0	1
A	0 = open door signalling and INP activation while arming are both disabled1 = open door signalling and INP activation while arming are both enabled2 = INP activation while arming enabled, open door signalling enabled with a 10 second delay3 = INP activation while arming enabled, open door signalling disabled
B	Voltage detector disabled	Voltage-drop detector enabled
C	lock / unlock signal duration (Reset 1)0 = 0.5 / 0.5 sec (suitable for electromagnetic locks)1 = 4 / 4 sec (suitable for pneumatic locks)2 = 60 / 0.5 sec (suitable for automatic window closing)
D	DOOR input logic:1 = activated by falling edge (grounding)2 = activated by rising edge (disconnecting from GND)
E	INP1 logic:1 = activated by falling edge (grounding)2 = activated by rising edge (disconnecting from GND)
F	INP2 logic:0 = activated by falling edge (grounding), it triggers an alarm also if disarmed (24 hour reaction)1 = activated by falling edge (grounding)2 = activated by rising edge (disconnecting from GND)
G	Central locking input logic: (Reset 2)1 = activated by falling edge (grounding)2 = activated by rising edge (disconnecting from GND)
H	0 = confirmation by turn lights for disarming is needed (Reset 2)1 = confirmation by turn lights for arming and disarming is needed2= confirmation by turn lights for arming and disarming is not needed so INP1 can be used as an alarm input
I	Do not turn off the GSM module automatically.(Reset3)	Turn the GSM module off after 30 minutes of inactivity.(Reset3)
J	0 = AUX output is a bus for communication with CR-11A modules1 = AUX output provides power for external sensors

Bold marked values = factory default

Steps to enroll detectors:

1. The car alarm should be disarmed, ignition on.
2. To enroll the internal detectors, send the SMS command MASTER LEARN INT (To enroll the external detectors, send the SMS command MASTER LEARN EXT)
3. The car alarm beeps 3 times and an LED starts to flash.
4. You can enroll a new detector to the system by inserting its batteries. If you enroll a first detector, you will erase all detectors from the associated groups (enroll all of them, which will be used in the group in sequence).
5. Exit enrollment by turning the ignition off. The alarm confirms enrollment by sending an SMS message to authorized phones TEL1 to TEL4.

Internet remote access

The web site www.GSMLink.cz enables car alarm remote control (to users) and setting (to installers).

To get internet access to an installed and powered car alarm you will first be asked to register your car alarm on the first page. You will find a unique registration code for your car alarm on the warranty card.

Additional features

1. Pre-paid SIM card balance

It is recommended not to use prepaid cards in the car alarm. If you have no other choice than prepaid cards, you can enable the CREDIT instruction by the following sequence:

MASTER CREDIT uuu..u xx yyy zz

where: uuu...u is the provider's code to obtain the balance

xx is the time period (in days) for regular checking

yyy is the threshold level below which the balance is reported to the user (TEL1)

zz is the position of the first digit of the balance in the reply SMS from the provider

• After this sequence has been sent once, the car alarm will check the balance automatically every xx days and if the balance is lower than yyy the user will be notified (TEL1)
• If the CREDIT instruction is enabled in the above way, the user can also obtain the current balance by the instruction CREDIT
• To disable the automatic balance checking set the time period "xx" to 00.

2. Reset GSM

If you need to disconnect and then reconnect the GSM module to the GSM network, then use the command "MASTER RESET GSM".

This does not affect any settings and is typically used for GPRS activation or charging up credit. This command always requires the Master code.

3. Service instruction

The DINFO instruction allows you to obtain current settings, information about the quality of the GSM signal, the registration code for GSMLink devices and some other parameters. This command always requires the Master code.

Example of instruction: MASTER DINFO

Example of response: Car alarm reports: CA-1802A, SN:123456,

SV:01, LV:03, RK:ABCDE-12345-FG67, R:01, GSM:25, Time:3.2.06

11:35

CA-1802A car alarm version

SN:123456 identification number of the product

SV:01 software version

LV:03 language

RK: ABCDE-12345-FG67 registration code for GSMLink

current Reset mode of the device

GSM:25 instant quality of GSM signal (ranging from 0 to 32 (best))

Specification

Power supply	12/24V DC (8-32V)
Stand-by consumption	max. 20 mA
Immobilization	8A permanently, 12A intermittently
Complies with	ECE Regulation No. 97.00
Can be operated according to ERC/DEC98(20,21), ERC REC 70-03
Safety	EN 60950-1
EMC	EN 55022, EN 50130-4
Radio interference	ETSI EN 301 419-1, EN 301 511, ETSI EN 300 220
	ETSI EN 300 328

97 RAI-01 4532

JABLOTRON ALARMS a.s. hereby declares that the CA-1802 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC and 1995/56/EC The original of the conformity assessment can be found at www.jablotron.com, Technical Support section

Note: Although this product does not contain any harmful materials we suggest you return the product to the dealer or directly to the producer after use.

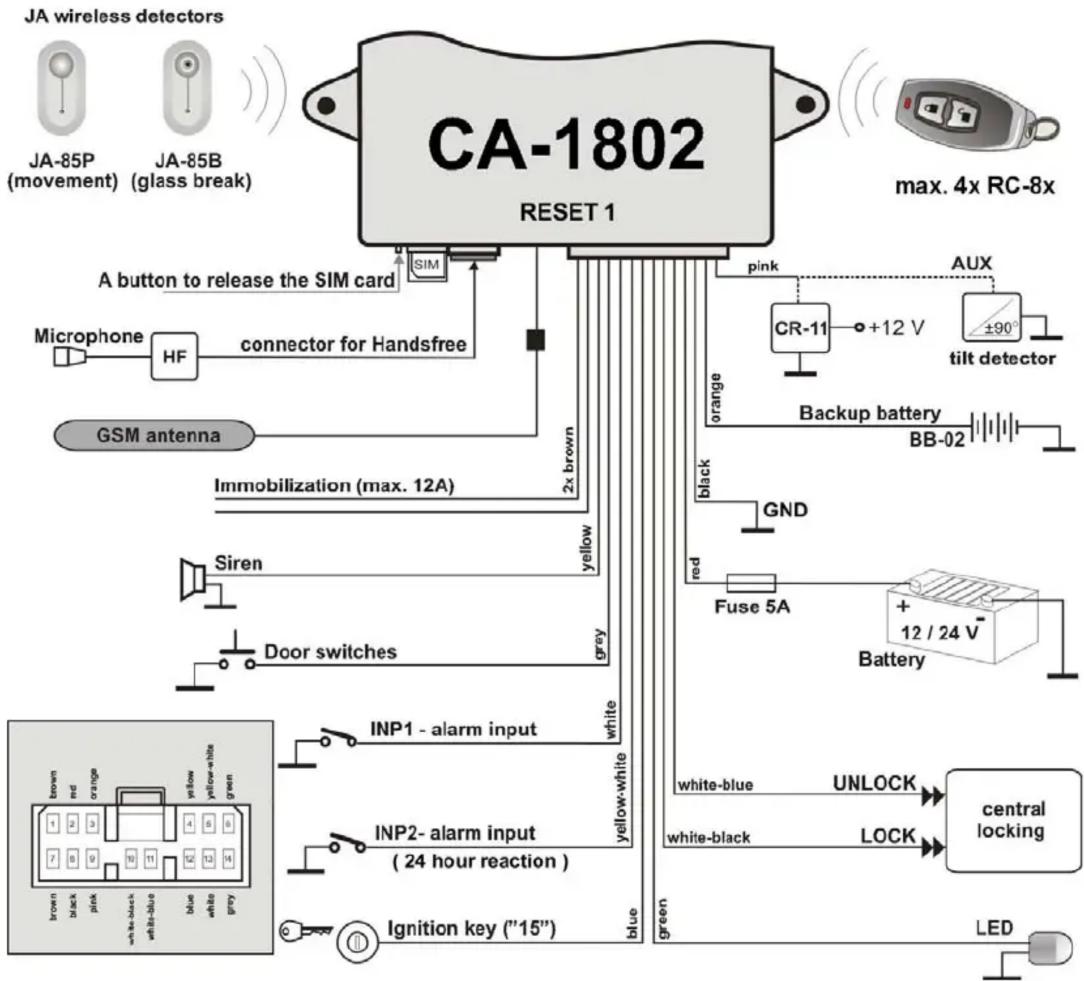


    subgraph Legend
        M["JA wireless detectors"] --> N["JA-85P (movement)"]
        O["JA-85B (glass break)"] --> P["Green"]
        Q["max. 4x RC-8x"] --> R["AUX"]
        S["pink"] --> T["CR-11"]
        T --> U["+12 V"]
        U --> V["±90° tilt detector"]
        W["Orange"] --> X["Backup battery BB-02"]
        Y["Black"] --> Z["GND"]
        AA["Red"] --> AB["Fuse 5A"]
        AC["Blue"] --> AD["Battery"]
        AE["White-blue"] --> AF["UNLOCK"]
        AG["White-black"] --> AH["LOCK"]
        AI["Central locking"] --> AJ["LED"]
    end

    style A fill:#f9f,stroke:#333
    style O fill:#f9f,stroke:#333
    style Q fill:#f9f,stroke:#333
    style S fill:#f9f,stroke:#333
    style T fill:#ccf,stroke:#333
    style U fill:#ccf,stroke:#333
    style V fill:#ccf,stroke:#333
    style W fill:#ccf,stroke:#333
    style X fill:#ccf,stroke:#333
    style Y fill:#ccf,stroke:#333
    style Z fill:#ccf,stroke:#333
    style AA fill:#ccf,stroke:#333
    style AB fill:#ccf,stroke:#333
    style AC fill:#ccf,stroke:#333
    style AD fill:#ccf,stroke:#333
    style AE fill:#ccf,stroke:#333
    style AF fill:#ccf,stroke:#333
    style AG fill:#ccf,stroke:#333
    style AH fill:#ccf,stroke:#333
    style AI fill:#ccf,stroke:#333

JABLOTRON

JABLOTRON ALARMS a.s.

Pod Skalkou 4567/33

46601 Jablonec nad Nisou

Czech Republic

Tel.: [phone]

Fax: [phone]

Internet: www.jablotron.com
