Brand	Morphy Richards
Model	Total Control 402050
Product Type	Hand Blender
Speed Settings	Variable from 1 to 8, plus Turbo burst
Control Mechanism	Precise Control Trigger (pressure sensitive) and Turbo Button
Attachments Included	Blending leg with serrator blade, beaker (approx. 600ml), beaker lid
Blade Material	Stainless steel (sharp)
Maximum Continuous Operation	60 seconds
Cool Down Time	Minimum 5 minutes before reuse
Safety Features	Locking connection, Precise Control Trigger requires pressing to operate, Turbo button
Suitable Foods	Soups, sauces, milkshakes, smoothies, baby food, crushing ice
Not Suitable For	Coffee beans, hard items, blending in non-stick pans
Blending Capacity (Milkshake)	Up to 450ml (speed 4-5, 20-30 seconds)
Blending Capacity (Ice)	Up to 3 cubes (speed 8, 5-15 seconds)
Blending Capacity (Carrots with water)	Up to 200g carrots with 300ml water (speed 6, 40-60 seconds)
Care Instructions	Hand wash only; do not immerse main unit; clean blade head under running water; dry immediately
Dishwasher Safe	No parts are dishwasher safe
Power Supply	220-240V AC, 50Hz, 3 amp fuse (BS1362)
Guarantee	2 years (requires registration at www.morphyrichards.co.uk)
Country of Origin	Not specified

Frequently Asked Questions - Total Control 402050 MORPHY RICHARDS

How do I assemble the hand blender?

Attach the Main Unit to the Blending Leg and push until it locks into place. Ensure the connection is secure before use.

Can I blend hot liquids?

Allow hot liquids to cool before blending. Be careful of steam ejection when blending or pouring hot liquids into the blender.

How long can I use the blender continuously?

Do not use the blender for more than 60 seconds continuously. Allow a minimum 5-minute cooldown before further use.

How do I clean the blender?

Unplug the appliance and detach the Blending Leg. Hand wash the Beaker, lid, and Serrator Blade head in hot soapy water. Do not immerse the Main Unit; wipe with a damp cloth. No parts are dishwasher safe.

What can I blend with the blending leg?

The blending leg is ideal for pureeing soups, sauces, milkshakes, smoothies, baby food, and crushing ice. It is not suitable for coffee beans or hard items.

Can I use the blender in a saucepan?

Yes, but do not use non-stick pans as the blades may damage the coating. Remove the pan from heat, insert the blender before starting, and move gently to avoid splashing.

What is the turbo button for?

The Turbo Button runs the blender at high speed for intermittent bursts, useful for crushing ice or blending tough ingredients.

How do I change the speed?

Use the Variable Speed Control dial to select a speed from 1 to 8. The Precise Control Trigger also varies speed based on how hard you press it.

Is the blender safe for children to use?

No. The appliance shall not be used by children. Keep the appliance and cord out of reach of children and ensure they do not play with it.

What is the guarantee?

Register your product at www.morphyrichards.co.uk for a 2-year guarantee. Keep the proof of purchase.

USER MANUAL Total Control 402050 MORPHY RICHARDS

Line drawing of a toothbrush and toothpaste cup (no text or symbols)

TOTAL CONTROL

Total Control Hand Blender Please read and keep these instructions

Health And Safety

The use of any electrical appliance requires the following common sense safety rules. Please read these instructions carefully before using the product.

• This appliance can be used by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• This appliance shall not be used by children.
• Keep the appliance and cord out of reach of children.
• Do not blend for longer than the time periods recommended in the ‘Usage’ section.
• For care and cleaning refer to the relevant section.
• Always disconnect from the supply if left unattended and before assembling, dissembling or cleaning.
• Avoid touching moving parts. Keep hands, hair and clothing, and utensils away from the attachment blades during operation, to prevent personal injury and/or damage to the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

In addition, we offer the following safety advice.

Location

• Do not use outdoors or in a bathroom.
• Always locate your appliance away from the edge of the worktop.
- Do not place the beaker used with the appliance on a highly polished wooden surface as damage may occur to the surface.

Mains cable

• Do not let the mains cable hang over the edge of the worktop where a child could reach it.
• Do not let the lead run across an open space e.g. between a low socket and a table.
• Do not let the cable run across a cooker or other hot area which might damage the cable.
• The mains cable should reach from the socket to the base unit without straining the connections.

Personal safety

- Care shall be taken when handling the sharp cutting blades, emptying the beaker and during cleaning.

Other safety considerations

- Do not use the appliance for anything other than its intended purpose.

Product specific safety

• WARNING: The blender blades are very sharp. Handle with care when using and cleaning.
• Do not clean the attachments under running water while they are in position.
  • IMPORTANT: Allow hot liquids to cool before adding to the blender.
• Be careful whilst hot liquid is blending or poured into the blender as it can be ejected due to sudden steaming.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

Electrical requirements

Check that the voltage on the rating plate of your appliance corresponds with your house electricity supply which must be A.C. (Alternating Current).

Should the fuse in the mains plug require changing, a 3 amp BS1362 fuse must be fitted.

Diagram of a connector being inserted into a cable, showing internal components and a directional arrow (no text or symbols)

Diagram of a mechanical press or clamping device with a cylindrical base and a conical top, showing a downward arrow indicating compression (no text or symbols present)

Technical line drawing of a mechanical component with concentric circles and a central gear-like feature (no text or symbols)

Pure technical line drawing of a mechanical component or housing without any text, numbers, or symbols

Introduction

Thank you for your recent purchase of this Morphy Richards Total Control Hand Blender.

Your Hand Blender has a locking connection for safety. Please read the instructions for information on how to use your Hand Blender thoroughly before use.

Remember to visit www.morphyrichards.co.uk to register your product's two year guarantee.

Contents

Health And Safety	2
Product Overview	3
Total Control	5
Introduction	6
Before First Use	6
Using Your Hand Blender	6
Suitable Foods	6
Usage	6
Attachments	6
Turbo Button	6
Blending In A Saucepan	6
Hints & Tips	7
Care And Cleaning	7
Contact Us	7
Recipes	8
Guarantee	10

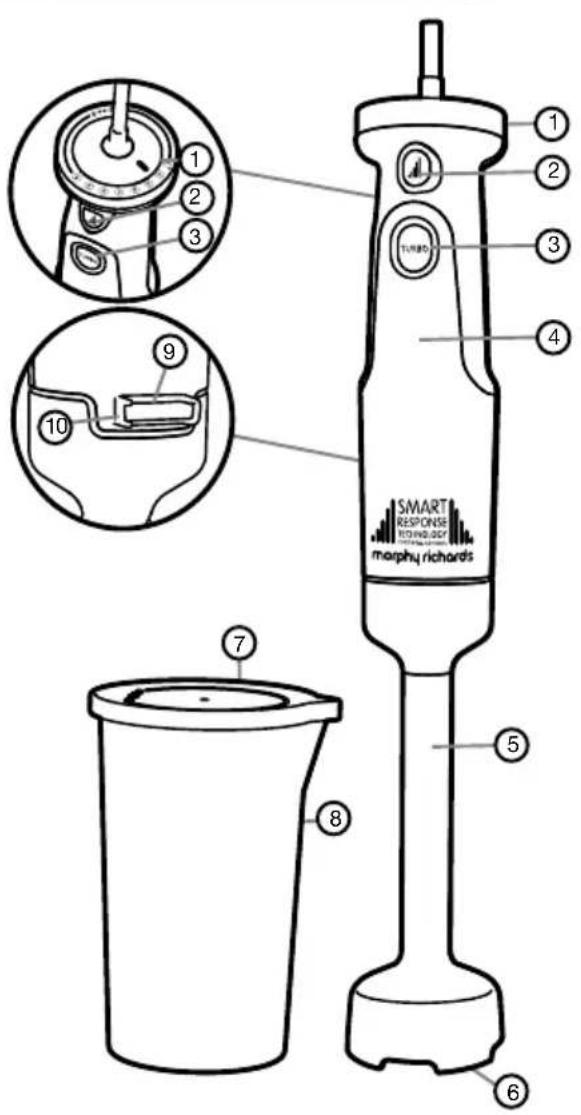

Features

(1) Variable Speed Control
(2) Precise Control Trigger
(3) Turbo Button
(4) Main Unit
(5) Blending Leg
(6) Serrator Blade
(7) Beaker Lid
(8) Beaker
(9) Attachment Release Button
(10) Heel Rest

Before First Use

• WARNING: Carefully unpack your Total Control Hand Blender as the blades are very sharp.
• Wash the Beaker (8) and Beaker Lid (7) in hot soapy water before use. Dry all parts thoroughly before use.
• Do not fully submerge the Blending Leg in water. Wash only the Serrator Blade head (6).
  • Do not immerse the Main Unit in water.
  • No parts are dishwasher safe

Using Your Hand Blender

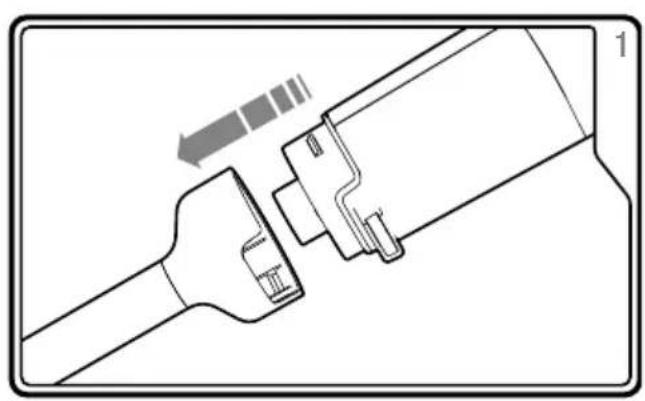

1 Attach the Main Unit (4) to the Blending Leg (5) and push to lock into place.

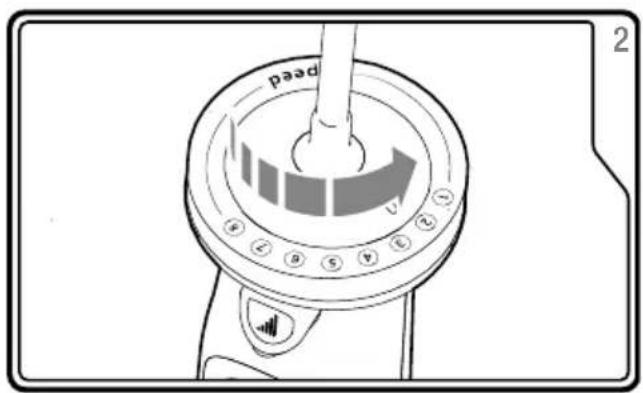

2 Select the speed on the Variable Speed Control (1). The Hand Blender will not start unless the Precise Control Trigger (2) or Turbo Button (3) is pressed.

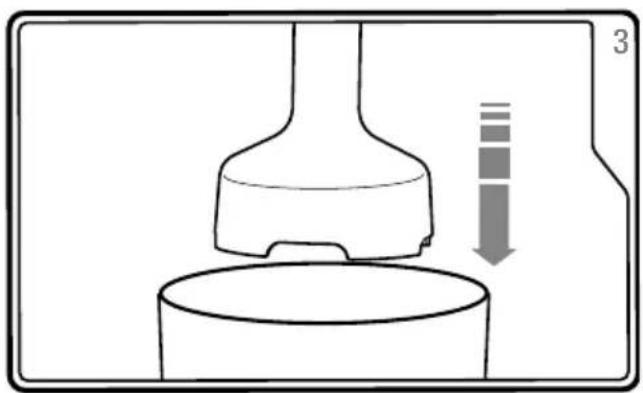

Place the Blending Leg into the food to be blended. We recommend using the Beaker (8) for the best results.

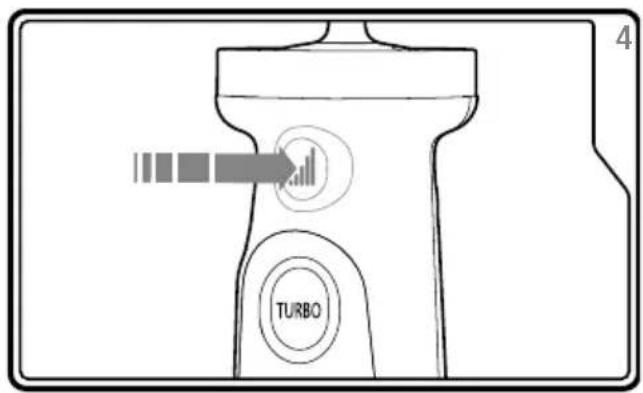

4 Press the Precise Control Trigger to begin blending. The speed will increase the harder you press the button.
5 Release the Precise Control Trigger to stop. Allow the blades to slow and stop BEFORE removing the Hand Blender from the food.

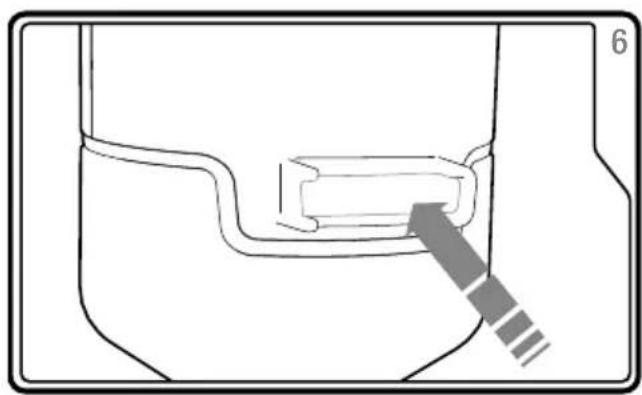

6 Unplug the Main Unit from the mains. Press the Attachment Release Button (9) and remove the Blending Leg from the Main Unit for cleaning.

Suitable Foods

* When using the beaker supplied
The amounts listed below should be used as a guide.

Attachment	Food	Max Quantity	Speed	Time
Blending Leg	Soup or Sauce	-	4	40-60 seconds
Blending Leg^*	Milkshake	450ml	4-5	20-30 seconds
Blending Leg^*	Ice	3 cubes	8	5-15 seconds
Blending Leg^*	Carrots with water	200g/300ml	6	40-60 seconds

Usage

- WARNING: Your Hand Blender is designed for intermittent use. Do not use continuously for more than 60 seconds. Allow to cool down for a minimum of 5 minutes before further use.

Attachments

Blending Leg (5)

• The Blending Leg is designed for pureeing foods such as soups, sauces, milkshakes, smoothies, baby food or crushing ice.
• The Blending Leg is not suitable for grinding hard items such as coffee beans.

Lid (7)

• If you have any leftovers, use the Beaker (8) with the supplied Lid to store food safely.
• WARNING: The Beaker and Lid are not suitable for use in a freezer, microwave, oven or dishwasher.

Turbo Button

- The Hand Blender has 8 different speeds utilising Total Control technology, as well as a Turbo Button (3). Press the Turbo Button to run the Hand Blender at high speed for intermittent bursts.

Blending In A Saucepan

• Do not use a non stick pan. The Blending Leg may damage the non stick coating.
• Remove the saucepan from the heat.

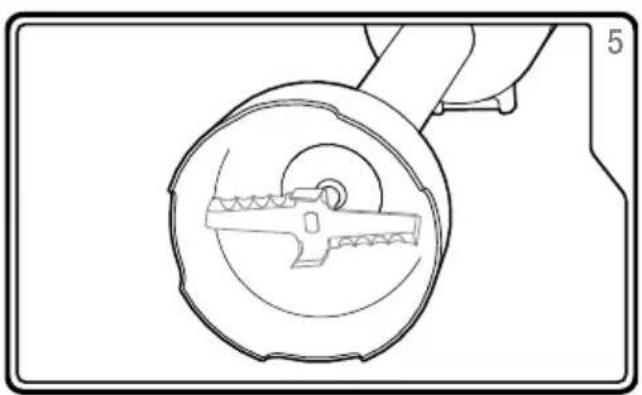

• To avoid excessive splashing, place the Blending Leg (5) into the food before switching your Hand Blender on.
• Hold the pan steady with your other hand and lightly press the Precise Control Trigger (2). Start slowly, and increase the speed as needed using the Precise Control Trigger.
• Move the Serrator Blade (6) through the food using an up and down motion.
• Allow the Blades to stop moving before removing from the pan.
• WARNING: Lifting the Serrator Blade out of the food while running, or using a high speed setting in a small pan could splash hot liquid. Extra care should be taken when using your Hand Blender in this manner.
• Do not insert your Hand Blender into the food past the join between the Main Unit (4) and the Blending Leg (5).
• Ensure the power cable does not touch any hot surfaces (including the side of the pan)

Hints & Tips.

• When blending foods with strong colour (eg. carrots), the Beaker (8) or plastic parts of the appliance may become discoloured. Wipe with cooking oil to clean any discoloured parts. Wash thoroughly in hot soapy water before re-using.
• When blending using the Blending Leg (5), start the process by inserting the Blending Leg into the ingredients. This will ensure all the ingredients are pulled into the blade to be processed. Gently rotate the Blending Leg, lifting it up and down in the ingredients. Continue this movement until the mixture is of the desired consistency. Do not remove from the liquid while the blades are in motion.
• Do not lift the Blending Leg out of the mixture completely when running, as splashing may occur.

Care and Cleaning

• WARNING: Always unplug the appliance from the mains socket before cleaning and maintenance.
  • WARNING: Handle the blades with care as they are sharp.
• Wash all parts except the Main Unit (4) and Blending Leg (5) in hot soapy water, dry immediately.
• Do not fully submerge the Blending Leg in water. Wash only the Serrator Blade head (6).
• Clean the Main Unit with a damp cloth and dry all the parts thoroughly.
• WARNING: Never immerse the Main Unit in water or any other liquid.

Contact Us

Helpline

If you are having a problem with your appliance, please call our Helpline, as we are more likely to be able to help than the store you purchased the item from.

Please have the product name, model number and serial number to hand when you call to help us deal with your enquiry quicker.

UK Helpline: 0344 871 0944

IRE Helpline: 1800 409 119

Spares: 0344 873 0710

Talk To Us

If you have any questions or comments, or want some great tips or recipe ideas to help you get the most out of your products, join us online:

Blog: www.morphyrichards.co.uk/blog

Facebook: www.facebook.com/morphyrichardsuk

Twitter: @loveyourmorphy

Website: www.morphyrichards.com

Close-up of a plated dish featuring sliced pasta and lettuce (no text or symbols visible)

Close-up of a glass of smoothie with a garnish, no visible text or symbols

Black-and-white photo of assorted vegetables and fruits wrapped in plastic bags (no text or symbols visible)

Close-up of a bowl of congee with visible tea leaves, no text or symbols present

Recipes

We have developed delicious recipes for you to try with your new Total Control Hand Blender. From smoothies to soup there is something to suit every taste.

The recipes provided give you only a few suggestions of what you can make with your Hand Blender and its attachments. When you are used to working with your Hand Blender you will be able to easily adapt recipes for use from your favourite cookbooks.
