Product Type	Freestanding Cooker
Brand	Bomann
Model	EHC 3553
Appliance Dimensions (H x W x D)	86.0 x 50.0 x 60.0 cm
Oven Interior Dimensions (H x W x D)	34.0 x 36.0 x 41.0 cm
Oven Capacity	49 liters
Net Weight	39.2 kg
Connection Power	7850 W
Connection Voltage	220-240/380-415 V 3N~ 50/60 Hz
Fuse Protection	3 x 16 A
Protection Class / Degree	I / IPX0
Energy Efficiency Class	A
Energy Consumption Conventional	0.75 kWh per cycle
Energy Consumption Forced Air	0.79 kWh per cycle
Number of Oven Cavities	1
Hob Cooking Zones	4 (2 x ∅180 mm, 2 x ∅145 mm)
Oven Functions	Upper heat, lower heat, upper/lower heat, upper/lower with fan, grill, grill with fan
Temperature Range	50°C to 250°C
Residual Heat Indicator	Yes, for each cooking zone
Oven Lighting	Automatic, bulb replaceable (15W, 230V, heat-resistant up to 300°C)
Removable Oven Door	Yes, for easy cleaning
Included Accessories	1 baking tray, 1 grill grid
Safety Features	Child safety (8+ years supervised), overheat protection, residual heat warning
Cleaning Type	Manual cleaning; hob scraper for heavy soiling; oven door removable for interior cleaning

Frequently Asked Questions - EHC 3553 BOMANN

How do I install the Bomann EHC 3553 cooker?

Installation must be performed by an authorized specialist. Ensure the appliance is placed on a flat, stable, heat-resistant floor with at least 30 mm clearance from adjacent furniture. The distance to an extractor hood must comply with the hood's instructions. Level the appliance using the adjustable screw feet. Electrical connection must be done by a qualified electrician respecting local standards. Do not use extension cables or multiple sockets.

What should I do before first use?

Remove all packaging and clean the oven interior and accessories with warm water. Heat the closed oven for approx. 70 minutes at 200°C using upper/lower heat, then switch to grill for another 20 minutes to burn off manufacturing residues. Ensure good ventilation during this process as some smoke may occur.

How do I clean the ceramic hob?

Use warm water and a sponge for light dirt. For limescale deposits, apply warm vinegar and wipe dry. For stubborn residues like sugar or melted plastic, use a glass ceramic scraper. Avoid abrasive cleaners or sharp objects. Always let the hob cool down before cleaning.

How can I replace the oven bulb?

First, disconnect the appliance from the power supply (fuse). Allow the lamp to cool down. Unscrew the lamp cover anti-clockwise and clean it. Replace the bulb with a correct type: 15W, 230V, heat-resistant up to 300°C. Screw the cover back clockwise. Reconnect power and check functionality.

Why is the oven not heating?

Check if the appliance is connected to the power supply and the fuse is intact. Ensure the function selector and temperature selector are set correctly. If the control lamp does not light, the thermostat or heating element may be faulty. In that case, contact an authorized technician.

Can the oven door be removed for cleaning?

Yes. Open the door fully, push the retaining brackets on both hinge sides upwards, then slightly close the door and lift it off. To reinstall, align the hinge notch with the protrusion and push the brackets back down. This allows better access to the oven interior.

What is the correct cookware for the hob?

Use cookware with a flat, clean bottom that matches the diameter of the cooking zone. Avoid cookware with uneven bases or shiny aluminum. For best results, always use a lid to save energy. Ensure the base is dry and clean.

How do I use the double cooking zone (if applicable)?

Turn the level regulator clockwise until it stops (about level 9) to activate the extra heating zone. Then select the desired temperature level. Do not turn counterclockwise beyond the off position to avoid damaging the regulator. After cooking, turn back to off.

Is the appliance safe for children?

The appliance can be used by children aged 8 years and above under supervision. Children under 8 must be kept away. During operation, surfaces become hot; warn children to stay away. The residual heat indicator lights up after switching off hot zones. Always supervise children near the cooker.

What should I do if the glass hob is cracked?

Disconnect the appliance from the power supply immediately. Do not use it until the glass is replaced. Contact an authorized specialist. Using a cracked hob can cause electric shock. The appliance must not be operated with a damaged glass surface.

USER MANUAL EHC 3553 BOMANN

Exterior view of a white BOMANN oven with open doors and control knobs (no visible text or symbols)

ContentsContents

Introduction Page 3

General Notes ...... Page 3

Special safety Information for this Unit ...... Page 3

Unpacking the Appliance Page 5

Appliance Equipment Page 5

Installation Page 6

Startup / Operation Page 7

Cleaning and Maintenance Page 10

Troubleshooting Page 11

Technical Data Page 12

Disposal Page 12

Introduction Introduction

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols In these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage:

WARNING: WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:CAUTION:

This refers to possible hazards to the machine or other objects.

NOTENO Highlights tips and information.

General Notes General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this device to other people, also pass on the operating instructions.

NOTENOTE

• This instruction is prepared for different executions. Consider the actual equipment for the proper function of your appliance.

• The illustrations can deviate from the original appliance.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.

• The appliance is only to be used as described in the user manual. Do not use the appliance for any other purpose. Any other use is not intended and can result in damages or personal injuries.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• Do not operate the appliance without supervision.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil.

There is a danger of suffocation!

Special safety information for this Unit

WARNING: NDeBger from electrical current! Contact with live leads or components can be fatal!

- The connection of the appliance must satisfy the relevant standards and regulations and may only be performed by an authorized specialist.

WARNING: WARNING:

• The hob may not be used if the glass surface has cracks or is broken.
• Make sure that the appliance is turned off from the power supply (fuse) before changing the bulb in the oven.
• The use of high-pressure cleaners or steam cleaners is prohibited. Ingress of liquids can lead to electric shock. Put the appliance never under water.

WARNING NoGsurface! Risk of Burning!

• During operation the appliance will be hot. Special caution is required to avoid touching heating elements inside the oven and the cooking zones.
• Accessible parts may be very high during operation of the appliance. Keep small children away.
• Grasp the oven only on the door handle and switches. Use potholders if you want to remove or insert the accessories.
• Let the appliance cool down before cleaning or maintenance.

WARNINGARGIN of Fire Risk of Fire

• Overheated fats and oils can ignite easily. Never walk away from fat and oil when heating them. If Oil/fat ignites, NEVER extinguish it with water. Immediately turn off the appliance and cover the flame carefully e.g. with a lid or a fire blanket.

• The hob may not be used as a storage area.

• Make sure that with installing adequate air circulations ensured and the ventilation slots are not blocked.

• It is not allowed to place the appliance on a socket.
• Never pour liquids into a hot oven! Scalding by rising water vapor as well as possible damage to enamel.
• Do not place any objects on the open appliance door.
• Do not store any cleaning agents or flammable materials in the appliance or in the immediate vicinity.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or instruction concerning use of the appliance the appliance and understand the hazards involved.

• Children Which are younger than 8 years must be kept away from the appliance.
• ChildrenShiddrent play with the appliance.
• Cleaning and user maintenance shall not be made by children, children, they are older than 8 years and are supervised.
• Do not use harsh abrasive cleaners or sharp metal objects for cleaning the glass surface. The glass can be scratched or destroyed.
• Do not try to repair the appliance on your own. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Unpacking the Appliance

• Remove the appliance from its packaging.
• Remove all packaging material, such as foils, filler and cardboard packaging.
• To prevent hazards, check the appliance for any transport damage.
• In case of damage, do not put the appliance into operation. Contact your distributor.

i NOTENOTE

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter “Cleaning and Maintenance”.

Appliance Equipment

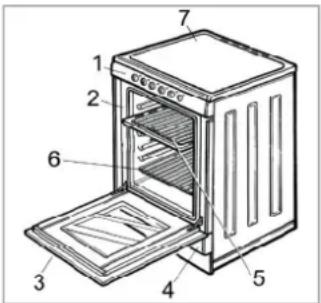

Appliance Overview Appliance Overview

OvenOven

1 Control panel
2 Oven chamber
3 Appliance door
4 Dish carriage
5 Backing tray
6 Grill grid
7 Hob

Hob

i NOTENOTE

The listed power settings can vary depending on the material and/or size of the cookware.

Model EHC 3553

1 Residual heat indicator
2 ∅ 180 mm / 1700 W
3 ∅ 145 mm / 1200 W
4 ∅ 180 mm / 1700 W
5 ∅ 145 mm / 1200 W

Model EHC 3554

1 Residual heat indicator
2 ∅120/210 mm / 750-2200 W (double cooking zone)
3 ∅ 145 mm / 1200 W
4 ∅140/250 mm / 1100- 2000 W (roasting tin zone)
5 ∅ 180 mm / 1800 W

Delivery scope

1 x backing tray, 1 x grill grid

Installation Installation

WARNING: WARNING:

The installation and the connection to the main power may only be performed by an authorized specialist.

CAUTIONCAUTION

• The appliance must be installed so that heat can be dissipated. The ventilation openings must not be blocked.
• Keep a distance to the appliances back in order to guarantee a sufficient air circulation.
• Place the appliance only on a flat, stable, safe and heat resistant floor.
• The appliance must not be placed on a socket.

- Place the appliance so that all controls are easily to reach and the appliance door can open without being impeded.

- The appliance can be installed between two pieces of furniture with the same level. The lateral distance between a piece of furniture and the appliance must be at least 30 mm.

- The distance between the hob and an extractor hood must be at least as large as specified in the instructions of the extractor hood!

- If the appliance is not horizon tally leveled, adjust the screw feet accordingly. Turn clockwise shortens the unit base, turning it counterclockwise extended it.

Electrical connection Electrical connection

Information for the authorized expedite

WARNING: WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Connecting the appliance to a domestic power socket or using multiple sockets or extension cables is not permitted.

• Improper connection may cause to an electric electric shockshock

• Before connecting, ensure that the power supply corresponds with the information on the rating label (appliance back) and the wiring diagram.

• The appliance is suitable for three-phase and AC current (400V 3N\~50-60Hz).
• The appliance can be adjusted for single-phase current by a respective bypass on the terminal block, based on the circuit diagram below. Select a suitable cord as mains cable, considering the connection type and nominal power of the oven.
  • Fix the mains cable in the tension relief.
• Make sure to connect the protective ground to the terminal of the marked terminal block.
• The electrical installation of the oven should be equipped with an emergency switch, which switches off the whole appliance from the mains supply in an emergency. The distance between the contacts of the emergency switch must be at least 3 mm.
• Arrange the mains cable in such a way that it does not get in contact with any hot components of the appliance. Do not lead it over sharp edges or corners.

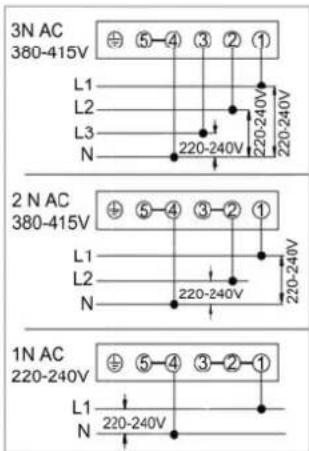

Connection wiring diagram Connection wiring diagram Permissible connection methods

CAUTION:

Each connection requires the protective ground of the mains to be connected to the E ⊕ terminal.

As connecting cable (not supplied) the following types are suitable:

• H03VV-F (5G2.5 with three-phase 230/400V 3N\~)
• H05RR-F (5G2.5 with three-phase 230/400V 3N\~)

Recommendation is the indentation option to a three-phase circuit 3 x 16 Alphase circuit 3 x 16 A!

Terminal box

i NOTENOTE

L1, L2, L3 = Phase

N = Neutral

E Protective ground

Startup / OperationStartup / Operation

Before Initial use Before initial use

• Clean the oven interior with all therein located accessories. Follow the instructions that we give you in the chapter "Cleaning and Maintenance".
• In order to burn any manufacturing residue, heat the closed oven for approx. 70 minutes at 200°C. Use the heating function [Upper/lower heat]. Then switch to the heating function [Grill] for another 20 minutes.

i NOTENOTE

The occurring odor and possibly a slight smoke development cannot be avoided. Therefore ensure for a good ventilation of the room during heating.

OperationOperation

1 Levelregulator of cooking zones

The temperature setting is set for each cooking zone separately by using the respective level regulator.

CAUTION: Depending on model!

Turn the level regulator of the double cooking and roasting tin zone only clockwise and back again. Otherwise the regulator will be damaged.

= Position of cooking zone

• = Off-Position

1 = Lowest setting (keep food warm)
6 = Model EHC 3553 highest setting (quick
9 ≡ Model EHC 3554 heating and cooking, roasting)

2 Cooking zone power control lamp

The power control lamp indicates the operation of the cooking zones. It lights up as soon as a cooking zone is put into operation and goes off if all level regulators points to the off-position.

3 Oven function selector switch

The function selector switch is used to set the type of heating. Rotate the function selector switch until the icon for the desired type of heating points upwards.

4 Oven temperature selector switch

The temperature selector switch is used to adjust the oven temperature. The thermostat allows the temperature setting from 50°C to 250°C.

CAUTION:

Turn the temperature selector switch only clockwise and back again. Otherwise the switch will be damaged.

5 Oven temperature control lamp

The temperature control lamp indicates the heating operation. If the lamp goes off, the set oven temperature is reached.

During operation, the oven must continuously reheat to keep the temperature stable. When reheating the control lamp is lighting (thermostat function).

i NOTENOTE

If the recipe recommends putting the food in the preheated oven only, this should not be done before the control lamp turns off for the first time.

Oven lighting Oven lighting

The oven lighting automatically turns on as soon as the oven is in operation.

Using the accessory Using the accessory

Inside the oven are levels for inserting the accessories. The accessories are safely used between the side levels.

CAUTION:CAUTION:

Always insert the accessory completely into the oven; otherwise the glass door can be scratched.

Dish Easriagecarriage

The roller-mounted drawer beneath the oven chamber is used to store the accessories.

Selecting appropriate cookware Selecting appropriate cookware

Wrong!Wrong

Cookware is too small.

Heat loss!

Cookware ground uneven.

Poor heat transfer!

Lid does not close properly.

Heat loss!

Correct Corsave time and energy/mel energy!

Diameter of the cookware corresponds with the diameter of the hob.

The cookware base is fully resting and the lid closes properly.

CAUTION:

The cooking surface and the base of the cookware must always be clean and dry.

Switching on and off Switching on and off

...the oven...the oven

The oven is equipped with various functions. Baking can be done with upper heat, lower heat and grill heat. Set the required operating conditions.

• Set the oven function selector switch to the appropriate position.
• Turn the oven temperature selector switch in clockwise direction to the desired temperature.
• To switch the oven off, both switches must be turned to the off-position again.

...the hob

• Place suitable cookware on the respectively cooking zone.
• Turn the corresponding level regulator to the desired temperature level.
• Double cooking and roasting tin zone (depending on model)
  By rotating the respective level regulator clockwise until it stops (about level 9), the additional ware heating zone is added via a switching point. Now you can select the temperature level.

- After the end of the cooking process turn the level regulator back to the off-state.

i NOTENOTE

Countersink the selector switches and level regulators flush in the control panel to protect against unwanted operation.

Residual heat indicator

WARNING: Risk of bums!

Do not touch the cooking zones while the residual heat indicator lights up.

After switching off the cooking zones the residual heat indicator of the corresponding cooking zone lights up. This warns against touching the zone.

Oven functions Oven functions

Symbols	Description
•	Off Position: Switching the oven off.
	Upper heat: Up heating is done with active top heat. The dish gets heated from the top. Use when re-baking from above or for keeping warm
	Lower heat: Lower heating is done with active bottom heat. The dish gets heated from the bottom. Use when re-baking from below.
	Upper/lower heat: Upper heating is done in a conventional manner. The dish gets evenly heated from the top and bottom. Suitable for baking and roasting on one level.
	Upper/lower heat with fan: In this type of heating the heat produced by the upper and lower heat is evenly distributed by an additional fan. Ideal for quicker cooking.
	Grill: Only the grill heating element is in operation. Ideal for scalloping or grilling meat, casseroles, toast etc.
	Grill with fan: Chilt with element and the fan are turned on. This helps to speed up the grilling process.

Notes for baking, boaking for baking in the oven

i NOTE:

• Use the included accessory.
• In principle, you may use any heat-resistant cookware for your food.
• Unsuitable is cookware of bright, shiny aluminum, unglazed clay and tableware made of plastic or with plastic handles.
• Follow the instructions for the duration of the completion in your recipes and preparation instructions on the product packaging.

Baking

- For good baking results, preheating is recommended up to the desired temperature.

• After finishing the baking process, we recommend resting the food for about 5 minutes in the oven.
• Before removing the cake, check if it is done by using a wooden stick. When the cake is done, no dough residue will stick to the wooden stick.

Cooking and roasting meat & fish

• Only cook meat of maximum 1 kg in the oven. We recommend roasting or cooking smaller portions on the cooking hob.
• When using the grill grid for roasting, we recommend placing a baking sheet with some water on the lower level.
• At least once after half of the cooking time, the roast should be reversed; sprinkle the roast during cooking now and then with the resulted roast liquid or with hot, salty water, thereby not using cold water.

Grilling

CAUTION:

• Grill exclusively with the oven door closed!
• Supervise the grilling process, the grilling food can burn rapidly due to the intense heat!

- Turn the function selector switch in the corresponding position.

• Preheat the oven for approx. 5 minutes.

- Brushes the grill grid with a little oil, so that the grilling food does not stick on it.

- Slide an empty baking tray for dripping grease to directly lower level, below the grill grid. Pour some water into the baking tray for later easily cleaning.

Energy saving tipsips

• Only preheat if it is specified in the recipe.
• Use dark, black painted or enamelled tins. They absorb the heat particularly well.

• Open the oven door as less as possible during operation.

• Use the residual heat after cooking process.
  Switch the oven off a few minutes before ending the cooking / baking time. So your baking product even cooked in the stored oven heat.

• Put on the cookware before switching on the cooking zone.
• The base of the cookware and the cooking zone should use the same size.
• If possible, always cover the cookware on the cooking zone with a lid.
• Switch off the cooking zones before ending the cooking time, to use the residual heat.

Cleaning and Maintenance

WARNING: WARNING:

• Always switch off the appliance completely and where required, disconnect the plug or turn off / unscrew the fuse before cleaning and user maintenance.
• Allow the appliance to cool down sufficient before cleaning.
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components.
  Risk of electric shock; electric foam could damage the plastic parts.
• Never use flammable substances, such as thinner, kerosene, gasoline or acids for cleaning.
• The appliance must be dry before restarting operation.

CAUTION:CAUTION

• Do not use a wire brush or other sharp, abrasive items.
• Do not use harsh abrasive cleaners or sharp metal objects for cleaning the glass surface. The surfaces can be scratched or destroyed.
• Always consider the application and safety notes of the detergent.

Cleaning the hobCleaning the hob

Staining Staining method		Cleaning tools
Dirt has accumulated	Use warm water and a sponge to rub dry.	Special cleaning sponge for glass ceramic
Pools and lime deposits	Apply warm vinegar and wipe off with a dry cloth or use special cleaning agent.	Special cleaning agent for glass ceramic
Sugar, melted aluminum, or plastic	Remove by using a glass ceramic scraper.	Special cleaning agent and scraper for glass ceramic

Removing the oven doorRemoving the oven door

You may remove the oven door to facilitate cleaning and to get better access to the oven interior.

- Open the appliance door completely.

- Push the retaining brackets (a) of the hinges on both sides upwards.

- Slightly close the door and lift it up to remove it.

- When reinstalling the door, make sure the notch of the hinge is properly aligned with the protrusion of the hinge holder.

- The people should have been holding brackets (a) again, otherwise the hinges could get damaged when closing the oven door.

Cleaning the ovenCleaning the oven

i NOTE:

By cleaning after each use, you avoid that food residuals and soiling will be burning-in at the next operation. Then the cleaning is only possible with a lot of effort.

- Clean the appliance and accessories depending on the soiling degree and depending on the sur-

face only with a soft, damp cloth and commercially, food safe cleaners.

• Soak heavily soiled areas with some warm soapy water or a vinegar cleaner.
• Wipe off grease residues from the sealing framed the cooking chamber.
• Use a soft absorbent cloth for drying after cleaning.

Cleaning the glass panelg the glass panel

If necessary, clean the inside of the glass panel.

- Open the appliance door.

- Press the release button

laterally in the doorframe in order to remove the brackets (b).

• Loosen the retaining strip (c).
  • Take off the glass carefully forward.
• Replace the glass panel, the retaining strip and brackets properly; after you've cleaned the glass and dried it thoroughly.

Reverse the bulbReverse the bulb

WARNING: WARNING:

• Make sure that the appliance is turned off from the power supply (fuse).
• Allow the lamp to cool down before replacing the bulb. There is risk of burns! There is risk of burns!

NOTENOTE

Use the correct bulb, heat resistant up to 300°C:

1 x 15M, 230 V, -230 V

• Unscrew the lamp cover anti-clockwise and clean it with a dry cloth.
• Change the bulb.
• Reattach the lamp cover and screw it tight in a clockwise direction.
• Check the functionality.

Troubleshooting

Before you contact an Beforeized specialist

Problem	Possible causes	What to do
Appliance does not work	The power supply is disconnected.	Check the fuse of your domestic wiring system.
Oven lamp does not work	Bulb is defective, has been inserted incorrectly or not firmly.	Check the bulb, see “Reverse the bulb”.
Strong formation of smoke	Grease residue in the oven.	Switch off the oven and allow to cool down before cleaning.

iNOTE:

If a problem still persists after following the steps above, contact your distributor or an authorized technician.

Technical Data Technical Data

ModelModel	EHC 3553EHC 3553	EHC 3554
Measures H x W x D / Weight/Weight/ x D /
Appliance dimension	86.0 x 50.0 x 60.0 cm 86.0 x	60.0 x 60.0 cm
Oven interior	ca. 34.0 x 36.0 x 41.0 cm	ca. 34.0 x 44.0 x 41.0 cm
Net weight	39.2 kg	46.0 kg
Electrical connectionElectrical connection
Connection power	7850 W	9750 W
Connection voltage	220-240/380-415V 3N~ 50/60Hz	220-240/380-415V 3N~ 50/60Hz
Fuse protection	3 x 16 A	3 x 16 A
Protection class / degree	I / IPX0	I / IPX0

The right to make technical and design modifications in the course of continuous product development remains reserved.

Product data sheet for household Evers according to regulation (EU) No. 65/2014

BrandBrand	BOMANN	BOMANN
ModelModel	EHC 3553EHC 3553	EHC 3554EHC 3554
Energy efficiency index	98.8	104.3
Energy efficiency class	A	A
Energy consumption per cycle in conventional mode	0.75 kWh	0.84 kWh
Energy consumption per cycle in forced air mode	0.79 kWh	0.92 kWh
Number of cavity	1	1
The heat source per cavity	Electricity	Electricity
Oven capacity	49 l	61 l
Built-in	-	-

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal Disposal

This helps avoid the potential effects of incorrect

disposal on the environment and human health.

This will contribute to the recycling and other forms of

reutilization of electrical and electronic equipment.

Meaning Meheir"Dustbin" Symbol of the "Dustbin" Symbol Information concerning where these can be disposed

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

of can be obtained from your local authority.

WARNING:

Remove or disable any existing snap and bolt locks,

if you take the unit out of operation or dispose it.

BOMANN®
