Product Type	Upright Freezer
Brand	Bomann
Model	GS 199
Energy Efficiency Class	A++
Annual Energy Consumption	140 kWh/year
Net Capacity	80 L
Star Rating	4-star (freezer)
Freezing Capacity	6 kg per 24 hours
Temperature Rise Time	12 hours
Climate Class	N/ST/T (ambient 16°C to 38°C)
Noise Level	43 dB(A)
Dimensions (H x W x D)	84.5 x 54.5 x 57.0 cm
Net Weight	32.0 kg
Connection Voltage	220-240 V~ 50 Hz
Compressor Power	70 W
Refrigerant	Isobutane (R600a)
Number of Drawers	4
Ice Cube Tray	Yes (1 included)
Adjustable Feet	Yes
Reversible Door	Yes
Temperature Control	Manual dial (off to MAX)
Defrosting	Manual
Design	Freestanding
Color	White
Freezer Temperature	-18°C or below

Frequently Asked Questions - GS 199 BOMANN

How do I set the temperature on my Bomann GS 199 freezer?

Turn the temperature control dial clockwise from the OFF position. The settings range from MIN (warmest) to MAX (coldest). For initial operation, set to MAX until desired temperature is reached, then adjust to a medium setting.

How do I defrost the freezer?

Turn the temperature control to OFF and unplug the appliance. Remove all food and keep covered in a cool place. When the ice melts, wipe the condensate and dry the interior. To speed up defrosting, place a bowl of warm water (approx. 50°C) inside. Never use metal objects to remove ice.

Can I reverse the door opening direction?

Yes, the door can be reversed from the right (as supplied) to the left side. Disconnect the appliance from power first. Follow the step-by-step instructions in the manual: remove screw covers, unscrew hinges, transfer hinge pins to the opposite side, and reassemble. Ensure the door is vertical and horizontal after adjustment.

How do I clean the freezer?

Always unplug the freezer before cleaning. Use warm water and a mild detergent to clean the interior, including the rear and bottom. Do not use abrasive or acidic cleaners, steam cleaners, or wire brushes. Dry thoroughly before restarting.

What should I do if the freezer is not cooling properly?

Check that the unit is plugged in and the temperature control is set correctly. Ensure the door closes properly and ventilation openings are not blocked. Allow 24 hours after adding a large quantity of food. If the problem persists, contact an authorized technician.

Why is my freezer making noises?

Normal noises include mumbling from the compressor, liquid sounds from refrigerant circulation, and clicking when the thermostat switches on/off. Disturbing vibrations may occur if shelves or cooling coils are loose. Adjust feet if the appliance is not level, and ensure shelves are securely fastened.

How much food can I freeze in 24 hours?

The maximum freezing capacity is 6 kg per 24 hours. For optimal freezing, set the temperature control to MAX 24 hours before adding fresh food.

What type of refrigerant is used?

The refrigerant is Isobutane (R600a), a natural, flammable gas with high environmental compatibility. If the refrigerant circuit is damaged, avoid open flames, thoroughly ventilate the room, and contact a professional.

Is the freezer suitable for garages?

The freezer has climate class N/ST/T, meaning it operates in ambient temperatures from 16°C to 38°C. It is not suitable for unheated garages where temperatures may fall below 16°C. Avoid locations with high humidity, direct sunlight, or near heat sources.

How can I save energy with this freezer?

Keep ventilation openings clear. Allow warm food to cool before placing inside. Do not open the door longer than necessary. Defrost regularly to prevent thick ice buildup. Keep the door seal intact and ensure the door closes properly. Maintain a temperature of -18°C or below.

USER MANUAL GS 199 BOMANN

White refrigerator with open door, showing front and interior compartments (no visible text or symbols)

Special safety Information for this Unit......Page 18

Unpacking the Appliance......Page 19

Overview of the Appliance......Page 19

Installation......Page 20

Reverse the Door Opening....Page 21

Startup / Operation......Page 21

Tips for Energy saving......Page 24

Cleaning......Page 24

Repairs....Page 25

Troubleshooting......Page 25

Technical Data......Page 26

Installation Installation

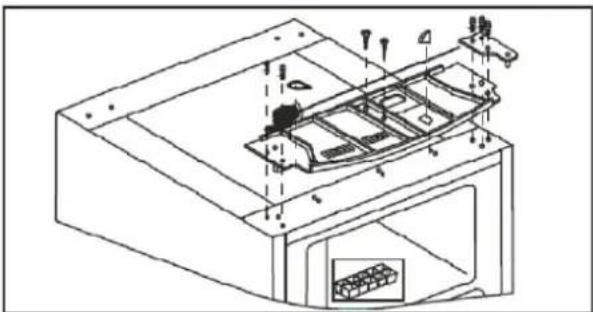

Technical line drawing of a 3D cabinet or enclosure with internal components and mounting hardware (no text or symbols)

Technical line drawing of a microwave oven with internal compartments and mounting points (no text or labels)

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in the System Instructions for Usese Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING

This warns you of dangers to your health and indicates possible injury risks.

CAUTIONCAUTION

This refers to possible hazards to the machine or other objects.

NOTENOT highlights tips and information.

General Notes General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The appliance is only to be used as described in the user manual. Do not use the appliance for any other purpose. Any other use is not intended and can result in damages or personal injuries.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• For safety reasons, alterations or modifications of the device are prohibited.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNINGNING

Do not allow small children to play with the foil. There is a danger of suffocation!

Special safety Information for this U special safety Information fo

• This unit is intended to be used in household and similar applications such as
• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING: WARNING:

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, except those described in this manual (depending on the model included the scope of delivery).
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance.
• Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance appliance way and understand the hazards involved.

- Children Childrent play with the appliance. - Cleaning and user maintenance shall maintain made by children unless they are older 8 years and supervised.

- Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable

be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.

- Use the provided collection points of electrical equipment for the disposal of the appliance.

CoolantCoolant

WARNING

The coolant circuit of this device contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the device.

If the coolant circuit is damaged: If the coolant circuit is damaged:

• It is imperative to avoid any open flames or ignition source.
• Thoroughly air the room in which the device is installed.

Unpacking the Appliandengofranee

1. Remove the appliance from its packaging.
2. The device and parts of the interior are protected for transport. Remove all adhesive tapes from the unit lid. You may remove adhesive residue with a cleaning solvent. Also remove any adhesive tapes and packaging materials from the inside of the device.
3. To prevent hazards, check the appliance for any transport damage.
4. In case of damage, do not put the device into operation. Contact your trader.

NOTENOTE

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning".

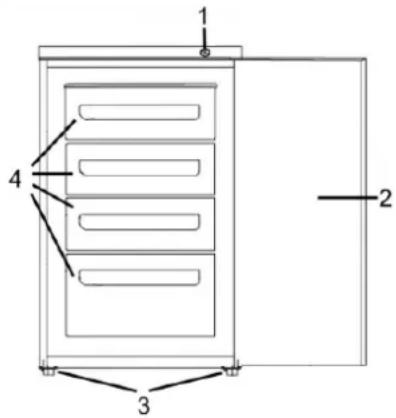

Overview of the Appliance

NOTENOTE

The drawing can deviate from the original device.

1	Temperature control
2	Inner door with sealing
3	Adjustable feet
4	Freezing drawers

Delivery scope Delivery scope

4 x freezing drawer, 1 x ice-cube tray

Installation Installation

Conditions for the installation location Conditions for the installation location

- Sufficient ventilation around the device is necessary in order for the heat to dissipate properly and to guarantee efficient cooling operation at low power consumption. For this purpose, leave sufficient space around the device:

• minimum distance of 5 cm between rear side and wall;
• at least 1 cm on both sides;
• keep proper space in front of the device in order to open the door at an angle of 160^ .

- Only install at a location with an ambient temperature suitable for the climate class of the device.

For information on the climate class, please refer to chapter "Technical Data" or to the rating label located in the interior or on the rear side of the device.

• Place the device on a steady and safe surface. If the device is not horizontally leveled, adjust the feet accordingly.
  • Install the device for the wall socket to be freely accessible.

• Avoid the installati and the installati

• near heaters, next to a stove, direct sunlight or any other heat sources;

• at locations with high humidity (e.g. outdoors, bathroom), as metal parts would be susceptible to corrosion under such circumstances;
• near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.) and in rooms which may have poor air circulation (e.g. garages).

Electrical connection Electrical connection

WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock!
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.
• The accessibility of the power plug must be ensured in order to disconnect the device from the power supply in case of an emergency.

CAUTIONE

In case you disconnect the device or in case of power failure: Wait for approx. 5 minutes before restarting the device.

• Ensure that your mains power corresponds with the specifications of the appliance. The specifications are printed on the rating label.
• Connect the mains cable to a properly installed and earthed wall outlet.

Reverse the DBox Operating Dening

If required, the door opening can be moved from the right (supplied condition) to the left side.

WARNING: WARNING:

When replacing the door stop, the device must be disconnected from the power supply. Always unplug the device first.

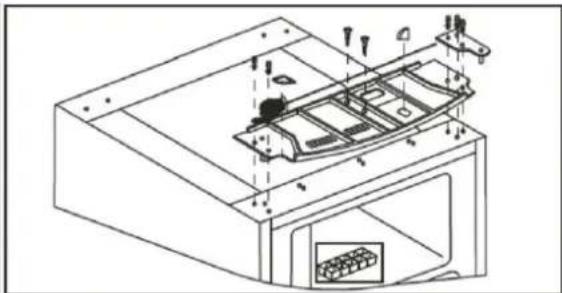

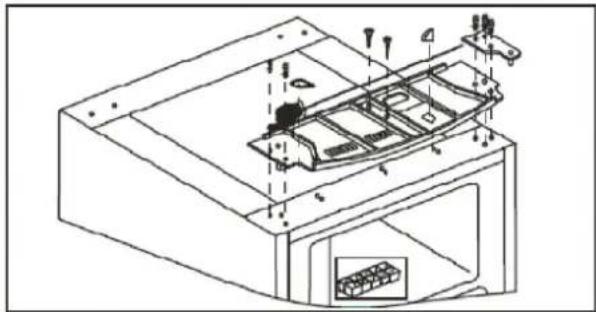

Technical line drawing of a 3D cabinet or enclosure with internal components and mounting hardware (no text or symbols)

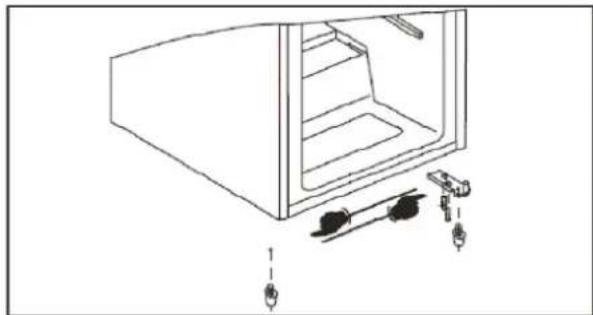

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

• Use a flat bladed screw driver to remove the screw covers at the device top cover. Unscrew the below screws and remove the device cover.
• Tilt the device slightly backwards and block it in this position in order to avoid the slipping out of the door.
• Loose the screws of the upper door hinge and remove the hinge along with the hinge pin.
• Open the door a little, take it carefully of the lower door hinge and place it on a padded surface to prevent it from scratches.
• Turn the separate foot off and remove it and the lower door hinge along with the foot and hinge pin by unscrewing the screws. Unscrew the pin and put it at the opposite of the hinge.
• Screw the door hinge incl. foot and the separate foot respectively at the device opposites.
• Replace the device upright again. Put the door on the lower door hinge pin and fix the door to its property position.
• Mount the upper door hinge with the screws at the device opposite, upon you unscrewed the hinge pin and put it in at the other hinge side again.
  • Afterwards the device top cover is to fix on again.
• Check if the door is arranged vertical as well as horizontal, so that a smooth opening and closing of the door is ensured.

Startup / OperationStartup / Operation

Prior to first use Prior to first use

CAUTION:CAUTION

After transport, the device should be left standing for 4 hours in order for the oil to be collected in the compressor. Nonobservance could cause damage to the compressor and hence result in failure of the device. This would void your warranty claim.

- Clean the interior of the device including all accessory parts located inside. Please consider the instructions that we have included for you in the chapter on "Cleaning".

Turning on Turning on

• Turn on the unit by connecting the device to the power supply.
• Operate the temperature control, which is located on the device front. See also the following section "Settings".

SettingsSettings

Setting • means that the unit is in the off state. Turn the temperature control clockwise, starting from this setting; the device will turn on automatically. The power levels MMINIMAXMaxILates the different values of the internal temperature.

Setting •: off state

Setting MIN: lowest setting (warmest inside temperature)

Setting MAX: highest setting (coldest inside temperature)

Turning the temperature control clockwise will lower the inside temperature. Please keep in mind that the temperature changes with the ambient temperature (of the location), with the frequency of door opening and the amount of food in the device.

During initial operation, turn the temperature control to the highest setting first, until the device has reached the desired operating temperature. Afterwards it is recommended to turn the control back to a medium setting; correcting the temperature at a later point would then be easier.

Storing food

The * * * freezer allows you to store frozen food at a temperature of -18°C or below (from a middle temperature control setting) for several months, to produce ice cubes and to freeze fresh good.

The temperature of the device is automatically controlled by the temperature control.

Due to external influences such as room temperature, placements, frequency of opening the door and the amount of food the temperature in the freezer can be influenced.

Freezing

• 24 hours before freezing we recommend turning the temperature control to the highest power level and to keep this setting even after freezing for a few hours.
  The device is not compromised if the setting will not revert to a normal operating temperature (temperature control in middle setting) after the freezing process, but for economic reasons you should possibly avoid it.
• Frozen food should be stored in the lower compartments, in order to keep the upper compartment available for fresh food. If necessary rearrange the frozen food.
• Fresh food should be frozen as fast as possible to the core. Therefore during freezing operation, the temperature of fresh food should be lowered as fast as possible in order to keep formation of ice crystals as little as possible and not to damage the food structure.
• Frozen food should be kept in contact with the bottom of the compartment.
• Keep a space between the individual items, so that the cold air can circulate.

Storing frozen food Storing frozen food

• Packed frozen merchandise should be stored in a 4-star-freezer compartment in accordance with the manufacturer's data. Make sure the food items do not defrost after purchase and to store them as fast as possible in the freezer.
• It is possible to store food for longer periods of time, up to three months. This period might vary, so please observe the storage information on the packaging of the merchandise.

i NOTENOTE

Make sure that the temperature in the freezer does not rise above -18^ .

Moreover the device should be defrosted regularly. A thick layer of ice on the wall deteriorates the cooling effect and the power consumption increases.

Safety precautions Safety precautions

• Do not store bottles or cans. These can break when the contents freeze – or even explode, if they contain carbonated drinks.
• Once products have been defrosted halfway or completely, they should be consumed as soon as possible and should not be frozen again, except they have been processed to a ready meal.
• Do not open the door in case of power failure. If the failure does not take longer than 12 hours, the food will not be affected.
• Do not eat food that is still frozen. Do not allow children to eat ice cream directly from the freezer. The cold can cause injuries in the oral cavity.
• Touching metal parts inside the device can cause symptoms similar to burns if the skin is very sensitive.
• Do not touch frozen food with moist or wet hands; they could freeze to the items.

DefrostingDefrosting

To achieve better cooling and to save energy, defrost the device regularly. To start the defrosting process turn the temperature control to the •• -position and disconnect the plug or turn off the fuse. Remove the food items and keep covered at a cool location.

When the ice has melted, wipe the condensate away and dry the device interior. You may then restart the device by connecting the plug and turning the temperature control.

CAUTIONCAUTION

Never use metal objects (e.g. knives) for removing ice from the vaporizer. The vaporizer could be damaged. A defect vaporizer could cause serious damages.

i NOTE:NOTE:

In order to speed up the defrosting process, you may put a bowl of warm water (about 50^ C) into the freezer chamber.

Operating noise Operating noise

Type of sound noise	Type of sound Type caused by the noise	solution Cause / solution Cause / solution
Normal Normal noise	Mumbling Caused by the noise	compressor during its operation.This is stronger when it turns on or off.
	Liquid sounds Caused by the noise	by the circulation of the refrigerant in the device.
	Click sounds The temperature control turns the compressor on or off.
	Disturbing noises Vibration of the shelves or cooling coils – check if those are securely fastened.

Turning off Turning off

Turn the temperature controlled by operating in order to turn off the device.

If the device will not be operated for a longer period of time:

• Remove the entire food from the device.
• Turn the temperature control to the -setting.
• Disconnect the plug or turn off / unscrew the fuse.
• Thoroughly clean the device (see "Cleaning").
• Keep the device lid open in order to prevent bad odors.

Tips for Energy saving

• Disconnect the plug if you do not use the device.
• Do not install the device near stoves, heaters or other heat sources. In case of higher ambient temperatures, the compressor will run more frequently and longer.
• Ensure sufficient ventilation at the bottom and rear device side. Never block ventilation openings.
• Allow warm dishes to cool down before putting them in the device.
• Do not open the door longer than necessary.
• Make sure that the temperature in the freezer does not rise above -18^ .
  • The device should be defrosted regularly.
• The seal of the device door must be completely intact, so that the lid closes properly.

Cleaning

WARNING:

• Always turn off the device and disconnect the plug or turn off / unscrew the fuse before cleaning and user maintenance.
• Do not use steam cleaners for cleaning the device; moisture could enter electrical components. Risk of electric shock! Hot steam could damage the plastic parts. The device must be dry before restarting operation.

CAUTIONCAUTION

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.
• Essential oils and organic solvents, such as the juice of lemon or orange skin, butanoic acid or cleaning agents containing acetic acid can damage plastic parts. Prevent contact of any part with such substances.
• Do not bend the cooling coils.

For hygiEnichregisons, clean the interior and accessory parts regularly:

• Remove all food and keep covered at a cool location.
• Use warm water and a mild detergent for cleaning the interior (including rear side and bottom).
  • After everything was thoroughly dried, you can restart the operation.

RepairsRepairs

A wrong or improperly performed repair brings danger to the user.

Repairs to electrical appliances must only be carried out by an authorized specialist. A damaged power cord must be changed only by a qualified electrician.

Troubleshooting Troubleshooting

Before you contact an authorized specialist Before you contact an authorized specialist

You need the service may not call if you read this troubleshooting table.

Problem	Possible cause	Solution
The device is not working properly or at all.	- Is the unit not connected to mains power?- Is the temperature control properly set?- Is the place unqualified?- Do food items prevent the device door from closing properly?- Are the ventilation openings clear of obstruction?	- Insert the plug properly in the contact socket. Check the fuse.- Check the temperature setting.- Check the ambient temperature.- Arrange the food properly.- Unblock the ventilation openings, install the device freely.
Device cools too much.	Is the temperature control set properly?	Check the temperature setting.
The food is too warm.	- Is the temperature control set properly?- Was the device door open for an extended period?- Was large quantity of food placed in the device within the last 24 hours?- Is the device near a heat source?	- Check the temperature setting.- Open the door only as long as necessary.- Turn the control panel to a colder setting temporally.- Check the installation location (see “Installation”).
Loud noise during operation.	Does the device not stand vertical or horizontal?	Adjust the feet accordingly.Liquid flow sounds in the cooling circuit are normal.
Water on the bot-tom.	Is the temperature control set properly?	Check the temperature setting.
The housing be-comes warmly.	The refrigeration cycle takes place in the foaming. The heat exchangers are installed in the housing covered. The device cut the interior heat, which must be dissipated through the housing areas.
Water on the outer surface.	On days of high humidity, condensation might occur on the outer surface of the device.This is no malfunction; you may simply wipe the water off.

i NOTE:

If a problem still persists after following the steps above, please contact your trader or an authorized technician.

Technical Data

Technical data of household refrigerators according to:

EU Directive (EU) 1060/2010

Brand		Bomann
Model		GS 199
Category ^1)		8
Energy efficiency class ^2)		A++
A+++ (highest efficiency) to G (lowest efficiency)
Consumption data
Annual energy consumption ^3)	kWh	140
Net capacity	I	80
Star rating ^4)		4
Frost-free		-
Temperature rise time	h	12
Freezing capacity	kg/24h	6
Climate class ^5)		N/ST/T
Noise level	dB(A) re 1pW	43
Design		Freestanding
Measures / weights
Height	cm	84.5
Width	cm	54.5
Depth	cm	57.0
Net weight	kg	32.0
Electrical conne Electrical conne
Compressor W		70
Connection voltage		220-240 V~, 50 Hz

1) Category: 1 = Refrigerator with one or more fresh-food storage compartments, 2 = Refrigerator-cellar, Cellar and Wine storage appliances, 3 = Refrigerator-chiller and Refrigerator with a 0-star compartment, 4 = Refrigerator with a one-star compartment, 5 = Refrigerator with a two-star compartment, 6 = Refrigerator with a three-star compartment, 7 = Refrigerator-freezer, 8 = Upright freezer, 9 = Chest freezer, 10 = Multi-use and other refrigerating appliances
2) A+++ (highest efficiency) to G (lowest efficiency).
3) Annual energy consumption „XYZ" kWh per year based on standard test results for 24 h.

Actual energy consumption will depend on how the appliance is used and where is located.

4) * = compartment: a frozen-food storage compartment in which the temperature is not warmer than -6°C.

** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -12°C.
*** = compartment: a frozen-food storage compartment in which the temperature is not warmer than -18°C.
^ ( ^** ) = food freezer compartment in which the temperature is not warmer than -18^ C and a min. freezing capacity in 24 h.

5) Climate class SN: ambient temperature of +10°C up to +32°C.

Climate class N: ambient temperature of +16°C up to +32°C.

Climate class ST: ambient temperature of +16°C up to +38°C.

Climate class T: ambient temperature of +16°C up to +43°C.

The right to make technical and design modifications in the course of continuous product development remains reserved.

All device-specific data of the energy label have been determined by the manufacturer under laboratory conditions in accordance with pan-European standardized measuring methods. These are regulated by ISO EN 15502ISO-EN Act 56 Energy consumption depends on the usage and might therefore also be above the values determined by the manufacturer under standard conditions.

An expert knows these relations and will execute the tests with special measurement instruments in accordance with the regulations in place.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations

Disposal Disposal

Meaning of the "Dustbin" SymbolMeaning of the "Dustbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

WARNING: WARNING:

Remove or disable any existing snap and bolt locks, if you take the device out of operation or dispose it.

BOMANN®

White refrigerator with open door and side panel, no visible text or symbols on the cabinet surface

Technical line drawing of a 3D cabinet or enclosure with internal components and mounting hardware (no text or symbols)

Technical line drawing of an open refrigerator with internal components and mounting holes (no text or symbols)
