FL147D - Washing machine Ardo - Free user manual and instructions

Product Type	Freestanding Washing Machine
Model	FL147D
Brand	Ardo
Loading Type	Front Load
Capacity (kg)	7
Maximum Spin Speed (rpm)	1400
Energy Class	A+
Washing Class	A
Spin Drying Class	B
Noise Level (dB) - Wash	59
Noise Level (dB) - Spin	78
Annual Energy Consumption (kWh)	197
Annual Water Consumption (L)	9799
Dimensions (H x W x D) - cm	85 x 59.5 x 58
Weight (kg)	72
Power Supply	220-240 V, 50 Hz
Power Consumption (W)	2200
Number of Programs	15
Special Programs	Cotton, Synthetics, Delicates, Wool, Quick Wash, Eco, Rinse & Spin, Drum Clean
Display	LED
Features	Delay Start, Child Lock, Partial Load Detection, Auto Unbalance Control
Water Inlet	Cold only

Frequently Asked Questions - FL147D Ardo

How do I install the Ardo FL147D washing machine?

Ensure the machine is placed on a level surface. Connect the water inlet hose to a cold water tap with a 3/4 inch thread. Attach the drain hose to a standpipe or sink drain. Plug the power cord into a grounded outlet. Level the machine using the adjustable feet. Remove transport bolts before use.

What detergent should I use for my Ardo FL147D?

Use a high-efficiency (HE) detergent designed for front-load washers. For best results, follow the detergent manufacturer's instructions. Avoid using too much detergent to prevent oversudsing and residue buildup.

How do I clean the filter of the Ardo FL147D?

Turn off and unplug the machine. Open the filter door at the bottom front. Place a container under the filter to catch any water. Turn the filter knob counterclockwise and pull it out. Clean it under running water. Reinsert and tighten clockwise. Close the door.

What does the error code 'E01' mean on my Ardo FL147D?

Error code E01 typically indicates a door lock issue. Ensure the door is properly closed and latched. If the problem persists, check the door lock mechanism for damage. Consult the manual or contact service for repair.

Can I wash a duvet in the Ardo FL147D?

Yes, if the duvet is machine-washable and fits loosely in the drum. Use a large item or duvet program if available. Select a gentle cycle with cold water and extra rinse. Ensure the duvet does not exceed the maximum capacity.

How do I use the delay start function?

Select your desired wash program. Press the Delay Start button repeatedly to set the delay time (e.g., 3, 6, 9 hours). Press Start/Pause to begin the countdown. The machine will start automatically when the delay ends.

Why is my Ardo FL147D not spinning?

Check if the machine is unbalanced: redistribute the load evenly. Ensure the drain hose is not clogged. Verify that the spin speed is set higher than 0. If the error persists, the motor or control board may be faulty; contact a technician.

What is the maximum weight capacity for the Ardo FL147D?

The maximum dry laundry weight is 7 kg. Do not overload to ensure effective cleaning and prevent damage. Overloading may cause excessive vibration and poor wash results.

How often should I run the drum clean cycle?

Run the Drum Clean cycle every 2-3 months to remove detergent residue and prevent odors. Use a washing machine cleaner or add a cup of white vinegar to the detergent drawer. Follow the program instructions.

Is the Ardo FL147D suitable for use with a septic tank?

Yes, but use biodegradable, low-sudsing detergent. Avoid bleach and harsh chemicals that can harm septic systems. Regular maintenance of the septic tank is recommended.

USER MANUAL FL147D Ardo

Illustration of three washing machines in a blue background, no text or symbols present

Vorohrter Kunde,

Cartoon illustration of a smiling washing machine with a person standing nearby (no text or symbols)

Cartoon illustration of a smiling washing machine with a 'END' sign, no text or symbols present

Cartoon illustration of a smiling washing machine with wrench and power plug (no text or symbols)

Cartoon illustration of a distressed washing machine with steam rising, surrounded by steam from its side (no text or symbols)

Cartoon illustration of a distressed character with a large head and sad expression, standing on a platform (no text or symbols)

Cartoon illustration of a distressed washing machine with steam rising, next to a person holding a phone (no text or symbols)

Cartoon illustration of a person holding a water tap with a magnifying glass (no text or symbols)

Illustration of two hands holding a small object with blue arrows indicating motion or movement (no text or symbols)

WASSERANSCHLUSS

Illustration of a hand holding a pipe fitting with a valve, against a tiled wall (no text or symbols)

Hand holding a hose with a blue arrow indicating direction, no text or symbols present

Illustration of a hand using a faucet to clean or wash the sink in a tiled bathroom (no text or symbols)

ELEKTROANSCHLUSS

Illustration of a hand opening a circular vent with a blue arrow pointing to the outlet (no text or symbols)

Diagram of a hand inserting a device into a drawer, with blue arrows indicating direction (no text or symbols)

Illustration of a hand pouring liquid into a device with a bottle (no text or symbols visible)

Diagram of a device drawer with internal compartments and a blue arrow indicating direction (no text or symbols)

Illustration of a hand washing a large washing machine with a blue X mark, no text or symbols present

Illustration of a hand using a cleaning tool to clean or wash the sink (no text or symbols visible)

Illustration of a hand inserting a device into a drawer with a blue arrow indicating direction (no text or symbols)

Illustration of a hand using a device to press a cable, with a blue arrow indicating rotation (no text or symbols)

Illustration of a hand pressing down on a mechanical component with blue motion arrows (no text or symbols)

Cartoon illustration of a smiling computer with a light bulb above it, no text or symbols present.

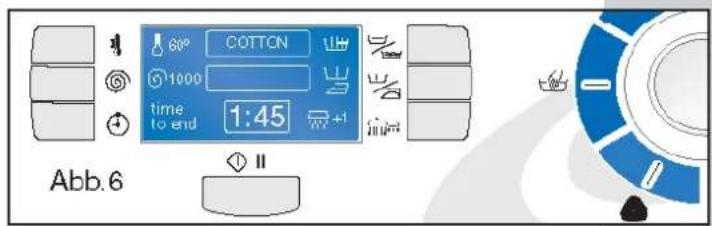

STARTVERZÖGERUNG:

INTENSIV PROGRAMM - SPÜLSTOP:
