Product Type	Car Stereo
Brand	Denver
Model	CUT-301
Display	3 Inch TFT-LCD
Touch Screen	Yes
Front Panel	Flip Down / Detachable
Power Supply	12V DC (10.8-15.6V allowable)
Output Power	40W x 4 Channels
Speaker Impedance	4 or 8 Ohm
Fuse Rating	10A
FM Tuner Range	87.5-108 MHz
FM Sensitivity	2.8 μV
MP3/WMA SNR	>60 dB
Frequency Response	20 Hz - 20 kHz
Line Out Level	750 mV (10k Ohm)
AUX In Sensitivity	775 mV (20k Ohm)
Media Playback	USB, SD/MMC, AUX, MPEG4
RDS	Yes (AF, TA, PTY)
Remote Control	Included
Maintenance	Fuse replacement (10A), connector cleaning
Safety	Use specified fuse; avoid high temperatures; professional installation recommended

Frequently Asked Questions - CUT-301 DENVER

How do I detach the front panel?

Press the OFF button first, then press the release button to fold the panel horizontally. Gently pull the panel towards you to detach. Always store it in the supplied case when removed.

How do I set the clock?

Go to the main menu, press UTIL, then use the ▲ button to adjust the time. Press X to save and exit.

How do I reset the unit?

Use a sharp object to press and hold the RESET button located on the housing for about 2 seconds. Reset after initial installation or if buttons stop working.

How can I play music from a USB drive?

Plug your USB memory stick directly into the USB port. The unit will automatically start playback. Supported formats include MP3 and WMA.

How do I use the RDS functions (AF, TA, PTY)?

Press AF for alternative frequencies; the unit will automatically switch to a stronger transmitter. Press TA to enable traffic announcements; the volume will increase during announcements. Press and hold PTY to select a program type (e.g., News, Rock) and the unit will search for stations of that type.

How do I connect a rear camera?

Connect the camera's video output to the Video In (yellow) connector. Connect the Rear Camera control wire (red) to the reverse light circuit so that it receives +12V when in reverse gear.

Why is there no video when driving?

By default, the unit is wired to disable video display when the parking brake is not engaged to comply with driving safety laws. You can change the installation to allow video while driving, but check local regulations.

How do I adjust audio settings like bass and treble?

Press the VOL knob to enter audio setup. Use the ▲/▼ buttons to select BASS, TREBLE, BALANCE, FADER, or TA VOLUME, then rotate the knob to adjust. Press VOL again to exit.

The fuse blew. What should I do?

Replace the fuse with one of the same rating (10A). If it blows again, there may be an internal malfunction. Consult your nearest repair center.

Can I play video files?

Yes, the unit supports MPEG4 playback from USB or SD/MMC. You can use the remote control for functions like zoom, slow motion, and subtitle selection.

USER MANUAL CUT-301 DENVER

with PLL FM Stereo Radio

Radio Data System

3 Inch TFT-LCD Display

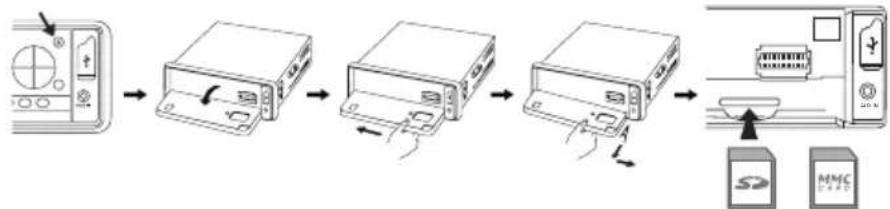

USB / SD/MMC Card Input

Front AUX IN

Touch Screen Control

Flip Down/Detachable Front Panel

INSTALLATION

PRECAUTIONS

• Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver.
• Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration.
• Use only the supplied mounting hardware for a safe and secure installation.
• Be sure to remove the front panel before installing the unit.

NOTE : Inclination angle for car radio installation must not exceed 30° otherwise the front panel will not open.

NOTE: Keep the release key in the safe place as you may need it in future to remove the unit from the car.

Detaching and attaching the front panel

The front panel of this unit can be detached in order to prevent the unit from being stolen.

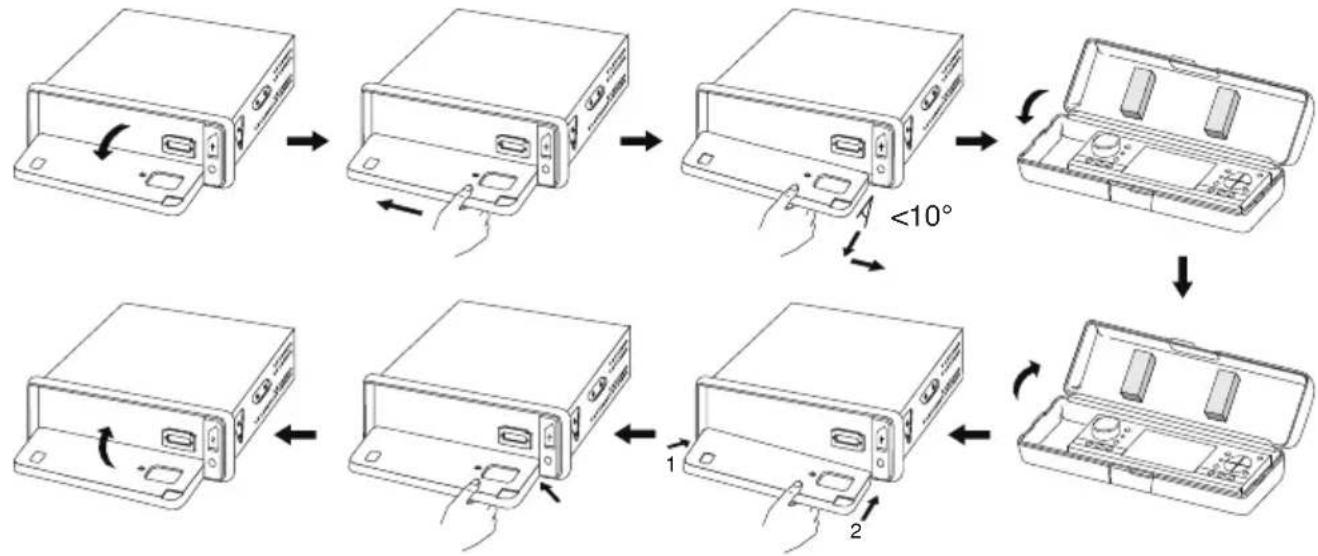

FOLDING DOWN AND DETACHING/ATTACHING THE FRONT PANEL

Before detaching the front panel, be sure to press the button (1) OFF first.

Then press the Button, let the Front Panel arrive in horizontal position and detach the panel by pulling it towards you as illustrated.

Notes:

• Do not press the front panel hard against the unit when attaching it. It can be easily attached by pressing it lightly against the unit.
• When you carry the front panel with you, put it in the supplied front panel case.
• Do not press hard or give excessive pressure to the display window of the front panel when attaching it to the unit.

CLEANING THE CONNECTOR

The unit may not function properly if the connectors between the unit and the front panel are contaminated with dirt. In order to prevent this from happening, detach the front panel by pressing the button and clean the connector from time to time.

Clean the connector with a cotton swab together with contact cleaner as illustrated. Be sure to clean them carefully pin by pin and make sure not to damage the connecting points.

TO SUPPORT THE UNIT

1. UNIT
2. RELEASE CASE
3. DASH BOARD
4. HEX NUT
5. LOCK WASHER
6. PLAIN WASHER
7. CAR BODY
8. REAR SUPPORT STRAP
9. TAPPING SCREW
10. M5 X 15 HEX BOLT

WIRE CONNECTION

IN / OUT CONNECTOR

Audio Out: White (L) Red (R)

Connect this wire to rear seat A/V monitor system

Line Out (Front): White (L) Red (R)

Line Out (Rear): White (L) Red (R)

2 Video Outputs: Yellow

Connect to external A/V system to display

Video In: Yellow

Connect to external Video equipment

Connect to rear camera output

CONTROL WIRE

Parking (Gray) : Connect this wire to car hand brake system

Tel mute (Black) : Connect to mobile phone unit

When receiving calls, audio sound will be muted.

Rear camera (Red) : Connect to back rear camera

During back gear condition, this wire should be connected to high voltage.

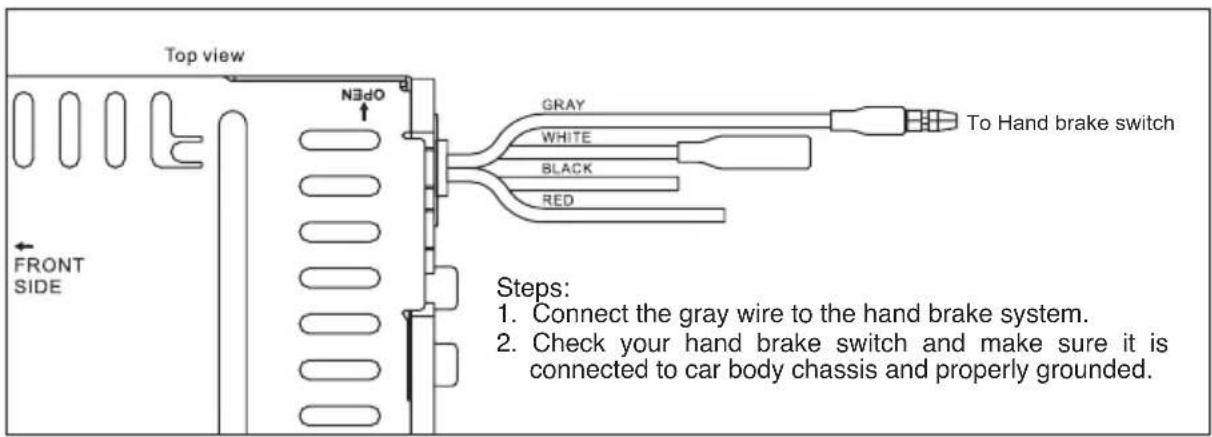

DRIVING WITHOUT VIDEO DISPLAY

Follow the installation below so when the car is in motion, no video will come out from the LCD screen. Only sound can be heard from speaker.

Note:

• Only sound can be heard when car is in motion.
• Refer and follow your country's law regarding driving with video.

Caution:

- Do not attempt to install it by yourself if the instruction is not clear to you. Consult you dealer concerning the installation procedures.

DRIVING WITH VIDEO DISPLAY

By following the installation below, video will always be shown on LCD screen no matter the car is in motion or not.

INSTALLING REAR CAMERA FOR PARKING/REVERSE MOTION

You can install an separate camera at the car rear end so when doing parking or reverse motion, the unit will automatically switch the video to the rear camera to guide the driver.

CONNECTOR A

1. MEMORY +12V
2. AUTO ANTENNA OUTPUT
3. +12V (TO IGNITION KEY)
4. GROUND

NOTE: (connector A no. 7) must be connected by car ignition key in order to avoid that car battery becomes weak when the car will be not used for long period.

CONNECTOR B

1. REAR RIGHT SPEAKER (+)
2. REAR RIGHT SPEAKER (-)
3. FRONT RIGHT SPEAKER (+)
4. FRONT RIGHT SPEAKER (-)
5. FRONT LEFT SPEAKER (+)
6. FRONT LEFT SPEAKER (-)
7. REAR LEFT SPEAKER (+)
8. REAR LEFT SPEAKER (-)

Maintenance

FUSE REPLACEMENT

If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after the replacement, there may be an internal malfunction. In this case, consult your nearest repairing center.

Warning

Use the specified amperage fuse for each lead. Use of a higher amperage fuse may cause serious damage.

LOCATIONS OF PARTS (MAIN UNIT)

1. POWER ON/OFF ( )
2. SELECT FUNCTION BUTTON
3. PRESET STATIONS (1,2,3,4,5,6)
4. 'AF' FUNCTION BUTTON (ALTERNATIVE FREQUENCIES)
5. 'TA' FUNCTION BUTTON (TRAFFIC ANNOUNCEMENT)
6. 'PTY' FUNCTION (PROGRAM TYPE)
7. LOUDNESS BUTTON (LD)
8. MODE BUTTON (MODE)
9. BAND BUTTON (BD)
10. TRACK / SEARCH BUTTON
11. AUTO SEEK TUNING
12. MUTE BUTTON (MUT)
13. 'SCAN' AUTOMATIC TUNING CONTROL (SCN)
14. AUTO SEEK SEARCH TUNING (A/PS)
15. PANEL RELEASE BUTTON (
16. TFT-LCD DISPLAY
17. PLAY/PAUSE BUTTON
18. REPEAT BUTTON
19. RANDOM BUTTON
20. 10 TRACK SEARCH DOWN/UP
21. RESET BUTTON
22. SD/MMC CARD SLOT
23. USB PORT
24. FRONT AUX IN

LOCATIONS OF PARTS (REMOTE CONTROL)

1. POWER ON/OFF
2. MODE
3. PLAY/PAUSE
4. TITLE
5. SELECT
6. SEEK+/SEEK- / TRACK/SEARCH
7. VOL +/VOL-
8. GOTO
9. AUDIO
10. ENTER
11. NAVIGATION
12. AUTO SEEK / PRESET SCAN / REPEAT
13. RANDOM / BAND / LOUDNESS
14. DUAL
15. PAL / NTSC SYSTEM
16. SUBTITLE
17. SETUP
18. EQUALIZER
19. SLOW MOTION
20. ZOOM / A-B REPEAT
21. STOP
22. CLOCK / ON SCREEN DISPLAY
23. MUTE
24. MAIN MENU
25. STEP (FRAME BY FRAME PLAYBACK)
26. PROGRAM TYPE
27. ALTERNATIVE FREQUENCIES
28. TRAFFIC ANNOUNCEMENT
29. 10 TRACK SEARCH DOWN/UP
30. TWO DIGIT TRACKS SEARCHS
31. KEYPAD

Use and care of the remote control

Installing the battery

Slide the tray out on the back of the remote control and insert the battery with the (+) and minus (-) poles pointing in the proper direction.

- When use for the first time, pull out the film protruding the tray.

CAUTIONS

• Remove the battery if the remote control is not used for a month or longer.
• Do not recharge, disassemble, heat or dispose the battery on fire.
• Do not store the battery with metallic materials.
• In the event of battery leakage, wipe the remote control completely clean and install a new battery
• When disposing of used batteries, please comply with government regulations or environmental public institution's rule that apply in your country/area.
  • Always check carefully that you are loading the battery with plus (+) and minus (-) poles facing the proper directions.

Using the remote control

Point the remote control in the direction of the front panel to operate.

IMPORTANT

• Do not store the remote control in high temperatures or direct sunlight.
• Do not let the remote control fall onto the floor, where it may become jammed under the brake or accelerator pedal.

OPERATIONS

Turning the unit ON/OFF (∅)

Press "button to turn on unit. To turn off, press the button again.

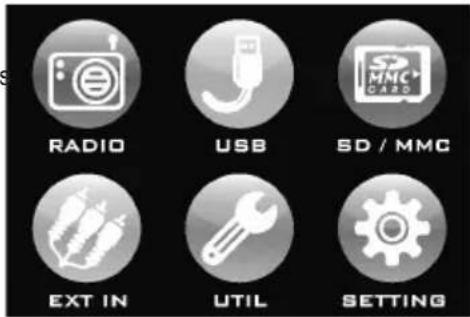

MAIN MENU

This is the root of the screen hierarchy and you can simply access all features by tapping on the touch screen buttons.

Start Radio

USB

SD/MMC mode

ernal device

connected AUX IN

ty Settings

Selecting a source (MODE)

Press MODE repeatedly to switch between TUNER, AUX IN, USB or SD/MMC mode.

Adjusting Volume

• Head Unit: Rotate VOL knob right or left to increase or decrease volume.
- Remote Control: Press VOL+ or VOL- to increase or decrease volume.

Mute Button

• Head Unit: Press MUT button to mute the sound at once. Press again to return to previous volume level.

- Remote Control: Press button.

Loud Button (LD)

Press and hold LD button to turn on/off LOUD feature.

Equalizer (EQ)

Press EQ to select between Flat - Class - Rock - Pop -- EQ equalizer modes.

CLOCK

To show clock, switch to RADIO mode and press CLK on remote control.

How to Set Clock

1. Press UTIL on main menu.
2. Press (▲) to set the time.
3. Press X to save and exit.

DUAL SETTINGS

DUAL is a feature that lets user listen to radio while the passenger at the back can watch video. This unit supports connection of external AV device such as portable TV through the AUDIO OUT and VIDEO OUT port.

1. Connect the AUDIO OUT and VIDEO OUT port at the back of head unit to the LINE IN of external AV device.
2. Press and hold MODE. Select memory card or USB source.
3. Press DUAL key on remote control to select which mode you want to control.
   T = TUNER, C = CARD, U = USB

Note: You will need to connect an external portable TV or monitor when using this feature.

RESET

Reset button is placed on the housing. To reset, use a sharp point object and press and hold the RESET button for 2 seconds.

The reset button is to be activated for the following reason:

• Initial installation of the unit when all wiring is completed.
  • All the function buttons does not operate.
• Error symbol on the display.

LISTENING TO RADIO

Band (BD)

Pressing this key repeatedly will toggle cyclically between each band. FM1---FM2---FM3.

Automatic or Manual tuning (SEEK + / SEEK -)

When pressed short, these keys are operated as MANUAL tuning mode.

When pressed longer than 1 sec., they are operated as AUTOMATIC tuning mode.

'SCAN' AUTOMATIC TUNING CONTROL (SCN)

This key is operated as RADIO SCAN. The operation is similar as normal search but different thing is holding 5 seconds on every station detected in RADIO SCAN mode.

Auto Seek/Preset scan (A/PS)

Preset Scan (PS) - By pressing shortly, the radio plays each preset station for 5 seconds.

Auto Seek (AS) - By pressing longer than 1 sec, auto seek is activated. The 6 strongest stations are preset and stored in the corresponding preset number. When Auto Seek operation is finished, the radio executes the preset scan.

Storing and Recalling Frequencies

If you press any of the NUMBER (1-6) you can easily store up to six broadcast frequencies for later recall with the touch of a button.

1. Choose a desired BAND.

2. When you find a frequency that you want to store in memory, press a NUMBER(1-6) and hold until the preset number shows and lit in the display.

3. The selected radio station frequency has been stored in memory. The next time you press the same NUMBER (1-6) the radio station frequency is recalled from memory.

Note: Up to 6 stations can be stored in each band.

USING THE RDS FUNCTION

What is RDS?

The RDS (Radio Data System) is a digital information system developed by the EBU (European Broadcast Union). Piggy-backed on normal FM

broadcasts, RDS offers a variety of information services and automatic retuning functions for RDS-compatible car stereos. In 1988, RDS became available in the United Kingdom, France, West Germany, Ireland and Sweden.

Currently Tuned Station

Preset Memory Station 1-6

'AF' Function (Alternative Frequencies)

- When pressed short, AF switching mode is selected.

- The radio checks the signal strength of the AF all the time, when it becomes too weak, the unit detects f from the AF signal on which frequencies it must search for a better transmitter.

'TA' Function (Traffic Announcement)

When pressed short, it is activated as TÂ mode on or off. When TA mode is on and traffic announcement is transmitted.

- If the volume level was under the threshold point, it will be raised to the threshold point.

'PTY' Function (Program Type)

1. Press and hold PTY button to turn ON Program type.

2. Rotate VOL knob to select program type.

3. Once desired program shows, simply press PTY button once more and unit start searching for available stations.

Note: Program type will flash when searching for stations.

OPERATIONS COMMON FOR MP3/WMA/MPEG4

-10 Tracks Down / +10 tracks Up

1. Press -10 button to jump 10 tracks backward starting from currently played track.
2. Press +10 button to jump 10 tracks forward starting from currently played track.

Specifying particular track

During playback, all track file names under a folder will be displayed on the screen categorized by Music, Photo, Video. Simply tap the screen on which category you want to play and rotate the volume knob to select file then push volume know to start playback.

Random Playback

Press RDM during playback to play the tracks in random/shuffle order. Press it again to cancel.

Tips: RDM is SHUFFLE on screen.

Stopping Playback

1. Press Stop on remote control during playback to stop playback. That position is stored in memory.

2. Press to continue. Playback starts from the position at which it was stopped.

3. To permanently stop playback, press Stop button twice.

Fast Forward / Fast Reverse

Note: on remote control is the same function as or on head unit

1. During playback, press and hold or unit scans at the speed of x2 - x4 - x8 - x16 - x20

2. To resume normal playback at a desired point, press ▶II

Note: No sound is played during fast forward / fast reverse.

Finding the Beginning of Tracks

During playback, press ▼.

▼ : Press to start playback from the beginning of the previous chapter or track.

▲ : Press to start playback from the beginning of the following chapter or track.

Pause Playback

During playback, press ▶Press again to resume playback.

A-B Repeat Playback

This feature allows you to loop playback a section of the movie starting from Point A to B.

1. Press the button to play the movie.

2. Once you have located the section you wish to playback on loop repeat, press and hold A-B button. You will see "Rep-A" on the screen.

3. Let the movie play on until you have reached the end of the section you wish to watch on continuous loop. Once you have reached this point, press and hold A-B button again. "Rep-A-B" will appear on your screen. Playback will now start from Point A-B.

4. To stop A-B repeat playback, press and hold A-B button once more until "A-B CANCEL" disappears and normal playback resumes.

Displaying information (OSD)

During playback, you can see all information and current play settings. Display will show related playback time, elapse time, title number, chapter number and other information.

1. Press OSD on the remote control once. Unit will display the play time and the disc elapse time.

2. Press it once more and all other settings information will be displayed.

LISTENING TO MP3/WMA

Repeat tracks

You can choose between repeat playback of a single track or all tracks.

1. Press RPT on the remote control during playback.

2. Every time you press this button, the unit switches to the following settings:

Repeat 1 – Repeat the current playback track.

Repeat All – Repeat all folders and tracks.

TITLE

During music playback, press TITLE on remote to return to audio file lists.

SD/MMC Card Input

Support MP3/WMA ID3 format music only.

1. Press button and the front panel will open.

2. Detach the panel by pulling it towards you.

3. Carefully insert the SD/MMC card into the disc slot, attach back the panel. Unit starts playback automatically.

Folder Name Track file names

Player File Info

USB Port

Plug your USB memory stick directly into the USB cable. Playback starts automatically.

\* IMPORTANT INFORMATION:

BECAUSE OF THE GREAT VARIETY OF PRODUCTS WITH USB, SD AND MMC CARD PORTS AND THEIR SOMETIMES QUITE MANUFACTURER-SPECIFIC FUNCTIONS WE CAN NEITHER GUARANTEE THAT ALL DEVICES WILL BE RECOGNIZED NOR THAT ALL OPERATING OPTIONS THAT ARE POSSIBLE IN THEORY WILL ACTUALLY WORK

Front Aux In

Convenient easy to use front "AUX IN" input jack, allows easy connection of Portable Media and other digital MP3 Players.

PLAYING MPEG4

Repeat Playback

1. Press RPT on the remote control during playback.
2. Every time you press this button, the unit switches to the following settings:
   Repeat 1 – Repeat the current playback track.
   Repeat All – Repeat all folders and tracks.

Searching for particular track using GOTO

You can use the GOTO function to search for a desired track number or particular point of a track to play.

1 Press GOTO on the remote control during playback. Time and track number search appears.

2 Enter the minutes and seconds for the currently played track if you want to search by time. Press Enter.

3 Enter track number if you want to search by tracks. Press Enter.

Changing the subtitle language during playback (Multi-subtitle)

With MPEG4 featuring multi-subtitle recordings, you can switch between subtitle languages during playback.

1. Press Sub-T on the remote control during playback. Press repeatedly until the supported desired subtitle appears.

Return to Root Menu

During video playback, press MENU on head unit or remote control to return to file list menu..

Slow motion playback

This feature lets you slow down playback.

1. Press Slow on the remote control during playback.

2. Pressing it repeatedly will switch you to the following steps: 1/2 - 1/3 - 1/4 - 1/5 - 1/6 - 1/7.

Note:

• To resume normal playback, press PLAY/PAUSE ( )

• There is no sound during slow motion playback.

Zooming in During Playback

You can zoom in into the picture during playback.

1. Press ZOOM on the remote control during playback.

2. Every time you press this button, the unit will zoom 2 - 3 - 4 - 1/2 - 1/3 - 1/4 times and OFF.

Frame-by-frame playback

This lets you move ahead one frame at a time during playback.

1 Each time you press Step button on remote control, you move ahead one frame.

To return to normal playback, press ▶II

PAL / NTSC (P/N)

Press and hold P/N button to switch between PAL, NTSC system.

CUSTOMIZING AUDIO / VIDEO SETTINGS

AUDIO SETUP

1. Press VOL knob to enter AUDIO setup. Selected item will be highlighted. You can set BASS, TREBLE, BALANCE, FADER, TA VOLUME.

2. Press or button to select item. Rotate VOL knob to make adjustments.

3. Press VOL knob to exit settings.

VIDEO SETUP

1. Press and hold VOL knob to enter VIDEO setup. Selected item will be highlighted. You can set BRIGHTNESS, CONTRAST, SATURATION, HUE, SHARPNESS.

2. Press or button to select item. Rotate VOL knob to make adjustments.

3. Press and hold VOL knob to exit settings.

Note: Depending on model's feature, some items may not show on screen.

SETTING THE MPEG4 PLAYER

You can flexibly customize the unit to suit your preference. You can set the language and other video and audio settings so when playback starts it will always use your preferred settings.

Important:

1. Play any video file before you can access the setup.
2. Press Setup on the remote control.
3. Use (✗) to return / enter category.

Settings	Category	Options
System Setup	TV System	NTSC, PAL, AUTO
	Auto Play	ON, OFF
	TV Type	4:3PS, 4:3LB, 16:9
	Password	Setup password
	Rating	Setup rating level
	Default	Restore to factory settings
Language Setup	OSD Language	Select preferred options appear on screen
	Audio Language
	Subtitle Language
	Menu Language
	MPEG4 Language
Video Setup	Brightness	Use navigation keys on remote control to setup desired level.
	Contrast
	Hue
	Saturation
	Sharpness

Setting Rating Password

1 Press Setup on the remote control.
2 Using Navigation keys select System Setup > Password and press Enter.
3 Enter the default password '0000' and press Enter to unlock first and then enter new 4 digit password and press Enter. The unlock logo will switch to lock indicating password has been set.

Note:

• The default password is '0000'.
• In case you forgot your password, you can use the master password '0000' to unlock and reset the password.
• Master password will only work while SETUP button is press during playback.

TECHNICAL SPECIFICATIONS

MP3/WMA PLAYER SECTION

Signal to Noise Ratio > 60 dB

Channel Separation > 50 dB (1kHz)

Frequency Response 20 Hz - 20 kHz

TUNER (FM)

Frequency Range 87.5-108 MHz

Channel Step 50 kHz

Sensitivity 2.8 μV

Stereo Separation 30 dB

Signal to Noise Ratio 50 dB

LINE-OUT

Output 750 mV

Impedance 10k Ohm

AUX-IN

Frequency Response 20 Hz - 20 kHz

Sensitivity 775 mV

Impedance 20k Ohm

GENERAL

Power Supply 12V DC (10.8-15.6V allowable)

Speaker Impedance 4 or 8 Ohm

Output power 40W x 4CH

Fuse 10A

Note: Specification and the design are subject to possible modification without notice due to improvements.

Instructions on environment protection

Do not dispose of this product in the usual household garbage at the end of its lifecycle; hand it over at a collection point for the recycling of electrical and electronic appliances. The symbol on the product, the instructions for use or the packing will inform about the methods for disposal.

The materials are recyclable as mentioned in this marking. By recycling, material recycling or other forms of re-utilization of old appliances, you are making an important contribution to protect our environment.

Please inquire at the community administration for the authorized disposal location.

ALL RIGHTS RESERVED

COPY RIGHT DENVER ELECTRONICS A/S

www.denver-electronics.com
