Product Type	Freestanding Washing Machine
Model	Ignis AWV 508
Capacity (Max)	4.5 kg (Cotton cycle)
Maximum Spin Speed	550 rpm
Power Supply	220-240 V, 50 Hz
Energy Consumption (Cotton 90°C)	1.75 kWh
Water Consumption (Cotton 90°C)	69 L
Programmes	Cotton with Prewash, Cotton, Coloured Cotton, Synthetics, Rinse+Spin, Spin, Delicate, Wool, Drain
Options	Half Load (reduces water consumption in Cotton and Synthetics)
Detergent Compartments	Prewash (I), Main Wash (II), Fabric Softener
Door Lock	Automatic locking during cycle; unlocks ~1 min after stop or power failure
Dimensions (Approx.)	60 x 50 x 85 cm (W x D x H)
Weight (Approx.)	60 kg
Maximum Load for Heavy Soiling	3.5 kg (Cotton with Prewash)
Programme Duration (Cotton 90°C)	115 min
Programme Duration (Coloured Cotton 60°C)	90 min
Programme Duration (Synthetics 40°C)	70 min
Programme Duration (Delicate 40°C)	55 min
Programme Duration (Wool 40°C)	45 min

Frequently Asked Questions - AWV 508 IGNIS

How do I start a wash cycle on my Ignis AWV 508?

Open the water inlet tap, load the laundry, add detergent to the dispenser, close the door, turn the programme selector to the desired cycle, then press the On/Off button. The pilot light will illuminate indicating the cycle has started.

What is the maximum load capacity of this washing machine?

The maximum load for most cotton cycles is 4.5 kg. For heavily soiled cotton, it is recommended to load only 3.5 kg. For synthetics, the maximum is 2.0 kg; for delicate fabrics, 1.5 kg; and for wool, 1.0 kg.

How does the Half Load option work?

The Half Load button reduces water consumption during the rinse cycles in Cotton and Synthetics programmes. It is suitable for lightly soiled or small loads; you should also reduce the amount of detergent accordingly. This option is not recommended for high temperature programmes.

Why is the door locked during a cycle?

For safety, the door locks automatically once a programme starts. It cannot be opened during operation. If you stop the programme or there is a power failure, the door will unlock automatically after about 1 minute.

Can I change the programme after the cycle has started?

Yes. Press the On/Off button to switch off the appliance, then select a new programme and option. Press On/Off again to restart. To reset a programme before the end, switch off, set the programme selector to Drain, and press On/Off to drain the water. Wait for the door to unlock before opening.

Which detergent compartment should I use?

The dispenser has three compartments: I for prewash detergent, II for main wash detergent, and the center compartment for fabric softener or starch. For programmes without prewash, use only compartment II. Do not overfill beyond the MAX level mark.

How should I clean the washing machine?

Regularly clean the detergent dispenser and the filter (if accessible). The manual does not specify a cleaning cycle, but you can run a hot empty cycle with a washing machine cleaner occasionally. Also, leave the door open after use to allow drying.

What should I do if the machine does not drain?

Check if the drain hose is kinked or blocked. You can run the Drain programme to empty the drum. If the problem persists, the pump filter may need cleaning. Refer to the manual for filter location (not shown in the provided excerpt).

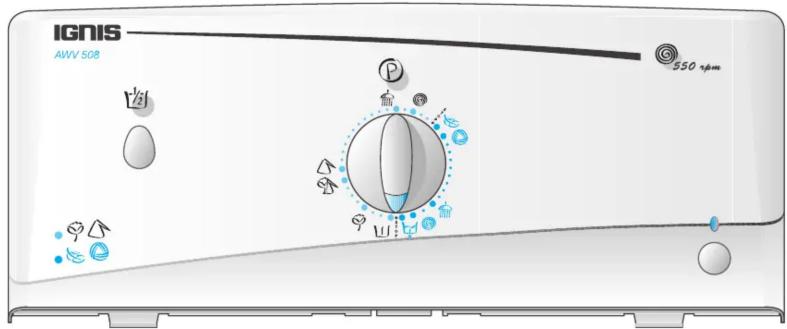

What do the programme positions on the selector mean?

The programme selector has positions for different cycles: Cotton with Prewash, Cotton, Coloured Cotton, Synthetics, Rinse+Spin, Spin, Delicate, Wool, Drain, and STOP to end the cycle. Turn clockwise to the desired programme.

What is the maximum spin speed of the Ignis AWV 508?

The maximum spin speed is 550 rpm. This applies to most programmes. Delicates and wool have gentler spin options.

USER MANUAL AWV 508 IGNIS

(1)Programme duration figures (guideline) are valid for maximum temperature wash with no special functions.

Programme Type of fabrics / Degree of soiling / Notes Max.			Loadkg	Detergent and Additives Option			Temperature	°C	Maximum Spin Speedrpm	Programme time approx.min (1)
				Prewash W	Washing Softener	Half Load
	Cotton with Prewash	Heavily soiled sheets, tablecloths, underclothes, shirts etc. in hard wearing and high temperature resistant cotton.The maximum load for heavily soiled washing is 3.5 kg.	4.5 Yes	Yes		*	*	90 550 130
	Cotton	Averagely soiled, hard wearing and temperature stable textiles in cotton and linen (bed linen, table linen, underwear, shirts, etc.).	4.5	—	Yes	*	*	90 550 115
	Coloured Cotton	Moderately soiled sheets, tablecloths, underclothes, towels, etc.in hard wearing and temperature resistant cotton.	4.5	—	Yes	*	*	60 550 90
	Synthetics	Blouses, shirts, cotton blouses, dark coloured terry towelling,jeans, etc. lightly soiled.	2.0	—	Yes	*	*	40 550 70
	Rinse + Spin	This programme allows starch or softener to be added.It is followed by an intensive spin cycle.	4.5	—	—	*	—	Cold 550 20
	Spin	Programme for intensive spin cycle. 4.5		—	—	—	—	—	550 15
	Delicate	Delicate fabrics and curtains (dresses, skirts, shirts, blouses,etc.).	1.5	—	Yes	*	—	40 550 55
	Wool	Machine washable woollens with pure new wool label.	1.0	—	Yes	*	—	40 550 45
	Rinse + Spin	This programme allows starch or softener to be added.It is followed by a gentle spin cycle.	1.5	—	—	*	—	Cold 550 15
	Spin	Programme for gentle spin cycle.	1.5	—	—	—	—	—	550 10
	Drain	Drain only, without spin cycle.	—	—	—	—	—	—	—	5

N.B.: The excess of detergent in the dispenser could cause technical problems.

ENERGY AND WATER CONSUMPTION DATA
Programme Temperature		Load(kg)	Water(l)	Energy(kWh)	Programmetime(min)
	(°C)
Cotton 90 4.5 69 1.75	115
Coloured Cotton	60	4.5	69	0.95	90
Synthetics	40	2.0	66	0.35	70
Delicate	40	1.5	70	0.65	55
Wool	40	1.0	70	0.55	45

Programmes with prewash last about 15 minutes more than programmes without prewash. Water and energy consumption values were measured in standard conditions in compliance with the Standard IEC 60 456. Individual consumption may vary in comparison with the values specified in the table, because of differences in supply water pressure and temperature, the load and the type of wash.

ADDING DETERGENT AND ADDITIVES

Pour the detergent and additives into the respective compartments as follows:

• Programme with pre and main wash	| |
• Main wash programme without prewash	| |
• Fabric softeners and starch	※
• Stain removers	| |
• Anti-scale agents (water hardness 4)	| |

Important Note:

• Do not fill beyond the “ MAX” level mark.
• For programme with prewash: do not use liquid detergent.
• For programmes without prewash from cold to 40°C, it is recommended to use a liquid detergent to avoid whitish residues on the coloured laundry.

CLOSE THE DOOR AND SELECT THE PROGRAMME

- Turn the programme selector knob clockwise to the desired programme.

Line drawing of a washing machine interior with labeled parts (no text or symbols)

PRESS ANY DESIRED OPTION BUTTON(S)

"Half Load" button

• Reduces the water consumption in the “Cotton” and “Synthetics” programmes especially during the rinse.
  • Especially suitable for lightly soiled or small loads (reduces the quantity of detergent).
• Not suitable for high temperature programmes.

PROGRAMME START

Open the water inlet tap and press the "On/Off" button. The pilot lamp lights up.

DOOR LOCK

During the running programme, the door cannot be opened.

The door locks automatically in all programmes.

If the programme is stopped or if an electrical power failure occurs, the door unlocks automatically after about 1 minute.

PROGRAMME END

• The programme selector knob is at "STOP".

1. Press the "On/Off" button. The pilot light goes out.
2. Cancel the option by pressing the appropriate button.
3. Turn the water supply tap off.
4. Wait for the door to unlock (about 1 minute).
5. Open the door and the drum flaps and unload the machine.

SELECTING A NEW PROGRAMME, SPIN SPEED, OPTIONS AFTER PROGRAMME START

1. Press the "On/Off" button to switch off the appliance. The pilot light goes out.

2. Select the new programme and option.

3. Press the "On/Off" button to switch on the appliance. The pilot light lights.

TO STOP, RESET A PROGRAMME BEFORE THE END

1. Press the "On/Off" button to switch off the appliance. The pilot light goes out.
2. Set the programme selector on "Drain".
3. Press the "On/Off" button to start the "Drain" programme.
   Only open the door when the programme selector is at "STOP" and the door is unlocked (after approximately 1 minute).
