USER MANUAL TW 154 IGNIS

INSTRUCTIONS FOR USE

BEFORE USING THE APPLIANCE SAFEGUARDING THE ENVIRONMENT PRECAUTIONS AND GENERAL RECOMMENDATIONS

HOW TO OPERATE THE REFRIGERATOR COMPARTMENT

HOW TO OPERATE THE LOW TEMPERATURE COMPARTMENT

HOW TO DEFROST AND CLEAN THE REFRIGERATOR

CARE AND MAINTENANCE

TROUBLESHOOTING GUIDE

AFTER-SALES SERVICE

INSTALLATION

ELECTRICAL CONNECTION

BEFORE USING THE APPLIANCE

- Your new appliance is designed exclusively for domestic use

For best use of your appliance, carefully read the user handbook which contains a description of the appliance and advice on storing and preserving food.

Keep this handbook for future consultation.

I. After unpacking, make sure that the appliance is undamaged and that the door closes properly. Any damage must be reported to your dealer within 24 hours after delivery of the appliance.
2. Wait at least two hours before switching the appliance on in order to ensure the refrigerant circuit is fully efficient.
3. Installation of the appliance and electrical connections must be carried out by a qualified electrician, in accordance with the manufacturer's instructions and local safety regulations
4. Clean the inside of the appliance before using it.

SAFEGUARDING THE ENVIRONMENT

I. Packing

The packaging material is entirely recyclable, and marked with the recycling symbol. Follow local regulations for scrapping. Keep the packaging materials (plastic bags, polystyrene parts, etc.) out of reach of children, as they are potentially dangerous.

2. Scrapping

The appliance is manufactured using recyclable material.

This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).

By ensuring that this appliance is scrapped suitably, you can help prevent potentially damaging consequences for the environment and health.

The symbol on the appliance, or on the accompanying documents, indicates that this appliance should not be treated as domestic waste but must be taken to a suitable collection point for the recycling of electrical and electronic equipment. Before scrapping, make the appliance unusable by cutting off the power cable and removing the doors and shelves so that children cannot easily climb inside the appliance.

Disposal must be carried out in accordance with local environmental regulations for waste disposal. Deliver the appliance immediately to an authorized dump; do not leave it unattended even for a few days, since it is potentially dangerous for children. For further information on the treatment, recovery and recycling of this appliance, contact your competent local authority, the collection service for household waste or the shop where you purchased the appliance.

Information:

This appliance does not contain CFCs (the refrigerant circuit contains R134a) or HFCs (the refrigerant circuit contains R600a) (see the rating plate inside the appliance).

Appliances with Isobutane (R600a): isobutane is a naturally occurring, low environmental impact gas. Caution is required, however, because isobutane is flammable. Therefore, ensure that the pipelines of the refrigerant circuit do not get damaged.

Declaration of conformity

• This appliance is designed to store food and is manufactured in conformity with European Directive 90/128/EEC, 02/72/EEC and Regulation (EC) No. 1935/2004
• This product has been designed, manufactured and retailed in compliance with:
• the safety objectives of the Low Voltage Directive 73/23/EEC;
• the protection requirements of the "EMC"
  Directive 89/336/EEC
  amended by Directive 93/68/EEC.
• The electrical safety of the appliance can only be guaranteed if the product is connected to an approved earth connection.

Simple black-and-white sketch of a four-leaf clover tree on a hill (no text or symbols)

PRECAUTIONS AND GENERAL RECOMMENDATIONS

• Use the refrigerator compartment only for storing fresh food and beverages and use the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes.
• During installation, make sure the appliance does not damage the power cable.
• Do not store glass containers with liquids in the freezer since they may burst.
• Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns.
• Before servicing or cleaning the appliance, unplug it from the mains or disconnect the electrical power supply.
  • Make sure that the appliance is not near a heat source.
• Do not store or use petrol, gas or flammable liquids in the vicinity of the appliance or other electrical appliances. The fumes can create a fire hazard or explosion.
• To ensure adequate ventilation, leave a space on both sides and above the appliance and follow the installation instructions.
• Keep the appliance ventilation openings free.
• All appliances equipped with an ice maker or water dispenser must be connected to a mains water supply that delivers potable water only (with water pressure between 1.7 and 8.1 bar (25 and 117 PSI)). Ice makers and/or water dispensers not directly connected to a mains water supply must be filled with potable water only.
  • Install and level the appliance on a floor strong enough to take its weight and in an area suitable for its size and use.
• For the water connection, use the pipe supplied with the new appliance and do not use that of the previous appliance.
• The appliance must be handled and installed by two or more persons.

- Place the appliance in a dry and well-ventilated place. The appliance is set for operation at specific ambient temperature ranges, according to the climatic class indicated on the data plate: The appliance may not work properly if it is left for a long period at a temperature above or below the indicated range.

Climatic Class Amb. T. (°C) Amb. T. (°F)
SN From 10	to 32 From 50 to	90
N From 16	to 32 From 61 to	90
ST From 18	to 38 From 64 to	100
T From 18	to 43 From 64 to	10

• Be careful not to damage the floors when you move the appliance (e.g. parquet flooring).
• Do not use mechanical, electric or chemical means other than those recommended by the Manufacturer to speed up the defrost process.
• Do not damage the refrigerator's refrigerant circuit pipes.
• Do not use or place electrical appliances inside the compartments if they are not of the type expressly authorised by the Manufacturer.
• This appliance is not designed for use by young children or the infirm without supervision.
  • To avoid the risk of children being trapped and therefore suffocating, do not allow them to play or hide inside the appliance.
• Power cable modification or replacement must only be carried out by qualified personnel.
• Do not use single/multiple adapters or extension cables.
• It must be possible to disconnect the appliance from the mains by unplugging it or by means of a two-pole switch fitted upline of the socket.
• Ensure that the voltage indicated on the appliance data plate corresponds to the domestic supply voltage
• Do not swallow the contents (non-toxic) of the ice packs (if provided).
• The Manufacturer declines any liability if the above recommendations and precautions are not respected.

HOW TO OPERATE THE REFRIGERATOR COMPARTMENT

Switching on the appliance

Starting up the appliance

The appliance features internal controls.

Plug in the appliance.

When the appliance is connected to the mains, the inside light switches on each time the door is opened. The thermostat, located inside the refrigerator compartment, is used to adjust the temperature of both the refrigerator compartment and low temperature compartment (if fitted).

Appliance temperature adjustment:

Temperature setting:

The thermostat is used to automatically adjust the internal temperature of the refrigerator compartment and the or compartment (if provided).

The thermostat knob can be turned from position 1 to 5 (coldest setting) to make the internal temperature colder.

When set to O the appliance is switched off.

To store food for a short period of time, set the thermostat between

1 (Min) and 3 (Med)

- To store food for long periods of time in the ★ Department, set the thermostat to 3 or 4.

Note:

To guarantee correct operation with ambient temperatures below 16^ C, press the button located near the thermostat (if provided). Press the button again to turn this off with higher ambient temperatures (above 16^ C).

The ambient air temperature, frequency of door opening and the position of the appliance can affect internal temperatures. These factors must be taken into account when setting the thermostat.

How to use the refrigerator compartment

Position the food as shown in the figure.

A Cooked food

B Fish, meat

C Fruit and vegetables

DBottles

E Cheese

Notes:

• The space between the shelves and the rear wall of the refrigerator compartment must be unobstructed to allow circulation of air.
• Do not place food in direct contact with the rear wall of the refrigerator compartment.
• Do not place hot food in the refrigerator.
• Store liquids in closed containers.

Important

Storing vegetables with high water content can cause condensation to form on the glass shelf of the crisper drawer: this will not affect the correct operation of the appliance.

Line drawing of a handheld tool with a circular handle and threaded grip (no text or symbols)

HOW TO OPERATE THE LOW TEMPERATURE COMPARTMENT

The low temperature compartment is .

The compartment marked can be used to store frozen foods for the period of time indicated on packaging. The low temperature compartment can also be used to freeze fresh food.

The quantity of fresh food that can be frozen in 24 hours is shown on the rating plate.

Note:

In the event of a power cut, the low temperature compartment will maintain a sufficiently low temperature for food storage. However, it is advisable to avoid opening the compartment door during such periods.

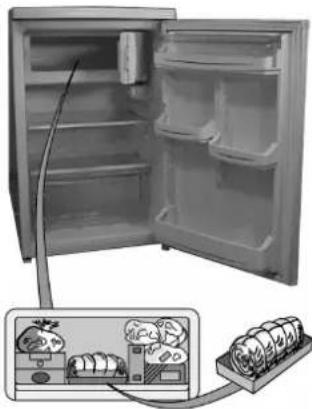

Freezing fresh food (only in compartments marked) Important

• Before freezing, wrap and seal fresh food in: aluminium foil, cling film, air and water-tight plastic bags, polythene containers with lids or freezer containers suitable for freezing fresh food.
• Arrange the fresh food in the top compartment, leaving sufficient space around each pack for the air to circulate.
• For optimum freezing, turn the thermostat down by half a point when placing fresh foods in the freezer compartment.
  • The food will be completely frozen in 24 hours.

Illustration of an open refrigerator with a cable inserted, showing internal components and a close-up of the appliance (no text or symbols)

For appliances with compartments marked

The table alongside shows the recommended maximum storage time for frozen fresh foods.

When purchasing frozen food products:

• ensure that the packaging is not damaged (frozen food in damaged packaging may have deteriorated). If the package is swollen or has damp patches, it may not have been stored under optimal conditions and defrosting may have already begun.
• When shopping, leave frozen food purchases until last and transport the products in a thermally insulated cool bag.
• Place the items in the low temperature compartment as soon as you get home.
• If food has defrosted even partially, do not re-freeze it. Consume within 24 hours.
• Avoid, or reduce temperature variations to the minimum. Respect the best-before date on the package.
  • Always observe the storage information on the package.

Making ice cubes

• Fill the ice cube tray 2/3 full and place it in the low temperature compartment
• Do not use sharp or pointed instruments to detach the tray if it is stuck to the low temperature compartment bottom.
• Bend the ice tray slightly to remove the cubes.

MONTHS FOOD

1-3
4-7
8-12

HOW TO DEFROST AND CLEAN THE REFRIGERATOR

Before any cleaning or maintenance operation, unplug the appliance from the mains or disconnect the electrical power supply.

Defrosting of the refrigerator compartment is completely automatic.

Droplets of water on the rear wall of the refrigerator compartment indicate that the periodic automatic defrost cycle is in progress.

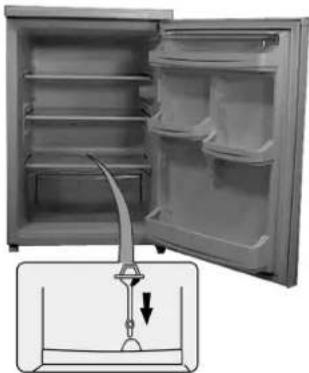

The defrost water is automatically routed to a drain outlet and into a container from which it evaporates.

Clean the defrost water drain outlet regularly using the tool supplied with the appliance in order to ensure defrost water is removed correctly.

Defrosting the low temperature compartment

Defrost the low temperature compartment once or twice a year or when the ice formation is excessive.

It is perfectly normal for ice to form. The amount of ice which forms and the rate at which it accumulates will depends on room temperature and humidity, and on the frequency with which the door is opened. Ice formation is concentrated at the top of the compartment and does not affect the efficiency of the appliance.

If possible, defrost the freezer when it is nearly empty.

• Remove the food from the freezer, wrap in newspaper and group together in a cool place or in a portable cooler.
• Leave the door open to allow the frost to melt.
• Clean the interior with a sponge soaked in warm water and/or neutral detergent. Do not use abrasive substances.
• Rinse the interior and dry thoroughly.
• Put the food back into the freezer.
• Close the door.
• Plug in the appliance once again.
• Switch the appliance on.

Interior view of a refrigerator with an open door and a mechanical lever diagram below (no text or symbols)

CARE AND MAINTENANCE

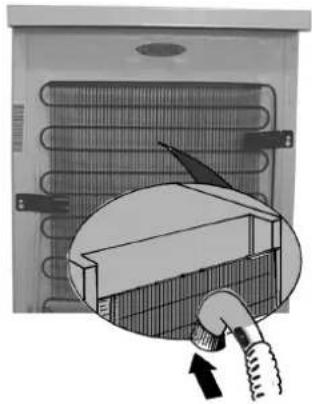

• Periodically clean air vents and the condenser at the rear of the appliance with a vacuum cleaner or a brush.
- Clean the outside using a soft cloth.

Prolonged disuse

I. Empty the refrigerator.
2. Disconnect the appliance from the power supply.
3. Defrost and clean the interior.
4. In the event of prolonged disuse, leave the door open to prevent the formation of mould, odours and oxidation.
5. Clean the appliance.
- Clean the inside of the low temperature compartment (where fitted) when defrosting.
- Periodically clean the inside of the refrigerator compartment with a sponge dampened in warm water and/or neutral detergent. Rinse and dry with a soft cloth. Do not use abrasive products.
- Clean the outside with a soft damp cloth. Do not use abrasive products, scourers, stain-removers (e.g. acetone, trichloroethylene) or vinegar.

Replacing bulbs:

When replacing the bulb, proceed as follows:
• Unplug the appliance from the mains
- Squeeze the tabs on the sides of the lamp cover and remove it.
- Replace the bulb with a new one, maximum 15 W.
- Put the lamp cover back on and wait 5 minutes before plugging the appliance back into the mains.

Diagram of a refrigerator interior showing heat exchanger and cooling unit (no text or labels)

Technical line drawing of a mechanical component with internal cavities (no text or symbols)

TROUBLESHOOTING GUIDE

I. The appliance is not working.

• Is there a power failure?
• Is the plug properly inserted in the socket?
• Is the double-pole switch on?
- Has the fuse blown?
• Is the power cord damaged?
• Is the thermostat set to● (Stop)?

1. Temperature inside the compartments is not low enough.

• Is the door shut properly?
• Is food obstructing proper door closure?
• Is the appliance installed near a heat source?
• Is the thermostat setting correct?
- Are the air circulation vents blocked?

1. Temperature inside the refrigerator compartment is too low.

• Is the thermostat setting correct?

1. The appliance is excessively noisy.

2. Has the appliance been installed correctly?

3. Are the pipes at the back touching or vibrating?

4. Water collects at the bottom of the refrigerator compartment.

• Is the defrost water drain blocked?

1. Excessive frost build-up in the low temperature compartment.

• Is the door shut properly?
• Is food obstructing proper door closure?

Notes:

• Gurgling and hissing noises due to expansion in the refrigerant circuit are normal.

AFTER-SALES SERVICE

Before contacting After-Sales Service:

1. See if you can solve the problem yourself with the help of the "Troubleshooting guide").
2. Switch the appliance on again to see if the problem has been solved. If it has not, disconnect the appliance from the power supply and wait for about an hour before switching on again.
3. If the problem persists after this course of action, contact After-sales Service.

Specify:

• the nature of the problem
- the model
- the Service number (the number after the word SERVICE on the rating plate on the inside of the appliance)
- your full address
- your telephone number and area code.

SERVICE

0000 000 00000

Note:

The direction of door opening can be changed. If this operation is performed by After-sales Service it is not covered by the warranty.

INSTALLATION

• Install the appliance away from heat sources. Installation in a hot environment, direct exposure to the sun or installation near heat sources (heaters, radiators, cookers) will increase power consumption and should therefore be avoided.
- If this is not possible, the following minimum distances must be respected:
• 30 cm from coal or paraffin stoves;
- 3 cm from electric and/or gas stoves.

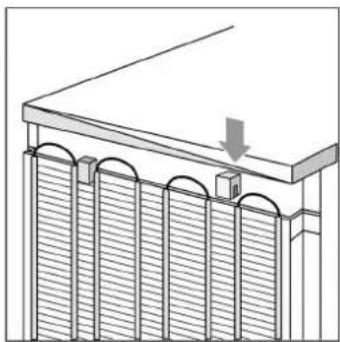

- Fit the spacers (if supplied) on the rear of the condenser positioned at the back of the appliance (see figure).
- To optimize appliance efficiency, leave a 5 cm gap above the appliance and make sure that adjacent kitchen units are sufficiently distanced to allow air circulation.
• Install the appliance in a dry, well-ventilated place, and ensure it is level, using the front adjustment feet if necessary.
- Clean the interior.
- Fit the accessories.

Technical diagram of a structural frame with curved supports and a downward arrow indicating force or motion (no text or symbols)

Electrical connection

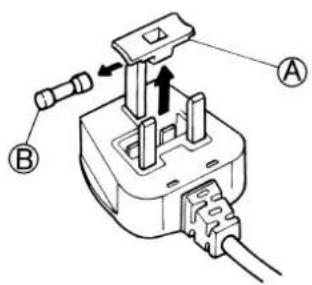

• Electrical connections must be made in accordance with local regulations.
• Voltage and power consumption are indicated on the rating plate inside the appliance.
• Regulations require that the appliance is earthed. The Manufacturer declines all liabilities for injury to persons or animals or damage to property resulting from failure to observe these regulations.
• If the plug and socket are not of the same type, have the socket replaced by a qualified electrician.
• Do not use extension leads or adapters.

Disconnecting the appliance

It must be possible to disconnect the appliance by unplugging it or by means of a two-pole switch fitted upline of the socket.

Door reversibility

1. Unscrew the fixing screws on the left and right of the top panel. (Fig. 1)
2. To remove the top panel, slide it back and then lift it off. (Fig. 2)
3. Unscrew the fixing screws of the right and left hinges and remove them. (Fig. 3)
4. Lift the door up to release it from the bottom hinge. (Fig. 4)
5. Lay the appliance on its left side and unscrew the 2 fixing screws of the bottom hinge. (Fig. 5)

Line drawing of a corner joint with dashed lines indicating hidden edges (no text or symbols)

Line drawing of a mechanical assembly with two hands and a labeled section (Fig. 3), no readable text or symbols present.

Line drawing of a refrigerator with an open door and handle, labeled Fig. 4 (no text or symbols on the diagram itself)

Technical line drawing of a mechanical component with no visible text or symbols

97

97

1. Remove the bottom hinge and unscrew the left levelling foot. (Fig. 6)
2. Screw the bottom hinge back on the left side. Use the pre-drilled holes marked L (Fig.7). Next screw the levelling foot back on the right side. Stand the appliance back up again.
3. Position the bushings and top covers from the right hand side on the left (Fig. 8). Remove the bottom right bushing and fit it on the left. (Fig. 8)
4. Refit the door, following the same steps as at point 4. Screw down the left and right hinges (Fig. 9). Refit the top panel as described at points 2 and 1.

Hand holding a measuring tape measure on a metal bracket, labeled Fig. 6 (no text or symbols on the diagram itself)

Fig. 7

Simple line drawing of a rectangular object with a curved handle and a circular end, labeled 'Fig. 8' (no text or symbols on the object itself)

Fig. 8

Reversing the inside compartment door:

I. Remove the hinge cover. (Fig. 1). Unscrew the 2 fixing screws and remove the door (Fig. 2)

Fig. I

Line drawing of a cabinet with drawers and a handle, no text or symbols present

Simple line drawing of a rectangular device with a curved handle and an arrow indicating rotation (no text or symbols)

1. Unscrew the fixing screw of the door catch and remove it. Fit the door catch on the right hand side and screw it down. (Fig. 3). Remove the 2 small plugs from the left hand side and position them on the right. (Fig. 3). Refit the door and hinge, securing the screws. Lastly, refit the hinge cover (Fig.4)

Line drawing of a cabinet with drawers and a shelf, labeled Fig. 4 (no text or symbols on the diagram itself)

ELECTRICAL CONNECTION

I) For Great Britain only

Warning - this appliance must be earthed

Fuse replacement

If the mains lead of this appliance is fitted with a BS 1363A 13amp fused plug, to change a fuse in this type of plug use an A.S.T.A. approved fuse to BS 1362 type and proceed as follows:

I. Remove the fuse cover (A) and fuse (B).
2. Fit replacement 13A fuse into fuse cover.
3. Refit both into plug.

Important:

The fuse cover must be refitted when changing a fuse and if the fuse cover is lost the plug must not be used until a correct replacement is fitted.

Correct replacement are identified by the colour insert or the colour embossed in words on the base of the plug.

Replacement fuse covers are available from your local electrical store.

2) For the Republic of Ireland only

The information given in respect of Great Britain will frequently apply, but a third type of plug and socket is also used, the 2-pin, side earth type.

3) Socket outlet / plug (valid for both countries)

If the fitted plug is not suitable for your socket outlet, please contact Whirlpool Service for further instruction. Please do not attempt to change plug yourself. This procedure needs to be carried out by a qualified Whirlpool technician in compliance with the manufactures instructions and current standard safety regulations.
