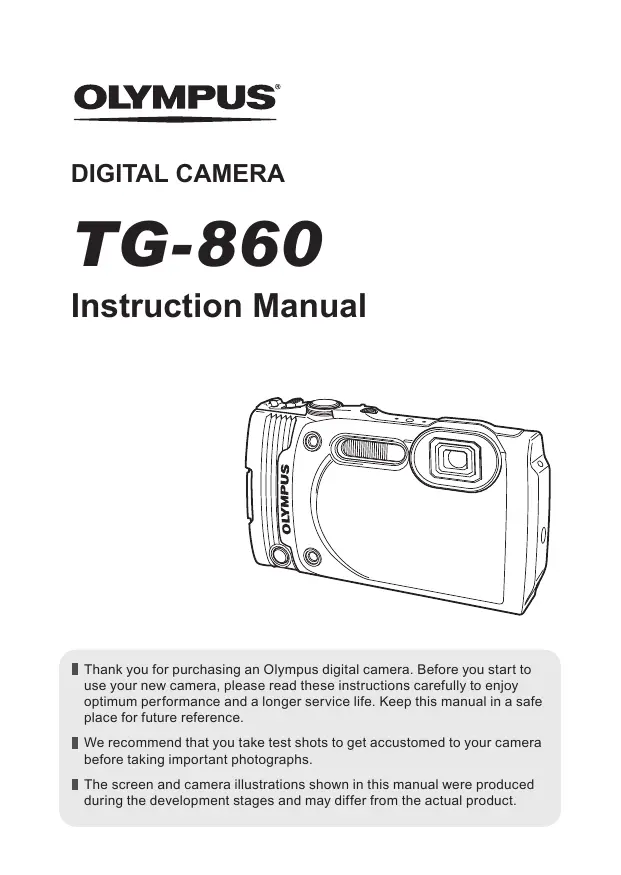

USER MANUAL TG-860, TG-860 OLYMPUS

E Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these instructions carefullÿ to enjoy optimum performance and a longer service life. Keep this manual in a safe place for future reference:

E We recommend that you take test shots to get accustomed to your camera before taking important photographs.

H The screen and camera illustrations shown in this manual were produced during the development stages and may differ from the actual product

Unpack the box contents The following items are included with the camera.

If anything is missing or damaged, contact the dealer from whom you purchased the camera.

Lithium lon Battery OLYMPUS Setup

Digital camera Strap (L-508) CD-ROM USB-AC adapter (F-2AC) USB cable (CB-USB8)

Other accessories not shown: Warranty card Contents may vary depending on purchase location.

Attaching the camera strap

+ Pull the strap tight so that it does not come loose:

Using the monitor You can adjust the angle of the monitor.

Battery/card compartment/

connector cover lock

Battery/card compartment/

(3) Battery/card compartment/ connector cover latch

(@) Sel-timer lamp/LED llluminator/ AF illuminator

HDMI micro connector Pressure adjustment hole* Arrow pad

A (Up) /INFO (Information display) button

D> (Right) /# (Flash) button < (Left) button

V (Down) jé) (Sequential shooting/Self-timer) / fj (Erase) button

*_ Do not stick pointed objects like a pin into the hole. + AV <> instruct to press the up/down/leftright arrow pad.

Preparations for shootin

Inserting and removing the battery and card

1 Follow Steps (1), 2) and ®) to open the battery/card compartment/connector cover.

+_Tum off the camera before opening the battery/card compartment/ connector cover.

Battery/card compartment/connector cover

2 Insert the battery while sliding the battery lock knob in the direction of the arrow.

+_ Insert the battery as illustrated with the © mark toward the battery lock knob.

If you insert the battery in

the wrong direction, the

camera is not turned on. Be

sure to insert it in the correct direction

Slide the battery lock knob in

the direction of the arrow to

unlock, and then remove the battery. Battery lock knob

3 Insert the card straight until it clicks Wiite-protect switch into place. + Do not touch the metallic parts of the card directly. + Always use the specified cards with this camera.

Cards compatible with this camera SD/SDHC/SDXC/Eye-Fi (with Wireless LAN function) card (commercially available) (maximum capacity: 128 GB) (for compatibilty card details, visit the Olympus website.) + This camera can be used without a card by storing images in its internal memory. FE *Checking the image saving location” (P. 99)

To remove the card Press the card in until

it clicks and comes out Slight}, then remove the card

, @ and ® to close battery/card compartment/connector cover.

+ Except when using the connector, be sure to

close the battery/card compartment/connector cover.

Charging the battery

1 Check that the battery is in the camera, and connect the USB cable and USB-AC adapter.

+_ The battery is not fully charged at shipment. Before use, be sure to charge the battery until the indicator lamp turns off (up to 3 hours).

Connecting the camera Indicator lamp

On: Charging AC outlet Off. Charged Multi-connector

T Battery/card compartment Iconnecior cover

USB cable (supplied)

For charging the battery abroad, see “Using your charger and USB-AC

adapter abroad” (P. 97).

AN Never use any cable other than supplied or Olympus-designated USB cable. This may cause smoking or burning,

Â\The included F-2AC USB-AC adapter (hereafter referred to as USB-AC adapter) differs depending on the region where you purchased the camera. If you received a plug-in type USB-AC adapter, plug it directly into AC outlet.

À Be sure to unplug the power plug of the USB-AC adapter from the wall outlet when the charging is complete or the playback ends.

Â\ For details on the battery, see “Handling the Battery” (P. 111). For details on the USB-AC adapter, see ‘USB-AC adapter” (P. 113).

+ Ifthe indicator lamp does not light, check the USB cable and USB-AC adapter connections.

+_If“No Connection" is displayed on the back monitor, disconnect the USB cable and set [Storage] in [USB Connection] (P. 59) before connecting the cable

When to charge the batteries

Turning on the camera and making the initial settings

When you turn on the camera for the first time, a screen appears enabling to set the language for the menus and messages displayed in the monitor, and the date and time. To change the selected date and time, see “Setting the date and time IT (P. 62). 1 Press the ON/OFF button to turn on the camera, press

AV <D> of the arrow pad to select your language and press

+ Inthe case that the power is not turned on when you press the ON/OFF

button, check the direction of the battery. LE ‘Inserting and removing the battery and card” (P. 5)

2 Press AV ofthe arrow pad to select the year for M.

3 Press > ofthe arrow pad to save the setting for [Y].

4 Asin Steps 2 and 3, press À V [> of the arrow pad to set [M] (month), [D] (day), [Time] (hours and minutes), and [Y/MID] (date order), and then press the @) button:

+ For precise time setting, press the @) button as the time signal strikes 00 seconds

5 Use <D> (arrow pad) to select the time zone and then press the @) button.

1 Press the ON/OFF button to turn on the camera. When the camera is turned on, the monitor will turn on.

2 Setthe mode dial to P. In mode P, the camera automatically adjusts shutter speed and aperure in response to subject brightness.

+ When holding the camera, take LE > care not to cover the flash, ZE, microphone or other important parts | #7 with your fingers, etc. ? p

4 Press the shutter button halfway down to focus. Press halfway The camera was unable to focus LL à if the AF target mark flashes red.

Try focusing again. +_ The shutter speed and

aperture value are displayed Shutter speed in red if the camera is unable Aperture value to achieve optimal exposure. ï Press Press the rest of 5 Totake the picture, gently es, Éerens

press the shutter button all the way down while being careful ZE + EX not to shake the camera.

10|EN Difficulty of seeing the screen (monitor boost)

When the screen is difficult to see in bright environment, press and hold @) until the screen becomes bright enough to be seen. The screen gets bright for approx 10 seconds.

+ Any operation such as pressing MENU button and turning the mode dial cancels the monitor boost

Viewing photographs (Playing back images)

Press the [5] button. + Your most recent photograph is displayed. + Press [> (arrow pad) to select an image.

Displays the Displays the previous frame next frame

+_ In single-frame playback, press the zoom lever to the W side for Index playback.

+ Use A V <1> (arrow pad) to move the cursor.

+ Press the zoom lever to the T side for single-frame playback.

In single-frame playback, press the zoom lever to the T side to zoom in up to 10x; press the W side to zoom out. Press the @) button to return to single-frame playback.

Press À V [> (arrow pad) to scroll an image to the direction of the button you pressed.

Erasing images during playback

1 Display the image you want to erase and press 1. + To erase a movie, select the movie to erase and press

2 Press A V (arrow pad) to select [Erase], and press the button.

+ Grouped images are erased as a group (P. 15). + Multiple images or all images can be erased at a time (P. 56)

12|EN Recording movies

1 Press the © (movie) button to start recording.

+ The movie is shot in the set shooting mode. Note that the shooting mode effects may not be obtained for some Lights up red shooting modes. when Sound is also recorded recording When using a camera with a CMOS image sensor, moving Recording length (P. 101) objects may appear distorted due to the rolling shutter phenomenon This is a physical phenomenon whereby distortion occurs in the flmed image when shooting a fast-moving subject or due to camera shaking. In particular, this phenomenon becomes more noticeable when using a long focal length.

+ You can change the function of © (movie) button to another function. LT (Button Function] (P. 65)

2 Press the © (movie) button again to stop recording.

Select a movie, and press the © button. + Press the zoom lever to the T side for an index display of the movie. Use A V <D> (arrow pad) to select the frame to start playback.

Movie During playback

Press the @) button to pause playback. During pause, fast forward or reverse, press the @) button to restart playback.

Pausing and restarting playback

Press D (arrow pad) to fast forward. Press D Fast forward arrow pad) again to increase the fast forward speed.

Press < (arrow pad) to rewind. Press < (arrow.

Rewind pad) again to increase the rewind speed.

Adjusting the volume |Use À V (arrow pad) to adjust the volume

Operations while playback is paused

Elapsed time/Total shooting time

um Press A V (arrow pad) to jump to the previous? P next index. Advancing and Press D or < (arrow pad) to advance or rewind rewinding one frame at |one frame at a time. Hold > or < (arrow pad) a time pressed for continuous advance or rewind. Resuming playback [Press the ©) button to resume playback.

+ During pause, press the zoom lever to the W side for the split index display.

To stop movie playback Press the MENU button. + To play back movies on the computer, the supplied PC software is recommended. For the first use of the PC software, connect the camera to the computer, then launch the software.

14|EN Playing back panorama and grouped images

Playing back panorama images Panorama images that were combined together using [Auto] or [Manual] can be scrolled for viewing

1 Select a panorama image during playback.

2 Press the © button.

To control panorama image playback Stop playback: Press the MENU button. Pause: Press the @) button.

Control while paused

Press À V [> (arrow pad) to scroll the image in the direction of the pressed button.

Press the zoom lever to enlarge/shrink the image.

Press the @) button to restart scrolling.

Playing back grouped images With sequential shooting, interval shooting and Sport Burst, the taken images are displayed as a group during playback.

+ Expand to view the frames of a group in index view.

If you want to delete images from the grouped images, you can expand the group and delete the images individually.

Sequential images frame

Select the image and press the @) button to display the images respectively. + Use <1> (arrow pad) to view the previous/next frame.

Plays back the grouped images in sequence automatically or

@ button | uses playback

When the shutter button is pressed halfway down

Ifthe peak fils too much Ithe peak fils too much ofthe frame, the image —} of the frame, the image will appear mostly black. will appear mostly white.

The green section shows luminance distribution within the screen's center.

Switching the displays The displays change in the order of Normal + Detailed — No info. each time A (arrow pad) is pressed.

Connection to Smartphone

Exposure compensation

Recording with sound} wind noise reduction

Movie recording length

Movie recording icon

Number of storable still pictures

the order of Normal >

Detailed — No info. each

time A (arrow pad) is

Print reservation/number of prints

Compression/mage size (movies)

Exposure compensation

Recording date and time

o using basic functions

Using the shooting modes

Selecting shooting mode

Turn the mode dial to set the shooting mode to the indicator.

+ After selecting SCN, ART, EX, 14, or 8%, select the sub mode

List of shooting mode +_The default settings of the function are highlighted in

Shooting mode Sub mode

P (Program mode) = P.10 AUTO mode) = P.21 (Super Macro mode) : P.21

DA Beach & Snow/[l Snapshot/El] Wide 1/

FA SelfPortrait{ÆS e-Portrait/ à (Self Portrait mode) Hand-Held Starlight/[£] Backlight HDR/ | P. 28 si Snapshot

+ “List of settings available in each shooting mode” (P. 105), “List of SCN settings” (P. 106), “List of ART settings” (P. 108), “List of &ù settings” (P. 109)

+_ In certain shooting modes, the camera may take a few moments for image processing after taking a picture.

A‘full auto mode in which the camera automatically optimizes settings for the current scene. The camera does all the work, which is convenient for beginners.

1 Rotate the mode dial to EN.

2 Press the shutter button halfway down to focus. The camera was unable to focus if the AF target mark flashes red. Try focusing again.

3 To take the picture, gently press the shutter button all the way down while being careful not to shake the camera.

Ÿs (Super Macro mode) Images can be taken from up to 1 cm away from the subject. 1 Rotate the mode dial to #.

2 Press the shutter button halfway down to focus The camera was unable to focus if the AF target mark flashes red. Try focusing again.

+_ You can press the @) button to fix the focus distance (AF lock). Press the button again to cancel the AF lock.

3 To take the picture, gently press the shutter button all the way down while being careful not to shake the camera.

+ In $ mode, the zoom range is limited.

Only by selecting a sub mode according to the subject or the scene, you can shoot with an proper setting.

Sub mode Application

ES Portrait [Suitable for portrait shooting

[es e-Portrait [Smoothes out skin tones and texture. This mode is

F suitable when viewing images on a high-definition TV. Ma Landscape [Suitable for landscape shooting.

jAutomatically shoot successive images according to set [Start Waiting Time], [Frame], and [Interval Time].

op Hand-Held Startight

Reduces blur when shooting night scenes without a ipod. The flash can be used.

[Suitable for tripod shooting of night scenes.

(Suitable for portrait shooting against a background of night view.

ΠSpot (Suitable for fast action shooting. Indoor [Suitable for shooting portraits indoors like party scene. E% Sunset (Suitable for shooting the sunset. EA Fireworks [Suitable for shooting fireworks at night. IE Cuisine (Suitable for shooting cuisine

(Suitable for shooting paper documents or time tables.

[Suitable for shooting at snow-capped mountains, Iseascapes in the sun, and other whitish scenes.

Ia Snapshot Suitable for shooting seaside and pool portraits. FA Widet ISuitable for shooting undenwater.

Suitable for shooting undenwater. Æ Wide2 ÎThe focus distance is fixed to approximately 5 m. EF Macro ISuitable for shooting close-up view undenwater.

(Suitable for contrasting scenes. This mode captures multiple images and merges them into one, properly lexposed image.

1 Rotate the mode dial to SCN.

2 Use <> (arrow pad) to select a sub mode and press the @ button at the end.

+ Press the @) button once again to display the sub mode selection screen. + In {e-Portrait| mode, two images are recorded: an unmodified image and a second image to which [e-Portrait] effects have been applied.

Interval Shooting Adjusts interval settings in the setting menu before selecting Interval Shooting in SCN (Scene Mode) to shoot.

Customizing the setting 1 Press the MENU button to displaythe Ta menus

2 Use < (arrow pad) to move to the page tab, and use A V to select Setting menu 3 and then press

3 Use A V (arrow pad) to select [Interval Setting] and press Then press A V (arrow pad) to select an item and press

4 Use AV (arrow pad) to highlight an option and press © to select.

Frame Sets the number of frames to be shot between 1 and 99 frames.

Start Waiting Time |Sets the time from pressing the shutter button until he picture is taken between 0 and 60 minutes.

Interval Time Sets the shooting interval for the second and subsequent frames per 10 seconds or between 1 and [60 minutes.

Press the MENU button repeatedlÿ to exit the menu.

The interval may be longer than the set interval such as when the camera takes a few moments for image processing.

Taken pictures are displayed as a group.

For the free space on a card, you cannot shoot the set number of frames.

The camera may go into sleep mode during interval shooting, but the shooting is performed according to the setting.

To cancel the interval shooting Press the MENU button.

To take underwater photos

The [I] Snapshot], [FA Widet], [F3 Wide2], [C2 Macro] submode is recommended for shooting undenwater. When set to [A Wide2], the focus distance is automatically fixed to approx. 5.0 m (16.4 ft.).

To lock the focus distance for underwater shoots (AF lock)

In the [IE] Snapshot], [FI Wide],

{2 Macro] submode, you can

press the © button to fix the focus

distance (AF lock). AF lock mark Press the ©) button again to

24|EN ART (art filters)

You can shoot with color and effect like posters and paintings.

Sub mode Application Pop Ar Enhances the color and atmosphere of an image more P brightiy and vividly. Expresses an ethereal atmosphere with a soft tone and Soft Focus makes an image dreamy. Expresses a comfortable floating feeling by making an Pale&Light Color |in2ge more pale and light. Grainy Fiim Expresses the strength and roughness of black and white. Expresses the tunnel effect like that obtained from an Pin Hole old fashioned camera or a toy camera by reducing the peripheral brightness. Expresses an image shooting a surreal miniature word with Diorama lenhancing the saturation and contrast and blurring an out-

of-focus area of an image.

Enhances the local contrast of an image and provide an image that a difference of brighiness and darkness is Jemphasized

1 Rotate the mode dial to ART.

2 Use <> (arrow pad) to select a sub mode and press the @ button at the

By selecting a sub mode, you can shoot various wide-angle movies and a series of pictures (sequential or interval shooting).

Sub mode 1 Sub mode 2 Application 1080 60p (1820x1080) 720 60p Shoots a smooth movie at 60 frames/ 60 60p Movie | 4280x720y second 480 60p (854x480) Shoots a fast-moving subject and play High-Soced 2080 back in slow motion. Hs High-Speed | In this slow motion movie, you can Movie HS240 (640x360) [watch motion that is hardly visible to the naked eye. Generate a movie by shooting successive images at longer interval. ge Time Lapse _ |0.5s/1s/3s/ The movie, compressed a long time Movie 6s/12s/30s scene into a short movie, ciarifies the

change of the situation. [The recording length is up to 24 hours.

0.05s"/0.4s% 1°/28"/58/ 10s/30s/605

Setting a shooting interval in the (function menu allows you to shoot a series of frames (sequential or interval shooting).

You can shoot up to 200 frames K(0.05s]: up to 60 frames).

*_ Shoots sequentially by the setting of [hdi] (P. 34).

2 Shoots sequentially by the setting of [di] (P. 34).

* The interval may be longer depending on the shooting condition.

+ Only when the shooting mode is set to EH, [ÿ] also appears the in self

timer ([&], [Ÿx1. and [Ët)) (P. 35).

1 Rotate the mode dial to EX.

2 Use < (arrow pad) to select a sub mode 1, and use V to move to the sub mode 2. Use <> (arrow pad) to select an item and press

3 Press the shutter button to start shooting.

+ For [60p], [HS]. and [8], the shutter button is also available to shoot movies unlike normal movie recording. In [D], press the shutter button to start shooting a series of frames. During shooting, the indicator lamp flashes. When using a camera with a CMOS image sensor, moving objects may appear distorted due to the rolling shutter phenomenon This is a physical phenomenon whereby distortion occurs in the flmed image when shooting a fast-moving subject or due to camera shaking. In

particular, this phenomenon becomes more noticeable when using a long focal length.

4 Press the shutter button again to stop shooting.

+ When the camera exceeds the limit for continuous shooting, it automatically stops shooting. EL “Number of storable pictures (still images)/Recording length (movies) in the internal memory and cards"

(P. 100) Set the [Repeat Rec] (P. 66) to [Yes] to automatically extend the shooting time. Pressing @ in the shooting screen fixes the focus distance (AF lock). Press © again to cancel the lock. After you assigned [éa Shoot Photo] in [Button Function] (P. 65), pressing the assigned button takes pictures by an equivalent setting to SCN [FI].

To shoot a normal movie in [Ai], assign [@ Rec. Movie] to the button in advance.

à (Self Portrait mode)

By selecting a sub mode according to the subject or the scene, you can shoot yourself with a proper setting.

Sub mode Application EX Self Portrait (Suitable for shooting self portrait.

[Smoothes out skin tones and texture in self portraits. This mode is suitable when viewing images on a high-

e-Portrait (definition TV. [The two images, before/after adjustment, are saved at jonce. Hand-Held (Suitable for shooting self portraits at night scene. The © Starlight flash can be used.

(Suitable for shooting self portraits in contrasting (A Backight HDR |scenes. This mode captures multiple images and merges them into one, properly exposed image.

Is Snapshot (Suitable for shooting seaside and pool self portraits.

1 Rotate the mode dial to 8% Sub mode

2 Use <> (arrow pad) to select a sub mode and press the @) button at the end.

+ Press the ® button once again to display the sub mode selection screen.

3 Rotate the monitor 180 degrees.

+ According to the directions of the camera and the monitor, you can invert the screen view and the arrow pad usage. E& [Disp. inversion Set.] (P. 60)

4 Hold the camera with the lens facing

+_ You can hold the camera upside down with your right hand only. Be sure to pass your wrist through the strap, and then firmly grip the camera to prevent the camera from droppingl

5 Press the face button halfvay down to focus.

6 Press the face button all the way down to shoot. +_ The shutter button is also available for shooting, + When [és Shoot Photo] (P. 65) is not assigned to the face button, you cannot shoot pictures with the face button.

You can shoot and combine multiple images to create an image with a wide angle of view (panoramic image).

1 Rotate the mode dial to D.

2 Press the ©) button to go to the function menu. Use D> {arrow pad) to select a sub mode and press the @ button at

the end. Sub mode Application Lan Panorama images are automatically combined just by

Iswinging the camera in the shooting direction.

Three frames are taken and combined by the camera

Manual The user composes the shots using the guide frame land manual releases the shutter.

+ Move the camera as if rotating it around a vertical axis through the center of the lens to take better panorama images.

Taking pictures with [Auto] {# Select [Auto] in the submenu, and press Y (arrow pad) Use <> (arrow pad) to select the angle of view (STD:180°, FULL:360°) and then press the button. (2 Point the camera to the start position. (3) Press the shutter button to begin shooting. (4) Start panning. When the arrow reaches the end of the guide, recording ends automatically. + The camera automatically processes the images and the combined panorama image is displayed. + To stop shooting in the middle, press the shutter button or @) button. If the camera pauses for a while, shooting automatically finishes. +_Ifthe message [Image was not created.] is displayed, shoot again. + To cancel the panorama function, press the MENU button

30|EN Taking pictures with [Manual]

@® Use A V XD (arrow pad) to Direction for combining frames specify at which edge the next picture is to be connected, and then press the © button.

(@ Press the shutter button to take the first frame.

(3) Compose the next shot so that the edge of the first frame displayed faintiy on the screen overlaps the subject of the second frame, and press the shutter button.

+ To combine only two frames, press the @) button. Repeat step () to take a third frame. The camera automatically combines the frames into a single panorama image.

Pressing the zoom lever adjusts the shooting range.

W side T side Zoom bar

Wa AT Image size Zoom bar w I 16M RS Optical zoom … Super-resolution zoom*1 D Other ==

“1. For the super resolution zoom and the details, refer to (P. 49)

“2 Due to increased processing of the pixel counts, the image quality will not degrade. The magnification ratio changes depending on the image size

32|EN Using shooting options (Set by direct button)

Frequently used functions are assigned to > A Y (arrow pad). Just by pressing the button, you can select the assigned function directly.

Some items are not available in some shooting modes. L& “List of settings available in each shooting mode” (P. 105)

Flash You can use a flash when shooting.

À Press the 4 button to =

2 Use <> (arrow pad) to choose a flash mode and press ©.

@ Red-<ye reduction |This function allows you lo reduce he red-

flash eye phenomenon.

ÿ Filinfiash The flash fires regardes of the light conditions.

© Flashoff The flash does not fire.

The dedicated underwater strobe or the Olympus wireless RC flash is used to take pictures. For details, see "Using a dedicated underwater strobe” (P. 102).

The commercially-available slave flash

that is synchronized with the camera #SLV Slave flash is used for taking pictures. The flash intensity setting can be adjusted. The LED tumns on when a picture is 5 LEDOn taken. This is effective for laking close up

+ In [@IRed-eye reduction flash), after the pre-flashes, it takes about 1 second before the shutter is released. Do not move the camera until shooting is complete.

+ [@IRed-eye reduction flash) may not work effectively under some shooting conditions.

+ When [Remote Flash] (P. 46) is set to [Off], [$ RC] and [# SLV] cannot be selected. + Some items are not available in some shooting modes.

1 Press the Œi) button to display the direct menu. 2 Select an option using <[> (arrow pad) and press

Shoots 1 frame at a time when the © Single-frame shooting | shutter button is pressed (normal shooting mode).

The images are taken sequentially for 200 frames at up to about 2.5 frames per second (fps) while pressing down the shutter button all the way down.

The images are taken sequentially for up to 7 frames at about 7 frames per

second (fps) while pressing down the shutter button all the way down.

The images are taken sequentially for up to 60 frames at about 20 frames per second (fps) while pressing down the shutter button all the way down.

The images are taken sequentially for up to 60 frames at up to 60 frames per second (fps) while pressing down the shutter button all the way down.

*1 Taken pictures are displayed as a group.

*2 The number of recording pixels are limited.

During sequential shooting, focus, exposure, and white balance are locked at the first frame.

All information about the vertical/horizontal orientation, and GPS information are the same as the first frame.

During sequential shooting, if the battery check blinks due to low battery, the camera stops shooting and starts saving the pictures you have taken on the card. The camera may not save al of the pictures depending on how much battery power remains.

Sets the time after the shutter button is pressed until the picture is taken. 1 Press the Eux) button to display the direct menu. 2 Select [&)12], [$)2] or [Ÿ)C] using XD> (arrow pad) and press

512 Selftimer 2 42sec

Press the shutter button halfway to focus, the rest of the way down to start the timer. First, the self-timer lamp lights up for approximately 10 seconds, then it blinks for approximately 2 seconds and the picture is taken

Press the shutter button halfway to focus, the rest of the way down to start the timer. The self-timer lamp blinks for approximately 2 seconds, and then the picture is taken.

OC Custom ŸC $eifimer

After selecting this mode, press the MENU button to set “Ÿ) Timer sec (the time from pressing the shutter button until the picture is taken), the number of frames, and the interval time”. Pictures are taken by these setting.

When several images are shot, the interval from the second shot may be longer. The camera starts to count the interval after finishing process of the shot image. The longer it takes to process an image, the later the next shooting starts.

+_ To cancel the activated self-timer, press the MENU button. + Self timer is not canceled automatically after shooting.

Some items are not available in some shooting modes. L& “List of settings available in each shooting mode” (P. 105)

@ Flash. ee (3) Exposure compensation . @ White balance ……

(5) ISO sensitivity….…

1 Press @ to display the function menu. + To hide the function menu, press © again.

2 Use AV (arrow pad) on the arrow pad to select settings, use <> to change the selected setting, and press ©). Displays the selected function name a

Picture Mode Sets the processing options. 4 Mid Produces vivid colors. [Natural Produces natural colors. A [Mutea Produces flat tones. æ |Fish Eye Produces distortion with the effect of shooting with a d fisheye lens. # lpane Produces twinkling lights with the effect of shooting with a Pi cross filter. % [Refection [Makes an image with the effect of reflecting in a mirror. Makes an image into a collage of iles. This mode # |Fragmented | ;oduces the effect of mosaic art. Enhances the color and atmosphere of an image more Æ |Popan brightiy and vividly. ; Expresses an ethereal atmosphere with a soft tone and (Soft Focus |akes an image dreamy. Pale&Light …|Expresses a comfortable floating feeling by making an (Color image more pale and light. H [Grainy Film …_|Expresses 1he strength and roughness of black and white. Expresses the tunnel effect like that obtained from an Œ [Pin Hole old fashioned camera or a toy camera by reducing the peripheral brighiness. Expresses an image shoofing a surreal miniature wond Diorama with enhancing the saturation and contrast and blurring an out-of-focus area of an image. Enhances the local contrast of an image and provide an #2 |Dramatic Tone limage that a difference of brighiness and darkness is lemphasized.

Sets the flash firing method.

[The flash fires automatically in low-light or backlight

fun |FlashAuto | tions. Pre-flashes are emitted to reduce the occurrence of red @ |Redeye leye in your photos. % [Fillin [The flash fires regardiess of the available light. © [Flash Off [The flash does notfire Remote ÎThe dedicated underwater strobe or the Olympus wireless $RC Control RC flash is used to take pictures. For details, see “Using a (dedicated undenwater strobe” (P. 102). ÎThe commercially-available slave flash that is &suv |Slave synchronized with the camera flash is used for taking pictures. The flash intensity setting can be adjusted ÎThe LED tums on when a picture is taken. This is effective # |LEDOn for taking close up pictures. Exposure Compensates the brightness (appropriate exposure) compensation ladjusted by the camera.

Set a larger negative (-) value to adjust darker, or a larger positive (+) value to adjust brighter.

Sets an appropriate color scheme for the light ofthe

[White balance |éhooting scene. +5 [WB Auto [The camera automatically adjusts the white balance.

Suitable for shooting outdoors under a clear sky.

Suitable for shooting outdoors under a cloudy sky.

Suitable for shooting under tungsten lighting.

Suitable for shooting under white fluorescent lighting.

Suitable for underwater shooting,

For manually adjusting the white balance according to the light when shooting. Set a piece of white paper or other [white object so that it fills the entire screen, and press the IMENU button to set the white balance. For how Lo register (one touch white balance, see “Registering one touch [white balance” (P. 40)

38|EN ISO sensitivity

Sets the ISO sensitivity.

a |ISOAUtO The camera automatically sets the sensitivity with priority on image quality.

The camera automatically sets the sensitivity with priority on minimizing blur caused by a moving subject or by camera shake

Set a smaller value to reduce noise in the picture, or a larger value to reduce blur.

Sets the sequential shooting function and the time

[== 0] (from pressing the shutter button until the picture is taken. O2 |Single One frame is shot each time the shutter button is pressed.

The images are taken sequentially for 200 frames at up Lo about 2.5 frames per second (fps) while pressing down he shutter button all the way down

The images are taken sequentially for up to 7 frames at about 7 frames per second (fps) while pressing down the shutter button all the way down.

The images are taken sequentially for up to 60 frames at about 20 frames per second (fps) while pressing down the shutter button all the way down.

The images are taken sequentially for up to 60 frames at up to 60 frames per second (fps) while pressing down the shutter button all the way down.

The selftimer lamp turns on for approx. 10 seconds, then biinks for approx. 2 seconds, and then the picture is taken

The selftimer lamp blinks for approx. 2 seconds, then the Picture is taken.

Photographs are taken at “Ÿ) Timer sec (the time from pressing the shutter button until the picture is taken), the

imer number of frames, and the interval time” which you set. En Sets the number of recording pixels.

Suitable for printing pictures over A3 (11x17 in.)

Suitable for printing pictures up to A3 (11x17 in.

Suitable for printing pictures up to A4 size (8.5x11 in.

Suitable for using pictures on emails.

[Aspect Sets the horizontal-to-vertical ratio of images.

Π|169 Change the horizontal-to-vertical ratio when taking EP] pictures.

11 Image size (movies)

Sets the number of recording pixels.

838 | 1080 60p* | Sno0ts smooth full HD movies at 60 frames per second

(fps). 1080p Shoots full HD movies. 720p Shoots HD movies. E [VGA Shoots 640x480 movies.

dE, [HS 12072 | Shoots 640x480 HS movies. sf, [HS 2402 | Shoots 480x360 HS movies.

You can set only when [Vivid], [Natural], and [Muted] is set on the picture mode in P and %s mode.

HS movie : Film quickly moving subjects for slow-motion playback.

In certain shooting modes, some functions cannot be set. E& “List of settings available in each shooting mode” (P. 105)

Examples of image size when the aspect ratio is [EE].

Registering one touch white balance Select [%41 One Touch 1] or [2 One Touch 2], face the camera toward a piece of white paper or other white object, and press the MENU button.

+ The camera releases the shutter and the white balance is registered. When the white balance was previously registered, the registered data is updated.

The registered white balance data will not be cleared by turning off the power.

Perform this procedure under the light where the pictures will be actually taken.

When the camera settings are changed, the white balance must be registered again.

When the white balance cannot be registered, check that the white paper fills the screen, and then perform the procedure again.

40|EN Using the setup menu functions

Press the MENU button during shooting or playback to display the setup menu.

setup menu provides access to a variety of camera settings, such

as shooting and playback functions, time and date settings, and display

Use A V (arrow pad) to select the desired submenu 1 and

then press the ©) button Submenu 2

Use A V (arrow pad) to select the desired submenu 2 and then press the © button:

+ Once a setting is selected, the display returns to the Submenu 1 +_ There may be additional operations.

Press the MENU button to complete the setting.

For the operation method, refer to (P. 42). +_ The default settings of the function are highlighted in Ô Camera Menu 1

Restoring the shooting functions to the default settings

Submenu 2 Application

Restores the following menu functions to the default settings. + Sub mode of ART, SCN, EX, = and 2%

Exposure compensation

Yes + ISO sensitivity

+ Image Size (still images)

+ Image size (movies)

+_ Camera Menu 1, Camera Menu 2 and Movie Menu Functions No The settings will not be changed

Selecting the image quality for still images 1 [Compression]

Submenu 2 Application Fine Shooting at high quality. Normal Shooting at normal quality.

+_ “Number of storable pictures (still images)Recording length (movies) in the

intemal memory and cards” (P. 100)

For the operation method, refer to (P. 42).

the subject against backlight 3 [Shadow Adjust] Application

Auto JAutomatically On when a compatible shooting mode is selected’

The effect is not applied

Shoot with automatic adjustment to brighten an area that has become darker.

+ When [ESP/C]] is set to [CJ), [Shadow Adjusi] is automatically fixed to [Of].

Selecting the focusing area y [AF Mode]

Submenu 2 Application The camera focuses automatically. (Ifa face is detected, itis shown by a white frame”; when the shutter button is pressed FaceliEsP |halfway and the camera focuses, the frame turns to green If no face is detected, the camera chooses a subject in the frame and focuses automatically.) Spot The camera focuses on the subject located within the AF target P mark. AE Tracking [1e camera tracks Ie subject movement automalcaly Lo focus

“For some subjects, the frame may not appear or may take some time to

appear. 2 _Ifthe frame subject.

blinks in red, the camera cannot focus. Try refocusing on the

To focus on a moving subject continuously (AF Tracking) D Hold the camera to align the AF target mark on the subject and press the ©)

) When the camera recognizes the subject, the AF target mark automatically

tracks the subject movement to focus on it continuously.

e tracking, press the @) button.

+ Depending on the subjects or the shooting conditions, the camera may be unable to lock the focus or fail to track the subject movement. + When the camera fails to track the subject movement, the AF target mark

For the operation method, refer to (P. 42).

Selecting the method for measuring the brightness

Shoots to obtain a balanced brightness over the entire screen

ESP {Meters the brightness at the center and surrounding areas of he screen separately). Shoots the subject at the center during backlighting (Meters the © (spot) Ù g jghting (

brighiness at the center of the screen).

[ESP], the center may appear dark when shooting against strong

backlighting. Shooting at higher magnifications than optical zoom 5 [Digital Zoom] Submenu 2 Application Off Disable digital zoom.

Enable digital zoom.

+_ The option selected for [Digital Zoom] affects the appearance of the zoom bar

For the operation method, refer to (P. 42).

Reducing the blur caused by the camera shake when shooting À [image Stabilizer]

Submenu 2 Application The image stabilizer is deactivated. This is recommended for of shooting when the camera is fixed in place on a tripod or other stable surface. on [The image stabilizer is activated While Image stabilization is activated when the shutter button is Exposing _|pressed all the way down.

There may be a noise coming from inside the camera when reducing camera Shake.

Images may not be stabilized if camera shake is too severe.

When the shutter speed is extremely slow, such as when taking pictures at night, [Image Stabilizer] may not be as effective.

Using an external flash wirelessly © [Remote Flash]

Submenu 2 Application

The external flash is not available (For flash photography, the of camera uses the buil-in flash)

The dedicated underwater strobe or the Olympus wireless #RC RC flash is used for taking pictures. LE “Using a dedicated underwater strobe” (P. 102)

The commercially-available slave flash that is synchronized with Slave the camera flash is used for taking pictures. The flash intensity setting can be adjusted.

+ When you select [# RC] or [Slave], you can select [# RC] or [# SLV] in the flash mode (P. 33).

46|EN For the operation method, refer to (P. 42).

Using the assist lamp for shooting a dark subject À [AF llluminat.]

Submenu 2 Application

off The AF iluminator is not used.

When the shutter button is pressed halfway down, the AF D] lluminator turns on to aid focusing.

Viewing the image immediately after shooting 2 [Rec View]

Submenu 2 Application

The image being recorded is not displayed. This allows the user off Lo prepare for the next shot while following the subject in the monitor after shooting.

[The image being recorded is displayed for selected second(s) 0.5/1/2/3 (sec) |This allows the user to make a brief check of the image that was just taken.

For the operation method, refer to (P. 42).

Automatically rotating images shot with the camera in a vertical position during playback 1 [Pic Orientation]

+ During shooting, the [1] (P. 54) setting on the playback menu is set automatically.

+ This function may not work properly ifthe camera is facing up or down during

Information about the vertical/horizontal orientation of the camera during shooting is not recorded with images. Images shot with the camera in a vertical position are not rotated during playback

Information about the vertical/horizontal orientation of the camera during shooting is recorded with images. Images are automatically rotated during playback.

Imprinting the date of recording £3 [Date Stamp]

Do not imprint the date.

Stamp new photographs with the date of recording.

+ When the date and time are not set, [Date Stamp] cannot be set. 1 [@O)] (P. 62) +_ The date stamp can not be deleted

set [Date Stamp] when drive settings are [Tdi], [22], [fa], and

ta], and the picture mode is except [Vivid], [Natural], and [Muted].

48|EN For the operation method, refer to (P. 42).

Shooting larger pictures than when using optical zoom with low degrading of image quality ÉY [Super-Res Zoom]

Submenu 2 Application Off Disable super-resolution zoom. on Enable super-resolution zoom. + [Super-Res Zoom] is available only when [Image Size] is set to (EM). Boon en) (resp cir Zoom bar 00m on oi H6M + Super-resolution zoom En 16M Digital zoom of on = JOther a ms au DVI On on 16M Super-resolution zoom Digital zoom

*1_ Due to increased processing of the pixel counts, the image quality will not degrade. The magnification ratio changes depending on the image size

+ Photographs taken with the zoom bar displayed in red may appear “grain”

For the operation method, refer to (P. 42).

Reducing the blur caused by the camera shake when shooting & [IS Movie Mode]

Submenu 2 Application

The image stabilizer is deactivated. This is recommended for of shooting when the camera is fixed in place on a tripod or other stable surface

On The image stabilizer is activated

The image stabilzer is activated. This function compensates for OnHybrid |large-amplitude shake, such as the slow kind which occurs if you shoot while walking

+ Images may not be stabilized if camera shake is too severe. +_ While [On Hybrid] is set, the movie angle is narrower a little. +_In HS movie mode, [On Hybrid] cannot be used.

Recording sound when shooting movies @ [@]

Submenu 2 Application Off No sound is recorded. On Sound is recorded.

+ Sound is not recorded when an HS movie mode is selected

Reduce wind noise in the recorded sound when recording movie & [Wind Noise Setting]

Submenu 2 Application Off Disable Wind Noise Reduction. On Uses Wind Noise Reduction

50 |EN For the operation method, refer to (P. 42).

Starts the slideshow.

+ During a slideshow, press L> (arrow pad) to advance one frame, <] to go back

+ Press the MENU button or the @) button to stop the slideshow.

Editing still images [F] [Edit]

Submenu 1 Submenu 2 Fa P.52 + F2 ù F5

Edit (still images) Shadow Adj F.53 Rodeye Fix PS3 [a] P. 54 e-Portrait P. 54 In-Movie Image Capture P. 54

Edit (movies) Movie nee : P.55

For the operation method, refer to (P. 42).

Changing the image size [5] [Fm] This saves a high-resolution image as a separate image with a smaller size for use in e-mail attachments and other applications.

Submenu 1 Submenu 2 Submenu 3

© Use <> (arrow pad) to select an image. @ Use A V (arrow pad) to select an image size and press the © button. + The resized image is saved as a separate image

Cropping image [>] [7] Submenu 1 Submenu 2 Edit +

@ Use AD (arrow pad) to select an image, and press the @) button.

@ Use the zoom lever to select the size of the cropping frame, and use À V > (arrow pad) to move the frame.

) Press the ©) button after you have selected the area to trim.

+ The edited image is saved as a separate image.

52|EN For the operation method, refer to (P. 42).

Adding sound to still images [5] [9]

Submenu 1 Submenu 2 Edit e @ Use XD (arrow pad) to select an image Microphone ) Aim the microphone toward the sound source. © Press the © button. 3 + Recording starts. == SF

+_The camera adds (records) sound for approx. 4 seconds while playing back the image. To play sound recordings

To play sound recorded with an image, select the image and press the @ button. + Press A V (arrow pad) to adjust volume.

Brightening areas that are dark due to backlight or other reasons [>] [Shadow Adj]

Submenu 1 Submenu 2 Edit Shadow Adj

® Use [> (arrow pad) to select an image, and press the @) button. + The edited image is saved as a separate image. + Depending on the picture, the editing may not be effective. + The retouching process may lower the image resolution.

Retouching red eyes in flash shooting [5] [Redeye Fix]

Submenu 1 Submenu 2 Edit Redeye Fix

® Use [> (arrow pad) to select an image, and press the @) button. + The edited image is saved as a separate image. + Depending on the picture, the editing may not be effective. + The retouching process may lower the image resolution.

For the operation method, refer to (P. 42). Rotating images [5] [<]

Submenu 1 Submenu 2 Edit Es

) Use <I> (arrow pad) to select an image. @ Press the © button to rotate the image. @ Ifnecessary, repeat Steps (D and 2) to make settings for other images, and press the MENU button. +_The new picture orientations will be saved even after the power is turned off.

Smoothing skin tone [F] [e-Portrait]

Submenu 1 Submenu 2 Edit le-Portrait

® Use [> (arrow pad) to select an image, and press the @ button. + Some images cannot be adjusted such as when faces are undetectable. +_ The edited image is saved as a separate image.

Capturing still images from movies C7] lin-Movie Image Capture]

Edit In-Movie Image Capture

© Use [> (arrow pad) to select the movie and press the @) button.

@ Use A V > (arrow pad) to display the frame to be captured and press the @) button. +_ The selected frame is recorded as a still image + Some movies cannot be captured.

54|EN For the operation method, refer to (P. 42).

Trimming long movies [F] [Movie Triming]

Submenu 1 Submenu 2 Edit Movie Triming

® Use [> (arrow pad) to select the movie and press the @) button. @ Use AV (arrow pad) to select saving method and press the @ button.

Submenu 3 Application New File Records the trimmed movie as new movie file. Overwrite Overwrites the original movie with the trimmed movie.

® Use A V D (arrow pad) to display the frame to start erasing, and then press the @) button.

® Use A V > (arrow pad) to display the frame to end erasing, and then press the @) button.

© Use A V (arrow pad) to select [Erase] and press the ©) button.

+_ To cancel trimming, select [Cancel]. + Movie trimming is processed by seconds. The movie length is automatically

adjusted so that the selected start and end frames are included.

EN For the operation method, refer to (P. 42).

Erasing images [5] [Erase]

Submenu 2 Application

All Erase [All images in the internal memory or card will be erased. Sel:image [mages are individually selected and erased

Erase Deletes the image displayed.

[AI images in the group are erased Erase Group |To erase each image in the group, refer to “Playing back panorama and grouped images” (P. 15).

+ When erasing pictures in the internal memory, do not insert the card into the camera.

+ Protected images cannot be erased.

To individually select and erase images [Sel. Image] @ Use A V (arrow pad) to select [Sel. Image], and press the @ button. @ Use A V XD (arrow pad) to select V mark the image to be erased, and press the button to add a V/ mark to the image. Et + Press the zoom lever to the T end to return to the single frame display. (3) Repeat Step (2) to select the images to be erased, and then press the MENU button to erase the selected images. (4) Use A V (arrow pad) to select [Yes], and press the @) button. + The images with a V/ mark are erased

To erase all images [AII Erase]

@ Use A Y (arrow pad) to select [AI Erase], and press the © button. @ Use A V (arrow pad) to select [Yes], and press the © button.

56|EN For the operation method, refer to (P. 42).

Protecting images [5] [6j + Protected images cannot be erased by [Erase] (P. 12, 56), [Sel. Image], [Erase Group], or [AI Erase] (P. 56), but all images are erased by [Memory Format}! {Format] (P. 58). 1) Use <I> (arrow pad) to select an image. @ Press the © button. + Press the @ button again to cancel the settings. () If necessary, repeat Steps (D and (2) to protect other images, and press the MENU button. +_ If you protect the grouped images, all images in the group will be protected at once. To protect each image in the group, expand images. LE “Playing back panorama and grouped images” (P. 15)

Setting a transfer order on images [5] [Share Order] By setting orders to share, you can transfer the ordered images all together when

connected the camera to a smartphone with [Private] (P. 71). With the smartphone in [One-Time] (P. 71), you can view only the ordered images to share.

® Use <I> (arrow pad) to select an image for sharing and press © to display

(2) Repeat (1) to select all images for sharing, and then press the MENU button to end [Share Order]

+ <is displayed on the images selected for sharing. À\ You can set a share order on a maximum around 200 frames.

EN For the operation method, refer to (P. 42).

Erasing data completely f [Memory Format]/ f [Format]

Before formatting, check that no important data is left in the internal memory or card

Cards must be formatted with this camera before first use or after being used with other cameras or computers.

Be sure to remove the card before formatting the internal memory.

Submenu 2 Application

Completely erases the image data in the internal memory or card

Yes including protected images).

No Cancels formatting

Copying images in the internal memory to the card f [Backup]

Submenu 2 Application Yes Backs up image data in the internal memory to the card No Cancels the backup.

Using an Eye-Fi card f [Eye-Fi]

Submenu 2 Application

Al Transfers all images. Sel. Image [Transfers only selected image.

of Disable Eye-Fi communication

+ When using an Eye-Fi card, read the Eye-Fi card instruction manual carefully, and comply with the instructions.

+ This camera does not support the Eye-Fi card's Endless mode.

+ Before use, refer to “Eye-Fi card" (P. 98)

58|EN For the operation method, refer to (P. 42).

Selecting a method for connecting the camera to other devices f [USB Connection]

Submenu 2 Application

Set to select the connection method each time the camera is

Auto connected to another device

Storage Connect camera as a card reader.

Te For Windows Vista Windows 7Windows 8/Windows 8.1, connect camera as a portable device

Print Select when connecting to a PictBridge-compatible printer.

+ When using the supplied software, select [Storage]

+_Refer to “Connecting the camera to a computer” (P. 85) for the connection method with a computer.

Turning on the camera with the [7] button f [5] Power On] Submenu 2 Application

No The camera is not turned on. To turn on the camera, press the ON/OFF button

Press and hold the [>] button to turn the camera on in the playback mode.

Selecting the camera sound and its volume f [Sound Settings]

Submenu 2 | Submenu 3 Application

Selects 1he camera sounds (operation sounds, Sound Type |/2/3 shutter sound, and warning sound)

Volume L0/1/2/8/4/5 Selects the operation volume of camera buttons. Œ] Volume _|0/1/2/8/4/5 — [Selects the image playback volume

EN For the operation method, refer to (P. 42).

Adjusting the image processing function f [Pixel Mapping] + This function has already been adjusted at factory shipping, and no

adjustment is needed right after purchase. Approximately once a year is recommended.

+ For best results, wait at least one minute after taking or viewing pictures before performing pixel mapping. If the camera is turned off during pixel mapping, be sure to perform it again.

To adjust the image processing function

Press the @) button when [Start] (Submenu 2) is displayed + The check and adjustment of the image processing function starts.

Adjusting the brightness of the monitor f [7]

@ Use A V (arrow pad) to adjust the brighiness.

while viewing the monitor, and then press the button.

Inverting the screen view and the button operations { [Disp. Inversion Set]

Submenu 2 Application

Auto |According to the directions of the camera and the monitor, automatically inverts the screen view and the button operation.

Standard [Nothing is inverted

Inverted Inverts and fixes the screen view and the button operation so

that you use the camera inverted comfortably.

60 |EN For the operation method, refer to (P. 42).

Playing back images on a TV f [TV Out]

À The TV video signal system varies depending on the countries and regions. Before viewing camera images on your TV, select the video output according to your TV's video signal type.

Submenu 2 | Submenu 3 Application NTSC Connecting the camera to a TV in North America, (Taiwan, Korea, Japan, and so on. NTSC/PAL PAL [Connecting the camera to a TV in European countries, China, and so on. 20p/876P Set the signal format to be given priority. If HDMI Out gb the TV setting does not match, it is changed 1080p automatically.

C Operate with the camera.

Operate with the TV remote control.

+ Forthe connection method, refer to “Viewing camera images on TV” (P. 77)

Changing the display language f [@0]

he monitor is selected.

For the operation method, refer to (P. 42).

Setting the date and time f [©]

D Press A V (arrow pad) of the arrow pad to select the year for [Y] 2) Press D> (arrow pad) of the arrow pad to save the setting for [Y] © As in Steps (D and ), press À V <I> (arrow pad) of the arrow pad to set [M] (month), [D] (day), [Time] (hours and minutes), and [Y/M/D] (date order), and then press the @) button + For precise time setting, press the @) button as the time signal strikes 00 seconds.

To check the date and time

Press and hold the INFO button while the camera is turned off. The current time is displayed for approx. 3 seconds.

Choosing home and alternate time zones f [World Time]

You will not be able to select a time zone using [World Time] if the camera clock has not first been set using [ED].

Submenu 2 | Submenu 3 Application pu The time in the home time zone (the time zone Home/ [selected for ff in submenu 2). Alternate + [The time in the travel destination time zone (the time zone selected for + in submenu 2). ñ: — [Select the home time zone (+ ). 2 — [Select the travel destination time zone (+).

* In areas where daylight saving time is in effect, use A (arrow pad) to tum

daylight saving time ([Summer]) on

When you select a time zone, the camera automatically calculates the time difference between the selected zone and the home time zone (1%) to display the time in the travel destination time zone (+).

62|EN For the operation method, refer to (P. 42).

Lighting the LED illuminator f [LED llluminator]

Submenu 2 Application of Disables the LED illuminator. On Enables the LED illuminator.

To use the LED illuminator

+ Press and hold the INFO button down until the LED illuminator lights up. +_If you perform an operation when the LED LED illuminator iluminator is on, it wil iluminate up to approx. 90 seconds.

The LED illuminator turns off if no operation is performed for approx. 30 seconds:

Even when the camera's power is tumed off, ifthe INFO button is pressed until the LED iluminator lights up, it lights for 30 seconds

To turn the LED illuminator off + Press and hold the INFO button down, until the LED illuminator turns off.

Recording the shooting location and time information on the images shot f [GPS Settings]

Submenu 2 | Submenu 3 Application

GPS oi [When the GPS function is not going to be used On [When the GPS function is going lo be used

Auto Time [Off Do not adjust the clock.

Adjust On lAdjust the clock using GPS UTC data. oi ÎTum GPS tracking off

Track On ÎThe camera records the log automatically. Save Saves a track log in the card.

AGPS Data |- ous you to check the validity period of the

For the operation method, refer to (P. 42).

+_ [Auto Time Adjust] applies only when ff (home time zone) is selected for

+ Forthe GPS function and Track function, refer to “Using GPS function (GPS Settings)" (P. 75).

Set the connection mode ET “Changing connection method” (P. 71)

Regenerate a password

Cancel all images selected for sharing.

Reset Wi-Fi Settings

Reset Wi-Fi settings to the default settings.

+ For the operation method, refer to “Connecting the camera to a smartphone"

Adjusting interval settings f [Interval Settings]

Submenu 2 Submenu 3 Frame 1 to 99 (frames)

Start Waiting Time to 60 (minutes)

Interval Time 10/20/30/40/50 (sec.)/01 to 60 (minutes)

64|EN For the operation method, refer to (P. 42).

Assigning functions to the face button and © (movie) button

Press the button halfway to focus, and press all

(1 the way down to take pictures. When sequential ShootPhoto … |shooting is set, press and hold the button to shoot sequentially. Press the button to shoot movies. Pressing the Rec. Movie |button again during shooting ends the shooting.

Function [Monitor Boost

Maximizes the screen brightness while the button is pressed.

LED Flashes the LED light while the button is pressed

Press the button to switch the super macro on or oi

Off No function is assigned to the button. PA Press the button once to take pictures. When Booiroo aperin sine sep and rod Rec: Movie Function [Monitor Boost LED The same as [+18 Function] Super Macro”? of

‘During activation of Super Macro, the zoom range is limited ‘2° The super macro mode is valid to the following shooting modes: P, ART,

and SCN (C2), (M), (ls, (C2), and (En)

+ When you cancel the registration of [éy Shoot Photo] or [@ Rec. Movie], shooting pictures or movies may be unavailable in some shooting modes.

EN For the operation method, refer to (P. 42).

Images are not inverted.

[When the camera is inverted, the top, bottom, left, right of the save images are also inverted. If you shoot a movie with the camera inverted, the movie [will not be upside-down.

[The camera does not repeat the same shooting.

[When the first shooting is finished, the camera repeats the same shooting. The camera continues. shooting until you stop the shooting or the number lof storable pictures or the recording length reaches its limit

The recording length is up to 99 hours or the number of storable picture is up to 20,000 shots.

[The sleep mode is off

IThe camera enters sleep mode when you leave he camera unattended for approx. 30 seconds. Ifthe camera enters sleep mode during shooting, he shooting is not stopped. Any button operation cancels sleep mode.

[When you leave the camera during shooting, this. function saves the buttery consumption.

+ This setting is available only in SX.

66|EN Connecting the camera to a smartphone

By connecting to a smartphone through this camera's wireless LAN function and using the specified app, you can enjoy even more features during and after shooting.

Things you can do with the specified app, OLYMPUS Image Share

Camera image transfer to a smartphone

You can load images in the camera to a smartphone.

Remote shooting from a smartphone

You can remotely operate the camera and shoot using a smartphone.

Beautiful image processing

You can apply art filters and add stamps on images loaded to a smartphone.

Addition of GPS tags to camera images

You can add GPS tags to images simply by transferring the GPS log saved on

the smartphone to the camera.

For details, visit the address below:

htip://oishare.olympus-imaging.com/

Â\Before using the wireless LAN function, read “Using the wireless LAN function" (P. 112).

A if using the wireless LAN function in a country outside the region where the camera was purchased, there is a risk that the camera will not conform to the wireless communication regulations of that country. Olympus will not be held responsible for any failure to meet such regulations.

NAS with any wireless communication, there is always a risk of interception by a third party.

Â\The wireless LAN function on the camera cannot be used to connect to a home or public access point.

Â\The wireless LAN antenna is in the bottom of the camera. Keep the antenna away from metal objects whenever possible.

À\ During wireless LAN connection, the battery will run down faster. If the battery is running low, the connection may be lost during a transfer.

À\ Connection may be difficult or slow in proximity to devices that generate magnetic fields, static electricity or radio waves, such as near microwaves, cordiess telephone.

Connecting to a smartphone

Start the Ol.Share App installed on your smartphone.

Select [Wi-Fi Start] in the f Camera Menu 1 and press @ + Pressing and holding the MENU button also starts [Wi-Fi Start].

Follow the operation guide displayed on the camera monitor to prepare for Wi-Fi connection

Use the smartphone that the Ol.Share is activated to read the @R code displayed in the camera monitor. The connection automatically starts.

Failure of reading QR code ssiD QR code Set a SSID and a password in the Wi-Fi setting of a smartphone before the connection {The SSID and the password are displayed at the lower left of QR code screen.)

For the Wi-Fi setting for your smartphone, read the instruction manual of the smartphone. Password

+_ To end the connection, press the MENU button of the camera.

Error message during Wi-Fi connection Connect the camera to the smartphone again. @ Tu off the Wi-Fi function of your smartphone.

@ Tum on the Wi-Fi function again. Select the SSID for TG-860 before another connection is made.

68|EN Transferring images to a smartphone

You can select images in the camera and load them to a smartphone. You can also use the camera to select images you want to share in advance. 1 [Share Order] (P. 57)

1 Connect the camera to a smartphone. (P. 68) 2 Tap the Image Transfer button in Ol.Share.

+_ The images in the camera are displayed in a list.

+ When an error message is displayed: “Error message during Wi-Fi connection” (P. 68)

elect the pictures you want to transfer and tap the Save Select the pi v fer and tap the S button.

+ When saving is completed, you can tu off the camera from the smartphone.

Shooting remotely with a smartphone You can shoot remotely by operating the camera with a smartphone. This is available only in [Private]. 1 Connect the camera to a smartphone. (P. 68)

2 Tap the Remote button in Ol.Share.

+ When an error message is displayed: ° “Error message during Wi-Fi connection” (P. 68)

3 Tap the shutter button to shoot.

+ Shot images are saved in the internal memory or on the memory card in the camera.

A Available shooting options are partially limited.

Adding position information to images

You can add GPS tags to images that were taken while the GPS log was saving by transferring the GPS log saved on the smartphone to the camera. This is available only in [Private] 1 Before beginning to shoot, launch Ol.Share and turn on the switch on the Add Location button to begin saving the GPS log. + Before beginning to save the GPS log, the camera must be connected to Ol.Share once to synchronize the time. + You can use the phone or other apps while the GPS log is saving. Do not terminate Ol.Share. 2 When shooting is complete, turn off the switch on the Add Location button. Saving the GPS log is complete.

Connect the camera to a smartphone. (P. 68)

Transfer the saved GPS log to the camera using Ol.Share.

+ GPS tags are added to the images in the internal memory or in the memory card based on the transferred GPS log,

+ In the detailed playback, latitude and longitude are displayed on images to which position information has been added.

+ When an error message is displayed: IS “Error message during Wi-Fi connection” (P. 68)

AN Addition of location information can only be used with smartphones that have a GPS function.

A\ Position information cannot be added to movies.

70|EN Changing connection method

There are two ways to connect the camera to a smartphone: [Private], by which you use the same setting every time, and [One-Time], by which you use different setting every time.

It is recommended to use [Private] when connecting to your smartphone, and to use [One-Time] when transferring images to another smartphone. +_ The factory default setting is [Private].

1 Select [Wi-Fi Settings] in the f Settings Menu 3 and press 2 Select [Connection Settings] and press D> (arrow pad).

3 Select the wireless LAN connection method and press ©.

+ [Private]: Connect to one smartphone (connects automatically using the settings after the initial connection). Al OI.Share functions are available.

+ [One-Time]: Connect to multiple smartphones (connects using different connection settings each time). Only Ol.Share's image transfer function is available. You can view only images that are set for share order using the camera.

+ [Select]: Select which method to use each time.

+_{Off: The Wi-Fi function is tumed off.

Change the password used for [Private]. 1 Select [Wi-Fi Settings] in the f Settings Menu 3 and press ©. 2 Select [Private Password] and press L> (arrow pad).

Cancelling a share order Cancel share orders that are set on images. 1 Select [Wi-Fi Settings] in the f Settings Menu 3 and press 2 Select [Reset ] and press > (arrow pad). 3 Select [Yes] and press ©.

Resetting wireless LAN settings

Initializes content of [Wi-Fi Settings].

1 Select [Wi-Fi Settings] in the f Settings Menu 3 and press 2 Select [Reset Wi-Fi Settings] and press > (arrow pad).

3 Select [Yes] and press ©.

Use the camera GPS function to record the position information in the images or record movement tracking. + Latitude and longitude are displayed on images to which position information has been added +_ The camera is not equipped for GPS navigation.

Â\Before using the GPS function, read “GPS function” (P. 113).

Ain certain countries and regions it may be illegal to acquire position information without prior application to the government. Because of this, in certain sales regions, the camera may be set up not to display position information.

‘When taking the camera abroad, be aware that some regions or countries may have laws regulating the use of this function. Be sure to abide by all local laws.

À Turn GPS off when on board aircraft and in other locations in which the use of GPS devices is prohibited. L& [GPS Settings] (P. 63)

Â\This camera also supports Quasi-Zenith Satellites System and GLONASS.

Before using GPS function (A-GPS data)

Depending on the status of the camera and communication, it may take time to acquire the position information. When the A-GPS is used, the position determination time can be shortened from a few seconds to a few tens of seconds. The A-GPS data can be updated using the smartphone app “OLYMPUS Image Track” (Ol.Track) or the PC software *“OLYMPUS A-GPS Utility”

Make sure that the camera date is set correctly. Set the camera to private connection (P. 71). A-GPS data must be updated every 2 weeks. The position information may have changed when time has elapsed after updating the data. Use as new A-GPS data as possible.

+_The provision of A-GPS data may be terminated without prior notice. Updating the A-GPS data using a smartphone

Before update, install the Ol.Track smartphone app on your smartphone. Refer to the URL below for details on how to update the A-GPS data. http://oitrack.olympus-imaging.com/

Connect the camera and the smartphone, following the procedure described in “Connecting to a smartphone” (P. 68).

Updating the A-GPS data using a PC Download the OLYMPUS A-GPS Utility software from the URL below, and install it on your PC.

http://sdl.olympus-imaging.com/agps/

Refer to “OLYMPUS A-GPS Utility Instruction Manual" on the website with above URL for details on how to update the data.

Error message during Wi-Fi connection Connect the camera to the smartphone again. LE (P. 68)

74|EN Using GPS function (GPS Settings)

Select [GPS Settings] in the f Settings Menu 3 and press ©. Select [GPS] and press

Select [On] and press @.

+ (3 flashes during measurement, When the position measurement ends, (PS) will appear and the position information wi be displayed.

Once the position measurement has ended, position information will be added to the pictures at the time of shooting,

Do not cover the GPS antenna with your hands or metal objects.

If you are using the GPS function for the first time and the A-GPS has not been updated, or if the function has not been used for a long time, it may take a few minutes for the position measurement to end.

Latitude and longitude are displayed on the shooting screen. If you do not wish to add position information, set [GPS] to [Of].

Position information is not added to movies.

When the [GPS] is set to [On], the battery wil run down faster.

Using an information acquisition function to display movement tracking (Track)

(D Select [GPS Settings] in the f Settings Menu 3 and press ©. (@ Select [Track] and press @ Select [Off], [On], or [Save] and press ©.

Submenu 2 | Submenu 3 Application of Do not record position information: On [The camera automatically records position

information at regular intervals

Saves the recorded position information of the

Track camera on the card every time you select [Save] land press @. The information in the camera is

The recording length of positon information

is approx. 56 hours in total. Please do this as

+_ Track logs are stored in the GPSLOG folder on the memory card. + Tracking ends automatically when: + The battery is exhausted +_ The camera is left off for more than 24 hours. + While [Track] is [On], the GPS receiver will continue to draw power from the battery when the camera is off. Displaying tracked movement of GPS logs After the GPS track logs are recorded, the tracked movement of the logs can be displayed using the OLYMPUS Viewer 3 or Ol.Track. +_The tracked movement cannot be displayed on the camera.

76|EN Connecting the camera to another

wing camera images on TV Use the AV cable (sold separately) to playback recorded images on your TV. You can play back high-definition images on a high-definition TV by connecting it to the camera using the HDMI cable.

AV cable (sold separately: CB-AVC3) Mult-connector (Connect lo the TV video input jack {yellow) and audio input jack (white).

HDMI cable (Connect to the HDMI (OcE=x]) connector on the TV.)

HDMI Micro connector

(1ype D) LÉ Que —17— 11)

1 Use the cable to connect the camera to the TV. + Choose the camera video mode before connecting the camera via an AV cable. L& [TV Oui] (P. 61) 2 Choose the TV input channel. + The camera monitor turns off when the cable is connected + Press the [5] button when connecting via an AV cable.

For details on changing the input source of the TV, refer to the TV's instruction manual.

Depending on the TV's settings, the displayed images and information may become cropped.

Ifthe camera is connected using both an AIV and HDMI cable, it will assign

priority to HDMI Do not connect the USB cable and HDMI cable at the same time.

Ifthe camera is connected via an HDMI cable, you will be able to choose

the digital video signal type. Choose a format that matches the input format selected with the TV.

1080p Priority is given to 1080p HDMI output 1080i Priority is given to 1080i HDMI output. 720p Priority is given to 720p HDMI output.

480p/576p HDMI output. 576p is used when [PAL] is 480p/S76P | Selected for [TV Out] (P. 61).

Using the TV remote control

The camera can be operated by a TV remote control when connected to a TV that supports HDMI control

1 Select [TV Out] in Settings Menu 2.

2 Select [HDMI Control] and choose [On].

3 Operate the camera by using the TV remote control.

+_ You can operate the camera by following the operation guide displayed on the TV.

+ Some televisions may not support all features.

+_ You cannot shoot pictures or movies when the HDMI cable is connected

+ Do not connect the camera to other HDMI output devices. Doing so may damage the camera.

+ HDMI output is not performed while connected via USB to a computer or printer.

78 |EN Printing Pictures

Direct printing (PictBridge)

By connecting the camera to a PictBridge-compatible printer with the USB cable, you can print out recorded pictures directly.

Before connecting, select [Print] for [USB Connection] (P. 59) in the setting menu

Connecting the camera

USB port + Use a fully charged battery for printing. + Movies can not be printed

1 Use <B> (arrow pad) to display the pictures you want to print on the camera

2 Connect the camera to the printer using the supplied USB cable +_Ifthe easy print start screen is not displayed, select [Print] for [USB Connection] (P. 59) in the setting menu before connecting the printer again.

3 Press > (arrow pad). + The picture selection screen appears when printing is completed. To print another picture, use <> (arrow pad) to select the image and press + To exit, unplug the USB cable from the camera while the picture selection screen is displayed.

1 Connect the camera to the printer using the supplied USB cable and turn the camera on. + When the camera is turned on, a dialog should be displayed in the monitor prompting you to choose a host. fit is not, select [Print] for [USB Connection] (P. 59) in the setting menu.

2 Follow the operation guide to set a print option.

Selecting the print mode Select the type of printing (print mode). The available print modes are as

shoun below Print Prints selected pictures. Prints al the pictures stored in the card and makes one AGE print for each picture Prints mulliple copies of one image in separale frames RUES on a single sheet. All Index Prints an index of all the pictures stored in lhe card. Prints according lo lhe print reservation you made (P. 83). Print Order | fthere is no picture with print reservation, this is not available.

80|EN Setting the print paper items This setting varies with the type of printer. If only the printer's STANDARD setting is available, you cannot change the setting.

Size Sets the paper size that the printer supports. Selects whether the picture is printed on the entire page Borderless | Grinside a blank frame. Selects the number of pictures per sheet. Displayed Bicsishaet when you have selected [Multi Print].

Selecting pictures you want to print Select pictures you want to print. The selected TE

pictures can be printed later (single-frame reservation) or the picture you are displaying can be printed right away.

Prints the currently displayed picture. If there is a picture that [Single Print] reservation has already been applied to, only that reserved picture will be printed

Applies print reservation to the currently displayed picture. If you want to apply reservation to other pictures after applying [Single Print}, use [> (arrow pad) to select them.

Sets the number of prints and other items for the currently displayed picture, and whether or not to print it. For operation, refer to “Setting printing data” in the

Setting printing data Select whether to print printing data such as the date and time or file name on the picture when printing.

x Sets the number of prints Date Prints the date and time recorded on the picture. File Name Prints the file name recorded on the picture.

Trims the picture for printing. Set the trimming size # with the zoom lever (T/W), and set the trimming position with À V <[> (arrow pad).

3 Once you have set the pictures for printing and printing data, select [Print], then press ©.

+ To stop and cancel printing, press ©. To resume printing, select [Continue].

# Cancelling printing

To cancel printing, highlight [Cancel] and press @. Note that any changes to the print order will be lost: to cancel printing and return to the previous step, where you can make changes to the current print order, press MENU.

82|EN Print reservation (DPOF)

In print reservations, the number of prints and date imprint option are saved in the image on the card. This enables easy printing at a printer or print shop supporting DPOF by using only the print reservations on the card without a computer or a camera.

+ Print reservations can be set only for the images stored on the card.

+ DPOF reservations set by another DPOF device cannot be changed by this camera. Make changes using the original device. Making new DPOF reservations with this camera will erase the reservations made by the other device DPOF print reservations can be made for up to 999 images per card.

= Single-frame print reservations [1]

1 Display the setup menu. + “Using the setup menu (P. 42)

2 From the playback menu [>], select [Print Order] and then press the @ button

3 Use AV (arrow pad) to select [LE], and press the @ button.

4 Use D (arrow pad) to select the image for print reservation. Use A V (arrow pad) to select the quantity. Press the button:

5 Use AV (arrow pad) to select the [ED] (date print) screen option, and press the @ button.

Submenu 2 Application No [This prints the image only. Date [This prints the image with îhe shooïing date. Time [This prints îhe image with the shooting time.

+ When printing images, the setting cannot be changed between the images.

6 Use A V (arrow pad) to select [Set], and press the @ button.

= Reserving one print each of all images on the card [d#]

1 Follow Steps 1 and 2 in [Lk] (P. 83)

2 Use AV (arrow pad) to select [di], and press the © button. 3 Follow Steps 5 and 6 in [L}].

# Resetting all print reservation data

1 Follow Steps 1 and 2 in [L] (P. 83)

2 Select either [4] or [d#], and press the © button.

3 Use A V (arrow pad) to select [Reset], and press the button

# Resetting the print reservation data for selected images 1 Follow Steps 1 and 2 in [L] (P. 83) Use AV (arrow pad) to select [Eh], and press the @) button.

2 3 Use A V (arrow pad) to select [Keep] and press the button 4 Use D (arrow pad) to select the image with the print reservation you want to cancel. Use À V (arrow pad) to set the print quantity to “0”.

If necessary, repeat Step 4, and then press the @ button when finished.

6 Use AV (arrow pad) to select the [@] (date print) screen option, and press the @ button.

+_ The settings are applied to the remaining images with the print reservation data.

7 Use AV (arrow pad) to select [Set], and press the © button.

84|EN Connecting the camera to a computer

Connecting the camera Multi-connector

= USB cable USB port

Â\ ff nothing is displayed on the camera screen even after connecting the camera to the computer, the battery may be exhausted. Use a full-charged battery.

PANI the camera cannot connect to PC, disconnect the USB cable and check the setting of [USB Connection] (P. 59) before connecting to PC again.

+ The battery can be charged while the camera is connected to the computer via USB. The charging time varies depending on the performance of the computer. (There may be cases in which it takes approx. 10 hours.)

Copying pictures to a computer

Your camera supports the USB Mass Storage Class. You can transfer images to a computer by connecting the camera to the computer with the provided USB cable. The following operating systems are compatible with the USB connection:

Windows XP SP3 Windows Vista SP2 / Windows 7 SP1 / DIET Windows 8 / Windows 8.1 Macintosh Mac OS X v10.5-v10.9

A Windows XP is no longer supported by Microsoft. Since a security issue may arise, you should be all responsible for all operations.

1 Turn the camera off and connect it to the computer.

+ The location of the USB port varies with the computer. For details, refer to your computer's manual

2 The computer recognizes the camera as a new device.

A If your computer is running Windows Vista / Windows 7 / Windows 8 / Windows 8.1, select [MTP] in [USB Connection] of the setting menu to use Windows Photo Gallery.

Â\ Data transfer is not guaranteed in the following environments, even if your computer is equipped with a USB port.

Computers with a USB port added by means of an extension card, etc. Computers without a factory-installed OS and home-built computers

Â\ Camera controls can not be used while the camera is connected to a computer.

A if the dialog is not displayed when the camera is connected, set [USB Connection] (P. 59) of Settings Menu 1 before connecting to PC again.

86|EN Installing Software

= Windows 1 Insert the supplied CD in a CD-ROM drive. Windows XP

+ A"Setup’ dialog will be displayed.

Windows Vista / Windows 7 / Windows 8 / Windows 8.1 :

+ An Autorun dialog will be displayed. Click = “OLYMPUS Setup" to display the “Setup” = dialog.

Â\ifthe “Setup” dialog is not displayed, select “My Computer” (Windows XP) or “Computer” (Windows Vista/Windows 7) from the start menu. Double-click the CD-ROM (OLYMPUS Setup) icon to open the “OLYMPUS Setup” window and then double-click "LAUNCHER.EXE"

A\f a “User Account Control” dialog is displayed, click “Yes” or “Continue”. 2 Follow the on-screen instructions on your computer. 3 Register your Olympus product.

+ Click the “Registration” button and follow the on-screen instructions. 4 Install OLYMPUS Viewer 3.

+ Check the system requirements before beginning installation.

+ Click the “OLYMPUS Viewer 3" button and follow the on-screen instructions to install the software.

Windows XP SP3/Windows Vista SP2/

Operating System | Windows 7 SP1/Windows 8 / Windows 8.1

Pentium 4 1.3 GHz or better Frocssson (Core 2 Duo 2.13 GHz or better required for movies) RAM 1 GB or more (2 GB or more recommended)

Free Hard Drive Space | 3 GB or more

1024 x 768 pixels or more Monitor Settings Minimum 65,536 colors (16,770,000 colors recommended)

1 Insert the supplied CD in a CD-ROM drive.

+_ The disk contents should automatically be displayed in the Finder. If they are not, double-click the CD icon on the desktop.

+ Double-click the “Setup” icon to display the “Setup” dialog

2 Install OLYMPUS Viewer 3. + Check the system requirements before

beginning installation =

+ Click the “OLYMPUS Viewer 3° button and follow the on-screen instructions to install

the software. _—_— Operating System | Mac OS X v10.5-v10.9 Intel Core Solo/Duo 1.5 GHz or better Rrocesson (Core 2 Duo 2 GHz or better required for movies) RAM 1 GB or more (2 GB or more recommended)

Free Hard Drive Space | 3 GB or more

1024 x 768 pixels or more

Monitor Settings Minimum 32,000 colors (16,770,000 colors

+ Other languages can be selected from the language combo box. For

information on using the software, see online help.

88|EN Ifthe camera does not work as intended, or if an error message is displayed on the screen, and you are unsure of what to do, refer to the information below to fix the problem(s).

The camera does not work even when batteries are installed.

Insert recharged batteries in the correct direction. L& “Inserting and removing the battery and card” (P. 5)

Battery performance may have been reduced temporarily due to low temperature. Take the batteries out of the camera, and warm them by putting them in your pocket for a while.

# Card An error message is displayed. + LE ‘Error message” (P. 91)

# Shutter button No picture is taken when the shutter button is pressed.

+ Cancel sleep mode.

To save battery power, the camera automatically goes into sleep mode and the monitor turns off if there is no operation for 3 minutes when the camera is turned on. No picture is taken even if the shutter button is fully pressed in this mode. Operate the zoom lever or other buttons to restore the camera from sleep mode before taking a picture. If the camera is left for another

12 minutes, it automatically turns off. Press the ON/OFF button to turn the camera on.

Press the [>] button to switch to the shooting mode. Wait until 4 (flash charge) stops blinking before taking pictures. With prolonged camera use, the internal temperature may increase, resulting in automatic shutdown. If this occurs, wait until the camera has sufficiently cooled. The camera's external temperature may also increase during use, however this is normal and does not indicate malfunction.

= Monitor Difficult to see.

+ When the screen is difficult to see in bright environment (e.g. outdoors), maximize the screen brighiness. D “Difficulty of seeing the screen (monitor boost)" (P. 11)

+ Condensation may have oceurred. Turn off the power, and wait for the camera body to become acclimated to the surrounding temperature and dry out before taking pictures.

The light is caught in the picture.

+ Shooting with flash in dark situations results in an image with many flash reflections on dust in the air.

# Date and time function Date and time settings return to the default setting.

+_ Ifthe batteries are removed and left out of the camera for about 3 days" the date and time settings return to the default setting, and must be reset. *1 The time until the date and time settings return to the default setting varies depending on how long the batteries have been loaded LE “Turning on the camera and making the initial settings” (P. 9)

+ For rapid temperature change, lens fogging (condensation) may occur. Turn off the power, and wait for the camera body to become acclimated to the surrounding temperature and dry out before taking pictures.

+ When one of the messages below is displayed on the monitor, check the

Card problem Insert a new card.

Card problem The card write-protect switch is set to the “LOCK” side Release the switch.

Internal memory problem *_ Insert a card. + Erase unwanted images.

Card problem + Replace the card. +_Erase unwanted images."

Use A V (arrow pad) to select [Format], and press the button. Next, use À V (arrow pad) to select [Ves], and press the @) button.

Internal memory problem

Use A V (arrow pad) to select [Memory Format], and press the @) button. Next, use À V (arrow pad) to select [Yes], and press the @) button.?

Internal memory/Card problem Take pictures before viewing them.

Problem with selected image

Use photo retouch software, etc. to view the image on a computer. If the image still cannot be viewed, the image file is corrupted.

Before erasing important images, download them to a computer. All data will be erased

The Image Cannot Be Edited

Problem with selected image Use photo retouch software, etc. to edit the image on a computer.

Battery problem Charge the battery.

Connection problem Connect the camera and computer or printer correct.

Printer problem Load paper into the printer.

No Paper Printer problem NO Ink Ref the ink in the printer. e.

Printer problem Remove the jammed paper.

Jammed Settings Printer problem Changed® _ |Retum to the status where the printer can be used Printer problem Turn off the camera and printer, check the printer for any Print Error

problems, and then turn the power on again.

Problem with selected image Use a computer to print.

This is displayed, for instance, when the printer's paper tray has been

removed. Do not operate the printer while making the print settings on the

92|EN This camera may be unable to print images taken by other cameras.

Shooting tips When you are unsure of how to take a picture that you envision, refer to the information below.

» Focusing Focusing on the subject.

+ Taking a picture of a subject not in the center of the monitor. [ P. 10 After focusing on an object at the same distance as the subject, compose the shot, and take the picture.

+ Set [AF Mode] to [Face/IESP]. I P. 44

+ Taking a picture in [AF Tracking] mode. LS P. 44 The camera tracks the subject movement automatically to focus on it continuously.

+ Taking a picture of a shadowy subject. IE P. 47 Using the AF illuminator makes focusing easier.

+ Taking a picture of subjects where autofocus is difficult.

In the following cases, after focusing on an object (by pressing the shutter button halfway down) with high contrast at the same distance as the subject, compose the shot, and take the picture.

4" Subject with low contrast Excessively bright light in Subject containing no center of frame vertical lines ni : FE D — Fe

il SE Subjects at different Fast-moving subject Subject not inside AF distances area

*1 His also effective to compose the shot by holding the camera vertically to focus, and then retuming to the horizontal position to take the picture.

= Camera shake Taking pictures without camera shake. + Taking pictures using [Image Stabilizer]. & P. 46 The camera detects camera movement to reduce the blur even if the ISO sensitiviy is not increased. This function is also effective when taking pictures at a high zoom magnification. + Shooting movies using [IS Movie Mode]. IX P. 50 + Select [FN Sport] in the Scene mode. L& P. 22 The [FN Sport] mode uses a fast shutter speed and can reduce the blur incurred by a moving subject. + Taking pictures at a high ISO sensitivity. D P. 39 If a high ISO sensitiity is selected, pictures can be taken at a high shutter speed even at locations where a flash cannot be used.

= Exposure (brightness) Taking pictures with the right brightness.

+ Taking pictures of a subject against a backlight Faces or backgrounds are bright even when shot against backlight. [Shadow Adjust] & P. 53 [2 Backlight HDR] 1 P. 22

+ Taking pictures using [Face/ESP]. LE P. 44 Appropriate exposure is obtained for a face against backlight, and the face is brightened

+ Taking pictures using [Spot Metering]. LE P. 45 Brightness is matched with a subject in the center of the screen and the image is not affected by background light.

+ Taking pictures using [Fill In] flash. LE P. 33 A subject against backlight is brightened.

+ Taking pictures of a white beach or snow scene. [EF P. 22 Select [F4 Beach & Snow] in the scene mode.

+ Taking pictures using exposure compensation. LE P. 38 Adjust the brightness while viewing the screen for taking the picture. Normally, taking pictures of white subjects (such as snow) results in images that are darker than the actual subject. Use the exposure compensation to adjust in the positive (+) direction to express whites as they appear. When taking pictures of black subjects, on the other hand, it is effective to adjust in the negative (-) direction.

# Color hue Taking pictures with colors at the same shade as they appear. + Taking pictures by selecting white balance. LT P. 38 Best results in most environments can normally be obtained with the [WB Auto] setting, but for some subjects, you should try experimenting with different settings. (This is especially true for sunshade under a clear sky, mixed natural and artificial light settings, and so on.)

m Image quality Taking sharper pictures. + Taking pictures with the optical zoom or super-resolution zoom. Avoïd using digital zoom (P. 45) to take pictures. + Taking pictures at a low ISO sensitivity. IT P. 39 Ifthe picture is taken with a high ISO sensitivity, noise (small colored spots and color unevenness that were not in the original image) can oceur, and the image can appear grainy.

Playback/Editing tips

= Playback Playing images in the internal memory and card. + Remove the card and display the images in internal memory. L& P. 5

Viewing images with high picture quality on a highdefinition TV. + Connect the camera to the TV using an HDMI cable. EF P. 77

n Editing Erasing the sound recorded to a still image.

+ Record over the sound with silence when playing back the image. LE P.53

Cleaning and storing the camera

+ Wipe gently with a soft cloth. If the camera is very dirty, soak the cloth in mild soapy water and wring well. Wipe the camera with the damp cloth and then dry it with a dry cloth. If you have used the camera at the beach, use a cloth soaked in clean water and well wrung

+ Foreign materials may be attached to the camera when using the camera in conditions with foreign materials such as dirt, dust or sand. If you continue to use the camera in such conditions, it could cause damage to the camera.

To avoid such damage, wash the camera using the following method D Close and lock the battery/card compartment/connector cover firmly. (P. 5) @) Fill a bucket or other container with fresh water, immerse the camera facing downward in the bucket and shake the camera thoroughly. And rinse the camera by placing it directly under a strong stream of tap water while operating the buttons and dial and opening and closing the monitor.

Monitor: + Wipe gently with a soft cloth. Lens:

+ Blow dust off the lens with a commercial blower, then wipe gently with a lens cleaner.

Â\ Do not use strong solvents such as benzene or alcohol, or a chemically treated cloth.

À Mold may form on the lens surface if the lens is left dirty.

Battery/USB-AC adapter: + Wipe gently with a soft, dry cloth.

+ When storing the camera for extended periods, remove the battery, adapter and card, and keep in a cool, dry place that is well ventilated.

+ Periodically insert the battery and test the camera functions.

AN Avoid leaving the camera in places where chemical products are handied since this may result in corrosion.

Using a separately sold USB-AC adapter

The USB-AC adapter F-3AC (sold separately) can be used with this camera. Do not use any USB-AC adapter other than the dedicated one. When using F-3AC, be sure to use the USB cable included with this camera

Do not use any other USB-AC adapter with this camera

Using a separately sold charger A charger (UC-50: sold separately) can be used to charge the battery.

Using your charger and USB-AC adapter abroad

+_ The charger and USB-AC adapter can be used in most home electrical sources within the range of 100 V to 240 V AC (50/60Hz) around the world. However, depending on the country or area you are in, the AC wall outlet may be shaped differently and the charger and USB-AC adapter may require a plug adapter to match the wall outlet. For details, ask at your local electrical shop or travel agent.

Do not use travel voltage converters as they could damage your charger and USB-AC adapter.

Cards compatible with this camera SD/SDHC/SDXC/Eye-Fi (with Wireless LAN function) card (commercially available) (maximum capacity: 128 GB) (for compatibility card details, visit the Olympus website.)

Use the Eye-Fi card in compliance with the laws and regulations of the country where the camera is used. Remove the Eye-Fi card from the camera or disable the card functions in airplanes and other locations where use is prohibited.

The Eye-Fi card may become hot during use:

When using an Eye-Fi card, the battery may run out faster.

When using an Eye-Fi card, the camera may function more slowly.

SD/SDHC/SDXC card write-protect switch

The SD/SDHC/SDXC card body has a write-protect switch.

If you set the switch to the ‘LOCK side, you will not be able to write to the card, delete data or format. Return the switch to enable writing.

Format Cards must be formatted with this camera before first use or after being used with other cameras or computers.

98|EN Checking the image saving location The memory indicator shows whether the internal memory or card is being used during shooting and playback.

Current memory indicator 1: Internal memory is being used B: Card is being used AN Even if [Memory Format}/{Format], [Erase], [Sel. Image], [AII Erase], or [Erase Group] is performed, the data in the card is not completely erased. When disposing of the card, damage the card to prevent the disclosure of personal data. A\Sitching between a card and internal memory is not available. ‘When using the internal memory, remove the card first.

Readout/recording process of the card During shooting, the current memory indicator lights up in red while the camera is writing data. Never open the battery/card compartment/connector

cover or unplug the USB cable. This can not only damage the image data but also render the internal memory or card unusable.

Number of storable pictures (still images)/Recording length (movies) in the internal memory and cards

À\ The figures for the number of storable still pictures and recording length are approximate. The actual capacity varies with shooting conditions and the card

Examples of image size when the aspect ratio is 4:3

Image Size Internal memory SD/SDHC/SDXC card (4GB)

With sound | Without sound | With sound | Without sound fa 1920x1080" | 9sec. 9 sec 18 min 18 min 1920x1080"| 14 sec. 15 sec 27 min 29 min SE 1280x720* 17 sec. 18 sec. 32 min 34 min. 1280x720 27 sec. 30 sec. 51 min 57 min. 854x480 30 sec. 34 sec. 57 min 64 min. 854480 52 sec. 1 min.6 sec. | 100 min 125 min Gé] _640x480 1 min. 6 sec. | 1 min. 28 sec. | 125 min. 167 min dif, 854x480 — 17 sec. - 32 min. dif, 640x480 _ 23 sec. _ 43 min Hé. 640x360 — 15 sec. - 29 min. dé. 480x360 — 17 sec. - 32 min.

‘The recording length is up to 29 minutes in the HD quality specified. +_ The maximum file size of a single movie is 4GB, regardiess of the capacity of

Increasing the number of pictures that can be taken

Eïither erase unwanted images, or connect the camera lo a computer or other device to save the images, and then erase the images in the internal memory or

{Erase] (P. 12, 56), [Sel. Image], [AI Erase], [Erase Group] (P.56), [Memory Format}!

Using separately sold accessories

Using a dedicated underwater strobe To use a dedicated underwater strobe, prepare an underwater case, a fiber-optic cable and so on. For details, refer to the instruction manual of the undenwater case. To use a dedicated underwater strobe, set the flash mode to [$ RC]. [# RC] also allows you to take pictures with a wireless flash by using a special extemal flash, compatible with the Olympus Wireless RC Flash System. The cameras built-in flash is used for communication between the camera and flash.

+ For details about operation of a wireless flash, refer to the instruction manual

for the special external flash.

1 Turn on the dedicated underwater strobe.

2 Setthe flash mode of the dedicated underwater strobe to RC mode. When you have to set a channel and a group, select CH1 for the channel, A for the group.

3 Set [Remote Flash] (P. 46) on the camera to [ÿ RC].

4 Select the flash option in the function menu, and then select [# RC] (remote control). + “Flash” (P. 33)

5 Take a test shot to check the operation of the flash and the resulting image.

Be sure to check the charge level of the camera and wireless flash before

When the camera flash is set to [$ RC], the camera built-in flash is

used for communication with the wireless flash. It cannot used for taking

To take pictures with a wireless flash, point the remote sensor of the

special external flash toward the camera, and point the flash in the

direction of the subject. The guideline of the setup range is from 1 to 2 m,

however note that it varies depending on the ambient environment.

102|EN Important information about water and shock resistant features

Water resistance: The waterproof feature is warranted"! to operate at

depths up to 15 m (49.2 feet) for up to one hour.

The waterproof feature may be compromised if the camera is subject to

substantial or excessive impact.

+ Do not push the monitor hard with it opened.

Shock resistance: The anti-shock feature warrants? the operation of the

camera against accidental impact incurred from everyday use of your digital

compact camera. The anti-shock feature does not unconditionally warrant all defective operation or cosmetic damage. Cosmetic damage, such as scratches and dents, are not covered under the warranty.

As with any electronic device, proper care and maintenance are required

to preserve the integrity and operation of your camera. To maintain camera

performance, please take your camera to the nearest Olympus Authorized

Service Center to have it inspected after any major impact. In the event the

camera is damaged as a result of negligence or misuse, the warranty will

not cover costs associated with the service or repair of your camera. For additional information on our warranty, please visit to the Olympus website for your local area

Please observe the following care instructions for your camera.

“1 As determined by Olympus pressure testing equipment in accordance with IEC Standard Publication 529 IPX8 - This means that the camera can be used normally under water at a specified water pressure.

*2_ This anti-shock performance is confirmed by Olympus’s testing conditions {with the back monitor closed).

Check the camera for foreign material including dirt, dust or sand

Firmly close the battery/card comparment/connector cover latch and LOCK knob.

Do not open the battery/card compartment/connector cover with wet hands, while under water, or in a damp or dusty environment (e.g. beach)

After Use: +_ Be sure to wipe off any excess water or debris after using the camera under

After the camera is used under seawater, immerse the camera in a

bucket containing fresh water for about 10 minutes (with the battery/

card compartment/connector cover firmly closed). Do not leave the

camera without cleaning for more than 60 minutes. This will cause

damage to the camera’s appearance and/or deteriorate water resistance.

When opening the battery/card compartment/connector cover, take

care not to allow water drops to enter the camera. If any water drops

are found on the inner side of the cover, be sure to wipe them off before using the camera.

Storage and Maintenance + Do not leave the camera in an environment at high temperature (40°C (104°F)

or more) or at low temperature (-10°C (14*F) or less). Failure to do so may break down water resistance.

Do not use chemicals for cleaning, rust prevention, anti-fogging, repairing, etc. Faïlure to do so may break down water resistance.

Do not leave the camera in water for a long time. Prolonged exposure to

water will cause damage to the camera's appearance and/or deteriorate water resistance.

In order to preserve the water resistant feature, as with any underwater housing, it is recommended that the waterproof packing (and seals) are replaced annually.

For the Olympus distributors or service stations where the waterproof packing can be replaced, visit Olympus website for your local area.

USB-AC adapter) do not offer shock or water

Â\ The included accessories (e. resistance.

[04 | EN List of settings available in each shooting mode

For details on SCN, ART, or 8%, refer to “List of SCN settings” (P. 106), “List of ART settings” (P. 108), “List of 8à settings” (P. 109).

Image size (stil images) Aspect

Image size (movies) Compression

“1 Some functions cannot be set.

AAENNT Image size (movies)

“1 Some functions cannot be set.

106 |EN Picture Mode Flash “1 Exposure Comp.

Image size (still images) Aspect

Image size (movies) Compression

*1 Some functions cannot be set.

List of ART settings

“1 Some functions cannot be set.

108 |EN List of Sa settings

A TE le) Picture Mode TT TT — Flash DR DL EE D Exposure Comp. === TI [White balance 1S0 = SN) SE ES ES Image size (stillimages) | VIVIVIVIV Aspect VNIVIVIVIY Image size (movies) "1 " " 7 E Compression VNIVIVIVIY Shadow Adjust VA EVA RE EE 4 JAF Mode ET — EsPC) LE — Digital Zoom TT ET TT — Image Stabilizer VMIVNIIIVIY Remote Flash VMIVNIVNIVNIVY JAF Illuminat. VMIVIVIVIV Rec View VMIVNIVNIVIV Pic Orientation VMIVIVIVIV Date Stamp VMIVNIVIVIV Super-Res Zoom TT TT — IS Movie Mode VMIVNIVIVIV ® VMIVNIVNIVIY [Wind Noise Setting VMIVIVIVIV

“1 Some functions cannot be set.

RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED OLYMPUS SERVICE PERSONNEL.

ÂÀ An exclamation mark enclosed in a triangle alerts you to important operating and maintenance instructions in the documentation provided with the product

Ifthe product is used without observing the information given RE Under this symbol, serious injury or death may result ENT ‘ue procucii used tout obsening ie iformalon iven

under this symbol, injury or death may result

Ifthe product is used without observing the information given

À GAUTION sentis symbol minor personal nju, damage to the equipment, or loss of valuable data may result.

(TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER DISASSEMBLE, EXPOSE THIS PRODUCT TO WATER OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT.

Road All Instructions — Beloro you use the product read al operaüng Instructions, Save all manuals and

‘documentation for fuure reference.

Cleaning — Always unplug hi product from 1e wall out before cleaning. Use oniy a damp clotn fr cieaning. Never uso any type of qui or aerosol cleaner, r any type of arganic savent clean this producl.

Attachments — For your sale}, and 19 avo damaging the product use only accessories recommended by Olympus.

Water and Moisture — For precautions on products ln wealherproo! designs, aad 1ne weatherproofing sections.

Location — Ta avold damage 1 lhe producl, mount ie product securely on à stable tnpod, stand, r bracket

Power Source — Connect this product only l the power source described on ta product abel.

Lightning — 1 a lghining storm occurs we using a USB-AC adapter, remoue I from the wal out Immeciateh

Foreign Objects — To avoid personal injury never insert a melal object into the produet

Hoat — Never use or store Ihis praduct near any heal source such 8 a radlaor, heat register, love, or any type of equipment or applance that generates heat including stereo amplifier.

Handling the Battery

Follow these important guidelines to prevent batteries from leaking, overheating, burning, exploding, or causing electrical shocks or burns.

The camera uses a lithium lon battery specified by Olympus. (Charge 1e batery il the spi USB-AC adaptar ar charger. Do not use any other USB-AC adaplrs or charges. « Never incinerate or hoat attris in microwaves, on at plates, r in pressure vesses, oc.

110 | EN Never leave tho camera on or noarelectromagnetc devices. This may cause overheating, buming, or exploding

Do not connect terminals with any metal objects.

Take procautions when carying or storing batteries to prevent them from coming into contact with any metal “objects such as jewlry, pins, fasteners Key The short cicuit may cause overheatng, exploding, or burning which bu ar damage you.

Never store battris where thoy wil be exposed to direct sunlight, or subjoctod to high temperatures in a hot vehicle, near a heat source, at,

Te prevent ausing bat abs or damagng hi tomias early allo aan grd te us of

batteries, Never attempt o disassemble a battery or mocify in any way, older, st.

battery fluid gts into your yes, flush your eyes immediately with clear, cold running water and sock mea attention immediste

you cannot remove the battery from the camera, contact an authorized distrbutor or service contr. Do nat ty Lo remove the battery by force Damage Lo ie battery extarer(scralches, ae.) may produce heat or an explosion.

Always stre batteries out of the reach of small hilron and pets. they accidontaly swallow a batory, sock medical attention immediately.

De not use the camera near flammable or explosive gases.

D not use or stre he camera in dusty or ui places.

De not use the flash and LED (including AF luminator on people [infants, small children, et} at close rang You must be at east 1 m (3 1.) away from the faces of your subjects. Fing the flash 10 close Lo no subject yes couid cause à momentary loss of vision.

De not ook at the sun or strong lights with he camora.

: Keop young children, infants away from the camora.

Always use and store the camera out of the reach of young chldren and infants to prevent he fallowing dangerous slualions which could cause serious injury: Bacoming entangled in ne camera srap, causing strangulaion. * Accidentall swallowing the battery, cards or lher small parts. Accidental fing the flash into Ier oun eyes or ose of another chi + Accidentall being injured by he moving pars of he camera:

+ Uso SDISDHCISDXC memory cards or Eye-Fi cards only. Never se other types of cars I you accident insert another type of card into the camera, contact an authorzed distibutor or Service center. Do no ty 1 remove the card by force.

you find that the USB-AC adapter is extromely hot or notice any unusual odors, noiso, or «make around it, unplug the power plug from wall outet immediately and stop using. Then, contact an authorizod distributor or service center.

De not cover the flash with a hand while ing.

Handling the Battery

Keep batteries dry at al times.

To prevent batteries from leaking, averhezting, or causing a fre or explosion, use oniy batteries recommended for uso with his produet.

Insert tne battery carefuly as described n ie operating instructions.

Hfrechargeable batteries have nat bean recharged within he speciled time, stop charging them and do not use em.

Do nat use batteries with scratches or damage t 1e casing, and do nat scratch the battery:

Never subject atleries 1 strong shock or continuous vibration by dropging or iting. This may cause exploding, overheating or burning

Ia batiery leaks, has unusual odor, becomes discolored or delorme, or bacames abnormal in any other way ‘during operation, stop using the camera, and keep away from fre immediately.

Ha batiery leaks fluid onto your clothing or ski, remove the clothing and flush te affected area wi clean, running cold water mmediatey the fluid burns your skin, soek medical attention immediateh.

Using the wireless LAN function

Turn off he camera in hospitals and other ocations where medical equipment is present. ‘The radio waves om the camera may adverse afect medical equipment, causing à malfunction ta results in an accident.

Turn off he camera when onboard aireraf. Using vireless devices onboard may hinder safe operation of he aircrat.

Â\ CAUTION Handling the Camera «Stop using te camera inmediatayiyou note any unusual rs, noie, oamok around.

“Never remove ne bataris md bare hands, ich may cause a fr o bu Your hands.

Be care we stap han You cary ie camera. cou easy catch on stay objects and cause serious damage De notiave the amer in places where may be subject to xtramay high temperatures.

“ Dohg 50 may cause pars 1 deterirate and in some ccumances, cause Ie camera 1 caen fre. Do not se ne eharger or USB AC capter over (su as a Bank}. Ti cou cause overnoating, resuing in fre

Hand the camera with care to avod getng à lomtempertur burn.

“Wen he camera contains meta pars, ovarheaig can teautin a loutemperaure burn. Pay ation 10 ho foling “en used fo a long period 1e camera val get ho. 1 You Rod on 1 ne camera ni state, a ou

amoaralure bu may be caused “in placas subed 1 axemaly co temperaures, he lamperalure fe camera‘ body may be war nan ‘he envronmentaltomperaur. 1 posabte, wear loves un handling in camera in cod lemparalure. To prolect te high-recison technology contained in is product never ave in camera in ie lacs led balou, no mater fin use or tape: Paces wnera temperatures andlor humiiy ar high or go Eough extreme changes. Dirt sun. aaches,lckeë cas, a ner other heat soute (tou, radar ee. or hum. <in sany or day environment “Near ammabl hems or explose. “inv places, auch as binroëms Orne ra, When uelng products wi weatharproof designs, read tai manuas as val. «in paces prone lo song ubrations. Never opte camera or subject 19 severe shock or vibrations. Wen atahing the camera Lo or removng rom a pod, ol the pod ace, not {ne camera. Belor ansportng the camera, move a pod an al other on OLYMPUS accassoies. D nat touch lt contacts on cameras.

Do notieave the camera painted direct aline sun. This may cause lens or shuter eurlain damage, color faïure. ghosting on the image pickup device, or may possiby cause fre.

Do not push or pull Severely on the lens.

Before string ie camera fr a lang period, remove 1e batteries. Select a coo! dry location fr storage to prevent condensation or mold from forning Inside the camera. Afer storage, est the camera by turnig in and pressing the shutler Buton Lo make sure (hat Lis operating normal.

The camera may mallunction ii is used in a location where is subject 10 a magnalcleectromagnelc fe, radie waves, or high vollage, such as near a TV set, microwave, video game, loud spsakers, large monitor uni, TViradio Lower, or transmission lower. In such cases, um the camera Qf and on again belore further operation.

+ Alays observe the operating environment restrictions described in the cameras manual

When using the camera, be sure Lo close and lock 1e bateryleard compariment cover.

Handling the Battery

Before loading, aays inspect the battery carefuly for ak, discoloralon, warping, or any other abnormalt}

The battery may become hot during prolonged use. To avoid minor bus, do not remove i immediately after using ne camera.

Aays unioad he batiery from 1e camera before storing ne camera for a long period.

en st te Batary Ho long ei, salt a ol ral fer siorage. ns camera uses one Op hu ion bat. Use Ie spaied genie Lan: re ak of exo On 1e ar replace wie carec at pe. Fouer consumpton by Ie camera var depending cn vi cons ae 864 “urngine condions descrbed alom poneri consumed connus and ie batir bacos exhautied ii The room used repos {The shater ut e presse hlayrpestst in shooting mode, strange auto fou, La piue à died on the mont oran extended part lime {The amer is connected 1 à ini Using an exautld bal may cause 1h cameroun f who ia ie batir level ang The Ompus min batar is designed 1 be used on fre mus cgial camara. Do not see Batery oo docs Ne baterysteminas pat tar gresy, camera ana are may ru. pete batlry li a dy doi tree Aa charge à bar han Lang or es ma, or has no been used fer og prod en cprang ia camera Mn balry por au emrperas. 1 15 KB ne cars and spa atery 26 war as ossi ÀDaley Wal has ru dou allow lemperau rs ma be soc al med ai room lampe. Balre going on along ip, and special balre avaïng abroad, purchase ex batir, A recommended Batcy may be dieu bain Wie vavoing Pass roc balais 1 ep sav our ang esourons. Wen ou ro ay dead anis, be ur 15 Cover ai leminale and aaye bte Local aus and regions 06 0 alu hilren or nina te hand or transport (print dangerous behaviour auch 25 élrg Dtingin math or no.

The included USB-AG adapter F-2AC is designed to be used only with his camera. Other cameras cannot be charged with this USB-AC adapter.

Do not connect th included USB-AG adapter F-2AC to equipment other han this camera

For plugin type USB-AC adapter ‘The included USB-AC adapter F-ZAC is intended lo be correcty arientated in a vertical or floor mount position.

Use Only Dedicated Rechargeable Battery, Battery Charger and USB-AC adapter

We strong recommend nat you use only he genuine Olympus dedicated rechargeable battery, battery charger and USB-AC adapter with Is camera. Using a non-genuine rechargeable battery, batlery charger andior USB-AC adapter may result in fre or personal injury due 10 leakage, heating, gniion or damage to the battery. Obmpus does nol assume any liabily for accidents or damage {nat may resui from the use of à battery, battery charger andlor USB-AC adapter hat are not genuine Olympus acossores.

Precautions when using the wireless LAN function

H using the wireless LAN function in a country outside the rogion where the camera was purchased, here s à sk that the camera wa not confarm to the wireless communication regulations af hat country. OIympus wi ot be held responsible for any falure to meet such regulations.

In a lacaïon nat open to the sky inside. underground. underwater, in a forest near high bulldings) or in a location subject ta strong magnelic or electric flelds (near new high-vllage power lines, magnets ar electrical aooés, 1.5GHz mobile telephones) l may not be possible 0 determine measurements or generale error.

The altlude displayed on the measurement information screen or pieture playback screen et. is displayed

recorded based on Information from pressure sensors buit into camera body. Be careul since he displayed Alitude is not based on GPS posiion measurements.

Since the GPS is not required Lo be accurate, there is no guarantee hat he measured values [attude, longitude, compass dreclon ec} are accurate.

Do not push the monitor for, thenvise Ihe Image may become vague, resulingin à playback mode failure or damage 10 the monitor.

A strip of light may appear on he toplbattom of the monitor, but hs is not à malfunction.

Wen a subject is viewed dlagonallin the camera, tha edges may appear 2igz2gged on the monitor This is not a malfunetion, mil be less noticaable in playback mode,

In places subject t low temperatures, the monitor may Lake a lang time to ur on or ts calor may change temporarh. When using Ie camera in extreme cold places, is a good idea lo occasionall place ki a warm place. The monitor exhibiing poor performance dus lo lou temperatures val recover in normal Lemperalures:

The montor ofthis products manufadtured with high-qualty accuracy, however there may be a stuck or dead pixel on the monitor. These pxels do not have any influence on the image io be saved. Because of the charactaisties, the unevenness of the color or brighiness may also be found depending on the angle, but hi is ue 0 the structure of ne monitor This is not à malunction.

Legal and Other Notices

Oympus makes no representations or warrants regarding any damages, or benef expected by using this unit Hawtuly, or any request from a third parson, mich are caused by ne inappropriate usa of his product.

+ Oympus makes no representations or warrants regarding any damages or any banef expactod by using his unit laluly mich are caused by eraing picture data.

Disclaimer of Warranty

+ Oympus makes no representations or warrantes, lier expressed or imgled, by or conceming any content of these written materials or sofware, and in no event shal be able for any mpleé warranty of merchantablty or füness for any particular purpose or for any consequentilincidentl ar indirect samages (including but not limited ta damages for loss af business profs, business interruption and loss of business information) ariing from the use or inably Lo use these wlen materials or soflare or equipment. Some countries do not allow the exclusion or limitation 6 abliy for consequential or incidental damages or of {he mplied warranty, 0 1e above limitations may not apply to you

Unauthorized photographing or use of copyrighted material may volate applicable copyrigt laws. Olympus assume 0 responsibility far urauthorz04 photographing, se or other cts hat infnge upon Ie rights of copyright owners.

Al rghs reserved. No par of hese rien materials ris solar may be reproduced or usa in any fm 0 by any maans, lecrani or mechaneal, ali photacopyng and recording or th use of any ype af nformation stage and rotieal system, wihout he prior riten person of Olympus. No lab assumed ui respect 1 he use fe infomation contained in those rien material ar sofare, or or damage reuting fm the use of he information contained noel. (Ohrmpus reserves ie galere features and content oi plain r salare without obligation or advance noce.

‘This equipment has been tested and found to comply with he limits for a Class B cigal device, pursuant to part 18 ofihe FCC Rules. These mis are designed to provide reasonable protection against harmtuliterference

in a resident installation. This equipment generales, uses and can radiae radio frequency energy and. not installed and used n accordance with the instuctions, may cause harmfu interference to radio communications. However. there s no guarantee hat interlerence il not oceur in a particular installation. his equipment does cause hamlinterference Lo radio ar television reception, which can be determined by Lumning Ina equipment of and on, he user is encouraged Lo y Lo correct Ie Iterfsrence by one or more af the following measures: Roorent or rlocate 1e receiving antonna.

Increase (he soparation between the equipment and receive.

Gonnect he equipment into an out on a ieuit iferent from that 1 which the receive is connected

Gonsuï the dealer or an experienced radia/TV technician for el.

On the OLYMPUS-supplied USB cable should be used 1o connect he camera 19 USB enabled personal computer.

Changes or modifications not express approved by the party responsible for complance could vod ine users author t operate the equipment

This transmiter must not be co-located or oparaled in conjuneton wi any olher antenna or tranmiter.

The avalable sclentilc evidence does not show that any health problems are associated with ueing low pouer raless devices. There I na proof, however, hat these low power wireless devices are absolutly safe. Low power Wireless devices emi low levels of radio frequency energy (RF)in ie microwave range ie being used. Whereas High levels af RF can produce health effects {by heating Lssue), exposure of level RF that does not produce heating effects causes na knoum adverse healh effects. Many studies of lowlevel RF exposures have not found any biological affect. Some studies have suggested ta some biological lfects might occur but such findings have not been confrmed by adétional research. TG-B60 has been Lested and found 0 comply wi FCC radialion exposure Hits sat fon for an uncontrlled environment and maets ne FCC radio frequency (RF) Exposure Guidelines.

Th equipment complies with 1 radiation exposure Its set foth for an unconirlled enranment and meats RSS. 102 of ie IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that are deemed 10 compiy without testing f speciie absorption ratio (SAR)

For customers in North America, Central America, South America and the Caribbean

Declaration of Conformity

Model Number: TG-860 Trade Name: oLvmPus

Responsble Party OLYMPUS IMAGING AMERICA INC. Address: 500 Corporate Parkway,

P.O. Box 10, Center Valley.

PA 18024-0610, US A Telephone Number: 484-896-5000

Testod Ta Comply Wii FCC Standards

FOR HOME OR OFFICE USE This device comples wih Part 15 of FGG Rules and Industry Canada licence-exempt RSS standard(s). Operation Is subject 10 the folowing to contions:

{1) This device may not cause harmful inerference.

(2) This device must accept any Itrference recoived, eluding Intrference at may cause undesred operation.

This Class B digial apparatus complls with Canatian ICES-003. CAN ICES-A(B)NME-3(8)

OLYMPUS AMERICAS LIMITED WARRANTY - OLYMPUS IMAGING AMERICA INC. PRODUCTS Obmpus warrants that he enclosed Olympus® imaging product(s and related Olympus® accessories {indiidualy a “Produet and collecively the “Products ) wil be fre from defects in materials and workmanship under normal use and senc for a period of one (1) year rom Ie date af purchase.

H any Product proves to be delective within Ie ane-year warranty perd, he customer must return he defectve Produet 10 the authorizad Olympus Repair Service Center designaled by Olympus, following he procedure set forh below (See WHAT TO DO WHEN SERVICE IS NEEDED')

Ompus, ais sole discration, wi repair, replace, or ajust the defectve Product at Olympus‘ cost, provided that an Oympus investigation and factory inspection dsclose Iat (a) such defect developed under normal and proper Use and (b) the Product is covered under his mio warranty.

Repair replacement or adjuslment of defeclive Products shal be Olympus sole obligation and he customers Sole remedy hereunder.

Repair er replacement of a Product shal not exlend ie warranty period provided herain, unless required by

law. Except where prohibled by law, the customers able and shal pay for shipment of ne Products 10 the dasignated Olympus Repair Service Canter.

(Ompus shal pot be obligatod 1 perform preventive maintenance. Installation, deinstalltion, or maintenance. (Ohmpus reserves the ght to () use recondiionec, efurbished, andr serucoabe used pars (ina moat CIympus qualty assurance standards) for warranty ar any other repas and (i) make any interna r extemal design andior feature changes on or 1 is products whout any Lablty to incarporate such changes on ar to 1e Products.

WHAT IS NOT COVERED BY THIS LIMITED WARRANTY Excluded from this imied warranty and not warranted by Olympus in any fashion, either express, impled, or by statuts, ar:

{) products and accessories not manufactured by Olympus andlor ot bearing the “OLYMPUS- brand Iabel {ne warranty coverage or products and accessories of other manufacturers, which may be distributed by (Oiympus, is ne responsbilty of tre respective manufaclurer of such producis and accessories in accordance il ne terms and duration of such manufacturers warrants):

{) any Product which has been disassembled, repaired, tampared wih, alored, changed, or modifld by persons other than Olympus s ou authorized service personnel unless repair by others is made wilh ne written consent ol Olympus.

{E) defects or damage lo the Products resulting from wear, ea, misuse, abuse, negligence, sand. Iquids, Impact improper storage, nonperformance of schaduled aperator and maintenance ltems, battery leakage, use of non-"OLYMPUS" brand accessories, consumables, or supgles, or use of he Products in combination with on-compatile devices;

{6) software programs:

e) suppliss and consumables (including but not imite Lo lamps, ik, paper, film, prints, negaives, cables and batteries}; andior

0. Products which do not contain a val placed and recorded Olympus serial number, unless 1heÿ are à model on which Olympus does nat place and record seal numbers.

{G) Products shipped, delered, purchased, or sold from dealer lacatod outside of Nori America, Central America, South America and he Caribbean, andlor

{H) Products that are nat intended or authorzod ta be sold in North America, South America, Central America, or the Caribbean ie. Gray Market Goods)

WARRANTY DISCLAIMER. LIMITATION OF DAMAGES AFFIRMATION OF ENTIRE WARRANTY AGREEMENT.

(THE CUSTOMER MAY ALSO HAVE DIFFERENT AND/OR ADDITIONAL RIGHTS AND REMEDIES THAT VARY FRON STATE TO STATE.

THE CUSTOMER ACKNOWLEDGES AND AGREES THAT OLYMPUS SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES THAT THE CUSTOMER MAY INCUR FROM DELAYED SHIPMENT, PRODUCT FAILURE, PRODUCT DESIGN, SELECTION, OR PRODUCTION, IMAGE OR DATA LOSS OR IMPAIRMENT OR FROM ANY OTHER CAUSE, WHETHER LIABILITY IS ASSERTED IN CONTRACT, TORT (INCLUDING NEGLIGENCE AND STRICT PRODUCT LIABILITY) OR OTHERIISE. IN NO EVENT SHALL OLYMPUS BE LIABLE FOR ANY. INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES OF ANY KIND (INCLUDING WITHOUT. LIMITATION LOSS OF PROFITS OR LOSS OF USE), WHETHER OR NOT OLYMPUS SHALL BE OR SHOULD BE AWARE OF THE POSSIBILITY OF SUCH POTENTIAL LOSS OR DAMAGE.

Representatons and warranties made by any person, including but ot imited to dealers, represartaives, salespersons, or agents of Olympus, which ar inconsistent or in conflict with or in addition ta Ie tons of this limited warranty, shal nat be binding upon Olympus unless reduce to wrting and approved by an expresshy Authorized offer of Olympus.

“This imited warranty is ne complete and exclusive statement o warranty which Olympus agrees 10 provide th respect to the Products and shal supersee al prior and contemporaneous oral or writen agreements, understandings, proposals, and communications pertaining 1 the subject matter harec.

‘This limited warranty is exclusively for the bone of {he anginal customer and cannot be transfrred or assigned

116|EN WHAT TO DO WHEN SERVICE IS NEEDED he customermust cotal ie desgnated Ohrmpus Consumer Suppert Tea fr you région Lo ocre ne submiseion of you Produet for repair sance, T cata our Ohrmpus Consumer Support Tea in your region plaase si or al 1 oloning

Canada: molympuscanada comirepal { 1.800.622. 6372 United States wmolympusamerica.comirepair / 1-800-622- 6372 Lain America:

wmolympusamericalatina com

he customer must copy or transfer any Image or other data saved on à Product o another Image or data storage

macum prior ta sending the Product to Olympus for repair service.

IN NO EVENT SHALL OLYMPUS BE RESPONSIBLE FOR SAVING, KEEPING OR MAINTAINING ANY IMAGE OR DATA SAVED ON À PRODUCT RECEIVED EY IT FOR SERVICE, OR ON ANY FILM CONTAINED WITHIN A PRODUCT RECEIVED BY IT FOR SERVICE, NOR SHALL OLYMPUS BE RESPONSIBLE FOR ANY DAMAGES IN THE EVENT ANY IMAGE OR DATAIS LOST OR IMPAIRED WHILE SERVICE IS BEING PERFORMED UNCLUDING, WITHOUT LIMITATION, DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, LOSS OF PROFITS OR LOSS OF USE). WHETHER OR NOT OLYMPUS SHALL BE OR SHOULD BE AWARE OF THE POSSIBILITY OF SUCH POTENTIAL LOSS OR IMPAIRMENT.

The customer should package he Product carefuly using ample padding material to prevent damage in trans.

(Once the Product Is proper} packaged, ship ine package to Olympus or he Olympus Authorized Repair Service

Genter location as Instructed by the respective Olympus Consumer Support Team.

Wen sending Products for repair service, your package shouid include te following

1). Sales recoit shoning date and place of purchase. Handurttn recelpts vil not be accepted

2). Copy of this limited warranty bearing the Product serial number corresponding to the serial number on the Product (unless ki a model on which Oiympus does not place and racard serial numbers

3) A detaled description of the problem, and

4). Sample prints, negaives, digital prints {or fls on disk avalable and related to the problem.

KEEP COPIES OF ALL DOCUMENTS. Neïther Olympus nar an Olympus Authorized Repair Service Center wil.

be responsible fr documents that are lost or destroyed in transit.

Wen service is compleled, the Product il be returned Lo you postage prepa

‘Any information provided by you ta process your warranty claim shall be kopt confidential and wil any be used and isclosed for ie purposes of processing and perormning warranty repair services.

For customers in Europe

“CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. "CE” mark cameras are intended for sales in Europe.

Hereby, Olympus Imaging Corp. and Olympus Europa SE & Co. KG declare that this TG-860 is in compliance with the essential requirements and other relevant provisions of Directive 1999/S/EC. For delails visit htip:/www.olympus-europa.com/

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries. Please do not throw the equipment into the domestic refuse. Please use the return and collection systems available in your country for the mm dispos finis product

‘This symbol [crossed-out wheeled bin Directive 2008/68/EC Annex 11] indicates separale collection of waste batteries in he EU countries.

Please do not throw the batteries into he domestic refuse.

Please use the return and collection systems available in your country for the disposal of the waste batteries.

Provisions of warranty

In the unikely event nat your product praves Lo be defectve, alihough it has been used properl in accordance

th the writen Instruction Manual supplied wi ), during ie applicable national warranty period and has been

purchased from an authorized Olympus distbutor within the business area of OLYMPUS EUROPA SE & Co. KG as stipulated on he website: hip-umwv ohympus-europa.com. it wl be repaired, or at Olympus $ option feplaced. free of charge. In order o enable Olympus 1 provide you with he requested warranty services 1a your ul satisfaction and as fast as possible, please note the information and instructions listed belonr

2. To claim under his warranty please follow the instructions on hitp/lconsumer-service.lympus-ouropa.com for registration and tracking (Is service is no available in al countries) or lake he product, he corresponding

original invoice or purchase recaipt and ine completed Warranty Cerificate 10 the dealer were 1 was

purchasod or any otner Olympus service station within the business area of OLYMPUS EUROPA SE & Co.

KG as stpulatod on the website: Mtp:/Mvwwolympus europa com, before the end af he applicable national

Please make sure your Waranty Certfcat is duiy completod by Olympus or an authorzed dealer or Service

center. Thereore, please make sure hat your name, the rame of ne dealer, the serial number and the

year, month and date of purchase are al completod orne original involce or the sales recelpt[ndicaüing the

dealer s name, he date of purchase and produet 1ype) is attached lo your Warranty Certificate.

Sinca this Warranty Certificate wl not be re-ssued, Keep in à safe

Please note that Olympus wil not assume any sk or bear any costs incurred in transporting the product to

{he dealer or Olympus authorzed service station.

This Warranty does not cover I following and you wil be required 1o pay a repair charge, even for defects cccuring vthin he warranty period referred o above.

a. Any defect that oceurs due lo mishanding (such 26 an operalon performed that is not mentioned in the instruction Manual, le.)

B.. Any defoct that occurs due Lo repair, modification, cleaning et. performed by anyone other nan Olympus or an Olympus authorzed service salon.

AAny defect ar damage hat oceurs due Lo transport, a fall, shock ete. aller purchase of the product.

Any defect or damage hat occurs due 1 fre, earthquake, flood damage, thunderbol, other natural disastrs,

environmental polution and regular voltage sources.

. Any defect that occurs due 0 careless or Improper storage (such as keeping the product under conditions af High temperature and hurmidi near insect repelents such 25 naphihalene or harmful drugs, lc. Impropar maintenance, ét.

1. Any defect that occurs due to exhausted batteries, et.

Any defect that oceurs due lo sand, mud, waler le. etering 1e inside of he product casing.

(Oiympus« sole ability under is Warranty shall be limited to repairing or eglacing the product. Any ability

under he Warranty fr indirect ar consequenial loss or damage of any kind incured or suflered by the

customer due 1 a defect f ne product and in particular any less or damage caused to any lenses, fs, ter equipment ar accessories used with the product or for any los resuling from a delay in repair or o6s of data, is excluded. Compeling regulations by law remain unaffected by this.

For customers in Asia

Provisions of warrat

1. Mini produet prove io be defective, althaugh it has been used properl {in accordance with he rien Handing Care and Operating instructions supplied with 1), during a period af up Lo one year from the date of purchase this product wil be repared, ar at Oympus's oplon replaced, fre of charge. To claim under Warranty the cuslomer must Lake (ne product and is Warranty calicate before 1ne end of Ina one year Warranty period t the dealer where the product was purchased or any OIympus authorized service station listed in he Instuctions and roquest the necessary pairs. ‘The customer shal transport he produet Lo Ina dealer or Olympus authorized service stalion at his ou risk and shall be responsible for any costs incured in transporing Ihe product This warranty does not cover he falloing and the customer vil be required 1o pay repair charge, even for defects occurring within the one year period refered to above

a. Any defect that occurs due lo mishanding (such as an operalon performed that is not mentioned in the

Handing Care or other sacions of the inalructons, ele.)

b.. Any defect hat oceurs due Lo repair, modificalon, cleaning, le. parlormed by anyone other than Olympus or an Olympus authorzed service station. €. Any defect or damage that acours due 1 transport a al, shock, te. for purchase of he product d.. Any defect or damage that accurs due to fre, earthquake, flood damage, hunderbo other natural isasters, environmental polution and regular voltage sources. Any defect Ina occurs due 0 careless or Improper storage (such as keeping the product under conditions af High temperature and humidiy, near insect repelants such as naphihalene or harmlul drugs, lc.) mpropar maintenance, et. Any defect nat occurs due to exhausted batteries, lc. Any defoct at occurs dus 19 sand, mud, le. antéring 1e inside of he product casing. ‘When iis Warranty Certificate is not retumed with he product. When any aleratons whatsoever are made Lo te Warranty Gerficate regarding the year, month and date of purchase, the customers name, the dealer s name, and he serial number. (When proof of purchase is not presentod with Is Warranty Gerficate. ‘This Warranty applis Lo the product only he Warranty does nat apply Lo any other accessory equipment, such as he case, slrap, lens cap, batleris and batlery chargers: (Olympus sol bit under his warranty shall be limite Lo raparing or replacing the product and any lablity farindirect or consequential loss or damage of any kind incurred or suffered by the customer due to a defect in he product, and in particular any loss or damage caused to any flm or lenses or ather equipment or accessones used wi the product or or any loss resuling from delay in repair is excluded Notes rogarding warranty maintenance 1. This Warranty wl only be valid if the Warranty Certificate is duiy compleied by Olympus or the dealer. Make sure Hat your name, the name of the dealer, ne serial number and he year, month and date of purchase are al complete. Since this Warranty Certificate wl not be re-ssued, Keep Lin a safe place. Any request fr repair by a customer in same country where the product was purchased chal be subject to the Lerms of the warranty issued by the Olympus distbutar in that country. Were the local OIympus distiutor does not issue a Separate warranty or where the customer Is nat in {he counry where ne product was purchased he lerms of his wordwide warranty shal ap. Where applicable, tnis Warranty is valid oriy in the country te product was purchase. The Olympus authoized service stations sted in this Warranty wal lady honor * Please role 0 the appanded ist for the authorized international Olympus service network. Disclaimer of Warranty Obmpus makes no representations or warrantis, ither expressed or implie, by or concerning any content it Inese writien materials or software, and in no event shall ba able fr any mplied warranty of merchantablt finess or any parikular purpose o or any consequenta, ncidental or indirect damages {including but not imied Lo damages for loss of business profs, business imerruplion and loss of business information) arsing from he use of abltyto use these wrlen materials or software. Some states do not alow the exciusion or Imation of Hablty for consequenta or ncidental damages, 50 he above limitations may ol apply 10 you For customers in Thailand his telecommunication equipment conformes 0 NTC technical requirement. For customer in Singapore Complies with IDA Standards DB104634

1. This Warranty in addition 0 and does no afect te customers statutory right

2. Iyou have any queries regarding this Warrant, cal any of {he Olympus authorized service stations listed in the instructions.

Microsoft and Windows are registered trademarks af Microsoft Corporation. Macintosh is a trademark of Apple Inc.

ee arm rdmanarepesine NE WHFiis a registered trademark of the W-Fi Allance.

LA Al other company and product names are registered trademarks andlor trademarks of their respective ouners.

THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONGOMMERCIAL USE OF À CONSUMER TO {) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD (‘AVG VIDEO”) ANDIOR (i] DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY ANDIOR WAS OBTAINED FROM À VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA. LLC. SEE HTTPA!

WMYMPEGLA.COM The software in this camera may include third part software. Any id part software is subject to he terms and conditions, imposed by the owners or icansors of hat sofrare, under which software Is provided Lo you.

Those terms and ather third part software notices, f any, may be found in tne software notice PDF fe stored within the accompanyng CD-ROM or at

pa oiympus.co jafen/supportimsgidigicameraldounioadinotceinotce.ctm

The standards for camera le systems refered 1 in this manual are the “Design rule for Camera File system! DGF' standards sipulated by he Japan Electronics and Information Technology ndusiries Association (JETTA).

Producttype _: Digital camera (for shooting and displaying) Recording system

Still pictures _: Digital recording, JPEG (in accordance with Design rule for Camera File system (DCF))

Applicable + Exif2.3, Digital Print Order Format (DPOF), PRINT Image standards Matching Ill, PictBridge Sound with still: Wave format pictures Movie + MOV H.264 linear PCM Memory = Intemal memory, SD/SDHC/SDXC (supports UHS-1)

{maximum capacity: 128 GB)/Eye-Fi card Total no. of pixels :_ Approx. 16.8 million No.ofeffective _: 16 million

pixels Image pickup _: 1/2.3° CMOS (primary color filer)

Lens + Olympus lens 3.74 to 18.7 mm, 13.5 10 5.7

{Equivalent to 21 to 105 mm on a 35 mm film) Photometric system :_ Digital ESP metering, spot metering system Shutter speed: 4 lo 1/2000 sec.

Normal © 0.1 m (0.3 ft.) to oo (W/T)

Super macro mode : 0.01 m (0.03 ft.) to 0.1 m (0.3 f.) (f=4.24 to 8.7 mm) Monitor E_3.0° TFT color LCD display, 460,000 dots, Movable Connector + Multi-connector (DC-IN jack, USB connector,

AIV OUT jack)HDMI micro connector (type D) Automatic + 2000 up to 2099

calendar system Water resistance

Type + Equivalent to IEC 60529 IPX8 (under OLYMPUS test conditions), available in 15 m (49.2 f.) deep water Meaning + Camera can normally be used under water at a specified

water pressure. Dust resistance _: IEC 60529 IP6X (under OLYMPUS test conditions)

Operating environment

Temperature: — 10 -C-40 C(14 °F - 104 °F) (operation) — 20 °C - 60 °C (-4 °F - 140 °F) (storage)

Humidity =_30% - 90% (operation) 10% - 90% (storage)

Power supply: One Olympus lithium ion battery (LI-50B) or separately sold USB-AC adapter

Dimensions 2 112.9 mm (W) x 64.1 mm (H) » 27.6 mm (D) (4.4 x 2.5 x 1.1 in.) (excluding protrusions) Weight +_224 g (7.9 oz) (including battery and card)

Lithium ion battery (LI-50B)

Product type: Lithium ion rechargeable battery

Model No. = LI-S0BA/LI-508B Standard voltage : DC3.7V Standard capacity : 925 mAh

Battery life = Approx. 300 full charges (Varies on usage)

Operating environment

Temperature —_: 0 °C to 40 °C (32 °F lo 104 °F) (charging)

USB-AC adapter (F-2AC)

Model No. = F-2AC-1B/F-2AC-28 Power + AC 100 to 240 V (50/60 Hz) requirements

Output = DC 5 V, 500 mA Operating environment

Temperature: 0 ‘Cto 40 °C (32 °F lo 104 °F) (operation) 20 °C to 60 °C (-4 *F to 140 °F) (storage)

Design and speciications subject to change without notice. Please visit our website for the latest specification.

date issue 2014.12 OLYMPUS

http:/www.olympus.com/

OLYMPUS IMAGING AMERICA INC. 3500 Corporate Parkway, P.O. Box 810, Center Valley, PA 1804-0510, U.S.A. Tel. 484-896-5000

Technical Support (U.S.A. / Canada) Our phone customer support is available from

European Technical Customer Support

Please vit our homepage häpintohympus-europa.com ar cal our TOLL FREE NUMBER" 00800 - 67 10 83 0

For Rasta, Belglum, Czech Repubic, Denmark Finland, France, Germany, Luxemburg Netherlands, Norway, Poland, Portugal, Russia, Spain, Sweden, Switzerland, United Kingdom. * Please note some (mobile) phone Services / provider da not permit access or request an adaitional prefx 1o +800 numbers.

For al not ste European Counties and in case that you can ge comected t he above mentoned number, piesse make use ofthefalowing CHARGED NUMBERS +49 40 - 237 73 899

OLYMPUS (CHINA) CO. LTD. Customer Support: 400-550-0303 Homepage: hip:/uvolympus-imaging.en Customer Service Center:

AA8F, Ping An Intemaional Financial Center, No. 4-3, Rm 18051806, Guangzhou Intemaonal Elcroni toner,

Xyuan South Road, Chaoyang District, Bejing _ No403, Huan Shi East Roaé, Guang Zhou Zip: 100027 Zp: 510085

{Unit A301, Mingyuan Business Center,

No.1199 Nidéle Fung Road, Shanghai
