Product Type	LED TV
Model	40 732 PVR (40 LED 732 PVR)
Screen Size	40 inches (100 cm)
Display Resolution	1920 x 1080 pixels (Full HD)
Aspect Ratio	16:9
Dynamic Contrast Ratio	1,000,000:1
Digital Tuner	DVB-T MPEG2/4 HD
PVR Recording	Yes (via USB)
Timeshift	Yes
HDMI Ports	3
USB Ports	1
Other Connectivity	SCART, Component (YPbPr), VGA, PC Audio In, Headphone Jack, RF In, CI Slot
Audio Output Power	2 x 10 W
Audio System	NICAM/A2 Stereo
Power Consumption (Max)	75 W
Standby Power Consumption	≤ 0.5 W
Energy Efficiency Class	A
Dimensions with Stand (W x H x D)	909.1 x 561.1 x 210 mm
Weight with Stand	10 kg
VESA Wall Mount Pattern	200 x 200 mm
Supported Media Formats	MPG, AVI, TS, MP4, MKV, VOB, MP3, AAC, JPG, WAV, M4A, WMV
Parental Lock	Yes
Cleaning Instructions	Use a dry cloth; unplug the TV before cleaning.
Safety Warning	Do not open the cover. Refer to qualified service personnel for repairs.

Frequently Asked Questions - 40 732 PVR ECG

How do I connect an antenna to the TV?

Connect the antenna cable to the ANT 75 connector on the back of the TV. Then plug the power cord into a socket and press the power button to turn on the TV.

How do I use the PVR recording function?

Insert a USB drive into the USB port. In DTV mode, press the REC button on the remote control to start recording. Press RECLIST to view recordings. Ensure the USB drive is formatted correctly.

How do I adjust the picture settings?

Press MENU on the remote, select Picture, then adjust options like Contrast, Brightness, Colour, and Sharpness using the arrow keys. Press EXIT to save.

How do I adjust the sound settings?

Press MENU, select Sound, then adjust Bass, Treble, and Balance. You can also select Audio mode (Standard, Music, Movie, etc.) or enable 3D effect.

How do I set up parental controls?

Press MENU, go to Setup, select Parent lock, and choose an age rating from 4 to 17 or None. You may need to enter a PIN code (default is usually 0000).

How do I reset the TV to factory settings?

Press MENU, go to Picture or Sound menu, select Restore factory settings, and confirm with OK. Alternatively, in SETUP menu, select Restore TV.

Why is there no picture but sound is working?

Check that the antenna is connected properly. Try increasing Contrast and Brightness. If colours are incorrect, adjust Color and Tone in the Picture menu. Also ensure the correct input source is selected.

Why is the remote control not working?

Aim the remote directly at the remote sensor on the TV. Remove any obstacles. Replace the batteries if they are dead. If still not working, try resetting the TV by unplugging it for 60 seconds.

How do I connect a USB drive to play media?

Insert a USB drive into the USB port. Press SOURCE and select Media. Use the remote to navigate to Photo, Cinema, or Music and select files to play. Supported formats include MP4, AVI, MKV, MP3, JPG, etc.

What are the supported media file formats?

The TV supports formats: .mpg, .avi, .ts, .mp4, .mkv, .vob, .mp3, .aac, .jpg, .wav, .m4a, .wmv.

USER MANUAL 40 732 PVR ECG

Modern ECG monitor displaying a pink abstract background with flowing pink and black streaks (no text or symbols visible)

40 LED 732 PVR/32 LED 731 PVR

LED TV

NÁVOD K OBSLUZE

CZ

LED TV

NÁVOD NA OBSLUHU

SK

LED TVs

INSTRUCTION MANUAL

GB

POPIS

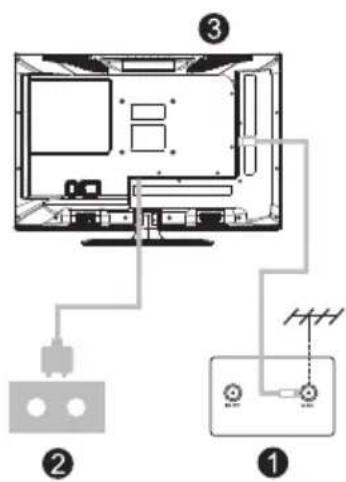

Pripojenie antény a napájania

1. Kábel antény pripojte k anténovému konektoru na zadnej strane televízora.
2. Vidlicu napájacieho kábla zapojte do elektrickej zásuvky.
3. Televízor zapnite.

Stlačte vypínač na televízore. Indikačná kontrolka sa rozsvieti zeleno. Ked' je TV v pohotovostnom režime (červený svit kontrolky), môžete televízor zapnút stlačením tlačidla na dial'kovom ovládači.

POPIS

TV INSTALLATION AND SETUP ....52

Instructions for assembling the stand....52

Positioning....52

Antenna and power connection....52

DESCRIPTION 53

TV and interface buttons....53

Installation diagram for external devices....55

TELEVISION CONTROLS....56

Picture menu....56

Audio menu....57

Application menu ....58

Setup Menu....60

SETUP menu....61

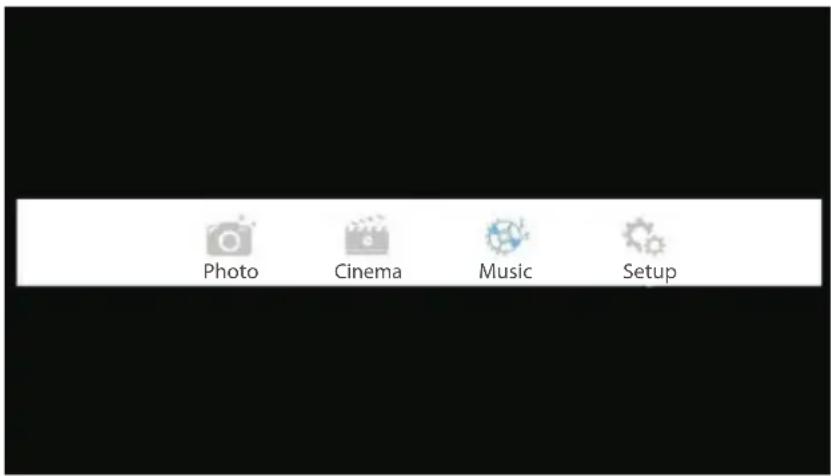

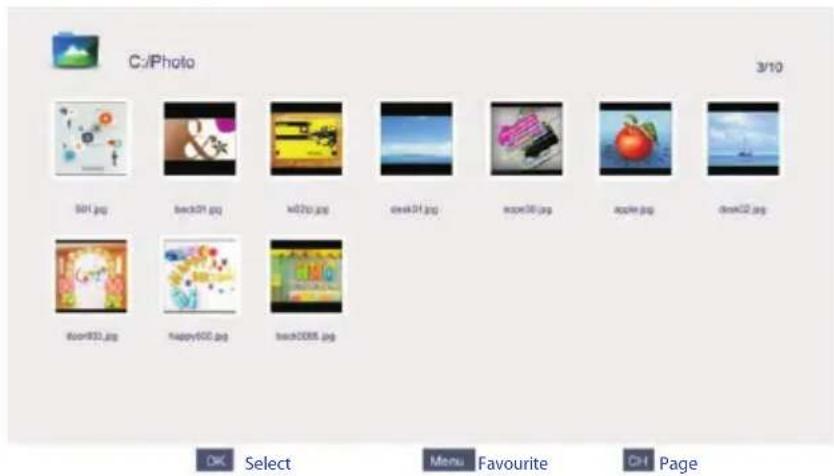

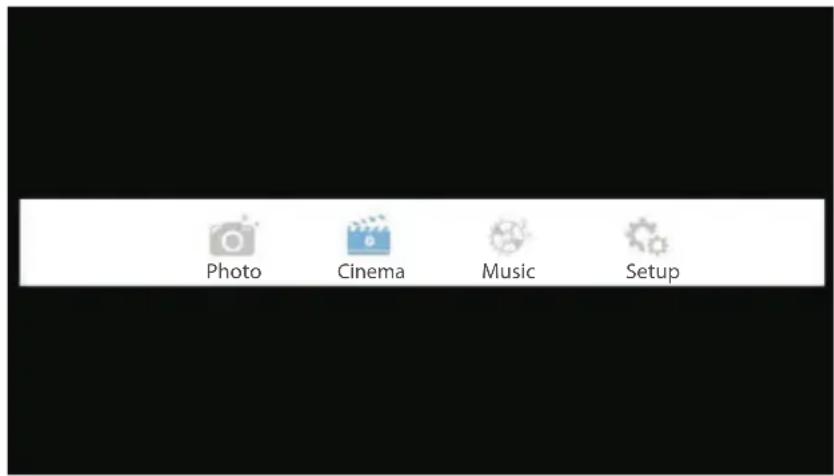

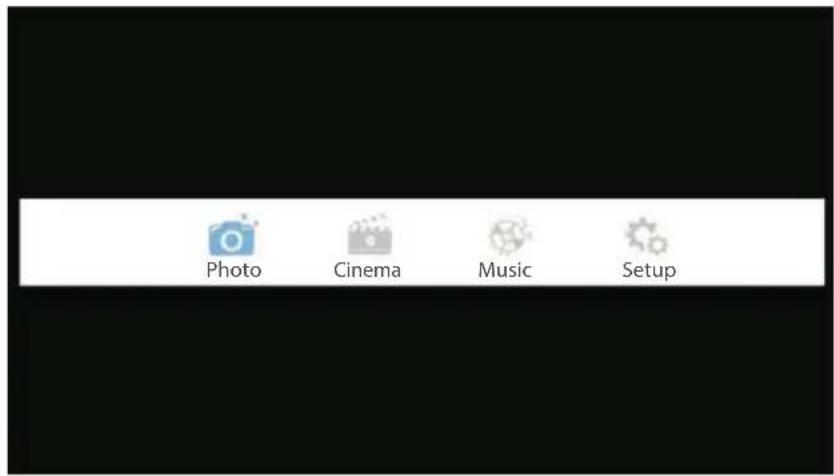

Multimedia controls....62

TROUBLESHOOTING 67

TECHNICAL SHEET 68

SAFETY INSTRUCTIONS

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damages caused during shipping, by incorrect use, voltage fl uctuation or the modification or adjustment of any part of the appliance.

To protect against a risk of fi re or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

ATTENTION

RISK OF ELECTRIC SHOCK, DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT OPEN THE COVER OR BACK PANEL OF THE DEVICE. THERE ARE NO COMPONENTS INSIDE THAT THE USER COULD REPAIR HIMSELF. ALWAYS REFER TO TRAINED SERVICE EMPLOYEES.

A lightning arrow symbol inside an isosceles triangle shall warn the user about uninsulated "dangerous voltage" inside the device, which can be high enough to cause injury by electric current.

An exclamation point inside an isosceles triangle shall inform the user about the abundant amount of important instructions for operating the device and its maintenance (or service) that can be found in the included manual.

1. Read all of the instructions carefully.
2. Keep the instructions for future use.
3. Pay attention to warnings found in the manual.
4. Follow all instructions.
5. Do not use the device close to water.
6. Clean only with dry cloth.
7. Do not block exhaust vents. Install the device according to the manufacturer's instructions.
8. Do not install near heating sources, such as radiators, heating units, stoves, or other appliances (including amplifiers) producing heat.
9. Do not bypass the safety function of a grounded outlet. The power cord plug has two pins and one ground contact, ensuring your safety. If your socket does not match the power cord of this TV, ask an electrician to replace the old socket.
10. Protect the power cord, do not step on it, prevent against pinching the cord, particularly near the plug and the area where the cord exits the device.
11. Use only accessories and optional accessories recommended by the manufacturer.
12. Disconnect the power cord from the socket during thunderstorms or in case you do not plan to use the device for a long period of time.
13. Refer to qualified service workers for all necessary repairs. The device requires service if it is damaged in any way. For example, if the power cord or plug is damaged, liquid gets inside the device or a the device is penetrated by a foreign object, is exposes to rain or moisture, falls or does not function as usual.
14. The socket that the TV is connected to is used to disconnect the device from the power network and must be easy to access at all times.

15. Ventilation holes shall not be covered by objects such as newspapers, tablecloths, curtains etc., because this prevents the necessary ventilation of the device.

16. Do not place any sources of open fire on the device, for example burning candles.

17. Respect the ecological disposal of batteries.
18. The device is designed for operation in mild climates.
19. Prevent water dripping on the device and getting into the device. Do not place any objects filled with liquid on the device, e.g. a vase with flowers.
20. Electric discharge can lead to failing device functions. Functions can be manually restored by turning the device off and on again.

WARNING:

Do not expose the device to rain or moisture, this reduces the risk of fire or electric shock.

GB

WARNING:

Protect the batteries against exposure to high temperatures, e.g. direct sunlight. Do not throw batteries into a fi re.

This symbol indicates the device is classified as a class II device, with double insulation between dangerous voltage and user access parts. Only use identical spare parts when performing service work.

Warning

This television receiver uses high voltage for operation. Do not remove the back cover of the device. Have all service operations carried out by qualified workers.

Attention

Make sure the power cord does not get caught under the TV.

Warning

Do not expose the device to rain or moisture, this reduces the risk of fire or electric shock.

Attention

Do not lean against the TV, tilt or push the device. Pay close attention to the presence of children. A falling device could cause serious injury.

Warning

Prevent foreign objects entering the ventilation holes of the device. Protect the TV against liquid spills.

Attention

Do not install the TV on unstable carts, stands, shelves or tables. A fall could damage the device or cause injury.

Attention

Do not cover the ventilation holes on the back cover of the device. Sufficient ventilation is necessary for the proper functioning of electrical components.

Attention

Minimum spacing distances must be respected if the TV is installed in the entertainment centre compartment or other enclosed area. Overheating can shorten the service life of the device and can also be dangerous.

Attention

If you do not plan to use the device for a longer period of time, we recommend disconnecting the power cord from the socket.

INTRODUCTION

Thank you for purchasing this television product. In order to use this device to its full potential from the very start, read this manual carefully and keep handy for future use.

ATTENTION

Do not tamper with any internal device components and do not perform any adjustments that are not defined in this manual. LED TVs use high voltage. When cleaning dust or drops off the display or device case, you should first unplug the power cord from the socket and then wipe the device with a dry towel. To prevent damaging the TV, disconnect the power cord and antenna during a thunderstorm. Refer to a qualified service centre for all necessary repairs.

TV INSTALLATION AND SETUP

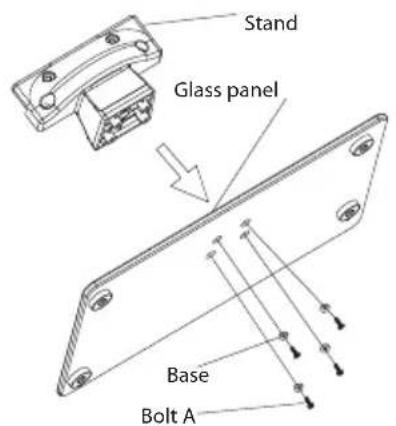

Instructions for assembling the stand

1. Install the stand into the glass base using 4 bolts (A) and 4 washers.

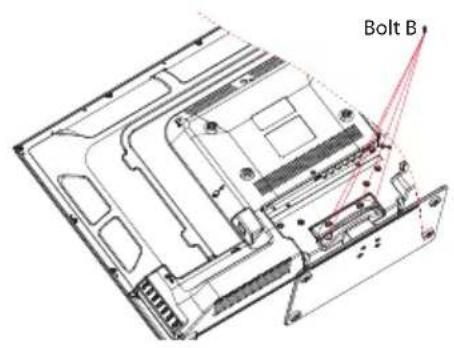

2. Place the stand with base carefully on the TV and tighten firmly using 4 bolts (B).

Positioning

• Place the unit within the room so that the display is not exposed to direct sunlight.
• Complete darkness or reflections on the screen can cause eye fatigue. Soft indirect light is recommended for comfortable viewing.
• Leave enough space between the device and wall to allow sufficient air circulation.
• Stay away from excessively warm areas to prevent damaging the case of the device or the premature ageing of components.
• Do not cover ventilation holes.

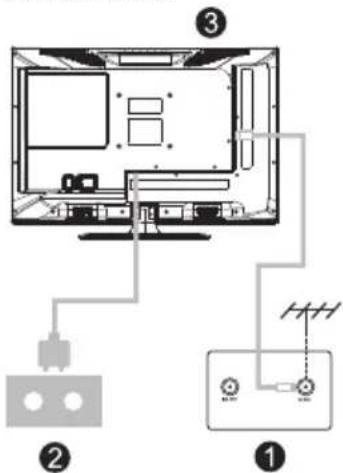

Antenna and power connection

1. Connect the antenna cable to the antenna connector on the back side of the TV.
2. Plug the power cord into the electric socket.
3. Switch the TV on.
   Press the On/Off switch on the TV. The indicator will turn green. When the TV is in standby mode (red indicator), the TV can be turned on by pressing a button on the remote controller.

DESCRIPTION

TV and interface buttons

Buttons on the TV

Note: The following description only represents a functional diagram. The actual position and layout can differ for various models.

VOL+

VOL-

CH+

CH-

MENU

SOURCE

Power On/Off

SOURCE : External signal source

MENU : Displays the main menu and confi rms selected items

CH+/- : Channel selection

VOL +/- : Volume control

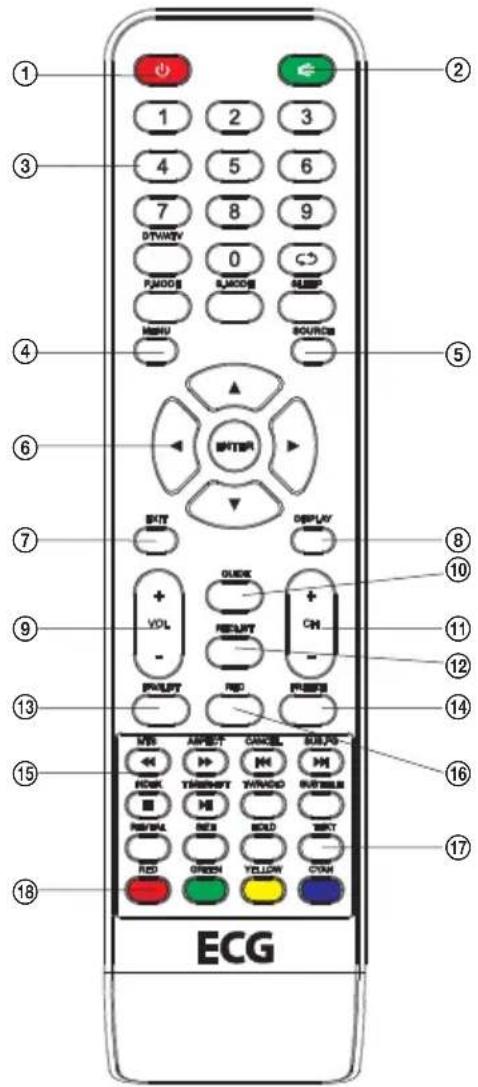

Buttons on the remote controller

1. ⏻: Turn the TV on or off into standby mode.

2. ☐: Audio on/off toggle.

3. NUMERICAL BUTTONS: Direct channel entry.

4. MENU: Display main menu on screen.

5. SOURCE: Press to display the available sources of video and their selection.

6. ARROWS: Menu controls. / ENTER: Confirm selection.

7. EXIT: Return to previous menu or leave menu.

8. DISPLAY: Display information

9. VOL +/-: Volume control.

10. GUIDE: Displays information about the current program and programs that follow (in DTV mode).

11. CH-/CH+: Switch to previous or next channel.

12. RECLIST: List of recordings

13. FAV/LIST: Access to the list of favourite channels.

14. FREEZE: Freezes the display on the screen.

15. USB speaker control button.

16. REC: Press to start recording the current TV program (in DTV mode).

17. TEXT: Open teletext.

18. Colour buttons: Controlling the function indicated on the screen

Interface

Note: The following table provides an overview of various interfaces. The actual position, type, layout and number of interfaces can differ for various models.

	AV inExternal video and audio signal In (left and right channel).
	CI slotThis slot supports cards for viewing paid TV channels.
	Y Pb Pr InComposite video signal connection from DVD/VCR.*
	HDMI InDigital signal input via HDMI connector.
	ANT 75Antenna In connection (75/VHF/UHF).
	VGA InAnalog video from PC In.
	PC audio InAudio signal from PC with VGA video signal connection.
	Headphone jackSound is automatically disabled from the TV speakers when headphones are connected.
	USB INConnecting a USB device and playing media fi les or recording programs to USB.
	SCART InComposite and RGB signal input supported as a standard.(Some models are not equipped with this interface)
	COAXIALSupports the connection of an SPDIF receiver.

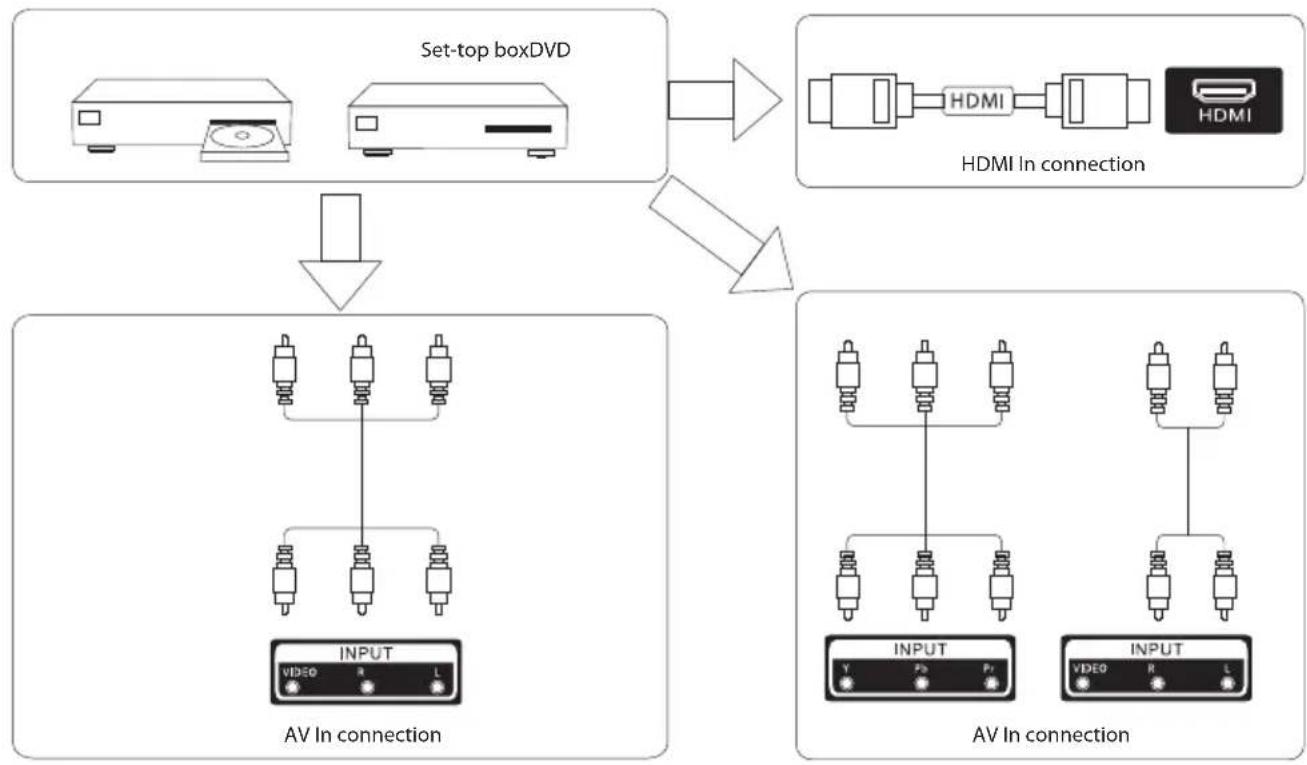

Installation diagram for external devices

GB

TELEVISION CONTROLS

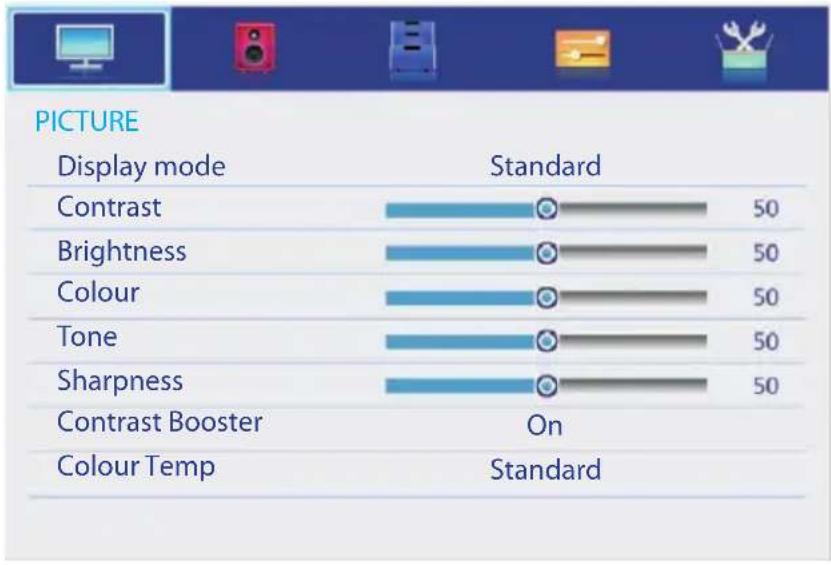

Picture menu

The menu image is for illustration only, the actual user interface may differ.

Press TV MENU to display the main menu.

Press ▼/▲ to select Picture from the main menu and press ENTER to enter the menu.

GB

1. Select the option you wish to configure in the "Picture" menu via ▼/▲ and press ENTER or ▶ to enter the menu.
2. Press ◀/▶ to set or press ▼/▲ to select. Press ENTER to enter the sub-menu.
3. When you have finished with the configuration, press MENU to save the changes and return to the previous menu. Press EXIT to exit the entire menu.

Picture Mode

Press ▼/▲ to select Picture mode, press ENTER to enter the sub-menu and press ◀/▶ to select the desired mode.

Brightness, contrast, sharpness and colour representation can only be adjusted in the user picture mode.

Tip: Press P.MODE on the remote controller to directly set the screen mode.

Contrast

Press ▼/▲ to select Contrast, press ENTER and set via ◀/▶. Press MENU to return to the previous menu.

Brightness

Press ▼/▲ to select Brightness, press ENTER and set via ◀/▶. Press MENU to return to the previous menu.

Colour

Press ▼/▲ to select Colour, press 📋 and set the colour saturation via ◀/▶. Press MENU to return to the previous menu.

Tone

Press ▼/▲ to select Tone, press ENTER and set via ◀/▶. Press MENU to return to the previous menu.

Sharpness

Press ▼/▲ to select Sharpness, press 📋 and set via ◀/▶. Press MENU to return to the previous menu.

Contrast boost

Press ▼/▲ to select Contrast booster, press ENTER and select On or Off via ◀/▶. Press MENU to return to the previous menu.

Colour Temp

Press ▼/▲ to select Colour temp, press 📋 and select Standard, Cold or Warm via ◀/▶.

Noise reduction in picture – DNR

Press ▼/▲ to select DNR, press ENTER and select High, Medium, Low or Off via ◀/▶.

Restoring default settings

Press ▼/▲ to select Restore factory settings, press 📋 and select OK to reset to factory settings.

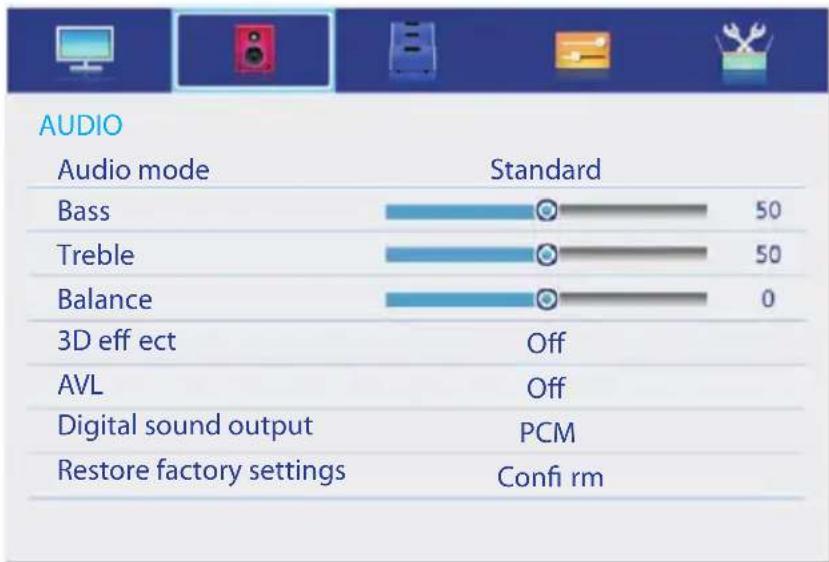

Audio menu

The menu image is for illustration only, the actual user interface may differ.

Press MENU to display the main menu.

Press ▼/▲ to select Sound from the main menu and press ENTER or ▶ to enter the menu.

1. Select the option you wish to configure in the "Sound" menu via ▼/▲ and press to enter the menu.

2. Press ◀/▶ to set or press ▼/▲ to select. Press ENTER to enter the sub-menu.

3. When you have finished with the configuration, press MENU to save the changes and return to the previous menu. Press EXIT to exit the entire menu.

Audio mode

Press ▼/▲ to select Sound mode, press ENTER to enter the sub-menu and press ◀/▶ to select the desired mode. Bass, treble and balance can only be adjusted in the user sound mode.

Tip: Press S.MODE on the remote controller to directly set the screen mode.

Bass

Press ▼/▲ to select Bass, press 📋 or ▶ and set via ◀/▶. Bass can only be adjusted in user mode. Press MENU to return to the previous menu.

Treble

Press ▼/▲ to select Treble, press 📋 and set via ◀/▶. Treble can only be adjusted in user mode. Press MENU to return to the previous menu.

Balance

Press ▼/▲ to select Balance, press ENTER and set via ◀/▶. Press MENU to return to the previous menu.

3D eff ect

Press ▼/▲ to select 3D effect, press ENTER and select On or Off via ◀/▶.

AVL

GB

Press ▼/▲ to select AVL, press 📋 and choose ON or Off via ◀/▶.

Digital sound output

Press ▼/▲ to select Digital sound output, press ENTER and set via ◀/▶. Then press ENTER or ▶ to enter the menu, set via ◀/▶, and press MENU to return to the previous menu.

Restoring default settings

Press ▼/▲ to select Restore factory settings, press 📂 and select OK to reset to factory settings.

Application menu

The menu image is for illustration only, the actual user interface may differ.

Press MENU to display the main menu.

Press ▼/▲ to select Application from the main menu and press ENTER or ▶ to enter the menu.

APPLICATIONS
Installation	Confi rm
Channel options Confi rm
Country	Czech
DTV type Terrestrial
Auto tuning Confi rm
ATV manual tuning Confi rm
DTV manual tuning Confi rm

1. Select the option you wish to configure in the "Application" menu via ▼/▲ and press ENTER to enter the menu.
2. Press ◀/▶ to select, press ENTER to enter the sub-menu.
3. When you have finished with the configuration, press MENU to save the changes and return to the previous menu. Press EXIT to exit the entire menu.

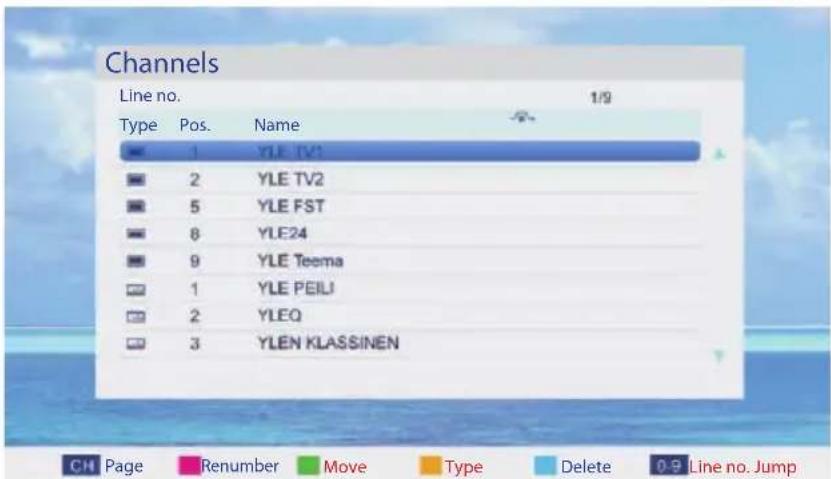

Installation

Use ▼/▲ to select a channel and press ENTER to begin watching the channel. The following menu will appear:

GB

Button description:

Button CH: Press CH+ or CH- to change the page.

Red button: This button is used to assign a different number to the channel.

Green button: This button is used to move the channel.

Yellow button: This button is used to change the channel classification.

Blue button: This button is used to delete the selected channel.

Buttons 0-9: These buttons are used to jump directly to the desired channel (row).

Channel options

Use ▼/▲ to select a channel from the channel menu and press 📋 to begin watching the channel. The following menu will appear:

Button description:

Button CH: Press CH+ or CH- to change the page.

Red button: This button is used to set your favourite channels.

Green button: This button is used to lock the channel.

Yellow button: This button is used to activate channel jumping. Press the yellow button again to deactivate channel jumping.

Country

Press ▼/▲ to select Country and choose your region via ◀/▶.

DTV Type

Press ▼/▲ to select DTV Type and select the desired digital TV type via ◀/▶ (available options include Cable and Terrestrial).

Auto tuning

Press ▼/▲ to select Auto-tuning and press ENTER to enter auto-tuning mode. If the system lock is enabled, enter your PIN code to unlock the system.) Select the auto-search page and press ENTER to begin searching stations.

ATV manual tuning

Press ▼/▲ to select ATV manual tuning and press 📄 to begin searching analog stations.

DTV manual tuning

Press ▼/▲ to select DTV manual tuning and press ENTER to begin searching digital stations.

Setup Menu

The menu image is for illustration only, the actual user interface may differ.

Press MENU to display the main menu.

Press ▼/▲ to select Setup from the main menu and press ENTER or ▶ to enter the menu.

SETUPLanguage menu Czech
Teletext language Czech
Keylock	Off
PC setup Confi rm
PIN setup Confi rm
Parent lock Confi rm
Auto Power Down 4 hours

1. Select the option you wish to configure in the "Setup" menu via ▼/▲ and press to enter the menu.
2. Press ◀/▶ to set or press ▼/▲ to select.
3. When you have finished with the configuration, press MENU to save the changes and return to the previous menu. Press EXIT to exit the entire menu.

Language menu

Press ▼/▲ to select Language menu, press ENTER or ▶ to enter the sub-menu, select via ▼/▲ and confirm by pressing OFF.

Teletext language

Press ▼/▲ to select Teletext language, press ENTER or ▶ to enter the sub-menu, select via ▼/▲ and confirm by pressing OR.

Keylock

Press ▼/▲ to select Keylock, press 📋 and select On or Off via ◀/▶.

PC Setup

Press ▼/▲ to select PC setup, press 📋 to enter the sub-menu (if PC signal is connected).

Password setup (PIN)

Press ▼/▲ to select PIN setup, press ENTER to enter the sub-menu, where you can set your password.

Parental control

Press ▼/▲ to select Parent lock, press ENTER or ▶ to enter the sub-menu. Then press ▼/▲ to select the age classification (4 to 17 or "None") and confirm by pressing ENTER or ▶.

Password change (PIN)

GB

Press ▼/▲ to select PIN Change and press ENTER. The menu for changing the PIN code will appear:

Enter your old password into the "Old password" field (if you enter an incorrect password, you will not be able to change the password).

Enter your new password into the "New password" fi eld.

Re-enter your new password into the "Confirm new password" field. If the passwords are identical, you will receive a notice that confirms the password has been changed, otherwise you will be informed that the passwords do not match.

Auto Power Down

Press ▼/▲ to select Auto Power Down and use the keys to select Off, 1 hour, 2 hours, 3 hours or 4 hours.

SETUP menu

The menu image is for illustration only, the actual user interface may differ.

Press MENU to display the main menu.

Press ▼/▲ to select SETUP from the main menu and press ENTER to enter the menu.

SETUP
OSD expiration Off
Cinema	Super
Blue Screen On
Off timer Off
Location	House
Quick setup Confi rm
Channel detail Confi rm
Restore TV	Confi rm

Live

1. Select the option you wish to configure in the "Setup" menu via ▼/▲ and press ENTER or ▶ to enter the menu.

2. Press ◀/▶ to set or press ▼/▲ to select.

3. When you have finished with the configuration, press MENU to save the changes and return to the previous menu. Press EXIT to exit the entire menu.

OSD expiration

Press ▼/▲ to select OSD expiration and choose an option via ◀/▶ (available durations for displaying the menu: 10s, 20s, 30s, 40s, 50s, 60s and Off). Confirm by pressing 📋.

Cinema

Press ▼/▲ to select Cinema and choose a mode via ◀/▶ (available modes: Auto, 4:3, 16:9 and Super Live). Confirm by pressing 📋.

Blue Screen

Press ▼/▲ to select Blue screen, press and choose ON or Off via ◀/▶. Confirm by pressing ENTER.

GB

Off timer

Press ▼/▲ to select Off timer and choose an option via ◀/▶ (available time intervals: 00:15, 00:30, 01:00, 01:30, 02:00 and Off). Confirm by pressing.

Installing the device

Press ▼/▲ to select Location and press ◀/▶ to select "Home" or "Store". Then confirm by pressing ENTER.

Quick setup

Press ▼/▲ to select Quick setup and press ENTER to enter the sub-menu (if a password is required, enter your PIN), where you can quickly perform basic TV setup.

Channel detail

Press ▼/▲ to select Channel detail.

Restore TV

Press ▼/▲ to select Restore TV and press ENTER to enter the sub-menu (if a password is required, enter your PIN), where you can quickly perform basic TV setup.

Shopping Mode

Press ▼/▲ to select Shopping mode.

Multimedia controls

The menu image is for illustration only, the actual user interface may differ.

Note: Before using the MEDIA menu, connect a USB drive or memory card to the TV and press SOURCE to switch the signal source to Media.

Select the MEDIA signal source in the menu via ▼/▲ and press ENTER or ▶ to enter the menu.

You can also enter media playback mode by pressing MEDIA on the remote controller.

1. Select the option you wish to configure in the "Media" menu via ▼/▲ and press ENTER or ▶ to enter the menu.

2. Press ◀/▶ to set or press ▼/▲ to select.

3. When you have finished with the configuration, press MENU to save the changes and return to the previous menu. Press EXIT to exit the entire menu.

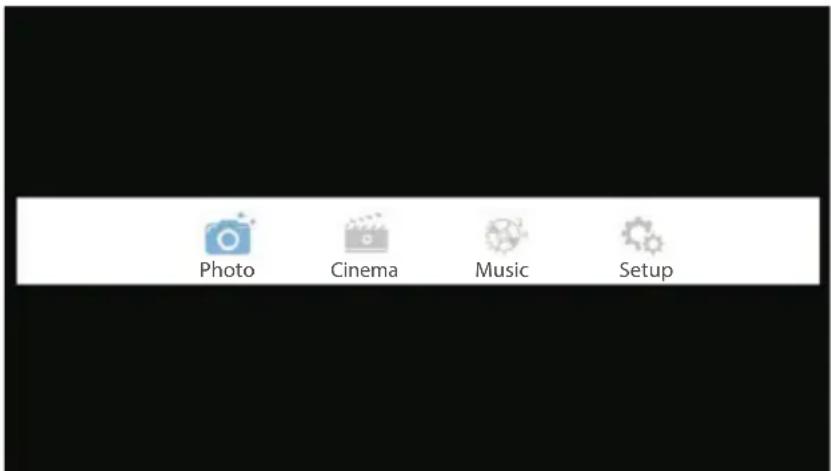

The menu image is for illustration only, the actual user interface may differ.

Press ◀/▶ to select Photo and press ENTER to enter the sub-menu.

Press EXIT to return to the previous menu.

GB

Press ▼/▲ to select a photo, press 📋 or ▶II to activate the slide show.

Press INFO to display information about the photo currently displayed, press ▶II to start or stop the slide show. The current status is displayed in the top right corner.

Use the ▼/▲ or ◀/▶ arrow keys to rotate the photo.

Cinema

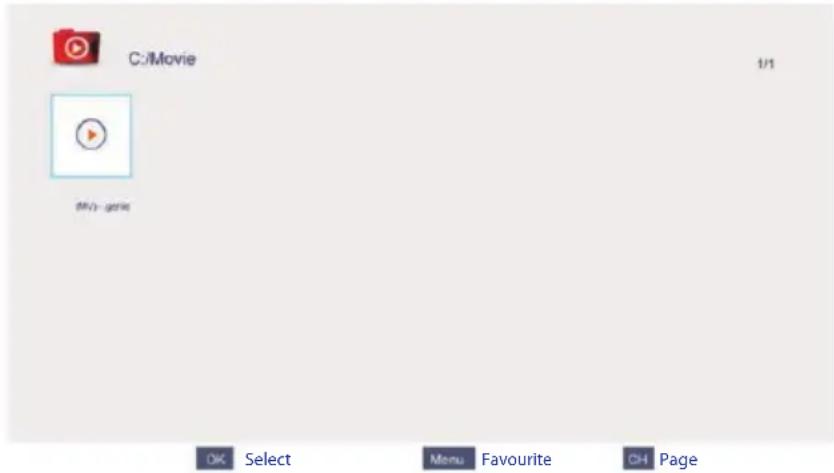

The menu image is for illustration only, the actual user interface may differ.

Press ◀/▶ to select Cinema and press ENTER to enter the sub-menu.

Press EXIT to return to the previous menu.

GB

Press ▼/▲ to select the directory, which you would like to display.

Press ENTER to enter the selected folder.

Press 📄 or ▶ to start playback.

Press ■ or EXIT to pause playback.

Press ◀ to return to the previous page.

Information about the file being played will appear for the first several seconds. Information can be displayed by pressing INFO.

Music

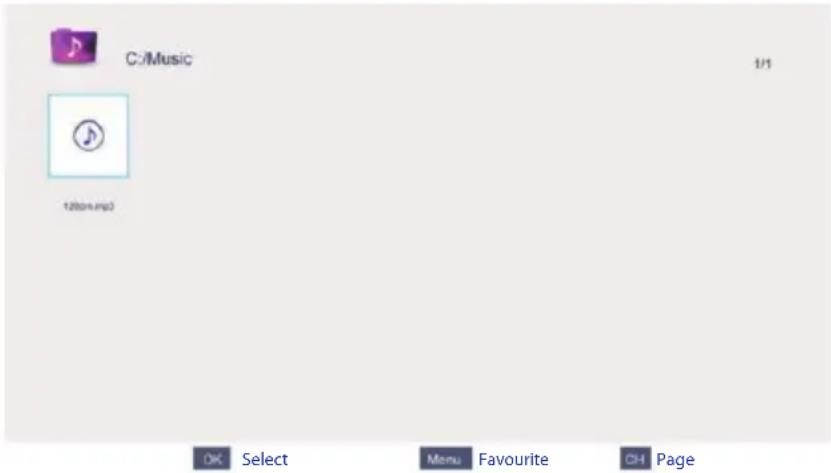

The menu image is for illustration only, the actual user interface may differ.

Press ◀/▶ to select Music and press ENTER to enter the sub-menu.

Press EXIT to return to the previous menu.

GB

Press ▼/▲ to select the music you would like to listen to, and press 📋 or ▶ or ▶ to start playback. Press ◀ to return to the previous menu.

Information about the music being played will appear in the left side of the menu.

Setup

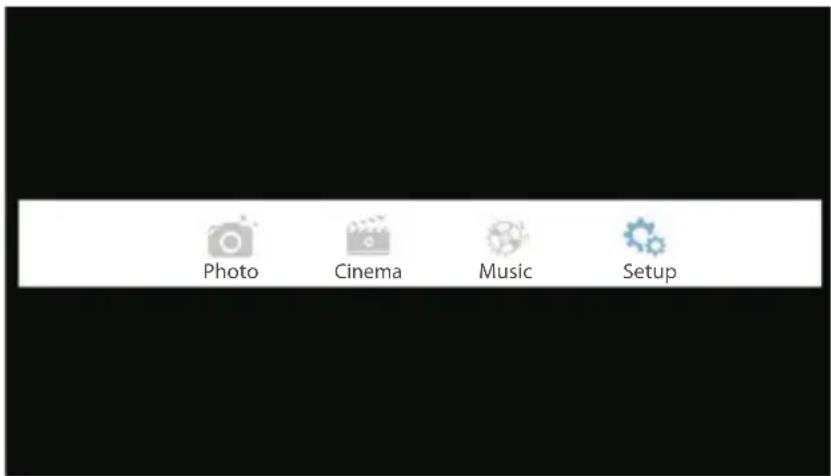

The menu image is for illustration only, the actual user interface may differ.

Press ◀/▶ to select Setup and press ENTER to enter the sub-menu.

Press EXIT to return to the previous menu.

GB

Press ▼/▲ to select an item and use ◀/▶ to select On or Off.

Setup

Auto start Off

Select disk DISK

0

TROUBLESHOOTING

Problem Solution
No power • Make sure the power cord plug	is plugged into the electric socket. Unplug the TV from the power supply, wait about 60 seconds and then plug the TV in again and power on.
Bad signal reception • High buildings or hills	is can lead to analog signal reflection and shadows. Changing the antenna orientation can improve picture quality.• If you use an inside antenna, reception can be worse under certain circumstances. Try changing the antenna positioning to improve reception. If the picture does not improve, use an outdoor antenna.
No image • Make sure the antenna is correctly connected to the TV.• Try changing to a different channel to verify the issue does not lie outside of your receiver.
The picture is fine, but no sound • Increase the volume.• Make sure the sound on the TV is not muted. Press the mute button again to restore the previous volume.
The sound is fine, but no picture or incorrect colours	• Increase the contrast and brightness.
Snowy picture, noise or picture freezes • Make sure the antenna connection is correct.
Interfering horizontal stripes through the picture	• Interference caused by electric appliances, such as hair dryers or vacuum cleaners. Switch appliances used near the TV off .
The TV does not react to remote controller operations	• Direct the remote controller towards the remote control sensor on the TV.• Remove any obstacles between the remote controller and the TV sensor.• Make sure the batteries in the remote controller are not dead.
No picture in PC mode • Make sure the video cable connection to the VGA connector is intact.• Makes sure the format of the picture from the PC is compatible with this TV.
Vertical vibration (in PC mode) • Adjust the display frequency for the picture from the PC.
The picture in PC mode is too light or dark	• Adjust the brightness and contrast.

If the instructions above do not help eliminate the issue, unplug the TV from the power supply for about 60 seconds and then plug the TV in again. Should the issue persist, refer to a qualified repair shop. Do not attempt to repair the appliance yourself.

TECHNICAL SHEET

MODEL 40LED 732 PVR 32LED 731 PVR
Screen
Panel size 40" (100 cm) 32" (81 cm)
Aspect ratio 16:9 16:9
Resolution 1920 × 1080 1366 × 768
Dynamic contrast 1 000 000 : 1 1 000 000 : 1
Tuner
Digital tuner HD DVB-T MPEG2/4 HD DVB-T MPEG2/4
Electronic Programme Guide EPG yes yes
PVR recording to USB yes yes
Timeshift	yes yes
Channel list	yes yes
Video system	PAL/NTSC/SECAM	PAL/NTSC/SECAM
Progressive Scan	yes yes
Comb filter	3D	3D
Noise reduction	yes yes
OSD menu	yes yes
Sound
Sound output	2× 10 W	2× 10 W
Pitch correction	stereo balance	stereo balance
Stereo sound	NICAM/A2	NICAM/A2
Connectivity
USB	1	1
Supported formats	.mpg\.avi\.ts\.mp4\.mkv\.ts\.vob\.mp3\.aac\.jpg\.mp3\.wav\.m4a\.aac\.wmv	.mpg\.avi\.ts\.mp4\.mkv\.ts\.vob\.mp3\.aac\.jpg\.mp3\.wav\.m4a\.aac\.wmv
HDMI	3	3
SCART	1	1
Component YPbPr	1	1
VGA (D-Sub5 pin)	1	1
PC audio in	1	1
Headphone jack	1	1
RF IN	1	1
General specifications
Parent lock yes yes
Power
Maximum input power 75 W 56 W
Standby power input ≤ 0.5 W ≤ 0.5 W
Power input OFF --
Energy class A B
Main switch no no
Dimensions and weight
Device dimensions with stand (w × h × d) (mm) 909.1 × 561.1 × 210 732.4 × 486 × 200
Device dimensions without stand (w × h × d) (mm)	909.1 × 516.1 × 70	732.4 × 442 × 73.2
Weight with stand	10	6.1 kg
Weight without stand 9.3	5.4 kg
Weight of package	11.5	7.43
Wall mount VESA 200 × 200	VESA 200 × 100

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard – deliver to scrapyard. Packing foil, PE bags, plastic elements – throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

08/05

The instruction manual is available at website www.ecg.cz. Changes in text and technical parameters reserved.

ENERG

енергия · EVERУЕІА

ECG

40 LED 732 PVR

ENERGIA · ЕНЕРГИЯ ENEРГЕИА · ENERGIJA ENERGY · ENERGIE ENERGI

58 Watt

84 kWh/annum

101.6

cm

40

inch

2010/1062 - 2014

ENERG

енергия · everγεια

ECG

32 LED 731 PVR

B

ENERGIA · ЕНЕРГИЯ ENEРГЕІА · ENERGIJA ENERGY · ENERGIE ENERGI

69 kWh/annum

47 Watt

81 cm

32 inch

2010/1062 - 2014

www.ecg.cz
