ZMW1000W - Microwaves Zelmer - Free user manual and instructions
Find the device manual for free ZMW1000W Zelmer in PDF.
| Product Type | Solo Microwave |
| Brand | Zelmer |
| Model | ZMW1000W |
| Capacity | 20 liters |
| Microwave Power | 700 W |
| Control Type | Mechanical knobs |
| Dimensions (W x D x H) | 45.5 x 33.0 x 26.0 cm |
| Weight | 10.5 kg |
| Power Supply | 230 V, 50 Hz, 1150 W |
| Turntable Diameter | 24.5 cm |
| Functions | Defrost, timer, quick cook |
| Door Type | Side opening with handle |
| Safety Features | Child lock, door interlock |
| Cleaning | Wipe interior with damp cloth; avoid abrasive cleaners |
| Repairability | Spare parts available; consult manual for authorized service |
| Warranty | 2 years |
| Energy Consumption | Standby: 1 W, Operating: 1150 W |
Frequently Asked Questions - ZMW1000W Zelmer
User questions about ZMW1000W Zelmer
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Microwaves in PDF format for free! Find your manual ZMW1000W - Zelmer and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ZMW1000W by Zelmer.
USER MANUAL ZMW1000W Zelmer
KUCHENKA MIKROFALOWA 2–5
CZF NÁVOD K POUŽITÍ
MIKROVLNNÁ TROUBA 6–9
SKI: NÁVOD NA OBSLUHU
MIKROVLNNÁ RÚRA 10–13
HUT HASZNÁLATI UTASÍTÁS
MIKROHULLÁMÚ SÜTŐ 14–17
RO INSTRUCTIUNI DE UTILIZARE
CUPTOR CU MICROUNDE 18-21
Włączanie kuchenki
Ovládací panel
Kezelőpanel
Контролен панел
Congratulations on your choice of our appliance and welcome among the users of Zelmer products.
In order to achieve best possible results we recommend using exclusively original Zelmer accessories. They have been specially designed for this product.
Please read this user manual carefully. Pay special attention to important safety instructions. Keep this user manual for future reference.
Write down the SERIAL NUMBER found on your oven in the box below and keep this information for future reference.
SERIAL NUMBER:
Table of contents
Precautions to avoid possible exposure to microwave energy 36
Important safety instructions....36
Installation 37
Grounding instructions....37
Radio interference 37
Cleaning, maintenance and operation....37
Technical data....38
Norm requirements....38
Microwave cooking – tips 38
Kitchen utensils – tips....38
Glass tray installation ....38
Before calling the service centre ....38

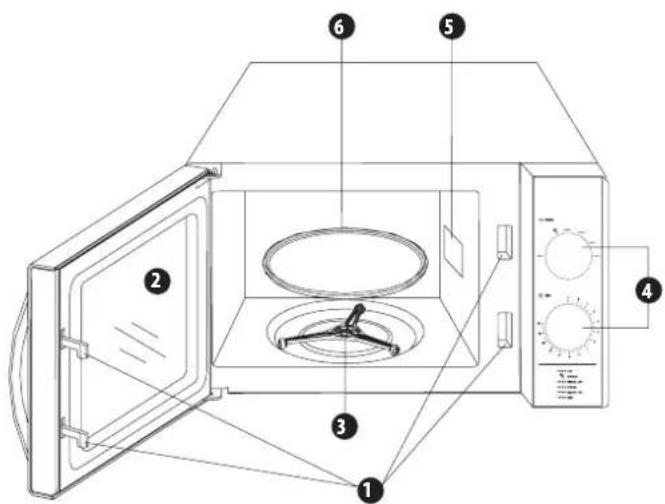

Microwave oven features....38

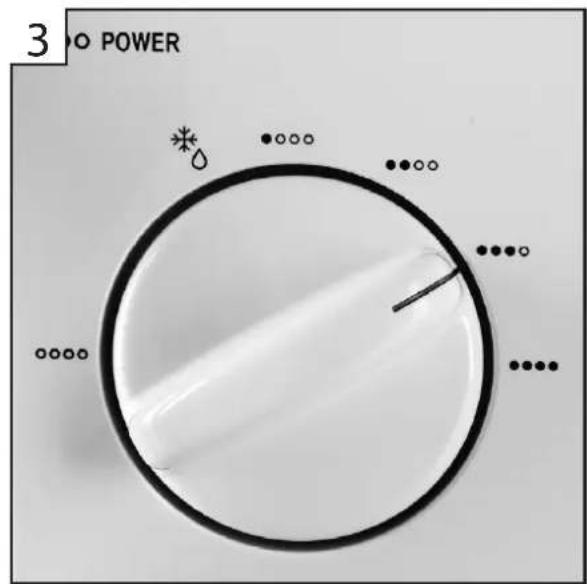

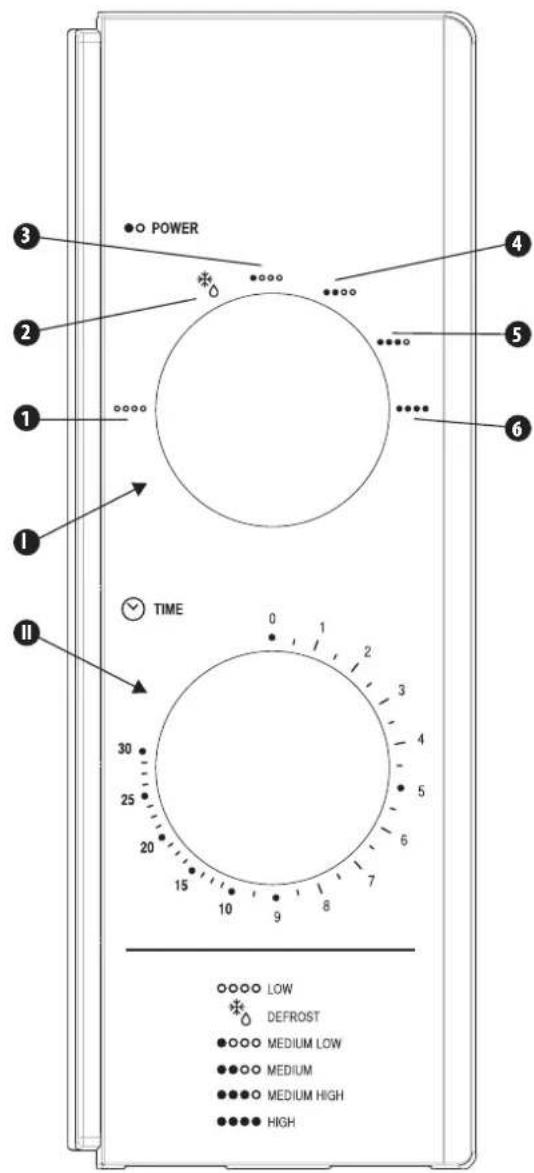

Control panel 39

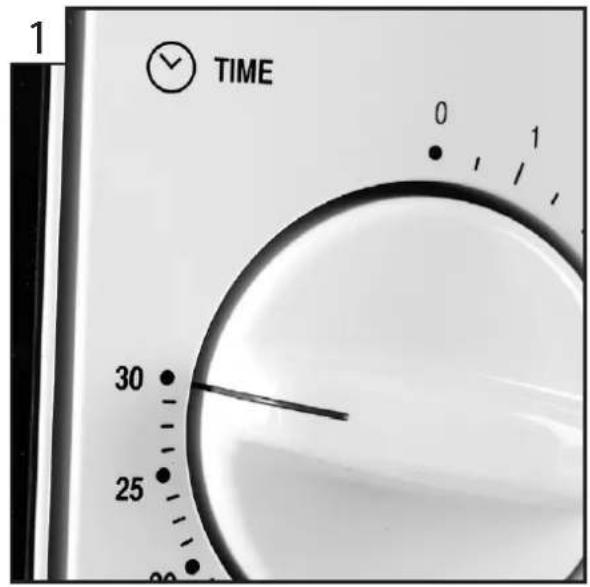

Switching on the oven 39
Microwave cooking....39

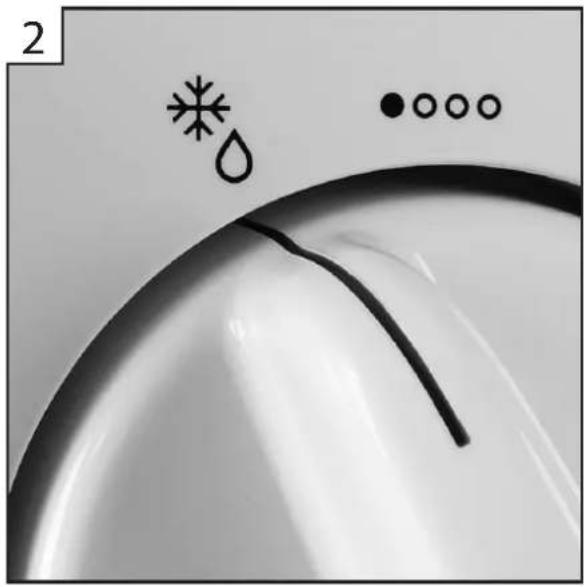

Defrosting 39
After operating....39
Ecology – Environmental protection ....39
IMPORTANT INSTRUCTIONS CONCERNING OPERATIONAL SAFETY - READ CAREFULLY AND RETAIN FOR FUTURE REFERENCE
Precautions to avoid possible exposure to microwave energy
① Do not attempt to operate the microwave oven with the door open since this can result in harmful exposure to microwave energy. It is strictly forbidden to break or tamper with the safety interlocks.
② Do not place any objects between the microwave oven front face and the door or allow soil or cleaner residue to accumulate on the sealing surfaces.
③ Do not operate the microwave oven if it is damaged. It is particularly important that the oven door close properly and there is no visible damage:
• hinges and latches (no cracks or loosening),
• door seals and sealing surfaces, or
- "warping".
④ The oven can be adjusted or repaired only by qualified service personnel.
Important safety instructions
When using electrical appliances, observe basic safety precautions. In order to reduce the risk of burns, electric shock, fire, injury or exposure to microwave energy, observe the following rules:
DANGER! / WARNING! Risk of injury
- Use this appliance only for its intended use as described in this manual. Do not use or heat corrosive chemicals in the device. Oven is not designed for industrial or laboratory use.
- The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
- Never operate the microwave oven if it has a damaged power cord or plug, or if it is not working properly or if it has been dropped or otherwise damaged.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
The appliance may only be repaired by qualified service personnel. Improper repair may result in a serious hazard to the user. In case of defects we suggest that you contact a ZELMER specialist service centre.
- WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
- WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.
- Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
- Do not fry foods in the oven. Hot oil may damage the oven parts or accessories and even cause skin burns.
- Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
- Kitchen utensils may become hot due to heat transmission from the heated food. Use appropriate handles.
- WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Keep the appliance and its cord out of reach of children less than 8 years.
- The door or the outer surface may get hot when the appliance is operating.
• The accessible surface may be hot during operation.
- Do not remove the mica cover inside the microwave oven cavity! It protects against radiation.
- Caution! Steam will escape, when opening lids or wrapping foil.
• Use gloves if you remove any heated food.
WARNING! Risk of property damage
The microwave oven is designed to be used as a standalone unit and it should not be placed in a cupboard.
Connect the microwave oven only to a 230 V alternating current mains socket equipped with a grounding prong.
The appliance shall be placed against a wall.
WARNING: Do not install oven over a range cooktop or other heat-producing appliance. if installed could be damaged and the warranty would be avoid.
The appliance must not be placed in a cabinet.
Do not operate the microwave oven when it is empty.
In order to reduce the risk of fire inside the microwave oven:
- when heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition,
- remove all wire twist-ties from paper or plastic containers/ bags before placing them in the microwave oven,
- if smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames,
- do not leave paper products, dishes and kitchen utensils or food inside the microwave oven when it is not in use.
The power cord should be kept away from heated surfaces and it must not obstruct any elements of the microwave oven.
The oven should be cleaned regularly and any food deposits removed.
Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
Do not use steam cleaner to clean the mwo.
This appliance is not intended to be operated by means of an external timer or separate remote-control system.
It is strictly forbidden to remove the foil located on the inner side of the door. This may cause damage to the appliance.
Please secure the turn table before you move the appliance to avoid damages.
Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.
Tips and information about the product and its use
- This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices and other working environments;
- farm houses;
- by clients in hotels, motels and other residential environments;
- bed and breakfast type environments.
The microwave oven is for household use only and not for commercial use.
The microwave oven is only used in freestanding.
Prick food covered with thick skin such as potatoes, whole marrows, apples and chestnuts before cooking.
Do not overcook food.
Only use utensils that are suitable for use in microwave ovens.
Do not use the microwave oven for storing any objects, such as bread, cakes, etc.
Installation
① Make sure all the packaging materials have been removed from the inside of the oven.
② Remove the protective film from the control panel and housing of the microwave oven.
Check for damage such as the curved or warped door, damaged door seals and sealing surfaces, broken or loosened hinges or latches, dents inside the microwave oven or on the door.
In case of any damage do not operate the appliance and contact qualified service personnel.
③ Place the microwave oven on an even and stable surface that is strong enough to support the oven and the heaviest foods you intend to place in it.
④ Do not expose the microwave oven to humidity. Do not place the microwave oven near flammable materials as well as above or close to heat-generating appliances.
⑤ The rear surface of appliance shall be placed against a wall. For the oven to work properly provide an appropriate airflow. Leave a clearance of 20 cm above the oven. Leave a clearance of 5 cm between the oven and the side walls and a clearance of 10 cm at the back of the oven. One side must be open. Do not cover or block the ventilation openings. Do not remove the legs.
⑥ Do not operate the microwave oven without the glass tray and the turntable ring assembly, both properly installed.
⑦ Check to make sure that the power cord is not damaged, not placed under the microwave oven or above any hot or sharp surface, and that it does not hang over the edge of a table or countertop.
⑧ Ensure an easy access to the mains socket so that it will be possible to easily unplug the appliance in case of emergency.
⑨ Do not use or store the microwave oven outdoors.
Grounding instructions
Connect the power cord plug to a mains socket equipped with a grounding prong. Connection to a socket without a grounding prong will pose the risk of electric shock. In case of short circuit, grounding reduces the risk of electric shock.
It is advisable to use the oven in a separate electrical circuit.
In case of using an extension cord:
① The extension cord must be a three-wire conductor with a plug and a socket both enabling earthed connection.
② Arrange the extension cord away from hot and sharp surfaces so that it cannot get accidentally pulled or caught.
Improper connection can result in the risk of electric shock.
In case of any doubts concerning the grounding or electrical mains connection instructions contact a qualified electrician or service centre employee.
Both the manufacturer and the seller do not accept any liability for injury or damage to the microwave oven resulting from failure to comply with the instructions for electrical mains connection.
Radio interference
Microwave oven operation may interference with radio, television or other communication equipment reception.
Interference can be reduced or eliminated in the following way:
Clean the door and sealing surfaces of the oven,
Reorient your radio or TV receiving antenna,
Move the microwave oven away from the receiver,
Place the microwave oven as far as possible from the receiver,
Plug in the microwave oven to a different mains socket so that the microwave oven and the receiver are on different mains circuits.
Cleaning, maintenance and operation
① Turn off and unplug the microwave oven before cleaning.
② Keep the inside of the microwave oven clean. If necessary, remove food deposits or spilled liquid from the oven walls with a damp cloth. Use a mild detergent to remove heavy soil. Do not use spray cleaners and other strong cleaning agents as they may stain, streak or tarnish the surface of the oven and door.
③ Clean the outside surface of the oven with a damp cloth.
In order to avoid damaging the components inside the oven make sure that water does not penetrate the inside of the oven through the ventilation openings.
④ Regularly wipe both sides of the oven door and window, door seals and neighbouring parts with a damp cloth to remove food deposits or spilled liquid.
Do not use abrasive cleaners.
When cleaning the door seals, recesses and adjacent parts, it is forbidden to use any substances that can damage the sealing and cause microwave leakage.
⑤ For cleaning the oven housing, do not use abrasive cleaners such as emulsions, cream cleaners, polishes, etc. They may remove the graphic information symbols such as scales, marks, warning signs, etc.
To clean the glass surface of the door do not use cleaners that contain abrasives, as they can scratch the surface and, consequently, lead to the formation of cracks.
⑥ Do not allow the control panel to moisten. To clean it use a soft, damp cloth. In order to avoid accidental starting of the oven clean the control panel with the door open.
⑦ When condensed water vapour begins to appear on the inside or outside of the door, wipe it with a soft cloth.
Condensation may occur when the microwave oven is operating under high humidity conditions. In such a case it is a normal situation.
⑧ From time to time, take out and clean the glass tray. Wash it in warm water with an addition of washing-up liquid or in a dishwasher.
⑨ Regularly clean the turntable ring and the bottom of the microwave oven to prevent noise. Clean the bottom surface with a mild detergent. Wash the turntable ring in water with an addition of washing-up liquid or in the dishwasher. When replacing the turntable ring make sure to position it properly.
⑩ In order to get rid of unpleasant odours inside the microwave oven, boil about 200 ml of water with lemon juice and lemon peel in a microwave-safe bowl for 5 minutes.
Wipe the inside of the microwave oven thoroughly by means of a dry, soft cloth.
⑪ When it is necessary to replace the inside light bulb, call a SERVICE CENTRE.
⑫ Regularly clean the microwave oven and remove food deposits.
Failure to follow the above instructions may lead to a degradation of the surface which may affect the service life of the appliance and lead to a dangerous situation.
Technical data
| Technical parameters of the appliance 230 V~50 Hz, 1200 W (Microwaves) |
| Rated output power (microwaves) 700 W |
| Frequency 2450 MHz |
| External dimensions (mm) H = 262; W = 452; D = 352 |
| Internal dimensions (mm) H = 198, W = 315; D = 297 |
| Oven capacity 20 liters |
| Turntable Diameter = 245 mm |
| Net weight About 10.8 kg |
* The above parameters are subject to change therefore the user should verify them with the information on the rating label. Any customer complaints regarding errors in these parameters shall not be considered.
Norm requirements
ZELMER microwave ovens comply with the requirements of applicable standards.
This device complies with Commission Regulation (EC) no. 1275/2008 on eco-design requirements.
The appliance meets the requirements of the following directives:
- Electrical equipment designed for use within specific voltage limits (LVD) - 2006/95/EC.
- Electromagnetic Compatibility (EMC) - 2004/108/EC.
The product is marked with CE symbol on the rating plate.
For CE marking declaration of conformity please visit the manufacturer's website at www.zelmer.com.
Microwave cooking – tips
① Carefully arrange the food. Place the thickest pieces next to the edges of the dish.
② Check the cooking time. Cook for the shortest time indicated and if necessary extend the cooking time. Heavily burned products may generate smoke or catch fire.
③ Cover the food while cooking. The cover shall prevent the food from "splashing out" and ensure even cooking.
④ During cooking turn products over in order to speed up the cooking process of such foods as chicken or hamburgers. Turn over large products such as roast meat at least once.
⑤ Halfway through the cooking time change the arrangement of food products such as meatballs. The products placed on the top should be moved to the bottom and those in the middle should be moved towards the edges of the dish.
Kitchen utensils – tips
Use utensils suitable for use in microwave ovens. A container made of transparent material is ideal for use in microwave ovens as the microwaves can easily penetrate through it in order to heat the food.
① Do not use metal utensils or dishes with metal trims – microwaves do not penetrate through metal.
② Before cooking in the microwave oven remove wrappings made of recycled paper, as they may contain metal particles which may cause sparking and/or fire.
③ We recommend using oval/ round dishes rather than square/ rectangular ones, as food in the corners of the dish gets burned more often.
④ When grilling, protect the exposed areas from getting burned by covering them with narrow strips of aluminium foil. Remember to avoid the excess of foil and maintain the distance of minimum 3 cm between the foil and the oven internal walls.
The list below will facilitate the choice of the right dishes and utensils.
| Kitchen utensils | Microwaves |
| Heat-resistant glass | Yes |
| Non-heat-resistant glass | No |
| Heat-resistant ceramic utensils | Yes |
| Microwave safe plastic dishes | Yes |
| Parchment paper | Yes |
| Metal tray | No |
| Metal gridiron | No |
| Aluminum foil and foil containers | No |
Utensil test:
① Fill a dish/ container with 1 cup of cold water (250 ml) and place it in the microwave oven.
② Cook at the maximum power for 1 minute.
③ When the set time is over, carefully feel the dish/ container. If it is warm, do not use it for microwave cooking.
Do not exceed 1-minute cooking time.
Glass tray installation
① Never place the glass tray upside down. The glass tray movement should not be restricted.
② During cooking, both the glass tray and turntable ring assembly must always be present in the microwave oven.
③ During cooking, all food and food containers should always be placed on the glass tray.
④ In case the glass tray is broken or damaged contact your nearest service centre.
Before calling the service centre
Normal situation:
①The operation of the microwave oven may cause interference with radio and TV reception. This interference is similar to interference caused by small electrical appliances such as a food processor, fan, vacuum cleaner, etc.
② When cooking at low microwave power the inside light of the microwave oven may become dull.
③ During cooking, water vapour gets out of the food. Most of the water vapour escapes through the ventilation openings. However, condensed water vapour may also appear on the cool parts of the oven (e.g. on the door).
④ If the glass tray makes noise during operation, check to make sure that the oven bottom and turntable ring assembly are both clean. Clean following the instructions given in the "CLEANING, MAINTENANCE AND OPERATION" section.
If the microwave oven does not work:
① Check to make sure that the oven is properly plugged in. If not, unplug the appliance, wait 10 seconds and plug it in again.
② Check to make sure that the fuse is not blown or the circuit breaker tripped. If the above protective devices function properly check the mains socket by plugging in another electrical appliance.
③ Check to make sure that the control panel is properly programmed and the timer set.
④ Check to make sure that the door is properly locked. If not, the microwave energy will not be supplied to the oven.
If after completing the above steps the oven still does not operate, contact the service centre. You should never attempt to adjust or repair the microwave oven on your own.
Microwave oven features
1 Safety interlock system – cuts off power if the door is opened during oven operation
2 Window
3 Turntable shaft
4 Control panel
5 Mica plate
6 Glass tray
Control panel
POWER knob
Is used to set the microwave program together with the power level (6 programs).
1 ○○○○ (Low power - 17%)
② (Defrostingr - 40%)
3 ●○○○ (Medium-low power level - 48%)
4 ●●○○ (Medium power - 66%)
5 ●●○ (Medium high power - 85%)
6 •••• (High power - 100%)
TIME knob
Is used to set the time for a given program. The maximum time of one operating cycle is 30 minutes.
Switching on the oven
Plug the appliance into an appropriate outlet.
Place the food in the microwave oven and close the door before programming.
Microwave cooking
There are 6 levels of microwave cooking which are to be selected according to a given dish.
In order to choose the right cooking power (see table below), turn the POWER knob clockwise and set it on the selected symbol.
| Description Copking power (level) | |
| ○○○○ 17% | |
| 40% | |
| ●○○○ 48% | |
| ●●○○ 66% | |
| ●●●○ 85% | |
| ●●●● 100% | |
Next, turn the ⏰ TIME ⏻ knob clockwise to set the desired time.
The maximum microwave cooking time of one operating cycle is 30 minutes.
The oven starts to operate immediately after setting the time.
Defrosting
This function allows defrosting frozen food.
To select defrosting turn the ● POWER ① knob setting it in position ② Next turn the TIME ⑪ knob clockwise to set the desired time or the appropriate weight.
The maximum defrosting time for one operating cycle is 30 minutes.
The oven starts to operate immediately after setting the time.
After operating
Each time when a given function ends, you will hear a beep, indicating that the oven finished operating.
To stop the oven during operation, open the door by pulling the handle. Closing the door once again will automatically start the oven according to the previously selected settings.
If the food is taken out from the oven before the set program time elapses ALWAYS TURN THE KNOB TO ZERO POSITION.
Operating the microwave oven without food inside may damage the appliance.
Ecology – Environmental protection
Each user can contribute to protect the environment. It is neither difficult nor expensive. In order to do so:
Return cardboard packages to recycling points.
Throw polyethylene (PE) bags into appropriate containers.
Return a worn out appliance to an appropriate collecting point as the components of the appliance may pose a threat to the environment.
Do not dispose the appliance with the municipal waste!
The manufacturer does not accept any liability for any damages resulting from unintended use or improper handling.
The manufacturer reserves his rights to modify the product any time in order to adjust it to law regulations, norms, directives, or due to construction, trade, aesthetic or other reasons, without notifying in advance.
- Włączanie kuchenki
- Ovládací panel
- Kezelőpanel
- Контролен панел
- SERIAL NUMBER:
- Table of contents
- Precautions to avoid possible exposure to microwave energy
- Important safety instructions
- DANGER! / WARNING! Risk of injury
- WARNING! Risk of property damage
- Tips and information about the product and its use
- Installation
- Grounding instructions
- Radio interference
- Cleaning, maintenance and operation
- Norm requirements
- Microwave cooking – tips
- Kitchen utensils – tips
- Utensil test:
- Glass tray installation
- Before calling the service centre
- Normal situation:
- If the microwave oven does not work:
- Microwave oven features
- Control panel
- Switching on the oven
- Microwave cooking
- Defrosting
- After operating
- Ecology – Environmental protection
Brand : Zelmer
Model : ZMW1000W
Category : Microwaves
