Product Type	Audio Tuner (FM/AM)
Brand	Marantz
Model	ST6003B
Tuning Bands	FM, AM
Frequency Range FM	87.5 - 108.0 MHz
Frequency Range AM	530 - 1710 kHz
Preset Stations	30 (FM/AM)
Signal-to-Noise Ratio (FM)	>70 dB (mono), >65 dB (stereo)
Dimensions (W x H x D)	440 x 105 x 280 mm
Weight	4.2 kg
Power Supply	AC 230V, 50/60 Hz
Power Consumption	12 W
Standby Power	<0.5 W
Output Level	Variable, 0-2V RMS
Antenna Input	75 ohm (FM), Loop (AM)
Remote Control	Yes (RC-5 compatible)
Display	Fluorescent tube, station info
Maintenance	Wipe with dry cloth; no solvents
Safety	Do not expose to moisture; unplug during storms
Spare Parts & Repairability	Contact authorized service center; some parts available
General Information	High-quality stereo tuner with RDS; designed for home audio systems

Frequently Asked Questions - ST6003B MARANTZ

How do I preset stations on the Marantz ST6003B?

Tune to the desired station, then press and hold the MEMORY button. Use the PRESET buttons to select a number and press MEMORY again to store.

Why is the FM reception poor?

Ensure the FM antenna is properly connected and extended. Try repositioning the antenna or using an outdoor antenna. Check for interference from other electronics.

Can I use the ST6003B with a subwoofer?

The ST6003B outputs an analog audio signal. Connect it to an amplifier or receiver that supports subwoofer output. There is no direct subwoofer output on this tuner.

How do I reset the tuner to factory settings?

With the unit off, press and hold the BAND button and then press the POWER button. Hold until 'FACTORY RESET' appears on the display.

What is the RDS feature?

RDS (Radio Data System) displays station name and program information when broadcasting. Press the RDS button to cycle through options.

Does the ST6003B have a headphone jack?

No, the ST6003B does not have a headphone output. It is designed to be connected to an amplifier or receiver.

How do I clean the front panel?

Use a soft, dry cloth. For stubborn stains, slightly dampen with water. Avoid using alcohol or abrasive cleaners.

Why does the display show 'NO SIGNAL'?

Make sure the antenna is connected and the tuner is set to the correct band. If still no signal, try manual tuning to confirm reception.

Can I program the timer to turn off the tuner?

The ST6003B does not have a built-in sleep timer. You can use an external timer or the sleep function on your amplifier.

What should I do if the unit gets warm?

Ensure proper ventilation around the unit. Do not stack other components directly on top. If overheating persists, contact service.

USER MANUAL ST6003B MARANTZ

РУССКИЙ

ENGLISHFRANÇAISE

marantz®

Tuner

ST6003

User Guide

ENGLISH

WARRANTY

For warranty information, contact your local Marantz distributor.

RETAIN YOUR PURCHASE RECEIPT

Your purchase receipt is your permanent record of a valuable purchase. It should be kept in a safe place to be referred to as necessary for insurance purposes or when corresponding with Marantz.

IMPORTANT

When seeking warranty service, it is the responsibility of the consumer to establish proof and date of purchase. Your purchase receipt or invoice is adequate for such proof.

FOR U.K. ONLY

This undertaking is in addition to a consumer's statutory rights and does not affect those rights in any way.

FRANÇAIS

GARANTIE

The ST6003 is in conformity with the EMC directive and low-voltage directive.

Francais

- Do not expose the equipment to rain, moisture, dripping or splashing.

- Do not remove the cover from the equipment.

- Do not insert anything into the equipment through the ventilation holes.

- Do not handle the mains cord with wet hands.

- Do not cover the ventilation with any items such as tablecloths, newspapers, curtains, etc.

- No naked flame sources, such as lighted candles, should be placed on the equipment.

- When disposing of used batteries, please comply with governmental regulations or environmental public instruction's rules that apply in your country or area.

- Make a space of about 0.1 meter around the unit.

- No objects filled with liquids, such as vases, shall be placed on the equipment.

- When the switch is in the OFF position, the equipment is not completely switched off from MAINS.

- The equipment shall be installed near the power supply so that the power supply is easily accessible.

- Do not expose the unit and batteries to excessive heat such as direct sunlight, fire or the like.

Français

AVERTISSEMENTS

Thank you for purchasing the Marantz ST6003 Tuner.

This remarkable component has been engineered to provide you with many years of listening enjoyment.

Please take a few minutes to read this manual thoroughly before you connect and operate the ST6003.

As there are a number of connection and configuration options, you are encouraged to discuss your own particular system setup with your Marantz authorized dealer.

ACCESSORIES CHECK

Before use, check the below accessories were included in the package.

Audio Connecting Cord

User Guide

AM Loop Antenna

FM Antenna

AC Power Cable

Remote control connecting cord

A NOTE ABOUT RECYCLING

This product's packaging materials are recyclable and can be reused. This product and the accessories packed together are the applicable product to the WEEE directive except batteries. Please dispose of any materials in accordance with your local recycling regulations.

When discarding the unit, comply with your local rules or regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

TABLE OF CONTENTS

INTRODUCTION ....1

ACCESSORIES CHECK

TABLE OF CONTENTS ......1

FEATURES....2

BEFORE USE 2

NAMES AND FUNCTIONS ....3

FRONT PANEL 3

FL DISPLAY 3

REAR PANEL 4

BASIC CONNECTIONS ....4

CONNECTING THE AMPLIFIER 4

CONNECTING THE ANTENNA TERMINALS ....5

CONNECTING THE AC POWER CABLE ....5

(FM) TUNING MODE (AUTO STEREO OR MONO) ..... 6

TROUBLESHOOTING ....10

FRONT KEY (BUTTON) LOCK OF THE UNIT 10

GENERAL MALFUNCTION 10

HOW TO RESET THE UNIT 10

OTHERS 11

TECHNICAL SPECIFICATIONS 11

CLEANING OF EQUIPMENT EXTERNAL SURFACES...11

REPAIRS 11

ENGLISH

FEATURES

■ 50 stations AM/FM random preset memory
Sleep timer
Dimmer control
■ RDS function
Radio Data System (RDS) provides information on FM broadcasts.
■ Remote operation by Marantz Remote Control Bus

BEFORE USE

This section must be read before any connection is made to the mains supply.

EQUIPMENT MAINS WORKING SETTING

Your Marantz product has been prepared to comply with the household power and safety requirements that exist in your area.

ST6003 can be powered by 230V AC only.

COPYRIGHT

Recording and playback of any material may require consent. For further information refer to the following:

— Copyright Act 1956
— Dramatic and Musical Performers Act 1958
— Performers Protection Acts 1963 and 1972
— Any subsequent statutory enactments and orders

DO NOT LOCATE IN THE FOLLOWING PLACES

To ensure long-lasting use, do not locate the unit where: - Exposed to direct sunlight.

• Near to sources of heat such as heaters.
• Highly humid or poorly ventilated.
• Dusty.
- Subjected to mechanical vibrations.
- On wobbly, inclined or otherwise unstable surfaces
- Radiated heat is blocked such as in cramped audio racks.

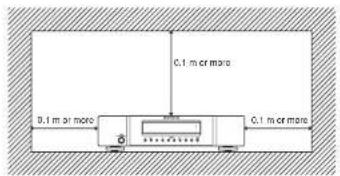

To ensure proper heat radiation, ensure the below clearance from walls and other equipment.

Noise or disturbance of the picture may be generated if this unit or any other electronic equipment using microprocessors is used near a tuner or TV.

If this happens, take the following steps:

• Install this unit as far as possible from the tuner or TV.
- Set the antenna wires from the tuner or TV away from this unit's mains cord and input/output connection cords.
- Noise or disturbance tends to occur particularly when using indoor antennas or 300 Ω/ohms feeder wires. We recommend using outdoor antennas and 75 Ω/ohms coaxial cables.

Note:

For heat dispersal, do not install this equipment in a confined space such as a book case or similar unit.

NAMES AND FUNCTIONS

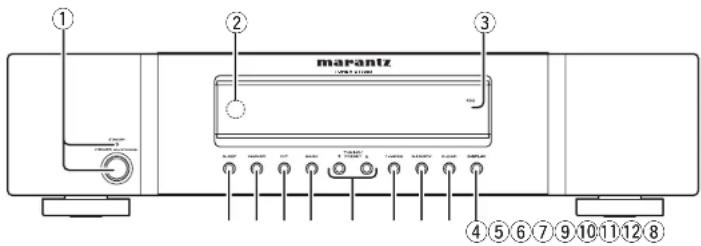

FRONT PANEL

① POWER ON/STANDBY button

When it is pressed, the display window lights up, and the power comes on. When it is pressed again, the display window is extinguished, and goes into the standby status.

STANDBY indicator

Lights up in red color while standby status.

② INFRARED receiving sensor window

This window receives infrared signals from the remote control.

③ RDS indicator

This indicator illuminates when receiving RDS broadcasts, and fl ashes during the RDS search.

④ DISPLAY button

Press this button to change the FL display mode. (See page 8)

⑤ CLEAR button

Press this button to cancel the tuner preset station or preset scan tuning. (See page 7)

⑥ MEMORY button

Press this button to enter the tuner preset memory numbers or station names. (See page 6)

⑦ T-MODE button

Press this button to select the auto stereo mode or mono mode when the FM band is selected. "AUTO" indicator will be illuminated in the display. (See page 6)

⑧ TUNING/PRESET ▲▼ (UP/DOWN) button

This button used for tuning in the desired broadcasting stations or to preset in the desired broadcasting stations.

⑨ BAND button

Press this button to switch between FM and AM in the TUNER mode.

⑩ F (Frequency)/P (Preset) button

During reception of AM or FM, you can change the function of the UP/DOWN buttons for scanning frequencies or selecting preset stations by pressing this button.

⑪ DIMMER button

When this button is pressed once display is dimmed. When this button is pressed twice, the display is turned off and the "DISP" indicator lights up. Press this button again to turn on the display again.

⑫ SLEEP button

This button is used for setting the sleep timer.

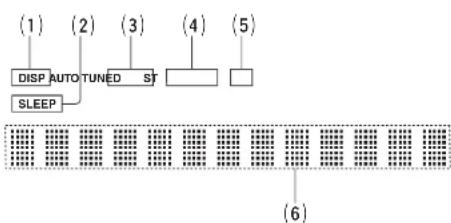

FL DISPLAY

(1) DISP (Display Off) indicator

This indicator is illuminated when this unit is in the display off mode.

(2) SLEEP timer indicator

This indicator is illuminated when the sleep timer function is active.

(3) AUTO indicator

This indicator illuminates when the tuner's Auto mode is in use.

(4) TUNED indicator

This indicator illuminates when the tuner receives a suffi ciently strong radio signal.

(5) STEREO indicator

This indicator illuminates when an FM station is being tuned into stereo condition.

(6) Main Information Display

A variety of information is displayed on this indicator. Frequency, PS, PTY, RT, stations name by manual fi ling, etc.

ENGLISH

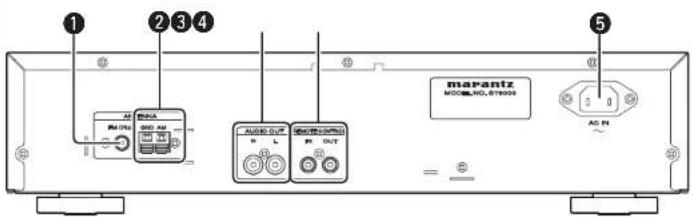

REAR PANEL

① FM antenna terminal (75 ohms)

Connect an external FM antenna with a coaxial cable, or a cable network FM source.

② AM antenna and ground terminals

Connect the supplied AM loop antenna. Use the terminals marked "AM" and "GND". The supplied AM loop antenna will provide good AM reception in most areas. Position the loop antenna until you hear the best reception.

③ AUDIO OUT connectors

The audio signals are output from these connectors.

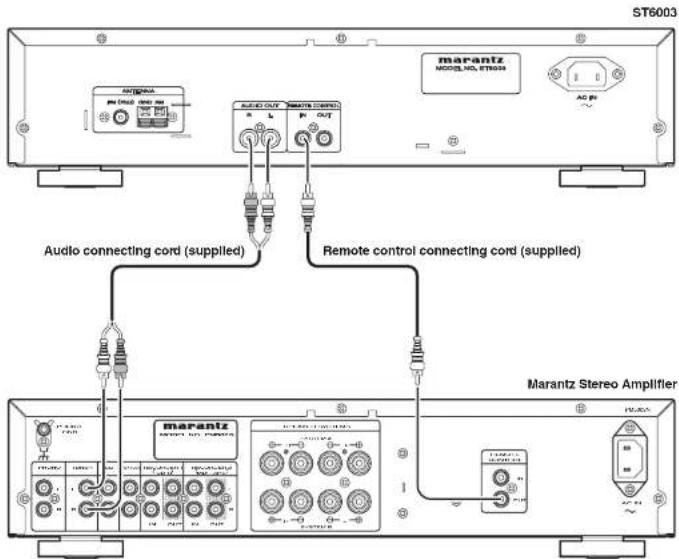

④ REMOTE CONTROL IN and OUT connectors

Using the supplied remote control connecting cord, these connectors enable this unit to be connected to a Marantz component equipped with remote control connectors. These connections make it possible to control an entire system that centers on the amplifier or other such component.

⑤ AC INLET

Plug the supplied mains cord into this AC INLET and then into the power outlet on the wall. ST6003 can be powered by 230V AC only.

BASIC CONNECTIONS

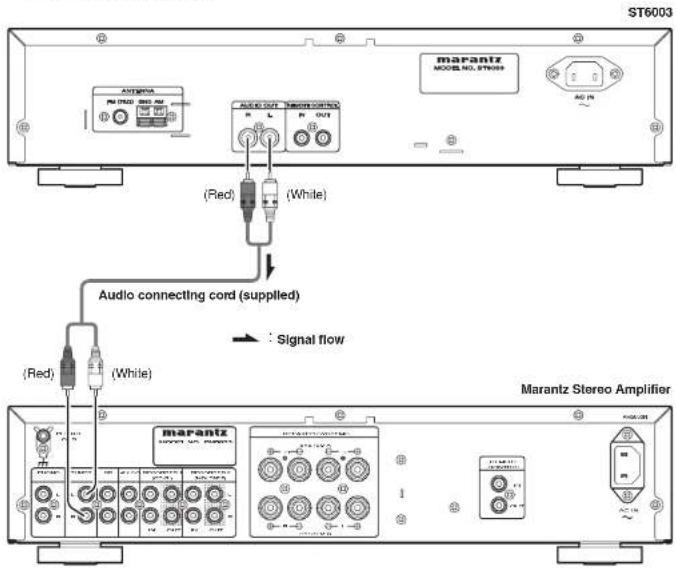

CONNECTING THE AMPLIFIER

Use the audio connecting cord to connect the unit with a stereo amplifier or AV amplifier.

Cautions:

• Do not connect the unit to the PHONO input connectors on the amplifier.
• When making the connections, insert the plugs securely into the connectors. Failure to insert the plugs securely may result in noise.

Notes:

• Do not plug in the mains cord until all connections have been completed.
• When making connections, also refer to the operating instructions of the other components.
• Be sure to connect the left and right channels properly (left with left, right with right).
• Note that binding pin-plug cords together with mains cords or placing them near a power transformer will result in generating hum or other noise.

CONNECTING THE ANTENNA TERMINALS

ASSEMBLING THE AM LOOP ANTENNA

1. Release the vinyl tie and take out the connection line.

1. Bend the base part in the reverse direction.

1. Insert the hook at the bottom of the loop part into the slot at the base part.

1. Place the antenna on stable surface.

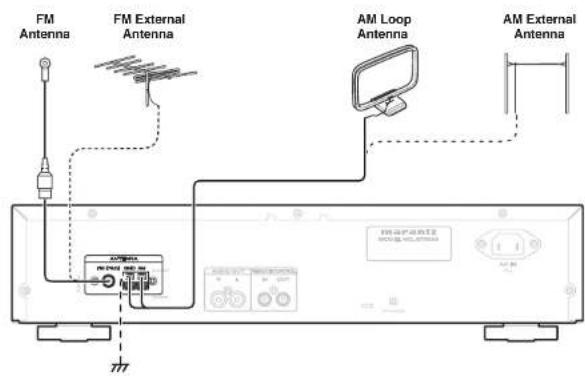

CONNECTING THE SUPPLIED ANTENNAS

Connecting the supplied FM antenna

The supplied FM antenna is for indoor use only. During use, extend the antenna and move it in various directions until the clearest signal is received.

Fix it with push pins or similar implements in the position that will cause the least amount of distortion. If you experience poor reception quality, an outdoor antenna may improve the quality.

Connecting the supplied AM loop antenna

The supplied AM loop antenna is for indoor use only.

Set it in the direction and position it to where you receive the clearest sound. Put it as far away as possible from the unit, televisions, speaker cables, and power cords.

If you experience poor reception quality, an outdoor antenna may improve the quality.

1. Press and hold down the lever of the AM antenna terminal.
2. Insert the bare wire into the antenna terminal.
3. Release the lever.

CONNECTING AN FM OUTDOOR ANTENNA

Notes:

• Keep the antenna away from noise sources (neon signs, busy roads, etc.).
• Do not put the antenna close to power lines. Keep it well away from power lines, transformers, etc.
• To avoid the risk of lightning and electrical shock, grounding is necessary.

CONNECTING AN AM OUTDOOR ANTENNA

An outdoor antenna will be more effective if it is stretched horizontally above a window or outside.

Notes:

• Do not remove the AM loop antenna.
  • To avoid the risk of lightning and electrical shock, grounding is necessary.

CONNECTING THE AC POWER CABLE

1. Plug the supplied AC power cable to the AC IN socket on the rear panel of the main unit.

1. Plug the power cable into an AC outlet.

ENGLISH

BASIC OPERATION

TURNING ON THE UNIT

1. Connect the AC power cable to the wall outlet.
2. Press the ON/STANDBY button on the unit to turn on the power of the unit.
3. Turn on the power of the audio equipment connected to this unit. Set the input selector on the audio equipment to this unit.
   • Each time the button is pressed, the power of the unit is switched between on and standby mode.

LISTENING TO THE TUNER

Frequency scan step for AM is selectable. Default setup is 9 kHz step, if your country's standard is 10 kHz step. Press BAND button more than 6 seconds. Scan step will change.

Note:

Preset memory for the tuner will clear by changing this setup.

AUTO TUNING

1. To select tuner and desired band (FM or AM), press the BAND button on the front panel.
2. Press the TUNING/PRESEbr▼ buttons on the front panel for more than 1 second to start the auto tuning function.
3. Automatic searching begins then stops when a station is tuned in.

If tuning does not stop at the desired station, use to the "Manual tuning" operation.

MANUAL TUNING

1. To select tuner and desired band (FM or AM), press the BAND button on the front panel.
2. Press the TUNING/PRESETor ▼ buttons on the front panel to select the desired station.

(FM) TUNING MODE (AUTO STEREO OR MONO)

When in the auto stereo mode, AUTO Indicator will be illuminated on the display.

The "ST" indicator is illuminated when a stereo broadcast is tuned in.
At open frequencies, the noise is muted and the "TUNED" and "ST" indicators are not illuminated.
If the signal is weak, it may be diffi cult to tune into the station in stereo. In such a case, press the T-MODE button on the front panel.
"AUTO" indicator is not illuminated, if FM stereo broadcasts are received in monaural and the "ST" indicator is not illuminated.
To return to auto stereo mode, press the T-MODE button again. AUTO indicator is illuminated on the display.

ADVANCED OPERATION

PRESET MEMORY

With this unit you can preset up to 50 FM/AM stations in any order.
For each station, you can memorize the frequency and reception mode if desired.

AUTO PRESET MEMORY

This function automatically scans the FM and AM band and enters all stations with proper signal strength into the memory.

1. To select FM, press the BAND button on the front panel.
2. While pressing the MEMORY button, press the TUNING ▲ button.
   "AUTO PRESET" will appear on the display, and scanning starts from the lowest frequency.
3. Each time the tuner fi nds a station, scanning will pause and the station will be played for fi ve seconds.
   During this time, the following operations are possible.
   The band can be changed by the BAND button.
4. If no button is pressed during this period, the current station is memorized in location Preset 01.
   If you wish to skip the current station, press the ▲ button during this period, this station is skipped and auto presetting continues.
5. Operation stops automatically when all 50 preset memory positions are filled or when auto scanning attains the highest end of all bands. If you desire to stop the auto preset memory at anytime, press the CLEAR button.

Note:

It is possible that existing preset memory positions will be overwritten.

MANUAL PRESET MEMORY

1. Tune into the radio station you desire (Refer to the "MANUAL TUNING" or "AUTO TUNING" section).
2. Press the MEMORY button on the front panel. “--” (preset number) starts blinking on the display.
3. Select the preset number by pressing the TUNING ▲ or ▼ buttons, while this indicator is still blinking (approx. 5 seconds)
4. Press the MEMORY button again to enter. The display stops blinking. The station is now stored in the specified preset memory location.

RECALLING A PRESET STATION

1. Select the desired preset station by pressing the F/P and TUNING ▲ or ▼ button on the front panel.

CLEARING STORED PRESET STATIONS

You can remove preset stations from the memory using the following procedure.

1. Recall the preset number to be cleared with the method described in "Recalling" a preset station.
2. Press the MEMORY button on the front panel.
3. The stored preset number blinks in the display for 5 seconds. While blinking, press the CLEAR button on the front panel.
4. " xx CLEAR" appears on the display to indicate that the specified preset number has been cleared.

Note:

To clear all stored preset stations, press and hold the CLEAR and the F/P buttons on the front panel for two seconds.

SORTING PRESET STATIONS

If you have stations memorized, and there is a gap in the sequential order:

I.e. the stations are stored as follows

1) 87.5 MHz

2) 93.1 MHz

3) 94.7 MHz

10) 105.9 MHz

Since there are no stations programmed for presets 4-9, you can have preset 10 become preset 4.

To sort the numbers, press the TUNING ▼ button while pressing the MEMORY button.

"PRESET SORT" will appear on the display and sorting will be done.

NAME INPUT OF THE PRESET STATION.

This function allows the name of each preset channel to be entered using alphanumeric characters. Before name inputting, you need to store preset stations with the preset memory operation.

1. Recall the preset number to be inputted name with the method described in "Recalling" a preset station.
2. Press the MEMORY button on the front panel for more than 3 seconds.
3. The left most column of the station name indicator flashes, indicating the character entry ready status.
4. When you press the TUNING ▲ or ▼ buttons on the front panel, alphabetic and numeric characters will be displayed in the following order:

$$ \begin{array}{l}\mathsf {A} \rightarrow \mathsf {B} \rightarrow \mathsf {C} \dots \mathsf {Z} \rightarrow 1 \rightarrow 2 \rightarrow 3 \dots .. 0 \rightarrow - \rightarrow +\\rightarrow / \rightarrow (\text { Blank }) \rightarrow \mathsf {A}\end{array} $$

1. After selecting the first character to be entered, press the MEMORY button.

The entry in this column is fixed and the next column starts to flash. Fill the next column the same way.

To move back and forth between the characters, press the F/P button and press the TUNING ▲ or ▼ buttons.

Note:

Unused columns should be filled by entering blanks.

1. To save the name, press the MEMORY button on the front panel for more than 2 seconds.

ENGLISH

RDS OPERATION

Now in use in many countries, RDS (Radio Data System) is a description of the station's programming hidden space in the FM signal.

This unit is equipped with RDS to assist in the selection of FM stations using station and network names, rather than broadcast frequencies. Additional RDS functions include the ability to search for programme types.

RADIO TEXT

Some RDS stations broadcast RADIO TEXT, which is additional information on the station and programme being broadcast.

RADIO TEXT Information appears as 'running' text in the display. RADIO TEXT is transmitted character by the radio station. As a result of that it may take some time until the entire text has been completely received.

RDS DISPLAY

When this unit is tuned to an FM station that is transmitting RDS data, the Front Panel Information Display will automatically show the station name or RADIO TEXT in place of the typical display of the station's broadcast frequency.

To change the display, press the DISPLAY button.

PS (Program Service Name) Frequency(RADIO TEXT)

PROGRAMME TYPE (PTY) DISPLAY

The RDS system categorizes programmes according to their genre into different programme type (PTY) groups. To display the programme type information of the current station, press the F/P button for 3 seconds or more.

PTY AUTO SEARCH

This unit is equipped to automatically search for stations transmitting any of 29 different programme types. To search for a PTY, follow these procedures:

2.1.3.4.

1. Press the F/P button for 3 seconds or more. The current station's PTY will be displayed, or the currently selected PTY group will be displayed in blinking if no station or RDS data is present.
2. To change to a new PTY type, press the ▲ or ▼ button on the front panel until the desired PTY is shown in the display.
3. Once the desired PTY group or type has been selected, press the F/P button while the display blink (approx. 5 seconds). The PTY Auto search will start, and the tuner will pause at each station broadcasting RDS PTY information corresponding to the selected choice.
4. To advance to the next RDS station with the desired PTY, press the F/P button again within 5 seconds.

NUMBER DISPLAY PROGRAMME TYPE
1 POP	M Pop Music
2 ROCK	M Rock Music
3 EASY	M Easy	Listening Music
4 LIGHT	M Light classical
5 CLAS	SICS Serious classical
6 NEWS	News
7 AFFAIRS	Current Affairs
8 INFO	Information
9 SPORT	Sport
10	EDUCATE	Education
11	DRAMA	Drama
12	CULTURE	Culture
13	SCIENCE	Sciences
14	VARIED	Varied
15	OTHER M	Other Music
16	WEATHER	Weather
17	FINANCE	Finance
18	CHILDREN Children's programmes
19	SOCIAL Social Affairs
20	RELIGION Religion
21	PHONE IN Phone In
22	TRAVEL Travel
23	LEISURE Hobbes
24	JAZZ Jazz Music
25	COUNTRY Country Music
26	NATION M National Music
27	OLDIES Oldies Music
28	FOLK M Folk Music
29	DOCUMENT Documentary

OTHER OPERATION

USING THE SLEEP TIMER

To program this unit for automatic standby, press the SLEEP button.
Each press of the button will increase the time before shut down in the following sequence.

The sleep time will be shown for a few seconds in the display on the front panel, and it will count down until the time has elapsed.

When the programmed sleep time has elapsed, the unit will automatically turn off.
Note that the SLEEP indicator on the display will illuminate when the Sleep function is programmed. To cancel the Sleep function, press the SLEEP button until the display shows "SLEEP OFF" and the SLEEP indicator will disappear.

DISPLAY MODE

You can select the display mode for the front display of the unit in the Station Display Mode.

When the DISPLAY button is pressed, the display mode is switched within 2 seconds.

Station Display Mode

Frequency Display Mode

This unit can be controlled by the remote controller supplied with Marantz Integrated amplifier. You can perform following operations using the remote controller.

When you operate this unit with the remote controller that is supplied with a Marantz integrated amplifier, connect the REMOTE CONTROL connector of this unit to the REMOTE CONTROL terminal of the amplifier using the supplied cords without fail.

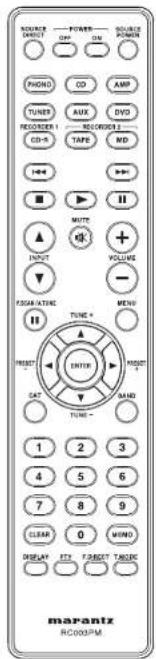

(Example : the remote controller supplied with PM5003)

When the TUNER button is pressed, the buttons in TUNER function as indicated in the table below.

BUTTON NAME FUNCTION
SOURCE POWER	POWER ON and OFF
P.SCAN/A.TUNE	Starts preset scan
▲/TUNE+	Tuning (frequency) increase
▼/TUNE-	Tuning (frequency) decrease
◀/PRESET-	Preset stations forward feed
▶/PRESET+	Preset stations backward feed
BAND	Selects the band
0-9	Inputs the numeric
CLEAR	Clears the inputting
MEMO	Enters the tuner preset memory numbers
DISPLAY	Selects the display mode in RDS
PTY	Displays the programme type information of the current station
F.DIRECT	Selects the "frequency direct input"
T.MODE	Selects the auto stereo mode or mono mode

CONNECTING THE REMOTE CONTROL JACKS

Connect the AUDIO OUT and REMOTE CONTROL IN connectors to their corresponding terminals on a Marantz stereo amplifier using audio connecting cord and remote control connection cord.

Note:

Turn power to the stereo amplifi or OFF before making the connections.

ENGLISH

ENGLISH

TROUBLESHOOTING

In case of trouble, check the following before calling for service:

1. Are the connections made properly?
2. Are you operating the unit properly following the user's guide?
3. Are the power amplifiers and speaker working properly?

If the unit does not operate properly, check items shown in the following table.

If your trouble cannot be recovered with the remedy actions listed in the following table, malfunction of the internal circuitry is suspected; immediately unplug the power cable and contact your dealer, nearest Marantz authorized dealer or the Marantz Service Center in your country.

SYMPTOM CAUSE REMEDY

Power does not turn on when POWER ON/STANDBY switch is pressed.	Mains cord's plug is not plugged into wall outlet.	Plug the mains cord in properly.
Hissing noise is heard on FM broadcasts.	Antenna cable is not properly connected.	Connect the leads properly.
	Antenna is not pointing in the right direction.	Point the antenna in the right direction.
	Radio waves are weak. Install an outdoor antenna.
Hissing or buzzing sound is heard on AM broadcasts.	Noise from a TV or interference in the signals sent from the broadcast station.	Turn off the TV.Change the position of the loop antenna.Install an outdoor antenna.
Booming sound (humming) is heard in AM broadcasts.	Signals transmitted over the main cord are modulated by the power source frequency.	Insert the plug in the opposite direction.Install an outdoor antenna.
I can not get any sound.	Power connected amplifier not turned on.	Connection leads to amplifier not made correctly.

SLEEP F/P T.MODE DISPLAY

FRONT KEY (BUTTON) LOCK OF THE UNIT

If the F/P and T.MODE buttons on the front panel are both pressed at the same time for three seconds or more, all the buttons on the front panel (excluding the POWER ON/OFF button), will become locked. "F-KEY LOCK!" will appear in the display.

Release the lock by pressing the same two keys again at the same time for three seconds or more.

"F-KEY UNLOCK" will appear in the display, and the keys will unlock.

GENERAL MALFUNCTION

If the equipment malfunctions, this may be because an electrostatic discharge or AC line interference has corrupted the information in the equipment memory circuits. Therefore:

• disconnect the plug from the AC line supply
• after waiting at least three minutes, reconnect the plug to the AC line supply
• re-attempt to operate the equipment

Memory backup

- In case a power outage occurs or the power cord is accidentally unplugged, this unit is equipped with a backup function to prevent memory data such as the preset memory from being erased.

HOW TO RESET THE UNIT

Should the operation or display seem to be abnormal, reset the unit with the following procedure.

The unit is turned on, press and hold the SLEEP and DISPLAY buttons simultaneously for 3 seconds or more.

Remember that the procedure will reset the settings of the TUNER PRESET etc., to their initial settings.

OTHERS

TECHNICAL SPECIFICATIONS

FM TUNER SECTION

Frequency Range	87.5 - 108.0 MHz
Usable Sensitivity	IHF 1.8 μV/16.4 dB
Signal to Noise Ratio	Mono/Stereo 75/70 dB
Distortion	Mono/Stereo
Stereo Separation	1 kHz 45 dB
A.C.S	± 300 kHz 60 dB
Image Rejection	98 MHz 70 dB
Tuner Output Level	1 kHz, ± 40 kHz Dev 500 mV

AM TUNER SECTION

Frequency Range	531 – 1602 kHz
Usable Sensitivity	Loop 400 μV/m
Signal to Noise Ratio	50 dB
Distortion	400 Hz, 30% Mod. 0.5%
Selectivity	±18 kHz 70 dB

GENERAL

Power Requirement	AC 230 V 50/60 Hz
Power Consumption	9 W
Weight

ACCESSORIES

FM	Antenna		1
AM	Loop	Antenna	1
AC Power Cable			1
Audio connecting cord			1
Remote control connecting cord			1

Specifications subject to change without prior notice.

DIMENSIONS

ENGLISH

CLEANING OF EQUIPMENT EXTERNAL SURFACES

The exterior fl nish of your unit will last indefinitely with proper care and cleaning, Never use scouring pads, stool wool, scourging powders or harsh chemical agents (e.g., lye solution), alcohol, thinner, benzine, insecticide or other volatile substances as these will mar the fl nish of the equipment. Likewise, never use cloths containing chemical substances. If the equipment get dirty, wipe the external surfaces with a soft, lint-free cloth.

If the equipment becomes heavily soiled:
- dilute some washing up liquid in water, in a ratio of one part detergent to six parts water.
- dip a soft, lint free in the solution and wring the it is damp.
- wipe the equipment with the damp cloth.
- dry the equipment by wiping it with a dry cloth.

REPAIRS

Only the most competent and qualified service technicians should be allowed to service the factory-trained warranty station personnel have the knowledge and special facilities needed for repair and calibration of this precision equipment. After the warranty period has expired, repairs will be performed for a charge if the equipment can be returned to normal operation.

In the event of diffi culty, refer to your dealer or write directly to the nearest location to you that is listed on the Marantz Authorized Service Station list. If writing, please include the model and serial number of the equipment together with a full description of what you think is abnormal about the equipment's behaviour.

www.marantz.com

You can find your nearest authorized distributor or dealer on our website.

marantz®

is a registered trademark.

06/2008 541110124038M mzh-dPrinted in China
