| Product Type | Built-in electronic wine cooler |
| Brand | Baumatic |
| Model | BW300SS |
| Gross Capacity | 55 litres |
| Net Capacity | 52 litres |
| Bottle Capacity | 12 x 0.75 litre wine bottles |
| Dimensions (HxWxD) | 820-890 mm x 295 mm x 550 mm |
| Aperture Dimensions (HxWxD) | 820-890 mm x 300 mm (min) x 553 mm (min) |
| Temperature Range | 4°C to 18°C (one zone) |
| Control Type | Electronic push button with LED display |
| Shelves | 4 wooden shelves |
| Interior Light | White LED, automatic shut-off after 5 minutes |
| Door Material | Smoked glass with stainless steel frame |
| Adjustable Feet | Yes |
| Reversible Door | Yes (left or right opening) |
| Refrigerant | R600a (flammable) |
| Climate Class | SN, N, ST, T (see rating plate) |
| Power Supply | 230 V ~ 50 Hz, 13 A fuse |
| Defrost | Automatic |
| Compressor Running Indicator | Yes (moving fan symbol on display) |
| Error Codes | HIGH TEMP, LOW TEMP, PROBE ERROR-E |
| Installation | Freestanding or built-in |
Frequently Asked Questions - BW300SS BAUMATIC
User questions about BW300SS BAUMATIC
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Drink cooler in PDF format for free! Find your manual BW300SS - BAUMATIC and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BW300SS by BAUMATIC.
USER MANUAL BW300SS BAUMATIC
BW300SS 30 cm 12 Bottle built-in electronic wine cooler
INSTRUCTION MANUAL
BW300SS
30 cm 12 Bottle built-in electronic wine cooler


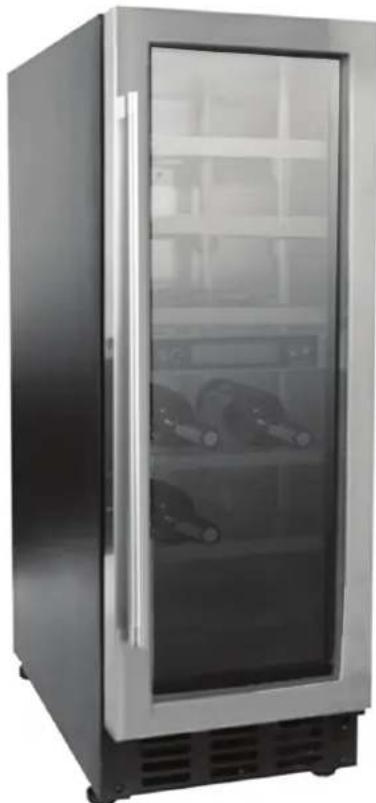

Exterior view of a modern stainless steel refrigerator with glass doors and internal shelves (no visible text or symbols)
NOTE: This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference, for you or any person not familiar with the operation of the appliance.
DD 24/12/09
Contents
E n v i r o n m e n t a l
Important safety information 5 - 6
Specifications of your wine cooler
Description of the appliance 8 - 1
C o n t r o l p a n e l
Description of the product features
Using your Baumatic wine cooler 10-12
B e f o r e s w i t c h i
D u r i n g f i r s t u
Switching on the appliance and setting the temperature 11
Loading the wine cooler 1 2
Wine storage problems 14-15
Cleaning and maintenance 15-16
D e f r o s t i n g
I n s t a l l a t i o n
Electrical connection 16-17
P o s i t i o n i n g
Built-in installation 18
Reversing the door of your wine cooler 19-21
T r o u b l e s h o o t i n
C o n t a c t d e t a i l
Environmental note
Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person. Disable the door lock to make sure that children cannot get stuck inside the appliance.
This appliance is marked according to the European directive 2002/96/EC on Waste electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
The symbol
accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
- Please discard all packaging material with due regard for the environment.
Important safety information
IMPORTANT: Any installation work must be carried out by a qualified electrician or competent person.
Use of the appliance
- Your appliance is only designed to be used in the home. It is suitable for storing and chilling wine. NO food stuffs must be stored in the appliance. If it is used for any other purpose or it is not used correctly, then Baumatic Ltd. will accept no liability for any damage that is caused.
○ Altering the specification of the appliance must not be attempted for reasons of safety.
Before using your appliance
- Check the appliance for any signs of transport damage. If you notice any damage, then you should not connect your appliance to your mains supply and should contact your retailer.
Refrigerant
- Your appliance contains R600a refrigerant, which is a natural gas that does not contain CFCs that can damage the environment. However it is a flammable substance, therefore care should be taken:
- During the transportation and installation of the appliance, make sure that the refrigeration pipework does not get damaged.
- If it does become damaged then sources of ignition and open flames should be avoided. Also the room that the appliance is situated in should be thoroughly ventilated.
- Do not place any objects on top of the appliance, as this may damage the table top.
- Packaging material should be kept away from children.
○ Children should not be allowed to touch the controls or play with the appliance.
General safety
- Do not pull on the power supply cable to remove the plug from your mains supply socket.
- Do not pull out or insert the plug with wet hands.
Do not attempt to use your appliance outdoors or any place where it is likely to come into contact with the elements.
- Never allow the back coils of the appliance to come into contact with the wall surface.
○ Always ensure that the location where you are installing your appliance is free of stored items such as papers and other flammable materials.
- Never block the ventilation openings of the appliance, either on the inside or its exterior.
- It is vital to keep your appliance well ventilated, so that there is proper air flow between the bottom of the unit and the plinth/kick plate which it is sitting on.
Service
You should not attempt to repair the appliance yourself, as this could cause injury or a more serious malfunction. If you require a service call then please contact the Customer Care Department.
Congratulations on purchasing a Baumatic wine cooler

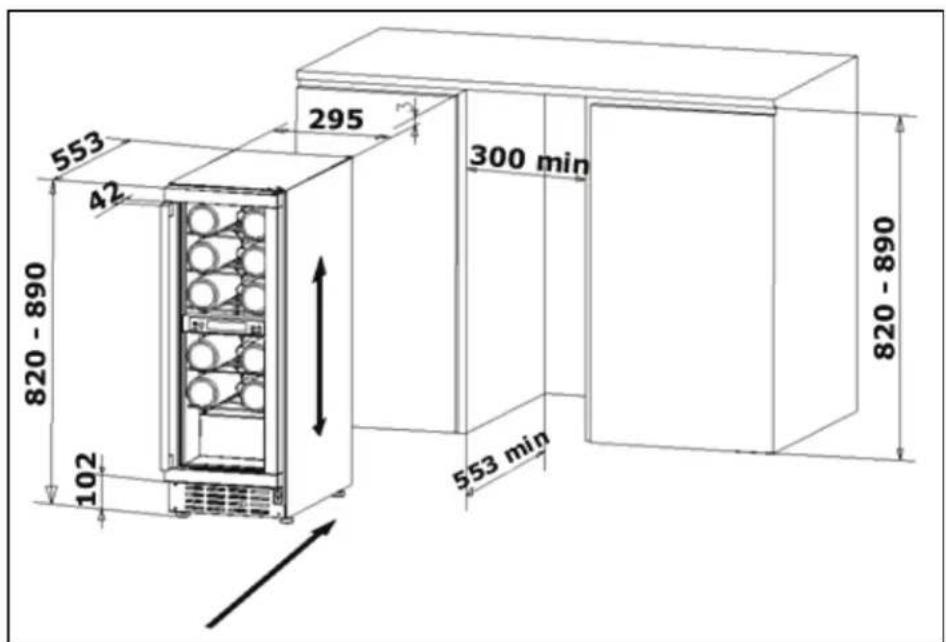

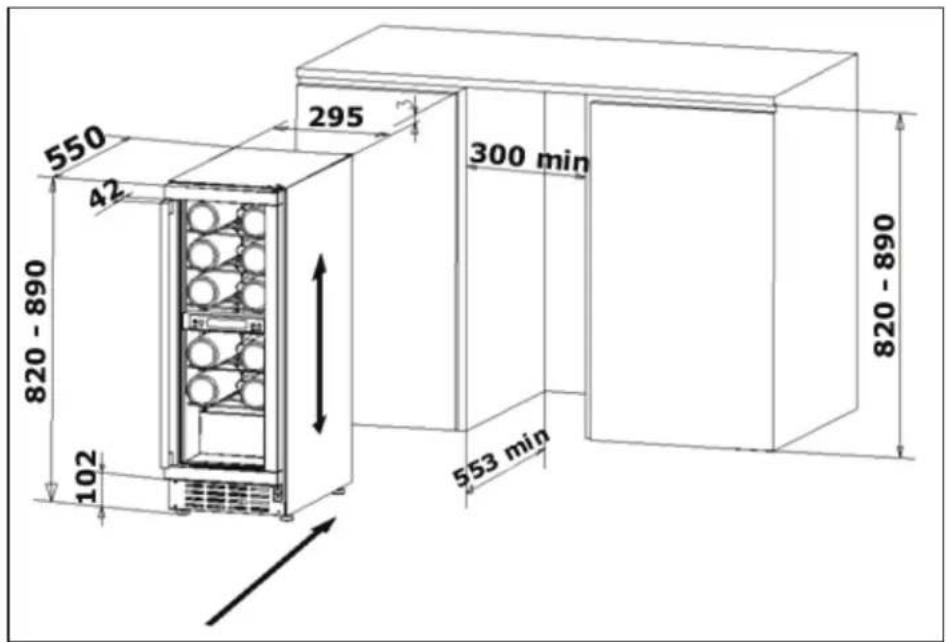

Dimensions of appliance Dimensions of aperture\*
Height: 820 - 890 mm
Height: 820 - 890 mm
Width: 295 mm
Width: 300 mm (min)
Depth: 550 mm
Depth: 553 mm (min)
○ Gross capacity: 55 litres
- Net capacity: 52 litres
○ Bottle capacity: 12 x 0.75 litre wine bottles
- Electronic push button control operation
- LED display
- 4 Wooden shelves
○ Adjustable temperature
- Internal white LED light
○ One temperature zone:
- Adjustable feet
- Smoked glass door
- Stainless steel door frame
- 1 temperature zone: 4 - 18 °C
* Please refer to the installation instructions for more specific information on the size of aperture that you will require.
IMPORTANT: When you install your appliance it is important to bear in mind its climatic rating.
In order to find out the climatic rating of your appliance, you should check the rating plate. The rating plate is located on the rear or inside of the appliance. The rating plate will indicate the ambient temperature range that your appliance will function correctly within. It is also advisable to make a note of the model number and the serial number of the appliance before installing it.
Model number
Serial number ....
Date of purchase ....
Description of the appliance

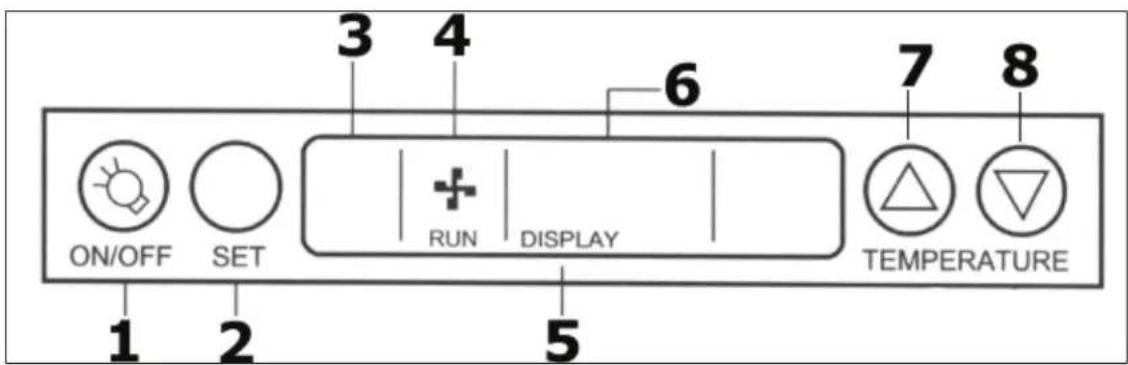

Control panel
The control panel is located at the top of the appliance, behind the glass door.
1) Light ON/OFF button
2) Temperature setting button
3) Warning alarm indicator
4) Compressor running indicator
5) LED display
6) Temperature display
7) Temperature increase button
8) Temperature decrease button
Description of the product features
1) Control panel
- The control panel is located at the top of the appliance, behind the glass door. This means it is easy to set the temperature of the appliance and see what temperature the appliance is set to.
2) One cooling zone
- There is one cooling zone inside of your wine cooler.
- The cooling zone has a temperature control and temperature display.
3) Interior light
- The cooling zone has an interior light. The light can be switched on and off by using the light ON/OFF button (1).
- If you do not switch the interior light off using the light ON/OFF button, the appliance will switch the light off automatically after 5 minutes.
4) The wine cooler shelves
- The full depth shelves will fit into the slots in the cabinet of the wine cooler.
5) Compressor running indicator
- When the compressor is running, the LCD display will show the compressor running indicator (4), which is a moving fan symbol.
- Approximately every six hours, the compressor will stop running for about 30 minutes.
- When the compressor is not running, the moving fan symbol will stop.
6) LED display
- If you press any button on the LCD display (5), then a backlight will appear behind it.
- If no other button is pressed, the appliance will switch the backlight off automatically after 5 minutes.
7) Error codes
- If the appliance senses a problem, then an audible alarm will sound and an alarm code will show on the LCD display (5). See the error codes section of this manual for more detailed information.
Using your Baumatic wine cooler
Before switching on
○ Make sure that it has been installed by a suitably qualified person, as per the information contained in Baumatic's installation instructions.
- After delivery, wait for eight hours before connecting the appliance to your mains supply. This will allow any refrigerant gasses that may have been disturbed during the transportation process to settle.
- The outside of the appliance and the removable accessories contained within it, should be cleaned with a solution of liquid detergent and water.
- The interior of the appliance should be cleaned with a solution of sodium bicarbonate dissolved in lukewarm water. The interior and accessories should be thoroughly dried, after the cleaning process has been completed.
During first use
- When you first switch on the appliance, the compressor will run continuously until the wine cooler reaches a cool enough temperature.
During this period of time, you should try not to open the door frequently or place bottles inside of the appliance.
- If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting the appliance or reconnecting it to your mains supply.
Switching on the appliance and setting the temperature
- After following the installation instructions contained in this booklet, connect the appliance to your mains supply.
- The appliance will be preset to a temperature of 13 °C.
To adjust the operating temperature, press the temperature setting button (2). Use the temperature increase (7) and temperature decrease (8) buttons to set the temperature that you require. Each press of these buttons will adjust the temperature on the temperature display (6) by one degree. - When the temperature that you require appears on the temperature display, you should stop pressing the temperature increase and decrease buttons. Press the temperature setting button again to confirm the operating temperature.
- Cool air falls and warmer air rises, so there will be a slight temperature variation between the top of the cabinet and the bottom of the cabinet.
- The temperature sensor is located in the middle of the appliance and will record the temperature being maintained in this part of the appliance. The temperature at the top of the wine cooler will be slightly warmer and the temperature at the bottom of the wine cooler will be slightly colder.
- If there is a power cut, when the power is restored, the appliance will remember the most recent temperature setting automatically.

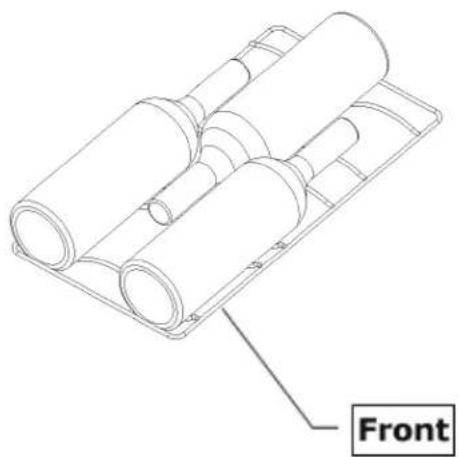

Loading the wine cooler
○ IMPORTANT: Your appliance is ideally suited to store 0.75 litre wine bottles.
○ Always check that you can close the door without it fouling on a wine bottle, before shutting it.
- When loading several bottles of wine at once, it will take longer for the appliance to cool the individual bottles.
Storing your wines
The chart below indicates the ideal storage temperatures for different types of wine:-
| Type of wine Temperature (Celsius) | Temperature (Fahrenheit) | |
| Red wine (*) 15.5 - 18.5°C 59.9 - 65.3°F | ||
| White wine (**) 10 - 15°C 50 - 59°F | ||
| Sparkling wines/champagne | 7.2 - 9.5°C 45 - 49.1°F | |
| Rose wine 9.5 - 10.5°C 49.1 - 50.9°F | ||
| Vintage wine 13°C 55°F | ||
* Light red wines, such as Beaujolais, Pinot Noir and Cabernet Franc benefit from being served slightly cooler than full-bodied reds.
** Chardonnay is often served too cold. You should chill it at a warmer temperature inside of your wine cooler. Or leave it to warm slightly when you remove it from your wine cooler.
o Temperature stability is the most important factor when it comes to storing wine.
- Exposure to light, vibrations or fluctuations in temperature and humidity can all cause wine to spoil. When properly stored, wines not only maintain their quality but many will actually improve in aroma, flavour and complexity as they mature.
- Wines kept at a higher temperature will age faster. Wine that is exposed to temperatures that are greater than 21°C (70°F) will suffer from poorer flavour and aroma.
- If wine is kept at too low a temperature, this can result in the development of harmful deposits. A humidity of 70% is ideal for keeping corks from shrinking.
- After a bottle of wine has been opened, the wine comes into contact with air. So it is best to store the remainder of the bottle upright, to minimize the surface area of the wine that is coming into contact with the air.
Once opened, wine will remain in a drinkable condition for two days for delicate whites or three days for rich reds, as long as the bottle as been resealed. You should make sure that the seal is firm by checking the stopper.
- Special stoppers that keep wine sparking and Champagne bubbling for one or two days after opening, can be bought at most good wine shops.
- When stored correctly, white wines can keep well for up to two years. Full bodied reds will age well for ten years and dessert wines will age well for up to twenty years.
- When you buy a bottle of wine, you should transfer it to a suitable storage location immediately (if you are not going to store it in your wine cooler).
- Cheaper bottles of wine will not age as well as more expensive ones.
To make the most of the bouquet and taste of your wine, never fill more than half a glass at a time. It will also help if the shape of your wine glass is appropriate for your wine. The size and shape of your wine glass's bowl will determine the intensity and complexity of the bouquet. The stem should be long enough to allow you to avoid hand contact with the bowl of the glass and should be tulip-shaped or tapered at the top.
Wine storage problems
Corking- a tiny percentage of bottled wine (about 1%) will suffer from this. The cork reacts with the wine and gives it a musty, unpleasant taste. It is the most common wine storage problem and is caused by harmless bacteria growing on the cork. As unfortunate as this is, there is nothing to do but to discard all of the wine in the affected bottle. This is not to be confused with small fragments of cork floating in the wine itself, which will not impair the flavour.
Oxidisation- when wine has been opened and left for longer than a day; it tends to lose its aroma and colour, giving an overall flat taste. The only way to avoid this, it to either drink the wine on the same day it was opened or to use a vacuum device specially designed for removing oxygen from opened wine bottles. If you use such a device, the wine should still be consumed shortly afterwards.
Ullage- this is loss of wine from the bottle by evaporation or leakage. Signs of ullage include wine seeping around the cork, a protruding cork or a stained label. It can happen if the bottle has been allowed to get too warm. The wine may still be drinkable, if the leakage was recent; however, you should be aware that if the wine cools down again, contraction can cause more air to be sucked into the bottle and result in further deterioration.
Slight effervescence in still wine- this isn't really a problem with the way the wine has been stored, but as a result of incomplete malolactic fermentation before the wine was bottled. A good way to get rid of the effervescence is to let the wine breathe. Alternatively you can use a bottle vacuum device, after about five minutes the effervescence will vanish.
Sediment- this is not normally a problem, however both red and white wines can produce sediment after a number of months in a bottle. The sediment consists of tartrate crystals and is totally harmless. If anything the building of sediment can be considered a good sign because it means that the wine was not subjected to much (if any) filtering, meaning that the flavours and aromas should be preserved better.
A good way to get around sediment (if it is a problem) is to stand the bottle upright, the day before opening, so that the sediment can settle to the bottom of the bottle.
You can also decant your wine; decanting will "open up" the flavour of both young and old wines, but younger wines in particular. To decant, pour the wine slowly and evenly into your decanter.
Cleaning and maintenance
WARNING: PLEASE ENSURE THAT YOUR APPLIANCE IS DISCONNECTED FROM YOUR MAINS SUPPLY BEFORE ATTEMPTING TO CLEAN IT.
- Do not clean the appliance by pouring water onto it or spraying water over it.
- Clean the accessories separately with soap and water. Do not clean them in a dishwasher.
- Do not use abrasive products, detergents or soaps.
- After washing the appliance, wipe over the area that you have cleaned with a damp cloth and then dry it thoroughly.
- When cleaning is complete, dry your hands and then reconnect the plug to your mains supply.
Defrosting
- Defrosting occurs automatically inside of the wine cooler during operation. The defrost water is collected by the evaporating tray and evaporates automatically.
- The evaporating tray and defrost water drain hole should be cleaned periodically. This will prevent water from collecting in the bottom of the wine cooler, instead of flowing down the defrost drainage channel and drain hole.
- You can also pour a small amount of water down the drain hole to clean inside of it.
- You should be careful to make sure that wine bottles touch the rear wall of the appliance, as this can interrupt the automatic defrosting process and deflect water into the base of your wine cooler.
Installation
IMPORTANT: Before installation and usage read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found on the front edge of the f the wine cooler and/or the rear of the appliance.
The manufacturer declines all responsibility in the event of the installer failing to observe all the accident prevention regulations in force, which are necessary for normal use and the regular operation of the electric system.
Electrical connection
YOUR WINE COOLER IS INTENDED FOR FITTED AND PERMANENT INSTALLATION.
We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. and who will comply with the I.E.E. and local regulations.
- Your wine cooler comes supplied with a 13 amp plug fitted. If in future you need to change the fuse in this plug, then a 13 amp ASTA approved (BS 1362) fuse must be used.
- The wiring in the mains lead is coloured as follows:
| Brown | Live |
| Blue | Neutral |
| Green and yellow | Earth |
- As the colours of the wires in the appliance's mains lead may not correspond with the coloured markings identifying the terminals in your spur box, please proceed as follows:
The brown wire must be connected to the terminal marked "L" (live), or coloured red.
The blue wire must be connected to the terminal marked "N" (neutral), or coloured black.
The green and yellow wire must be connected to the terminal marked "E" (earth), or by the earth symbol, or coloured green and yellow.
- When the connection is completed, no stray strands or cut wire should be present. The cord clamp must be secured over the outer sheath.
Positioning
- It is advisable that your appliance is only installed in a location where the ambient temperature of the room, corresponds with the climate classification that is stated on the rating plate of your appliance. Your appliance may not function correctly if the ambient temperature falls outside of the following ranges.
| Climate classification | Appropriate ambient temperature |
| SN +10 to +32 degrees centigrade | |
| N +16 to +32 degrees centigrade | |
| ST +18 to +38 degrees centigrade | |
| T +18 to +43 degrees centigrade | |
- Positioning the appliance requires two people in order to avoid injuries or damage to the appliance.
- Your appliance should not be located in direct sunlight or exposed to continuous heat or extremes of temperature (e.g. next to a radiator or boiler). If this is not feasible, then you should install an insulation plate between the appliance and the adjacent heat source.
- You should check whether there is an electrical socket available, which will be accessible after your appliance is installed.
- Place the appliance flatly and firmly on a solid base. The appliance is fitted with adjustable feet, which should be used to level the appliance.
- Be sure to leave enough space for the opening of the door, to avoid damage to the appliance or personal injury.
○ IMPORTANT: The vent at the base of the appliance is for ventilation. Nothing should be placed in front of this vent; otherwise your wine cooler may not operate properly.
Built-in installation
- Your wine cooler can be used as a freestanding or a built in unit. If you are going to use it as a built in unit, then the dimensions shown in the diagram above will need to be followed.
- In particular the depth dimension must be observed.
○ IMPORTANT: The vent at the base of the appliance is for ventilation. Nothing should be placed in front of this vent; otherwise your wine cooler may not operate properly.
○ IMPORTANT: When building the appliance into a housing unit, YOU MUST ensure there is a 100 x 100 mm vent at the front bottom of the unit and at the bottom rear of the housing unit.
Reversing the door of your wine cooler
This appliance has the capability of the door opening from either the left or right hand side.
The unit is delivered to you with the door opening from the left side. If you want to reverse the opening direction of the door, please follow the instructions below:
Any parts that you remove from the appliance whilst reversing the door, should be retained for later use.
Tools required
S1 = Phillips head screwdriver
S2 = Flat head screwdriver
1 = Hinge screws
2 = Upper left hand hinge
3 = Upper right hand hinge
4 = Upper door pin
5 = Lower hinge and pin
6 = Lower left hand hinge screws
7 = Lower right hand hinge screws
8 = Wine cooler door
1) Remove the hinge screws (1), upper left hand hinge (2) and upper right hand hinge (3) from the appliance, using a Phillips head screw driver (S1).
2) Remove the wine cooler door (8) from the appliance and place it onto a cushioned surface so that damage does not occur to it.
3) Remove the upper door pin (4) from the top of the door, using a flat head screwdriver (S2).
4) Remove the lower left hand hinge screws (6) and then the lower hinge and pin (5) from the right hand side of the cabinet. Then fix them onto the opposite side of the cabinet, ensuring that the screws are fully tightened.
5) Fix the upper left hand hinge (2) to the opposite side of the cabinet using the hinge screws (1), ensuring that the screws are fully tightened.
6) Fix the upper right hand hinge (3) to the opposite side of the cabinet using the hinge screws (1), ensuring that the screws are fully tightened.
7) Rotate the wine cooler door (8) through 180^ and then place it onto the lower hinge and pin (5). IMPORTANT: Ensure that the pin is fully inserted into the hole in the bottom of the wine cooler door.
8) Insert the upper right hand hinge (3) into the top of the wine cooler door (8).
9) Place the upper door pin (4) into the hole on the left hand side of the wine cooler door (8). Tighten the upper door pin fully, using a flat head screwdriver (S2).
10) Fix the upper left hand hinge (2) to the opposite side of the cabinet using the hinge screws (1), ensuring that the screws are fully tightened.
IMPORTANT: Check that the door opens and shuts correctly, without fouling, after you have completed the door reversal process.
After the door has been reversed, you should check the door seal of the wine cooler. The seal should not be creased or crushed; otherwise there will be a gap between it and the inside of the door.
- The seal must adhere properly all the way around the door.
- If the seal is not adhering to the cabinet properly, then you should either:-
a) Use a warm damp cloth and manipulate the seal until it does adhere to the cabinet properly, all the way around the door.
or
b) Use a hair dryer on its lowest heat setting and lightly heat the areas of the door seal that are not adhering correctly. The heat will make the seal more pliable and this will allow you to manipulate the seal into the correct position.
IMPORTANT: DO NOT HEAT THE DOOR SEAL ON ANYTHING BUT THE LOWEST HEAT SETTING, OR HEAT THE SEAL FOR A LONG PERIOD OF TIME. OTHERWISE DAMAGE MAY BE CAUSED TO THE DOOR SEAL, WHICH WOULD NOT BE RECTIFIED UNDER THE GUARANTEE FREE OF CHARGE.
Troubleshooting
IMPORTANT: If your wine cooler appears not to be operating properly, before contacting the Customer Care Department, please refer to the checklist below.
| PROBLEM | POSSIBLE |
| Appliance does not operate Not plugged in. | The circuit breaker has tripped or the fuse has blown. |
| Temperature inside the appliance is too warm. | The temperature controls are set too warm. Set the temperature controls to a cooler setting and allow several hours for the temperature to stabilise.The door is being kept open too long or is being opened too frequently, which is allowing warm air to enter the appliance.The door is not closed completely.The door gasket is not sealing correctly.The appliance has recently been disconnected from the mains supply; it will take at least four hours for it to get down to temperature again. |
| Temperature inside the appliance is too cold | The temperature controls are set too cold. Set the temperature controls to a warmer setting and allow several hours for the temperature to stabilise. |
| Vibration Check to ensure that the appliance is on a level surface.The appliance is touching the back wall behind it. Reposition the appliance and move it from the wall.If vibration continues to occur, then turn off the appliance and unplug it from your mains supply. Then contact the Customer Care Department for assistance. | |
| Moisture is forming on the inside of the appliance. | The door is slightly open.The door is being kept open too long or is being opened too frequently. Open the door less often.The door is not sealed properly. |
| Moisture is forming on the outside of the appliance. | The door is slightly open, causing cold air from inside the appliance to meet warm, moist air from the outside. |
CAUSE
Error codes
If your appliance senses that it is not operating correctly, then an error code may appear on the LCD display.
The following error codes can possibly be remedied by the customer and the steps outlined below should be followed.
LCD displays "HIGH TEMP"
○ This indicates that the temperature being achieved by the appliance is far higher than the temperature that you have set.
- Check that the door has not been left open in error.
- If this is not the case, then the error code indicates that the appliance may have lost refrigerant or the magnetic valve may not be operating properly. Both of these causes will require engineer attention and you should contact the Customer Care Department.
LCD displays "LOW TEMP"
- This indicates that the temperature being achieved by the appliance is far lower than the temperature that you have set.
- The magnetic valve is not operating properly and you should contact the Customer Care Department.
LCD displays "PROBE ERROR-E"
- This indicates that the temperature sensor is not operating properly and you will notice the wine cooler working in an erratic manner. You should contact the Customer Care Department.
IMPORTANT: If your appliance appears not to be operating correctly, then you should disconnect it from your mains supply and then contact the Customer Care Department on telephone number (0118) 933 6911.
DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.
Please note that if an engineer is asked to attend whilst the product is under guarantee and finds that the problem is not the result of an appliance fault, then you may be liable for the cost of the call out charge.
The appliance must be accessible for the engineer to perform any necessary repair. If your appliance is installed in such a way that an engineer is concerned that damage will be caused to the appliance or your kitchen, then he will not complete a repair.
This includes situations where appliances have been tiled in, sealed in with sealant, have wooden obstructions placed in front of the appliance, like plinths. Or any installation other than the one specified by Baumatic Ltd. has been completed.
Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.
IMPORTANT: Baumatic Ltd. operates a policy of continuous improvement and reserves the right to adjust and modify its products without prior notification.
Baumatic®
United Kingdom
Baumatic Ltd., Baumatic Buildings, 6 Bennet Road, Reading, Berkshire RG2 0QX United Kingdom
Sales Telephone
(0118) 933 6900
Sales Fax
(0118) 931 0035
Customer Care Telephone
(0118) 933 6911
Customer Care Fax
(0118) 986 9124
Spares Telephone
(01235) 437244
Advice Line Telephone
(0118) 933 6933
E-mail:
sales@baumatic.co.uk customercare@baumatic.co.uk spares@baumatic.co.uk technical@baumatic.co.uk
Website:
www.baumatic.co.uk
Republic of Ireland
Service Telephone
1-890 812 724
Spares Telephone
091 756 771
Czech Republic
- BW300SS 30 cm 12 Bottle built-in electronic wine cooler
- INSTRUCTION MANUAL
- USER MANUAL FOR YOUR BAUMATIC
- BW300SS
- cm 12 Bottle built-in electronic wine cooler
- Contents
- Environmental note
- Important safety information
- Use of the appliance
- Before using your appliance
- Refrigerant
- Child safety
- General safety
- Service
- Specifications of your wine cooler
- Congratulations on purchasing a Baumatic wine cooler
- Dimensions of appliance Dimensions of aperture\*
- Description of the appliance
- Control panel
- Description of the product features
- 1) Control panel
- 2) One cooling zone
- 3) Interior light
- 4) The wine cooler shelves
- 5) Compressor running indicator
- 6) LED display
- 7) Error codes
- Using your Baumatic wine cooler
- Before switching on
- During first use
- Switching on the appliance and setting the temperature
- Loading the wine cooler
- Storing your wines
- Wine storage problems
- Cleaning and maintenance
- Defrosting
- Installation
- Electrical connection
- Positioning
- Built-in installation
- Reversing the door of your wine cooler
- Tools required
- or
- Troubleshooting
- Error codes
- LCD displays "HIGH TEMP"
- LCD displays "LOW TEMP"
- LCD displays "PROBE ERROR-E"
- Baumatic®
- United Kingdom
- Sales Telephone
- Sales Fax
- Customer Care Telephone
- Customer Care Fax
- Spares Telephone
- Advice Line Telephone
- E-mail:
- Website:
- Republic of Ireland
- Service Telephone
- Czech Republic
Brand : BAUMATIC
Model : BW300SS
Category : Drink cooler
