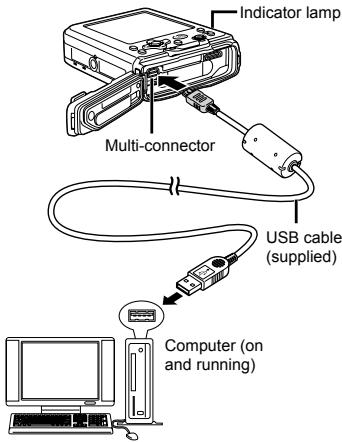

Use the supplied USB cable to connect the device to the computer. The device appears as an external drive; copy the files to your hard drive.

What to do if the device does not turn on?

Check that the battery is charged and correctly inserted. If the problem persists, remove the battery, wait 30 seconds, then reinsert it. Refer to the manual p. 10 for more details.

How to clean the device after use at sea?

Rinse the device with fresh water immediately after use, without using detergent. Dry it with a soft cloth. Make sure the seals are clean.

What is the battery life?

The LI-50B battery allows approximately 200 photos under normal conditions according to CIPA standards. Actual life varies with flash and screen usage.

Can you use the device underwater by pressing the buttons?

No, the device is designed to be used underwater, but the mechanical buttons are not designed to be operated underwater. Use the preset modes before immersion.

How to reset the device settings?

Go to the Settings menu (key icon) and select 'Reset' or 'Factory defaults'. Confirm with the OK button.

Where to find the complete manual for the Olympus μ TOUGH-6020?

The manual is available for free download in PDF format at notice-facile.com. You can also view it online on this site.

USER MANUAL Μ TOUGH-6020 OLYMPUS

Line drawing of a Olympus digital camera with front and back panels (no text or symbols on body)

• Thank you for purchasing an Olympus digital camera. Before you start to use your new camera, please read these instructions carefully to enjoy optimum performance and a longer service life. Keep this manual in a safe place for future reference.
• The application software and instruction manual PDF file are stored on the internal memory of the camera.
• We recommend that you take test shots to get accustomed to your camera before taking important photographs.
• In the interest of continually improving products, Olympus reserves the right to update or modify information contained in this manual.
• The screen and camera illustrations shown in this manual were produced during the development stages and may differ from the actual product. Unless otherwise specified, the explanation about these illustrations is provided for STYLUS TOUGH-8010/μ TOUGH-8010.

Step

1

Checking the contents of the box

Line drawing of a digital camera with visible lens and buttons (no text or symbols)

Digital camera

Simple line drawing of a knotted rope or cord (no text or symbols)

Strap

USB cable
(CB-USB6)

LI-50B ^4

or

LI-42B ^2
Lithium Ion Battery

*1 STYLUS TOUGH-8010/μ TOUGH-8010 and

STYLUS TOUGH-6020/μ TOUGH-6020

or

USB-AC adapter (F-2AC)

Other accessories not shown: Warranty card

Contents may vary depending on purchase location.

Step

2

Preparing the Camera

"Preparing the Camera" (p. 11)

Step

4

How to Use the Camera

"Camera Settings" (p. 3)

Step

3

Shooting and Playing Back Images

"Shooting, Playback, and Erasing" (p. 16)

Step

5

Printing

"Direct printing (PictBridge)" (p. 53)

"Print Reservations (DPOF)" (p. 56)

Contents

Names of Parts 7

Preparing the Camera 11

➢ Shooting, Playback, and Erasing .... 16

Using Shooting Modes...... 23

Using Shooting Functions...... 28

➢ Menus for Shooting Functions... 33

➢ Menus for Playback, Editing, and Printing Functions...... 38

➢ Menus for Other Camera Settings .... 44

▶ Printing 53

Usage Tips 58

Appendix 63

Camera Settings

Using the Direct Buttons

Frequently used functions can be accessed using the direct buttons.

Diagram of a Olympus digital camera module with labeled ports and control panel (no text or symbols beyond branding)

Shutter button (p. 16, 58)

Zoom buttons (p. 17, 20)

Movie record button (p. 17)

▶ button (switching between shooting and playback) (p. 17, 18, 45)

MENU button (p. 4)

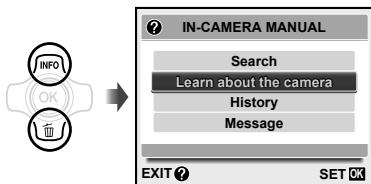

? button (camera guide/menu guide) (p. 22)

Operation guide

The symbols displayed for image selections and settings indicate that the arrow pad is to be used.

Y M D TIME 2010.02.26 12:3 CANCEL MENU SET OK

4/30 14:00 100-0004 10/02/26 12:30 SINGLE PRIN PRINT OK MORE

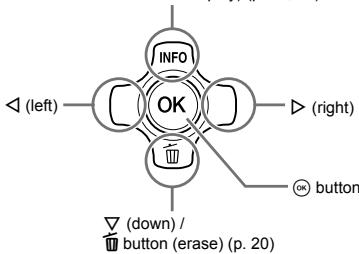

Arrow pad

(up) /

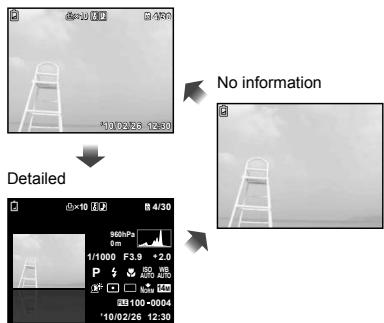

INFO button (changing

information display) (p. 18, 21)


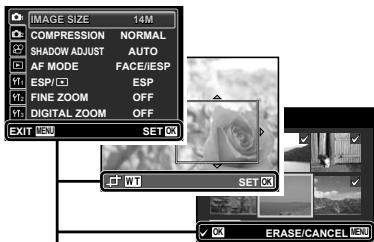

Operation guides displayed at the bottom of the screen indicate that the MENU button, Ⓞ button, or zoom buttons can be used.

IMAGE SIZE 14M COMPRESSION NORMAL SHADOW ADJUST AUTO AF MODE FACE/IESP ESP/□ ESP FINE ZOOM OFF DIGITAL ZOOM OFF EXIT VIEW SET SET SET ERASE/CANCEL

Operation guide

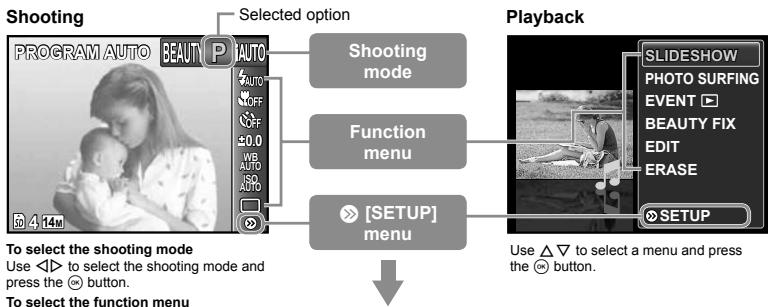

Using the Menu

Use the menu to change camera settings such as the shooting mode.

Press the MENU button to display the function menu. The function menu can be used to set frequently used shooting and playback functions such as shooting mode.

In the [SETUP] menu, various camera functions can be set, including shooting and playback functions not displayed in the function menu, and other settings such as date, time and screen display.

1 Select [SETUP] and then press the Ⓞ button.

● The [SETUP] menu is displayed.

IMAGE SIZE 14M COMPRESSION NORMAL SHADOW ADJUST AUTO AF MODE FACE/IESP ESP ESP FINE ZOOM OFF DIGITAL ZOOM OFF EXIT VENU SET OK

2 Press ◀ to select the page tabs. Use △▽ to select the desired page tab and press ▷.

Page tab WORLD TIME ↑ TV OUT POWER SAVE OFF EXIT SET Submenu 1 WORLD TIME ↑ TV OUT POWER SAVE OFF EXIT SET SET

3 Use △▽ to select the desired submenu 1 and then press the Ⓞ button.

WORLD TIME TV OUT POWER SAVE OFF EXIT SET ON Submenu 2 POWER SAVE OFF ON EXIT SET ON

4 Use △▽ to select the desired submenu 2 and then press the Ⓞ button.

• Once a setting is selected, the display returns to the previous screen.
  There may be additional operations. "Menu Settings" (p. 33 to 52)

WORLD TIME TV OUT POWER SAVE ON EXIT MENU SET OK

5 Press the MENU button to complete the setting.

Some functions cannot be used in some shooting modes. In such cases, the following message is displayed after setting.

IMAGE SIZE 10M COMPRESSION NORMAL SHADOW ADJUST AUTO ⚠️ CONFLICTING SETTINGS Y: FINE ZOOM OFF Y: DIGITAL ZOOM OFF EXIT MENU SET OK

Menu Index

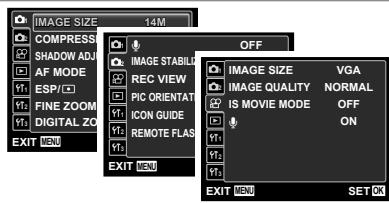

Menus for Shooting Functions

PROGRAM AUTO BEAUTY P AUTO AUTO OFF OFF 0.0 AVB AVD AUTO 4 14m

⑨

IMAGE SIZE 14M COMPRESS SHADOW ADJ AF MODE Y1: ESP/□ FINE ZOOM Y1: DIGITAL ZO EXIT MENU OFF IMAGE STABILU REC VIEW PIC ORIENTATION ICON GUIDE REMOTE FLASH EXIT MENU IMAGE SIZE VGA IMAGE QUALITY NORMAL IS MOVIE MODE OFF ON EXIT MENU SET OK

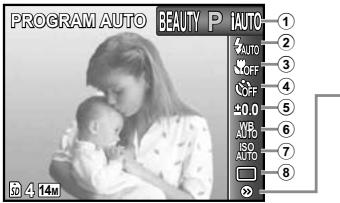

① Shooting mode

P (PROGRAM AUTO)...... p. 16

iAUTO (iAUTO)......p.23

SCN (SCENE MODE) ..... p. 23

MAGIC (MAGIC FILTER).....p.24

( PANORAMA)......p.25

BEAUTY(BEAUTY)......p.27

② Flash....p.28
③ Macro ......p.28
④ Self-timer......p.30
⑤ Exposure compensation....p. 30
⑥ White balance......p. 30
⑦ ISO p.31

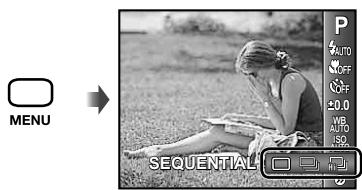

⑧ Drive....p.32
⑨ (SETUP)

IMAGE SIZE (Still images) ......p. 33
IMAGE SIZE (Movies)......p. 33
COMPRESSION (Still images) ......p. 33
IMAGE QUALITY (Movies) p.33
SHADOW ADJUST ......p.34
AF MODE....p.34
ESP/□ p.34
FINE ZOOM ...... p.35

DIGITAL ZOOM......p.35
(Still images)......p.35
(Movies)......p.36
IMAGE STABILIZER
(Still images)/
IS MOVIE MODE
(Movies)......p.36
REC VIEW......p.36
PIC ORIENTATION ^*1 ..... p.37

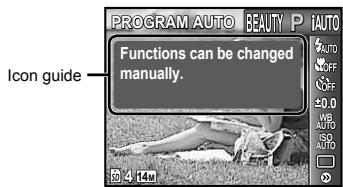

ICON GUIDE ...... p.37
REMOTE FLASH ^2 ...... p.37

^*1 STYLUS TOUGH-8010/ TOUGH-8010 and STYLUS TOUGH-6020/ TOUGH-6020 only
*2 STYLUS TOUGH-8010/μ TOUGH-8010 only

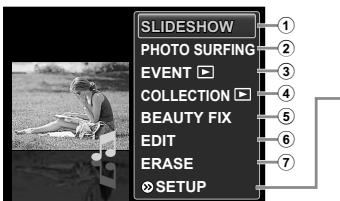

Menus for Playback, Editing, and Printing Functions

SLIDESHOW PHOTO SURFING EVENT COLLECTION BEAUTY FIX EDIT ERASE SETUP

PRINT ORDER EXIT MENU SET OK

① SLIDESHOW......p. 38
② PHOTO SURFING......p. 38
③ EVENT ▶ ......p.39
④ COLLECTION ▶ ......p.39
⑤ BEAUTY FIX......p.40

⑥ EDIT ...... p.40

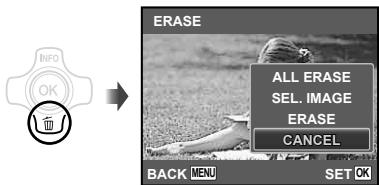

⑦ ERASE ...... p.42
⑧ (SETUP)

PRINT ORDER......p.42

Oπ (Protect) ...... p. 42

(Rotate)......p.43
(Add sound to still images) ......p. 43

INTERNAL/SD AUTO MEMORY FORMAT DATA REPAIR IN→COPY Y11 ENGLISH Y21 RESET Y31 USB CONNECTION PC EXIT MENU SET OK

① _1 (Settings 1)
INTERNAL/SD......p. 44
MEMORY FORMAT/
FORMAT......p.44
DATA REPAIR ......p.44
IN→SD COPY....p.44
☐ (Language) ...... p. 44
RESET......p.45
USB CONNECTION......p.45
② YT2 (Settings 2)
POWER ON ......p.45
SAVE SETTINGS......p.45
PW ON SETUP ......p.45

SOUND SETTINGS ......p.46
FILE NAME ......p.46
PIXEL MAPPING......p.47
(Monitor) p. 47
③ YT3 (Settings 3)
(Date/time)......p.47
WORLD TIME......p.48
TV OUT ......p.48
POWER SAVE......p.50
MANOMETER ^*1 p.50
TAP CONTROL ^2 ...... p.51
LED ILLUMINATOR ^2 ...... p.52

^*1 STYLUS TOUGH-8010/ TOUGH-8010 only
^2 STYLUS TOUGH-8010/ TOUGH-8010 and STYLUS TOUGH-6020/ TOUGH-6020 only

Operating the camera by tapping the body (p. 51)

(STYLUS TOUGH-8010/μ TOUGH-8010 and

STYLUS TOUGH-6020/μ TOUGH-6020 only)

You can operate the camera by tapping the body when [TAP CONTROL] is [ON].

Line drawing of a hand holding a digital camera with a flash indicator (no text or symbols)

Camera unit

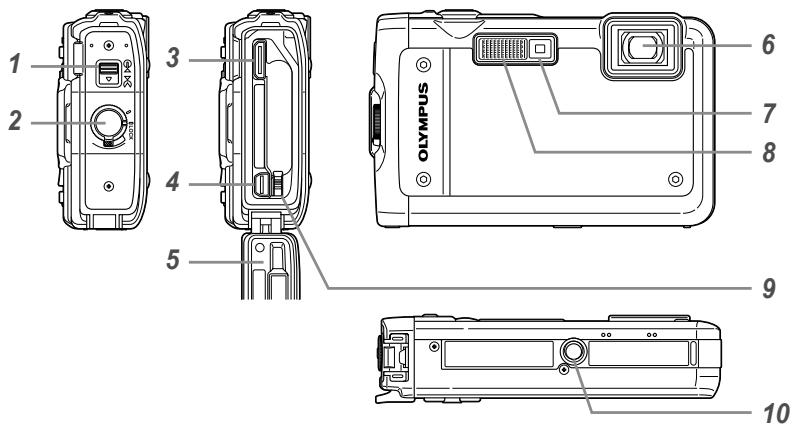

1 2 3 4 5 6 7 8 9 10 OLYMPUS

STYLUS TOUGH-6020/μ TOUGH-6020

Technical line drawing of a mechanical component with a labeled pin (no text or symbols beyond the label)

Attaching the camera strap

Line drawing of a digital camera with attached cable, no text or symbols present

! Pull the strap tight so that it does not come loose.

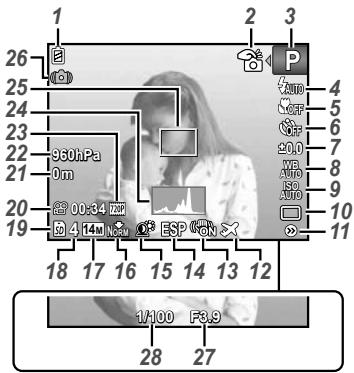

Shooting mode display

1 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1/100 F3.9 28 27

1 Battery check ...... p. 13, 59
2 Tap control ^1 ......p. 6, 51
3 Shooting mode....p. 16, 23
4 Flash ...... p. 28
Flash standby/flash charge ...... p. 58
5 Macro/super macro/ S-macro LED mode ^1 ...... p. 28
6 Self-timer......p. 30
7 Exposure compensation......p. 30
8 White balance ...... p. 30
9 ISO p. 31
10 Drive....p. 32
11 [SETUP] menu ...... p. 4, 5, 6
12 World time....p. 48
13 Image stabilization (still images)/Digital image stabilization (movies) p. 36
14 Metering ...... p. 34
15 Shadow Adjustment Technology ......p. 34

16 Compression (still images) ...... p. 33, 66, 67, 68
17 Image size (still images) ...... p. 33, 66, 67, 68
18 Number of storable still pictures (still images)....p. 16
19 Current memory ...... p. 65
20 Remaining recording time (movies) ...... p. 17
21 Altitude/water depth ^2 ......p. 50
22 Atmospheric/ hydraulic pressure ^2 ......p. 50
23 Image size (movies)...p. 33, 66, 67, 68
24 Histogram......p. 18
25 AF target mark ...... p. 16
26 Camera shake warning
27 Aperture value......p. 16
28 Shutter speed......p. 16

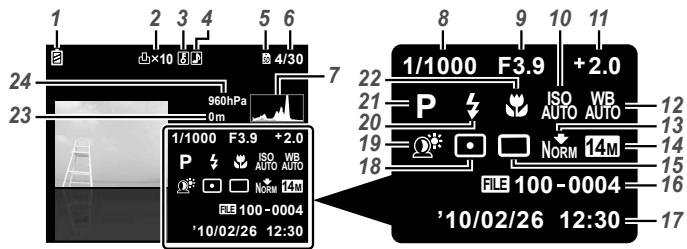

Playback mode display

• Standard display


1 2 3 4 5 6 2×10 4/30 '10/02/26 12:30 17 Still image

Black-and-white photo of a person standing on a beach with a camera overlay and frame number 6 (no readable text or symbols)

• Advanced display


1 2 3 4 5 6 7 8 9 10 11 1/1000 F3.9 +2.0 ISO WB AUTO AUTO 12 NORM 14M 13 19 18 FILE 100-0004 14 '10/02/26 12:30 15 '10/02/26 12:30 16 '10/02/26 12:30 17

1 Battery check ...... p. 13, 59
2 Print reservation/ number of prints ...... p. 56/p. 55
3 Protect......p. 42
4 Adding sound ...... p. 35, 36, 43
5 Current memory ...... p. 65
6 Frame number/total number of images (still images)....p. 18

Elapsed time/total recording time (movies) ...... p. 19

7 Histogram......p. 18
8 Shutter speed......p. 16
9 Aperture value......p. 16
10 ISO......p. 31
11 Exposure compensation......p. 30
12 White balance ...... p. 30

13 Compression (still images) ...... p. 33, 66, 67, 68 Image quality (movies) ...... p. 33, 66, 67, 68
14 Image size......p. 33, 66, 67, 68
15 Drive....p. 32
16 File number
17 Date and time......p. 14, 47
18 Metering ...... p. 34
19 Shadow Adjustment Technology ...... p. 34
20 Flash ...... p. 28
21 Shooting mode....p. 16, 23
22 Macro ...... p. 28
23 Altitude/water depth ^ ......p. 50
24 Atmospheric/ hydraulic pressure ^ ..... p. 50

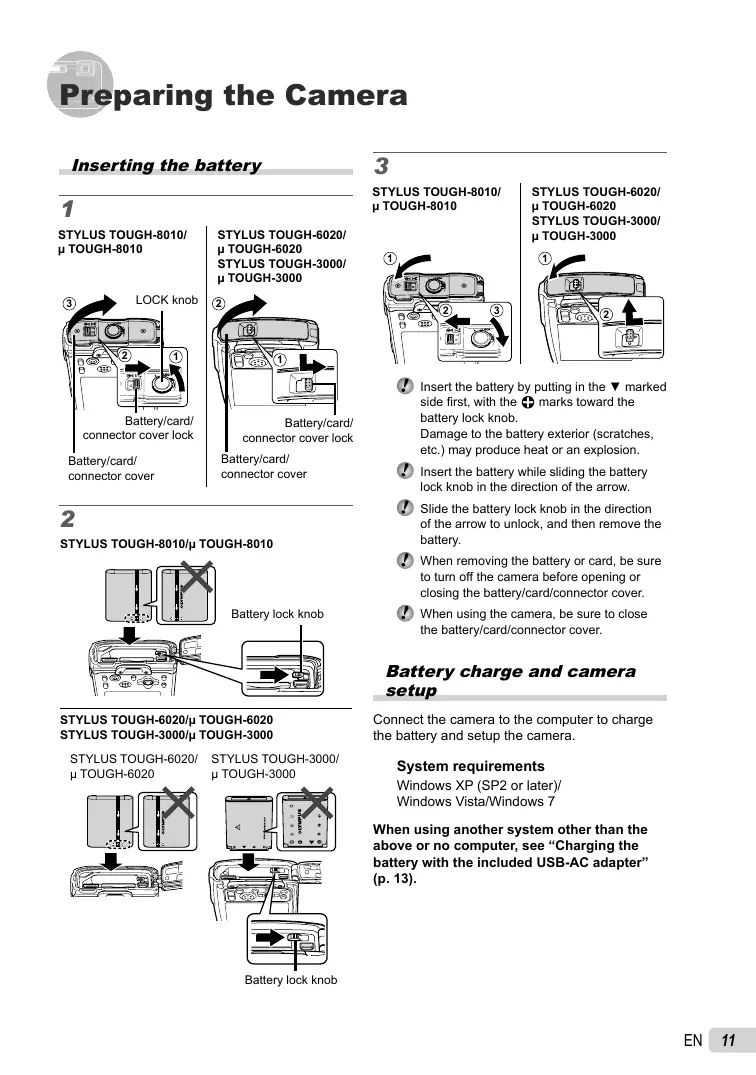

Inserting the battery

1

STYLUS TOUGH-8010/μ TOUGH-8010

③ LOCK knob ② Battery/card/ connector cover lock

Battery/card/ connector cover

STYLUS TOUGH-6020/ μ TOUGH-6020 STYLUS TOUGH-3000/ μ TOUGH-3000

Battery/card/ connector cover lock

Battery/card/ connector cover

2

STYLUS TOUGH-8010/μ TOUGH-8010

Battery lock knob

Diagram showing battery charging process with labeled components and a cross indicating no charging

Diagram showing device status change with labeled arrows and a warning symbol

Battery lock knob

3

STYLUS TOUGH-8010/μ TOUGH-8010

Diagram showing three labeled steps of a device control panel with arrows indicating direction of operation.

STYLUS TOUGH-6020/ μ TOUGH-6020 STYLUS TOUGH-3000/ μ TOUGH-3000

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or assembly step.

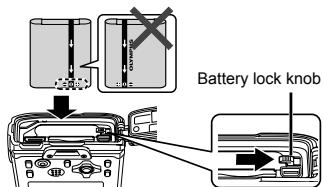

! Insert the battery by putting in the ▼ marked side first, with the ⚠ marks toward the battery lock knob. Damage to the battery exterior (scratches, etc.) may produce heat or an explosion.
Insert the battery while sliding the battery lock knob in the direction of the arrow.
! Slide the battery lock knob in the direction of the arrow to unlock, and then remove the battery.
When removing the battery or card, be sure to turn off the camera before opening or closing the battery/card/connector cover.
When using the camera, be sure to close the battery/card/connector cover.

Battery charge and camera setup

Connect the camera to the computer to charge the battery and setup the camera.

System requirements

Windows XP (SP2 or later)/Windows Vista/Windows 7

When using another system other than the above or no computer, see “Charging the battery with the included USB-AC adapter” (p. 13).

1 Connect the camera to the computer.

When connecting the camera to the computer via USB cable, face the lens downward.

Indicator lamp Multi-connector USB cable (supplied) Computer (on and running)

Charging the battery

When the camera is connected to the computer, the battery in the camera will be charged.

• When charging, the indicator lamp light. When charging is complete, the indicator lamp will turn off.
  If the indicator lamp does not light, the camera may be incorrectly connected, or the battery, camera, computer or USB cable may not be functioning correctly.

Camera setup

Set the camera date and time, time zone and display language automatically; install the camera instruction manual and PC software (ib).

Do not insert SD/SDHC memory cards before the camera setup.
Do not format the internal memory until the camera setup is complete. Doing so will erase the camera instruction manual and the PC software (ib) data that are stored on the internal memory.
Check that your computer meets the following system requirements: Windows XP (SP2 or later)/Windows Vista/Windows 7
Refer to the PC software (ib) help guide for details on how to use the PC software (ib).

2 Select and execute "OLYMPUS Camera Initialization", which is displayed on the computer screen when the camera is recognized by the computer.

If nothing is displayed on the camera screen even after connecting the camera to the computer, the battery may be exhausted. Leave the camera connected to the computer until the battery has charged, then disconnect and reconnect the camera.
Even if a computer has USB ports, proper operation is not guaranteed in the following cases:

• Computers with USB ports installed using an expansion card, etc.
  ● Computers without a factory-installed OS and home-built computers

Double-click the icon for the camera drive (Removable Disk), and then execute Setup.exe to start the camera setup.

3 Follow the instructions on the computer screen and setup the camera.

Charging the battery with the included USB-AC adapter

The included USB-AC adapter (F-2AC) (hereafter referred as AC adapter) has been designed to be used for charging and playback. Make sure that shooting is not being used while the AC adapter is connected to the camera.

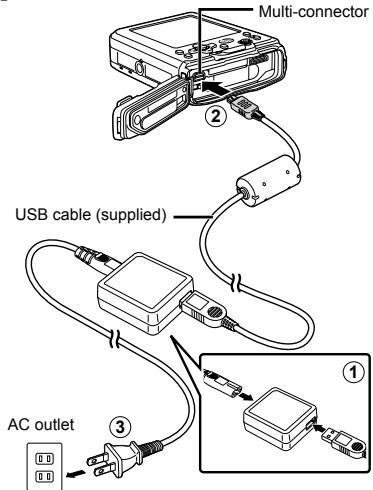

Example: AC adapter with an AC cable

1

Multi-connector USB cable (supplied) AC outlet

When connecting the camera to the computer via USB cable, face the lens downward.

2

STYLUS TOUGH-8010/μ TOUGH-8010

Technical line drawing of a mechanical component (no text or symbols)

Indicator lamp

On: Charging

Off: Charged

STYLUS TOUGH-6020/μ TOUGH-6020

Technical line drawing of a mechanical component with no visible text or symbols

Indicator lamp

On: Charging

Off: Charged

Diagram of an electronic device rear panel with labeled ports (ON, OFF) and a central grid element (no text or symbols beyond labels)

Indicator lamp

On: Charging

Off: Charged

The battery is not fully charged at shipment. Before use, be sure to charge the battery until the indicator lamp turns off (STYLUS TOUGH-8010/μ TOUGH-8010, STYLUS TOUGH-6020/μ TOUGH-6020: up to 3 hours, STYLUS TOUGH-3000/μ TOUGH-3000: up to 2.5 hours).
If the indicator lamp does not light, the AC adapter is not connected to the camera correctly, or the battery, camera, or AC adapter may be broken.
For details on the battery and the AC adapter, see "Battery, USB-AC adapter (included), Charger (sold separately)" (p. 63).
Battery can be charged by connecting the camera to the computer. However, when charging with the system other than Windows XP (SP2 or later)/Windows Vista/Windows 7, charging takes much time.

When to charge the batteries

Charge the battery when the error message shown below appears.

Flashes in red

Grayscale photo of a hand holding a device on a textured surface, with an arrow indicating direction (no text or symbols)

Monitor top left

BATTERY EMPTY

Error message

When not using a computer

See the next section under “Setting the date, time and time zone.”

When using a computer with system other than Windows XP (SP2 or later)/Windows Vista/Windows 7

Connect the camera to the computer and copy the instruction manual PDF file for your language in the "Manual" folder in the internal memory of the camera.

Setting the date, time and time zone

The date and time set here are saved to image file names, date prints, and other data.

1 Press the ON/OFF button to turn on the camera.

- The date and time setting screen is displayed when the date and time are not set.

Y M D TIME ---- Y/M/D CANCEL MENU

Date and time setting screen

2 Use to select the year for [Y].

INFO OK Y M D TIME 2010 Y/M/D CANCEL MENU

3 Press ▷ to save the setting for [Y].

Y M D TIME 2010 00. -- -- : -- Y/M/D CANCEL MENU

4 As in Steps 2 and 3, use △▽◀▷ and the Ⓞ button to set [M] (month), [D] (day), [TIME] (hours and minutes), and [Y/M/D] (date order).

For precise time setting, press the Ⓞ button as the time signal strikes 00 seconds.
To change the date and time, adjust the setting from the menu. [◀] (Date/time) (p. 47)

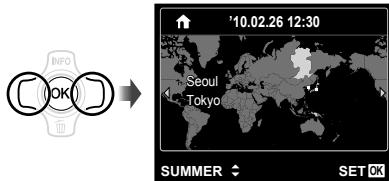

5 Use ◀▶ to select the [↑] time zone and then press the ⏻ button.

- Use to turn daylight saving time ([SUMMER]) on or off.

INFO OK ↑ '10.02.26 12:30' Seoul Tokyo SUMMER SET OK

The menus can be used to change the selected time zone. [WORLD TIME] (p. 48)

Changing the display language

The language for the menu and error messages displayed on the monitor is adjustable.

1 Display the [SETUP] menu.

! "Using the Menu" (p. 4)

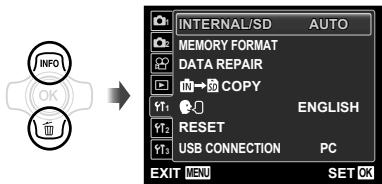

2 Use to select the _1 (Settings 1) tab and then press .

INTERNAL/SD AUTO MEMORY FORMAT DATA REPAIR IN→SD COPY Y1. ENGLISH Y1. RESET Y1. USB CONNECTION PC EXIT MENU SET OK

3 Use △▽ to select [●] and press the Ⓞ button.

4 Use △▽◀▷ to select your language and press the Ⓞ button.

5 Press the MENU button.

Inserting the SD/SDHC memory card (sold separately)

Always use SD/SDHC memory cards with this camera. Do not insert other types of memory card. "Using a SD/SDHC memory card" (p. 64)
Although the camera can store images in internal memory, SD/SDHC memory cards (sold separately) can be also used to store pictures.

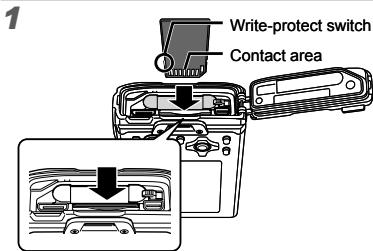

1 Write-protect switch Contact area

Insert the card straight until it clicks into place.
Do not touch the contact area directly.

2

STYLUS TOUGH-8010/μ TOUGH-8010

STYLUS TOUGH-6020/ μ TOUGH-6020 STYLUS TOUGH-3000/ μ TOUGH-3000

Diagram showing three labeled components of a device with directional arrows indicating rotation or assembly steps.

Diagram showing a device interior with labeled parts and directional arrows indicating movement or operation.

! Close the battery/card/connector cover firmly so that lock makes the clicking sound.
“Number of storable pictures (still images)/ Continuous recording length (movies) in the internal memory and SD/SDHC memory cards” (p. 66)

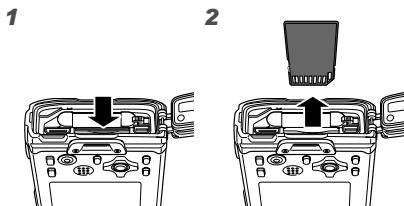

To remove the SD/SDHC memory card

Diagram showing two steps of a device component with labeled parts and directional arrows indicating assembly or movement.

! Press the card in until it clicks and comes out slightly, then remove the card.

Shooting with the optimum aperture value and shutter speed (P mode)

In this mode, automatic shooting settings are activated while also allowing changes to a wide range of other shooting menu functions, such as exposure compensation, white balance, etc. as needed.

1 Press the ON/OFF button to turn on the camera.

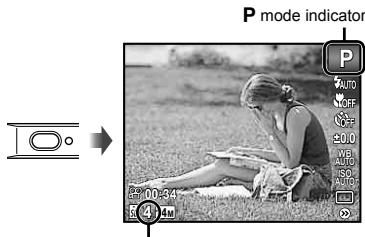

P mode indicator P AUTO OFF UP SOLD UP SOLD UP 4

Number of storable still pictures (p. 66, 67, 68)
Monitor (standby mode screen)

If P mode is not displayed, press the MENU button to display the function menu screen and then set the shooting mode to P. "Using the Menu" (p. 4)

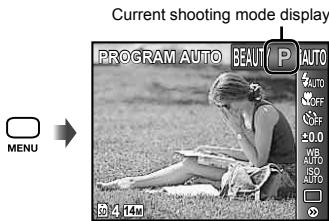

Current shooting mode display PROGRAM AUTO BEAUT/ P AUTO AUTO OFF OFF 2.0.0 WR AUTO ISO AUTO 4 14m

! Press the ON/OFF button again to turn off the camera.

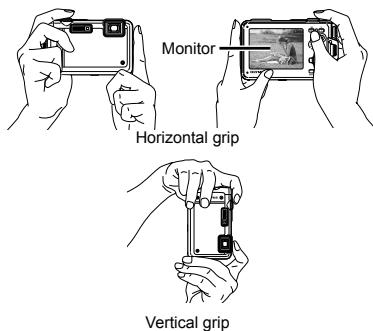

2 Hold the camera and compose the shot.

Monitor Horizontal grip Vertical grip

When holding the camera, take care not to cover the flash with your fingers, etc.

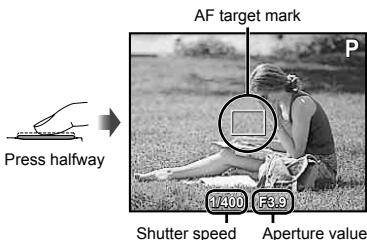

3 Press the shutter button halfway down to focus on the subject.

• When the camera focuses on the subject, the exposure is locked (shutter speed and aperture value are displayed), and the AF target mark changes to green.
• The camera was unable to focus if the AF target mark flashes red. Try focusing again.

Press halfway AF target mark P Shutter speed Aperture value 1400 F8.9

! "Focusing" (p. 60)

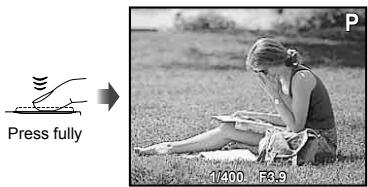

4 To take the picture, gently press the shutter button all the way down while being careful not to shake the camera.

Press fully 1/400 F3.9

Image review screen

To view images during shooting

Pressing the ▶ button enables playback of images. To return to shooting, either press the ▶ button or press the shutter button halfway down.

Shooting movies

1 Press the movie record button to start recording.

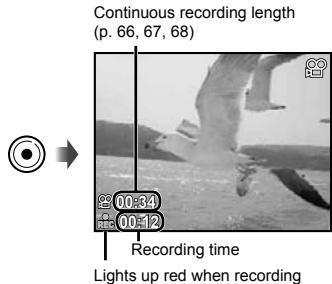

Continuous recording length (p. 66, 67, 68) 00:34 00:12 Recording time Lights up red when recording

The effects of the set shooting mode can be used when shooting movies (when MAGIC mode, ⚠️ mode or BEAUTY mode is set, shooting is performed with the P mode setting).

2 Press the movie record button again to stop recording.

! Sound will also be recorded.
When recording sound in a movie, the sound of the lens triggering and camera operating may be recorded.
STYLUS TOUGH-3000/μ TOUGH-3000: During sound recording, only the digital zoom can be used. To record a movie with optical zoom, set [↓] (movies) (p. 36) to [OFF].

Using the zoom

Pressing the zoom buttons adjusts the shooting range.

Pressing the wide (W) button

Pressing the telephoto (T) button

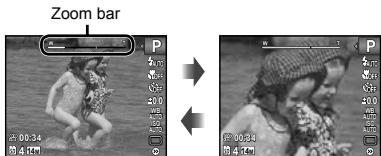

Zoom bar P 00:34 50:40 20:50 10:60 5:70 0:80 5:90 15:10 25:15 35:20 45:25 55:30 65:35 75:40 85:45 95:50 105:55 115:60 125:65 135:70 145:75 155:80 165:85 175:90 185:95 195:100 205:105 215:110 225:115 235:120 245:125 255:130 265:135 275:140 285:145 295:150 305:155 315:160 325:165 335:170 345:175 355:180 365:185 375:190 385:195 395:200 405:205 415:210 425:215 435:220 445:225 455:230 465:235 475:240 485:245 495:250 505:255 515:260 525:265 535:270 545:275 555:280 565:285 575:290 585:295 595:300 605:305 615:310 625:315 635:320 645:325 655:330 665:335 675:340 685:345 695:350 705:355 715:360 725:365 735:370 745:375 755:380 765:385 775:390 785:395 795:400 805:405 815:410 825:415 835:420 845:425 855:430 865:435 875:440 885:445 895:450 905:455 915:460 925:465 935:470 945:475 955:480 965:485 975:490 985:495 995:500

Model No.	Optical zoom	Digital zoom
STYLUS TOUGH-8010/μ TOUGH-8010	5×	5×
STYLUS TOUGH-6020/μ TOUGH-6020	5×	5×
STYLUS TOUGH-3000/μ TOUGH-3000	3.6×	5×

To take larger images without reducing image quality

[FINE ZOOM] (p. 35)

To take larger images

[DIGITAL ZOOM] (p. 35)

The zoom bar appearance identifies the status of the fine zoom/digital zoom.

When using optical zoom

Simple line drawing of a horizontal beam with two labeled ends (W and T), no text or symbols present.

Optical zoom range

When using fine zoom

When using digital zoom

W T ST Fine zoom range W T

Digital zoom range

Changing the shooting information display

The display of the screen information can be changed to best match the situation, for example, the need for a clear view of the screen or for making a precise composition by using the grid display.

1 Press △ (INFO).

- The displayed shooting information changes in the order shown below each time the button is pressed. "Shooting mode display" (p. 9)

Normal

Black and white photo of a white tower structure against a cloudy sky, no visible text or symbols

Detailed

Grid of grayscale image editing interface with no visible text or symbols

No information

Black and white photo of a white ladder leaning against a cloudy sky (no text or symbols visible)

Reading a histogram

If the peak fills too much of the frame, the image will appear mostly white.

If the peak fills too much of the frame, the image will appear mostly black.

uch of the frame, or mostly white.

The green section shows luminance distribution within the screen's center.

Viewing images

1 Press the ▶ button.

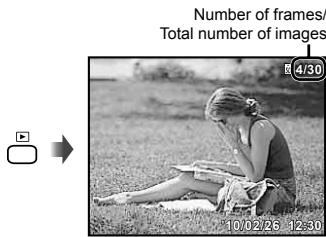

Number of frames/ Total number of images E 4/30 10/12/25 12:30

Playback image

2 Use ◀▷ to select an image.

Hold ▷ to fast forward and hold ◀ to reverse.
The display size of the images can be changed. "Index view, close-up view, and event index" (p. 20)

To play sound recordings

To play sound recorded with an image, select the image and press the OK button. A 📂 icon appears on images with which sound has been recorded.

! [¶] (still images) (p. 35, 43)

Black-and-white photo of a girl sitting on grass reading a book (no visible text or symbols)

During audio playback

To play back movies

Select a movie, and press the Ⓞ button.

Black-and-white photo of birds in flight over a body of water, captured in a video frame (no text or symbols on the image itself)

Movie

Operations during movie playback

Elapsed time/ Total recording time 00:12/00:34 During playback

Pausing and restarting playback	Press the ⏻ button to pause playback. During pause, fast forward or reverse, press the ⏻ button to restart playback.
Fast forward	Press ▷ to fast forward. Press ▷ again to increase the fast forward speed.
Rewind	Press ◀ to rewind. The speed at which the recording rewinds increases each time ◀ is pressed.
Adjusting the volume	Use △▽ to adjust the volume.

Operations while playback is paused

Black-and-white photo of a bird perched on water with hills in the background (no visible text or symbols)

During pause

Cueing	Use △ to display the first frame and press ∇ to display the last frame.
Advancing and rewinding one frame at a time	Press ▷ or ◀ to advance or rewind one frame at a time.Hold ▷ or ◀ pressed for continuous advance or rewind.
Resuming playback	Press the ⏻ button to resume playback.

To stop movie playback

Press the MENU button.

Erasing images during playback (Single image erase)

1 Display the image you want to erase and press (☑).

INFO OK ERASE ALL ERASE SEL. IMAGE ERASE CANCEL BACK MENU SET OK

2 Press to select [ERASE], and press the ☉ button.

! [ALL ERASE] (p. 42) and [SEL. IMAGE] (p. 42) can be used to erase multiple images at the same time.

Index view, close-up view, and event index

Index view enables quick selection of a desired image. Close-up view (up to 10× magnification) allows checking of image details. In event index ^1 , images are grouped by the shooting dates and representative images for an event can be displayed.

*1 Pictures with different dates can be grouped into the same event using the PC software (ib).

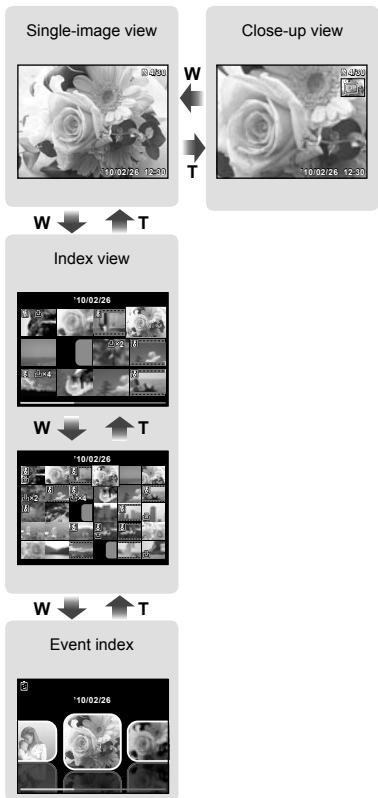

1 Press the zoom buttons.

To select an image in index view

Use △▽◀▷ to select an image, and press the OK button to display the selected image in single-image view.

To scroll an image in close-up view

Use to move the viewing area.

To select an image in event index

Use ◀▶ to select the representative image and press the Ⓞ button. The images in the selected event are played back.

Changing the image information display

Shooting information settings displayed on the screen can be changed.

1 Press (INFO).

- The displayed image information changes in the order shown below each time the button is pressed.

Normal

1/10/2/26 12:30 No information Detailed 960/-Pa 0.5m 1/1000 F3.9 +2.0 P ISO WEL AUTO AUTO 4.00 100-0004 *10/0/2/26 12:30

! "Reading a histogram" (p. 18)

Playing back panorama images

Panorama images that were combined together using [AUTO] or [MANUAL] can be scrolled for viewing.

! "Creating panoramic images (mode)" (p. 25)

1 Select a panorama image during playback.

! "Viewing images" (p. 18)

Black-and-white cityscape photo of a suspension bridge at night, with no visible text or symbols.

2 Press the Ⓞk button.

Current viewing area

To control panorama image playback

Zoom in/Zoom out: Press the Ⓞ button to pause playback. Then press the zoom button to enlarge/shrink the image.

Playback direction: Press the Ⓞ button to pause playback. Then press △▽◀▶ to scroll the image in the direction of the pressed button.

Pause: Press the Ⓞ button.

Restart scrolling: Press the Ⓞ button.

Stop playback: Press the MENU button.

Using the menu guide

If the ? button is pressed while settings are being adjusted in the playback function or [SETUP] menus, a description of the selected option is displayed.

! "Using the Menu" (p. 4)

Using the camera guide

Use the camera guide to look up camera operations.

1 Press the Ⓑ button in the standby mode screen or the playback screen.

Submenu 2	Application
Search	Functions or operating methods can be searched from a term or shooting objective.
Learn about the camera	Information is shown about recommended functions and basic operating methods for the camera.
History	Searches can be performed from the search history.
Message	Messages from the camera can be viewed.

2 Use to select the desired item.

- Follow the on-screen instructions to search the desired contents.

To change the shooting mode

The shooting mode (P, iAUTO, SCN, MAGIC, 📋, BEAUTY) can be changed with using the function menu. "Using the Menu" (p. 4)

Shooting with automatic settings (iAUTO mode)

The camera will automatically select the optimal shooting mode for the scene. This is a fully automatic mode that allows you to take a picture suited to the scene by simply pressing the shutter button. In IAUTO mode, settings in the shooting menu can be selected, but the changed setting is not reflected in the actual shot.

1 Set the shooting mode to iAUTO.

The icon changes depending on the scene that the camera automatically selects.

Black-and-white photo of a woman sitting on grass, looking at the camera (no visible text or symbols)

In some cases, the camera may not select the desired shooting mode.
When the camera cannot identify the optimal mode, P mode will be selected.

Using the best mode for the shooting scene (SCN mode)

1 Set the shooting mode to SCN.

Black-and-white photo of a person sitting on grass holding a device, no visible text or symbols in the scene itself.

2 Press to go to the submenu.

Black-and-white photo of a person sitting on grass, holding an object, with no visible text or symbols in the main image area.

3 Use ◀▶ to select the mode and then press the Ⓞ button to set.

Black-and-white photo of a person sitting on grass reading a book, with no visible text or symbols in the main scene.

Icon indicating the scene mode that is set

In SCN modes, the optimum shooting settings are pre-programmed for specific shooting scenes. For this reason, settings may not be changed in some modes.

Option	Application
	The camera takes a picture using the optimum settings for the scene conditions.

^1 When the subject is dark, noise reduction is automatically activated. This approximately doubles the shooting time during which no other pictures can be taken.
^2 STYLUS TOUGH-8010/ TOUGH-8010 and STYLUS TOUGH-6020/ TOUGH-6020 only

To take underwater photos

Select [SNAPSHOT], [1 WIDE1]*1, [2 WIDE2]*1, 2, [MACRO]*1.

^*1 STYLUS TOUGH-8010/ TOUGH-8010 and STYLUS TOUGH-6020/ TOUGH-6020 only
^2 When set to [ 2 WIDE2], the focus distance is automatically fixed to approx. 5.0 m (16.4 ft.).

“Important information about water and shock resistant features” (p. 69)

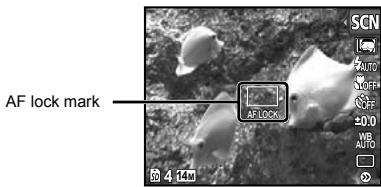

To lock the focus distance for underwater shoots (AF lock)

When [SNAPSHOT], [WIDE1], or, [MACRO] is selected, press the button. STYLUS TOUGH-8010/μ TOUGH-8010 and STYLUS TOUGH-6020/μ TOUGH-6020 only

AF lock mark SCN AF-LOCK 4 14M ±0.0 AVFD

To cancel, press the Ⓞ button again to clear the AF lock mark.

To take pictures of a moving subject like a pet ([PET] mode)

① Use ◀▶ to select [PET], and press the ⏻ button to set.
② Hold the camera to align the AF target mark on the subject and press the Ⓞ button.

- When the camera recognizes the subject, the AF target mark automatically tracks the subject movement to focus on it continuously. "To focus on a moving subject continuously (AF Tracking)" (p. 34).

Shooting with special effects (MAGIC mode)

To add expression to your photo, select the desired special effect.

Set the shooting mode to MAGIC.

Black and white photo of a person sitting on grass reading a book, no visible text or symbols in the image content

Press ▽ to go to the submenu.

POP ART MAGIC AUTO OFF RF ±0.0 WB AUTO

3 Use ◀▶ to select the desired effect and then press the Ⓞ button to set.

Black-and-white photo of a person sitting on grass, holding an object, with no visible text or symbols in the main image area.

Icon indicating MAGIC mode that is set

Shooting mode	Option
MAGIC FILTER	1 POP ART2 PIN HOLE3 FISH EYE4 DRAWING

In MAGIC mode, the optimum shooting settings are pre-programmed for each scene effect. For this reason, some settings cannot be changed in some modes.

Creating panoramic images (mode)

1 Set the shooting mode to ≈.

PANORAMA MAGIC BEAUTY AUTO AUTO OFF OFF ±0.0 VIB AUTO 4 KB

2 Press to go to the submenu.

3 Use ◀▶ to select the desired mode and then press the Ⓞ button to set.

Submenu 1	Application
AUTO	Three frames are taken and combined by the camera. The user only composes the shots so that the target marks and pointers overlap, and the camera automatically releases the shutter.
MANUAL	Three frames are taken and combined by the camera. The user composes the shots using the guide frame and manually releases the shutter.
PC	The frames that were taken are combined into a panorama image using the PC software (ib).

For details on installing the PC software (ib), see "Battery charge and camera setup" (p. 11).
When set to [AUTO] or [MANUAL], [IMAGE SIZE] (p. 33) is fixed to [2M].
The focus, exposure (p. 30), zoom position (p. 17), and white balance (p. 30) are locked at the first frame.
The flash (p. 28) is fixed to ⚪ (FLASH OFF) mode.

Taking pictures with [AUTO]

① Press the shutter button to take the first frame.
② Move the camera slightly in the direction of the second frame.

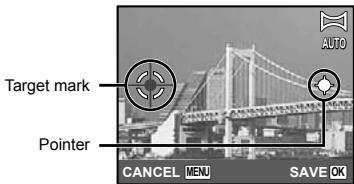

Target mark Pointer CANCEL MEN SAVE OK

Screen when combining images from left to right

③ Move the camera slowly while keeping it straight, and stop the camera where the pointer and target mark overlap.

● The camera releases the shutter automatically.

AUTO CANCEL MENU SAVE OK

To combine only two pictures, press the Ⓞ button before taking a third frame.
④ Repeat Step ③ to take a third frame.

● After the third frame is taken, the camera automatically processes the frames and the combined panorama image is displayed.

To exit the panorama function without saving an image, press the MENU button.
If the shutter does not automatically release, try [MANUAL] or [PC].

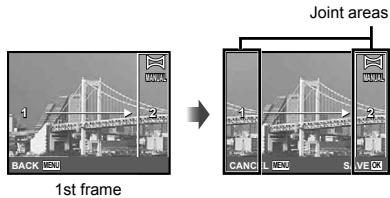

Taking pictures with [MANUAL]

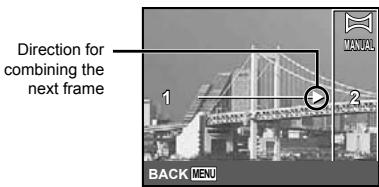

① Use ◀▶ to specify at which edge the next picture is to be connected.

Direction for combining the next frame 1 2 BACK MENU

② Press the shutter button to take the first frame.

Joint areas 1st frame 1 BACK MENU CANC MENU SI VE C4

③ Compose the next shot so that joint area 1 overlaps joint area 2.

1 2 CANCEL MENU SAVE OK

Composition of the 2nd frame

④ Press the shutter button to take the next shot.
To combine only two pictures, press the Ⓞ button before taking the third frame.
⑤ Repeat steps ③ and ④ to take a third frame.

● After the third frame is taken, the camera automatically processes the frames and the combined panorama image is displayed.

To exit the panorama function without saving an image, press the MENU button.

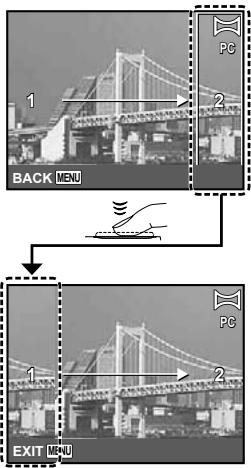

Taking pictures with [PC]

① Use to select the direction that the frames are combined.
② Press the shutter button to take the first frame, and then compose the second shot.

Before first shot

1 2 BACK MENU EXIT MENU

After first shot

● After the first shot, the area shown in white reappears on the side of the display opposite the pan direction. Frame subsequent photographs so that they overlap with the image in the monitor.

③ Repeat Step ② until the number of desired frames is taken, and then press the Ⓞ button or MENU button when finished.
Panorama shooting is possible for up to 10 frames.
Refer to the PC software (ib) help guide for details on how to make panorama images.

Smoothing out skin tone and texture (BEAUTY mode)

The camera identifies a person's face and gives the skin a smooth, translucent look for taking the picture.

1 Set the shooting mode to BEAUTY.

BEAUTY BEAUTY P AUTO OFF: +0.0 WBS AUTO 4,14M

2 Point the camera toward the subject. Check the frame appearing around the face detected by the camera, and then press the shutter button to take the picture.

• The unedited image and edited image are both saved.
• If the image cannot be retouched, only the unedited image is saved.

The frame may not appear or may take some time to appear for some subjects. In addition, this function may have no visible effect on some subjects.

The [IMAGE SIZE] of the retouched image is limited to [5_M] or lower.

"Using the Menu" (p. 4)

Using the flash

The flash functions can be selected to best match the shooting conditions.

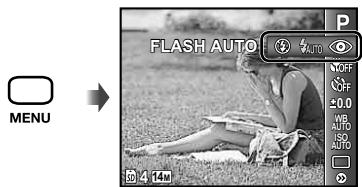

1 Select the flash option in the shooting function menu.

FLASH AUTO AUTO P OFF OFF +0.0 WB AUTO Auto 4 14m

2 Use ◀▶ to select the setting option, and press the Ⓞ button to set.

Option	Description
FLASH AUTO	The flash fires automatically in low-light or backlight conditions.
REDEYE	Pre-flashes are emitted to reduce the occurrence of red eye in your photos.
FILL IN	The flash fires regardless of the available light.
FLASH OFF	The flash does not fire.
REMOTE CONTROL*	For details, see “Using an external flash” (p. 37).
SLAVE

STYLUS TOUGH-8010/μ TOUGH-8010 only
! [REMOTE CONTROL] and [SLAVE] are not displayed when [REMOTE FLASH] (p. 37) is set to [OFF].

Shooting closeups (Macro shooting)

This function enables the camera to focus and shoot subjects at close distances.

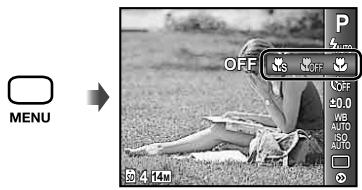

1 Select the macro option in the shooting function menu.

MENU OFF P 4.0 OFF ±0.0 WB AUTO ISO AUTO 4 14

2 Use ◀▶ to select the setting option, and press the ⏻ button to set.

Option	Application	Description
OFF	Macro mode is deactivated.	—
MACRO	This enables the camera to shoot subjects at close distances.	When the zoom is at the widest (W) position, this function enables shooting as close as the following distances.
		STYLUS TOUGH-8010/μ TOUGH-8010, STYLUS TOUGH-6020/μ TOUGH-6020	STYLUS TOUGH-3000/ μ TOUGH-3000
		20 cm (7.9 in.)	10 cm (3.9 in.)
		When the zoom is at the most telephoto (T) position, this function enables shooting as close as the following distances.
		STYLUS TOUGH-8010/μ TOUGH-8010, STYLUS TOUGH-6020/μ TOUGH-6020	STYLUS TOUGH-3000/ μ TOUGH-3000
		50 cm (19.7 in.)	30 cm (11.8 in.)
SUPER MACRO ^1	This enables the camera to shoot subjects at even closer distances.	This function enables shooting as close as the following distances.
		STYLUS TOUGH-8010/μ TOUGH-8010, STYLUS TOUGH-6020/μ TOUGH-6020	STYLUS TOUGH-3000/ μ TOUGH-3000
		3 cm (1.2 in.)	2 cm (0.8 in.)
		Subjects at the following or farther distances cannot be brought into focus.
		STYLUS TOUGH-8010/μ TOUGH-8010, STYLUS TOUGH-6020/μ TOUGH-6020	STYLUS TOUGH-3000/ μ TOUGH-3000
		60 cm (23.6 in.)	50 cm (19.7 in.)
S-MACRO LED ^2,3	The LED illuminator lights the area 7 to 20 cm (2.8 to 7.9 in.) from the lens, while the shutter button is pressed halfway down.	—

^1 The zoom is automatically fixed.
^2 ISO sensitivity (p. 31) is automatically fixed to [ISO AUTO].
^*3 STYLUS TOUGH-8010/ TOUGH-8010 and STYLUS TOUGH-6020/ TOUGH-6020 only

The flash (p. 28) and zoom (p. 17) cannot be set when [INS SUPER MACRO] or [INS S-MACRO LED] is selected.

Using the self-timer

After the shutter button is pressed all the way down, the picture is taken after a short delay.

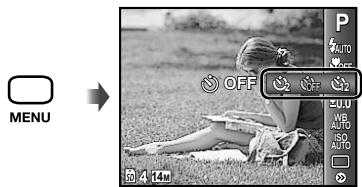

1 Select the self-timer option in the shooting function menu.

MENU OFF 4 14m P AUTO OFF 2.00 WB. AUTO SO. AUTO

2 Use ◀▶ to select the setting option, and press the Ⓞ button to set.

Option	Description
OFF	The self-timer is deactivated.
12 SEC	The self-timer lamp turns on for approx. 10 seconds, then blinks for approx. 2 seconds, and then the picture is taken.
2 SEC	The self-timer lamp blinks for approx. 2 seconds, then the picture is taken.

Self-timer shooting is automatically canceled after one shot.

To cancel the self-timer after it starts Press the MENU button.

Adjusting the brightness (Exposure compensation)

The standard brightness (appropriate exposure) set by the camera based on the shooting mode (except for iAUTO) can be adjusted brighter or darker to obtain a desired shot.

1 Select the exposure compensation option in the shooting function menu.

MENU ±0.0 -0.3 ±0.0 +0.3 AUTO OFF AUTO 150 450

2 Use ◀▶ to select the desired brightness, and press the Ⓞ button.

Adjusting to a natural color scheme (White balance)

For more natural coloring, choose a white balance option suited to the scene.

1 Select the white balance option in the shooting function menu.

WB AUTO P AUTO OFF OFF +0.0 WB AUTO AUTO

2 Use ◀▶ to select the setting option, and press the ⏻ button to set.

Option	Description
WB AUTO	The camera automatically adjusts the white balance according to the shooting scene.
	For shooting outdoors under a clear sky.
	For shooting outdoors under a cloudy sky.
	For shooting under tungsten lighting.
	For shooting under daylight fluorescent lighting (household lighting, etc.)
	For shooting under neutral fluorescent lighting (desk lamps, etc.)
	For shooting under white fluorescent lighting (offices, etc.)
	For underwater shooting (this setting is available when the SCN mode is set to [◇1 WIDE1]).
	For underwater shooting (this setting is available when the SCN mode is set to [◇2 WIDE2]).
	For underwater shooting (this setting is available when the SCN mode is set to [◇3 MACRO]).

* STYLUS TOUGH-8010/μ TOUGH-8010 and STYLUS TOUGH-6020/μ TOUGH-6020 only

Selecting the ISO sensitivity

Abbreviation for the International Organization for Standardization. ISO standards specify the sensitivity for digital cameras and film, thus codes such as “ISO 100” are used to represent sensitivity.
In the ISO setting, although smaller values result in less sensitivity, sharp images can be taken under fully lit conditions. Larger values result in higher sensitivity, and images can be taken at fast shutter speeds even under low light conditions. However, high sensitivity introduces noise into the resulting picture, which may give it a grainy appearance.

1 Select the ISO setting option in the shooting function menu.

ISO AUTO 1600 ISO HIGH 1,400 F3.9

2 Use ◀▶ to select the setting option, and press the ⏻ button to set.

Option	Description
ISO AUTO	The camera automatically adjusts the sensitivity according to the shooting scene.
HIGH ISO AUTO	The camera uses a higher sensitivity compared to [ISO AUTO] to minimize blur caused by a moving subject or by camera shake.
Value	The ISO sensitivity is fixed to the selected value.

Sequential shooting (Drive)

Pictures are taken sequentially while the shutter button is held down.

1 Select the drive option in the shooting function menu.

Black-and-white photo of a person sitting on grass reading a book, with a menu icon and sequential view indicator (no readable text or symbols)

Option	Description
	One frame is shot each time the shutter button is pressed.
	Take sequential shots using the focus, brightness (exposure) and white balance set in the first frame.
	The camera takes sequential shots at a faster speed than in [ ] .

^*1 The shooting speed varies depending on the settings for [IMAGE SIZE/COMPRESSION] (p. 33).
When set to [☐], the flash (p. 28) cannot be set to [REDEYE]. In addition, when set to [☐] the flash is fixed to [FLASH OFF].
When set to [H], [IMAGE SIZE] is limited to [3M] or lower, and the ISO sensitivity is fixed to [ISO AUTO].

Using the LED illuminator

(STYLUS TOUGH-8010/μ TOUGH-8010 and STYLUS TOUGH-6020/μ TOUGH-6020 only)

In a dark location, the LED illuminator can be used as an auxiliary light to see things or compose shots.

1 Set [LED ILLUMINATOR] (p. 52) to [ON].

2 Press and hold down until the LED illuminator lights up.

- If you perform an operation when the LED illuminator is on, it will illuminate up to approx. 90 seconds.

LED illuminator

The LED illuminator turns off if no operation is performed for approx. 30 seconds.
Even when the camera's power is turned off, if is pressed until the LED illuminator lights up, it lights for 30 seconds.

To turn the LED illuminator off

Press and hold down, until the LED illuminator turns off.

Menus for Shooting Functions

The default settings of the function are highlighted in

Selecting the image quality for still images [IMAGE SIZE/COMPRESSION]

1 (Shooting menu 1) ▶ IMAGE SIZE/COMPRESSION

Available shooting modes: P iAUTO SCN MAGIC BEAUTY

Submenu 1	Submenu 2	Application
IMAGE SIZE	14M (4288×3216)* ^1	Suitable for printing pictures over A3 (11×17 in.).
	12M (3968×2976)* ^2
	8M (3264×2448)	Suitable for printing pictures up to A3 (11×17 in.).
	5M (2560×1920)	Suitable for printing pictures at A4 (8.5×11 in.).
	3M (2048×1536)	Suitable for printing pictures up to A4 size (8.5×11 in.).
	2M (1600×1200)	Suitable for printing pictures at A5 (5×7 in.).
	1M (1280×960)	Suitable for printing pictures at postcard size.
	VGA (640×480)	Suitable for viewing pictures on a TV or using pictures on emails and web sites.
	16:9 (4288×2416)* ^1 (3968×2232)* ^2	Suitable for playing pictures on a widescreen TV and for printing on A3 or 11"×17".
	16:9 (1920×1080)	Suitable for playing pictures on a widescreen TV and for printing on A5 or 5"×7".
COMPRESSION	FINE	Shooting at high quality.
	NORMAL	Shooting at normal quality.

^1 STYLUS TOUGH-8010/ TOUGH-8010 and STYLUS TOUGH-6020/ TOUGH-6020 only
^2 STYLUS TOUGH-3000/ TOUGH-3000 only

“Number of storable pictures (still images)/Continuous recording length (movies) in the internal memory and SD/SDHC memory cards” (p. 66)

Selecting the image quality for movies [IMAGE SIZE/IMAGE QUALITY]

(Movie menu) ▶ IMAGE SIZE/IMAGE QUALITY

Available shooting modes: P iAUTO SCN MAGIC BEAUTY

Submenu 1	Submenu 2	Application
IMAGE SIZE	720P VGA (640×480) QVGA (320×240)	Select the image quality based on the image size and frame rate.
IMAGE QUALITY	FINE/NORMAL	Select [FINE] to shoot with higher image quality.

“Number of storable pictures (still images)/Continuous recording length (movies) in the internal memory and SD/SDHC memory cards” (p. 66)
When [IMAGE SIZE] is set to [QVGA], [IMAGE QUALITY] is fixed to [FINE].

Brightening the subject against backlight [SHADOW ADJUST]

1 (Shooting menu 1) ▶ SHADOW ADJUST

Available shooting modes: P iAUTO SCN MAGIC

BEAUTY

Submenu 2	Application
AUTO	The shadow adjustment effect is applied when shooting against backlight.
OFF	The effect is not applied.
ON	Shoot with automatic adjustment to brighten an area that has become darker.

When set to [ON], [ESP/☐] (p. 34) is automatically fixed to [ESP].

Selecting the focusing area [AF MODE]

1 (Shooting menu 1) ▶ AF MODE

Available shooting modes: P iAUTO SCN MAGIC

BEAUTY

Submenu 2	Application
FACE/iESP ^1	The camera focuses automatically. (If a face is detected, it is shown by a white frame ^1 ; when the shutter button is pressed halfway and the camera focuses, the frame turns to green ^2 . If no face is detected, the camera chooses a subject in the frame and focuses automatically.)
SPOT	The camera focuses on the subject located within the AF target mark.
AF TRACKING	The camera tracks the subject movement automatically to focus on it continuously.

*1 For some subjects, the frame may not appear or may take some time to appear.

^2 If the frame blinks in red, the camera cannot focus. Try refocusing on the subject.

To focus on a moving subject continuously (AF Tracking)

① Hold the camera to align the AF target mark on the subject and press the Ⓞ button.
② When the camera recognizes the subject, the AF target mark automatically tracks the subject movement to focus on it continuously.
③ To cancel the tracking, press the Ⓞ button.
Depending on the subjects or the shooting conditions, the camera may be unable to lock the focus or fail to track the subject movement.
When the camera fails to track the subject movement, the AF target mark changes to red.

Selecting the method for measuring the brightness [ESP/□]

1 (Shooting menu 1) ▶ ESP/

Available shooting modes: P iAUTO SCN MAGIC

BEAUTY

Submenu 2	Application
ESP	Shoots to obtain a balanced brightness over the entire screen (Meters the brightness at the center and surrounding areas of the screen separately).
(spot)	Shoots the subject at the center during backlighting (Meters the brightness at the center of the screen).

When set to [ESP], the center may appear dark when shooting against strong backlighting.

Shooting at higher magnifications than optical zoom without reducing the image quality [FINE ZOOM]

1 (Shooting menu 1) ▶ FINE ZOOM

Available shooting modes: P iAUTO SCN MAGIC BEAUTY

Submenu 2	Application
OFF	Optical zoom is used to zoom in for shooting.
ON	Optical zoom and image cropping are combined to zoom in for shooting. ^1

*1STYLUS TOUGH-8010/μ TOUGH-8010,STYLUS TOUGH-6020/μ TOUGH-6020	Approx. 33.5× (max.)
STYLUS TOUGH-3000/μ TOUGH-3000	Approx. 22× (max.)

This function will not reduce the image quality since it dose not convert the data with fewer pixels into the data with larger pixels.
When set to [ON], [IMAGE SIZE] is limited to [8_M] or lower.
The setting is not available when [DIGITAL ZOOM] is set to [ON].
! [FINE ZOOM] is not available when [♥s SUPER MACRO] (p. 28) or [♥s S-MACRO LED] (p. 28) is selected.

Shooting at higher magnifications than optical zoom [DIGITAL ZOOM]

1 (Shooting menu 1) ▶ DIGITAL ZOOM

Available shooting modes: P iAUTO SCN MAGIC

BEAUTY

Submenu 2	Application
OFF	Only optical zoom is used to zoom in for shooting.
ON	Optical zoom and digital zoom are combined to zoom in for shooting. ^1

*1STYLUS TOUGH-8010/μ TOUGH-8010,STYLUS TOUGH-6020/μ TOUGH-6020	Approx. 25× (max.)
STYLUS TOUGH-3000/μ TOUGH-3000	Approx. 18× (max.)

The setting is not available when [FINE ZOOM] is set to [ON].
! [DIGITAL ZOOM] is not available when [✗ SUPER MACRO] (p. 28) or [✗ S-MACRO LED] (p. 28) is selected.

Recording sound when shooting still images [ψ]

2 (Shooting menu 2) ▶

Available shooting modes: P iAUTO SCN MAGIC

BEAUTY

Submenu 2	Application
OFF	No sound is recorded.
ON	The camera automatically starts recording sound for approx.4 seconds after a picture is taken.This is useful for recording notes or comments about the picture.

When recording, aim the microphone (p. 7 ^1 , 8 ^2 ) at the source of the sound you want to record.

^*1 STYLUS TOUGH-3000/ TOUGH-3000
^2 STYLUS TOUGH-8010/ TOUGH-8010, STYLUS TOUGH-6020/ TOUGH-6020

Recording sound when shooting movies [¶]

(Movie menu) ▶

Available shooting modes: P iAUTO SCN MAGIC BEAUTY

Submenu 2	Application
OFF	No sound is recorded.
ON	Sound is recorded.

When recording sound in a movie, the sound of the lens triggering and camera operating may be recorded.
STYLUS TOUGH-3000/μ TOUGH-3000: When set to [ON], only the digital zoom can be used during movie recording. To record the movie with the optical zoom, set [↓] (movies) to [OFF].

Reducing the blur caused by the camera shake when shooting [IMAGE STABILIZER] (still images)/[IS MOVIE MODE] (movies)

1 (Shooting menu 1) ▶

IMAGE STABILIZER (still images)/

(Movie menu) ▶

IS MOVIE MODE (movies)

Available shooting modes: P iAUTO SCN MAGIC BEAUTY

Submenu 2	Application
OFF	The image stabilizer is deactivated. This is recommended for shooting when the camera is fixed in place on a tripod or other stable surface.
ON	The image stabilizer is activated.

The camera's default settings are [IMAGE STABILIZER] (still images) to [ON] and [IS MOVIE MODE] (movies) to [OFF].
There may be a noise coming from inside the camera when the shutter button is pressed with [IMAGE STABILIZER] (still images) set to [ON].

! Images may not be stabilized if camera shake is too severe.
When the shutter speed is extremely slow, such as when taking pictures at night, [IMAGE STABILIZER] (still images) may not be as effective.
When shooting while the [IS MOVIE MODE] (movies) is set to [ON], the image will be enlarged somewhat before saving.

Viewing the image immediately after shooting [REC VIEW]

2 (Shooting menu 2) ▶ REC VIEW

Available shooting modes: P iAUTO SCN MAGIC BEAUTY

Submenu 2	Application
OFF	The image being recorded is not displayed. This allows the user to prepare for the next shot while following the subject in the monitor after shooting.
ON	The image being recorded is displayed. This allows the user to make a brief check of the image that was just taken.

Automatically rotating images shot with the camera in a vertical position during playback [PIC ORIENTATION]

(STYLUS TOUGH-8010/μ TOUGH-8010 and STYLUS TOUGH-6020/μ TOUGH-6020 only)

2 (Shooting menu 2) ▶ PIC ORIENTATION

Available shooting modes: P iAUTO SCN MAGIC BEAUTY

During shooting, the [☐] (p. 43) setting on the playback menu is set automatically.
This function may not work properly if the camera is facing up or down during shooting.

Submenu 2	Application
OFF	Information about the vertical/horizontal orientation of the camera during shooting is not recorded with images. Images shot with the camera in a vertical position are not rotated during playback.
ON	Information about the vertical/horizontal orientation of the camera during shooting is recorded with images. Images are automatically rotated during playback.

Displaying icon guides [ICON GUIDE]

2 (Shooting menu 2) ▶ ICON GUIDE

Available shooting modes: P iAUTO SCN MAGIC BEAUTY

Submenu 2	Application
OFF	No icon guide is displayed.
ON	The explanation of the selected icon will be displayed when a shooting mode or shooting function menu icon is selected (position the cursor on the icon for a while to display the explanation).

PROGRAM AUTO BEAUTY P AUTO Functions can be changed manually. Icon guide 4 14m

Using an external flash [REMOTE FLASH]

(STYLUS TOUGH-8010/μ TOUGH-8010 only)

2 (Shooting menu 2) ▶ REMOTE FLASH

Available shooting modes: P iAUTO SCN MAGIC BEAUTY

Submenu 2	Application
OFF	The external flash is not available.
RC	An Olympus Wireless RC Flash System compatible flash is used for taking pictures. (Channel: CH1, Group: A)
SLAVE	The commercially-available slave flash that is synchronized with the camera flash is used for taking pictures. The flash intensity setting can be adjusted.

"Taking pictures with the Olympus Wireless RC Flash System" (p. 69)

Menus for Playback, Editing, and Printing Functions

The default settings of the function are highlighted in ____.
Data must have been created with the PC software (ib) before using some function.
Refer to the PC software (ib) help guide for details on how to use the PC software (ib).
For details on installing the PC software (ib), see "Battery charge and camera setup" (p. 11).

Playing back pictures automatically [SLIDESHOW]

SLIDESHOW

Submenu 1	Submenu 2	Application
SLIDE	ALL/EVENT/COLLECTION	Selects the content to be included in the slideshow.
BGM	OFF/Cosmic/Breeze/Mellow/Dreamy/Urban	Selects the background music options.
TYPE	STANDARD/FADE/ZOOM	Selects the type of transition effect used between slides.
START	—	Starts the slideshow.

Single-frame advance/rewind:

During a slideshow, press ▷ to skip ahead one frame or press ◀ to go back one frame.

Searching for images and playing back the related images [PHOTO SURFING]

PHOTO SURFING

In [PHOTO SURFING], images can be searched and related images can be played back by selecting the related items.

To start [PHOTO SURFING]

Press the Ⓞ button to start [PHOTO SURFING].

When a related item of the image displayed is selected with , images related to the item are displayed in the lower part of the monitor. Use to display an image.

To select the related items undisplayed, press the Ⓞ button when selecting an item.

To stop [PHOTO SURFING], press the MENU button, or select [BACK] and press the Ⓞ button.

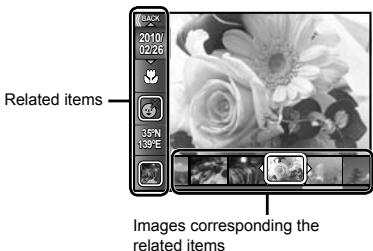

Related items Images corresponding the related items

Viewing images by event [EVENT ▶]

EVENT ▶

In [EVENT ▶], images in an event are played back. (Images with the same shooting date are grouped into the same event.)

To start [EVENT ▶]

Press the Ⓞ button to start [EVENT ▶]. (The event, including the image for which single-image view was being performed when the playback function menu was selected, is played back.)

Use ◀▶ to advance or rewind by one frame.

To stop [EVENT ▶], press the MENU button.

Black and white photo of a rose with floral background, no visible text or symbols

Playing back images by Collection created with the PC software (ib) [COLLECTION ▶]

COLLECTION ▶

In [COLLECTION ▶], the collection is played back that has been created with the PC software (ib) and imported back from a computer.

To start [COLLECTION ▶]

Press the OK button, and then use △ ∇ ◀ to select the desired collection. Press the OK button again to start playback of the selected collection. Use ◀ to advance or rewind by one frame.

To stop [COLLECTION ▶], press the MENU button.

COLLECTION BACK MENU SET OK

Using a PC software (ib) and importing data back to the camera

The following functions can be performed when data created with the PC software (ib) is imported back to the camera.
Refer to the PC software (ib) help guide for details on how to use the PC software (ib).

[PHOTO SURFING]

Information of persons or shooting locations and new Collections can be added in the related items.

[EVENT ▶]

Images can be played back by event created with the PC software (ib).

Event index (p. 20)

The representative images for an event created with the PC software (ib) can be displayed.

Retouching the skin and eyes [BEAUTY FIX]

BEAUTY FIX

Depending on the picture, the editing may not be effective.

Submenu 1	Submenu 2	Application
ALL	—	[CLEAR SKIN], [SPARKLE EYE] and [DRAMATIC EYE] are applied together.
CLEAR SKIN	SOFT/AVG/HARD	Makes skin look smooth and translucent. Select the correction effect from 3 levels.
SPARKLE EYE	—	Enhances the contrast of the eyes.
DRAMATIC EYE	—	Enlarges the subject's eyes.

① Use to select a correction item, and press the ☐ button.
② Use ◀▶ to select an image for retouching, and press the Ⓞ button.

- The retouched image is saved as a separate image.

When [CLEAR SKIN] is selected

Use to select the retouching level, and press the ☐ button.

CLEAR SKIN SOFT AVG HARD BACK MENU SET OK

Changing the image size [ ]

EDIT ▶

Submenu 2	Application
VGA 640 × 480	This saves a high-resolution image as a separate image with a smaller size for use in e-mail attachments and other applications.
QVGA 320 × 240

① Use ◀▷ to select an image.
② Use to select an image size and press the OK button.

- The resized image is saved as a separate image.

Cropping image [☐]

EDIT ▶

① Use ◀▶ to select an image, and press the Ⓞ button.
② Use the zoom buttons to select the size of the cropping frame, and use △▽◀▷ to move the frame.

Cropping frame WT SET OK

③ Press the Ⓞ button after you have selected the area to trim.

- The edited image is saved as a separate image.

Changing the color tone of image [COLOR EDIT]

EDIT ▶ COLOR EDIT

Submenu 2	Application
BLACK & WHITE	This changes the image to black and white.
SEPIA	This changes the image to a sepia tone.
HIGH SATURATION	This increases the color saturation of the image.
LOW SATURATION	This slightly increases the color saturation of the image.

COLOR EDIT SEPIA EXIT MENU SET OK

① Use ◀▶ to select an image, and press the Ⓞ button.
② Use ◀▶ to select the desired color, and press the Ⓞ button.

- The image with the selected color is saved as a separate image.

Adding a calendar to an image [CALENDAR]

EDIT ▶ CALENDAR

CALENDAR SET OK

① Use ◀▶ to select an image, and press the Ⓞ button.
② Use ◀▶ to select a calendar. Use △▽ to select the image orientation, and then press the Ⓞ button.

③ Use to select the Year of the calendar, and press .
④ Use to select the Month of the calendar, and press the ☐ button.

- The edited image is saved as a separate image.

Brightening areas that are dark due to backlight or other reasons [SHADOW ADJ]

EDIT ▶ SHADOW ADJ

① Use ◀▶ to select an image, and press the Ⓞ button.

- The edited image is saved as a separate image.

Depending on the picture, the editing may not be effective.
! The retouching process may lower the image resolution.

Retouching red eyes in flash shooting [REDEYE FIX]

EDIT ▶ REDEYE FIX

① Use ◀▶ to select an image, and press the Ⓞ button.
- The edited image is saved as a separate image.
Depending on the picture, the editing may not be effective.
The retouching process may lower the image resolution.

Erasing images [ERASE]

ERASE

Submenu 1	Application
ALL ERASE	All images in the internal memory or card will be erased.
SEL. IMAGE	Images are individually selected and erased.
ERASE/ERASE EVENT*1	Deletes the image displayed.
CANCEL	Cancels deletion of the image.

^*1 If is pressed when an event is played back, all images in the event are erased.

When erasing pictures in the internal memory, do not insert the card into the camera. Or set [INTERNAL/SD] to [IN].
Before erasing pictures from a memory card, insert the card into the camera and select [AUTO] for [INTERNAL/SD]. "Selecting a storage device [INTERNAL/SD]" (p. 44)
! Protected images cannot be erased.

To individually select and erase images [SEL. IMAGE]

① Use to select [SEL. IMAGE], and press the ☐ button.
② Use ◀▶ to select the image to be erased, and press the Ⓞ button to add a √ mark to the image.

- Press the W zoom button to display an index view. Images can be quickly selected using the buttons. Press the T button to return to the single frame display.

SEL. IMAGE ✓ mark ✓ OK ERASE/CANCEL MENI

③ Repeat Step ② to select the images to be erased, and then press the MENU button to erase the selected images.
④ Use to select [YES], and press the ☐ button.

- The images with a √ mark are erased.

To erase all images [ALL ERASE]

① Use to select [ALL ERASE], and press the Ⓞ button.
② Use to select [YES], and press the ☐ button.

Saving print settings to the image data [PRINT ORDER]

(Playback menu) ▶ PRINT ORDER

"Print reservations (DPOF)" (p. 56)
! Print reservation can be set only for still images that are recorded to the card. Set [INTERNAL/SD] to [AUTO].

Protecting images [Oπ]

Protected images cannot be erased by [ERASE] (p. 20, 42), [ERASE EVENT] (p. 42), [SEL. IMAGE] (p. 42), or [ALL ERASE] (p. 42), but all images are erased by [MEMORY FORMAT]/[FORMAT] (p. 44).

① Use ◀▶ to select an image.
② Press the Ⓞ button.

- Press the Ⓞ button again to cancel the settings.

③ If necessary, repeat Steps ① and ② to protect other images, and press the MENU button.

Rotating images [☐]

(Playback menu)

① Use ◀▶ to select an image.
② Press the Ⓞ button to rotate the image.
③ If necessary, repeat Steps ① and ② to make settings for other images, and press the MENU button.
The new picture orientations will be saved even after the power is turned off.

Adding sound to still images [ψ]

(Playback menu) ▶

① Use ◀▶ to select an image.
② Aim the microphone toward the sound source.

STYLUS TOUGH-8010/μ TOUGH-8010

Microphone

STYLUS TOUGH-6020/μ TOUGH-6020

Microphone

Microphone

③ Press the Ⓞ button.

• Recording starts.
• The camera adds (records) sound for approx. 4 seconds while playing back the image.

Menus for Other Camera Settings

The default settings of the function are highlighted in

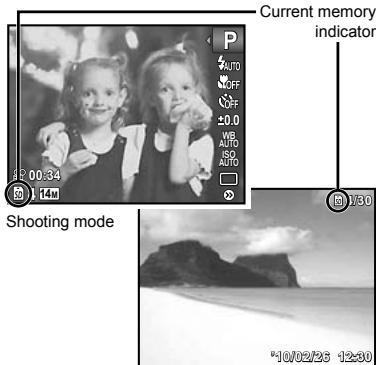

Selecting a storage device [INTERNAL/SD]

YT1 (Settings 1) ▶ INTERNAL/SD

Submenu 2	Application
AUTO	If a card is inserted, the card is automatically selected. If no card is inserted, internal memory is used.
IN ^1	Internal memory is selected.

^*1 Internal memory is used even if a card is inserted.

Erasing data completely [MEMORY FORMAT]/[FORMAT]

_1 (Settings 1) ▶ MEMORY FORMAT/FORMAT

Before formatting, check that no important data is left in the internal memory or card.
If the internal memory is formatted, the camera instruction manual and the PC software (ib) data that are stored on the internal memory are erased. If necessary, store the backup before formatting.
Cards must be formatted with this camera before first use or after being used with other cameras or computers.

Submenu 2	Application
YES*1	Completely erases the image data in the internal memory or card (including protected images).
NO	Cancels formatting.

^*1 If [AUTO] is selected for [INTERNAL/SD] and a card is inserted, the card will be formatted. If no card is inserted, internal memory will be formatted. If [IN] is selected for [INTERNAL/SD], internal memory will be formatted whether a card is inserted or not.

Restoring data in the camera [DATA REPAIR]

YT1 (Settings 1) ▶ DATA REPAIR

Playback will become available by performing [DATA REPAIR] when images never appear on the monitor after ▶ button is pressed. However, data such as collections and other groups created with the PC software (ib) is deleted from the database in the camera. Import the data back into the camera from a computer to playback the data created with the PC software (ib).

Copying images in the internal memory to the card [IN→SD COPY]

YT1 (Settings 1) ▶ IN→SD COPY

To copy images in the internal memory to the card

Use ◀▶ to select an image, and press the Ⓞ button.

Changing the display language [☐]

YT1 (Settings 1) ▶

"Changing the display language" (p. 15)

Submenu 2	Application
Languages	The language for the menus and error messages displayed on the monitor is selected.

Restoring the shooting functions to the default settings [RESET]

YT_1 (Settings 1) ▶ RESET

Submenu 2	Application
YES	Restores the following menu functions to the default settings.• Flash (p. 28)• Macro (p. 28)• Self-timer (p. 30)• Exposure compensation (p. 30)• White balance (p. 30)• ISO (p. 31)• Drive (p. 32)• Menu functions in [1, 2, 3] (p. 33 to 37)
NO	The current settings will not be changed.

Selecting a method for connecting the camera to other devices [USB CONNECTION]

YT1 (Settings 1) ▶ USB CONNECTION

Submenu 2	Application
AUTO	When the camera is connected to another device, the settings selection screen is displayed.
STORAGE	Select when connecting the camera to a computer via a storage device.
PC	Select when connecting a camera and computer.
PRINT	Select when connecting to a PictBridge-compatible printer.

System requirements

Windows : Windows 2000 Professional/ XP Home Edition/ XP Professional/Vista/ Windows 7

Macintosh : Mac OS X v10.3 or later

When using another system other than Windows XP (SP2 or later)/Windows Vista/Windows 7, set to [STORAGE].

Even if a computer has USB ports, proper operation is not guaranteed in the following cases:

• Computers with USB ports installed using an expansion card, etc.
• Computers without a factory-installed OS and home-built computers

Turning on the camera with the ▶ button [▶ POWER ON]

_2 (Settings 2) ▶ POWER ON

Submenu 2	Application
YES	Pressing the ▶ button turns on the camera and starts the camera in the playback mode.
NO	The camera is not turned on. To turn on the camera, press the ON/OFF button.

Saving the mode when the camera is turned off [SAVE SETTINGS]

_2 (Settings 2) ▶ SAVE SETTINGS

Submenu 2	Application
YES	The shooting mode is saved when the camera is turned off and is reactivated the next time the camera is turned on.
NO	The shooting mode is set to P mode when the camera is turned on.

Choosing the opening screen display [PW ON SETUP]

YT_2 (Settings 2) ▶ PW ON SETUP

Submenu 2	Application
OFF	No opening screen is displayed.
ON	The opening screen is displayed when the camera is turned on.

Selecting the camera sound and its volume [SOUND SETTINGS]

_2 (Settings 2) ▶ SOUND SETTINGS

Submenu 2	Submenu 3	Submenu 4	Application
SILENT MODE ^1,2	OFF/ON	—	Select [ON] to disable camera sounds (operation sounds, shutter sound, and warning sounds) and mute sound during playback.
BEEP	SOUND TYPE	1/2/3	Selects the operating sound and volume of the camera buttons (except the shutter button).
	VOLUME	OFF (No Sound)/ LOW/HIGH
SHUTTER SOUND	SOUND TYPE	1/2/3	Selects the type and volume of the shutter sound.
	VOLUME	OFF (No Sound)/ LOW/HIGH
■))	OFF (No Sound)/ LOW/HIGH	—	Selects the warning sound volume.
▶ VOLUME	OFF (No Sound) or 5 levels of volume	—	Selects the image playback volume.

^1 Even when [SILENT MODE] is [ON], can be used to adjust volume during playback.
^2 Even when [SILENT MODE] is [ON], sound is played when images are displayed on a television.

Resetting the file names of pictures [FILE NAME]

YT2 (Settings 2) ▶ FILE NAME

Submenu 2	Application
RESET	This resets the sequential number for the folder name and file name whenever a new card is inserted. ^1 This is useful when grouping images on separate cards.
AUTO	Even when a new card is inserted, this continues the numbering for the folder name and file name from the previous card. This is useful for managing all image folder names and files names with sequential numbers.

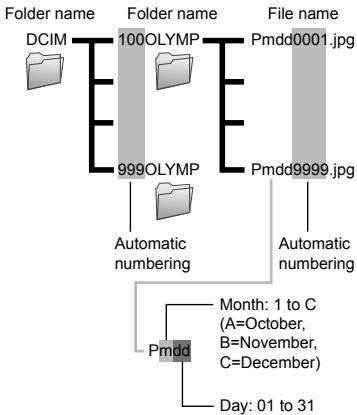

^*1 The number for the folder name is reset to 100, and the one for the file name is reset to 0001.

Adjusting the CCD and the image processing function [PIXEL MAPPING]

_2 (Settings 2) ▶ PIXEL MAPPING

This function has already been adjusted at factory shipping, and no adjustment is needed right after purchase. Approximately once a year is recommended.
For best results, wait at least one minute after taking or viewing pictures before performing pixel mapping. If the camera is turned off during pixel mapping, be sure to perform it again.

To adjust the CCD and the image processing function

Press the Ⓞ button when [START] (Submenu 2) is displayed.

- The camera checks and adjusts the CCD and the image processing function at the same time.

Adjusting the brightness of the monitor [☐☐]

_2 (Settings 2) ▶ ![]

To adjust the monitor brightness

① Use to adjust the brightness while viewing the screen, and then press the ☐ button.

Black and white photo of a bridge over a river with no visible text or symbols

Setting the date and time [∅]

_3 (Settings 3) ▶

! "Setting the date, time and time zone" (p. 14)

To select the date display order

① Press ▷ after setting Minute, and use △▽ to select the date display order.

Y M D TIME 2010.02.26 12:30 Y/M/D Date order CANCEL MENU SET OK

Choosing home and alternate time zones [WORLD TIME]

T_3 (Settings 3) ▶ WORLD TIME

You will not be able to select a time zone using [WORLD TIME] if the camera clock has not first been set using [∅].

Submenu 2	Submenu 3	Application
HOME/ALTERNATE		The time in the home time zone (the time zone selected for ⬆ in submenu 2).
		The time in the travel destination time zone (the time zone selected for ⬆ in submenu 2).
^*1	—	Select the home time zone ( ).
^*1,2	—	Select the travel destination time zone ( ).

^*1 In areas where daylight saving time is in effect, use to turn daylight saving time ([SUMMER]) on.

^2 When you select a time zone, the camera automatically calculates the time difference between the selected zone and the home time zone ( ) to display the time in the travel destination time zone ( ).

Playing back images on a TV [TV OUT]

_3 (Settings 3) ▶ TV OUT

The TV video signal system varies depending on the countries and regions. Before viewing camera images on your TV, select the video output according to your TV's video signal type.

Submenu 2	Submenu 3	Application
VIDEO OUT	NTSC	Connecting the camera to a TV in North America, Taiwan, Korea, Japan, and so on.
	PAL	Connecting the camera to a TV in European countries, China, and so on.
HDMI OUT	480p/576p720p1080i	Set the playback format.
HDMI CONTROL	OFF	Operate with the camera.
	ON	Operate with the TV remote control.

The factory default settings differ according to the region where the camera is sold.

To play back camera images on a TV

- Connection via AV cable

① Use the camera to select the same video signal system as the one of connected TV ([NTSC]/[PAL]).

② Connect the TV and camera.

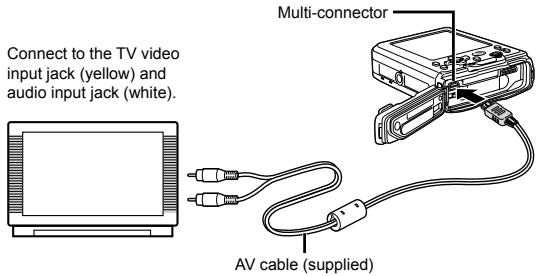

Connect to the TV video input jack (yellow) and audio input jack (white). Multi-connector AV cable (supplied)

- Connection via HDMI cable

① On the camera, select the digital signal format that will be connected ([480p/576p]/[720p]/[1080i]).
② Connect the TV and camera.

When set to [1080i], 1080i format takes priority for HDMI output. However, if this setting does not match the input setting of the TV, the signal format is changed first to 720p and then to 480p/576p. For details on changing the input setting of the TV, refer to the TV's instruction manual.
When the camera is connected to the computer or other device via USB cable, do not connect the HDMI cable to the camera.

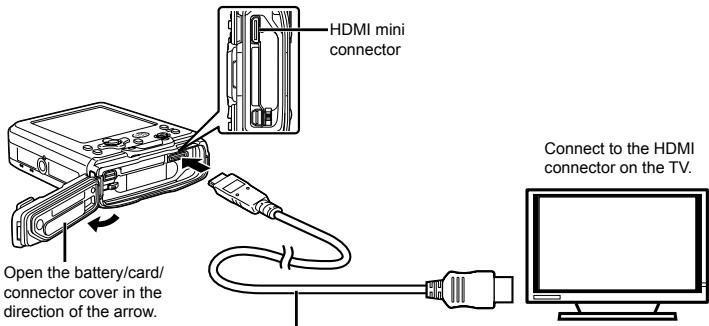

HDMI mini connector Open the battery/card/ connector cover in the direction of the arrow. Connect to the HDMI connector on the TV.

HDMI cable (type C) (commercially available)

③ Turn on the TV, and change "INPUT" to "VIDEO (an input jack connected to the camera)."
For details on changing the input source of the TV, refer to the TV's instruction manual.
④ Turn on the camera, and use ◀▶ to select the image for playback.
Use an HDMI cable that matches the HDMI mini connector on the camera and the HDMI connector on the TV.
When the camera and TV are connected by both an AV cable and an HDMI cable, the HDMI cable will take priority.
Depending on the TV's settings, the displayed images and information may become cropped.

To operate images with the TV remote control

① Set [HDMI CONTROL] to [ON], and turn off the camera.
② Connect the camera and TV with an HDMI cable. "Connection via HDMI cable" (p. 49)
③ First turn on the TV, and then turn on the camera.

- Operate by following the operation guide that is displayed on the TV.

With some TVs, operations cannot be performed with the TV remote control even though the operation guide is displayed on the screen.

If operations cannot be performed with the TV remote control, set [HDMI CONTROL] to [OFF] and operate using the camera.

Saving battery power between shots [POWER SAVE]

T_3 (Settings 3) ▶ POWER SAVE

Submenu 2	Application
OFF	Cancels [POWER SAVE].
ON	When the camera is not being used for approx. 10 seconds, the monitor automatically turns off to save battery power.

To resume standby mode

Press any button.

Displaying the current altitude/water depth (atmospheric/hydraulic pressure) [MANOMETER]

(STYLUS TOUGH-8010/μ TOUGH-8010 only)

T_3 (Settings 3) ▶ MANOMETER

The readings may have a margin of error depending on meteorological conditions. Use the readings only for your reference.

Submenu 2	Submenu 3	Application
MANOMETER	OFF	Cancels the manometer display.
	ON	Displays the current altitude/water depth (atmospheric/hydraulic pressure) in the shooting standby mode screen. (-10 m to 5,000 m)
	CALIBRATE	Proceed to the setting screen. See below.
m/ft	m	This displays in meters.
	ft	This displays in feet.

When set to [ON], a warning message appears in the monitor as a water depth close to 7 m (22.9 ft) is reached.

To adjust the altitude/water depth display

① Use to select the current altitude/water depth, and press the Ⓞ button to set.

CALIBRATE 1200 m BACK MENU SET OK

Operating the camera by tapping the body [TAP CONTROL]

(STYLUS TOUGH-8010/μ TOUGH-8010 and STYLUS TOUGH-6020/μ TOUGH-6020 only)

_3 (Settings 3) ▶ TAP CONTROL

Submenu 2	Application
OFF	Cancels [TAP CONTROL].
ON	[TAP CONTROL] is activated.
CALIBRATE	Adjusts the tap strength and intervals between multiple taps on each side of the camera body. (top, left, right, & back)

Operating during shooting mode (Example: Flash mode)

① Tap the right or left side of the camera body once. Then tap the top side of the camera once.
● The flash mode selection screen is displayed.

② Tap the right or left side of the camera body to select a function.

③ Tap the back of the camera body twice to confirm your selection.

Black and white photo of a person sitting on grass, holding a camera (no visible text or symbols)

! Tap the camera firmly using the pad of your finger.
When the camera is stabilized on a tripod for example, tap control may not work properly.
To prevent dropping the camera when using tap control, strap the camera to your wrist.

Operating during playback mode

When switched to playback mode by tapping the top of the camera body twice, the operations below can be used.

Display next image: Tap the right side of the camera once.

Display previous image: Tap the left side of the camera once.

Fast forward and reverse: Tilt the camera to the right or the left.

Return to the shooting mode: Tap the top side of the camera twice.

Take a picture: Tap the back of the camera twice (Only for the [💡 SNOW] mode).

Line drawing of a hand holding a digital camera with a flash indicator (no text or symbols)

When tapping the camera's top

Using the LED illuminator as an auxiliary light [LED ILLUMINATOR]

(STYLUS TOUGH-8010/μ TOUGH-8010 and STYLUS TOUGH-6020/μ TOUGH-6020 only)

_3 (Settings 3) ▶ LED ILLUMINATOR

Submenu 2	Application
OFF	Disables the LED illuminator.
ON	Enables the LED illuminator.

! "Using the LED illuminator" (p. 32)

To adjust the tap control

① Select [CALIBRATE] in Submenu 2 and press the Ⓞ button.
② Select the part to adjust with and press the Ⓞ button.
③ Select the [STR] setting with and press the button.
④ Select the [INTVL] setting with and press the Ⓞ button.

TOP STR INTVL AVG NORM BACK MENU SET OK

Check the operation of the camera by tapping on the camera after making the settings.

Direct printing (PictBridge ^*1 )

By connecting the camera to a PictBridge-compatible printer, you can print images directly without using a computer.

To find out if your printer supports PictBridge, refer to the printer's instruction manual.

*1 PictBridge is a standard for connecting digital cameras and printers of different makers and printing out pictures directly.
The printing modes, paper sizes, and other parameters that can be set with the camera vary depending on the printer that is used. For details, refer to the printer's instruction manual.
For details on the available paper types, loading paper, and installing ink cassettes, refer to the printer's instruction manual.

Printing images at the printer's standard settings [EASY PRINT]

In the [SETUP] menu, set [USB CONNECTION] to [PRINT]. "Using the Menu" (p. 4)

1 Display the image to be printed on the monitor.

! "Viewing images" (p. 18)

2 Turn on the printer, and then connect the printer and camera.

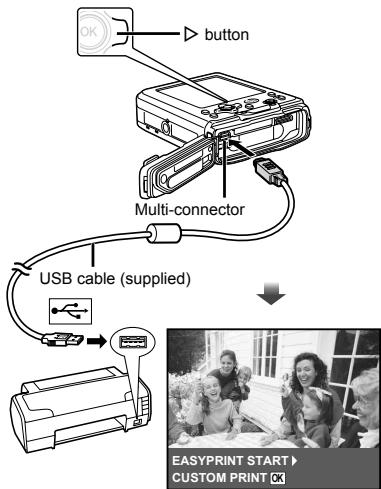

button Multi-connector USB cable (supplied) EASYPRINT START CUSTOM PRINT

3 Press ▷ to start printing.

4 To print another image, use ◀▶ to select an image, and press the ⏻ button.

To exit printing

After a selected image is displayed on the screen, disconnect the USB cable from the camera and printer.

EXIT USD+ PRINT OK

Changing the printer's settings for printing [CUSTOM PRINT]

1 Follow Steps 1 and 2 for [EASY PRINT] (p. 53).
2 Press the Ⓞ button.
3 Use to select the print mode, and press the OK button.

PRINT MODE SELECT PRINT ALL PRINT MULTI PRINT ALL INDEX PRINT ORDER EXIT MENU SET OK

Submenu 2	Application
PRINT	This prints the image selected in Step 6.
ALL PRINT	This prints all images stored in the internal memory or card.
MULTI PRINT	This prints one image in a multiple layout format.
ALL INDEX	This prints an index of all images stored in the internal memory or card.
PRINT ORDER*1	This prints images based on the print reservation data on the card.

^*1 [PRINT ORDER] is available only when print reservations have been made. “Print Reservations (DPOF)” (p. 56)

4 Use to select [SIZE] (Submenu 3), and press .

If the [PRINTPAPER] screen is not displayed, the [SIZE], [BORDERLESS], and [PICS/SHEET] are set to the printer's standard.

PRINTPAPER SIZE BORDERLESS STANDARD STANDARD BACK MENU SET OK

5 Use △▽ to select the [BORDERLESS] or [PICS/SHEET] settings, and press the Ⓞ button.

Submenu 4	Application
OFF/ON ^1	The image is printed with a border around it ([OFF]). The image is printed to fill the entire paper ([ON]).
(The number of images per sheet varies depending on the printer.)	The number of images per sheet (IPICS/SHEET) is selectable only when [MULTI PRINT] is selected in Step 3.

^*1 The available settings for [BORDERLESS] vary depending on the printer.

If [STANDARD] is selected in Steps 4 and 5, the image is printed at the printer's standard settings.

4/30 NOM 14M FEE 100-0004 10/02/26 12:30 PRINT OK MORE SINGLE PRINT

6 Use ◀▶ to select an image.

7 Press to make a print reservation for the current image. Press to make the detailed printer settings for the current image.

To make the detailed printer settings

① Use △▽◀▷ to select the setting, and press the Ⓞ button.

PRINT INFO x 1 DATE WITHOUT FILE NAME WITHOUT EXIT MENU SET OK

Submenu 5	Submenu 6	Application
	0 to 10	This selects the number of prints.
DATE	WITH/ WITHOUT	Selecting [WITH] prints the images with the date.Selecting [WITHOUT] prints the images without the date.
FILE NAME	WITH/ WITHOUT	Selecting [WITH] prints the file name on the image.Selecting [WITHOUT] does not print any file name on the image.
	(Proceeds to the setting screen.)	This selects a portion of the image for printing.

To crop an image [☐]

① Use the zoom buttons to select the size of the cropping frame, use △▽◀▷ to move the frame, and then press the Ⓞ button.

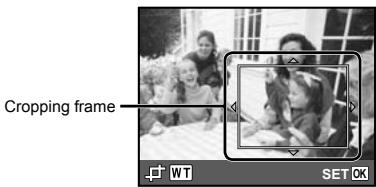

Cropping frame WT SET OK

② Use to select [OK], and press the ☉ button.

OK CANCEL BACK MENU SET OK

8 If necessary, repeat Steps 6 and 7 to select the image to be printed, make the detailed settings, and set [SINGLEPRINT].

9 Press the Ⓞ button.

PRINT PRINT CANCEL BACK MENU SET CK

10 Use △▽ to select [PRINT], and press the OK button.

• Printing starts.
• When [OPTION SET] is selected in [ALL PRINT] mode, [PRINT INFO] screen is displayed.
• When printing is finished, the [PRINT MODE SELECT] screen is displayed.

PRINT MODE SELECT PRINT ALL PRINT MULTI PRINT ALL INDEX PRINT ORDER EXIT MENU SET OK

To cancel printing

① Press the MENU button while [DO NOT REMOVE USB CABLE] is displayed.
② Select [CANCEL] using and then press the Ⓞ button.

DO NOT REMOVE USB CABLE CANCEL MENU CONTINUE CANCEL SET OK

11 Press the MENU button.

12 When the message [REMOVE USB CABLE] is displayed, disconnect the USB cable from the camera and printer.

Print Reservations (DPOF ^*1 )

In print reservations, the number of prints and date imprint option are saved in the image on the card. This enables easy printing at a printer or print shop supporting DPOF by using only the print reservations on the card without a computer or a camera.

*1 DPOF is a standard for storing automatic printout information from digital cameras.
! Print reservations can be set only for the images stored on the card. Insert a card with recorded images before making print reservations.
DPOF reservations set by another DPOF device cannot be changed by this camera. Make changes using the original device. Making new DPOF reservations with this camera will erase the reservations made by the other device.
DPOF print reservations can be made for up to 999 images per card.

Single-frame print reservations [☐]

1 Display the [SETUP] menu.

! "Using the Menu" (p. 4)

2 From the playback menu ▶, select [PRINT ORDER] and then press the OK button.

PRINT ORDER FALL EXIT MENU SET OK

3 Use △▽ to select [☐], and press the Ⓞ button.

Black-and-white photo of a child wearing a hood, with no visible text or symbols in the main image area.

4 Use ◀▶ to select the image for print reservation. Use △▽ to select the quantity. Press the OK button.

NO DATE TIME BACK MENU SET OK

5 Use △▽ to select the [◎] (date print) screen option, and press the Ⓞ button.

Submenu 2	Application
NO	This prints the image only.
DATE	This prints the image with the shooting date.
TIME	This prints the image with the shooting time.

PRINT ORDER 1 ( 1 ) SET CANCEL BACK MENU SET OK

6 Use △▽ to select [SET], and press the Ⓞ button.

Reserving one print each of all images on the card [ALL]

1 Follow Steps 1 and 2 in [☐] (p. 56).
2 Use △▽ to select [ALL], and press the OK button.
3 Follow Steps 5 and 6 in [☐].

Resetting all print reservation data

1 Follow Steps 1 and 2 in [☐] (p. 56).
2 Select either [☐] or [[ALL], and press the Ⓞ button.

PRINT ORDER SETTING PRINT ORDERED RESET KEEP BACK MENU SET OK

3 Use △▽ to select [RESET], and press the Ⓞ button.

Resetting the print reservation data for selected images

1 Follow Steps 1 and 2 in [☐] (p. 56).
2 Use △▽ to select [☐], and press the Ⓞ button.
3 Use △▽ to select [KEEP] and press the Ⓞ button.
4 Use ◀▶ to select the image with the print reservation you want to cancel. Use △▽ to set the print quantity to "0".
5 If necessary, repeat Step 4, and then press the Ⓞ button when finished.
6 Use △▽ to select the [⊖] (date print) screen option, and press the Ⓞ button.

- The settings are applied to the remaining images with the print reservation data.

7 Use △▽ to select [SET], and press the Ⓞ button.

If the camera does not work as intended, or if an error message is displayed on the screen, and you are unsure of what to do, refer to the information below to fix the problem(s).

Troubleshooting

Battery

"The camera does not work even when batteries are installed".

• Insert recharged batteries in the correct direction. "Inserting the battery" (p. 11), "Battery charge and camera setup" (p. 11), "Charging the battery with the included USB-AC adapter" (p. 13)
• Battery performance may have been reduced temporarily due to low temperature. Take the batteries out of the camera, and warm them by putting them in your pocket for a while.

Card/Internal memory

"An error message is displayed".

"Error message" (p. 59)

Shutter button

"No picture is taken when the shutter button is pressed".

• Cancel sleep mode.
  To save battery power, the camera automatically goes into sleep mode and the monitor turns off if there is no operation for 3 minutes when the camera is turned on. No picture is taken even if the shutter button is fully pressed in this mode. Operate the zoom buttons or other buttons to restore the camera from sleep mode before taking a picture. If the camera is left for another 12 minutes, it automatically turns off. Press the ON/OFF button to turn the camera on.
• Press the ▶ button to switch to the shooting mode.
• Wait until ↓(flash charge) stops blinking before taking pictures.
• With prolonged camera use, the internal temperature may increase, resulting in automatic shutdown. If this occurs, remove the battery from the camera and wait until the camera has sufficiently cooled. The camera's external temperature may also increase during use, however this is normal and does not indicate malfunction.

Monitor

"Difficult to see".

• Condensation ^1 may have occurred. Turn off the power, and wait for the camera body to become acclimated to the surrounding temperature and dry out before taking pictures.
  *1 Dew drops can form in the camera when it is suddenly taken from a cold location into a warm, humid room.

"Vertical lines appear on the screen".

- This condition may occur when the camera is pointed at an extremely bright subject under a clear sky and so on. The lines do not appear, however, in the final image.

"The light is caught in the picture".

- Shooting with flash in dark situations results in an image with many flash reflections on dust in the air.

Date and time function

"Date and time settings return to the default setting".

• If the batteries are removed and left out of the camera for about 1 day ^2 , the date and time settings return to the default setting, and must be reset.
  ^*2 The time until the date and time settings return to the default setting varies depending on how long the batteries have been loaded.
  "Setting the date, time and time zone" (p. 14)

Miscellaneous

"The camera makes a noise when taking pictures".

- The camera may activate the lens and make a noise even if no operation is performed. This is because the camera automatically performs actions of auto focus as far as it is ready to shoot.

Error message

When one of the messages below is displayed on the monitor, check the corrective action.

Error message	Corrective action
CARD ERROR	Card problemInsert a new card.
WRITE PROTECT	Card problemThe card write-protect switch is set to the “LOCK” side. Release the switch.
MEMORY FULL	Internal memory problem• Insert a card.• Erase unwanted images.*1
CARD FULL	Card problem• Replace the card.• Erase unwanted images.*1
	Card problemUse to select [FORMAT], and press the OK button. Next, use to select [YES], and press the OK button.*2
	Internal memory problemUse to select [MEMORY FORMAT], and press the OK button. Next, use to select [YES], and press the OK button.*2
NO PICTURE	Internal memory/Card problemTake pictures before viewing them.
PICTURE ERROR	Problem with selected imageUse photo retouch software, etc. to view the image on a computer. If the image still cannot be viewed, the image file is corrupted.
THE IMAGE CANNOT BE EDITED	Problem with selected imageUse photo retouch software, etc. to edit the image on a computer.
BATTERY EMPTY	Battery problemCharge the battery.
NO CONNECTION	Connection problemConnect the camera and computer or printer correctly.
NO PAPER	Printer problemLoad paper into the printer.

Error message	Corrective action
NO INK	Printer problemRefill the ink in the printer.
JAMMED	Printer problemRemove the jammed paper.
SETTINGS CHANGED*3	Printer problemReturn to the status where the printer can be used.
PRINT ERROR	Printer problemTurn off the camera and printer, check the printer for any problems, and then turn the power on again.
CANNOT PRINT*4	Problem with selected imageUse a computer to print.

^1 Before erasing important images, download them to a computer.
^2 All data will be erased.
^*3 This is displayed, for instance, when the printer's paper tray has been removed. Do not operate the printer while making the print settings on the camera.
*4 This camera may be unable to print images taken by other cameras.

Shooting tips

When you are unsure of how to take a picture that you envision, refer to the information below.

Focusing

"Focusing on the subject"

● Taking a picture of a subject not in the center of the screen

After focusing on an object at the same distance as the subject, compose the shot, and take the picture.

Pressing the shutter button halfway (p. 16)

- Set [AF MODE] (p. 34) to [FACE/iESP]

● Taking a picture in [AF TRACKING] mode (p. 34)

The camera tracks the subject movement automatically to focus on it continuously.

● Taking a picture of subjects where autofocus is difficult

In the following cases, after focusing on an object (by pressing the shutter button halfway down) with high contrast at the same distance as the subject, compose the shot, and take the picture.

Subjects with low contrast

When extremely bright objects appear in the center of the screen

Object with no vertical lines ^4

*1 It is also effective to compose the shot by holding the camera vertically to focus, and then returning to the horizontal position to take the picture.

When objects are at different distances

Fast-moving object

The subject is not in the center of the frame

Camera shake

"Taking pictures without camera shake"

● Taking pictures using [IMAGE STABILIZER] (p. 36)

When a picture is taken of a shadowy subject, the CCD ^4 shifts to correct for camera shake even if the ISO speed is not increased. This function is also effective when taking pictures at a high zoom magnification.

^*1 A device that takes light received through the lens and converts it into electric signals.

• Shooting movies using [IS MOVIE MODE] (p. 36)
• Select 📁 (SPORT) in the scene mode (p. 24)

The 🎨 (SPORT) mode uses a fast shutter speed and can reduce the blur incurred by a moving subject.

● Taking pictures at a high ISO sensitivity

If a high ISO sensitivity is selected, pictures can be taken at a high shutter speed even at locations where a flash cannot be used.

"Selecting the ISO sensitivity" (p. 31)

Exposure (brightness)

"Taking pictures with the right brightness"

● Taking pictures of a subject against a backlight

Faces or backgrounds are bright even when shot against backlight.

[SHADOW ADJUST] (p. 34)

● Taking pictures using [FACE/iESP] (p. 34)

Appropriate exposure is obtained for a face against backlight, and the face is brightened.

- Taking pictures using [☐] for [ESP/☐] (p. 34)

Brightness is matched with a subject in the center of the screen and the image is not affected by background light.

● Taking pictures using [FILL IN] (p. 28) flash

A subject against backlight is brightened.

● Taking pictures of a white beach or snow scene

Set the mode to [☐ BEACH & SNOW], [☐ SNOW] (p. 24)

STYLUS TOUGH-8010/μ TOUGH-8010 and

STYLUS TOUGH-6020/μ TOUGH-6020 only

● Taking pictures using exposure compensation (p. 30)

Adjust the brightness while viewing the screen for taking the picture. Normally, taking pictures of white subjects (such as snow) results in images that are darker than the actual subject. Use the exposure compensation to adjust in the positive (+) direction to express whites as they appear. When taking pictures of black subjects, on the other hand, it is effective to adjust in the negative (-) direction.

Color hue

"Taking pictures with colors at the same shade as they appear"

● Taking pictures by selecting white balance (p. 30)

Best results in most environments can normally be obtained with the [WB AUTO] setting, but for some subjects, you should try experimenting with different settings. (This is especially true for sunshade under a clear sky, mixed natural and artificial light settings, and so on.)

● Taking pictures using [FILL IN] (p. 28) flash

Use of the flash is also effective for shooting under fluorescent and other artificial lighting.

Image quality

"Taking sharper pictures"

● Taking pictures with the optical zoom

Avoid using digital zoom (p. 35) to take pictures.

● Taking pictures at a low ISO sensitivity

If the picture is taken with a high ISO sensitivity, noise (small colored spots and color unevenness that were not in the original image) can occur, and the image can appear grainy.

"Selecting the ISO sensitivity" (p. 31)

Panorama

"Taking pictures so that the frames are stitched smoothly"

● A tip for panoramic shooting

Taking pictures by pivoting with the camera at the center prevents shifting of the image. When taking pictures of close objects in particular, pivoting with the lens end at the center produces favorable results.

[PANORAMA] (p. 25)

Batteries

"Making batteries last longer"

- Avoid any of the following operations when not actually taking pictures because they deplete the battery power

- Repeatedly pressing the shutter button halfway.

- Repeatedly using the zoom.

- Set [POWER SAVE] (p. 50) to [ON]

Playback

"Playing images in the internal memory and card"

- Remove the card and display the images in internal memory

- "Inserting the battery" (p. 11), "Inserting the SD/SDHC memory card (sold separately)" (p. 15)

- Selecting a storage device

[INTERNAL/SD] (p. 44)

"Viewing images with high picture quality on a high-definition TV"

- Connect the camera to the TV using an HDMI cable (commercially available)

● "To play back camera images on a TV" (p. 48)

Editing

"Erasing the sound recorded to a still image"

- Record over the sound with silence when playing back the image

"Adding sound to still images [ψ]" (p. 43)

Camera care

Exterior

• Wipe gently with a soft cloth. If the camera is very dirty, soak the cloth in mild soapy water and wring well. Wipe the camera with the damp cloth and then dry it with a dry cloth. If you have used the camera at the beach, use a cloth soaked in clean water and wrung well.
• If any dirt, dust, sand, or other foreign materials adhere to the camera after use, wash the camera using the method described on p. 70.

Monitor

- Wipe gently with a soft cloth.

Lens

- Blow dust off the lens with a commercial blower, then wipe gently with a lens cleaner.

Battery/USB-AC adapter

- Wipe gently with a soft, dry cloth.

Do not use strong solvents such as benzene or alcohol, or chemically treated cloth.

! Mold may form on the lens surface if the lens is left dirty.

Storage

• When storing the camera for extended periods, remove the battery, AC adapter and card, and keep in a cool, dry place that is well ventilated.
• Periodically insert the battery and test the camera functions.

Avoid leaving the camera in places where chemical products are handled since this may result in corrosion.

Battery, USB-AC adapter (included), Charger (sold separately)

• This camera uses one Olympus lithium ion battery*. No other type of batteries can be used.
  * STYLUS TOUGH-8010/μ TOUGH-8010, STYLUS TOUGH-6020/μ TOUGH-6020: LI-50B STYLUS TOUGH-3000/μ TOUGH-3000: LI-42B
  Caution:
  There is a risk of explosion if the battery is replaced with the incorrect battery type. Dispose of the used battery following the instructions. (p. 73)
• Power consumption by the camera varies depending on which functions are used.
• During the conditions described below, power is consumed continuously and the battery becomes exhausted quickly.
• The zoom is used repeatedly.
• The shutter button is pressed halfway repeatedly in shooting mode, activating the auto focus.
• A picture is displayed on the monitor for an extended period of time.
• The camera is connected to a printer.
• Using an exhausted battery may cause the camera to turn off without displaying the battery level warning.
• The rechargeable battery is not fully charged at the time of purchase. Before using the camera, charge it by connecting it to a computer, or charge it using the included USB-AC adapter (F-2AC), a separately sold AC adapter (F-1AC/D-7AC) or charger'.
  * STYLUS TOUGH-8010/μ TOUGH-8010, STYLUS TOUGH-6020/μ TOUGH-6020: LI-50C STYLUS TOUGH-3000/μ TOUGH-3000: LI-41C/LI-40C

- STYLUS TOUGH-8010/μ TOUGH-8010, STYLUS TOUGH-6020/μ TOUGH-6020: When the included USB-AC adapter (F-2AC) is used, charging usually takes approximately 3 hours (varies on usage).

When the included USB-AC adapter (F-2AC) is used, charging usually takes approximately 2.5 hours (varies on usage).

• The included USB-AC adapter (F-2AC) has been designed to be used for charging and playback. Make sure that shooting is not being used while the USB-AC adapter is connected to the camera.
• The included USB-AC adapter (F-2AC) is designed to be used only with this camera. Other cameras cannot be charged with this USB-AC adapter.
• Do not connect the included USB-AC adapter (F-2AC) to equipment other than this camera.
• For plug-in type USB-AC adapter: The included USB-AC adapter (F-2AC) is intended to be correctly orientated in a vertical or floor mount position.

Charging the battery by connecting the camera to a computer

The battery can be charged by connecting the camera to a computer.

Using a separately sold AC adapter

An AC adapter (D-7AC/sold separately) is useful for time-consuming tasks such as when running a slideshow for a long period of time. To use a separately sold AC adapter for this camera, the multi-adapter (CB-MA3/sold separately) is required.

Do not use any other AC adapter with this camera.

Using a separately sold charger

A charger* (sold separately) can be used to charge the battery. In this case, remove the battery from the camera and set the battery to the charger.

* STYLUS TOUGH-8010/μ TOUGH-8010, STYLUS TOUGH-6020/μ TOUGH-6020: LI-50C STYLUS TOUGH-3000/μ TOUGH-3000: LI-41C/LI-40C

Using your charger and USB-AC adapter abroad

• The charger and USB-AC adapter can be used in most home electrical sources within the range of 100 V to 240 V AC (50/60Hz) around the world. However, depending on the country or area you are in, the AC wall outlet may be shaped differently and the charger and USB-AC adapter may require a plug adapter to match the wall outlet. For details, ask at your local electrical shop or travel agent.
• Do not use travel voltage converters as they could damage your charger and USB-AC adapter.

Using a SD/SDHC memory card

A card (and internal memory) also corresponds to the film that records images in a film camera. Otherwise, the recorded images (data) can be erased, and retouching is also available with the use of a computer. Cards can be removed from the camera and exchanged, but this is not possible with the internal memory. Use of larger capacity cards enables you to take more pictures.

SD/SDHC memory card write-protect switch

The SD/SDHC memory card body has a write-protect switch. If you set the switch to the "LOCK" side, you will not be able to write to the card, delete data or format. Return the switch to enable writing.

SD LOCK

Cards compatible with this camera

SD/SDHC memory cards (for more information, visit the Olympus website)

SD™ HC

Using a new card

Cards must be formatted with this camera before first use or after being used with other cameras or computers.

[MEMORY FORMAT]/[FORMAT] (p. 44)

Checking the image saving location

The memory indicator shows whether the internal memory or card is being used during shooting and playback.

Current memory indicator

IN: Internal memory is being used
SD: Card is being used

Current memory indicator 12:00:34 1.1M Shooting mode 150 *10/02/25 12:30

Playback mode

Even if [MEMORY FORMAT]/[FORMAT], [ERASE], [ERASE EVENT], [SEL. IMAGE], or [ALL ERASE] is performed, the data in the card is not completely erased. When disposing of the card, damage the card to prevent the disclosure of personal data.

Readout/recording process of the card

During shooting, the current memory indicator lights in red while the camera is writing data. Never open the battery/card/connector cover or unplug the USB cable. This can not only damage the image data but also render the internal memory or card unusable.

0:34 14m Lights in red

Number of storable pictures (still images)/Continuous recording length (movies) in the internal memory and SD/SDHC memory cards

The figures in the following tables are quoted only as a rough guideline. The actual number of storable pictures or continuous recording lengths will differ according to the shooting conditions and memory cards used.
The figures in the table below are the number of the storable pictures when using the internal memory formatted. [MEMORY FORMAT]/[FORMAT] (p. 44)
The maximum file size of a single movie is 4 GB, regardless of the capacity of the card.

Increasing the number of pictures that can be taken

Either erase unwanted images, or connect the camera to a computer or other device to save the images, and then erase the images in the internal memory or card. [ERASE] (p. 20, 42), [ERASE EVENT] (p. 42), [SEL. IMAGE] (p. 42), [ALL ERASE] (p. 42), [MEMORY FORMAT]/[FORMAT] (p. 44)

STYLUS TOUGH-8010/μ TOUGH-8010, μ TOUGH-6020

Still pictures

IMAGE SIZE	COMPRESSION	Number of storable still pictures
		Internal memory		SD/SDHC memory card (1GB)
		With sound	Without sound	With sound	Without sound
14M 4288×3216	FINE	225	237	133	140
	NORM	423	466	251	276
8M 3264×2448	FINE	373	406	220	240
	NORM	677	793	400	469
5M 2560×1920	FINE	570	651	337	385
	NORM	1,036	1,337	613	790
3M 2048×1536	FINE	819	996	484	589
	NORM	1,411	2,032	846	1,226
2M 1600×1200	FINE	1,239	1,693	732	1,001
	NORM	1,881	3,175	1,133	1,938
1M 1280×960	FINE	1,639	2,540	984	1,540
	NORM	2,419	5,080	1,430	3,004
VGA 640×480	FINE	2,988	8,468	1,820	5,461
	NORM	3,629	16,936	2,145	10,013
f69L 4288×2416	FINE	295	315	175	187
	NORM	546	619	324	368
f69S 1920×1080	FINE	1,154	1,539	690	924
	NORM	1,814	2,988	1,092	1,820

Movies

IMAGE SIZE	IMAGE QUALITY	Continuous recording length
		Internal memory		SD/SDHC memory card (1GB)
		With sound	Without sound	With sound	Without sound
7203 1280×720	FINE	23 min. 13 sec.	23 min. 34 sec.	13 min. 18 sec.	13 min. 29 sec.
	NORM	29 min.	29 min.	19 min. 48 sec.	20 min. 13 sec.
WGN 640×480	FINE	34 min. 35 sec.	35 min. 20 sec.	19 min. 48 sec.	20 min. 13 sec.
	NORM	67 min. 40 sec.	70 min. 36 sec.	38 min. 44 sec.	40 min. 25 sec.
GOGA 320×240	FINE	70 min. 8 sec.	73 min. 17 sec.	40 min. 8 sec.	41 min. 57 sec.

Still pictures

IMAGE SIZE	COMPRESSION	Number of storable still pictures
		Internal memory		SD/SDHC memory card (1GB)
		With sound	Without sound	With sound	Without sound
14M 4288×3216	FINE	89	94	133	140
	NORM	168	185	251	276
8M 3264×2448	FINE	148	161	220	240
	NORM	269	315	400	469
5M 2560×1920	FINE	227	259	337	385
	NORM	412	532	613	790
3M 2048×1536	FINE	326	396	484	589
	NORM	561	808	846	1,226
2M 1600×1200	FINE	493	674	732	1,001
	NORM	749	1,263	1,133	1,938
1M 1280×960	FINE	652	1,011	984	1,540
	NORM	963	2,022	1,430	3,004
VGA 640×480	FINE	1,189	3,370	1,820	5,461
	NORM	1,444	6,741	2,145	10,013
16.9L 4288×2416	FINE	117	125	175	187
	NORM	217	246	324	368
16.9S 1920×1080	FINE	459	612	690	924
	NORM	722	1,189	1,092	1,820

Movies

IMAGE SIZE	IMAGE QUALITY	Continuous recording length
		Internal memory		SD/SDHC memory card (1GB)
		With sound	Without sound	With sound	Without sound
720X 1280×720	FINE	8 min. 36 sec.	8 min. 43 sec.	13 min. 18 sec.	13 min. 29 sec.
	NORM	12 min. 48 sec.	13 min. 5 sec.	19 min. 48 sec.	20 min. 13 sec.
VCAN 640×480	FINE	12 min. 48 sec.	13 min. 5 sec.	19 min. 48 sec.	20 min. 13 sec.
	NORM	25 min. 3 sec.	26 min. 8 sec.	38 min. 44 sec.	40 min. 25 sec.
VCAN 320×240	FINE	25 min. 58 sec.	27 min. 8 sec.	40 min. 8 sec.	41 min. 57 sec.

Taking pictures with the Olympus Wireless RC Flash System

STYLUS TOUGH-8010/μ TOUGH-8010 only

You can take pictures with a wireless flash when using a flash compatible with the Olympus Wireless RC Flash System. This enables multi-flash photography using multiple flash units compatible with this system. The camera's built-in flash is used for communication between the camera and flash.

For details about operation of a wireless flash, refer to the instruction manual for the special external flash.

1 Set the wireless flash based on the guidelines below.

Wireless flash setup range guidelines

The setup range varies depending on the ambient environment.

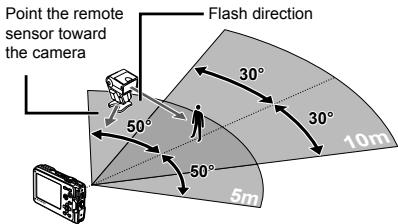

Point the remote sensor toward the camera Flash direction 30° 30° 50° 50° 10m 5m

2 Turn on the wireless flash.

3 Use the MODE button on the wireless flash to set to RC mode, and make the channel and group settings. (Channel: CH1, Group: A)
4 Set [REMOTE FLASH] (p. 37) on the camera to [↓RC], and set the channel to the same setting as the wireless flash.

5 Select the flash mode.

! "Using the flash" (p. 28)

6 Take a test shot to check the operation of the flash and the resulting image.

Be sure to check the charge level of the camera and wireless flash before taking pictures.
Although there is no limit on the number of wireless flash units that are set up, usage of a maximum of three units is recommended to prevent malfunction due to interference with each other.
When the camera flash is set to [RC], the camera built-in flash is used for communication with the wireless flash. It cannot be used for taking pictures.

Important information about water and shock resistant features

Water resistance: The waterproof feature is warranted to operate at the following depths for up to one hour.

STYLUS TOUGH-8010/ TOUGH-8010:10 m (32.8 ft.)

STYLUS TOUGH-6020/ TOUGH-6020:5 m (16.4 ft.)

The waterproof feature may be compromised if the camera is subject to substantial or excessive impact.

Shock resistance: The anti-shock feature warrants ^2 the operation of the camera against accidental impact incurred from everyday use of your digital compact camera. The anti-shock feature does not unconditionally warrant all defective operation or cosmetic damage.

Cosmetic damage, such as scratches and dents, are not covered under the warranty.

As with any electronic device, proper care and maintenance are required to preserve the integrity and operation of your camera. To maintain camera performance, please take your camera to the nearest Olympus Authorized Service Center to have it inspected after any major impact. In the event the camera is damaged as a result of negligence or misuse, the warranty will not cover costs associated with the service or repair of your camera. For additional information on our warranty, please visit to the Olympus website for your local area. Please observe the following care instructions for your camera.

*1 As determined by Olympus pressure testing equipment in accordance with IEC Standard Publication 529 IPX8 - This means that the camera can be used normally under water at a specified water pressure.
*2 This anti-shock performance is confirmed by Olympus' testing conditions in accordance with MIL-STD-810F, Method 516.5, Procedure IV (Transit Drop Test). For more details of Olympus' testing conditions, please refer to the Olympus website for your local area.

Before Use:

• Check the camera for foreign material including dirt, dust or sand.
• Be sure to close the battery/card/connector cover firmly so that lock makes the clicking sound.
• Do not open the battery/card/connector cover with wet hands, while under water, or in a damp or dusty environment (e.g. beach).

After Use:

• Be sure to wipe off any excess water or debris after using the camera under water.
• After the camera is used under seawater, immerse the camera in a bucket containing fresh water for about 10 minutes (with the battery/card/connector cover firmly closed). After that, dry the camera in the shade with good ventilation.
• Water drops may be observed on the inner surface of the battery/card/connector cover after you open the cover. If any water drops are found, be sure to wipe them off before using the camera.

Notes after use

- Foreign materials may be attached to the camera when using the camera in conditions with foreign materials such as dirt, dust or sand. If you continue to use the camera in such conditions, it could cause damage to the camera. To avoid such damage, wash the camera using the following method.

① Insert the battery and close the battery/card/connector cover firmly so that lock makes the clicking sound.
② Fill a bucket with fresh water, immerse the camera in the bucket with the lens surface downward and shake the camera thoroughly. Or rinse the lens surface by placing it directly under a strong stream of tap water.
③ Press the ON/OFF button several times in the water and close/open the lens cover repeatedly.
④ Furthermore, shake the camera further with the cover opened.

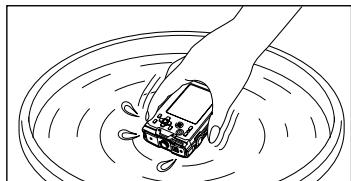

Illustration of a hand reaching toward a car on water, creating ripples (no text or symbols)

Follow the Steps ① to ④, then check if the lens cover moves smoothly.

If the lens cover does not move smoothly, rinse the lens face by placing it directly under a strong stream of tap water and pressing the ON/OFF button repeatedly.

Storage and Maintenance

• Do not leave the camera in an environment at high temperature (40°C (104°F) or more) or at low temperature (-10°C (14°F) or less). Failure to do so may break down water resistance.

• Do not use chemicals for cleaning, rust prevention, anti-fogging, repairing, etc. Failure to do so may break down water resistance.

• Do not leave the camera in water for a long time. Prolonged exposure to water will cause damage to the camera's appearance and/or deteriorate water resistance.

• In order to preserve the water resistant feature, as with any underwater housing, it is recommended that the waterproof packing (and seals) are replaced annually. For the Olympus distributors or service stations where the waterproof packing can be replaced, visit Olympus website for your local area.

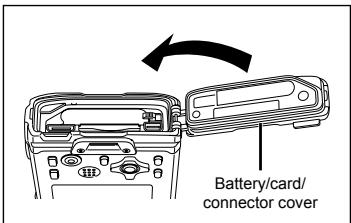

Closing Battery/card/connector cover

Battery/card/ connector cover

The included accessories (e.g. USB-AC adapter) do not offer shock or water resistance.

SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED OLYMPUS SERVICE PERSONNEL.

An exclamation mark enclosed in a triangle alerts you to important operating and maintenance instructions in the documentation provided with the product.

DANGER

WARNING

CAUTION

If the product is used without observing the information given under this symbol, serious injury or death may result.

If the product is used without observing the information given under this symbol, injury or death may result.

If the product is used without observing the information given under this symbol, minor personal injury, damage to the equipment, or loss of valuable data may result.

WARNING!

TO AVOID THE RISK OF FIRE OR ELECTRICAL SHOCK, NEVER DISASSEMBLE, EXPOSE THIS PRODUCT TO

WATER OR OPERATE IN A HIGH HUMIDITY ENVIRONMENT.

General Precautions

Read All Instructions — Before you use the product, read all operating instructions. Save all manuals and documentation for future reference.

Cleaning — Always unplug this product from the wall outlet before cleaning. Use only a damp cloth for cleaning. Never use any type of liquid or aerosol cleaner, or any type of organic solvent to clean this product.

Attachments — For your safety, and to avoid damaging the product, use only accessories recommended by Olympus.

Water and Moisture — For precautions on products with weatherproof designs, read the weatherproofing sections.

Location — To avoid damage to the product, mount the product securely on a stable tripod, stand, or bracket.

Power Source — Connect this product only to the power source described on the product label.

Lightning — If a lightning storm occurs while using an AC adapter, remove it from the wall outlet immediately.

Foreign Objects — To avoid personal injury, never insert a metal object into the product.

Heat — Never use or store this product near any heat source such as a radiator, heat register, stove, or any type of equipment or appliance that generates heat, including stereo amplifiers.

Handling the Camera

WARNING

• Do not use the camera near flammable or explosive gases.
• Do not use the flash and LED on people (infants, small children, etc.) at close range.

- You must be at least 1 m (3 ft.) away from the faces of your subjects. Firing the flash too close to the subject's eyes could cause a momentary loss of vision.

- Keep young children and infants away from the camera.

• Always use and store the camera out of the reach of young children and infants to prevent the following dangerous situations which could cause serious injury:

• Becoming entangled in the camera strap, causing strangulation.
• Accidentally swallowing the battery, cards or other small parts.
• Accidentally firing the flash into their own eyes or those of another child.
• Accidentally being injured by the moving parts of the camera.

- Do not look at the sun or strong lights with the camera.

- Do not use or store the camera in dusty or humid places.

- Do not cover the flash with a hand while firing.

- Use SD/SDHC memory cards only. Never use other types of cards.

If you accidentally insert another type of card into the camera, contact an authorized distributor or service center. Do not try to remove the card by force.

CAUTION

- Stop using the camera immediately if you notice any unusual odors, noise, or smoke around it.

- Never remove the batteries with bare hands, which may cause a fire or burn your hands.

- Do not leave the camera in places where it may be subject to extremely high temperatures.

- Doing so may cause parts to deteriorate and, in some circumstances, cause the camera to catch fire. Do not use the charger or AC adapter if it is covered (such as a blanket). This could cause overheating, resulting in fire.

- Handle the camera with care to avoid getting a low-temperature burn.

- When the camera contains metal parts, overheating can result in a low-temperature burn. Pay attention to the following:

- When used for a long period, the camera will get hot. If you hold on to the camera in this state, a low-temperature burn may be caused.

- In places subject to extremely cold temperatures, the temperature of the camera's body may be lower than the environmental temperature. If possible, wear gloves when handling the camera in cold temperatures.

- Be careful with the strap.

- Be careful with the strap when you carry the camera. It could easily catch on stray objects and cause serious damage.

- Do not touch the metallic parts of the camera for a long period of time at low temperatures.

- This may damage your skin. At low temperatures, handle the camera while wearing gloves.

Battery Handling Precautions

Follow these important guidelines to prevent batteries from leaking, overheating, burning, exploding, or causing electrical shocks or burns.

DANGER

• The camera uses a lithium ion battery specified by Olympus. Charge the battery with the specified AC adapter or charger. Do not use any other AC adapters or chargers.
• Never heat or incinerate batteries.
• Take precautions when carrying or storing batteries to prevent them from coming into contact with any metal objects such as jewelry, pins, fasteners, etc.
• Never store batteries where they will be exposed to direct sunlight, or subjected to high temperatures in a hot vehicle, near a heat source, etc.
• To prevent causing battery leaks or damaging their terminals, carefully follow all instructions regarding the use of batteries. Never attempt to disassemble a battery or modify it in any way, solder, etc.
• If battery fluid gets into your eyes, flush your eyes immediately with clear, cold running water and seek medical attention immediately.
• Always store batteries out of the reach of small children. If a child accidentally swallows a battery, seek medical attention immediately.

WARNING

• Keep batteries dry at all times.
• To prevent batteries from leaking, overheating, or causing a fire or explosion, use only batteries recommended for use with this product.
• Insert the battery carefully as described in the operating instructions.
• If rechargeable batteries have not been recharged within the specified time, stop charging them and do not use them.

• Do not use a battery if it is cracked or broken.

• If a battery leaks, becomes discolored or deformed, or becomes abnormal in any other way during operation, stop using the camera.

• If a battery leaks fluid onto your clothing or skin, remove the clothing and flush the affected area with clean, running cold water immediately. If the fluid burns your skin, seek medical attention immediately.
• Never subject batteries to strong shocks or continuous vibration.

CAUTION

• Before loading, always inspect the battery carefully for leaks, discoloration, warping, or any other abnormality.
• The battery may become hot during prolonged use. To avoid minor burns, do not remove it immediately after using the camera.
• Always unload the battery from the camera before storing the camera for a long period.

Caution for Usage Environment

• To protect the high-precision technology contained in this product, never leave the camera in the places listed below, no matter if in use or storage:
• Places where temperatures and/or humidity are high or go through extreme changes. Direct sunlight, beaches, locked cars, or near other heat sources (stove, radiator, etc.) or humidifiers.
  • In sandy or dusty environments.
• Near flammable items or explosives.
• In wet places, such as bathrooms or in the rain. When using products with weatherproof designs, read their manuals as well.
• In places prone to strong vibrations.

- Never drop the camera or subject it to severe shocks or vibrations.

- When mounted on a tripod, adjust the position of the camera with the tripod head. Do not twist the camera.

- Do not touch electric contacts on cameras.

- Do not leave the camera pointed directly at the sun. This may cause lens or shutter curtain damage, color failure, ghosting on the CCD, or may possibly cause fires.

- Do not push or pull severely on the lens.

- Before storing the camera for a long period, remove the batteries. Select a cool, dry location for storage to prevent condensation or mold from forming inside the camera. After storage, test the camera by turning it on and pressing the shutter button to make sure that it is operating normally.

• The camera may malfunction if it is used in a location where it is subject to a magnetic/electromagnetic field, radio waves, or high voltage, such as near a TV set, microwave, video game, loud speakers, large monitor unit, TV/radio tower, or transmission towers. In such cases, turn the camera off and on again before further operation.
• Always observe the operating environment restrictions described in the camera's manual.

Battery Handling Precautions

• This camera uses a lithium ion battery specified by Olympus. Do not use any other type of battery.
• If the battery's terminals get wet or greasy, camera contact failure may result. Wipe the battery well with a dry cloth before use.
• Always charge a battery when using it for the first time, or if it has not been used for a long period.
• When operating the camera with battery power at low temperatures, try to keep the camera and spare battery as warm as possible. A battery that has run down at low temperatures may be restored after it is warmed at room temperature.
• The number of pictures you can take may vary depending on the shooting conditions or battery.
• Before going on a long trip, and especially before traveling abroad, purchase extra batteries. A recommended battery may be difficult to obtain while traveling.
• Please recycle batteries to help save our planet's resources. When you throw away dead batteries, be sure to cover their terminals and always observe local laws and regulations.

LCD Monitor

• Do not push the monitor forcibly; otherwise the image may become vague, resulting in a playback mode failure or damage to the monitor.
• A strip of light may appear on the top/bottom of the monitor, but this is not a malfunction.
• When a subject is viewed diagonally in the camera, the edges may appear zigzagged on the monitor. This is not a malfunction; it will be less noticeable in playback mode.
• In places subject to low temperatures, the LCD monitor may take a long time to turn on or its color may change temporarily. When using the camera in extremely cold places, it is a good idea to occasionally place it in a warm place. An LCD monitor exhibiting poor performance due to low temperatures will recover in normal temperatures.
• The LCD used for the monitor is made with high-precision technology. However, black spots or bright spots of light may appear constantly on the LCD Monitor. Due to its characteristics or the angle at which you are viewing the monitor, the spot may not be uniform in color and brightness. This is not a malfunction.

Legal and Other Notices

• Olympus makes no representations or warranties regarding any damages, or benefit expected by using this unit lawfully, or any request from a third person, which are caused by the inappropriate use of this product.
• Olympus makes no representations or warranties regarding any damages or any benefit expected by using this unit lawfully which are caused by erasing picture data.

Disclaimer of Warranty

• Olympus makes no representations or warranties, either expressed or implied, by or concerning any content of these written materials or software, and in no event shall be liable for any implied warranty of merchantability or fitness for any particular purpose or for any consequential, incidental or indirect damages (including but not limited to damages for loss of business profits, business interruption and loss of business information) arising from the use or inability to use these written materials or software or equipment. Some countries do not allow the exclusion or limitation of liability for consequential or incidental damages or of the implied warranty, so the above limitations may not apply to you.

- Olympus reserves all rights to this manual.

Warning

Unauthorized photographing or use of copyrighted material may violate applicable copyright laws. Olympus assumes no responsibility for unauthorized photographing, use or other acts that infringe upon the rights of copyright owners.

Copyright Notice

All rights reserved. No part of these written materials or this software may be reproduced or used in any form or by any means, electronic or mechanical, including photocopying and recording or the use of any type of information storage and retrieval system, without the prior written permission of Olympus. No liability is assumed with respect to the use of the information contained in these written materials or software, or for damages resulting from the use of the information contained therein. Olympus reserves the right to alter the features and contents of this publication or software without obligation or advance notice.

FCC Notice

• Radio and Television Interference
- Changes or modifications not expressly approved by the manufacturer may void the user's authority to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Adjust or relocate the receiving antenna.
- Increase the distance between the camera and receiver.
- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
- Consult your dealer or an experienced radio/TV technician for help. Only the OLYMPUS-supplied USB cable should be used to connect the camera to USB enabled personal computers (PC).

Any unauthorized changes or modifications to this equipment would void the user's authority to operate it.

Use Only Dedicated Rechargeable Battery, Battery Charger and AC adapter

We strongly recommend that you use only the genuine Olympus dedicated rechargeable battery, battery charger and AC adapter with this camera. Using a non-genuine rechargeable battery, battery charger and/or AC adapter may result in fire or personal injury due to leakage, heating, ignition or damage to the battery. Olympus does not assume any liability for accidents or damage that may result from the use of a battery, battery charger and/or AC adapter that are not genuine Olympus accessories.

For customers in North and South America

For customers in USA

Declaration of Conformity
Model Number	:STYLUS TOUGH-8010/μ TOUGH-8010STYLUS TOUGH-6020/μ TOUGH-6020STYLUS TOUGH-3000/μ TOUGH-3000
Trade Name	:OLYMPUS
Responsible Party	:
OLYMPUS IMAGING AMERICA INC.
Address	:3500 CorporateParkway, P.O. Box610, Center Valley, PA18034-0610, U.S.A.
Telephone Number	:484-896-5000

Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause undesired operation.

For customers in Canada

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

OLYMPUS WORLDWIDE LIMITED WARRANTY - IMAGING PRODUCTS

Olympus warrants that the enclosed Olympus® imaging product(s) and related Olympus® accessories (individually a “Product” and collectively the “Products”) will be free from defects in materials and workmanship under normal use and service for a period of one (1) year from the date of purchase.

If any Product proves to be defective within the one-year warranty period, the customer must return the defective Product to any of Olympus Service Centers, following the procedure set forth below (See “WHAT TO DO WHEN SERVICE IS NEEDED”).

Olympus, at its sole discretion, will repair, replace, or adjust the defective Product, provided that Olympus investigation and factory inspection disclose that (a) such defect developed under normal and proper use and (b) the Product is covered under this limited warranty.

Repair, replacement, or adjustment of defective Products shall be Olympus's sole obligation and the customer's sole remedy hereunder.

The customer is liable and shall pay for shipment of the Products to the Olympus Service Center.

Olympus shall not be obligated to perform preventive maintenance, installation, deinstallation, or maintenance.

Olympus reserves the right to (i) use reconditioned, refurbished, and/or serviceable used parts (that meet Olympus's quality assurance standards) for warranty or any other repairs and (ii) make any internal or external design and/or feature changes on or to its products without any liability to incorporate such changes on or to the Products.

WHAT IS NOT COVERED BY THIS LIMITED WARRANTY

Excluded from this limited warranty and not warranted by Olympus in any fashion, either express, implied, or by statute, are:

(a) products and accessories not manufactured by Olympus and/or not bearing the “OLYMPUS” brand label (the warranty coverage for products and accessories of other manufacturers, which may be distributed by Olympus, is the responsibility of the manufacturers of such products and accessories in accordance with the terms and duration of such manufacturers’ warranties);
(b) any Product which has been disassembled, repaired, tampered with, altered, changed, or modified by persons other than Olympus's own authorized service personnel unless repair by others is made with the written consent of Olympus;
(c) defects or damage to the Products resulting from wear, tear, misuse, abuse, negligence, sand, liquids, impact, improper storage, nonperformance of scheduled operator and maintenance items, battery leakage, use of non-“OLYMPUS” brand accessories, consumables, or supplies, or use of the Products in combination with non-compatible devices;
(d) software programs;
(e) supplies and consumables (including but not limited to lamps, ink, paper, film, prints, negatives, cables and batteries); and/or
(f) Products which do not contain a validly placed and recorded Olympus serial number, unless they are a model on which Olympus does not place and record serial numbers.

EXCEPT FOR THE LIMITED WARRANTY SET FORTH ABOVE, OLYMPUS MAKES NO AND DISCLAIMS ALL OTHER REPRESENTATIONS, GUARANTIES, CONDITIONS, AND WARRANTIES CONCERNING THE PRODUCTS, WHETHER DIRECT OR INDIRECT,

EXPRESS OR IMPLIED, OR ARISING UNDER ANY STATUTE, ORDINANCE, COMMERCIAL USAGE OR OTHERWISE, INCLUDING BUT NOT LIMITED TO ANY WARRANTY OR REPRESENTATION AS TO THE SUITABILITY, DURABILITY, DESIGN, OPERATION, OR CONDITION OF THE PRODUCTS (OR ANY PART THEREOF) OR THE MERCHANTABILITY OF THE PRODUCTS OR THEIR FITNESS FOR A PARTICULAR PURPOSE, OR RELATING TO THE INFRINGEMENT OF ANY PATENT, COPYRIGHT, OR OTHER PROPRIETARY RIGHT USED OR INCLUDED THEREIN. IF ANY IMPLIED WARRANTIES APPLY AS A MATTER OF LAW, THEY ARE LIMITED IN DURATION TO THE LENGTH OF THIS LIMITED WARRANTY. SOME STATES MAY NOT RECOGNIZE A DISCLAIMER OR LIMITATION OF WARRANTIES AND/OR LIMITATION OF LIABILITY SO THE ABOVE DISCLAIMERS AND EXCLUSIONS MAY NOT APPLY. THE CUSTOMER MAY ALSO HAVE DIFFERENT AND/OR ADDITIONAL RIGHTS AND REMEDIES THAT VARY FROM STATE TO STATE. THE CUSTOMER ACKNOWLEDGES AND AGREES THAT OLYMPUS SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES THAT THE CUSTOMER MAY INCUR FROM DELAYED SHIPMENT, PRODUCT FAILURE, PRODUCT DESIGN, SELECTION, OR PRODUCTION, IMAGE OR DATA LOSS OR IMPAIRMENT OR FROM ANY OTHER CAUSE, WHETHER LIABILITY IS ASSERTED IN CONTRACT, TORT (INCLUDING NEGLIGENCE AND STRICT PRODUCT LIABILITY) OR OTHERWISE. IN NO EVENT SHALL OLYMPUS BE LIABLE FOR ANY INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES OF ANY KIND (INCLUDING WITHOUT LIMITATION LOSS OF PROFITS OR LOSS OF USE), WHETHER OR NOT OLYMPUS SHALL BE OR SHOULD BE AWARE OF THE POSSIBILITY OF SUCH POTENTIAL LOSS OR DAMAGE.

Representations and warranties made by any person, including but not limited to dealers, representatives, salespersons, or agents of Olympus, which are inconsistent or in conflict with or in addition to the terms of this limited warranty, shall not be binding upon Olympus unless reduced to writing and approved by an expressly authorized officer of Olympus.

This limited warranty is the complete and exclusive statement of warranty which Olympus agrees to provide with respect to the Products and it shall supersede all prior and contemporaneous oral or written agreements, understandings, proposals, and communications pertaining to the subject matter hereof. This limited warranty is exclusively for the benefit of the original customer and cannot be transferred or assigned.

WHAT TO DO WHEN SERVICE IS NEEDED

The customer must transfer any image or other data saved on a Product to another image or data storage medium and/or remove any film from the Product prior to sending the Product to Olympus for service.

IN NO EVENT SHALL OLYMPUS BE RESPONSIBLE FOR SAVING, KEEPING OR MAINTAINING ANY IMAGE OR DATA SAVED ON A PRODUCT RECEIVED BY IT FOR SERVICE, OR ON ANY FILM CONTAINED WITHIN A PRODUCT RECEIVED BY IT FOR SERVICE, NOR SHALL OLYMPUS BE RESPONSIBLE FOR ANY DAMAGES IN THE EVENT ANY IMAGE OR DATA IS LOST OR IMPAIRED WHILE SERVICE IS BEING PERFORMED (INCLUDING, WITHOUT LIMITATION, DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, LOSS OF PROFITS OR LOSS OF USE), WHETHER OR NOT OLYMPUS SHALL BE OR SHOULD BE AWARE OF THE POSSIBILITY OF SUCH POTENTIAL LOSS OR IMPAIRMENT.

Package the Product carefully using ample padding material to prevent damage in transit and either deliver it to the Authorized Olympus Dealer that sold you the Product or ship it postage prepaid and insured to any of our Olympus Service Centers.

When returning Products for service, your package should include the following:

1 Sales receipt showing date and place of purchase.
2 Copy of this limited warranty bearing the Product serial number corresponding to the serial number on the Product (unless it is a model on which Olympus does not place and record serial numbers).
3 A detailed description of the problem.
4 Sample prints, negatives, digital prints (or files on disk) if available and related to the problem.
When service is completed, the Product will be returned to you postage prepaid.

WHERE TO SEND PRODUCT FOR SERVICE

See "WORLDWIDE WARRANTY" for the nearest service center.

INTERNATIONAL WARRANTY SERVICE

International warranty service is available under this warranty.

For customers in Europe

“CE” mark indicates that this product complies with the European requirements for safety, health, environment and customer protection. “CE” mark cameras are intended for sales in Europe.

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries.

Please do not throw the equipment into the domestic refuse.

Please use the return and collection systems available in your country for the disposal of this product.

This symbol [crossed-out wheeled bin Directive 2006/66/EC Annex II] indicates separate collection of waste batteries in the EU countries. Please do not throw the batteries into the domestic refuse. Please use the return and collection systems available in your country for the disposal of the waste batteries.

Provisions of warranty

1 If this product proves to be defective, although it has been used properly (in accordance with the written Handling Care and Operating instructions supplied with it), during the applicable national warranty period and has been purchased from an authorized Olympus distributor within the business area of Olympus Europa Holding GmbH as stipulated on the website: http://www.olympus.com this product will be repaired, or at Olympus's option replaced, free of charge. To claim under this warranty the customer must take the product before the end of the applicable national warranty period to the dealer where the product was purchased or any other Olympus service station within the business area of Olympus Europa Holding GmbH as stipulated on the website: http://www.olympus.com. During the one year period of the World Wide Guarantee the customer may turn the product in at any Olympus service station. Please notice that not in all countries such Olympus service station exists.

2 The customer shall transport the product to the dealer or Olympus authorized service station at his own risk and shall be responsible for any costs incurred in transporting the product.

Provisions of Guarantee

1 "OLYMPUS IMAGING CORP., Shinjuku Monolith, 2-3-1 Nishi-Shinjuku, Shinjuku-ku, Tokyo 163-0914, Japan grants a one year World Wide Guarantee. This worldwide Guarantee must be presented at an Olympus authorized repair service station before any repair can be made under conditions of this Guarantee. This Guarantee is valid only if the Guarantee Certificate and proof of purchase are presented at the Olympus repair service station. Please note that this Guarantee is in addition to and does not affect the customer's legal warranty rights under the applicable national legislation governing the sale of consumer goods mentioned above.

2 This Guarantee does not cover the following and the customer will be required to pay repair charge, even for defects occurring within the Guarantee period referred to above.

a. Any defect that occurs due to mishandling (such as an operation performed that is not mentioned in the Handling Care or other sections of the instructions, etc.)

b. Any defect that occurs due to repair, modification, cleaning, etc. performed by anyone other than Olympus or an Olympus authorized service station.

c. Any defect or damage that occurs due to transport, a fall, shock, etc. after purchase of the product.

d. Any defect or damage that occurs due to fire, earthquake, flood damage, thunderbolt, other natural disasters, environmental pollution and irregular voltage sources.

e. Any defect that occurs due to careless or improper storage (such as keeping the product under conditions of high temperature and humidity, near insect repellents such as naphthalene or harmful drugs, etc.), improper maintenance, etc.

f. Any defect that occurs due to exhausted batteries, etc.

g. Any defect that occurs due to sand, mud, etc. entering the inside of the product casing.

h. When the Guarantee Certificate is not returned with the product.

i. When any alterations whatsoever are made to the Guarantee Certificate regarding the year, month and date of purchase, the customer's name, the dealer's name, and the serial number.

j. When proof of purchase is not presented with this Guarantee Certificate.

3 This Guarantee applies to the product only; the Guarantee does not apply to any other accessory equipment, such as the case, strap, lens cap and batteries.

4 Olympus's sole liability under this Guarantee shall be limited to repairing or replacing the product. Any liability under the Guarantee for indirect or consequential loss or damage of any kind incurred or suffered by the customer due to a defect of the product, and in particular any loss or damage caused to any lenses, films, other equipment or accessories used with the product or for any loss resulting from a delay in repair or loss of data, is excluded. Compelling regulations by law remain unaffected by this.

Notes regarding Guarantee maintenance

1 This Guarantee will only be valid if the Guarantee Certificate is duly completed by Olympus or an authorized dealer or other documents contain sufficient proof. Therefore, please make sure that your name, the name of the dealer, the serial number and the year, month and date of purchase are all completed or the original invoice or the sales receipt (indicating the dealer's name, the date of purchase and product type) is attached to this Guarantee Certificate. Olympus reserves the right to refuse free-of-charge service if neither Guarantee Certificate is completed nor the above document is attached or if the information contained in it is incomplete or illegible.

2 Since this Guarantee Certificate will not be re-issued, keep it in a safe place.
* Please refer to the list on the web site: http://www.olympus.com for the authorized international Olympus service network.

For customers in Asia

Provisions of warranty

1 If this product proves to be defective, although it has been used properly (in accordance with the written Handling Care and Operating instructions supplied with it), during a period of up to one year from the date of purchase this product will be repaired, or at Olympus's option replaced, free of charge. To claim under warranty the customer must take the product and this Warranty certificate before the end of the one year warranty period to the dealer where the product was purchased or any Olympus authorized service station listed in the instructions and request the necessary repairs.
2 The customer shall transport the product to the dealer or Olympus authorized service station at his own risk and shall be responsible for any costs incurred in transporting the product.
3 This warranty does not cover the following and the customer will be required to pay repair charge, even for defects occurring within the one year period referred to above.

a. Any defect that occurs due to mishandling (such as an operation performed that is not mentioned in the Handling Care or other sections of the instructions, etc.)
b. Any defect that occurs due to repair, modification, cleaning, etc. performed by anyone other than Olympus or an Olympus authorized service station.
c. Any defect or damage that occurs due to transport, a fall, shock, etc. after purchase of the product.
d. Any defect or damage that occurs due to fire, earthquake, flood damage, thunderbolt, other natural disasters, environmental pollution and irregular voltage sources.
e. Any defect that occurs due to careless or improper storage (such as keeping the product under conditions of high temperature and humidity, near insect repellents such as naphthalene or harmful drugs, etc.), improper maintenance, etc.
f. Any defect that occurs due to exhausted batteries, etc.
g. Any defect that occurs due to sand, mud, etc. entering the inside of the product casing.
h. When this Warranty Certificate is not returned with the product.
i. When any alterations whatsoever are made to the Warranty Certificate regarding the year, month and date of purchase, the customer's name, the dealer's name, and the serial number.
j. When proof of purchase is not presented with this Warranty Certificate.
4 This Warranty applies to the product only; the Warranty does not apply to any other accessory equipment, such as the case, strap, lens cap and batteries.
5 Olympus' sole liability under this warranty shall be limited to repairing or replacing the product and any liability for indirect or consequential loss or damage of any kind incurred or suffered by the customer due to a defect in the product, and in particular any loss or damage caused to any film or lenses or other equipment or accessories used with the product or for any loss resulting from delay in repair, is excluded.

Notes;

1 This Warranty is in addition to and does not affect the customer's statutory right.
2 If you have any queries regarding this Warranty, call any of the Olympus authorized service stations listed in the instructions.

Notes regarding warranty maintenance

1 This Warranty will only be valid if the Warranty Certificate is duly completed by Olympus or the dealer. Make sure that your name, the name of the dealer, the serial number and the year, month and date of purchase are all completed.
2 Since this Warranty Certificate will not be re-issued, keep it in a safe place.
3 Any request for repair by a customer in same country where the product was purchased shall be subject to the terms of the warranty issued by the Olympus distributor in that country. Where the local Olympus distributor does not issue a separate warranty or where the customer is not in the country where the product was purchased the terms of this worldwide warranty shall apply.
4 Where applicable, this Warranty is valid worldwide. The Olympus authorized service stations listed in this Warranty will gladly honor it.
* Please refer to the appended list for the authorized international Olympus service network.

Disclaimer of Warranty

Olympus makes no representations or warranties, either expressed or implied, by or concerning any content if these written materials or software, and in no event shall be liable for any implied warranty of merchantability or fitness for any particular purpose or for any consequential, incidental or indirect damages (including but not limited to damages for loss of business profits, business interruption and loss of business information) arising from the use of inability to use these written materials or software. Some states do not allow the exclusion or limitation of liability for consequential or incidental damages, so the above limitations may not apply to you.

Trademarks

• IBM is a registered trademark of International Business Machines Corporation.
• Microsoft and Windows are registered trademarks of Microsoft Corporation.
  • Macintosh is a trademark of Apple Inc.
  • The SDHC logo is a trademark.
• All other company and product names are registered trademarks and/or trademarks of their respective owners.
• The standards for camera file systems referred to in this manual are the “Design rule for Camera File system/DCF” standards stipulated by the Japan Electronics and Information Technology Industries Association (JEITA).

THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD ("AVC VIDEO") AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM

Camera

Product type	: Digital camera (for shooting and displaying)
Recording system
Still pictures	: Digital recording, JPEG (in accordance with Design rule for Camera File system (DCF))
Applicable standards	: Exif 2.2, Digital Print Order Format (DPOF), PRINT Image Matching III, PictBridge
Sound with still pictures	: AAC format
Movie	: MPEG-4AVC/H.264
Memory	: Internal memorySD memory cardSDHC memory card
No. of effective pixels	: STYLUS TOUGH-8010/μ TOUGH-8010,STYLUS TOUGH-6020/μ TOUGH-6020: 14,000,000 pixelsSTYLUS TOUGH-3000/μ TOUGH-3000: 12,000,000 pixels
Image pickup device	: 1/2.33" CCD (primary color filter)
Lens	: STYLUS TOUGH-8010/μ TOUGH-8010, STYLUS TOUGH-6020/μ TOUGH-6020: Olympus lens 5.0 to 25.0 mm, f3.9 to 5.9 (equivalent to 28 to 140 mm on a 35 mm camera)STYLUS TOUGH-3000/μ TOUGH-3000: Olympus lens 5.0 to 18.2 mm, f3.5 to 5.1 (equivalent to 28 to 102 mm on a 35 mm camera)
Photometric system	: Digital ESP metering system, spot metering system
Shutter speed	: 4 to 1/2000 sec.
Shooting range	: STYLUS TOUGH-8010/μ TOUGH-8010,STYLUS TOUGH-6020/μ TOUGH-6020: 0.6 m (2.0 ft.) to ∞ (normal)0.2 m (0.7 ft.) to ∞ (W), 0.5 m (1.6 ft.) to ∞ (T) (macro mode)0.03 m (0.1 ft.) to 0.6 m (2.0 ft.) (f=6.7 (fixed)) (super macro mode)STYLUS TOUGH-3000/μ TOUGH-3000: 0.5 m (1.6 ft.) to ∞ (normal)0.1 m (0.3 ft.) to ∞ (W), 0.3 m (1.0 ft.) to ∞ (T) (macro mode)0.02 m (0.07 ft.) to 0.5 m (1.6 ft.) (f=6.5 (fixed)) (super macro mode)
Monitor	: 2.7" TFT color LCD display, 230,000 dots
Connector	: DC-IN jack, USB connector, A/V OUT jack (Multi-connector)/HDMI mini connector (type C)
Automatic calendar system	: 2000 up to 2099
Water resistance
Type	: Equivalent to IEC Standard publication 529 IPX8 (under OLYMPUS test conditions), available in the following depths.STYLUS TOUGH-8010/μ TOUGH-8010: 10 m (32.8 ft.)STYLUS TOUGH-6020/μ TOUGH-6020: 5 m (16.4 ft.)STYLUS TOUGH-3000/μ TOUGH-3000: 3 m (9.8 ft.)
Meaning	: Camera can normally be used under water at a specified water pressure.
Dust resistance	: IEC Standard publication 529 IP6X (under OLYMPUS test conditions)
Operating environment
Temperature	:-10 °C to 40 °C (32 °F to 104 °F) (operation)/-20 °C to 60 °C (-4 °F to 140 °F) (storage)
Humidity	: 30 % to 90 % (operation)/10 % to 90 % (storage)
Power supply	: One Olympus lithium ion battery' or separately sold AC adapter*STYLUS TOUGH-8010/μ TOUGH-8010,STYLUS TOUGH-6020/μ TOUGH-6020: LI-50BSTYLUS TOUGH-3000/μ TOUGH-3000: LI-42B
Dimensions	STYLUS TOUGH-8010/μ TOUGH-8010: 98.3 mm (W) × 63.6 mm (H) × 23.9 mm (D) (3.9 × 2.5 × 0.9 in.) (excluding protrusions)STYLUS TOUGH-6020/μ TOUGH-6020: 96.7 mm (W) × 64.4 mm (H) × 25.8 mm (D) (3.8 × 2.5 × 1.0 in.) (excluding protrusions)STYLUS TOUGH-3000/μ TOUGH-3000: 95.9 mm (W) × 65.0 mm (H) × 23.4 mm (D) (3.7 × 2.2 × 0.8 in.) (excluding protrusions)
Weight	STYLUS TOUGH-8010/μ TOUGH-8010: 215 g (7.6 oz)(including battery and card)STYLUS TOUGH-6020/μ TOUGH-6020: 178 g (6.3 oz)(including battery and card)STYLUS TOUGH-3000/μ TOUGH-3000: 159 g (5.6 oz)(including battery and card)

Lithium ion battery (LI-42B)

Product type	: Lithium ion rechargeable battery
Standard voltage	: DC 3.7 V
Standard capacity	: 740 mAh
Battery life	: Approx. 300 full charges (varies on usage)
Operating environment
Temperature	: 0^ to 40^ ( 32^ to 104^ ) (charging)/ -10^ to 60^ ( 14^ to 140^ ) (operation)/ -20^ to 35^ ( -4^ to 95^ ) (storage)
Dimensions	: 31.5 mm (W) × 39.5 mm (H) × 6.0 mm (D) ( 1.2 × 1.5 × 0.2 in. )
Weight	: Approx. 15 g (0.5 oz)

Lithium ion battery (LI-50B)

Product type	: Lithium ion rechargeable battery
Model No.	: LI-50BA
Standard voltage	: DC 3.7 V
Standard capacity	: 925 mAh
Battery life	: Approx. 300 full charges (varies on usage)
Operating environment
Temperature	: 0 °C to 40 °C (32 °F to 104 °F) (charging)/ -10 °C to 60 °C (14 °F to 140 °F) (operation)/ -10 °C to 35 °C (14 °F to 95 °F) (storage)
Dimensions	: 34.4 mm (W) × 40.0 mm (H) × 7.0 mm (D) (1.4 × 1.6 × 0.3 in.)
Weight	: Approx. 20 g (0.7 oz)

USB-AC adapter (F-2AC)

Model No.	: F-2AC-1A/F-2AC-2A/F-2AC-1B/F-2AC-2B
Power requirements	: AC 100 to 240 V (50/60 Hz)
Output	: DC 5 V, 500 mA
Operating environment
Temperature	: 0 °C to 40 °C (32 °F to 104 °F) (operation)/ -20 °C to 60 °C (-4 °F to 140 °F) (storage)
Dimensions	: 50.0 mm (W) × 54.0 mm (H) × 22.0 mm (D) (2.0 × 2.1 × 0.9 in.)
Weight	: Approx. 46.0 g (1.6 oz) (F-2AC-1A)/Approx. 42.0 g (1.5 oz) (F-2AC-2A)/ Approx. 44.0 g (1.6 oz) (F-2AC-1B)/Approx. 40.0 g (1.4 oz) (F-2AC-2B)

Design and specifications subject to change without notice.

Using in low temperatures

Low temperature operation of the Olympus lithium ion battery is guaranteed to 0°C (32°F).

However, the Olympus lithium ion battery has been tested for use with this product in temperatures up to -10^ ( 14^ ).

Olympus lithium ion battery

STYLUS TOUGH-8010/μ TOUGH-8010, STYLUS TOUGH-6020/μ TOUGH-6020: LI-50B

● The number of storable still pictures is reduced in low temperatures.

HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

HDMI™

HIGH-DEFINITION MULTIMEDIA INTERFACE

http://www.olympus.com/

OLYMPUS IMAGING CORP.

Shinjuku Monolith, 3-1 Nishi-Shinjuku 2-chome, Shinjuku-ku, Tokyo, Japan

OLYMPUS IMAGING AMERICA INC.

3500 Corporate Parkway, P.O. Box 610, Center Valley, PA 18034-0610, U.S.A. Tel. [phone]

Technical Support (USA)

24/7 online automated help: http://www.olympusamerica.com/support

Phone customer support: Tel. [phone] (Toll-free)

Our phone customer support is available from 8 am to 10 pm

(Monday to Friday) ET

http://olympusamerica.com/contactus

Olympus software updates can be obtained at: http://www.olympusamerica.com/digital

OLYMPUS EUROPA HOLDING GMBH

Premises: Wendenstrasse 14-18, 20097 Hamburg, Germany

Tel: [phone] / Fax: [phone]

Goods delivery: Bredowstrasse 20, 22113 Hamburg, Germany

Letters: Postfach 10 49 08, 20034 Hamburg, Germany

European Technical Customer Support:

Please visit our homepage http://www.olympus-europa.com

or call our TOLL FREE NUMBER*: 00800 - 67 10 83 00

for Austria, Belgium, Denmark, Finland, France, Germany, Italy, Luxemburg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland, United Kingdom

* Please note some (mobile) phone services providers do not permit access or request an additional prefix to +800 numbers.

For all European Countries not listed and in case that you can't get connected

to the above mentioned number, please make use of the following

CHARGED NUMBERS: +49 180 5 - 67 10 83 or +49 40 - 237 73 4899

Our Technical Customer Support is available from 9 am to 6 pm MET (Monday to Friday)

Customer Support: 400-650-0303

Homepage: http://www.olympus.com.cn

Customer Service Center:

A8F, Ping An International Financial Center, No. 1-3, Xinyuan South Road, Chaoyang District, Beijing

Tel: [phone] Fax: [phone] Zip: 100022

A,32F Shanghai Industrial Investment Building 18 Cao Xi Road(N),Xuhui District, Shanghai

Tel: [phone] Fax: [phone] Zip: 200030

Rm.1605-1608, Guangzhou International Electronic tower, No403, Huan Shi East Road, Guang Zhou

Tel: [phone] Fax: [phone] Zip: 510095

Rm. 2408, 24F ZhengXi International Tower, No16, Segment 3, Hong Xing Road, Jinjiang District, Chengdu

Tel: [phone] Fax: [phone] Zip: 610016

OLYMPUS HONG KONG AND CHINA LIMITED

L43, Office Tower, Langham Place, 8 Argyle Street, Mongkok, Kowloon, Hong Kong.

Tel: [phone] Fax: [phone]
