| Product Type | Outdoor Wireless Access Point |
| Model | AirMax5N-ESD |
| Frequency Band | 5 GHz |
| Max Data Rate | 300 Mbps |
| Antenna | Built-in 12 dBi directional antenna |
| Ethernet Ports | 1 x 10/100/1000 Mbps PoE port |
| Power Supply | PoE (Power over Ethernet) 24V, 0.5A |
| Dimensions | 260 x 80 x 42 mm |
| Weight | 350 g |
| Operating Temperature | -30°C to 60°C |
| Protection Rating | IP65 (weatherproof) |
| Wireless Standards | IEEE 802.11a/n |

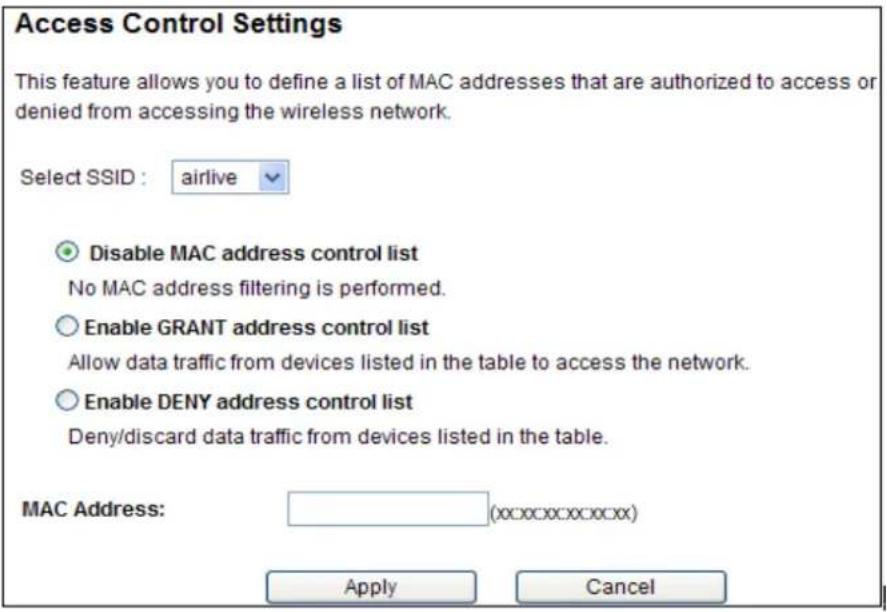

| Security | WPA2-PSK, WPA3-PSK, MAC filtering, SSID broadcast disable |

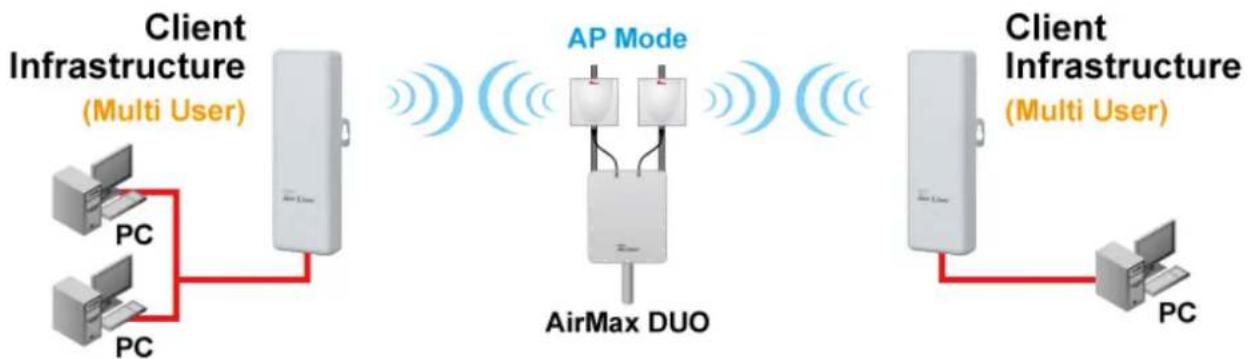

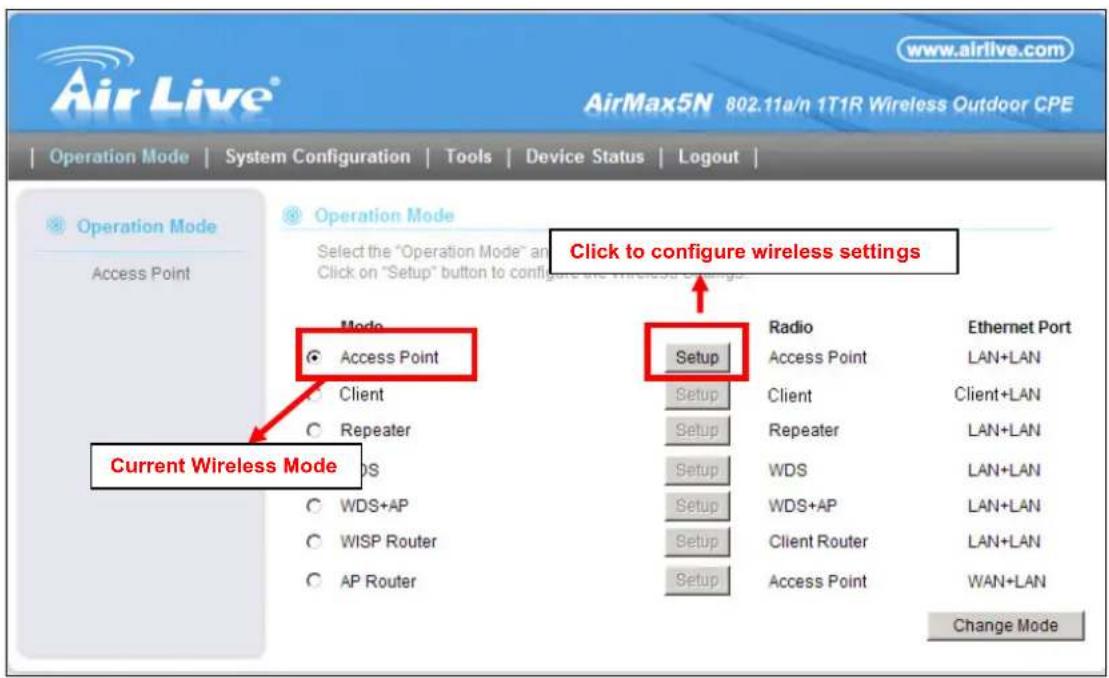

| Modes | Access Point, WDS, Client Bridge, Repeater |

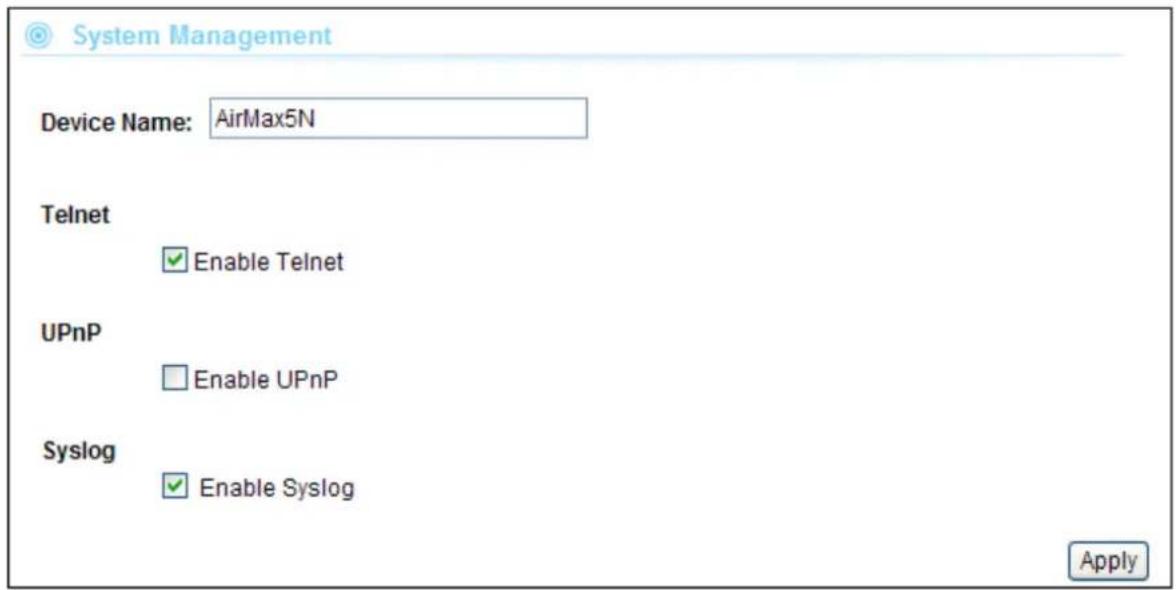

| Configuration | Web browser, SNMP, Telnet |
| LED Indicators | Power, LAN, Signal strength |

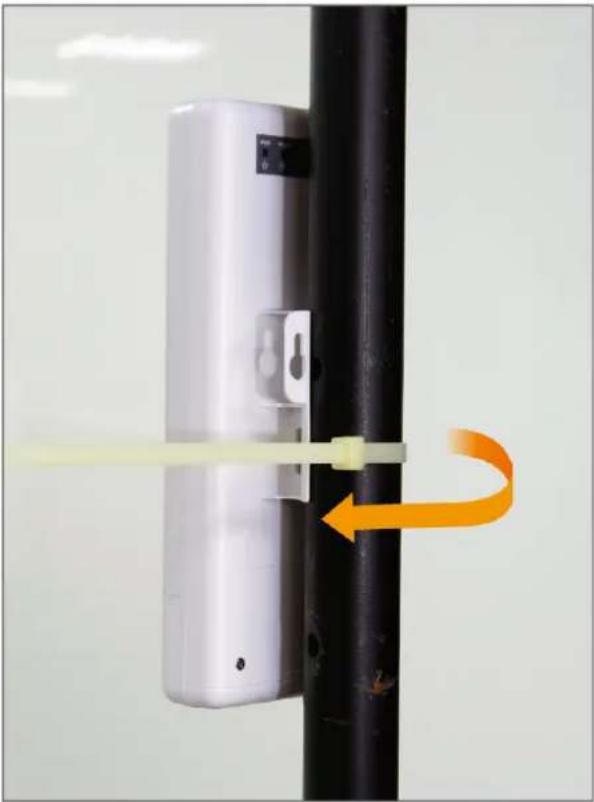

| Mounting | Pole mount kit included |
| Care Instructions | Clean with dry cloth. Avoid harsh chemicals. Keep vents clear. |
| Safety | Operate within rated voltage. Do not open device. Surge protection recommended. |

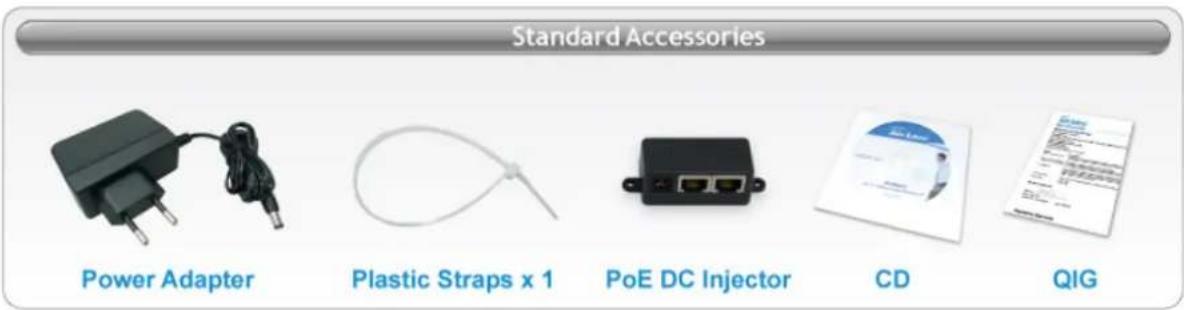

| Spare Parts | Replacement PoE injector, pole mount bracket available from AirLive support. |
| General Information | This access point is designed for long-range outdoor wireless bridging and point-to-point connections. |
Frequently Asked Questions - AirMax5N-ESD AIRLIVE

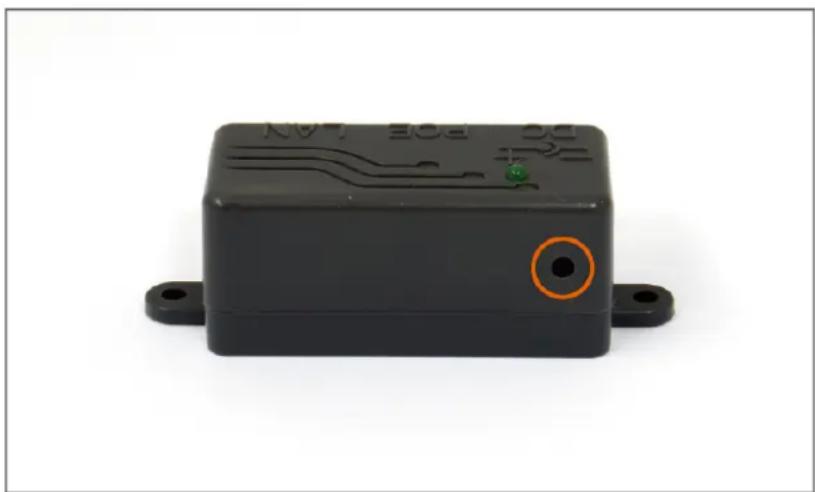

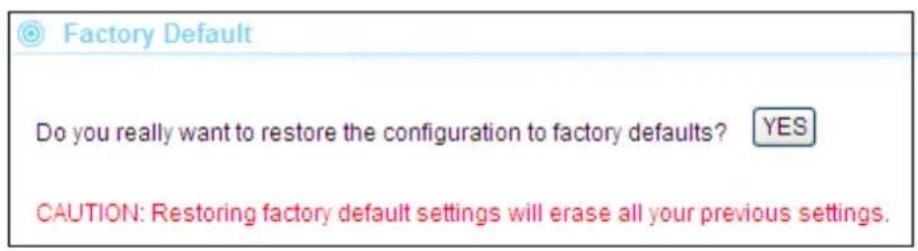

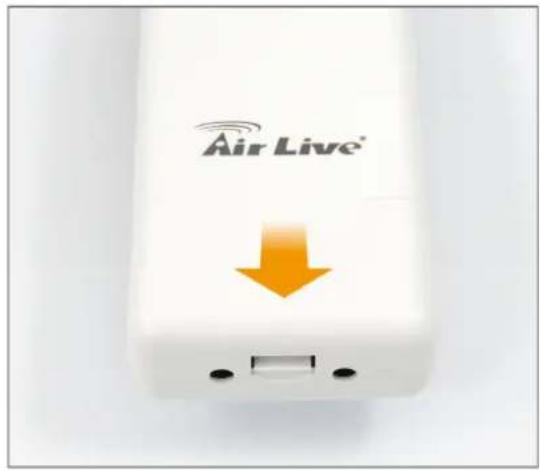

How do I reset the AirMax5N-ESD to factory defaults?
Press and hold the reset button on the device for 10 seconds until the LED blinks rapidly. The device will reboot with factory settings.

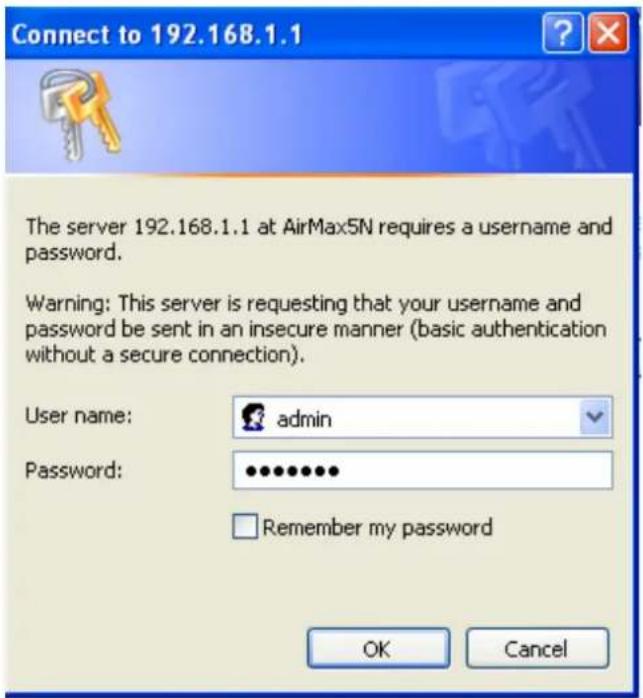

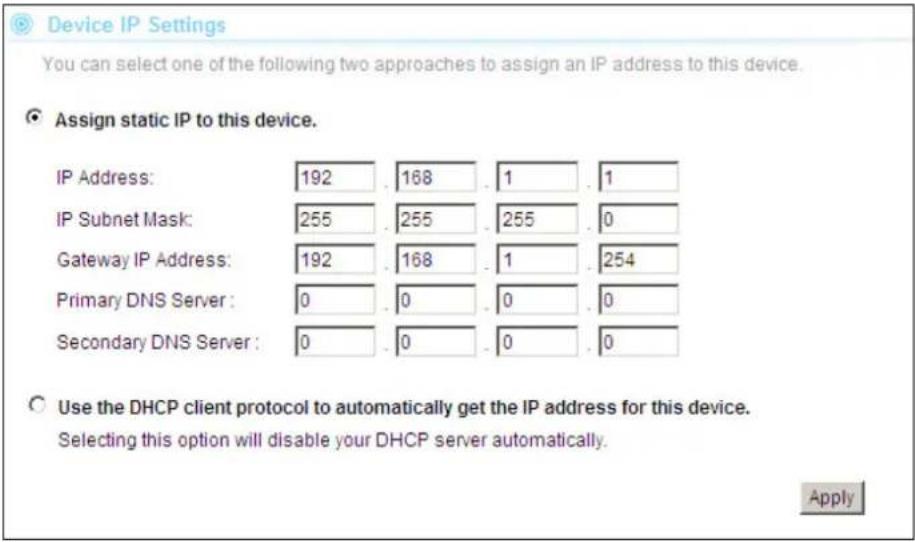

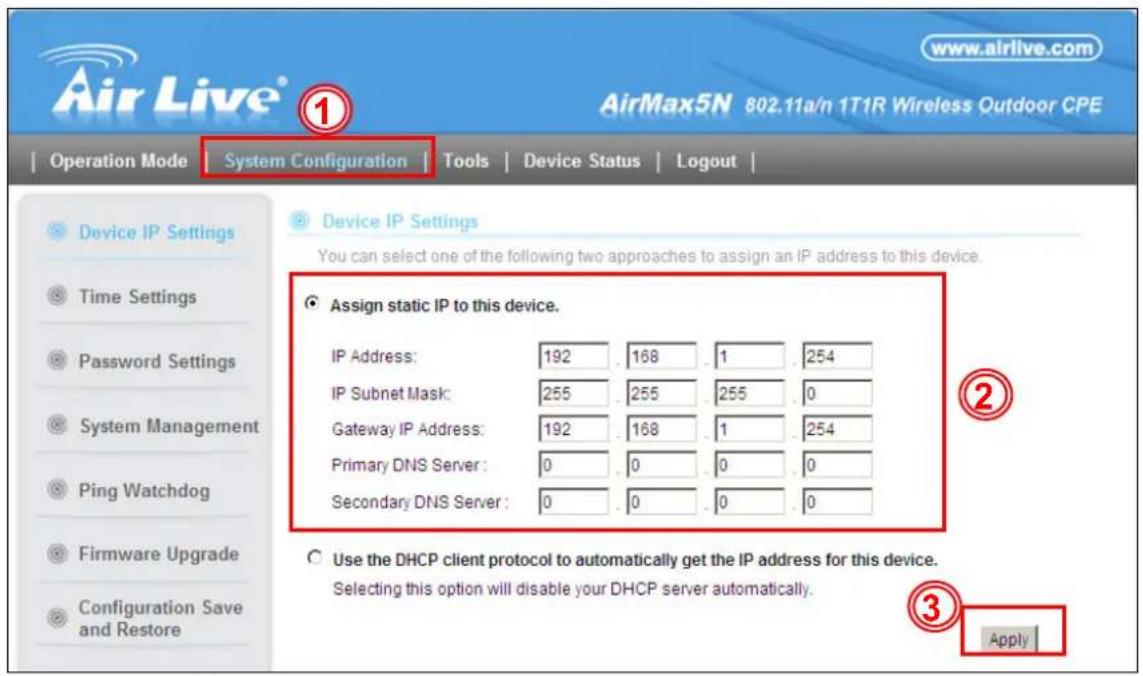

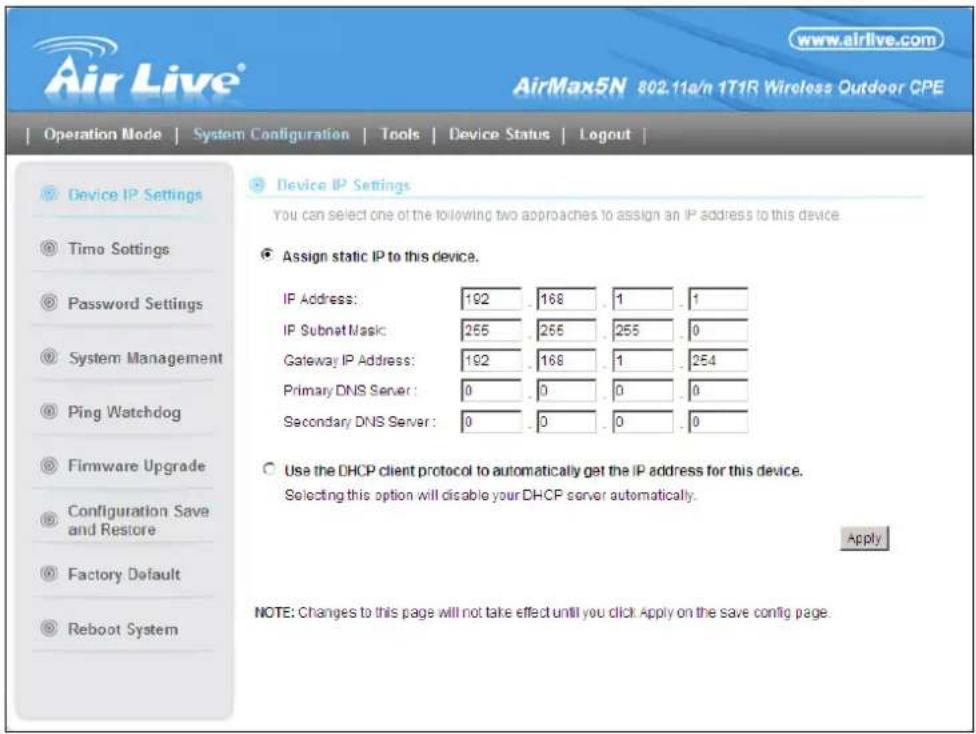

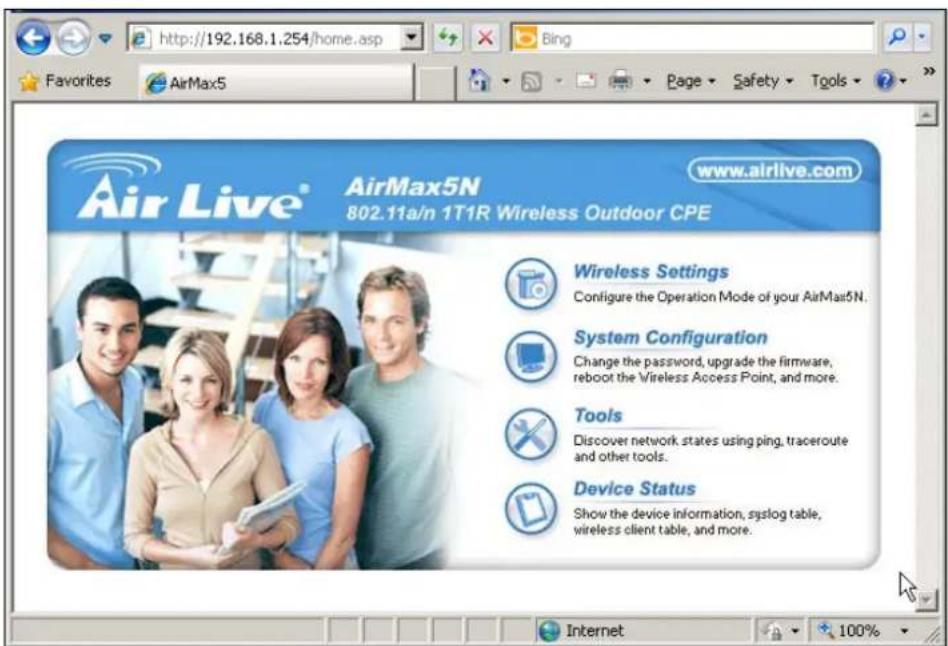

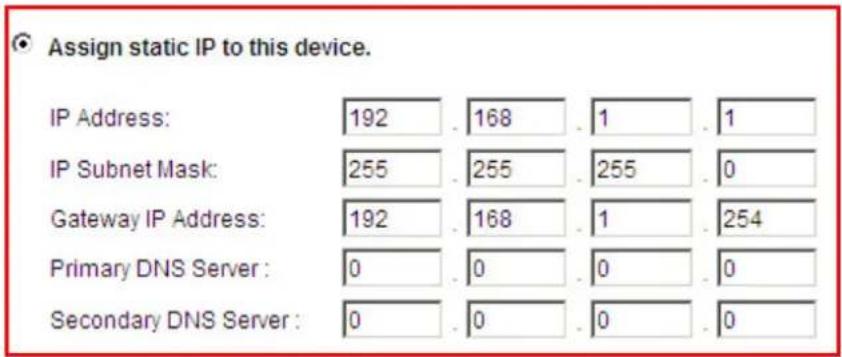

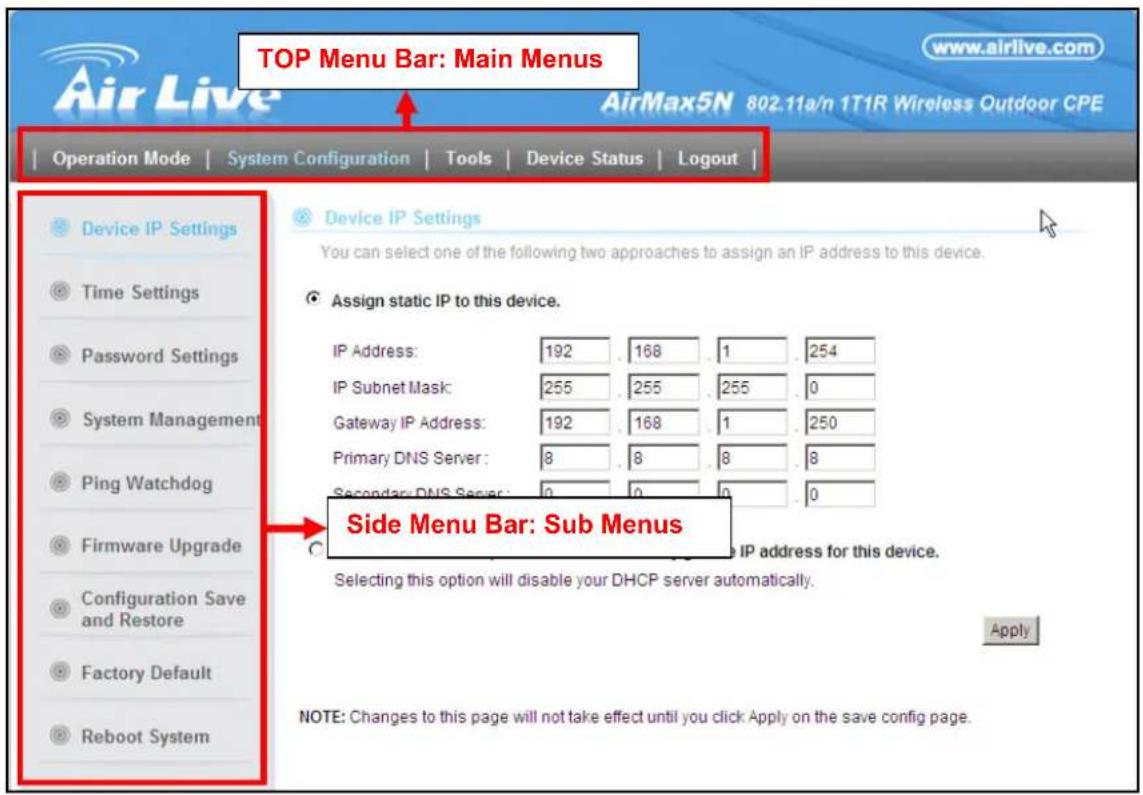

What is the default IP address to access the web interface?

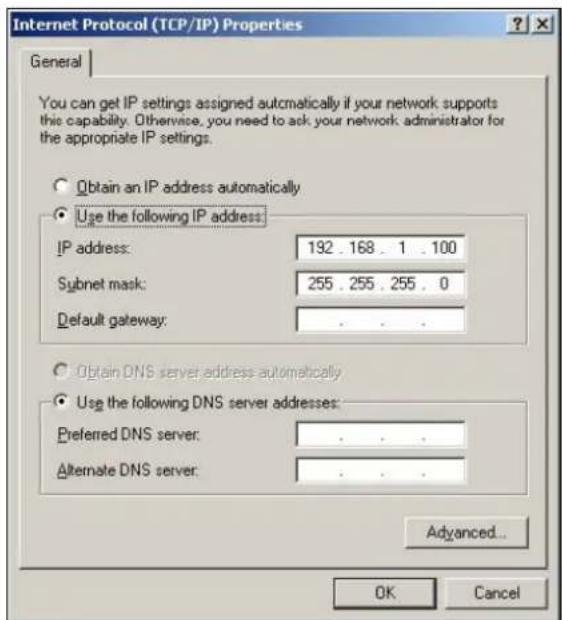

The default IP address is 192.168.1.254. Ensure your computer is on the same subnet.

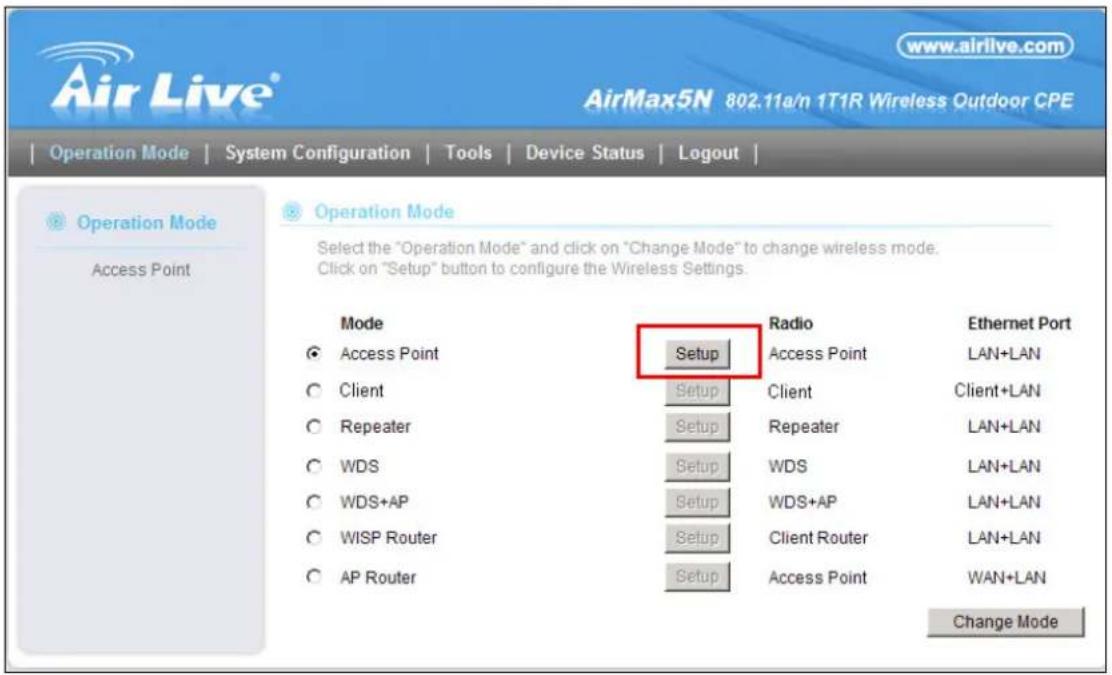

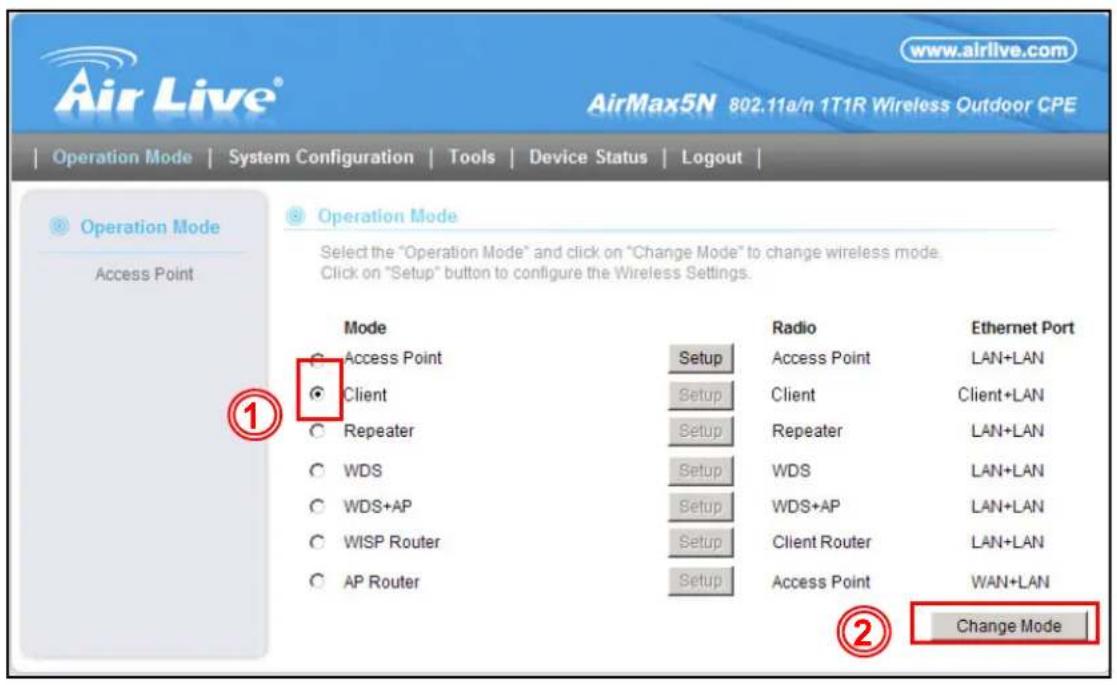

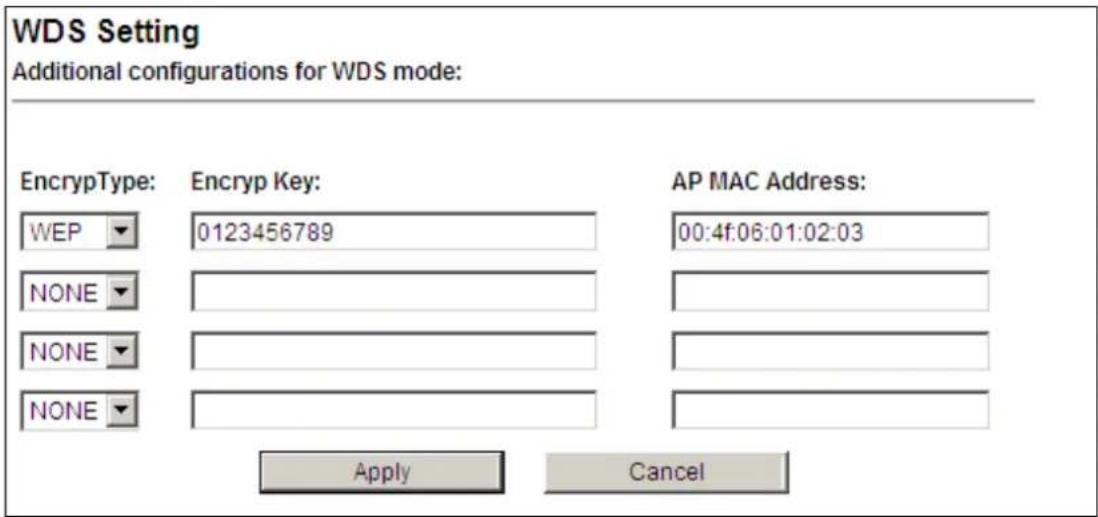

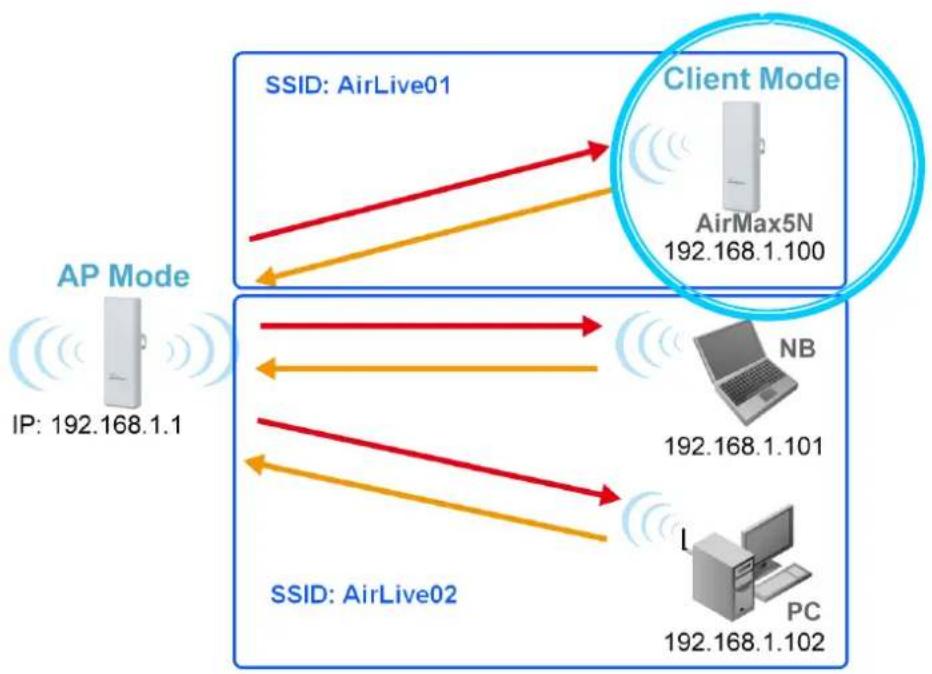

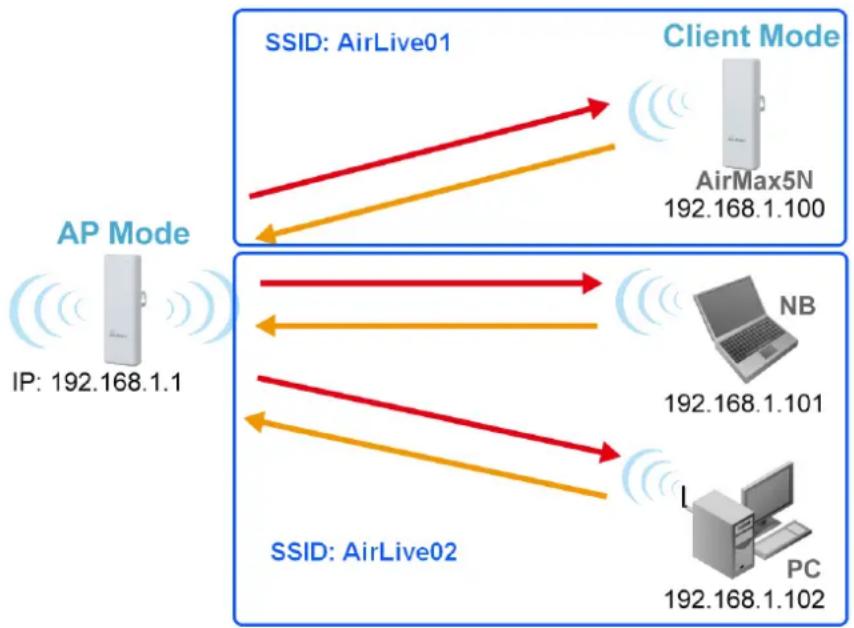

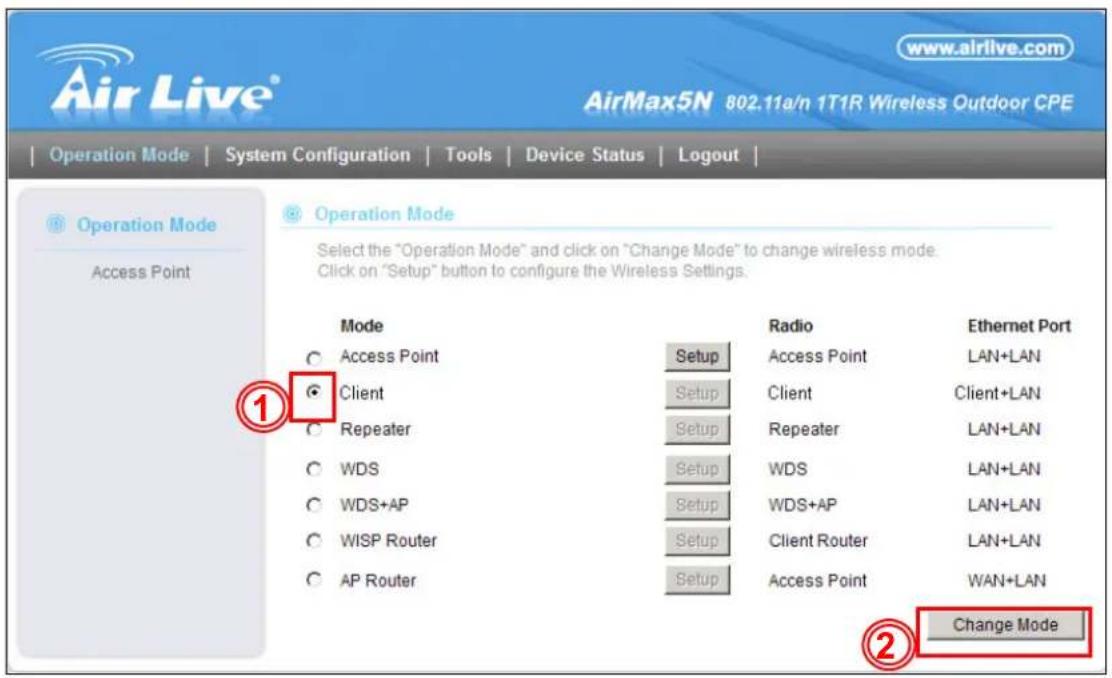

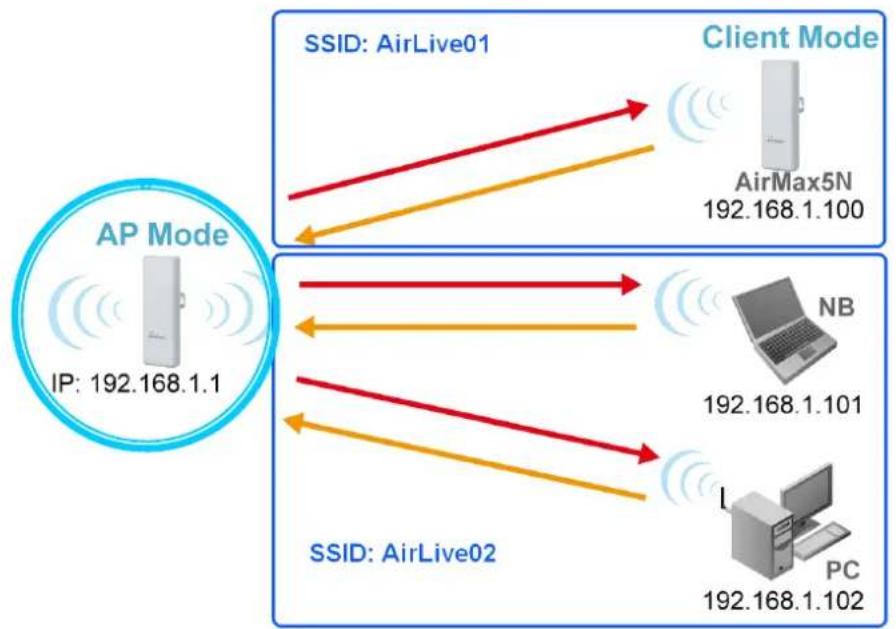

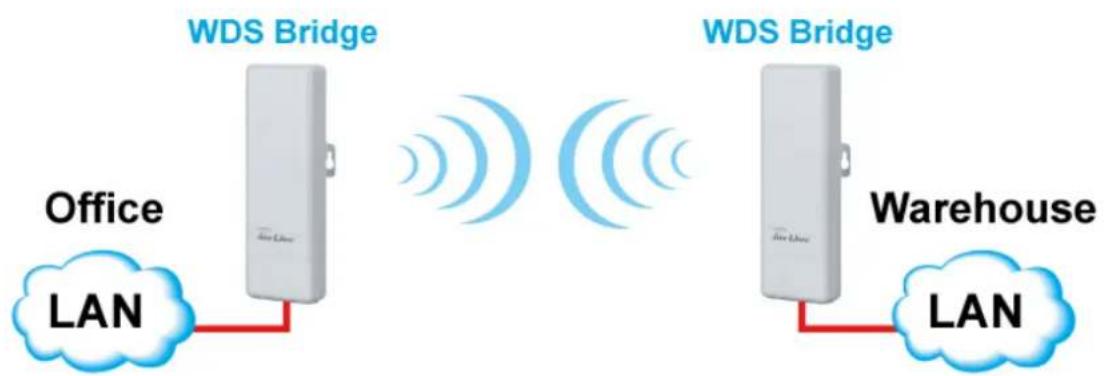

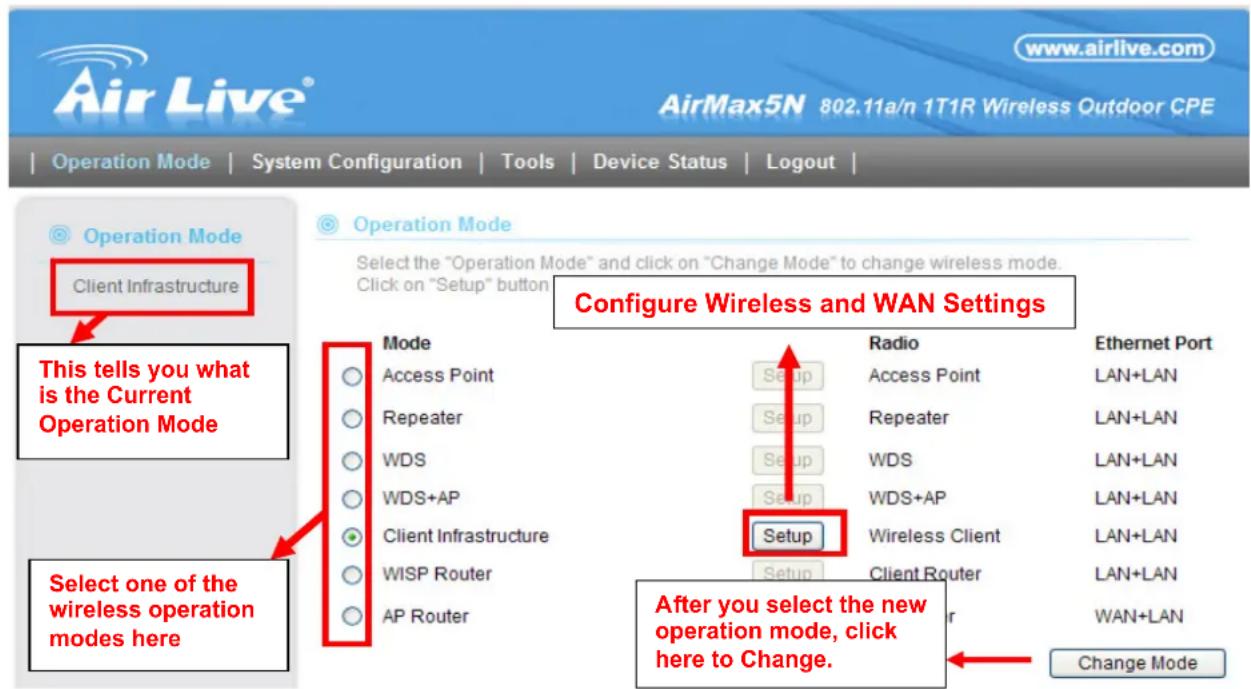

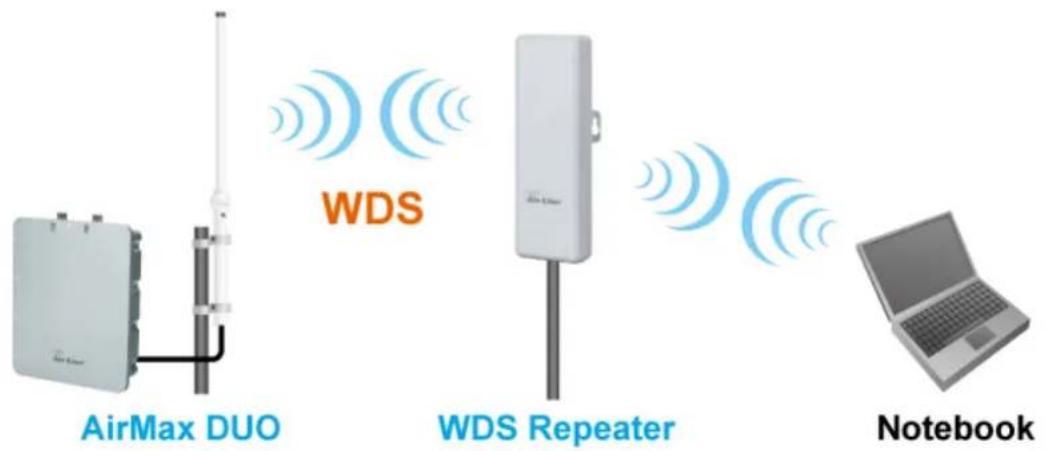

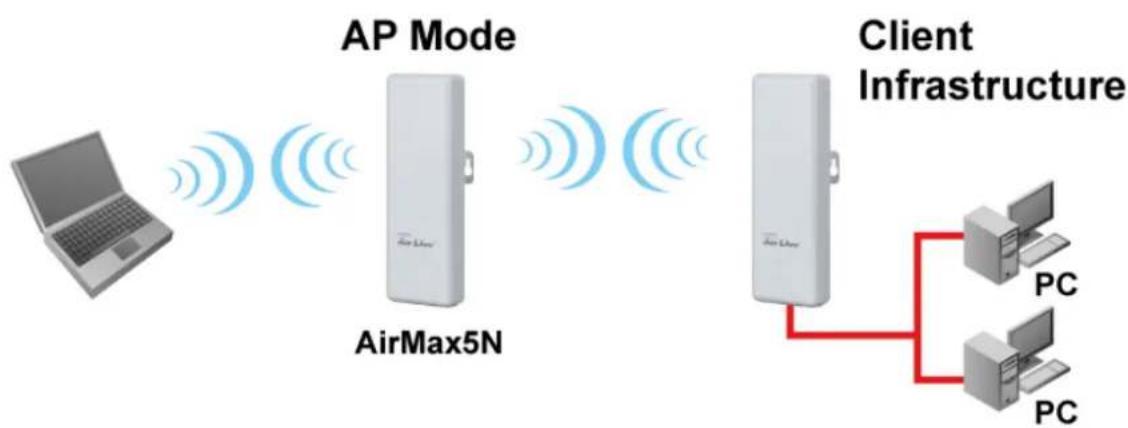

Can I use the AirMax5N-ESD as a wireless bridge?

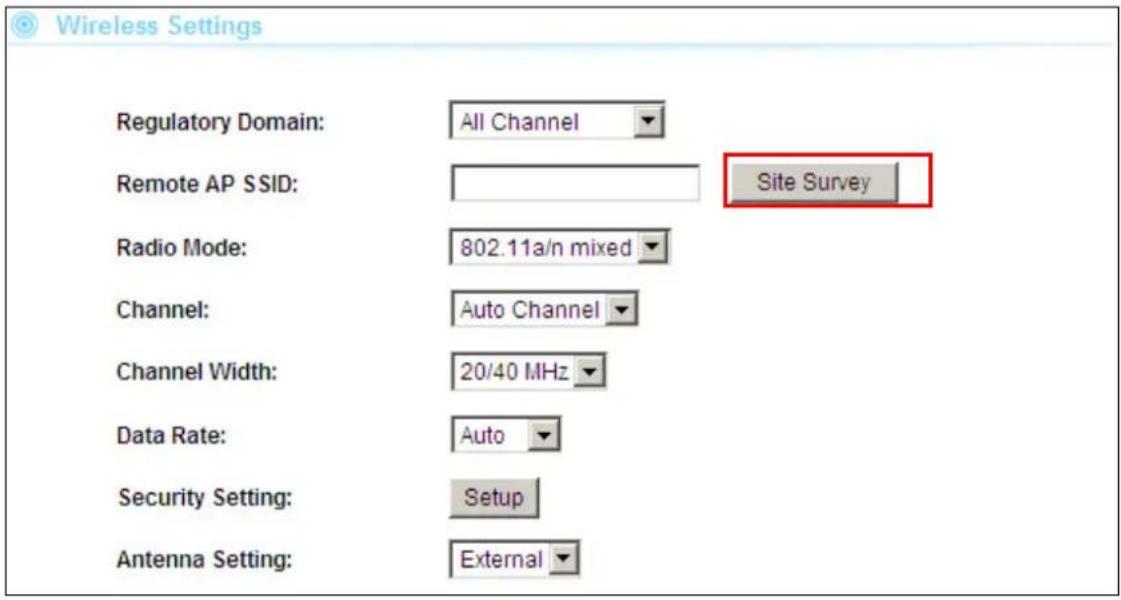

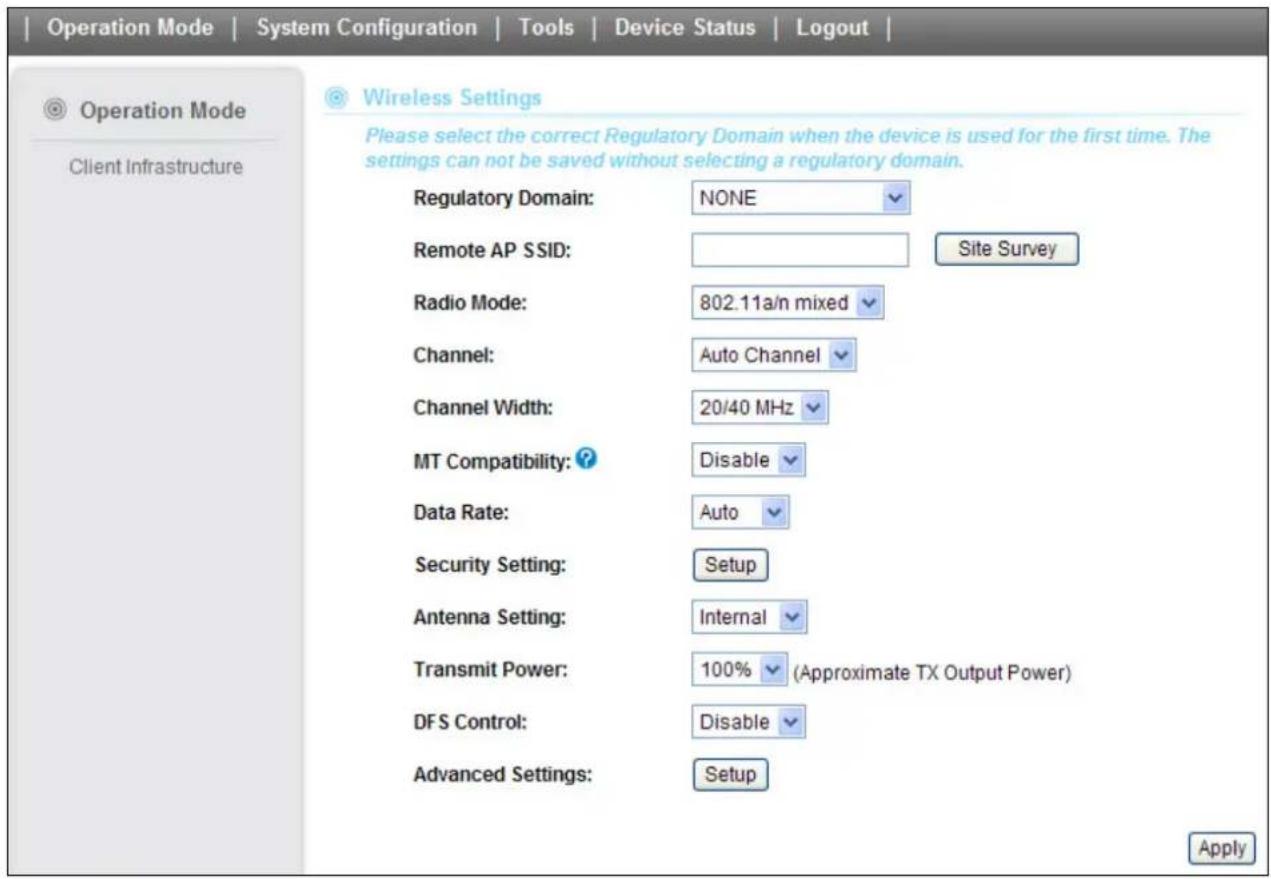

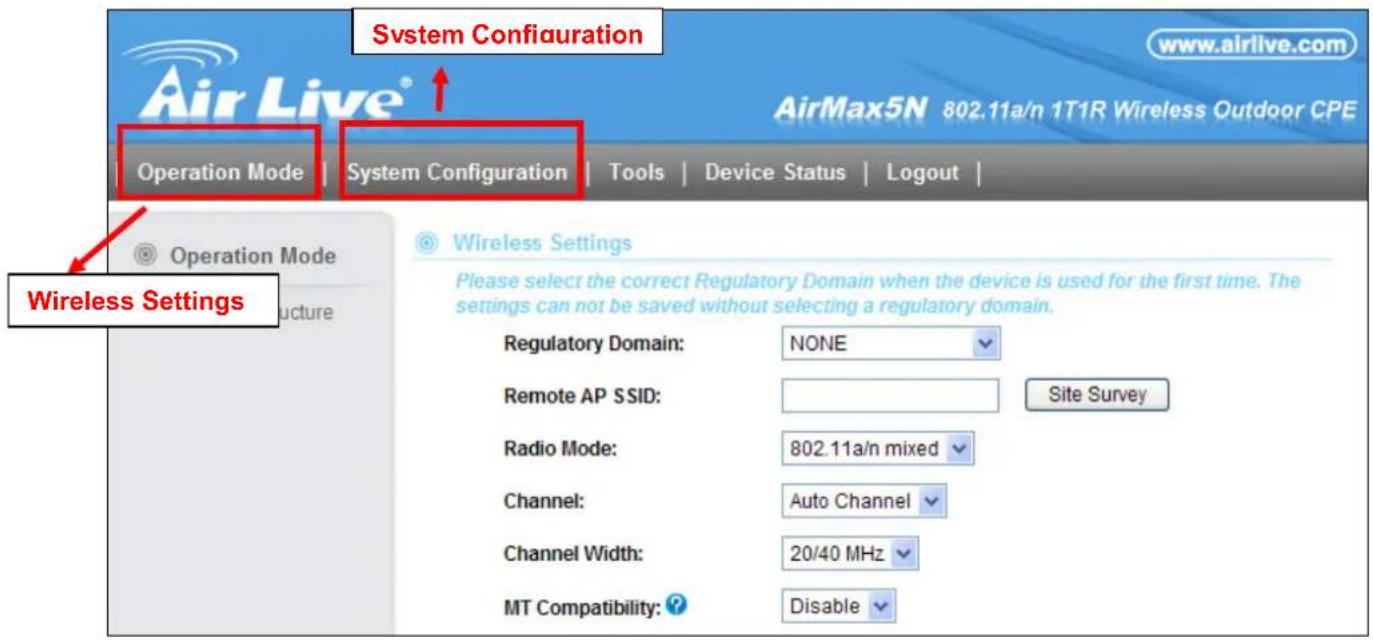

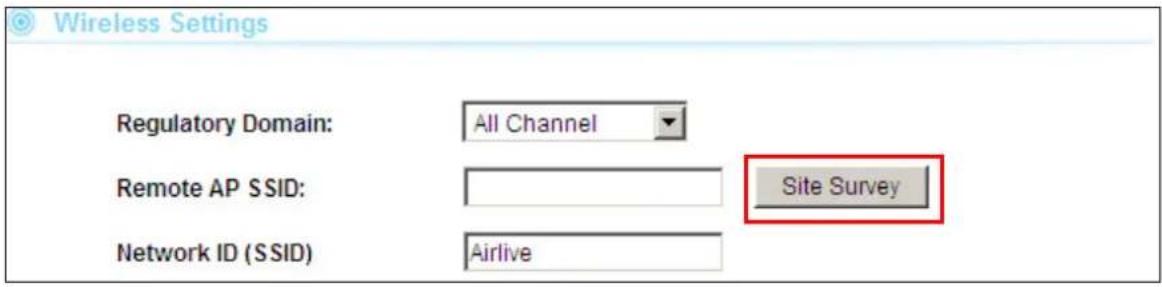

Yes, it supports WDS and Client Bridge modes. Configure the mode in the web interface under 'Wireless' settings.
What type of Power over Ethernet (PoE) does it require?
It requires a 24V passive PoE injector (not 802.3af). Use the included PoE adapter or a compatible 24V power source.

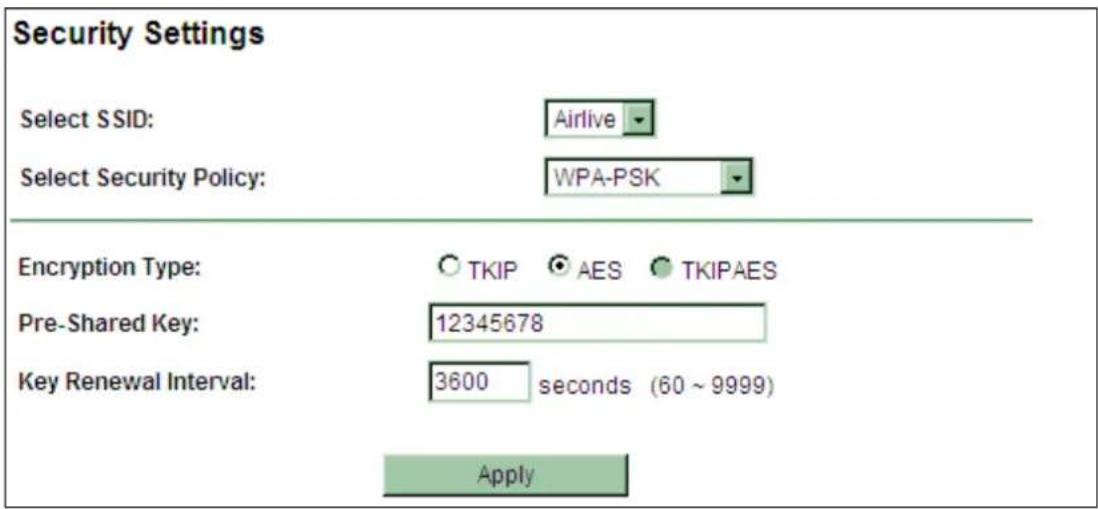

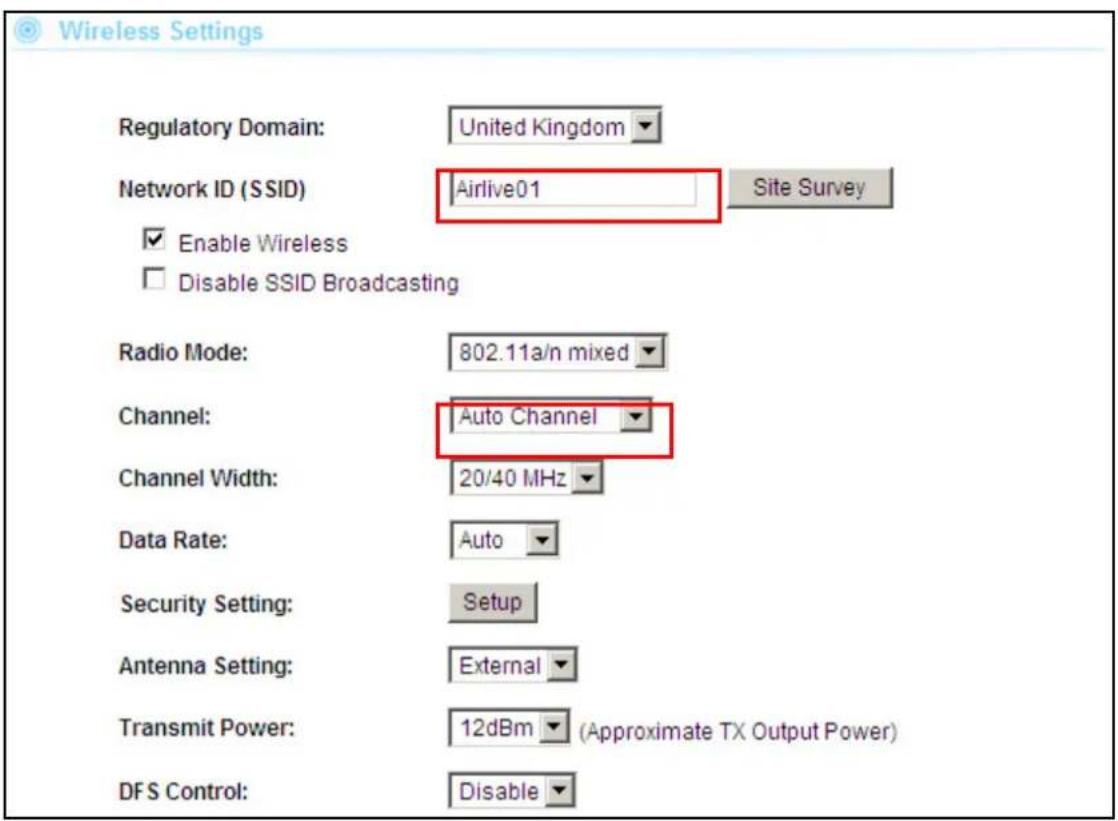

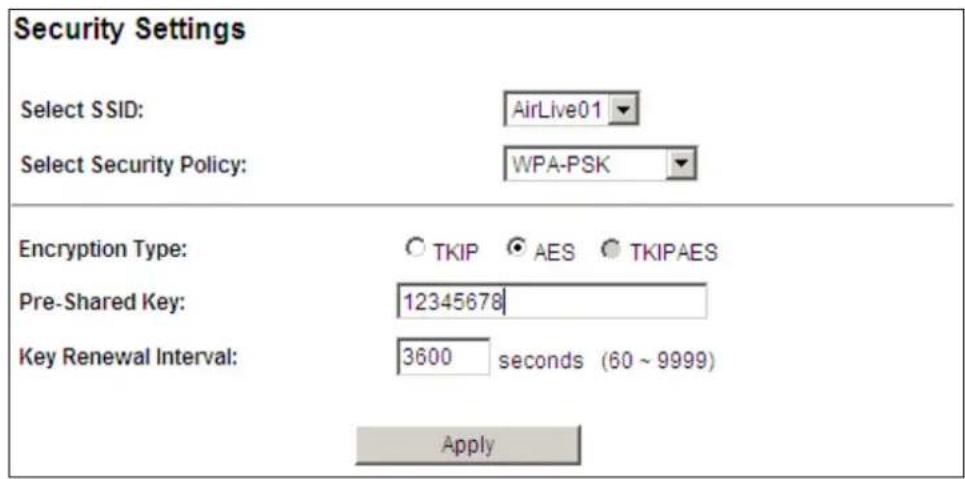

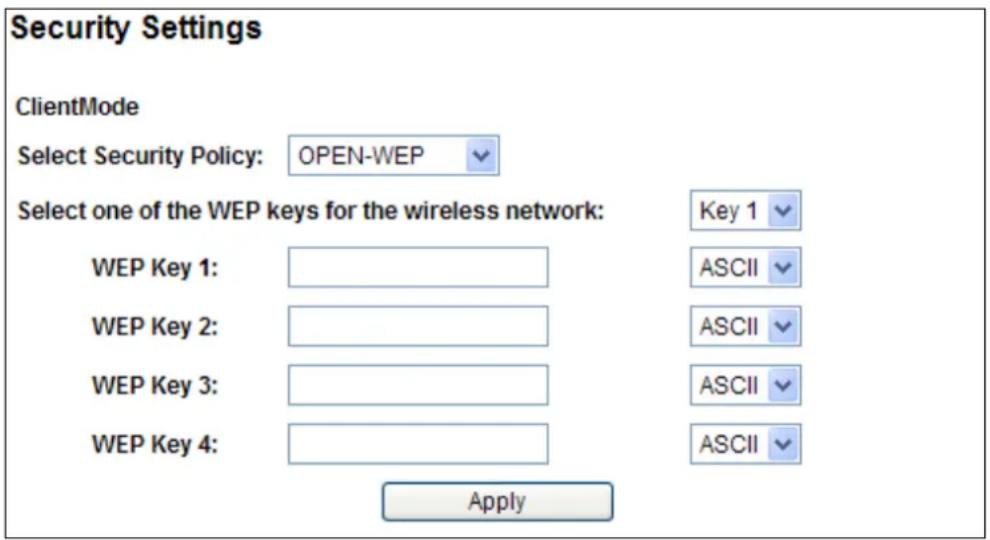

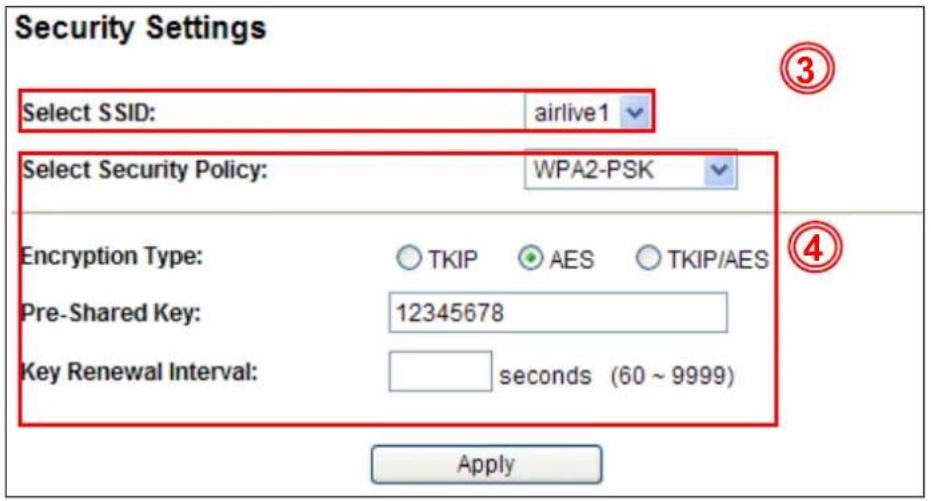

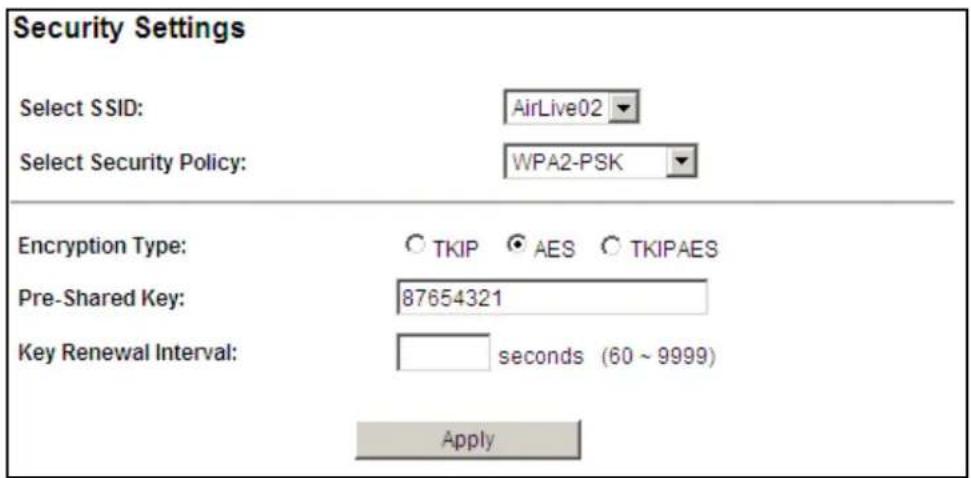

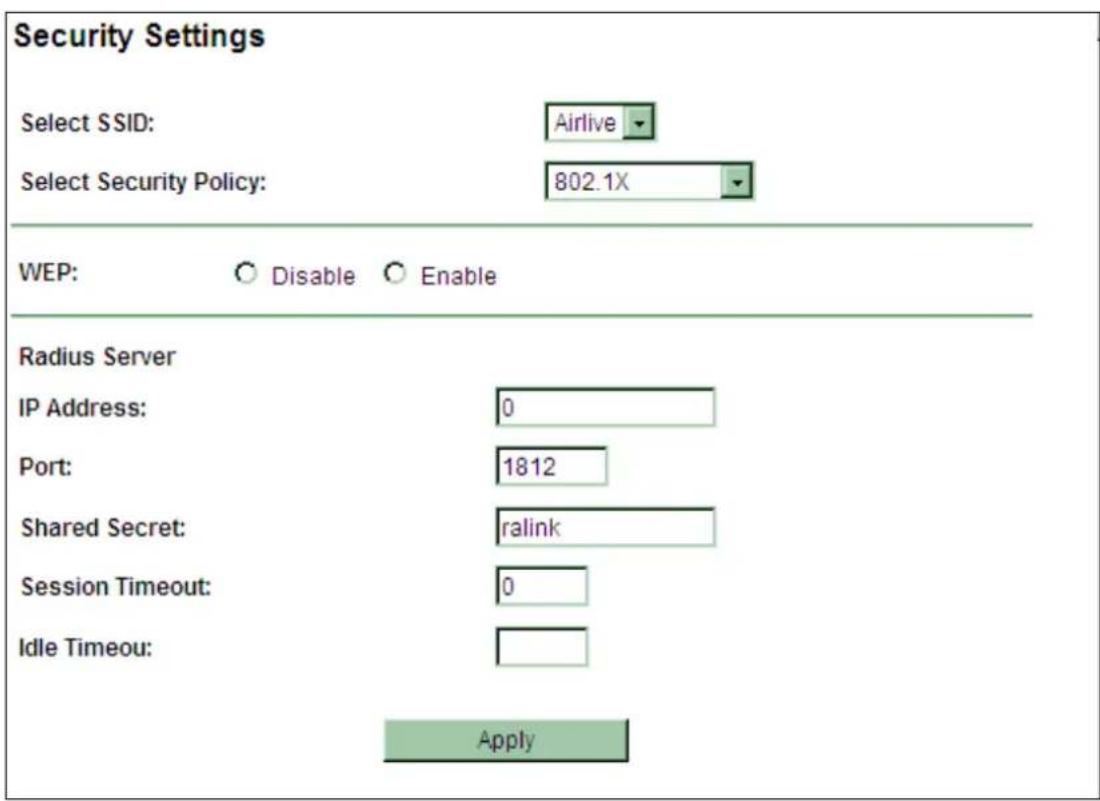

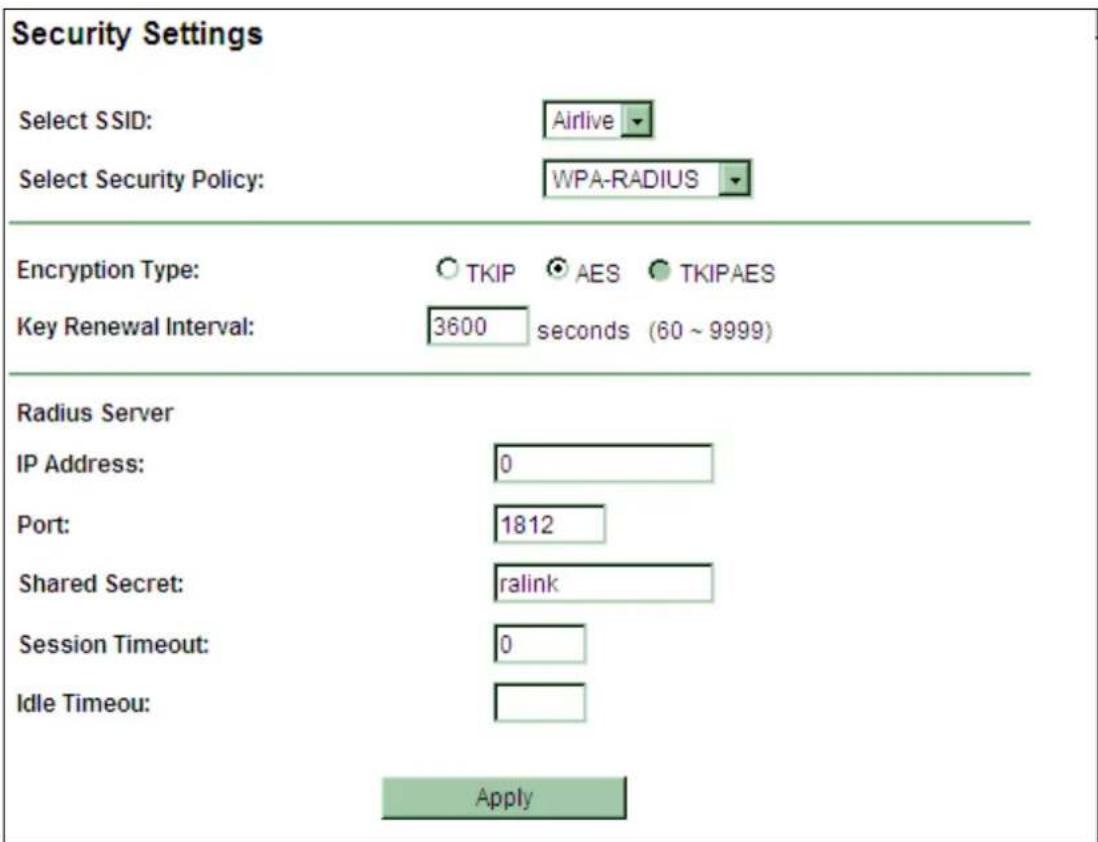

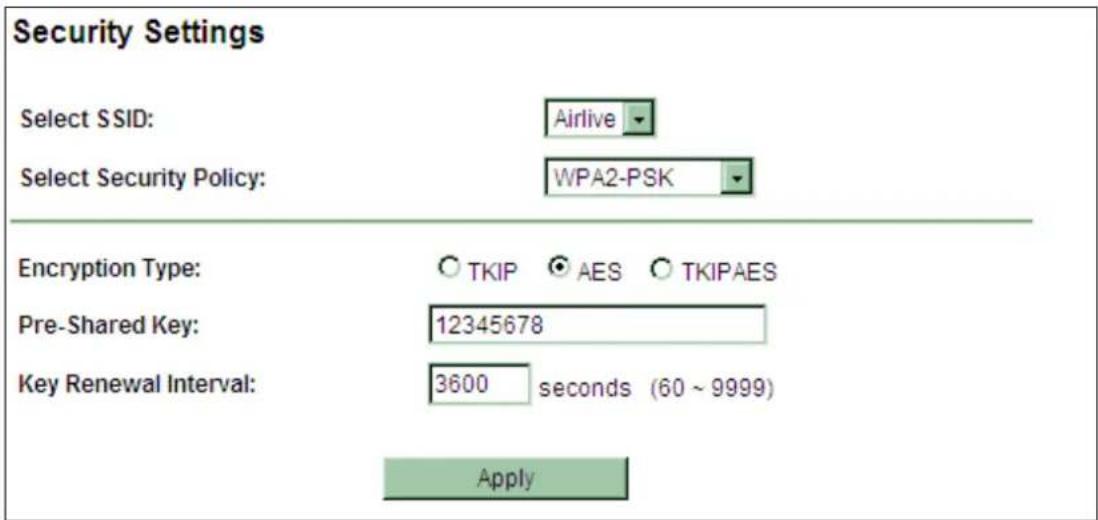

How do I secure the wireless network?

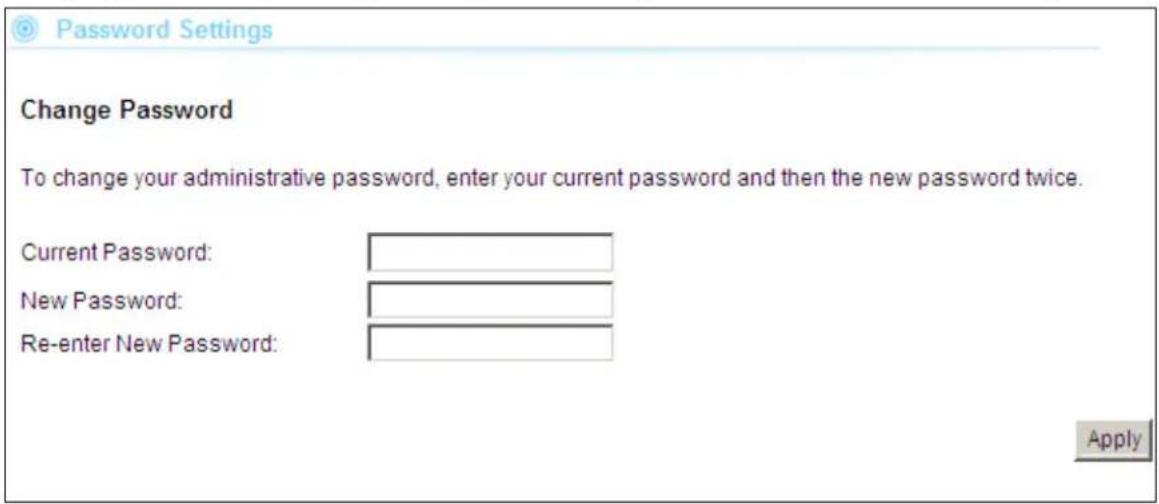

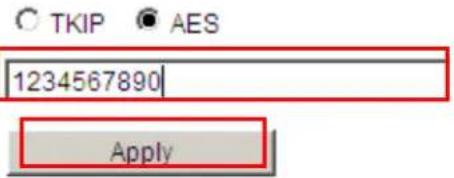

Enable WPA2 or WPA3 encryption in the 'Security' settings. Use a strong password and consider disabling SSID broadcast.

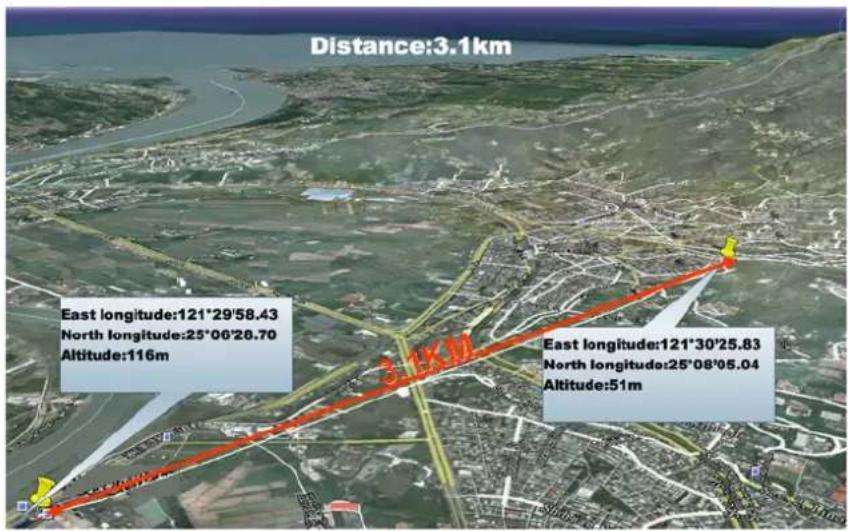

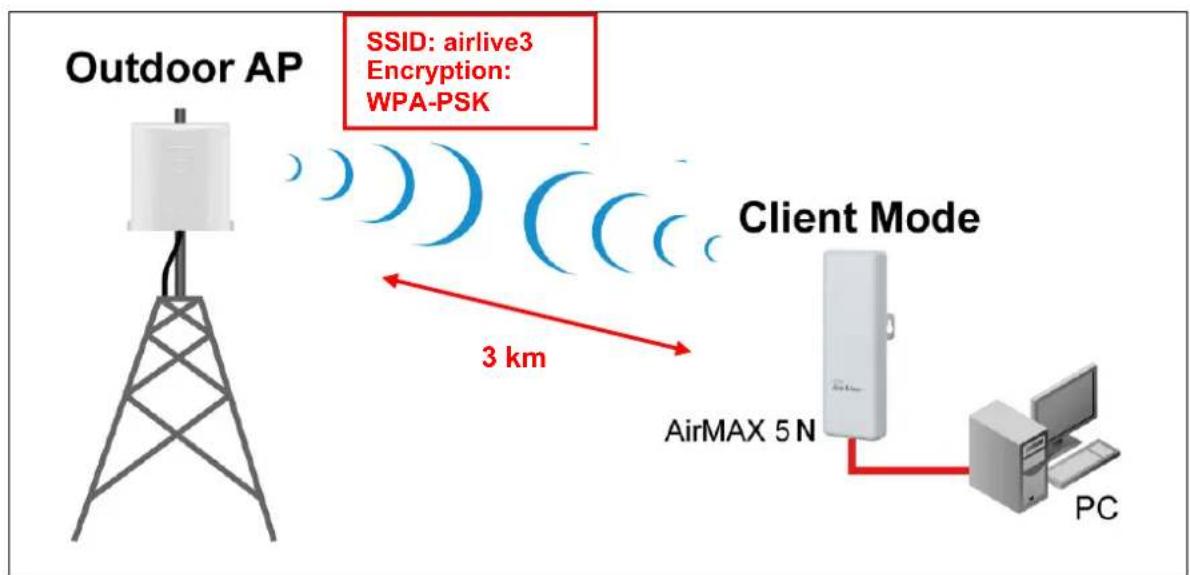

What is the maximum range of this access point?
With its 12 dBi antenna, it can achieve up to 5 km line-of-sight range in point-to-point mode. Actual range depends on obstacles.

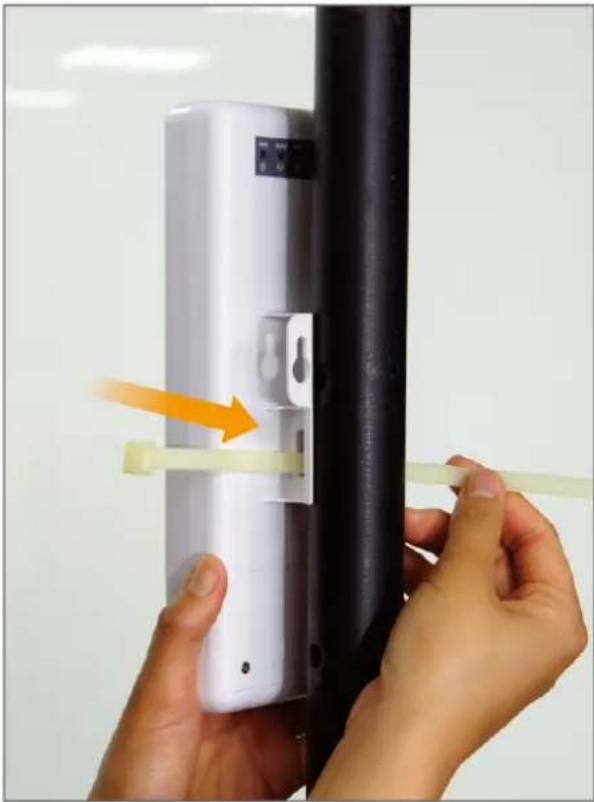

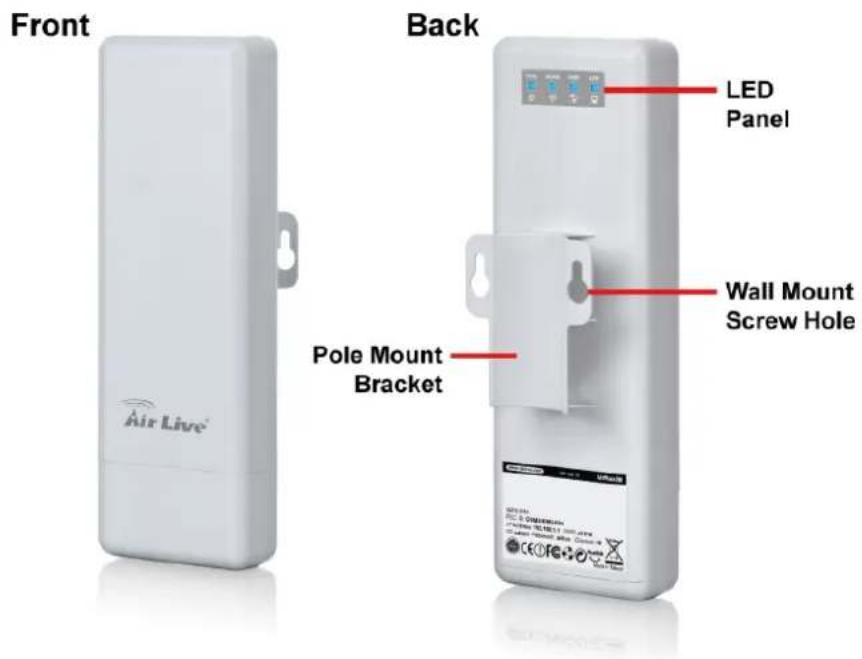

Can I mount it on a wall?
The device is designed for pole mounting. For wall mounting, you may need an optional bracket. Ensure the antenna points in the desired direction.
How do I update the firmware?
Download the latest firmware from the AirLive support site. Log into the web interface, go to 'Administration' > 'Firmware Upgrade', and select the file.

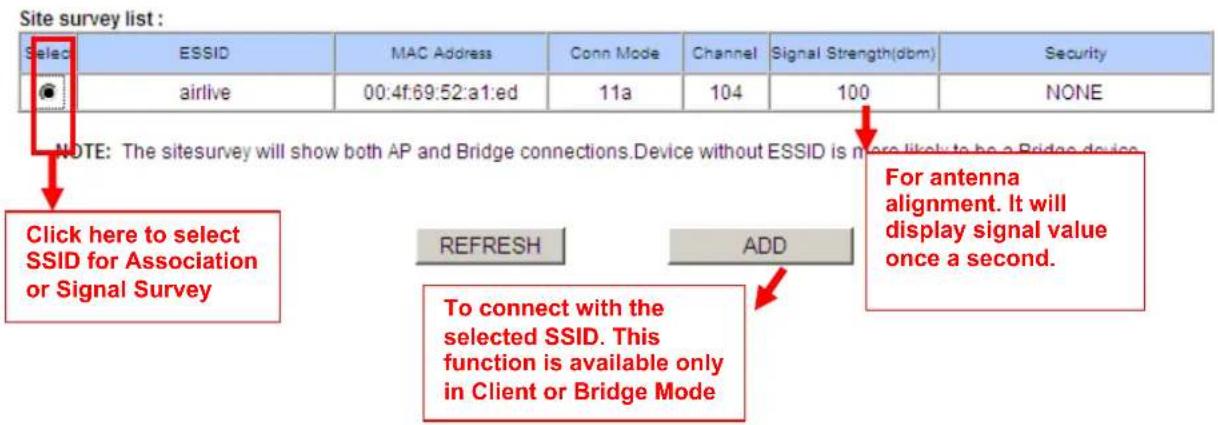

Why is the signal LED not lighting up?
The signal LED indicates the strength of the wireless link. If it's off, check the alignment of the antenna and ensure the remote device is powered on.
Is the AirMax5N-ESD weatherproof?
Yes, it has an IP65 rating, meaning it is protected against dust and water jets. It is suitable for outdoor installation.
