USER MANUAL L23CS13E Logik

Microwave with Grill / Hot Air

Instruksjonsmanual

Exterior view of a modern kitchen oven with a glass door and control panel (no visible text or symbols)

GB

NO

SE

FI

DK

CZ

SK

Safety Warnings....7

Unpacking 49

Getting Ready 50

Introducing Microwave Cooking....51

Cooking with a Microwave....51

Using Aluminium Foil in Your Microwave....52

Materials That Can Be Used in the Microwave ....53

Microwave Heating Categories....54

Steam 55

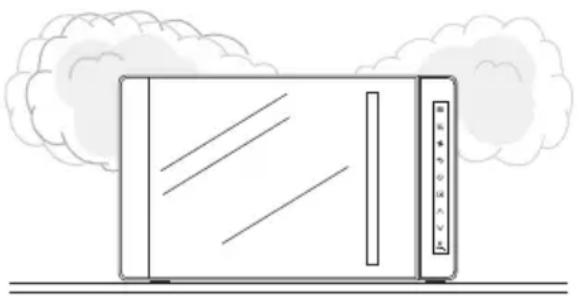

Condensation....55

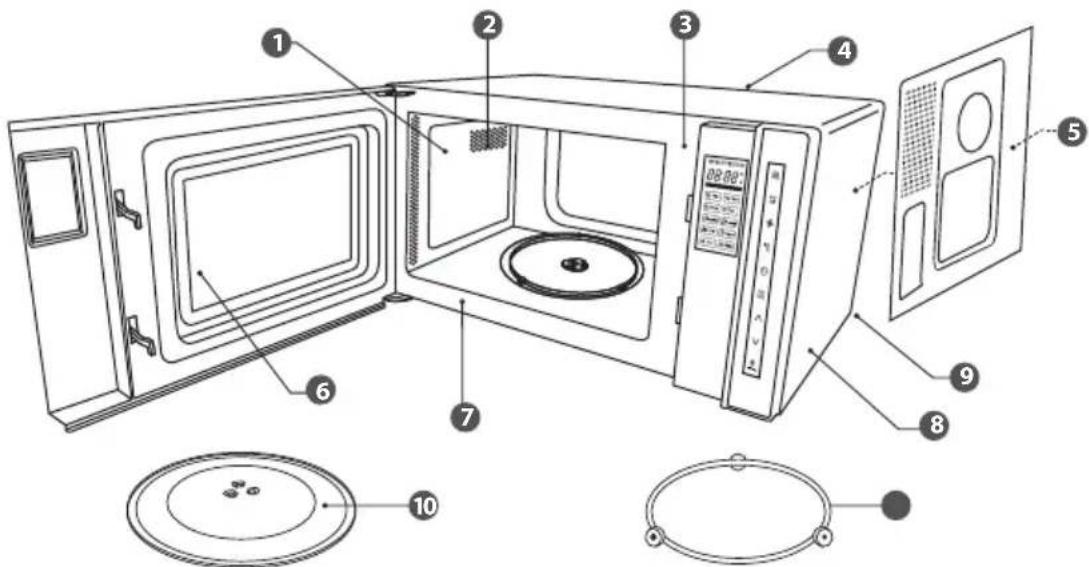

Product Overview....56

The Main Unit....56

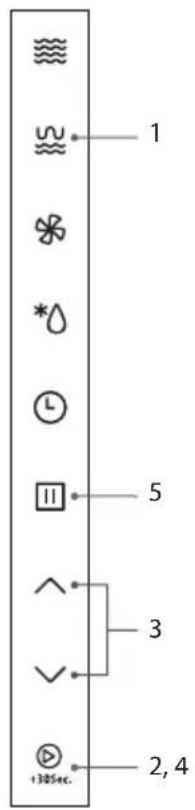

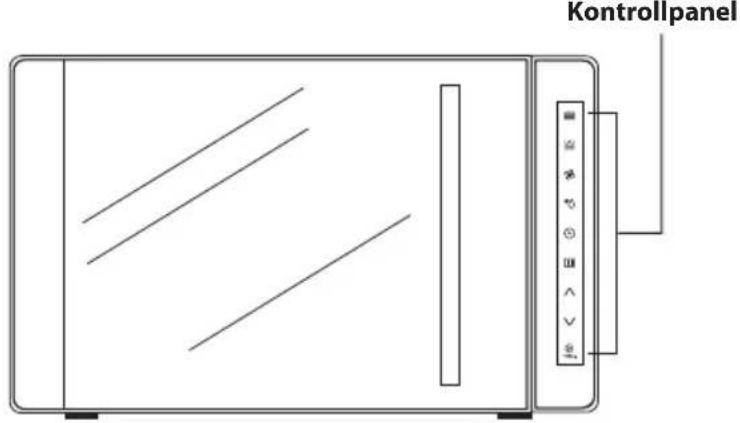

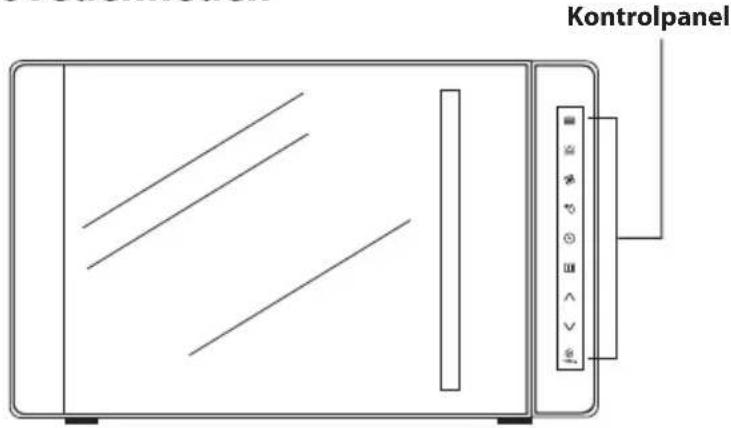

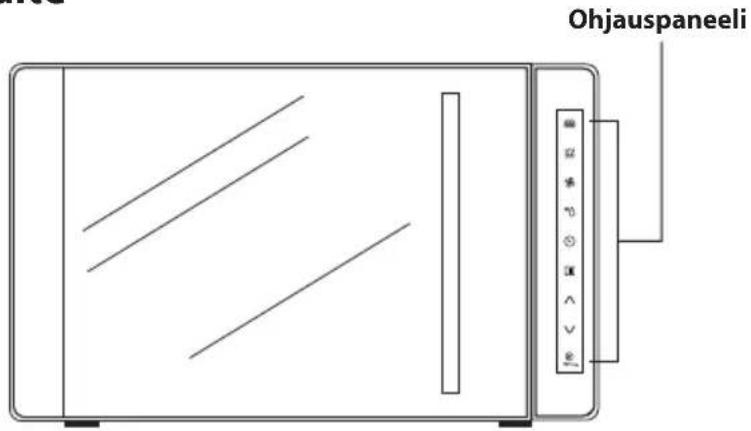

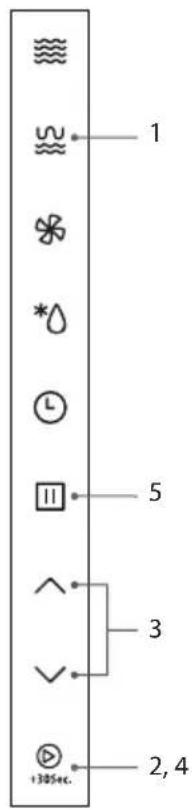

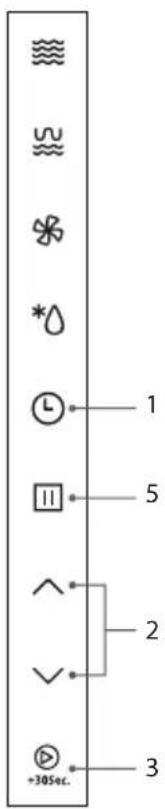

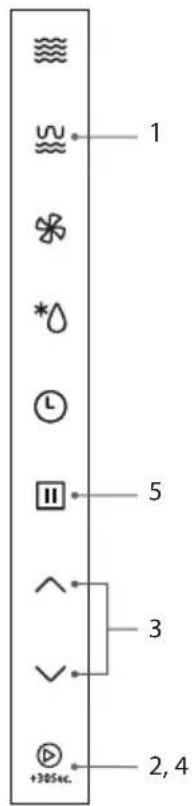

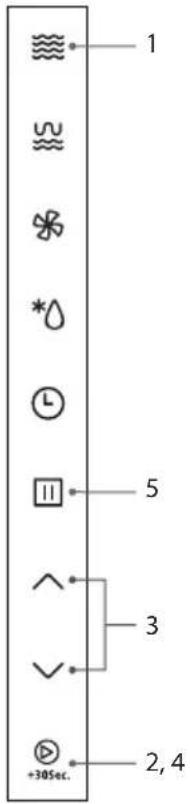

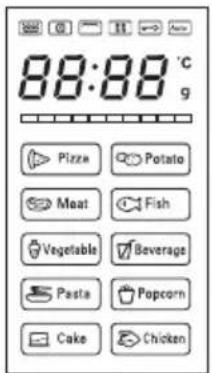

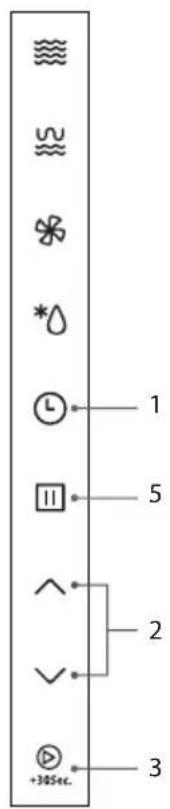

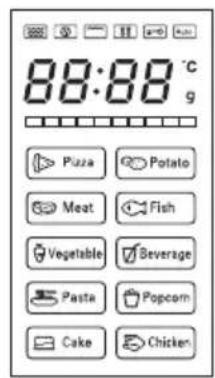

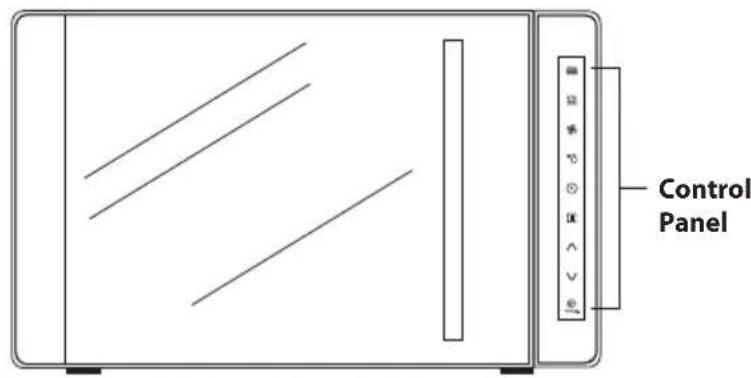

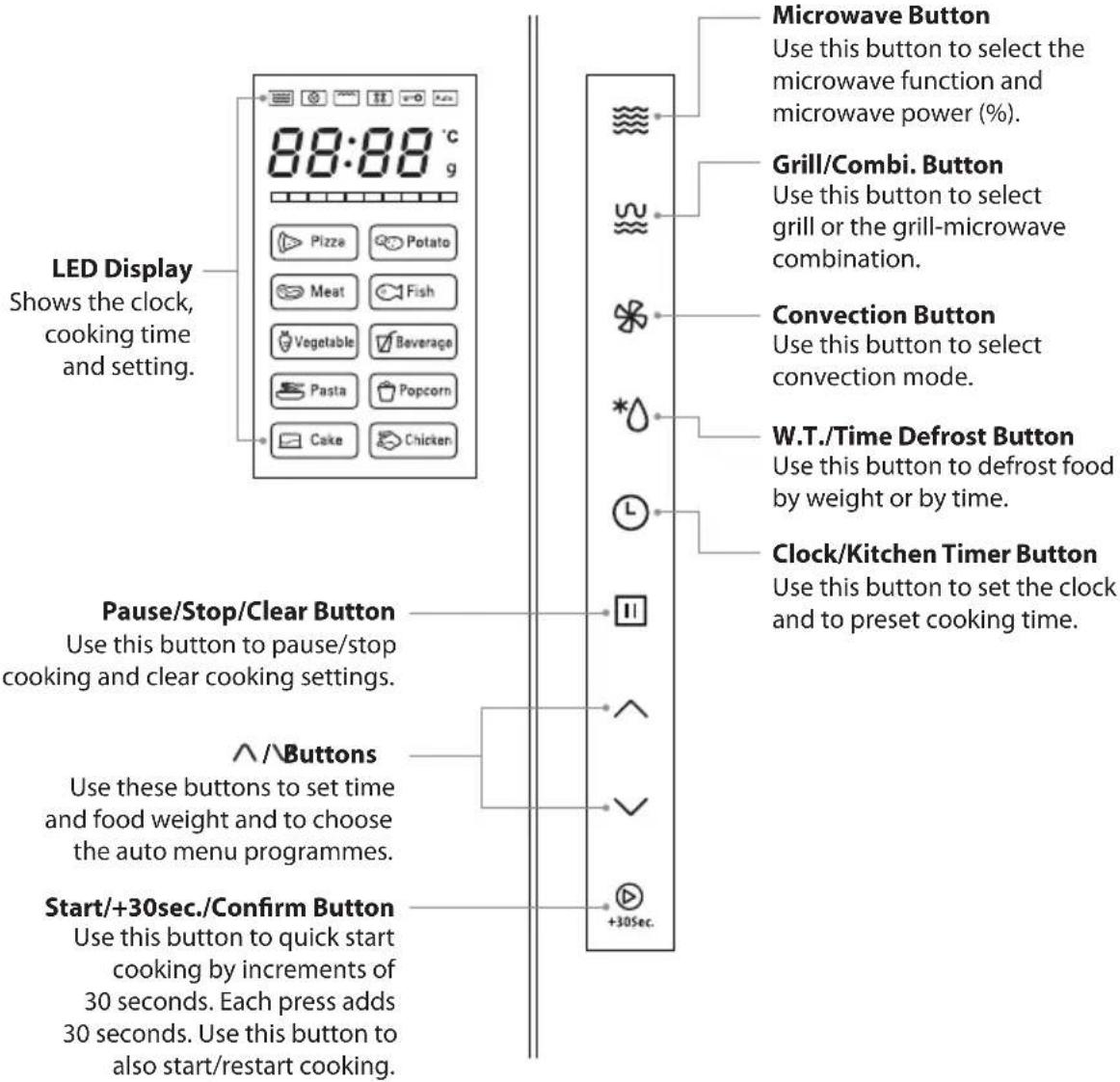

The Control Panel....56

Checking Your Microwave....57

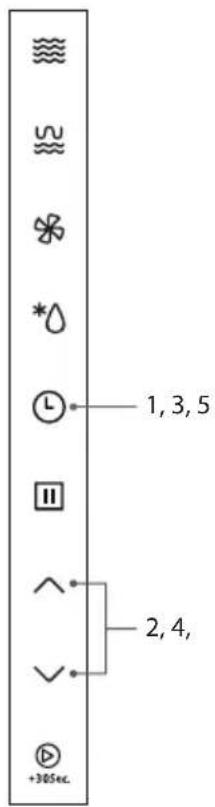

Clock Setting 58

Kitchen Timer 59

Setting the Child Lock 60

Microwave Cooking....61

Grilling Cooking....62

Combination Cooking 63

Convection Cooking (with Preheating)....64

Convection Cooking (without Preheating)....65

Auto Cooking 66

Auto Menu....66

Auto Menu Table 67

Defrosting 68

Defrost by Weight....68

Defrost by Time....68

Quick Start Cooking 69

Querying the Cooking Function....70

To Find Out the Current Cooking Setting....70

Cleaning Your Microwave....71

Frequently Asked Questions 72

Specifications....73

Kombinationstillagning....113

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

General Safety

• Switch off and unplug before fitting or removing parts/attachments, after use and before cleaning.
• Keep your fingers away from moving parts and fitted attachments.
  • Never use a damaged appliance.
  • Never operate the appliance when it is empty.
• Keep the mains cord out of reach from children.
• Keep the unit, mains cord and plug away from water.
• Do not let the cord hang over the edge of the table or counter
  • Never exceed the maximum capacities.
• When using an attachment, read the accompanying safety instructions.
  • Take care when lifting this appliance as it is heavy.
• You should always have your appliance checked by a qualified technician if it has been dropped or damaged to ensure it is safe to use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
  • Only use the appliance for its intended domestic use.
• This appliance is designed for indoor, household use only, and similar applications such as:
• staff kitchen areas in shops, offices and other working environments;
• by clients in hotels, motels bed and breakfasts, farmhouses, and other residential environment types.

Maintenance Of Your Microwave

Warning : It is hazardous for anyone other than a qualified technician to carry out any service or repair operation which involves the removal of a cover that gives protection against exposure to microwave energy.

Warning : If the door or door seals are damaged, the microwave must not be operated until it has been repaired by a qualified technician.

• If smoke is observed, switch off or unplug the microwave and keep the door closed in order to stifle any flames.
• If the mains cord is damaged, it must be replaced by a service agent or a qualified technician.
• If you have a pacemaker, please contact your doctor before using a microwave.

Microwave Use

• This microwave is not intended for commercial use.
- It should never be used for drying clothes or for other non-food purposes, including any type of storage, which may lead to risk of injury, ignition or fire.
• This microwave can only be used indoors in a dry, well ventilated area.
• Do not place the microwave in a cabinet.
• The back of the microwave must be placed against a wall.
• Install or locate this oven only in accordance with the installation instructions provided.
- The appliance is not intended to be operated by means of an external timer or separate remote-control system.
- The microwave should not be left unattended when in use.
- The temperature of accessible surfaces may be high when the microwave is operating keep children away.
• To prevent high moisture content gathering inside the microwave cavity, open the door immediately after the cooking function has stopped to allow steam to escape.
• Only use utensils that are suitable for microwave use.
- Care should be taken when using paper, plastic, wooden or other combustible materials in the microwave as they can catch fire.

• Oil & fat for deep frying should not be heated in the microwave.
• Only use cling film designed for microwave use and take extra care when removing the film to avoid steam burns. Do not allow the cling film to touch the food.
• Only heat popcorn that has been designed for microwave use.
• Do not operate the microwave empty as this could damage the product.
• Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
• Do not obstruct the unit's front or door, or allow soiling or cleaner residue to accumulate on sealing surfaces.

Cooking Use

• As the power of different microwaves can vary considerably, care must be taken when first using this microwave as it may cook faster than expected.
• Do not leave the microwave unattended during use.
  • Take care when cooking food with a high sugar or fat content, such as Christmas pudding or fruitcake. The sugar or fat can overheat and in some cases catch fire.
  • Do not overcook food.
• Remove wire twist-ties and metal handles from paper or plastic containers/bags before placing them in the oven.

Warning : Only allow children to use the microwave without supervision when adequate instructions have given so that the child is able to use the microwave in a safe way and understands the hazards of improper use; DO NOT assume that because a child has mastered one cooking skill he/she can cook everything without close supervision. The microwave MUST NOT be treated nor used like a toy.

Fire!

In the event of fire:

• Keep the microwave door closed.
• Turn off the power.
  • Unplug the microwave from the mains power.

First Aid

Treat scalding by:

• Quickly placing the scald under cold running water for at least 10 minutes.
• Cover with a clean dry dressing. Do not use creams, oils or lotions.

Cleaning Your Microwave

- The microwave should be cleaned regularly and food deposits removed. Failure to maintain the microwave in a clean condition can affect the life of the microwave and possibly result in a hazardous situation. (See cleaning your microwave.)

- Do not use a steam cleaner to clean the unit.

Do Not Use These In Your Microwave

• Metal objects are not to be used in the microwave. These include:

• Metal cooking utensils.
• Metal plates or trays
• Wine twist ties
• Crockery with metal trims
• Meat thermometer

- Never use equipment made of metal, except aluminium foil in your microwave. The microwave energy cannot pass through the metal so it bounces off and sparks against the inside of the microwave.

- Stop the microwave straight away if any equipment is causing sparks.

- Remember that some crockery has a metal trim around the edge. Even this trim can cause sparks.

Containers

Warning : Pressure will build up in sealed containers and can cause them to explode. Therefore, do not use the following in your microwave:

• Sealed containers - Capped bottles
• Vacuum containers - Sealed jars
• Hard-boiled eggs - Eggs in their shells

• Always pierce the skin of fruit and vegetables, such as potatoes.
- Never use scratched, cracked or damaged glass in a microwave. Damaged glass can explode.
- When heating food in plastic or paper containers, keep an eye on the microwave due to the possibility of ignition.

Delayed Boiling

Liquids heated in a microwave can boil up when removing them from the microwave.

Take the following precautions :

• Always stir liquids, before and after cooking.
- Allow them to stand.
• Use containers that are wider at the top than at the bottom.

Preparing Food For Babies

Extra care must be taken when preparing food or drink for babies and small children.

• Always test the food or liquid temperature before feeding it to the baby.
- When using a baby bottle, ensure the teat is removed before heating.
- When warming milk, ensure the bottle is shaken.

Caution!

Hot Surface

During cooking the outer surface will become hot. Do not touch the outer casing of the microwave. Care should be taken not to store any items on top of your microwave.

Earthing Instructions

Warning: THIS APPLIANCE MUST BE EARTHED.

• This appliance is equipped with a mains cord having an earthed plug.
• The plug must be plugged into an appropriate mains socket that is installed and earthed in accordance with all local standards and requirements.

Warning!

• Improper connection of the appliance-earthing conductor can result in a risk of an electric shock.
• Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly earthed.
• Never modify the plug provided with the appliance.
• If the plug does not fit properly in the mains socket, have a qualified electrician install a proper mains socket.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the unit’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the manual accompanying the unit.

VIKTIGE SIKKERHETSANVISNINGER

LESES N∅YE OG BEHOLDES FOR FREMTIDIG OPPSLAG

Generell Sikkerhet

Maintenance Of Your Microwave

If smoke is observed, switch off or unplug the microwave and keep the door closed in order to stifle any flames.

Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to local regulations.

The following items are included:

The Main Unit Glass Turntable Plate x 1

Simple line drawing of an oval loop with two small dots at the ends (no text or symbols)

Turntable Support x 1

Line drawing of an oval-shaped metal grate with three legs and a central handle (no text or symbols)

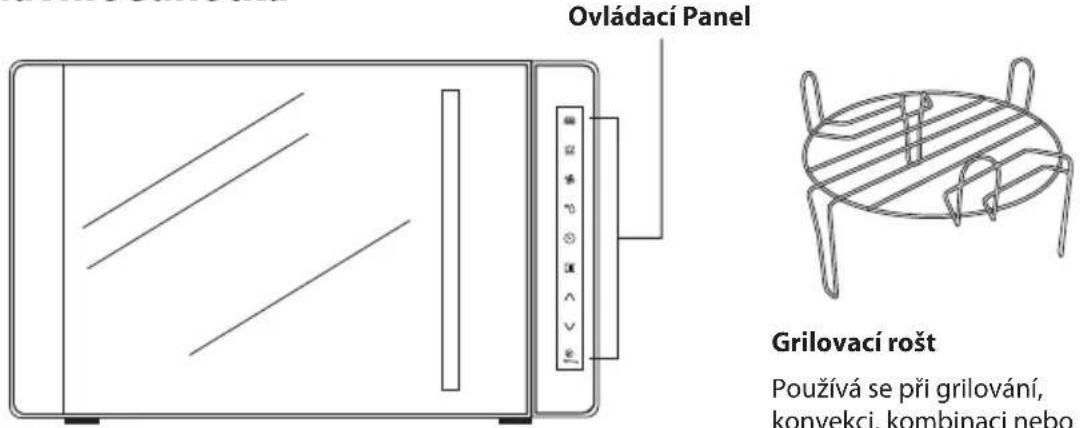

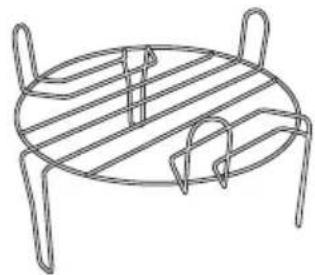

Grill Rack x 1

* All images in this instruction manual are for indication only; please refer to your individual unit for details.

This microwave is designed for home use. It should not be used for commercial catering.

1. After unpacking your microwave, check that it has not been damaged whilst in the box. Make sure there are no dents, and the door closes properly. A damaged microwave could allow microwave energy to escape. Make sure that you have taken out all the packaging from inside the microwave. Please dispose of the plastic wrappings / bags safely and keep out of the reach of babies and young children.

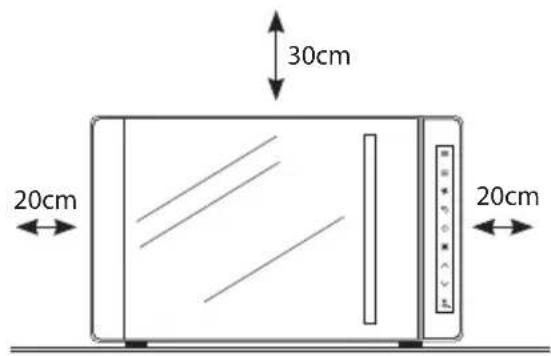

2. Choose a flat work surface for your microwave away from heat sources such as radiators or fires and away from cold areas. The surface should be at least 85cm above the floor. Place the back of the microwave against a wall and allow a 20cm space on both sides of the unit and 30cm above so that warm air can escape from the vents during cooking. This microwave is not designed to be built in.

1. Plug your microwave into a standard household electrical socket (230V\~, 13 amp rated). Avoid using a socket that also has an adaptor and other equipment plugged in. Do not use a multi-adaptor.

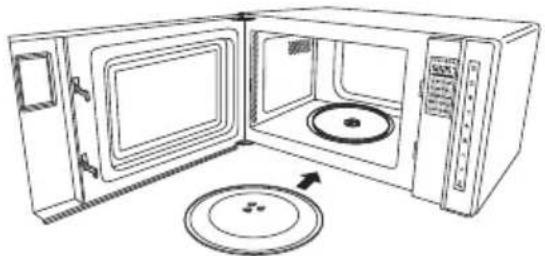

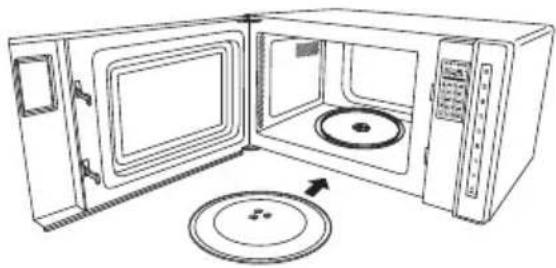

2. Put the turntable support inside the microwave and place the glass turntable plate on top of the support. The turntable support is shaped to sit securely on the spindle. You must always use the turntable plate and support whenever you use the microwave.

Line drawing of a microwave oven with open door and circular vent, showing internal components and a circular base (no text or symbols)

1. To protect your work surface, we recommend that you fix some non-slip cushion buttons (not included) to the underside of the microwave.

Simple line drawing of a lever with pivot point and dashed arrow indicating motion (no text or symbols)

- Remove the turntable plate and turntable support before turning the microwave upside down.

- Do not remove the unit's feet.

Underside View

Always remember the basic safeguards you would follow when using any cooking equipment or handling hot food.

This page gives some of the basic guidelines for microwave cooking. If you are unfamiliar with using a microwave, there is more information at the back of this instruction manual.

Cooking with a Microwave

Cooking with a microwave is much faster than conventional cooking and, whilst you should make sure that food is fully cooked, you should be careful not to overcook it. Food can catch fire if excessive cooking times are used.

• Microwave energy can heat unevenly so stirring to distribute heat is very important. Always stir from the outside, inwards.
• If you are cooking a number of individual foods at the same time, such as baked potatoes or small cakes, arrange them evenly on the turntable plate so that they cook evenly. Never stack food in your microwave.
• Turn larger foods such as meat roasts and poultry during cooking so that the top and bottom cook evenly. It is also recommended to turn pieces of meat or poultry, especially if they have not been deboned.

If you are unsure how long the food should cook for, begin cooking at the lowest recommended time, then add more time if necessary. The moisture content of food can vary. Ensure food is thoroughly cooked all the way to the centre before serving.

• Meat and poultry which is cooked for 15 minutes or more will brown lightly in its own fat. Anything cooked for a shorter time can be brushed with a browning sauce to give an appetising colour.
• Strips of aluminium foil can be used to cover the thinner pieces of food to stop them overcooking before the thicker parts of the food have had a chance to cook. Use the aluminium foil sparingly and wrap around the food or container carefully to stop it touching the inside of the microwave which could cause sparks.
• Microwaves cook food using microwave energy that is similar to naturally occurring radio waves. Normally, these “waves” would fade as they disappear into the atmosphere but in a microwave they are concentrated on the food causing it to heat up.
• Microwave energy cannot pass through metal – so it can not escape from inside your microwave – but it can pass through materials like glass, porcelain, plastic, and paper. These are the things used to make microwave-safe cooking equipment.

- Microwave-safe cooking equipment will still get hot as the food it contains heats up.

- The microwave energy focuses on the moisture in the food causing lots of tiny vibrations. The vibrations get so great that the moisture – and the food – heat up.

Simple line drawing of a bowl with arrows indicating flow or motion, no text or symbols present

Most heat-resistant, non-metallic cooking utensils are safe to use in your microwave. If made of plastic or glass, utensils will be marked as "microwave safe" or similar.

If you are not sure and/or there is no microwave-safe marking on the utensil, do NOT use it in the microwave.

For the types of utensils you can use in the microwave, please see the "Materials That Can Be Used" section.

• Never use equipment made of metal, except aluminium foil in your microwave oven.
• The microwave energy can not pass through the metal so it bounces off and sparks against the inside of the oven.
• Stop the microwave straight away if any equipment does cause sparks.
• Remember that some crockery has a metal trim around the edge. Even this trim can cause sparks.
• Never use scratched, cracked or damaged glass in a microwave. Damaged glass can explode.

Using Aluminium Foil in Your Microwave

It is safe to use aluminium foil in your microwave as long as you follow these safety guidelines.

As with all metals, microwave energy cannot pass through aluminium foil, but provided you keep the aluminium foil away from the side of the microwave it will not cause sparks and there will not be any damage to your microwave.

Using aluminium foil is a good way of shielding parts of food that you do not want to cook as quickly as others – perhaps where the food is narrower and would otherwise overcook.

Place the aluminium foil over the area you want to shield, taking care that the aluminium foil will not touch the sides of the microwave when the turntable plate rotates. Only use one piece of aluminium foil at a time so that you do not get sparks between the separate pieces.

Follow these guidelines when using aluminium foil in your microwave:

• Remove aluminium foil lids from containers before using in the microwave. Some lids are made of card with a aluminium foil covering – these should be removed too. Use a microwave safe transparent lid if possible.
  • Stir food during cooking if the container has a lid or film cover.
  • Always use the glass turntable plate.
• Use shallow containers with a large surface area. Do not use containers that are more than 1.25in (3.5cm) deep.
  • Use gloves when handling hot aluminium foil containers.
• Do not completely cover food with aluminium foil. The microwave energy cannot pass through the aluminium foil so the food will not cook.
• Do not let aluminium foil touch the inside of the microwave.
• Do not use more than one piece of aluminium foil in the microwave at the same time.

Utensils Remarks
Aluminum foil	Shielding only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Greaseproof paper Use	as a cover to prevent splattering or a wrap for steaming.
Plastic containers	Microwave-safe only. Follow the manufacturer's instructions. Should be labelled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by the instructions on their packaging.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.

Microwave Heating Categories

Your microwave has been tested and labelled to meet the UK government's voluntary agreement on the reheating of pre-cooked food.

The heating characteristics and output power levels of microwaves are usually calculated using a relatively large portion of food (a 1000 gram load, IEC 60705) but many packs of pre-cooked food are sold in smaller packs, often about 350 grams.

The UK government, in partnership with food companies and microwave manufacturers, has set up a system of heating categories to help you choose the reheating time for pre-cooked food.

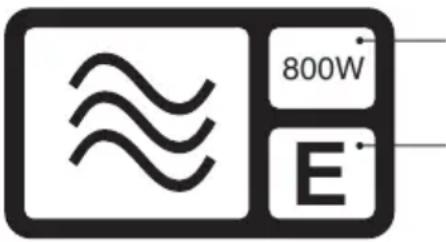

800W is the output power of the microwave. (IEC60705)

E is the heating category for your microwave. Check the cooking times for category E on the food's packaging to see how long it should be cooked for.

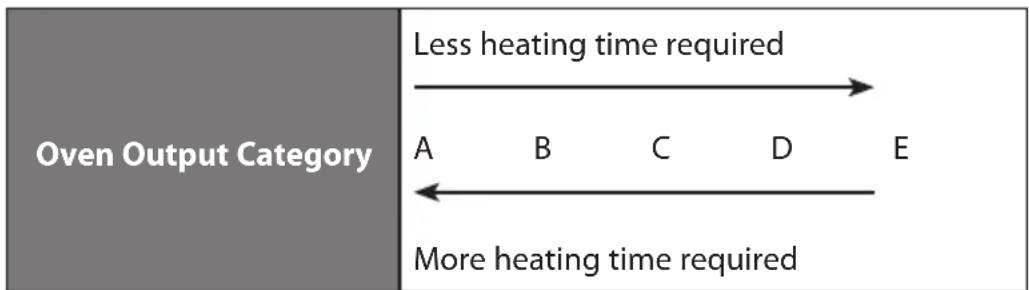

The category (a letter from A to E), is designed to help you reheat small quantities of food such as microwave ready meals.

The label given above and also on the oven door gives the heating category and output power of the oven.

Microwave ready meals weighing up to 500g (1lb 2oz) should have cooking instructions for heating categories A to E. Follow the instructions for the letter that corresponds to the heating category of the oven.

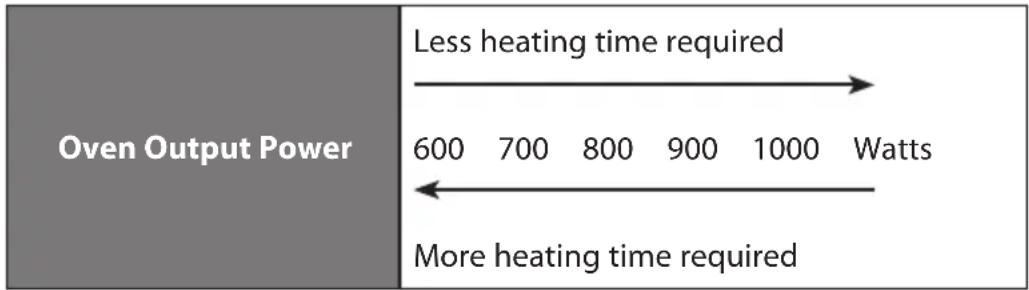

The higher the output power and heating category of the oven the less heating time is required. This is shown in the diagrams below:

Start cooking at the lowest recommended time, and add more time if necessary. The moisture content of food can vary, ensure food is cooked thoroughly all the way to the centre before serving.

Steam

When you microwave food, steam is created as water in the food heats up and evaporates. The steam formed during microwave cooking is entirely safe. It has to escape from the microwave to prevent pressure from building up inside the microwave. It does this through the vents on the back of the microwave and from around the door.

Condensation

As the steam cools, you may find that condensation gathers in small pools inside your microwave and on the work surface beneath the door and vents. Always dry the microwave after cooking foods with a high moisture content.

Your microwave is designed to let steam escape from the vents and around the door without microwave energy escaping. There is no danger of microwave energy escaping with the steam.

Line drawing of a microwave oven with cloud-like background (no text or symbols)

The Main Unit

Line drawing of a simple outdoor table with slatted top and two chairs (no text or symbols)

Grill Rack

For use when grilling, convection, combination or auto-cooking.

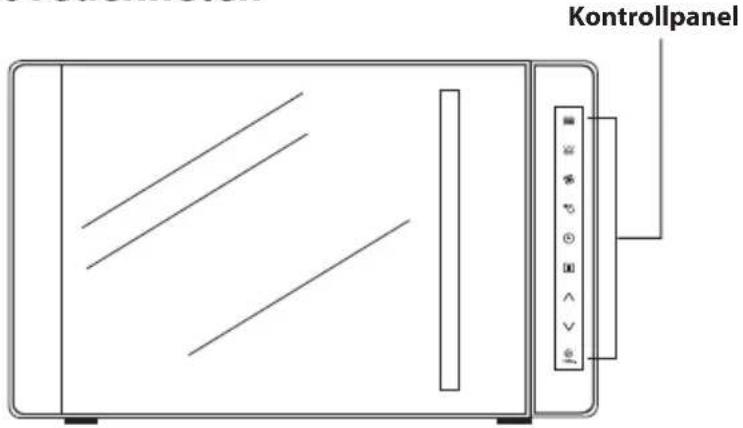

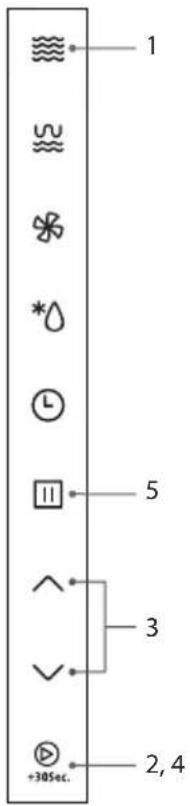

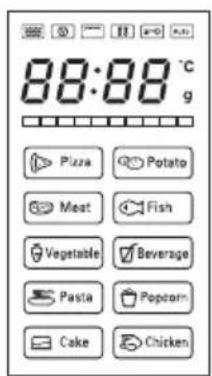

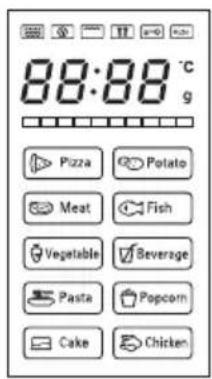

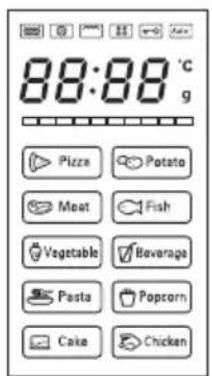

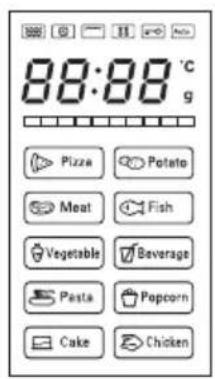

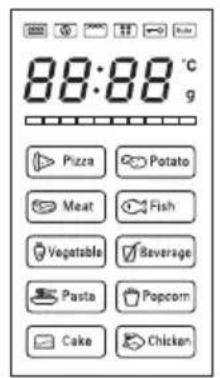

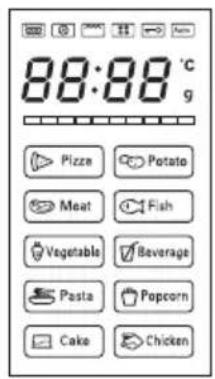

The Control Panel

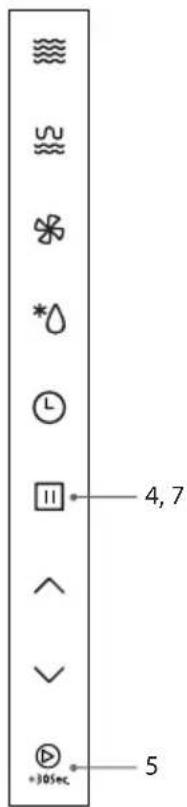

Check your microwave after unpacking.

For your safety, the microwave stops if the door is opened during cooking. Close the door and press the 📋 button to continue the cooking cycle.

Line drawing of a microwave oven with open door and lid, showing internal components (no text or symbols)

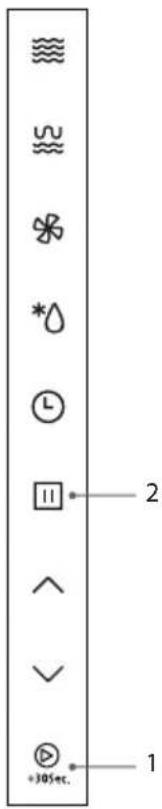

1. Pull the handle to open the door.
2. Place a cup of water on the glass turntable plate. Make sure the cup is microwave-safe (it should not have any decorative metal trim).
3. Close the door.
4. Press the ☐ button to clear any settings that have already been set.
5. Press the +30sec button to start a simple 30-second microwave cooking cycle and that allows you to check the operation of the microwave.
6. When the cooking cycle has finished, the water should be hot (be careful when you take the cup out of the microwave).

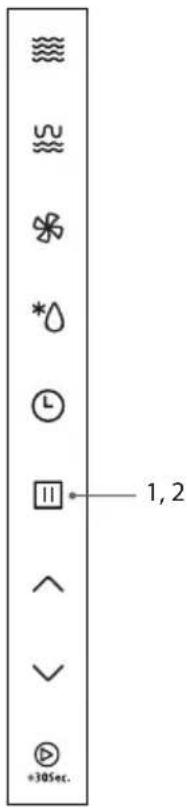

7. Press the ☐ button to pause the cooking and press the ☐ button again to stop/clear any settings.

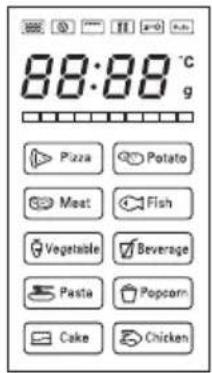

When the microwave is connected to the mains power, the LED display will show "0:00" and the microwave will sound once. Please ensure that you have set the clock prior to use.

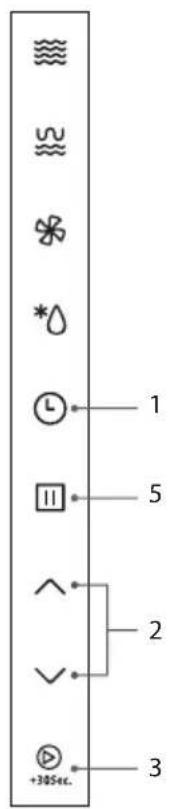

Please follow the steps below to set the clock.

1. Press the Ⓛ button, the hour digits will flash. The unit will also beep.
2. Press the ∧/buttons to adjust the hour digits. The input time has to be within 0-23.
3. Press the Ⓛ button, the minute digits will flash. The unit will also beep.
4. Press the ∧/buttons to adjust the minute digits. The input time should be within 0-59.
5. Press the Ⓛ button to finish clock setting. The unit will also beep.
   “:” will start flashing and the time will illuminate.

• This is a 24-hour clock. When the microwave is connected to the mains power for the first time or when the power is resumed after a power interruption, the LED display will show "0:00". To re-set the clock, simply follow the above 5 steps.
• In the process of clock setting, if the ☐ button is pressed or if there is no operation within 5 minutes, the microwave will go back to the previous status automatically.
  • If the clock needs to be reset, please repeat steps 1 to 5.
• To find out the current time while the microwave is operating, press the ⏻ button. It will last for 3 seconds and then return to its original display.

While the microwave is operating or not in use, this feature allows you to use the microwave as a timer.

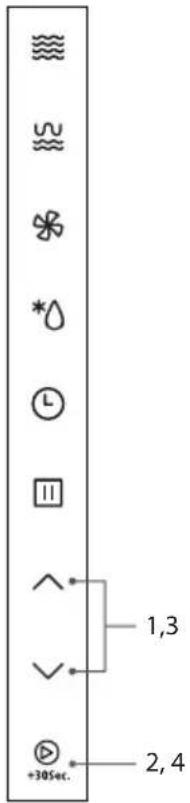

To set the kitchen timer, follow the steps below.

1. Press the Ⓛ button twice. The LED display will show "00:00". The LED display will not flash.
2. Press the ∧/buttons to select the timer time. The input time has to be within 5sec-95min.

The time setting is between 0:05 - 95:00. Varying time increments are added or subtracted for each press of the ↑buttons as follows:

0-1 min: 5 seconds

1-5 min: 10 seconds

5-10 min: 30 seconds

10-30 min: 1 minute

30-95 min: 5 minutes

1. Press the button to confirm the setting.
2. Once the elapsed time is reached, the microwave will sound 5 times and return to its original state.
3. Press the ☐ button to cancel the timer.

When the kitchen timer is running, programmes cannot be set. Even if the microwave door is open, the kitchen timer will continue running.

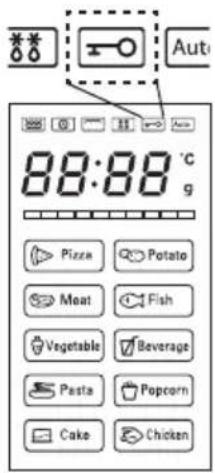

This feature prevents the electronic operation of the microwave by locking the operation of the control panel until you have cancelled it.

Please follow the steps below to set the child lock.

1. While the microwave is not in use, press the button for 3 seconds; the unit will beep. The child lock indicator will illuminate on the LED display to indicate the microwave has set the child lock. The LED will also display the current time or "0:00".

2. To release the child lock, press the button again for 3 seconds; the unit will beep. The child lock indicator will disappear from the LED display to indicate that the microwave has released the child lock.

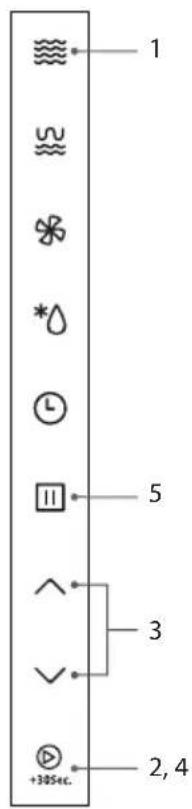

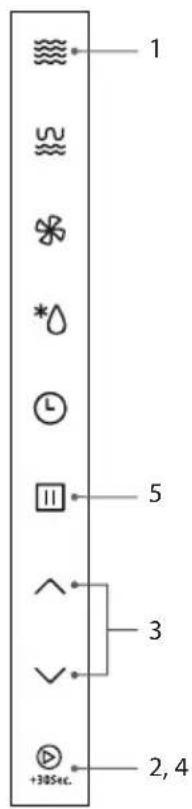

For simple Microwave Cooking, follow the steps below.

For instance, if you want to use 80% microwave power to cook for 20 minutes.

1. Press the 📋 button once and the LED display will show "P100". Press the microwave button repeatedly until the LED display shows "P80".
2. Press the +30sec button to confirm the microwave power level.
3. Press ∧/ to adjust cooking time. The input time must be within 5 sec - 95 min.
4. Press the +30sec button to confirm and start cooking.

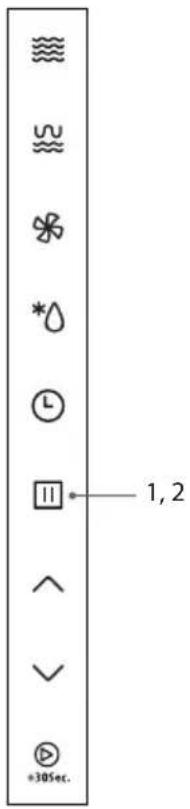

5. Press the ☐ button once to pause the cooking. Press the ☐ button again to stop/clear the setting.

• Stop the microwave before removing food from it.
• Operating the microwave without food in it can result in overheating and damage the magnetron.
• Cooking with a microwave is much faster than conventional cooking. Whilst you should ensure that food is thoroughly cooked, you should be careful not to overcook it.

Microwave Button Control
Press Order	LED Display	Microwave Power
1 P100	100%
2 P80	80%
3 P50	50%
4 P30	30%
5 P10	10%

Time Adjustment using /or √
Time Range	Increment
0 - 1 min 5 secs
1 - 5 mins 10 secs
5 - 10 mins 30 secs
10 - 30 mins 1 min
30 - 95 mins 5 mins

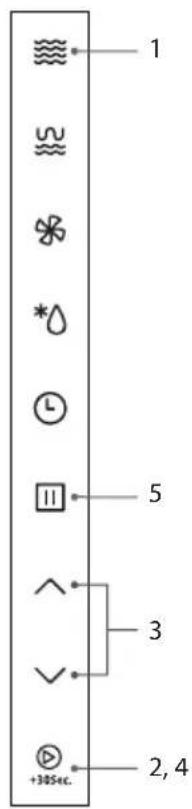

For Grilling, follow the steps below.

We recommend that you use the supplied grill rack. Place your food on the grill rack then place on top of the glass turntable plate.

1. Press the ≈ button once and the LED display will show "G-1".
2. Press the +30sec button to confirm the grill cooking setting.
3. Press ∧/∧ to adjust cooking time. The input time must be within 5 sec - 95 min.
4. Press the +30sec button to start cooking.
5. Press the ☐ button once to pause the cooking. Press the ☐ button again to stop/ cancel the setting.

In order to obtain better grilling performance for your food, please turn your food over. When half the grilling time has passed, the oven will sound twice to remind you to turn the food over. After you turn over the food, you need to press the 📋 button to continue. If there are no button presses or interruptions, the unit will continue cooking without pasusing.

For Combination Cooking, follow the steps below.

1. Press the 📋 button twice and the LED display will show "C-1". Press the 📋 button three times and the LED display will show "C-2" and so forth.

Alternatively, after you press the 📊 button once, you can press the ✗ √ buttons until the LED display shows "C-1", "C-2", "C-3" or "C-4".

1. Press the button to confirm the cooking setting.
2. Press the ∧/buttons to adjust the cooking time. The input time must be within 5 sec - 95 min.
3. Press the +30sec button to confirm and start cooking.
4. Press the ☐ button once to pause the cooking. Press the ☐ button again to stop/ clear the setting.

Grill/Combi. button control
press order	LED display	microwave grill convection
1 G-1			√
2 C-1		√		√
3 C-2		√	√
4 C-3			√	√
5 C-4		√ √	√

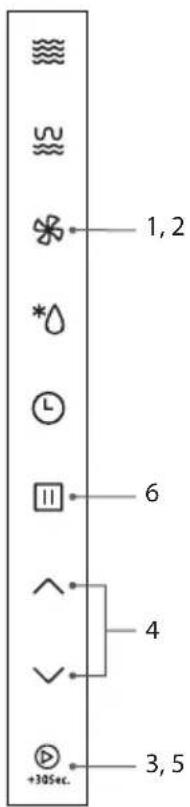

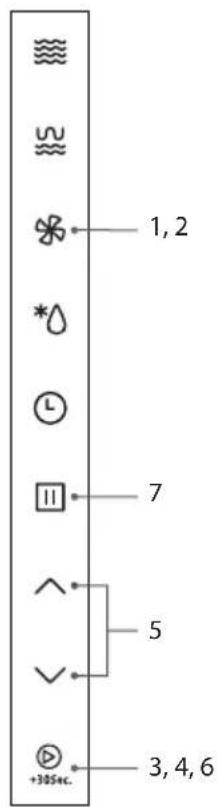

Convection Cooking (with Preheating)

Convection cooking allows you to cook the food like a traditional oven.

We recommend that you use the supplied grill rack. Place your food on the grill rack then place on top of the glass turntable plate.

It is recommended to preheat the microwave to the appropriate temperature before placing the food in the microwave. Microwave power will not be used.

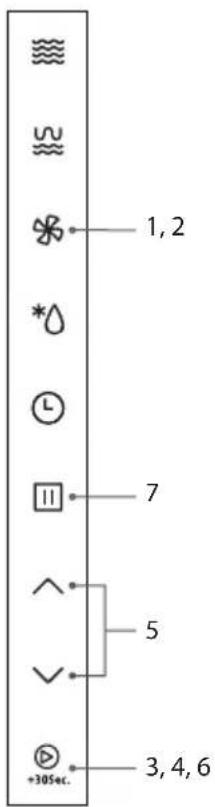

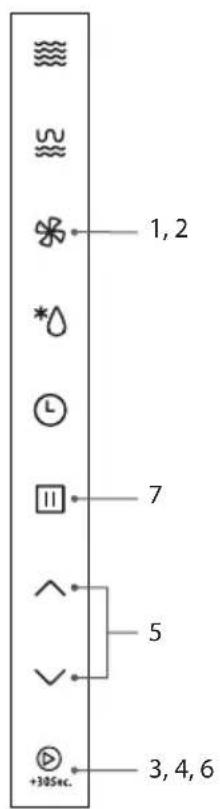

1. Press the ✿ button once and the LED display will flash "100°C".
2. Press the ✿ button repeatedly until the LED display shows your preferred temperature setting. Press the button each time and the temperature will increase 10°C. The temperature ranges from 100°C to 190°C.

Alternatively, after you press the button once, you can press the ↗ √ buttons to change the temperature setting.

1. Press the button to confirm the temperature setting.

2. Press the +30sec button again to start preheating. Once the preheating temperature is reached, the microwave will sound twice and the LED display will flash the preheated temperature to remind you.

3. Place your food in the microwave and close the door. Press the ^/buttons to adjust the cooking time. The maximum time setting is 95 minutes.

During use this appliance becomes hot. Care should be taken to avoid touching hot surfaces, e.g. glass turntable plate. Keep children away.

• Cooking time cannot be input until the preheating temperature is reached. The door must be open to input the cooking time.
• The cooking time must be input within 5 minutes, otherwise, the microwave will stop preheating, sound 5 times and return to its original display.

• You can check the convection temperature while cooking is in progress by pressing the ✿ button.

• Press the +30sec button to confirm and start cooking.

• Press the ☐ button once to pause the cooking. Press the ☐ button again to stop/clear the setting.

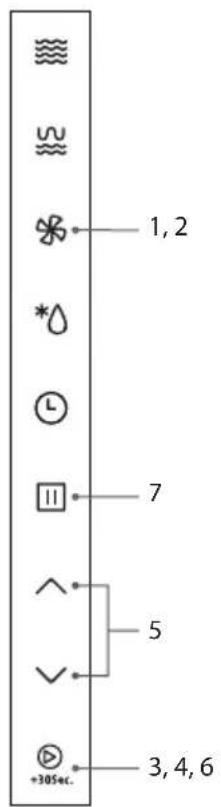

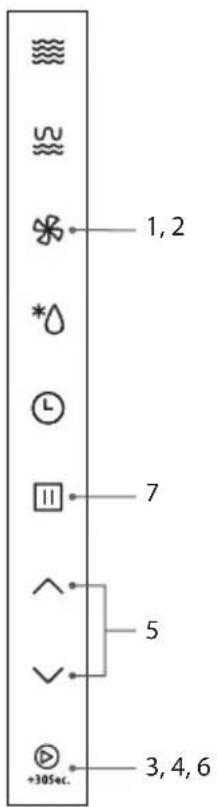

For convection cooking without preheating, please follow the steps below.

We recommend that you use the supplied grill rack. Place your food on the grill rack then place on top of the glass turntable plate.

For instance: If you want to cook your food for 15 minutes at 180^ C.

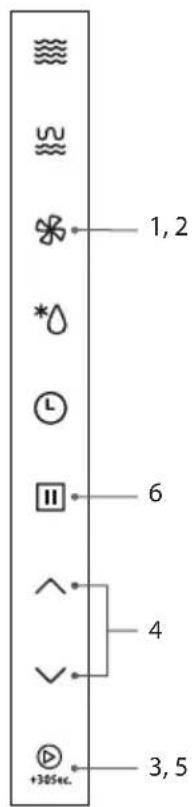

1. Press the ✿ button once and the LED display will flash "100°C".
2. Press the ✿ button repeatedly until the LED display shows "180°C". Press the button each time and the temperature will increase 10°C. The temperature ranges from 100°C to 190°C.

Alternatively, after you press the button once, you can press the ↗ √ buttons to change the temperature setting.

1. Press the +305e button to confirm the temperature setting.
2. Place your food in the microwave and close the door. Press the ^/buttons to adjust the cooking time to 15:00. The maximum time setting is 95 minutes.
3. Press the +30sec button to confirm and start cooking.
4. Press the button once to pause the cooking. Press the button again to stop/ clear the setting.

The LED display will show the current temperature stage below the timer.

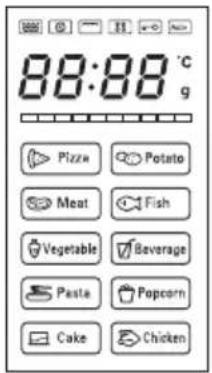

This feature allows you to cook most of your food based on the food category and the weight. Select the category and choose the weight of your food. For quick reference of the cooking time and the weight, please refer to the auto menu table.

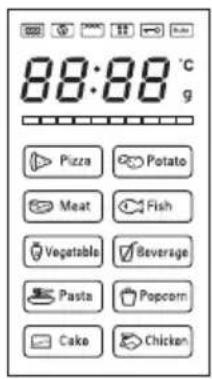

Auto Menu

While the unit is not in use:

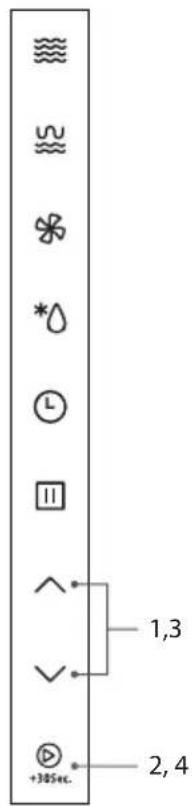

1. Press ^ or to choose the desired auto-cooking function. "A1", "A2", "A3", etc., up to "A10" will be displayed. The Auto-cooking menu panel icons will light up with each press.

2. Press ▶ to confirm the auto-cook setting.

3. Press ∧ or to select the weight. "g" will illuminate.
4. Press ☑ to confirm and start cooking.

For instance: If you want to cook 300g of fish using the auto menu programme. Please follow the steps below.

1. Press ∧ or to choose "A-4" for the fish programme. The LED will display "A-4".
2. Press ▶ to confirm the auto-cook setting.
3. Press ∧ or to choose the weight (300g), "g" will illuminate.
4. Press ▶ to confirm and start cooking.

The auto-menu cooking programme for "Cake" falls under the "Convection with preheating (160°C)" function:

1. Preheat the microwave by following the auto-menu programme.
2. When the preheated temperature is reached, the unit will stop preheating and beep.
3. Place the cake inside on the turntable and firmly close the door.
4. Press +30Sec. to start cooking.

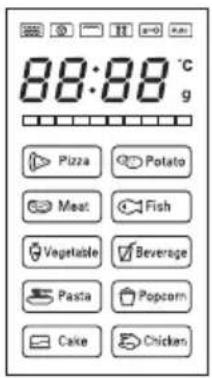

Menu Weight Display Time Comments
A-1 Pizza	300g 300g 10'			This setting is designed for re-heating cooked pizza slices (not frozen pizza). Allow extra time for thicker pieces.
	400g 400g 11'30"
A-2 Potato * (at least 230g per potato)	230g 230g 5'30"			For best results, pierce the potatoes' skin before cooking. Once the potatoes are cooked, wrap in aluminium foil for at least 5 minutes to ensure they are cooked thoroughly.
	460g 460g 9'
	690g 690g 12'
A-3 Meat	200g 200g 2'40"			Make sure food is cooked thoroughly before consuming. Additional cooking time may be required for thicker pieces.
	300g 300g 4'20"
	400g 400g 5'30"
	500g 500g 6'30"
A-4 Fish	200g 200g 3'30"			Make sure food is cooked thoroughly before consuming. Additional cooking time may be required for thicker pieces of fish.
	300g 300g 4'30"
	400g 400g 5'30"
	500g 500g 6'30"
A-5 Vegetable	200g 200g 3'			Only use suitable microwavable containers and cling film in the microwave. Pierce the film with a fork before cooking.Check the cooking regularly to make sure the water does not boil over.
	300g 300g 4'
	400g 400g 5'
	500g 500g 6'
A-6 Beverage	1 cup 1 1'50"			Only use suitable microwavable containers and cling film in the microwave. Pierce the film with a fork before cooking.Check the cooking regularly to make sure the water does not boil over.
	2 cups 2 3'
	3 cups 3 4'30"
A-7 Pasta	50g 50g 18'			Only use suitable microwavable containers and cling film in the microwave. Pierce the film with a fork before cooking.Check the cooking regularly to make sure the water does not boil over.
	100g 100g 21'
	150g 150g 24'
A-8 Popcorn	50g 50g 1'25"			Only use suitable microwavable containers and cling film in the microwave. Pierce the film with a fork before cooking.
	100g 100g 2'15"
A-9 Cake	475g 475g 70'00"			Unit will preheat to 160°C first.
A-10 Chicken	750g 750g 35'			Make sure food is cooked thoroughly before consuming. Additional cooking time may be required for thicker pieces.
	1000g 1000g 40'
	1250g 1250g 45'

* It is recommended that when auto-cooking a potato, the potato should weight at least 230g. Note: potatoes will vary in water-content depending on age, type, weight, etc.

This feature allows you to defrost your frozen foods simply by entering the weight or time.

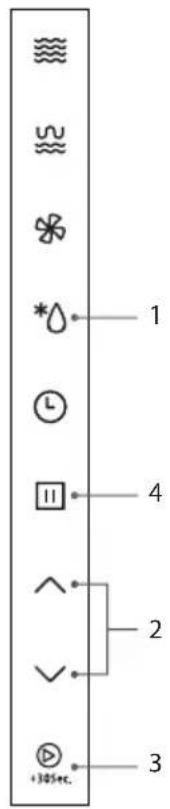

Defrost by Weight

1. Press the button once and the LED display will show "dEF1".
2. Press ∧ or ∨ to input the weight.
3. Press the +30sec button to start defrosting. When half the defrosting time has passed, the unit will beep to remind you to turn over the food. If no action is taken, the unit will continue cooking without pausing.
4. Press the ☐ button once to pause the defrosting. Press the ☐ button again to stop/cancel the setting.

After pressing once, if the unit is paused for 5 minutes or more, the unit will automatically cancel the setting and return to standby.

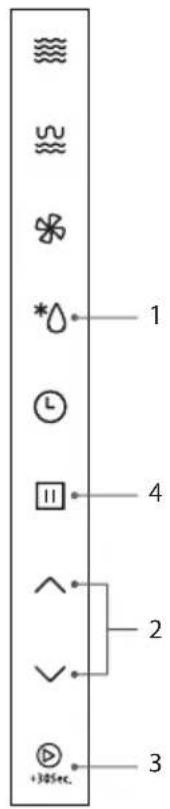

Defrost by Time

1. Press the button twice and the LED display will show "dEF2".
2. Press ∧ or to input the defrosting time. The maximum input time is 95 minutes.
3. Press the +30sec button to start defrosting.
4. Press the ☐ button once to pause the defrosting. Press the ☐ button again to stop/cancel the setting.

• Large items may be frozen in the centre. To ensure even thawing, turn them over from time to time and break them into smaller pieces during defrosting.
• You will need to press the button once to hold the defrosting programme and open the door. After you rotate the food, you need to press the +30sec. button to re-start defrosting.
• Place roasts fat-side down or whole poultry breast-side down.
• Drain liquids during defrosting as the juices from food can get hot and cook the food.

This feature allows you to quickly cook your food for 30 seconds with 100% microwave power.

Make sure the unit is in standby mode, then follow the steps below.

1. Press the +305ec button to start the quick start cooking at 100% cooking power. Press the +305ec button again to increase by another 30 seconds. You may increase the cooking time up to 95 minutes.

Each press of increases cooking time by 30 seconds in general.

1. Press the button once to pause cooking. Press the button again to stop/cancel the setting.

This feature can be used during: microwave, grill, convection and time defrost cooking.

This feature cannot be used during weight, defrost, and auto-menu and multi-stage cooking.

This feature allows you to check and view the current cooking settings.

To Find Out the Current Cooking Setting

1. Press the button once and the LED display will show the current cooking power while the microwave is in microwave cooking. It will last for 3 seconds and then return to its original display.

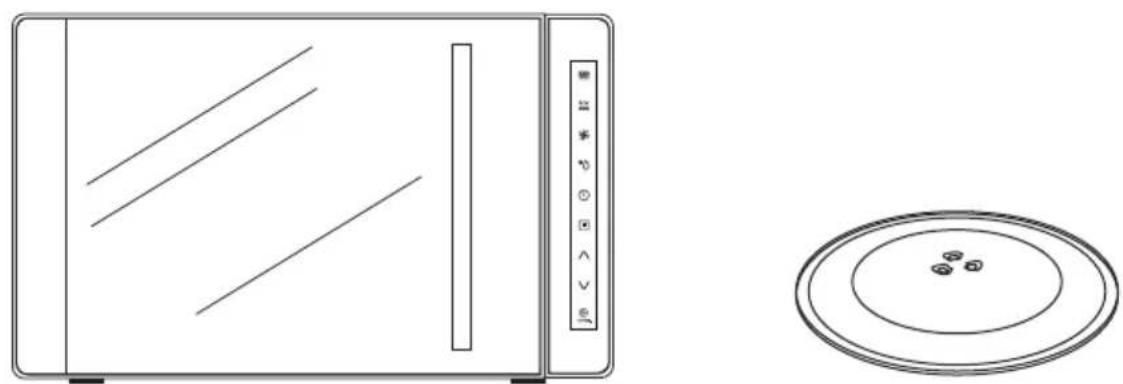

Cleaning your microwave each time you use it will help to prevent a build up of stubborn marks that can be difficult to clean.

Unplug your microwave from the mains and wait for it to completely cool down before cleaning.

On the right hand side wall of the cavity is the wave guide cover. Microwaves are passed through this to enable your food to cook. It is important that this wave guide cover is kept clean at all times. Wipe it with mild detergent and water and leave to dry.

The microwave walls have a special enamel coating which makes cleaning very easy. Use a soft damp cloth to wipe off any splashes or a paper towel to mop up any spills. Wipe off grease with a damp cloth and a little detergent. Dry thoroughly. If grease is left to accumulate, it can smoke and even catch fire.

② Make sure you keep the outlet grids clean.

3 Keep the front of the microwave clean so that the door can close properly.

4 Be careful not to spill water into the vents.

5 Do not remove the wave guide cover: It is important to keep the cover clean in the same manner as the inside of the microwave. If grease is left to accumulate, it can smoke and even catch fire.

6 Keep the inside of the door clean with a damp cloth. Use warm soapy water for stubborn marks and dry thoroughly. The inside of the door has a special coating and must not be cleaned with abrasive pads or cleaning powders.

7 Clean behind the door ledge.

8 Use warm soapy water to clean the outside of the microwave. Do not use abrasive cleaners, pads or powders that could scratch the surface.
9 Unplug the microwave before cleaning the power lead and the microwave. Wipe with a damp cloth and leave to dry before plugging it back in.
10 Treat the glass turntable plate as you would any glass plate. After you have used it for more than 15 minutes, allow it to cool down before you use it again. Do not wash the glass turntable plate in very hot water, doing so could crack it. Wash the turntable support in warm water. Do not use very hot water which could warp it. Make sure the glass turntable plate and turntable support are dry before you put them back in the microwave.
11 Wash the racks in warm water. Do not use very hot water which could warp them.

Do not remove any fixed parts from the inside of your microwave during cleaning or at any other time.

If a problem does occur, it may often be due to something very minor. The following Q & A may be able to resolve the problem.

Questions Answers
Why doesn't the food seem to cook?	Check that:the cooking time has been set.the door is closed.the mains socket is not overloaded causing the fuse to blow.
Why does the food seem undercooked or overcooked?	Check that:the correct cooking time has been set.the correct power setting has been used.
How can I stop eggs from popping?	When you bake or poach eggs in the microwave, the yolk can sometimes pop as steam builds up inside it. You can stop the egg from popping by piercing the yolk with a toothpick before cooking.Never cook eggs that are still in their shells.
Why is it so important that I allow standing time after cooking?	With microwave cooking, many foods build up enough heat inside them to continue cooking even after they've been taken out of the microwave. Because microwave cooking works from the outside of food inwards, standing time lets you cook the centre of the food without the outside being overcooked.
Why does my microwave sometimes take longer to cook than it says in the recipe?	First check that the microwave was set just as the recipe said. Cooking times and heat settings are suggestions to help prevent overcooking but differences in the weight, size, shape and starting temperature of food will all affect how long it takes to cook – just as it does with a conventional oven. Use your judgement along with the recipe to check whether the food has been cooked properly.
Why do I get condensation on the inside of the door?	Condensation is perfectly normal, especially when you are cooking food with a high moisture content such as potatoes.
Does the microwave energy get through the window on the door?	No. The door has a special metal screen with holes in that lets you see inside but stops microwave energy from getting out.
Steam comes out of the side of the door and vents. Can microwave energy get out too?	No. The door and vents are carefully designed to let steam out during cooking but keep microwave energy in. The gaps are not big enough for microwave energy to escape.
What happens if the microwave is switched on while the microwave is empty?	The microwave will be damaged. Do not switch the microwave on when there's nothing inside the microwave. It is a good idea to keep a cup of water in the microwave just in case someone accidentally starts the microwave.
Why doesn't the microwave's light illuminate?	Open the door. If the light does not illuminate, the bulb has probably blown. Call a qualified technician – do not try to change the bulb yourself.
There are sparks inside the microwave when I use the microwave. Will this cause any damage?	Yes. Make sure that you are not using any metal utensils and that your containers don't have a metal trim. You must not use metal in your microwave when you cook (except aluminium foil).
Light is showing through the vents and door. Does this mean the microwave energy can escape?	No. It is normal for the light to be visible and is nothing to be concerned about.
Why do I get interference on my TV and radio when I use the microwave?	Microwaves use radio waves similar to those received by TVs and radios. You can lessen the interference by moving your microwave further away from the TV or radio.
Model L23CB13E/ L23CW13E/ L23CS13E
Input 230V~ 50Hz
Microwave Output 800W
Microwave Frequency 2450 MHz
Outside Dimensions (Width X Depth X Height)	485 mm x 395.6 mm x 292.5 mm
Power consumption
Microwave Input	1300 W
Grill Input	1200 W
Convection Input	1200 W

Complies with EC directives 2004/108/EC and 2006/95/EC.

We continually strive to improve our products. Features and specifications may change without prior notice.

NO

Pakke Opp

Simple line drawing of a door with diagonal lines and a vertical bar, no text or symbols present

Simple diagram of concentric ovals with three small oval shapes at the center (no text or symbols)

Hovedenheten Glassdreieplate × 1

Simple line drawing of an oval frame with two circular ends and a small circle on top (no text or symbols)

Line drawing of a simple metal grate with three handles and a central vertical rod (no text or symbols)

Grillrist × 1

Line drawing of a microwave oven with open door and circular base (no text or symbols)

Simple line drawing of a right triangle with an arrow indicating direction (no text or symbols)

Sett fra undersiden

Simple line drawing of a bowl with arrows indicating flow or motion, no text or symbols present

Kontrollere Redskaper For Tilberedning

Line drawing of a microwave oven with cloud-shaped background (no text or symbols)

Hovedenheten

Line drawing of a simple outdoor table with slatted top and two chairs (no text or symbols)

Grillrist

Line drawing of a microwave oven with open door and lid, showing internal components (no text or symbols)

NO

Kjøkkenur

NO

Mikrobølgekoking

Bruke Mikrobølge-Knappen
Trykk Nr.	LED-skjerm	Mikrobølgeeffekt
1 P100	100%
2 P80	80%
3 P50	50%
4 P30	30%
5 P10	10%

Trykk på å-knappene for å stille kjøkkenuret.

Periode Inkrement

0 - 1 min. 5 sekunder

1 - 5 min. 10 sekunder

5 - 10 min. 30 sekunder

10 - 30 min. 1 minutt

30 - 95 min. 5 minutter

NO

Kombinasjonskoking

Konveksjonskoking lar deg tilberede maten akkurat som i en vanlig stekeovn

Vi anbefaler at du bruker den vedlagte grillristen. Sett maten på grillristen og sett den deretter oppå glassdreieplaten.

NO

Med denne funksjonen kan du kontrollere og se de gjeldende kokeinnstillingene.

Slik Finnes Den Gjeldende Kokeinnstillingen

1. Trykk på -kappen én gang, så viser LED-skjermen ovnens gjeldende kokeeffekt mens mikrobølgekokingen pågår. Visningen varer i 3 sekunder før den originale visningen gjenopptas.

NO

Line drawing of a microwave oven with open door and circular lid, no text or symbols present

Simple line drawing of a lever with pivot point and mounting holes (no text or symbols)

Vy undersida

Simple line drawing of a bowl with arrows indicating flow or motion, no text or symbols present

Kontrollera Matlagningsutrustningen

Simple line drawing of a microwave oven with cloud background (no text or symbols)

Huvudenheten

Line drawing of a simple outdoor table with three legs and a central slatted top (no text or symbols)

Grillrist

Line drawing of a microwave oven with lid and door, showing interior doors and control panel (no text or symbols)

SE

Mikrovågsknapp-Kontroll
Tryckordning	Led-Display	Mikrovågseffekt
1 P100	100%
2 P80 80%
3 P50 50%
4 P30 30%
5 P10 10%

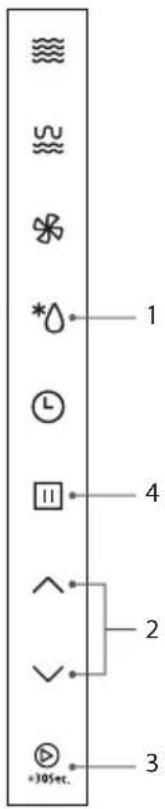

Upptining After Tid

Simple line drawing of a door with diagonal lines and a vertical bar, no text or symbols present

Simple line drawing of concentric ovals with three small dots at the center (no text or symbols)

Simple line drawing of an oval loop with two small dots at the ends (no text or symbols)

Line drawing of a simple oval-shaped metal grate with handles and internal ribs (no text or symbols)

Grilliritilä x 1

Line drawing of a microwave oven with open door and circular vent, showing internal components (no text or symbols)

Simple line drawing of a right triangle on a rectangular base with four corner holes (no text or symbols)

Näkymä alta

Simple line drawing of a bowl with arrows indicating flow or motion, no text or symbols present

Line drawing of a microwave oven with cloud-shaped background (no text or symbols)

Laite

Line drawing of a simple outdoor table with slatted top and two side legs (no text or symbols)

Grilliritilä

Line drawing of a microwave oven with open door and lid, showing internal components and a circular vent (no text or symbols)

Simple line drawing of an oval frame with two circular ends and a small circle on top (no text or symbols)

Line drawing of a simple outdoor table with slatted top and two legs (no text or symbols)

Grillrist x 1

Line drawing of a microwave oven with open door and circular vent, showing internal components (no text or symbols)

Simple line drawing of a right triangle with an arrow indicating direction (no text or symbols)

Set nedefra

Simple line drawing of a bowl with arrows indicating flow or motion, no text or symbols present

Line drawing of a microwave oven with cloud background (no text or symbols)

Hovedenheden

Line drawing of an oval table with three legs and a side table, no text or symbols present

Grillrist

Line drawing of a microwave oven with lid and door, showing interior doors and control panel (no text or symbols)

DK

Skærmen viser den aktuelle temperatur under timeren.

Simple line drawing of a rectangular device with diagonal lines and a vertical bar, no text or symbols present.

Simple diagram of concentric ovals with small oval shapes at the center (no text or symbols)

Simple line drawing of an oval loop with two circular endpoints (no text or symbols)

Line drawing of a simple oval-shaped metal grate with three handles and internal slats (no text or symbols)

Line drawing of a microwave oven with open door and lid, showing internal components (no text or symbols)

Simple line drawing of a right-angled rectangular block with circular holes and an arrow indicating rotation (no text or symbols)

Pohled zdola

Simple line drawing of a bowl with steam rising from it, no text or symbols present

Line drawing of a microwave oven with cloud background (no text or symbols)

CZ

Hlavní Jednotka

Line drawing of a microwave oven with open door and lid, showing internal components and a circular dish (no text or symbols)

CZ

Kombinované Vaření

Rychlé vaření

Simple line drawing of a door with diagonal lines and a vertical bar, no text or symbols present

Simple line drawing of concentric ovals with small dots at the center (no text or symbols)

Simple line drawing of an oval frame with two circular ends and a small circle on top (no text or symbols)

Line drawing of a simple outdoor table with slatted top and two side legs (no text or symbols)

Line drawing of a microwave oven with open door and circular lid, no text or symbols present

Simple line drawing of a lever with pivot point and dashed arrow indicating rotation (no text or symbols)

Pohl'ad zdola

Simple line drawing of a bowl with arrows indicating flow or motion, no text or symbols present

Kontrola Riadov Na Varenie

Line drawing of a microwave oven with cloud-shaped background (no text or symbols)

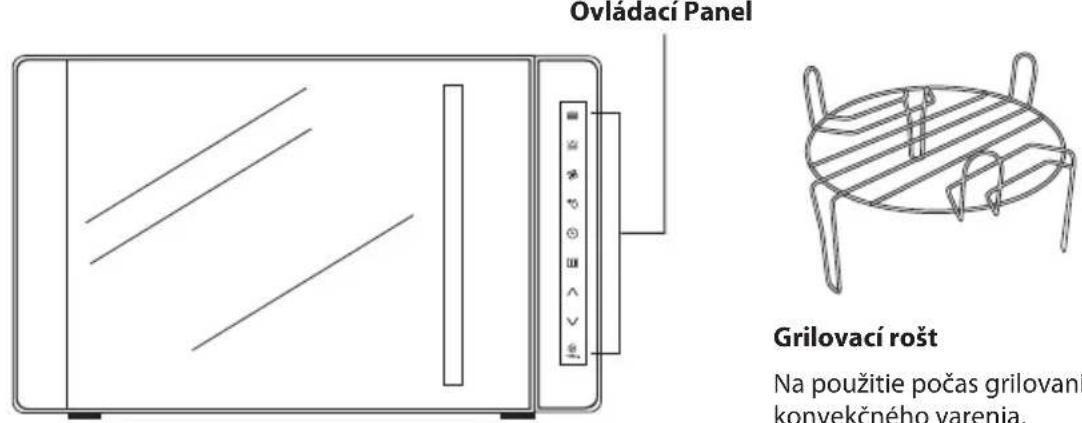

Hlavné Zariadenie

Simple line drawing of an oval-shaped table with three legs and a central handle (no text or symbols)

Grilovací rošt

Line drawing of a microwave oven with lid and door, showing interior doors and control panel (no text or symbols)

Ovládanie Pomocou Tlačidla Mikrovlnné Varenie
Poradie	Led Displej	Mikrovlnný Výkon
1 P100	100%
2 P80	80%
3 P50	50%
4 P30	30%
5 P10	10%

Rozmrazovanie podl'a Času

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.

NO
