USER MANUAL WT-7045 Ravanson
ENG User's manual Fan
WT-7045 INOX
Producent:
Ravanson®
RAVANSON LTD. Sp. z o.o.
Before first use, always read the safety instructions and warnings included in this guide.
Failure to observe the below mentioned safety warnings and safety guidelines for may cause to electric shock, fire and/or serious injuries
Keep safety instructions and warnings at hand for future reference
GENERAL SAFETY GUIDELINESS
This appliance is not intended for use by children under the age of 8 or other persons, without assistance or supervision, if their physical, sensory or mental capabilities prevent them from using it safely or by persons without experience and knowledge on the use thereof. People using this product must understand the risks related to the use of the appliance. Do not allow children to use the appliance as a toy. Cleaning and maintenance by children without supervision is not allowed.
Children are not aware of dangers that may arise during the use of electric devices. Keep the appliance and corresponding cord out of the reach of children under the age of 8.
Children should be supervised to ensure that they do not play with the appliance.
Do not operate the appliance with a damaged cord. Damaged power cord must be replaced by manufacturer, authorized service centre or other qualified persons in order to avoid risk.
The plug must fit the socket.
The plug must not be modified in any way.
Do not allow the power cord to touch sharp edges or hot surfaces.
Damaged cord poses a risk of electric shock.
Do not place the appliance on hot surfaces.
Do not use outside. Do not expose to rain. Protect against humidity. Do not operate with wet hands.
During operation keep clothing, long hair away from the moving parts of the appliance.
Do not plug the device in unless it is fully assembled.
Do not use the device with a broken or damaged blades.
Do not remove any parts of the housing.
Do not use the device in the immediate vicinity of a bathtub, shower or swimming pool.
Prevent the cord and plug from any contact with water or moisture. Do not spray any liquid on the device.
Unplug the device holding the plug; do not pull the cord.
Unplug the device if it is to be moved or is not going to be used for a longer time.
Do not use the device with the protection grid removed.
Transport in an original package protecting from mechanical damages.
The appliance must be repaired by a qualified person using only original spare parts.
Despite operating the unit in accordance with its intended use and in accordance with all safety guidelines, it is impossible to eliminate all residual risk factors.
The appliance is intended for home use only.
The appliance should only be used for private use, as intended for the appliance. This appliance is not intended for commercial use.
Before assembly and disassembly of the sieve, always make sure that the juicer is disconnected from its power source.
Do not cover the fan protection grid.
Do not put anything into the protection grid when the fan is on.
NOTE! The device is not designed to work with external timers or a separate remote control system.
It is recommended to connect the device to the power supply network equipped with a residual current device (RCD) with a switch-off current of 30mA or less.

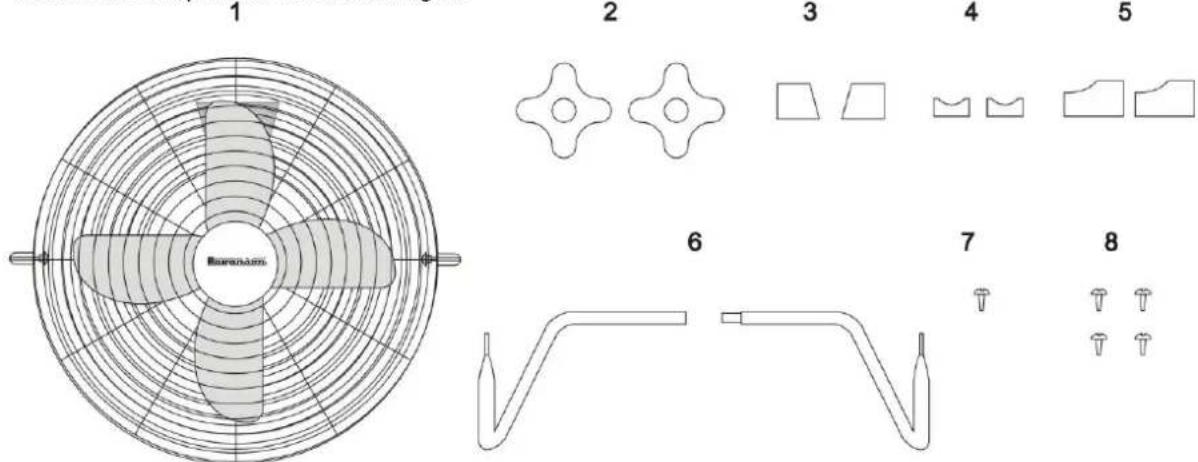

Parts:
Please check the fan is complete after you open the packaging.
Check if the components are not damaged.

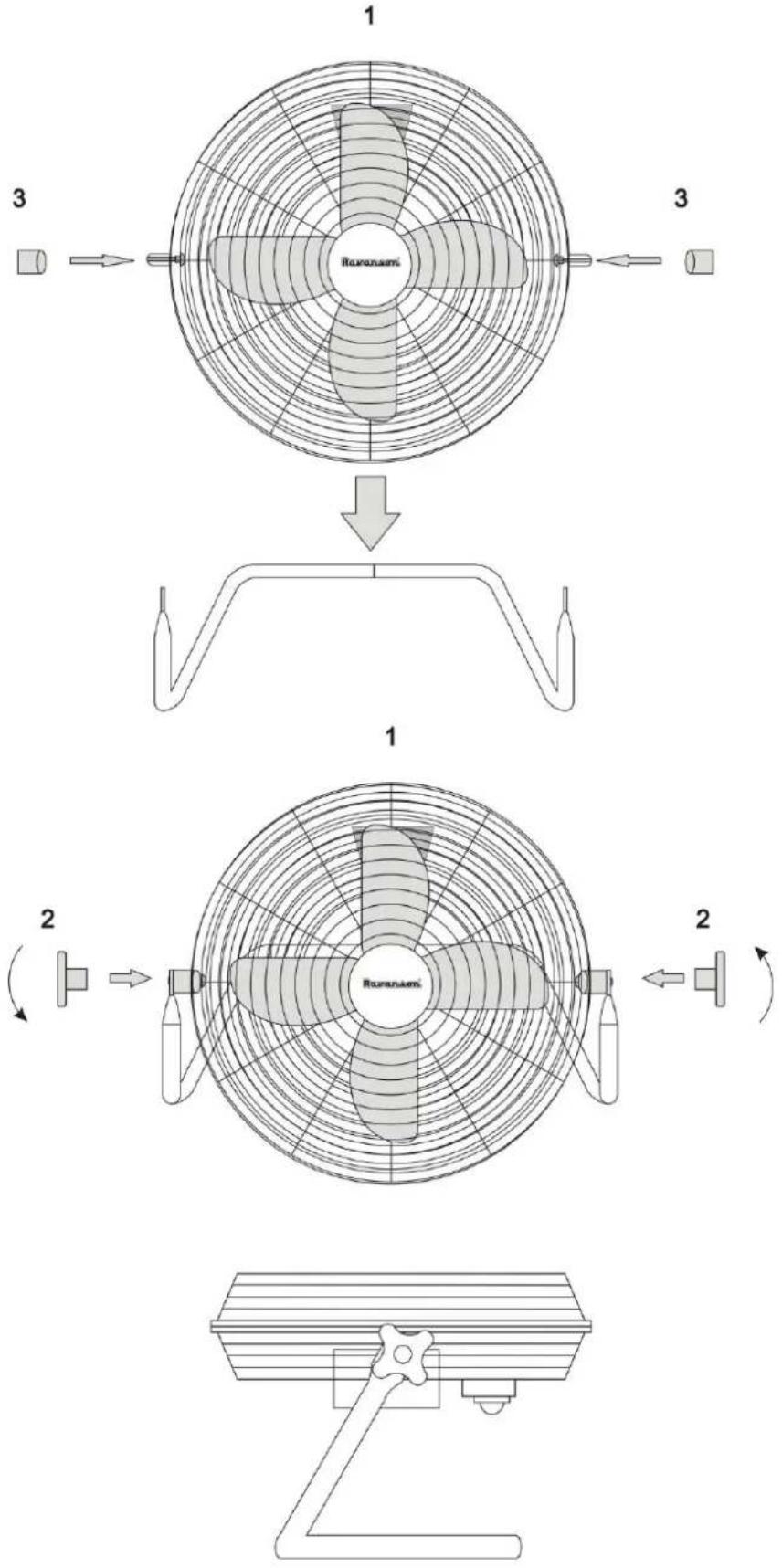

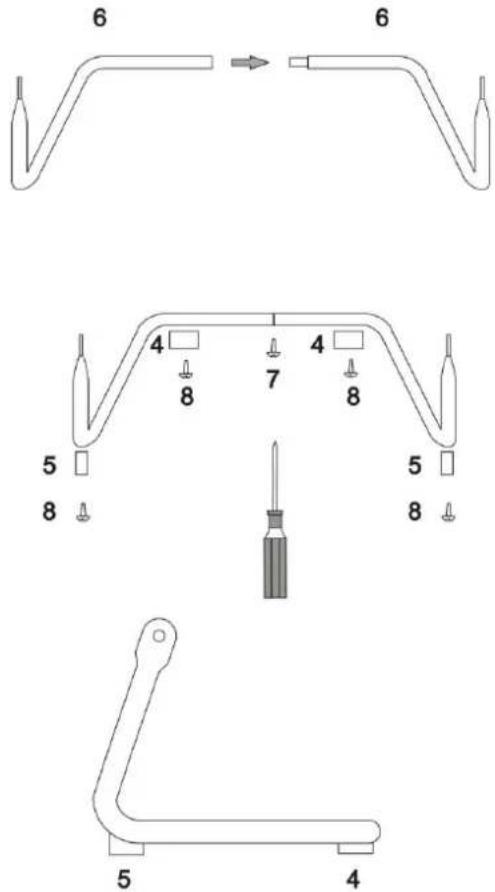

- Assembly the frame as shown in figure 1.
(figure 1)
- Install the fan on the frame as shown in fig.2.
(figure 2)
Attention! Make sure that the power source to which the appliance is to be connected is accordant with the parameters specified on the rating plate.
Attention! Before every use, inspect the device for any signs of mechanical damage. Inspect the power cord. If the power cord is damaged, do not plug the device in.
The speed can be set from 1 (slowest) to 3 (fastest). "0" position – switching the fan off.

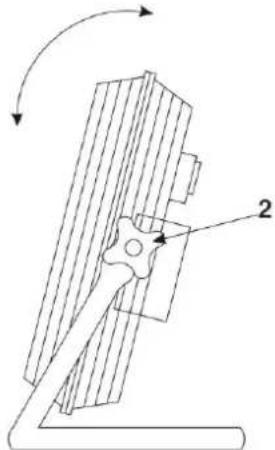

The fan tilt angle can be adjusted by loosening the installation nut (2), setting the required angle and tightening the nut again.
Before starting the maintenance, ensure the fan is unplugged.
Clean the fan with moist (never wet) cloth with a neutral detergent. Do not use petrol or other solvents.
Transportation and storage
Before putting the device away, wait until it cools down. Keep and store in a package protecting from humidity and mechanical damages.
Troubleshooting
If the fan does not start, check the power supply in the mains. Repairs must be carried out solely by the authorised personnel.
Technical parameters
| Voltage | 220–240 V |
| Frequency | 50 Hz |
| Rated power | 110 W |
The manufacturer reserves the right to introduce technical modifications!
The symbol presented below indicates that the used equipment cannot be placed together with other household waste. The user is obliged to bring this item to the waste electrical and electronic equipment collection point where a suitable system is created to allow safe disposal of these items. Dangerous components present in electrical and electronic equipment have negative consequences
for the environment and human health therefore correct handling of the equipment is very important. Certain substances which may adversely affect the environment over the life of the product and after use have been limited in this device.
| Description | Symbol | Value | Unit |
| Maximum fan flow rate | [F] | 66,15 | m^3/min |
| Fan Power input | [P] | 101,40 | W |
| Sernice value | [SV] | 0,65 | (m^3/min)/W |
| Standy power consumption | [P_SB] | 0,00 | W |
| Fan sound Power level | [L_WA] | 64,10 | dB(A) |
| Maximum air velocity | [c] | 3,77 | m/s |
| Measurement standard for service value | IEC 60879 | ||
| Contact details obtaining more information | RAVANSON Ltd., Sp. z o.o.ul. Mazowiecka 6, 09-100 Płońsk, Poland | ||
