Product Type	Pedestal Fan
Brand	Ravanson
Model	WT-2080
Power Input	72.88 W
Fan Flow Rate	69.75 m³/min
Service Value	0.96 (m³/min)/W
Standby Power Consumption	0.00 W
Sound Power Level	61.2 dB(A)
Maximum Air Velocity	2.578 m/s
Speed Settings	3 (positions 1, 2, 3)
Oscillation	Yes (automatic rotation)
Tilt	Yes (manual)
Use	Indoor only
Maintenance	Clean with damp cloth and neutral detergent
Safety Features	Do not operate near water, with damaged cord, or without guard

Frequently Asked Questions - WT-2080 Ravanson

How do I assemble the Ravanson WT-2080 fan?

Assemble the fan as shown in the manual: screw the blade cover to the front grid (Fig.1), then mount the fan head on the column (Fig.2-4). Ensure the blade nut is tightened anticlockwise (left-hand thread).

How do I clean the fan?

Unplug the fan and clean with a moist (never wet) cloth using a neutral detergent. Do not use petrol or solvents.

How do I adjust the fan speed?

Use the speed selector. Position 1 is slowest, 3 is fastest. Position 0 turns the fan off.

How do I activate oscillation?

Press the oscillation button on the drive unit housing (Fig. 5A). To stop oscillation, pull the button out.

How do I tilt the fan head?

Gently tilt the fan head manually by slightly inflecting/deflecting the drive unit (Fig. 5B). Do not force it.

What should I do if the fan does not start?

Check the power supply to the mains. Ensure the plug is properly connected and the speed selector is not at 0. If still not working, contact authorized service.

Can I use the fan in a bathroom?

No. The manual warns not to use the device in the immediate vicinity of a bathtub, shower, or swimming pool.

Can I use an external timer or remote control with this fan?

No. The manual states the device is not designed to work with external timers or a separate remote control system.

How should I store the fan when not in use?

Wait until it cools down, then store in its original package to protect from humidity and mechanical damage.

What is the power consumption of the Ravanson WT-2080?

The fan power input is 72.88 W, standby consumption is 0.00 W.

USER MANUAL WT-2080 Ravanson

ENG User's manual Fan

Black desktop fan with a circular blades and black base (no text or symbols visible)

MODEL:

WT-2080

Producent:

Ravanson®

Diagram of a wind turbine with rotating blades and fan blade (no text or labels)

Rys 4

OBSŁUGA

UWAGA!

Diagram of a mechanical device with a central component and a side view showing internal structure (no text or symbols)

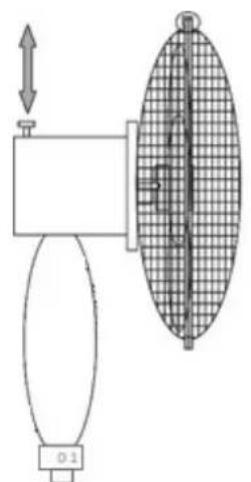

Rys. 5a

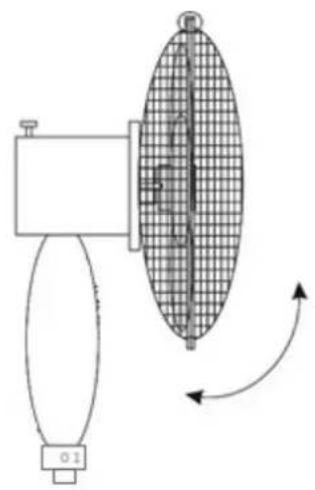

Rys. 5b

Diagram of a mechanical device with a grid-patterned oval component and directional arrows (no text or symbols)

gZ/†ZgZE8IEfIf-w8Ie,Ag:Af

Before first use, always read the safety instructions and warnings in)luded in this guide.

Failure to o(serve the (elow mentioned safety warnings and safety guidelines for may)ause to ele)tri)sho)k, fire and/or serious injuries

-eep safety instru)tions and warnings at hand for future referen)e

GE8ERA2 SAFETY GUIDE2I8ESS

This appliance is not intended for use by children under the age of 8 or other persons, without assistance or supervision, if their physical, sensory or mental capabilities prevent them from using it safely or by persons without experience and knowledge on the use thereof. People using this product must understand the risks related to the use of the appliance. Do not allow children to use the appliance as a toy. Cleaning and maintenance by children without supervision is not allowed.

Children are not aware of dangers that may arise during the use of electric devices. Keep the appliance and corresponding cord out of the reach of children under the age of 8.

Children should be supervised to ensure that they do not play with the appliance.

Do not operate the appliance with a damaged cord. Damaged power cord must be replaced by manufacturer, authorized service centre or other qualified persons in order to avoid risk.

The plug must fit the socket.

The plug must not be modified in any way.

Do not allow the power cord to touch sharp edges or hot surfaces.

Damaged cord poses a risk of electric shock.

Do not place the appliance on hot surfaces.

Do not use outside. Do not expose to rain. Protect against humidity.

Do not operate with wet hands.

During operation keep clothing, long hair away from the moving parts of the appliance.

Do not plug the device in unless it is fully assembled.

Do not use the device with a broken or damaged blades.

Do not remove any parts of the housing.

Do not use the device in the immediate vicinity of a bathtub, shower or swimming pool.

Prevent the cord and plug from any contact with water or moisture.

Do not spray any liquid on the device.

Unplug the device holding the plug; do not pull the cord.

Unplug the device if it is to be moved or is not going to be used for a longer time.

Do not use the device with the protection grid removed.

Transport in an original package protecting from mechanical damages.

The appliance must be repaired by a qualified person using only original spare parts.

Despite operating the unit in accordance with its intended use and in accordance with all safety guidelines, it is impossible to eliminate all residual risk factors.

The appliance is intended for home use only.

The appliance should only be used for private use, as intended for the appliance. This appliance is not intended for commercial use.

Before assembly and disassembly of the sieve, always make sure that the juicer is disconnected from its power source.

Do not ) over the fan prote) tion grid.

Do not put anything into the prote)tion grid when the fan is on.

NOTE! The device is not designed to work with external timers or a separate remote control system.

5t is recommended to connect the device to the power supply network equipped with a residual current device (RCD) with a switch-off current of 30mA or less.

żaщСН

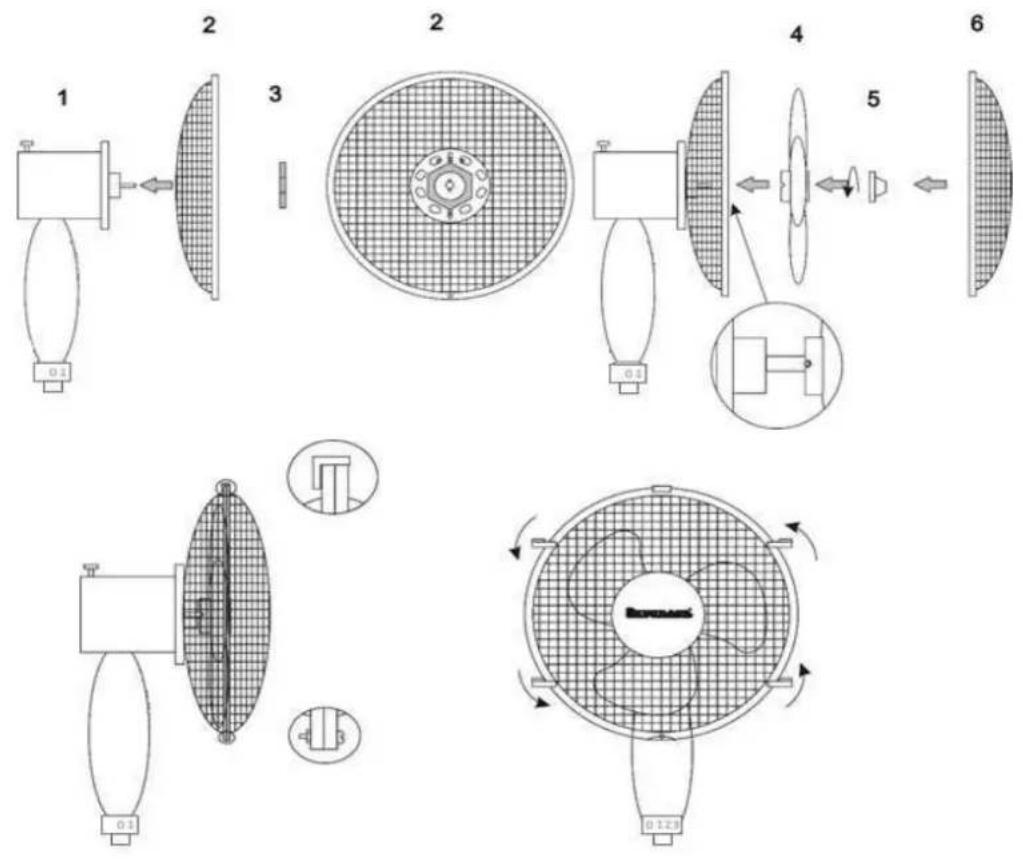

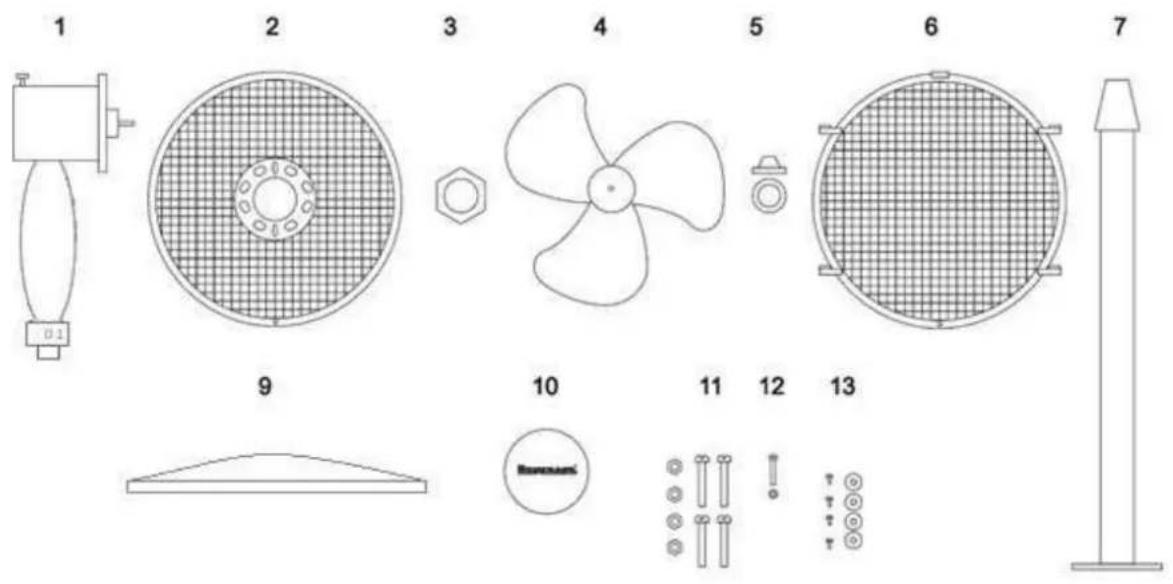

Please check the fan is complete after you open the packaging. Check if the components are not damaged.

АННеП(фУ

1. Screw the blade cover 10 to the front grid 6 (see Figure 1)

Fig 1

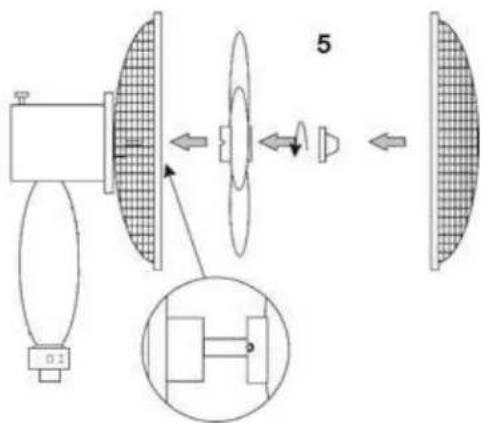

1. Assembly the fan as shown in Figure 2

Fig 2
Attention! Screw blade nut onto the screw, turning anticlockwise (left-hand thread).

1. Assembly the fan column as shown in Figure 3

Fig 3

1. Install the fan on the column (Figure 4)

Diagram of a wind turbine with rotating blades and a fan blade, showing airflow direction (no text or labels)

Fig 4

Attention! Oake sure that the power sour)e to whih the applian)e is to (e )onne)ted is a))ordant with the parameters spe)ified on the rating plate.

Attention! Before every use, inspe)t the devi)e for any signs of me)hani)al damage. Inspe)t the power )ord.

If the power jord is damaged, do not plug the devi)e in.

Fan speed can be set from 1 (slowest) to 3 (fastest). "0" position – switching the fan off. The fan is equipped with a rotational mechanism. Automatic rotation of the fan round its vertical axis is switched on by the button on the drive unit housing (1). See Fig. 5A. This function is switched on by pressing the button. To disable device rotation, pull the button out. The fan head can be tilted in a horizontal axis by aslight inflection/deflection of the drive unit. See Fig. 5B.

Pure mechanical diagram showing a valve and a grid-patterned component without any text or symbols

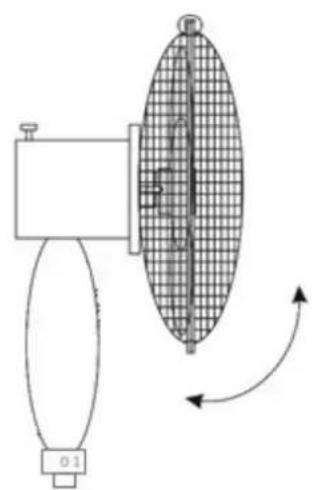

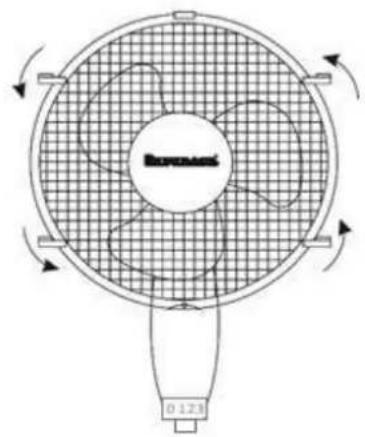

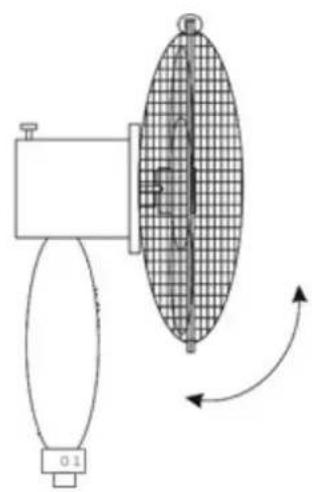

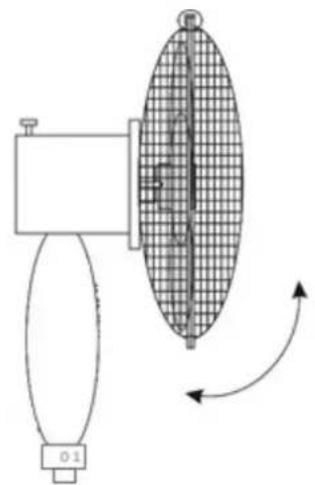

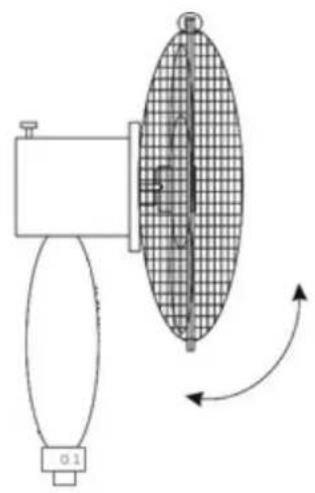

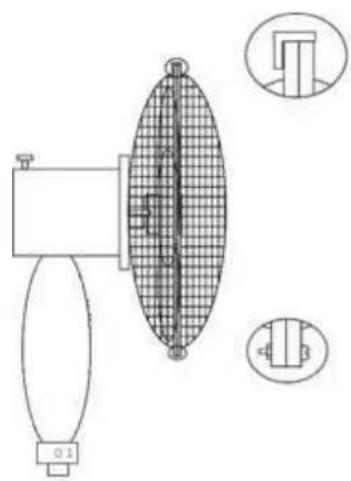

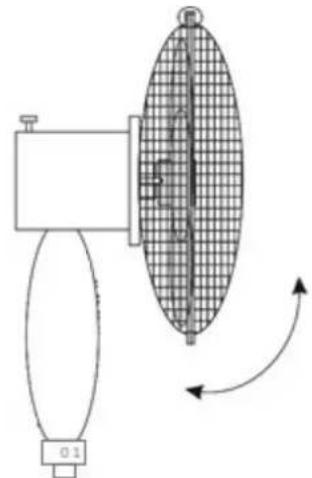

Fig 5a
Fig 5b

Diagram of a mechanical device with a grid-patterned chamber and directional arrows indicating motion (no text or symbols)

Сфеальдьы аьд)аще

Before starting the maintenance, ensure the fan is unplugged.

Clean the fan with moist (never wet) cloth with a neutral detergent. Do not use petrol or other solvents.

ТщавНэчщСаСдчь аьд НСчщаяе

Before putting the device away, wait until it cools down. Keep and store in a package protecting from humidity and mechanical damages.

ТщчО(феНзччСдьы

If the fan does not start, check the power supply in the mains. Repairs must be carried out solely by the authorised personnel.

The manufacturer reserves the right to introduce technical modifications!

The symbol presented below indicates that the used equipment cannot be placed together with other household waste. The user is obliged to bring this item to the waste electrical and electronic equipment collection point where a suitable system is created to allow safe disposal of these items.

Dangerous components present in electrical and electronic equipment have negative

consequences for the environment and human health therefore correct handling of the equipment is very important. Certain substances which may adversely affect the environment over the life of the product and after use have been limited in this device.

Description	Symbol	Value	Unit
Maximum fan flow rate	[F]	69,75	m^3/min
Fan Power input	[P]	72,88	W
Sernice value	[SV]	0,96	(m^3/min)/W
Standy power consumption	[P_SB]	0,00	W
Fan sound Power level	[L_WA]	61,2	dB(A)
Maximum air velocity	[c]	2,578	m/s
Measurement standard for service value	IEC 60879
Contact details obtaining more information	RAVANSON Ltd., Sp. z o.o.ul. Mazowiecka 6, 09-100 Płońsk, Poland

DE

Diagram of a wind turbine with rotating blades and fan blade (no text or labels)

Abb. 4

Pure mechanical diagram showing a valve and a grid-patterned oval component without any text or symbols

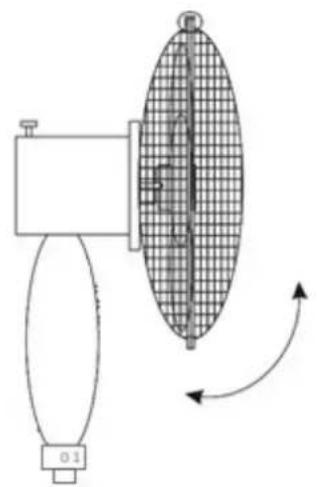

Abb. 5a
Abb. 5b

Diagram of a mechanical device with a grid-patterned central component and directional arrows indicating rotation (no text or symbols)

IbHCabdzaфСОьы

Diagram of a wind turbine with rotating blades and a central fan blade (no text or labels)

Рис. 4

Diagram of a mechanical device with a vertical grid pattern and directional arrows, no text or symbols present.

Рис 5А
Рис 5Б

Diagram of a mechanical device with a grid-patterned component and directional arrows indicating rotation (no text or symbols)

Diagram of a wind turbine with rotating blades and fan, no text or symbols present

Obr. 4

Pure mechanical diagram showing a lever and a grid-patterned oval component without any text or symbols

Obr. 5A
Obr. 5B

Diagram of a mechanical device with a grid-patterned central component and directional arrows indicating rotation (no text or symbols)

Údrž(a:

Circular diagram with a grid pattern and central hexagonal bolt, no text or symbols present

4

6

Technical diagram of a mechanical device with internal grid structure and two circular inset views (no text or symbols)

Diagram of a four-blade fan with grid pattern and directional arrows indicating rotation (no text or symbols)

Obr.32.3

Diagram of a wind turbine with rotating blades and fan, showing directional arrows (no text or labels)

Obr. 4

Pure mechanical diagram showing a lever and oval component without any text, numbers, or symbols

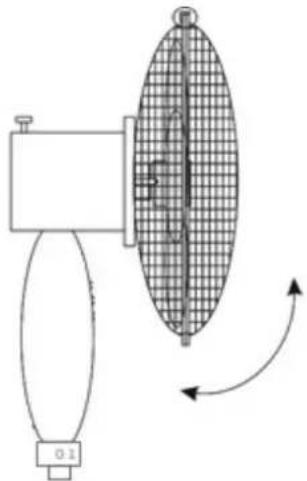

Obr. 5A
Obr. 5B

Diagram of a mechanical device with a grid-patterned chamber and directional arrows indicating motion (no text or symbols)

Údrž(a:

Sl. 2

Pozor! Matico propelerja priviti na vijaku z zasukavanjem le-te v smeri nasprotni smeri gibanja urinih kazalcev (levi navoj).

1. Zmontirati stebriček ventilatorja skladno s Sl. 3

Sl. 3

1. Nasaditi ventilator na stebriček (Sl.4)

Diagram of a wind turbine with rotating blades and a mesh fan, showing directional arrows (no text or labels)

Sl.4

Pozor! Preverite, ali vir napajanja, na katerega želite priključiti napravo, ustreza parametrom, navedenim na podatkovni ploščici.

Technical diagram of a mechanical device with a vertical panel and directional arrows, no visible text or symbols

SI.5A

Diagram of a mechanical device with a grid-patterned component and directional arrows indicating rotation (no text or symbols)

Sl.5B

VKdщžeБаьме

pav. 2.

Diagram of a wind turbine with rotating blades and fan blade (no text or labels)

pav.4

Pure mechanical diagram showing a lever and a grid-patterned component without any text or symbols

pav.5A pav.5b

Diagram of a mechanical device with a grid-patterned central component and directional arrows indicating rotation (no text or symbols)

Priežiūra:

OHUTU -ASUTAOISE Ü2DJUHISED

Diagram of a wind turbine with rotating blades and a fan blade, showing directional arrows (no text or labels)

joonis 4

Pure mechanical diagram showing a lever and a grid-patterned component without any text or symbols

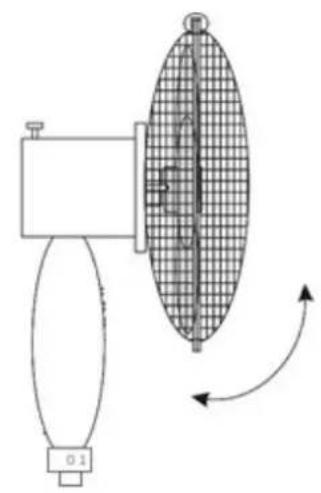

joonis 5A joonis 5A
