Product Type	High-speed air circulator fan
Brand	Blaupunkt
Model	BP2004
Rated Power	90W
Voltage	220-240V ~
Frequency	50 Hz
Speed Settings	3 (Minimum, Average, Maximum)
Tilt Adjustment	Yes, adjustable tilt
Placement	Floor or table
Blade Material	Precision metal blades
Grille Material	Metal front and rear grilles
Motor Overheat Protection	Yes
Energy Saving	High-speed motor for efficient air circulation
Noise Level	Low noise due to precision blades
Cleaning Method	Disconnect from mains, remove front grille, clean with soft damp cloth, dry thoroughly
Safety Features	Do not insert objects, keep away from children, not for outdoor use, do not cover
Guarantee	2 years from manufacturer (Ramsons S.A.)
Manufacturer	Ramsons, S.A., Pedro Muñoz Torres n°1, 41006 Sevilla, Spain
Compliance	EU directives 2004/108/EC, standards EN 55014-1, EN 55014-2, EN 61000-3-2, EN 61000-3-3
Recycling	Dispose according to WEEE directive 2002/96/EC

Frequently Asked Questions - BP2004 BLAUPUNKT

How do I clean the fan?

Unplug the fan, remove the front grille by unscrewing the safety screw, then clean the blades and grille with a soft cloth slightly dampened with mild soap. Dry thoroughly before reassembling. Never use corrosive liquids.

How do I assemble the fan?

Refer to the parts diagram in the manual. Typically, attach the rear grille to the motor, then fix the blade with the pressure screw and nut, then attach the front grille using the screws and hooks. Secure the base with the base screw and nuts.

How do I adjust the fan speed?

Use the speed selector (position 16) on the fan. Turn it to position 0 for off, 1 for minimum, 2 for average, and 3 for maximum speed.

Can I use the fan outdoors?

No, the fan is designed for household indoor use only. Do not expose to rain or moisture to avoid short circuits.

What is the warranty period?

The fan comes with a 2-year guarantee from the manufacturer (Ramsons S.A.). The warranty covers free labor and spare parts, but you must provide the purchase invoice and correctly filled warranty certificate.

How do I tilt the fan?

The fan has a tilt adjustment feature. Loosen the tilt lock, set the desired angle, then tighten again. You can also hang it using the hanging hook if desired.

Is the fan energy efficient?

Yes, it is described as an energy-saving high-speed fan. The precision blades and motor design aim to circulate air efficiently with less power consumption.

What should I do if the power cable is damaged?

Do not use the fan. The power cable must be replaced by qualified technical service personnel to avoid hazards. Contact the manufacturer's after-sales service.

Can children use the fan?

Children should be supervised to ensure they do not play with the fan. It is not intended for use by persons with reduced physical, sensory, or mental abilities without supervision.

How should I store the fan when not in use for a long time?

Clean the fan thoroughly, then store it in a plastic bag or box in a dry place to protect it from dust.

USER MANUAL BP2004 BLAUPUNKT

Enjoy it.

THIS PRODUCT IS FOR HOUSEHOLD USE

TECHNICAL SPECIFICATIONS:

Motor Power: 90W

Voltage 220 - 240 V ~

Frequency 50 Hz

BRIEF DESCRIPTION

Enjoy it.

THIS PRODUCT IS FOR HOUSEHOLD USE

TECHNICAL SPECIFICATIONS

The rated power: 220-240 ~

Frequency : 50 Hz

Power: 90W

PLEASE READ THE INSTRUCTIONS CAREFULLY OF THIS MANUAL BEFORE STARTING.

DO NOT HANDLE THE FAN INTERNALLY.

The texts, photos, colors, figures and data correspond to the current technical level from the moment they were printed. We reserve the right to modifications motivated by the permanent development of the technique in our products.

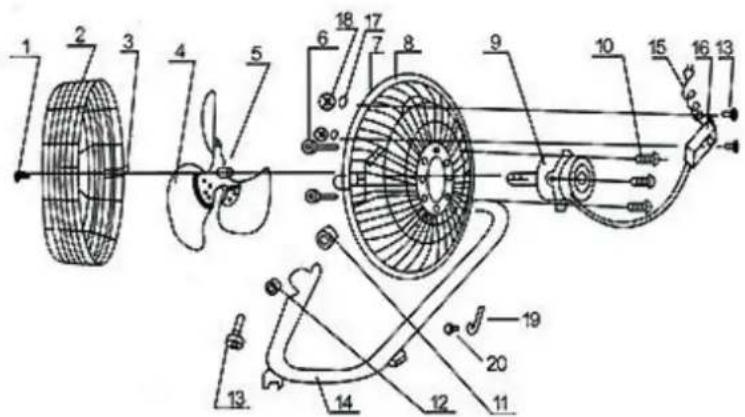

PARTS OF VELOCITY FAN

1. Screw
2. Front grille
3. Grille support
4. Blade
5. Pressure screw
6. Nut
7. Square bolt
8. Rear grill
9. Motor
10. Screw
11. Plastic separation
12. Fixing nut
13. 1Screw
14. Base screw
15. Connection wire
16. Speeds box
17. Washer
18. Nuts
19. Hanging hook
20. Screw

DESCRIPTION

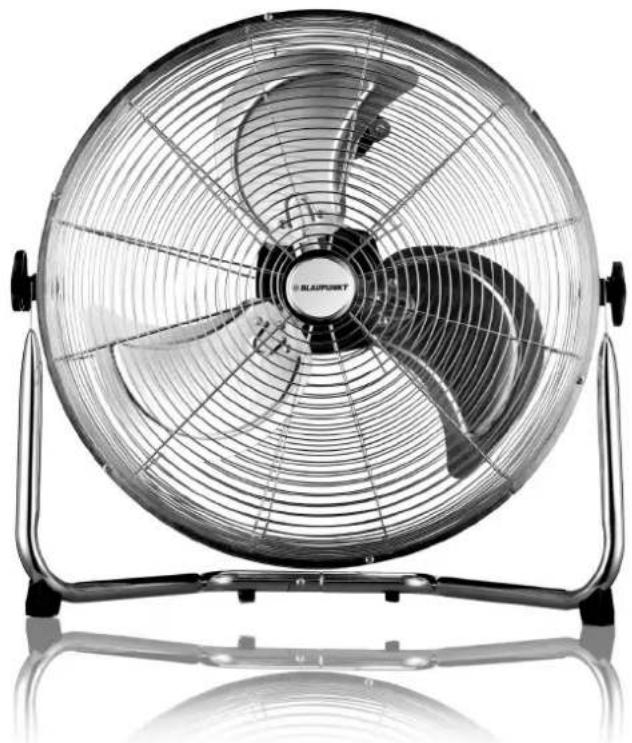

This modern high speed fan provides more range air than conventional fans of plastic. Take the air from the room and circulate it keeping the place cool and airy. If you put it near a window it helps to expel the hot air and circulating between its blades the fresh.

1. Energy saving. High speed motor for the circulation of greater air flow.
2. Inclination adjustment for different uses.
3. Selection of 3 speeds.
4. Precision blades to achieve a greater range of fresh air but with little noise.
5. Solid finish manufacturing. Prevents motor overheating. It can be placed on the floor or table.

INSTRUCTIONS FOR USE

Make sure the voltage used matches the indicated voltage.

Place the appliance on a flat surface.

Set the speed selector (16) to the desired position.

Position

0 - Off Position 1- Minimum speed Position 2 - Average speed Position 3 - Maximum speed

You can tilt the fan or hang it according to the desired position.

NEVER TOUCH THE ASPAS WITH THE HANDS OR ANY OTHER OBJECT.

Do not strain the cable too much. If the cable deteriorates after prolonged use, it must be replaced by qualified technical service personnel.

To clean it, disconnect the cable from the plug. Remove the front grille and the blades very carefully.

Take care not to hit the blades. First, rub with a soft cloth soaked in mild soap, then dry carefully with a dry cloth. Never use corrosive liquids that could damage the paint, metal, or plastic.

Replace the blades and the front grille, then securely screw them in.

CAUTION

Read these instructions carefully before operating the fan.

Do not leave plastic bags or packaging materials within the reach of children.

Do not connect the appliance without ensuring that the voltage indicated on the nameplate matches that of your home.

Verify that the plug base has an adequate ground connection.

Never insert your fingers or any objects through the grilles.

Do not leave it within the reach of children.

Do not use with any control device or programmer that can operate it automatically.

Never place the circulator in a window, as rainwater could cause a short circuit.

This device is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the device by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the device.

Do not cover the device.

Do not use outdoors.

Never immerse it in water.

Never use it without the front grille properly positioned.

Do not use it in places where gas appliances are running.

If the power cable is damaged, it must be replaced by a special cable or assembly supplied by the manufacturer or its after-sales service.

MAINTENANCE AND CLEANING

Before cleaning, make sure the appliance is disconnected from the mains and the blade has completely stopped.

You can clean the exterior with a slightly damp cloth.

If you want to clean the interior parts, you must first remove the front grille. To do this, you must remove the safety screw at the bottom and the hooks that hold the front and rear grilles. Once removed, proceed with cleaning.

Clean the inside with a slightly damp cloth, except for the motor, which should always be cleaned with a dry cloth.

Do not use chemical or abrasive products, metal scourers, etc., that may deteriorate the surfaces.

If you are not going to use the fan for a long period of time, clean it and store it in a plastic bag or in a box.

GUARANTEE DOCUMENT

Thank you for purchasing this BLAUPUNKT product. This device has been meticulously checked in all its components, so we guarantee its correct operation. However, for this to be the case, we need YOU

to read the instruction book carefully, as this will contribute to the best performance of this article.

R.S.A. guarantees to the buyer of this product a total guarantee of TWO YEARS, governed by the established conditions whose regulation is found in Royal Legislative Decree 1/2007 of 16 December, which approves the revised text of the General Law for the Defense of Consumers and Users (articles 114 to 127). R.S.A. is committed to making repairs completely free of charge, including labor and spare parts.

The Technical Assistance Service will resolve any repairs that may be required by this apparatus.

Carefully review the INSTRUCTION BOOK included, on the use, maintenance and conservation of the device.

Any anomaly that could occur due to the non-observance of such instructions will not be protected for the guarantee.

The date of sale of the device, for the purposes of warranty period, will be that which appears on the purchase invoice.

Guarantee operation: As regards all those compliance defects detected by the technical assistance, which are manifested within six months of the delivery of the goods, it is assumed that they already existed on that date, the intervention will be completely free, (unless this hypothesis is incompatible with the nature or nature of the conformity defect).

During the following eighteen months, it must be the user who demonstrates. That the lack of conformity It was coming at the time of delivery.

MANUFACTURED CHINA FOR BLAUPUNKT

DECLARATION OF CONFORMITY

Manufacturer Name: RAMSONS, S.A.

Adress: Pedro Muñoz Torres n° 1

Post Code: 41006

SEVILLA

We declare under our responsibility that the product:

Product Description: FLOOR VELOCITY FAN

Model: BP2004

Brand: BLAUPUNKT

It complies with the European Union legislation in compliance with the 2004/108/EU guidelines

The standards apply: EN 55014-1: 2006+A1:+A2:

EN 55014-2: 1997+A1:+A2:

EN 61000-3-2:2006+A1:+A2:

EN 61000-3-3:2013

Name: Vivek Sadhwani

Position: manager

Date: 26 December 2020

Signature:

26 December

Ramsons, S.A,

Pedro Muñoz Torres N° 1 NAVES HYTASA 41006 SEVILLA

Tfn. 954 933 404 • Fax. [phone]

USER

DATE OF SALE

Seller's signature and stamp

IMPORTANT: To make the guarantee effective, the SELLER must fill out, sign and stamp this Certificate.

To receive assistance under the conditions set forth in this certificate, please submit to the Technical Service Authorized, this document next to the Purchase Invoice

INFORMATION ON RECYCLING

Disposal of the old appliance, the European Directive 2002/96/EC on waste equipment Electrical and Electronic (WEEE), establishes that old appliances cannot be thrown as municipal waste without normal classification. Appliances have to be collected separately with the to optimize the recovery and recycling of the materials they contain and reduce the impact

on human health and the environment.

The symbol "container with wheels" crossed out on the product reminds you of obligation, that when you dispose of the device must be collected separately.

Consumers should contact the local or retail authority to obtain information about the correct disposal of your old device.

BP 2004
