Product Type	Desk Fan
Brand	Blaupunkt
Model	BP2001
Motor Power	35 W
Voltage	220-240 V~, 50 Hz
Protection Class	II
Number of Speeds	3 (Low, Medium, High)
Oscillation	Yes, with push-button control
Assembly Required	Yes (front grille and blade)
Cleaning	Exterior with damp cloth; motor with dry cloth
Safety	Keep away from children under 8; do not immerse; do not cover; do not use outdoors
Guarantee	2 years
Compliance	European Union Directives (2004/108/EU)
Disposal	Separate collection for WEEE (2002/96/EC)
Manufacturer	Ramsons, S.A. (Sevilla, Spain)

Frequently Asked Questions - BP2001 BLAUPUNKT

How do I assemble the Blaupunkt BP2001 fan?

To assemble, first attach the rear grille to the motor shaft and secure with the nut. Then place the blade on the shaft, matching the notch, and tighten with the conical nut. Finally, attach the front grille to the rear grille. See the manual for diagrams.

How do I operate the fan?

Connect the power cord to a 230V AC socket. Use the speed keyboard to select 0 (off), 1 (low), 2 (medium), or 3 (high).

How do I clean the fan?

Ensure the fan is unplugged and blades have stopped. Clean the exterior with a slightly damp cloth. For interior, remove the front grille by pulling outward, then clean with a damp cloth. Clean the motor only with a dry cloth. Do not use chemical or abrasive products.

What are the speed settings?

The fan has three speeds: 1 for low, 2 for medium, and 3 for high. Position 0 turns it off.

How do I use the oscillation feature?

To start oscillation, pull up the oscillation button on the upper rear part of the motor housing. To stop, press the button down.

Is the fan safe for children?

The fan can be used by children aged 8 and above with supervision. Keep the appliance and cord out of reach of children under 8. Children should not play with the fan.

What should I do if the power cord is damaged?

If the power cord is damaged, it must be replaced by a special cord or assembly from the manufacturer or its after-sales service to avoid hazard.

Can I use the fan outdoors?

No, do not use the fan outdoors. It is designed for indoor use only.

How should I dispose of the fan when no longer needed?

Do not dispose of it with household waste. Follow local regulations for electronic waste (WEEE). Contact your local authority for proper collection.

What is the warranty period and how do I claim it?

The fan comes with a 2-year warranty from purchase date. To claim, you need the purchase invoice and the completed guarantee certificate with seller's stamp. Contact authorized technical service.

USER MANUAL BP2001 BLAUPUNKT

Exterior view of a standard Blaupunkt air conditioner fan with five blades and mesh grille (no text or symbols on the fan body)

Enjoy it.

CARACTERÍSTICAS TÉCNICAS

Potencia Motor: 35 W

Voltaje : 220 - 240 V \~

Frecuencia: 50 Hz

Clase: II

MONTAJE DEL VENTILADOR

Exterior view of a standard Blaupunkt air conditioner fan with five blades and mesh grille (no text or symbols on the fan body)

Enjoy it.

SPECIFICATIONS

Motor Power: 35 W

Voltage: 220 - 240 V \~

Frequency: 50 Hz

Protection Class: II

PLEASE READ THE INSTRUCTIONS CAREFULLY OF THIS MANUAL BEFORE STARTING. DO NOT HANDLE THE FAN INTERNALLY.

The texts, photos, colors, figures and data correspond to the current technical level from the moment they have been printed. We reserve the right to modifications motivated by the permanent development of the technique in our products.

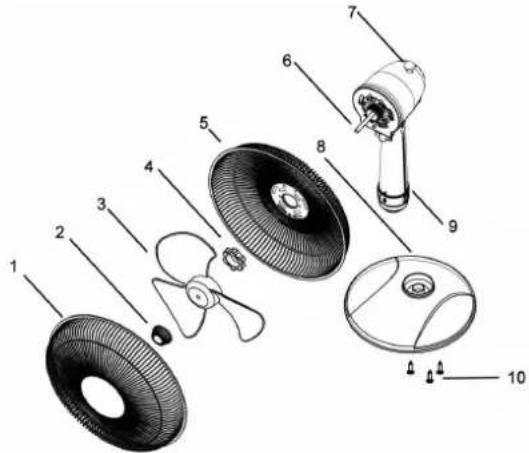

PARTS FAN

1. Front grille
2. Nut clamping blade
3. Aspa
4. Rear grid fixing nut
5. Rear grille
6. Motor shaft
7. Ball head tilt
8. Subjection body to base
9. Keyboard
10. Oscillation button
11. Base

ASSEMBLY

Once the fan is out of the box needs to mount the grid and the blade.

For which you have to place the grid back in the motor shaft socket and hold it by the nut correspondent.

Then place the blade on the motor shaft, match the notch what's in the back center with the iron that is in the shaped shaft of cross, with the nut conica hold the reel firmly.

Place the front grille and attach it to the rear grille firmly.

FUNCTIONING

A. Connect the network cable to a socket (230V AC, 50 Hz) from your home, through the network cable.
B. Using the speed keyboard, select the one you want for an air flow, according to the following positions: 1 "Low speed," 2 "Medium speed," 3 "High speed, and place the button on the position "0" whenever you want to stop.
C. In case you want the fan to oscillate, pull up the button of oscillation, located in the upper rear part of the motor housing. When you want it to stop oscillating, press this button down.

MAINTENANCE AND CLEANING

Before cleaning, make sure that the appliance is disconnected from the the network and the blade totally stopped.

You can clean the outside with a slightly damp cloth.

If you want to clean the interior parts before you must remove the front grill. for it take it by its central part and pull strong outward, once extracted proceed to the cleaning.

Clean the interior with a slightly damp cloth, except for the motor that it should always be cleaned with a dry cloth.

Do not use chemical or abrasive products, metal scouring pads, etc. that can damage the surfaces. If you do not have to use the fan for a long period of time, clean it and save it in a plastic bag or in

a box.

PRECAUTIONS

Read these instructions carefully before putting the fan into operation.

Do not leave plastic balls or packaging elements within reach of children.

Do not connect it without making sure that the voltage indicated on the name plate of the appliance and that of your house do not coincide.

This device can be used by children 8 years and older and people with reduced physical, sensory or mental abilities or lack of experience and knowledge if they have been supervised or instructed about the use of the device shape safe and understand the hazards involved.

Children should not play with the appliance. Cleaning and user maintenance They will not be taken by children unless they are over 8 and supervised.

Keep the appliance and the cord out of the reach of children under 8 years of age. Children should be supervised to ensure they play with the device.

Do not cover the device.

Do not use it outdoors.

Never immerse it in water.

If the power cord is damaged, it must be replaced by a cable or special set to be supplied by the manufacturer or its after-sales service.

GENERAL USE PRECAUTIONS

If you decide not to use the appliance again, it is recommended that you do so unusable by cutting the power cable (after having removed the plug of the electric current). It is also recommended to deactivate all the parties that may constitute a potential danger, especially for children who could use the device for their games.

Save these instructions.

GUARANTEE DOCUMENT

Thank you for purchasing this BLAUPUNKT product, this device has been checked in all its components meticulously, so we guarantee the correct operation, but for this to be the case we need that YOU

read the instruction book carefully, as this will contribute to the best performance of this article.

R.S.A guarantees to the buyer of this product, a total guarantee of TWO YEARS, governed by the established conditions whose regulation is found in Royal Legislative Decree 1/2007 of 16 December, which approves the revised text of the General Law for the Defense of Consumers and Users, (articles 114 to 127) R.S.A is committed to repairs are completely free, labor and spare parts, including.

The Technical Assistance Service will resolve any repairs that may be required by this apparatus.

Carefully review the INSTRUCTION BOOK included, on the use, maintenance and conservation of the device.

Any anomaly that could occur due to the non-observance of such instructions will not be protected for the guarantee.

The date of sale of the device, for the purposes of warranty period, will be that which appears on the purchase invoice.

Guarantee operation: As regards all those compliance defects detected by the technical assistance, which are manifested within six months of the delivery of the goods, it is assumed that they already existed on that date, the intervention will be completely free, (unless this hypothesis is incompatible with the nature or nature of the conformity defect).

During the following eighteen months, it must be the user who demonstrates. That the lack of conformity It was coming at the time of delivery.

MANUFACTURED CHINA FOR BLAUPUNKT

DECLARATION OF CONFORMITY

Manufacturer Name: RAMSONS, S.A.

Adress: Pedro Muñoz Torres n° 1

Post Code: 41006

SEVILLA

We declare under our responsibility that the product:

Product Description: DESK FAN

Model: BP2001

Brand: BLAUPUNKT

It complies with the European Union legislation in compliance with the 2004/108 / EU guidelines

The standards apply: EN 55014-1: 2006+A1:+A2:

EN 55014-2: 1997+A1:+A2:

EN 61000-3-2:2006+A1:+A2:

EN 61000-3-3:2013

Name: Vivek Sadhwani

Position : manager

Date: 26 de December 2020

Signature:

Ramsons, S.A,

Pedro Muñoz Torres N° 1 NAVES HYTASA 41006 SEVILLA

Tfn. 954 933 404 · Fax. [phone]

USER

DATE OF SALE

Seller's signature and stamp

IMPORTANT: To make the guarantee effective, the SELLER must fill out, sign and stamp this Certificate.

To receive assistance under the conditions set forth in this certificate, please submit to the Technical Service Authorized, this document next to the Purchase Invoice

INFORMATION ON RECYCLING

Disposal of the old appliance, the European Directive 2002/96 / EC on waste equipment Electrical and Electronic (WEEE), establishes that old appliances can not be thrown as municipal waste without normal classification. Appliances have to be collected separately with theto optimize the recovery and recycling of the materials they contain and reduce the impact

on human health and the environment.

The symbol "container with wheels" crossed out on the product reminds you of obligation, that when you dispose of the device must be collected separately.

Consumers should contact the local or retail authority to obtain information about the correct disposal of your old device.

BP 2001

VENTOINHA DA MESA

MANUAL DE INSTRUÇÕES

Exterior view of a standard Blaupunkt air conditioner fan with five blades and mesh grille (no text or symbols on the fan body)

Enjoy it.

MONTAGEM VENTOINHA
