GVC100BK - Vacuum Cleaner GEMINI - Free user manual and instructions

Product Type	Cordless Handheld Vacuum Cleaner
Brand	Gemini
Model	GVC100BK
Dimensions (HxWxD)	35.1 x 14 x 10.4 cm (without floor mop); 111 x 14 x 10.4 cm (with floor mop)
Net Weight	1.2 kg
Power Supply	DC 5V / 2A (adapter not included)
Product Power	100 W
Dust Cup Capacity	0.35 L
Battery Type	Built-in lithium-ion (11.1 V, 2000 mAh x 3)
Battery Life	First gear: 20–25 min; Second gear: 10–13 min
Charging Time	Approx. 4 hours
Charging Port	USB Type-C
Suction Power	First gear: approx. 8000 Pa; Second gear: approx. 13000 Pa
Working Noise	< 95 dB
Filter Type	HEPA filter (washable)
Working Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Accessories Included	Car charger, suction nozzle, brush, Type-C cable, 30 cm corrugated hose, hose connectors (small/large), floor brush, extension tube (x2), small brush
Protection Features	Over-charge, over-discharge, over-voltage protection
Special Features	Two speed settings, washable HEPA filter, multi-angle corrugated hose
Safety Certifications	CE, RoHS (implied)

Frequently Asked Questions - GVC100BK GEMINI

How do I charge the Gemini GVC100BK vacuum cleaner?

Use a 5V/2.4A USB charger (not included) and the supplied Type-C cable. Insert the cable into the charging port on the vacuum cleaner and connect the other end to a USB power source. Charging takes about 4 hours. The three indicators flash alternately during charging and stay solid when fully charged.

How do I clean the HEPA filter?

Press the dust bin release buttons on both sides of the host to open the dust cover. Remove the filter assembly by pulling it out. Rotate the steel mesh anticlockwise to separate it from the HEPA filter. Rinse the HEPA filter with water, then let it dry completely before reassembling. Never install a wet filter to avoid motor damage.

What is the battery life of the vacuum cleaner?

Battery life depends on the suction setting. In first gear (approx. 8000 Pa) it lasts 20–25 minutes; in second gear (approx. 13000 Pa) it lasts 10–13 minutes. Battery capacity may decrease with use.

Can I use this vacuum cleaner to pick up liquids?

No. Do not use this vacuum cleaner to pick up water or wet objects. Doing so will damage the motor and void the warranty.

What accessories are included with the GVC100BK?

The package includes: car charger, suction nozzle, brush, Type-C charging cable, 30 cm corrugated hose, two hose connectors (small and large), floor brush, two extension tubes, and a small brush.

How do I change between suction modes?

Press the power button briefly to cycle between first gear (low suction) and second gear (high suction). A long press (1 second) turns the vacuum cleaner off.

Is the vacuum cleaner suitable for car cleaning?

Yes. It comes with a car charger that plugs into a 12V–24V cigarette lighter socket. The compact size and accessories like the suction nozzle and brush make it ideal for car interiors.

How do I know when the battery is low?

When battery power is low, all three indicators will flash. If the battery is nearly exhausted, the vacuum cleaner will shut down automatically to protect the battery. Charge it immediately.

Can I use the vacuum cleaner while it is charging?

The manual does not specify; it is generally not recommended. Always use the vacuum cleaner on battery power for best performance.

What should I do if the vacuum cleaner stops working suddenly?

First, check the battery level: if low, charge it. If the filter is clogged, clean it. Also, ensure the dust cup is not overfilled. If problem persists, contact customer service. Do not disassemble the product.

USER MANUAL GVC100BK GEMINI

Please read this instruction manual carefully before

use and keep it for future reference.

請於使用前仔細閱讀本說明書並加以保存。

SAFETY INSTRUCTION

Attention! When using electric tools, basic safety precautions should be followed to reduce the risk of fire, electric shock and personal injury, including the following,

Please read this manual carefully before operating this product and retain it for future reference.

1. For the first time use or use after long-term storage, please fully charge the product. Please use the power adapter of 5V/2A or above which need a safety certification, and a standard charging line to charge the product.
2. Long press the power button, the indicator light flashes, the vacuum cleaner cannot be started, the battery is low, please charge it immediately.
3. Please use the charging cable delivered by this machine to charge the product, or use the mobile phone charger to charge the product. It is forbidden to purchase an adapter to charge the product without permission.
4. The battery life of the vacuum cleaner may decrease as the number of times the product is used increases.
5. Clean up the HEPA filter in time, otherwise it will affect the dust removal effect.
6. After using the product, please put it in a cool, dry, away from high temperature, high humidity and high dust environment.
7. When using this product to remove dust, it is strictly forbidden to inhale combustion materials, such as cigarette butts, just—extinguished charcoal ashes and burning paper scraps.
8. Due to the built-in high-rate lithium battery, it is strictly forbidden to disassemble the product without permission in case of abnormal noise or other suspected quality problems.
9. Do not use this product to absorb water and wet objects, otherwise it will damage the motor and cause permanent damage to the product, and the product quality problems caused by this behavior are not covered by the product warranty.
10. After use, please put it out of the reach of children. Children are strictly prohibited from operating without permission.
11. This product is not suitable for use in high magnetic field environments.
12. The filter should be cleaned frequently. If the filter is too dirty, it will affect the use of the vacuum cleaner.

WARNING

1. Do not place in high temperature or high humidity environment.

2. Do not modify, disassemble, crush, or throw into fire.

3. If there is any abnormality, please do not continue to use and disassemble without permission.

4. It is strictly forbidden to use unapproved or incompatible adapters and charging cables to charge the product, which may cause malfunctions and dangers.

5. Before long-term storage, please fully charge the product. Please charge the battery to at least 85%. It is recommended to charge the battery every 2–3 months to extend its service life. Otherwise, the service life of the battery will be affected and the product cannot be used normally.

6. This product is not suitable for use by children, or persons with physical, sensory and mental impairments.

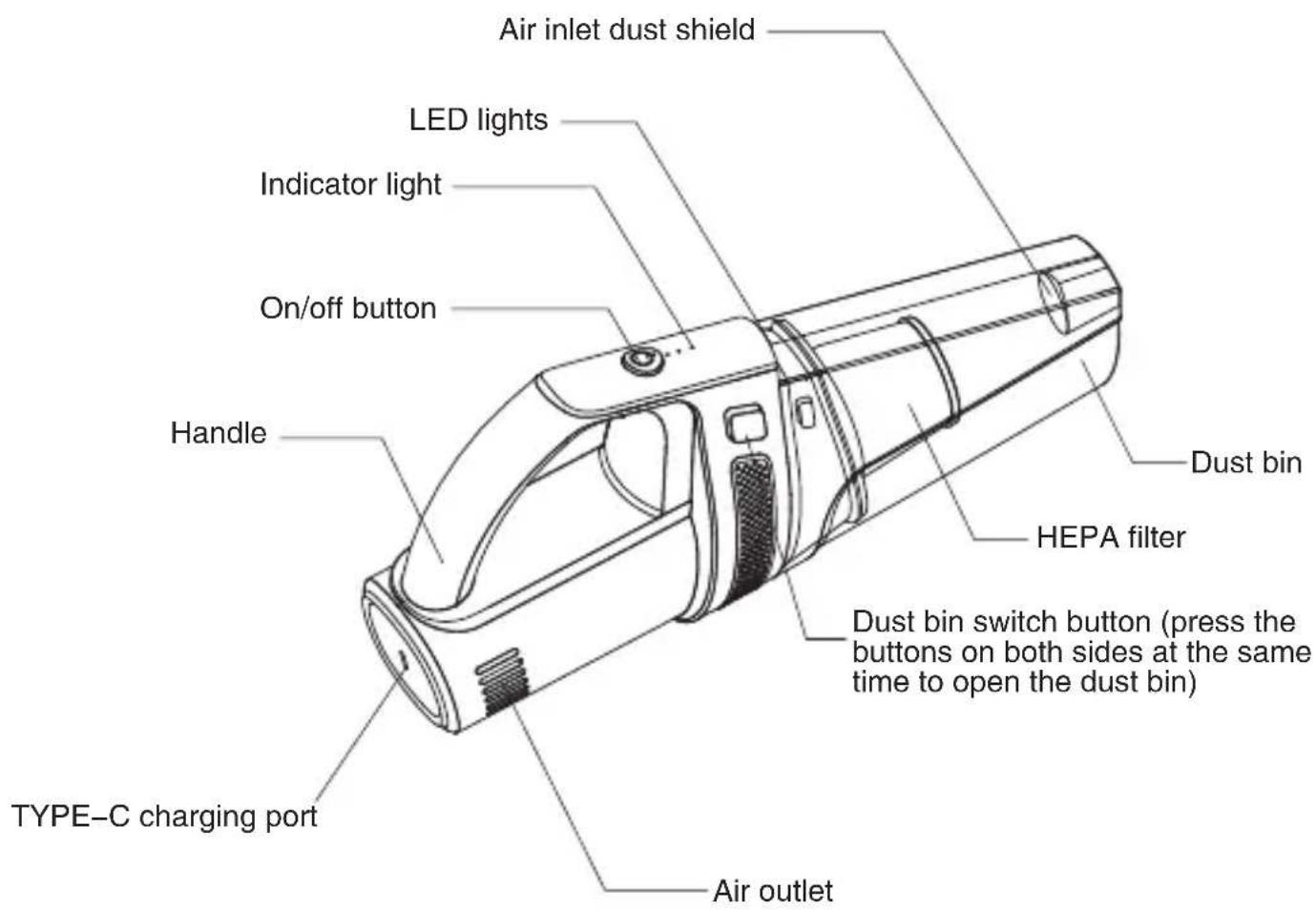

APPLIANCE COMPONENTS

	Press and hold for 1s to start the vacuum cleaner, short press the first gear/second gear cycle, long press for 1s to shut down.
100%60%30%	The battery is fully charged: Three indicators are always on(with the increase of the machine use time, the battery power gradually decreases, and the indicator lights turn off in turn) The battery is discharged: the three indicators flash, and the machine shuts down at the same time charging: The three indicators flash alternately
Vacuum degree	First gear about 8000Pa Second gear about 13000Pa/
Product power	100W
Working noise	<95dB
Working voltage 11.1V
Battery Specification 2000mA*3
Endurance time First gear 20–25min	Second gear 10–13min
Charging time About 4H
Charging voltage	DC-5V
Charging current ≥2000mA
Charging port TYPE-C
Working Temperature	-10°C~50°C (14°F~122°F)
Storage Temperature	-20°C~60°C (-4°F~140°F)
Dust cup capacity	0.35L
Product Dimension H*W*D: 35.1*14*10.4CM
Weight	About 1.2kg

How to Charge

Recommend using 5V=2.4A charger.

(Tip: This product does not contain adapters)

1. Place the vacuum cleaner on the desktop/flat surface.
2. Insert the USB power cable into the charging hole of the vacuum cleaner.
3. Connect the other end of the power cord to a 5V---2.4A USB socket, such as a USB charger, mobile power supply, etc.

Note: Please use the charging cable delivered by this machine or the purchased mobile phone charger to charge the product.

Note

1. When the power supply is exhausted, the three indicators flash and turn off to protect the equipment.
2. The battery is not removable. Please do not squeeze or remove the battery.
3. When the ambient temperature exceeds 50^ C/140°F, it is forbidden to use the battery.
4. Please charge the battery to 60% before not using the storage for a long time.
5. If the machine stops working in a short time, please keep the battery fully charged.

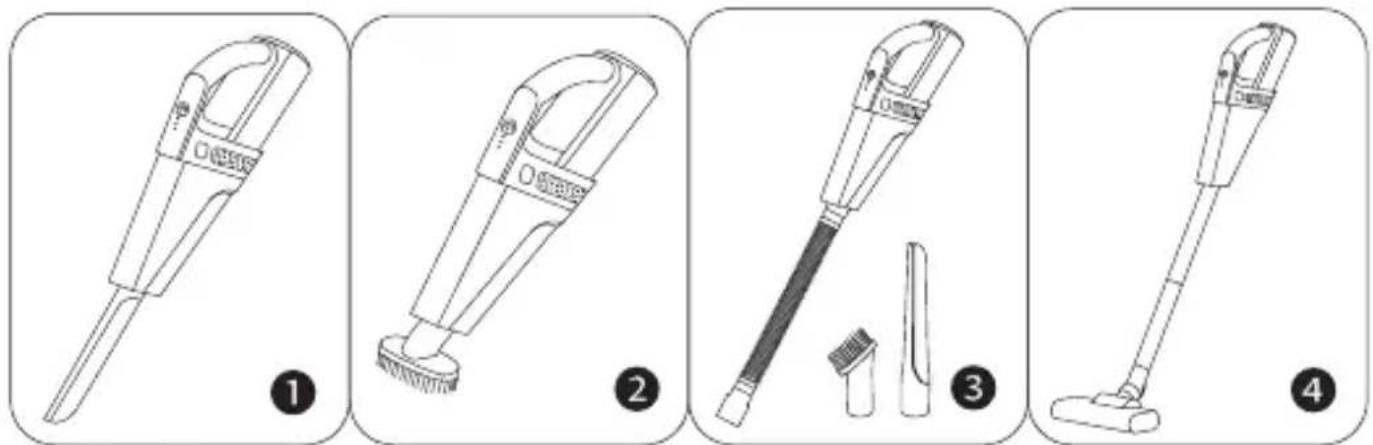

Accessories installation and use

1. Suction nozzle: suitable for dust cleaning of various gaps such as doors, seats, cabinet corners, drawers and ashtrays.
2. Brush: It combines the dual functions of suction and wiping, and is suitable for cleaning dust on various surfaces such as cushions, suede parts of foot pads, keyboards and air-conditioning outlets.
3. Corrugated hose: it can be twisted at any angle, and can be used to clean various inaccessible corners with other accessories.
4. Extension tube+floor brush: suitable for dust cleaning on the floor, bed bottom, sofa bottom, cabinet bottom and various large flat surfaces that cannot be touched.

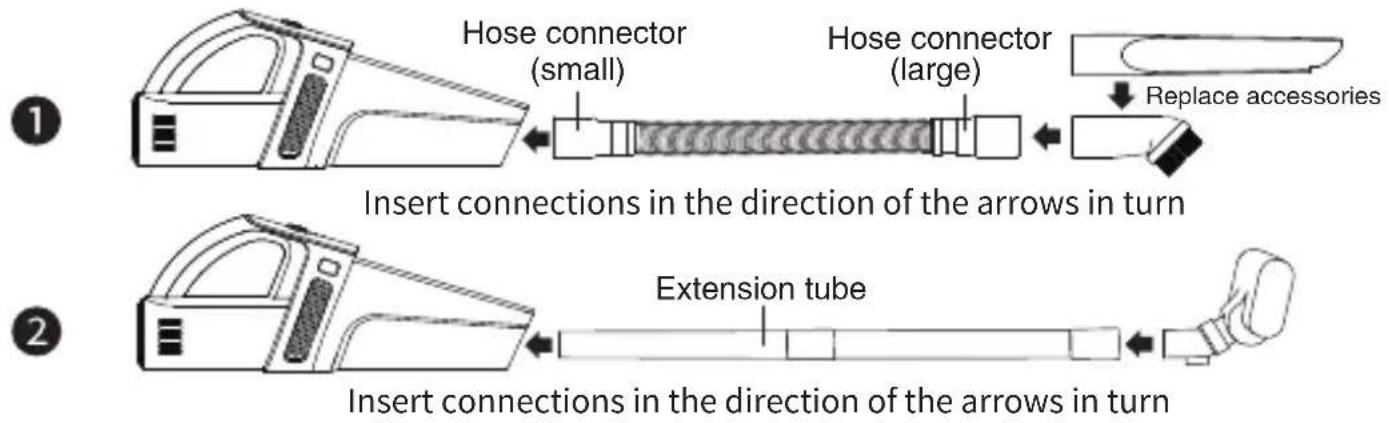

Installation method of corrugated hose and floor brush

What's in the box

	Car charger	X1
	Suction nozzle	X1
	TYPE-C charging cable	X1
	Brush	X1
	30cm corrugated hose	X1
	Hose connector (small/large)	X2
	Floor brush	X1
	Extension tube	X2
	Small brush	X1

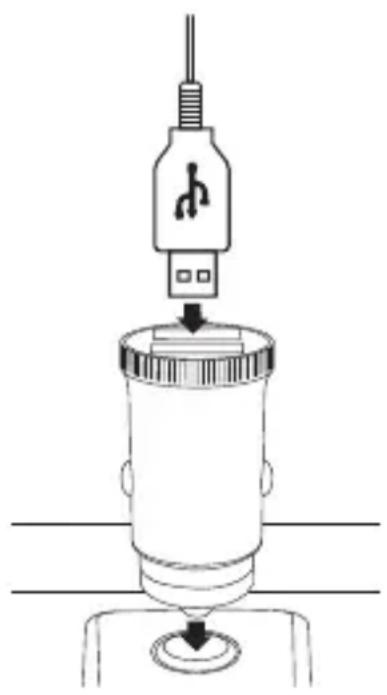

Car charger use and safety instructions

Diagram of a device being inserted into a cylindrical container with a connector (no text or symbols)

One end of the car charger is inserted into the car cigarette hole, straight into the bottom, so that it is tightly stuck with the cigarette hole, after the USB interface is powered on, it lights up with blue light, and then the other end is connected to the USB charging cable.

Product Name:	Car charger
Product size:	24*46mm
Product weight:	20g
Material:	All aluminum alloy
Input:	DC 12V-24V
Output:	5V/2.4A
Applicable models:	12V-24V models

Note:

1. Do not allow the machine to collide with hard objects, as this may cause grinding on the surface of the machine or other hardware damage.
2. Please use the voltage specified by this machine (DC 12V–24V), otherwise the machine may work abnormally or damaged.
3. For a long time of non-use, please disconnect the unit from the power supply of the cigarette lighter.
4. For safety reasons, do not use this product under drops, high temperatures or short circuits, do not throw this product into fire, and keep this product out of the reach of children.

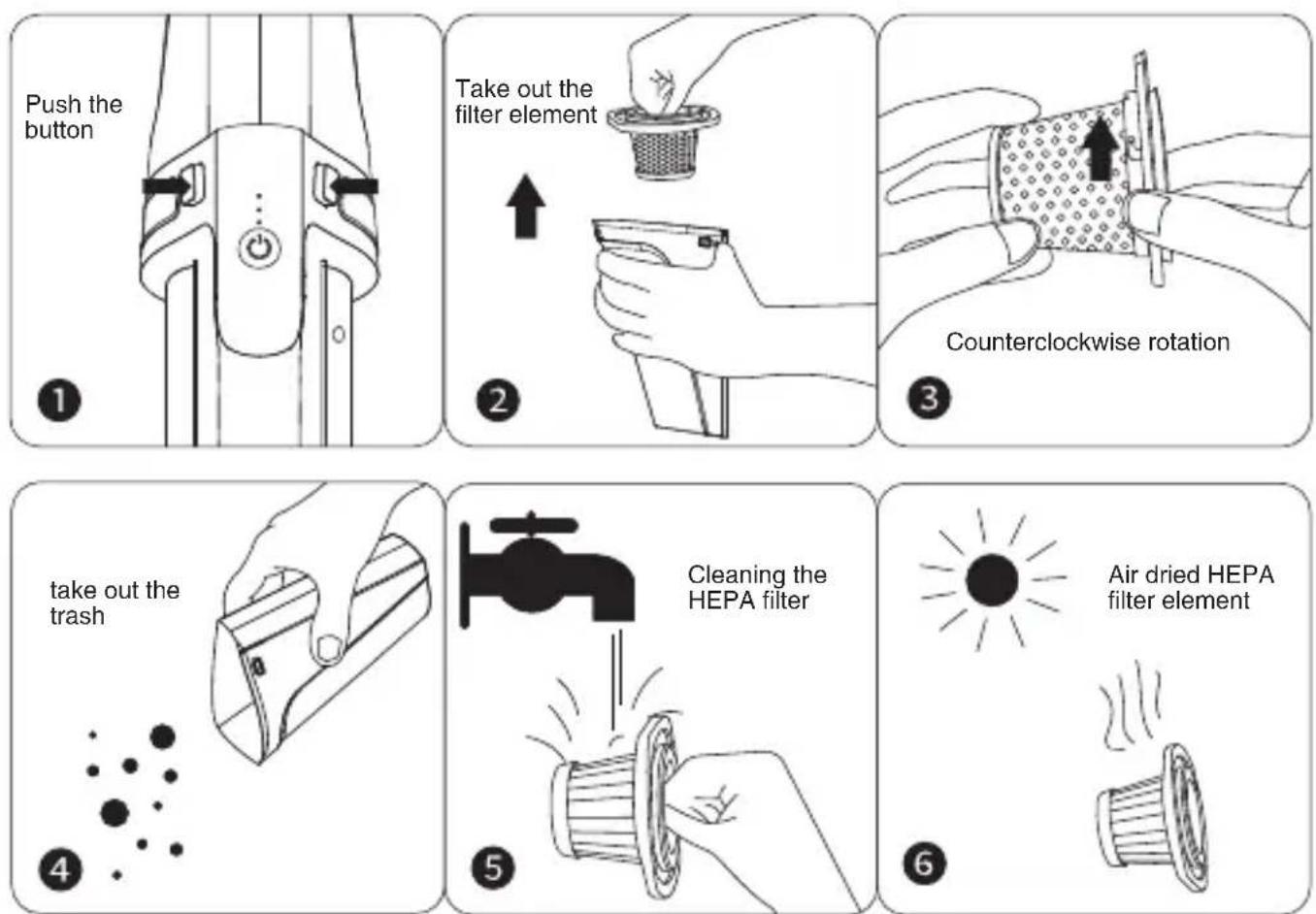

How to Clean

1. Press the dust bin switch buttons on both sides of the host at the same time, and the dust collection hood will open automatically.
2. Remove the filter element from the dust collection hood.
3. Rotate the filter element anticlockwise to separate the steel mesh from the HEPA filter element.
4. Pour the garbage in the dust collection hood into the garbage can.
5. If necessary, clean the dust collection cover with a slightly wet rag or disposable paper towel; The filter element can be flushed with water.
6. After cleaning, the filter element must be thoroughly dried before reuse. (Do not expose to the sun)

Note: After washing, the filter element must be dried and then installed into the dust collection cover. It is forbidden to install the filter element into the dust collection cover without drying, so as to prevent the moisture of the filter element from causing corrosion of the motor and the base plate.

MULTIPLE CIRCUIT PROTECTION

Over-charge protection: When voltage reaches 4.2 V, it will automatically stop charging and prevents the damage caused by the over charging of the battery.

Over-discharge protection: When the fan speed will automatically decrease to protect the device when power is going to exhaust.

Over-voltage protection: When the external charging voltage is higher than 4.25V, it will automatically stop charging.

This marking indicates that this product should not be disposed with other household wastes.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

TECHNICAL DATA

Model No.: GVC100BK

Power supply: DC 5V/2A

Product power : 100W

Dust cup capacity: 0.35L

Product Dimensions: H*W*D: 35.1*14*10.4 CM

Product size: H*W*D: 111*14*10.4 CM (including floor mop)

Net Weight: About 1.2kg

重要安全事項

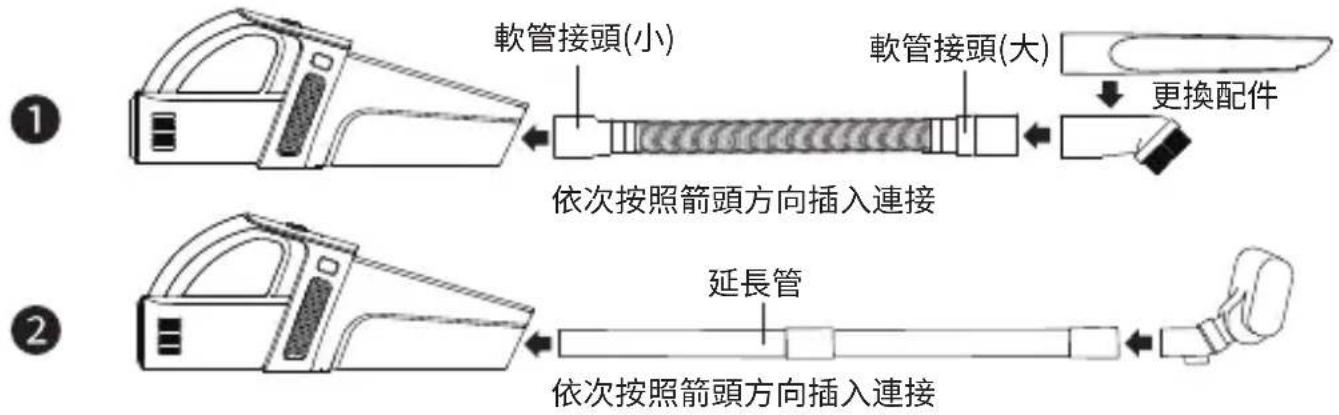

波紋軟管及地板刷的安裝方法：

Diagram of a mechanical device with a connector and base mount (no text or symbols)

購買日期 Date of Purchase:

單據編號 Invoice No.:

The product specifications may be changed without prior notice. Please contact customer service for details if necessary.

說明書內容以英文版本為準

If there is any inconsistency or ambiguity

between the English version and the Chinese version, the English version shall prevail.
