VS 7350 - Refrigerator BOMANN - Free user manual and instructions

Product Type	Refrigerator (Fridge)
Brand	Bomann
Model	VS 7350
Dimensions (H x W x D)	83.1 x 44.5 x 49.0 cm
Net Weight	Approx. 22.0 kg
Power Supply	220-240 V~ / 50 Hz
Rated Power	60 W
Rated Current	2.0 A
Climate Class	N/ST (16°C to 38°C)
Refrigerant	Isobutane (R600a), flammable
Temperature Control	Rotary dial (7 positions + off)
Interior Light	LED, max 10 W, energy class G
Number of Glass Shelves	3
Number of Door Racks	3
Vegetable Drawer	Yes (1)
Egg Tray	Yes (included)
Door Reversible	Yes (left or right opening)
Defrost Type	Automatic (drip tray evaporation)
Cleaning	Regular cleaning with mild detergent; clean condenser annually
Safety Features	Safety instructions for flammable refrigerant; door seal check
Recommended Temperature	4-7°C in center; colder zones for meat/fish

Frequently Asked Questions - VS 7350 BOMANN

How do I set the temperature on the Bomann VS 7350?

Turn the temperature control dial clockwise from position 0 to switch on. Positions 1-7 control internal temperature: 1-2 warmest, 3-4 optimal, 5-7 coldest. For initial use, set to highest level until desired temperature, then reset to medium.

Can I reverse the door opening direction?

Yes, the door can be reversed from right (default) to left. Follow the instructions in the manual: disconnect power, remove hinges, transfer lower hinge to opposite side, reassemble. Requires a screwdriver and assistant.

How should I clean the refrigerator?

Unplug the appliance. Remove all food and shelves. Clean interior and exterior with lukewarm water and mild detergent, or a damp microfiber cloth. Do not use abrasive cleaners. Dry thoroughly before restarting.

What should I do if the refrigerator is not cooling properly?

Check power supply, temperature setting, and ambient temperature. Ensure ventilation openings are clear and door closes properly. If problem persists, contact an authorized technician.

How does defrosting work on this model?

The refrigerator features automatic defrost. Water drains to a drip tray on the compressor and evaporates. Regularly clean the water discharge channel to prevent clogging. Do not use metal tools to remove ice.

Can I store raw meat and fish in this refrigerator?

Yes, but store them in suitable containers on the lower shelves (coldest zone) to prevent contact with other foods and avoid dripping.

Is this refrigerator suitable for freezing food?

No, this model is a fridge only. It does not have a freezer compartment and is not designed for freezing fresh food. It is suitable for storing pre-frozen items temporarily.

How do I change the interior LED light?

The LED light must be replaced by an authorized specialist. Do not remove the cover yourself. If defective, contact service. Lamp data: LED max 10 W, 220-240 V.

What does climate class N/ST mean?

The refrigerator is designed to operate in ambient temperatures from 16°C to 38°C (N = normal, ST = subtropical). Using it outside this range may affect performance.

How can I save energy with this refrigerator?

Place it away from heat sources, ensure good ventilation, keep door closed, set temperature to medium (3-4), let warm food cool before storing, and defrost regularly (model dependent).

USER MANUAL VS 7350 BOMANN

Interior view of a white refrigerator with open doors and clear plastic shelves (no text or symbols visible)

Introduction	page 16
General notes	page 16
Special safety information for this unit	page 17
Transport and packaging	page 18
Appliance equipment	page 19
Installation	page 19
Startup / Operation	page 20
Cleaning and maintenance	page 23
Troubleshooting	page 25
Technical data	page 25
Disposal	page 26

Einleitung

Illustration of a hand holding a tablet with a curved arrow indicating rotation (no text or symbols)

Abstract line drawing of a stylized roof or awning with wavy lines and a black arrow pointing downward (no text or symbols)

Diagram of a mechanical assembly with two components and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical or structural component with two upward arrows indicating direction (no text or symbols)

Simple line drawing of a container with an arrow pointing to the side (no text or symbols)

Simple 3D diagram of a rectangular block with an arrow indicating downward motion (no text or symbols)

Line drawing of a device with internal components and a handle (no text or symbols)

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these instructions for use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General notes

Read the operating instructions very carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this appliance to other people, also pass on the operating instructions.

NOTE:

• Due to constant product modifications, your appliance may differ slightly from these operating instructions; functions and methods of use remain unchanged.
• The illustrations in these operating instructions are for illustrative purposes only and may differ from the original appliance.

- The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.

- The appliance is only to be used as described in the user manual. Do not use the appliance for any

other purpose. Any other use is not intended and can result in damages or personal injuries.

• This appliance is not intended to be used as a built-in appliance.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• To ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special safety information for this unit

- This unit is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING:

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or

lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.
- NOTE: Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
- Do not repair the appliance by yourself, always consult an authorized specialist. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. In case of damage, the appliance must not be used!
- Use the provided collection points of electrical equipment for the disposal of the appliance.

Coolant

WARNING: Risk of fire / flammable

materials

The coolant circuit of this unit contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the appliance.

If the coolant circuit is damaged:

• avoid any open flames or ignition source,
• disconnect the plug,
• thoroughly air the room in which the appliance is installed and
• contact an authorized technician.

Transport and packaging

Transport the appliance

Transport the appliance, if possible, in vertical position. Otherwise, it is absolutely necessary to allow the appliance standing upright for a few hours before installation "Prior to first use". Protect the appliance during transport against weather influences.

Unpacking the appliance

• Remove the appliance from its packaging.
• Remove all packaging material, such as foils, filler and cardboard packaging.
  Dispose of packaging materials that are no longer required in accordance with the locally applicable regulations.
• To prevent hazards, check the appliance for any transport damage.

- In case of damage, do not put the appliance into operation. Contact your distributor.

i NOTE:

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning and maintenance".

Appliance equipment

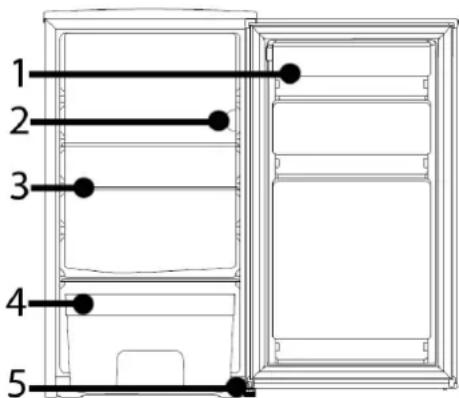

Appliance overview

1 Door storage racks

3 Glass shelves

2 Temperature control / interior light

4 Vegetable drawer

5 Feet

Delivery scope

3x glass shelf, 1x vegetable drawer, 3x door storage rack, 1x egg tray

Installation

Conditions for the installation location

- Good ventilation is required around the appliance to dissipate the heat properly and to guarantee efficient cooling operation at low power consumption. Enough clearance is necessary.

- Gap to the back approx. 50 \~ 70 mm, to the side walls and above the appliance each approx. min. 100 mm;

- Place the appliance so that the appliance door can open without being impeded.

• Only install at a location with an ambient temperature suitable for the climate class of the appliance. The climate class can be found under "Technical data" and on the rating label located in the interior or on the appliance rear.
• Place the appliance on a steady and safe surface. If the appliance is not horizontally leveled, adjust the feet accordingly.

• Avoid the installation:

• near heaters, next to a stove, direct sunlight or any other heat sources;

• at locations with high humidity (e.g. outdoors, bathroom), as metal parts would be susceptible to corrosion under such circumstances;
• near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.), in rooms which may have poor air circulation (e.g. garages).
• Do not expose the appliance any weather.

Leveling the appliance

Slight unevenness in the floor can be leveled out using the front feet.

Check whether the appliance is leveled horizontally. If the appliance is not in balance, the feet must be adjusted.

Electrical connection

WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock!
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.

• The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.

• Make sure that the voltage supply matches the specifications on the rating label before connecting.

• Connect the mains cable to a properly installed and earthed wall outlet.
• If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

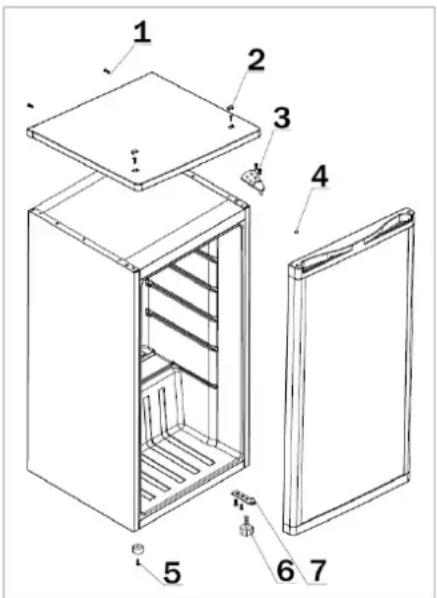

Reversing the door opening

If required, the door opening can be moved from the right (supplied condition) to the left side.

WARNING:

When replacing the door stop, the appliance must be disconnected from the power supply first.

IOTE:

• Ask another person to assist.
• You possibly need: screw wrench, Phillips screw-driver as well as a thin-blade screwdriver.

• Loosen the screws (1) on the appliance back. Remove the cover caps (2), loosen the screws underneath and remove the appliance cover.

- Disassemble the upper door hinge (3) and lift out the appliance door. Move the dummy plug (4) and place the appliance door safely aside.

• Tilt the appliance back slightly and secure it in this position. Unscrew the feet (5) and (6). Disassemble the lower door hinge (7).
• Transfer and fasten the lower door hinge (7) to the opposite appliance side. Screw in the feet (6) and (5) accordingly.
• Place the appliance back in the upright position. Put on the appliance door and fix it in the intended position.
• Transfer and fasten the upper door hinge (3) to the opposite appliance side.
• Fasten the appliance cover and replace the cover caps (2).

Check whether the door is optimally aligned vertically as well as horizontally, so that a smooth opening and closing of the door is ensured.

Startup / Operation

Intended use

The appliance is intended for private/household use. It is suitable for cooling perishable foods such as milk, dairy products, meat, fish, eggs, margarine, various spreads and fruit and vegetables that are not sensitive to cold.

Prior to first use

CAUTION:

After transport, the appliance should be left standing upright for four hours before connecting to the power supply. Nonobservance could lead to malfunction of the cooling system and causes an appliance breakdown.

Clean the appliance interior including all accessory parts. Consider the instructions which we provide in the chapter "Cleaning and maintenance".

Starting the appliance

• Connect the appliance to the power supply.
• Set the operating conditions. See also the following sections.

Settings

Position [0] means that the appliance is in the switched-off state. Turn the temperature control clockwise from this position, the appliance switches on automatically.

The power levels [1-7] control the different values of the internal temperature.

Power level
1, 2	lowest level,warmest internal temperature
3, 4	medium level,optimal operating temperature
5, 6, 7*	highest level,coldest internal temperature

*Beware of high setting because the maximum level may already mean "freezing point".

Basically, the temperature changes depending on the ambient temperature (place of installation), the frequency of opening the door and the equipment.

For initial operation, first set the lowest possible internal temperature (= highest power level) until the appliance has reached the desired operating temperature. It is recommended to reset to a medium power level afterwards, then you can easily make any temperature correction.

Recommendation, for optimized food storage and to avoid food waste, a medium power level is generally best. A high power level also increases energy consumption.

The recommended fridge temperature in the center of the appliance is approx. 4\~7 degrees. If the tem-

perature in the center is correct, the different zones usually also have the correct temperature.

Interior light

When opening the appliance door, the interior light will turn on automatically.

Equipment

Note that the equipment varies depending on the appliance type.

The various shelves and drawers can be height-adjusted (partially and model-dependent) or removed for individual storage. Practical also for cleaning purposes.

i NOTE:

For the most efficient use of energy, place all shelves/drawers in their original positions.

Removing / inserting the shelves

- To remove, open the unit door completely, lift the shelf, if necessary, slant slightly and pull it out to the front.

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a stylized roof or chimney with wavy roof lines and a black arrow pointing to the chimney (no text or symbols)

- Safely reinsert the shelf at the desired height and push it in until the stop is reached.

Removing / inserting the door racks

- To remove the door rack, press it upwards out of the retainer or, depending on the model, first press one side inwards until this side can be pulled out upwards.

Mechanical assembly diagram showing two components with upward arrows indicating motion (no text or symbols)

Diagram of a structural frame with two upward arrows indicating direction (no text or symbols)

- Place the door rack flat, press down both sides of the rack so that it locks into the retainer.

Removing / inserting the drawers

- To remove the drawer, pull it out to the front, incline it if necessary and remove it.

Simple line drawing of a container with an arrow indicating direction (no text or symbols)

Simple 3D diagram of a rectangular block with an arrow indicating downward motion (no text or symbols)

- Insert the drawer, if necessary, lift the front part of the drawer slightly and push it in completely.

Egg tray

Depending on the model, a tray for storing eggs is included with the appliances.

Storing food

i NOTE: Recommendation!

To guarantee that the temperature is low enough, you should pre-cool the appliance a few times before initial loading foods.

CAUTION:

Always pay attention to the storage instructions on the sales packaging.

Always store food covered or packed to prevent drying-out and transfer of odor or taste onto other food items. You may pack the food with e.g.

• Polyethylene plastic bags or foil
- Plastic bowl with lid
• Special plastic cover with elastic strip
- Aluminum foil

To avoid contamination of food, respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems (see "Cleaning and maintenance").
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• Two-star ^** frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice-cubes.
• One- *, two- ** or three-star *** compartments are not suitable for the freezing of fresh food.
• If the appliance is out of use for long period, follow the instructions under "Switching off".

Temperature zones and storage recommendations

The optimal cooling temperature is around 4\~7 degrees for the central area of the cooling.

Different cooling zones are created by the air circulation. Regardless of the power level, cold air drops off.

• The coldest zone is on the cooling rear wall and in the lower cooling part. Recommended for storing perishable foods such as meat, fish and sausages at around 2\~3 degrees.
• About that it becomes less cold. For dairy products such as yoghurt, cheese and co., the center of the cooling is just the right temperature at around 4\~7 degrees.
• Well-packed leftovers or preserves needs less cooling. The upper cooling part at around 6\~8 degrees could be the right place.
• The cooling door is one of the warmest locations. The upper racks are good location for food that needs moderate cooling, such as butter and eggs. There is space for drinks in the lower door racks.
• The vegetable drawer (depending on model) is suitable for fruit and vegetables at a temperature of around 8 degrees, depending on the cooling temperature. To make especially delicate fruits

and vegetables feel comfortable, a glass shelf above the drawer retains the falling cold and prevents moisture loss.

Operating noise

Type of sound	Cause
Mumbling	Compressor during its operation
Liquid sounds	Circulation of the refrigerant
Click sounds	The temperature control turns the compressor on or off
Disturbing noises	Vibration of the shelves or cooling coils

Switching off

To switch off the appliance turn the temperature control to the off state.

If the appliance is out of use for long periods:

• Remove the appliance content.
• Disconnect the appliance from the power supply.
• Defrost (model dependent) and clean the appliance thoroughly (see "Cleaning and maintenance").
• Leave open the appliance door to avoid formation of mold and unpleased odors.

Tips for energy saving

• Disconnect the appliance from the power supply if it isn't in use.
• Do not install the appliance near stoves, heaters or other heat sources. In case of higher ambient temperatures, the compressor will run more frequently and longer.
• Ensure enough ventilation at the bottom and rear side. Never block ventilation openings.
• Place all shelves, racks or drawers (depending on model) in their original position.
• Adjust the temperature not colder than necessary.

• Allow warm food to cool before placing it in the appliance.

• Open the appliance door only as necessary.

• Defrost the unit regularly (model dependent).
• The seal of the appliance door must be completely intact, so that the door closes properly.

Cleaning and maintenance

WARNING:

• Always disconnect the appliance from the power supply before cleaning and user maintenance.
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components. Risk of electric shock! Hot steam could damage the plastic parts.
• The unit must be dry before restarting operation.

CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive detergents.
• Do not damage the refrigerant circuit.

Cleaning the appliance including interior

To keep dirt and germs at bay, clean the appliance regularly!

• First clear out the contents of the appliance and store it in a cool place. Remove all moving parts such as shelves and drawers.
• Clean the interior of the appliance, the exterior surfaces and the accessories with lukewarm water and a mild cleaning agent; or with a clean, damp microfiber cloth without cleaning agent.
• Clean the thaw water discharge channel / opening carefully e.g. with a pipe cleaner.
• After everything has dried thoroughly, you can put the appliance back into operation.
• Depending on the model: At least once a year, wipe off the dust that has accumulated on the rear wall of the unit and on the condenser (metal

grille). Use a soft brush or a vacuum cleaner for this purpose.

Cleaning / replacing the door seal

Regularly check the seal for dirt, damage and air tightness!

Checking the seal for air tightness

- Clamp a thin piece of paper at various points for testing. The paper must be equally difficult to pull through at all points.

Cleaning the gasket

• Clean the gasket with clear water only!
• CAUTION, grease and oil makes the seal porous and brittle. Wipe up grease or oil immediately with a damp, clean cloth.

Replacing the seal

• Remove the contents of the appliance and, if necessary, defrost the unit. Pay attention to how the old gasket is attached. Most gaskets are only plugged in.
• Remove the worn gasket rubber by removing it from the groove. Carefully clean the appliance door and the groove below the rubber and remove any adhesive residue.
• Attach the new rubber. If necessary, heat the rubber seal with a hair dryer or hot water and shape it by hand. Start pressing the gasket in one corner and then press it around the door into the groove provided for this purpose.
• Continue to check the seal regularly for dirt and damage!

Defrosting

CAUTION:

Never use metal objects (e.g. knives) to remove ice from the evaporator. Otherwise, it can be damaged.

During defrosting water drops drains off at the back of the cooling chamber. The thaw water running

through a channel, is collected in a drip tray located on the compressor, where it will evaporate. Make sure the water discharge opening does not get clogged. A light formation of ice on the interior back during operation is normal.

A permanently high power level can lead to increased ice formation → set a lower power level and wipe out the interior of the appliance.

Changing the light

CAUTION:

Do NOT remove the cover of the light. The LED light may be replaced / repaired in case of failure / defect only by an authorized specialist.

Notes for the authorized specialist!

Lamp data: LED max. 10 W, 220\~240 V

This product contains a light source of energy efficiency class G.

Diagram of a device with internal components and a handle, showing no text or symbols

• Disconnect the appliance from the power supply!
• Loosen screw and remove light cover.
• Replace defective light source and reassemble properly in reverse order.

Replacing the door hinge

If the appliance door starts to stutter, crack or jam when you open it, it is probably due to a worn or damaged hinge.

It is recommended to replace all door hinges at the same time, otherwise the next repair will soon be beckoning.

• Remove the contents of the appliance and the movable interior parts.
• Tilt the appliance backwards and block it in this position to prevent the door from sliding out.

• Loosen the hinge cover as described under "Reversing the door opening" and disassemble the upper door hinge.
• Turn out the stand and disassemble the lower door hinge.
• The respective hinge assembly is carried out in reverse order.
• Open and close the appliance door for a test run, readjust the hinges if necessary. In any case, make sure that the door fits tightly and accurately.

Troubleshooting

Before you contact an authorized specialist

Problem / cause / action

Appliance is not working properly or at all

• Check the power supply / temperature setting / ambient temperature.
• Unblock the ventilation openings, install the appliance freely.

Loading is too warm

• Check the temperature setting / ambient temperature.
• A large quantity of warm food has been stored in the unit in the last 24 hours.
• The appliance door is not closed properly, check the door seal.

Loud noise during operation

• Check that the appliance is level.
• See "Operating noise".

Water on the appliance bottom

- Check the temperature setting / water discharge channel or opening.

Problem / cause / action

Light does not work

• Check the power supply.
• See "Changing the light".

i NOTE:

If a problem persists after following the steps above, contact your trader or an authorized technician.

Technical data

Climate class N/ST: this appliance is intended to be used at ambient temperature ranging from 16°C to 38°C.

Electrical connection....

Power voltage: 220-240 V\~ / 50 Hz

Rated power: 60 W

Rated current: 2,0 A

Dimension H x W x D / weight.....

Appliance size: 83,1 x 44,5 x 49,0 cm

Net weight: ....approx. 22,0 kg

For more information about the product, scan the QR code on the supplied energy label and/or visit the official website of the product data bank:

https://eprel.ec.europa.eu

The right to make technical and design modifications during continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where these can be disposed of can be obtained from your local authority. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.

WARNING:

Remove or disable any existing snap and bolt locks if you take the appliance out of operation or dispose it.

Polski

Wstep

Illustration of hands holding a tablet with a curved arrow indicating rotation (no text or symbols)

Simple line drawing of a wavy roof awning with a black triangular element (no text or symbols)

Diagram of a mechanical assembly with two components and upward arrows indicating motion (no text or symbols)

Diagram of a mechanical component with two upward arrows indicating direction (no text or symbols)

Simple line drawing of a door with an arrow pointing to the side panel (no text or symbols)

Simple 3D diagram of a rectangular block with an arrow indicating direction (no text or symbols)

Line drawing of a device with internal components and a curved housing (no text or symbols)

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Diagram of a mechanical assembly with arrows indicating motion or force (no text or symbols)

Water on the appliance bottom

CTC Clatronic Sp. z o.o

Ul. Brzeska 1

45-960 Opole

Usuwanie
