Type	Juicer (Soy milk maker / Multi-function blender)
Brand	Gemini
Model	GSB350WH
Power	400W
Voltage / Frequency	220-240V~ 50-60Hz
Maximum capacity	350 ml
Dimensions (with base)	112 (H) x 152 (W) x 227 (D) mm
Functions	Rice cereal, Soy milk, Boil water, Keep warm, Juice/Clean, Preset
Preset timer range	0.5 to 12 hours (30-minute increments)
Keep warm temperature	Approx. 55°C, up to 12 hours
Material	Stainless steel inner wall, plastic outer body
Safety features	Overheat protection, dry burning protection, lid misalignment detection
Cleaning	Lid and stainless steel inner wall can be rinsed; bottom and handle must not be submerged
Maximum altitude	Below 1200 meters above sea level
Accessories included	Measuring cup (25g capacity), power base
Usage	Household use only, not for commercial purposes
Warranty	Registration available online at www.dchtoolbox.com

Frequently Asked Questions - GSB350WH GEMINI

What can I make with the GSB350WH juicer?

You can make rice cereal, soy milk, boiled water, and fruit juice. It also has a keep warm function and a preset timer.

Can I use hot ingredients directly in the machine?

No. Do not add hot water above 70°C or hot ingredients. This can affect taste, cause poor crushing, or overflow. Always use cold or room-temperature ingredients.

How do I clean the juicer after use?

The lid can be rinsed inside and out. The stainless steel inner wall can be cleaned with a brush. However, the bottom of the machine and the handle must never be washed with water or submerged. Wipe them dry.

What should I do if the machine does not start?

Check that the power cord is fully inserted. Ensure the lid is properly aligned with the indicator mark. Select a function after power-on. If it still does not work, it may be a malfunction; contact after-sales service.

How long does one cycle take?

Rice cereal takes about 23 minutes, soy milk 25 minutes, boil water 6 minutes, and juice/clean about 1.5 minutes. Times may vary based on voltage, climate, and food ratio.

Can I use the preset timer for any function?

The preset function works only with rice cereal and soy milk. After setting the delay (0.5 to 12 hours), the machine will start automatically.

What does error code E1 or E2 mean?

E1 indicates an NTC short circuit and requires professional repair. E2 means the lid is not closed or aligned properly. Check and close the lid firmly.

Is it safe to leave the machine unattended?

The manual advises not to leave the machine unattended during long operation. If you go out or sleep, unplug the power to prevent fire hazards due to insulation failure.

Can I make soy milk with dried soybeans?

Yes. Use one measuring cup (25g) of dried soybeans and add water up to the 350ml max level. Do not exceed this amount to avoid overflow and poor taste.

How do I store the machine when not in use?

After cleaning and drying, reassemble the parts and store in a dry, ventilated place. Do not put it in a disinfection cabinet or dryer.

USER MANUAL GSB350WH GEMINI

To prevent accidents such as electric shock, fire, burns, etc., please observe the following.

1. Please clean the cup body, blade, and cover in time. The blade has a sharp edge. Be careful of cuts when wiping and cleaning. Protective gloves can be worn.
2. When the product is boiled and before cooling after the work is completed, the temperature of the inside of the cup, the upper cover, the blade, and other components is relatively high. High, please do not touch it to avoid burns.
3. Do not plug or unplug the power cord with wet hands to prevent electric shock.
4. During the pulping process, do not quickly open the lid or move the product to avoid being scalded by steam or causing. Overflowing of ingredients may cause burns, electric shocks, and other accidents.
5. Do not lift the whole machine with the cover to avoid the cup body from slipping off.
6. Do not use damaged power cords or plugs to prevent electric shock or short circuit from causing injury, accidents or fire. If the power cord is damaged, a special power cord must be purchased for replacement.
7. Do not add hot water above 70^ C to make slurry, so as not to affect the taste or cause poor crushing and slurry overflow Wait for the exception.
8. Do not drink if the pulping is not completed. After drinking uncooked soy milk, it will be harmful to the human body.
9. Do not immerse the machine in liquid, and do not splash it with water. Do not get water into the power socket and the bottom of the cup. If water enters, please suspend use or wipe dry and dry before use to avoid short circuit or electric shock.
10. Children should be taken care of to ensure that they cannot play or approach the product to avoid burns or personal injury caused by misoperation.
11. Only with the company of an experienced guardian or coach can people with abnormal or no independent behavior use this product.
12. Before use, please confirm that the local power supply should be consistent with the power supply marked on this product, otherwise it will cause product damage or fire.
13. Please operate on a stable water platform and stay away from the edge of the platform to prevent bumping.
14. Do not use this product under or near curtains and other flammable materials, otherwise it may cause a fire.

15. The cover is rotated and fastened to the cup body, and the power cord is inserted into the power socket. Please make sure to install it in place to prevent loosening, power failure or overheating.

16. When the product is working, keep a certain distance from live objects such as sockets, keep the plug within reach, and keep away from flammable and explosive materials. At the same time, the grounding wire of the power socket must be well grounded.

17. After the product starts working, if there is a power failure or other abnormalities, please pay attention to replace the ingredients and re-make it, otherwise it will cause problems such as paste bottom, slurry overflow, and alarm.

18. After the production is completed, please cut off the power first, and then pour the slurry to avoid electric shock due to the movement of the cup body and the inaccessibility of the wires.

19. The temperature of the freshly made beverage is relatively high. Please use high temperature resistant utensils to store it and pay attention to safety to prevent scalds caused by splashing of the beverage.

20. If you need to filter, please pay attention to the high temperature of the residue attached to the filter. When cleaning the filter, do not face people and pay attention to safety to prevent the residue from splashing and causing burns.

Use tips:

1. This product is for household use, please do not use it for commercial purposes.
2. Some ingredients contain natural pigments, which may cause staining of the upper lid. This is a normal phenomenon and does not affect the drink. Please rest assured that it will not damage your health if you drink it.
3. In order to fully smash and release nutrients, it is a normal phenomenon that intermittent noises appear when the machine is beating.
4. Do not make continuous pulping for a long time, otherwise the motor may start the automatic protection function, and the motor will temporarily not work. It can be used normally after the motor is completely cooled.
5. After the pulping is completed, the next pulping should be performed at an interval of more than 8 minutes, otherwise the service life of the product will be affected.
6. Infants, people with renal failure and weak gastrointestinal function should choose low-concentration soy milk or reduce the amount of drinking as appropriate.

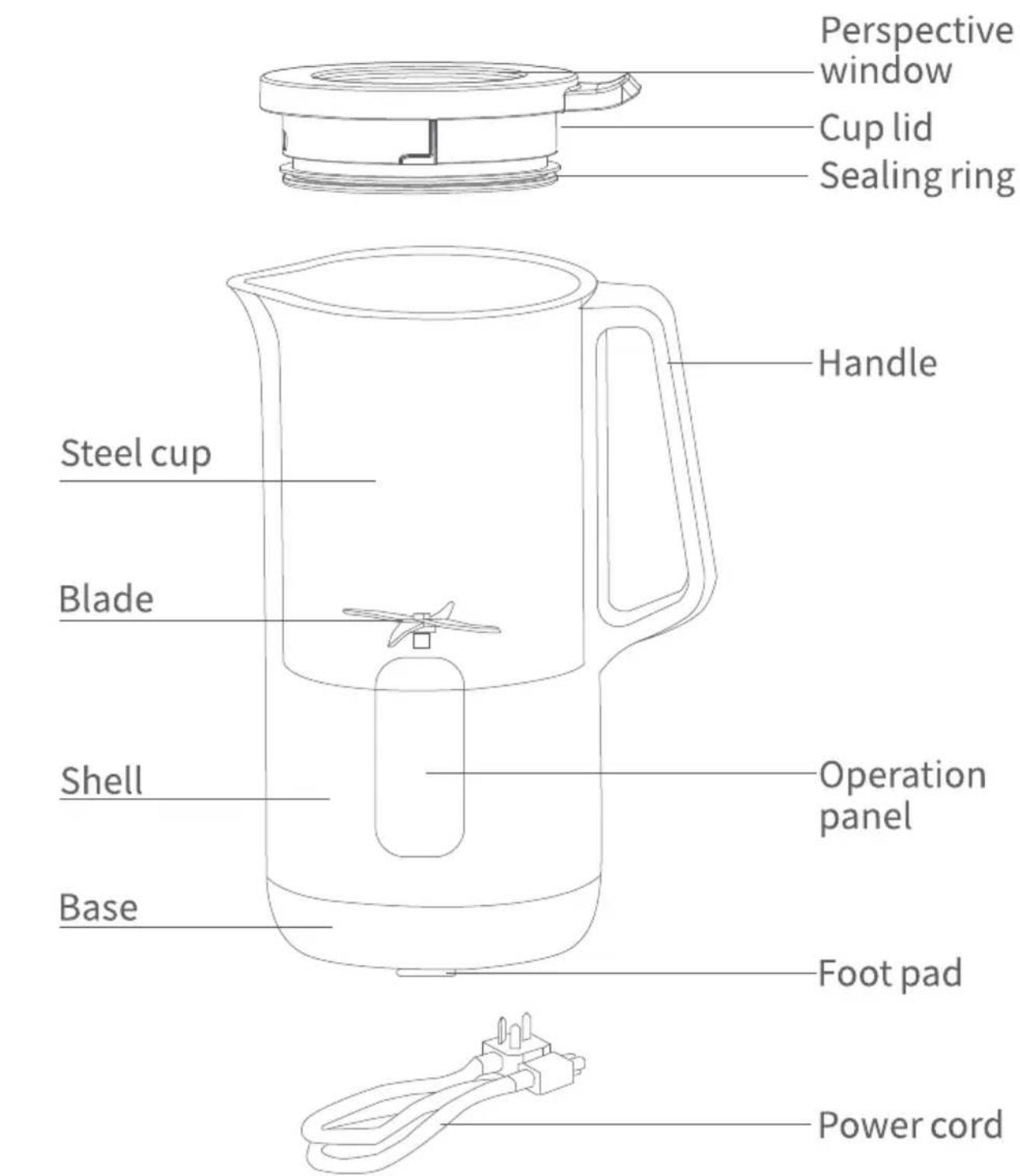

Panel operation and function description

※Do not touch the blade with your hands

Instructions

Line drawing of a simple water heater with handle and side panel (no text or symbols)

① Please clean the inner wall of the cup and knife with clean water before use

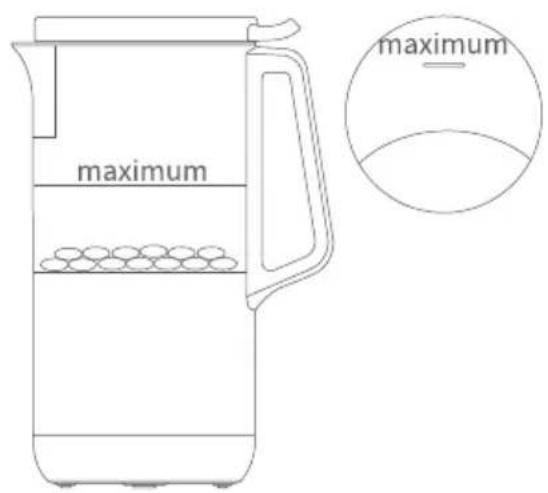

②Put the ingredients and water to the maximum water level mark

Line drawing of a modern kitchen kettle with a digital control panel and rotary scroll (no text or symbols)

③ Install the lid, ▼ and 🔒 are aligned and the installation is successful

Line drawing of a container with handle and outlet, connected to a plug (no text or symbols)

④After installing the cover, you can plug in the power cord

⑤After the machine is powered on, you can press the "Menu/Start" button to select the menu

A. Use of menu function keys

Plug in the power and the indicator lights will be on for about 1.5 seconds, then enter the standby state

Click the "Start/Cancel| Menu" function key to enter the function selection state, after clicking the "Start/Cancel|Menu" function key to select the function: [rice cereal/soy milk/boil water/Keep warm/juice/clean] several The function is switched, the selected function light is flashing (other function lights are always on), the function will automatically enter the working mode after 3 seconds after the function is selected, the started function light is always on (other function lights are off), the machine automatically completes the program, and the work is finished Automatically return to standby mode, 3 buzzers.

Rice Cereal

Soy Milk

Boil Water

Juice /Clean

Keep Warm

Preset

Cancel key: Press the "Start/Cancel|Menu" function key for 3 seconds to cancel the corresponding function and return to the standby stateShut-down: cut off the power

B. Use of the "Preset" function key

1. Select the appointment function: In the standby mode, long press the "Preset" function key for 3 secondsto enter the Preset state, and the display shows 05 (representing 30 minutes)

1. Countdown time selection: Click the "Start/Cancel|Function/Reservation" function key to select the countdown time (05/1H/15/2H...175/18H), in 30-minute increments, the maximum time is 18 hours, after selecting the time, press "Start/Cancel|Function/Reservation" function key for 3 seconds to confirm to enter the function selection interface (the rice cereal function light is flashing/the soybean milk function light is always on, and the other function lights are off)

3. Function selection:

Click the "Start/Cancel|Function/Reservation" function key to select the function: rice cereal, soy milk, two functions to choose (the selected function light is flashing, and the other function lights are always on) after the function is selected, the countdown counts down to 3 seconds (The buzzer will beep for a long time) to complete the appointment operation.

4. The appointment is complete:

The selected function light is always on, the other function lights are off, and the display shows the set time and starts counting down.

Note:

In order to prolong the service life of the machine, after the machine has completed two consecutive cycles, it can continue to work after at least one hour of rest.

Functions and recipes

Please use the measuring cup equipped with this product to take the ingredients. Please add the ingredients according to the amount of the recipe. Please add water to the water level mark (if the recipe has a clear water amount requirement, please follow the recipe requirement). Please process large pieces of food into the size of peanuts.

Function	Ingredients	Matters needing attention
Rice cereal (About 23 minutes)	25g of pure rice (a measuring cup), Add water to the highest water level(350ml)	Do not open the lid of the cup to add ingredients during the mixing process to avoid local burns.
Soy milk (About 25 minutes)	25g dried soybeans (a measuring cup), Add water to the highest water level(350ml)	1. Adding too much water or soybeans may cause overflow and decrease in taste;2. Do not open the lid of the cup to add ingredients during the mixing process to avoid local burns.
Boil water (About 6 minutes)	Add appropriate amount of pure water, the highest can not exceed the water level(350ml)	1. Do not add too much water to avoid high temperature water splashing and scalding;2. Do not open the lid of the cup during boiling to avoid local burns.
Keep warm (About 55 degrees, 12 hours)	The liquid food that needs to be kept warm should not exceed the water level (350ml)	Do not add excessive liquid ingredients, it may cause overflow and taste loss.
Juice/Clean (About 1.5minutes)	Add no more than 60 grams of fruit (need to be cut into squares no more than 1.5x1.5cm in advance) and pure water to just exceed the maximum water level (350ml) of the ingredients	If the water exceeds the fruit, the mixing effect will be affected, so do not exceed the maximum water level.
Preset	Put in the corresponding food and do not exceed the maximum water level	0.5~12 hour setting appointment, 0.5 hour increment, up to 12 hours can be set

Note:
Due to the different voltages, climates, and food ratios in different regions, they will affect the total function time. The plateau area can only be used below 1200 meters above sea level. The above time is for reference only.

Cleaning demonstration

Illustration of three different kitchen utensils with water spray, showing different shapes and surfaces (no text or symbols)

A. The lid can be rinsed directly inside and outside

Line drawing of a kettle with a brush and handle, no text or symbols present

B. The stainless steel inner wall can be cleaned with a brush

Simple line drawing of a water tap with a cross mark and faucet, no text or symbols present

C. The bottom of the machine cannot be washed with water

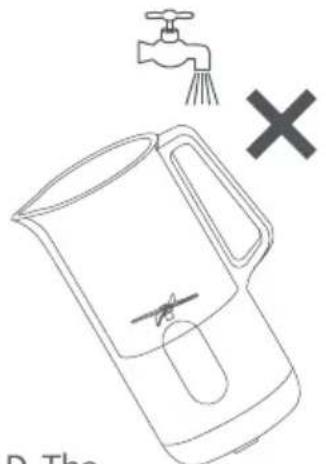

D. The handle of the machine cannot be washed directly with water

Cleaning storage

1. After cleaning, it is recommended to wipe or dry, and then assemble it into a complete machine for storage.
2. Please store the product in a dry and ventilated place.
3. Do not put it in a disinfection cabinet or dryer for disinfection or drying.
4. If the stainless steel surface such as the inside of the cup is partially discolored or bluish after pulping, this is a normal phenomenon and is harmless to the human body. Please rest assured to drink. (The phosphate ions and calcium and magnesium ions in the food will crystallize at a constant temperature and cause blueing, which can be removed by wiping with vinegar.)
5. Please wipe or dry the cleaned lid before putting it in the cup to avoid odor.
6. After the standby unit has cooled down, please clean it in time, wipe it dry or dry it, and store it in a dry and ventilated place.

Tips:

Do not use steel wool to clean the machine. It is recommended to soak in hot water and detergent before cleaning.

Simple troubleshooting

Fault code	Cause of failure	Treatment plan
The indicator light does not light up	The power cord is not plugged in properly	Insert the power cord to the end
No response to keystrokes	Cup lid is not aligned with the indicator line	Close the lid of the cup as required and align it with the indication mark
Machine not working	No function selectedMachine failure	Select the corresponding functionSend to after-sales service department for repair
E1	NTC short circuit	Send to after-sales service department for repair
E2	The lid is not closed or is not aligned with the indicator	Close the lid as required
E3	Dry burning of the machine, high temperature fault code	Cut off the power and stop working
Unbreakable ingredientsOverflow pot	Wrong functionToo much or too little ingredientsMachine failure	Choose the right functionAdd ingredients according to the instructions and recipesSend to after-sales service department for repair
Paste pot	The inside of the cup is not cleanedAdd too much ingredients	Clean the inside of the cupAdd ingredients according to the instructions and recipes

Tips:

1. If the problem cannot be solved, do not disassemble the machine privately, please send it to the after-sales service department for repair.
2. If the above content is inconsistent with the actual product due to changes in model or parts, please refer to the actual product without prior notice. Please understand!

Precautions

Warning symbol with exclamation mark inside a triangle (no text or numbers)

warning

Failure to follow the instructions will be dangerous

Warning symbol with exclamation mark inside a triangle (no text or numbers)

Notice

Operation in violation of regulations may damage your belongings, property, and even endanger your personal safety

Notice

The product needs someone to be present during long-term operation or use. If it is not suitable for a long time, or if people leave or go out, please unplug it.

● Some parts are still energized during standby, which may cause a fire due to insulation cracking or leakage.

Notice

When going out or sleeping at night, the power should be cut off.

- It can avoid the fire accident caused by the aging of the line, and can save power.

Prohibit

Do not spray volatile oil, paint, or insecticide on the product.

It may cause electric shock and fire accidents.

Do not allow the product to inhale or throw flammable materials and do not use it where the oil components of the machine are floating.

- It will cause cracks, peculiar smell and fire accidents.

Unplug

When not in use for a long time or when going out, be sure to unplug the power plug.

Some parts are still energized during standby, which may cause fire accidents due to insulation cracking or leakage.

- Do not pull the power cord when unplugging, and be sure to unplug it from the plug.

Simple line drawing of a door handle with an arrow indicating direction (no text or symbols)

No water drenching

Do not use in places with heavy humidity such as bathrooms.

- It will cause poor insulation, resulting in leakage or failure.

Simple line drawing of a box with an X symbol and smoke, no text or symbols present

Notice

Please make sure that the power cord is plugged in before use.

- Please make sure that the plug fits tightly with the socket, and there should be no looseness or incomplete insertion.

Illustration of a hand using a power plug to switch an electrical outlet (no text or symbols present)

Prohibit

Do not use damaged power cords or plugs.

● This is the cause of electric shock, short circuit and fire.

Illustration of a person using a smartphone with motion lines indicating speed (no text or symbols)

Prohibit

Do not use multi-head power cord sockets.

- Do not use extension cord sockets or share power sockets with other electrical appliances. There is a danger of fire caused by overheating

Illustration of a plug-in socket with two leads and a cable, no text or symbols present

Prohibit

Do not trample on the power cord.

- Do not damage the wires and power plugs, which may cause electric shock, short circuit or fire. If the power cord is damaged, in order to avoid danger, if the power cord is damaged, you must use a s or a special component purchased from or maintenance department To replace.

Cartoon illustration of a smartphone with a box and chains, no text or symbols present

No touch

Do not unplug the power cord with wet hands.

- When the power plug needs to be unplugged, do not pull out the plug with wet hands. There is a risk of electric shock.

Simple line drawing of a person riding a scooter (no text or symbols)

Product Specifications

Model No.: GSB350WH

Power: 400W

Voltage frequency: 220-240V\~ 50-60Hz

Maximum capacity: 350ml

Product dimension: 112(H) x 152(W) x 227(D) mm (with power base)

*The final product specification may be varied according to a different lot of material and actual input voltage power of the usage area.

安全注意事項

Line drawing of a portable water heater with handle and side panel (no text or symbols)

①清洗杯子内壁和刀片

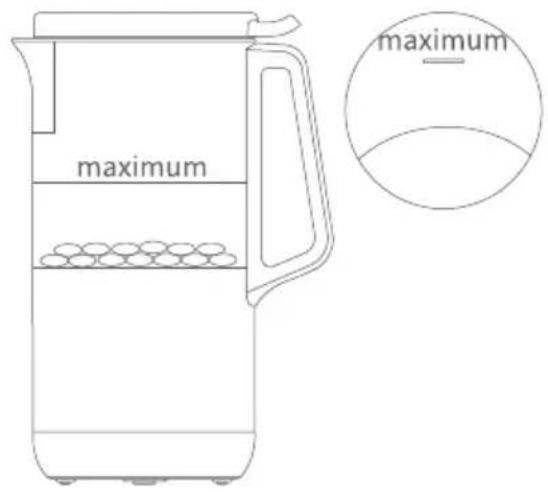

②放食物和水至最高水位刻度線

Line drawing of a modern kitchen kettle with a digital display and control panel (no text or symbols)

③旋上蓋子 對準標誌

Line drawing of a water dispenser with a plug inserted, showing fluid flow direction (no text or symbols)

④插上電源線 ⑤選擇功能

Illustration of three different kitchen utensils with water spray, showing different shapes and surfaces (no text or symbols)

杯蓋里外可直接沖洗

Line drawing of a portable water heater with a brush and handle (no text or symbols)

不鏽鋼內壁 可用刷子清洗

Simple line drawing of a water tap with a cross mark and faucet, no text or symbols present

機器底部 不能用水沖洗

Line drawing of a water dispenser with faucet and cross symbol (no text or labels)

機器把手不能用水直接沖洗

清洗收納

購買日期 Date of Purchase:

單據編號 Invoice No.:

The product specifications may be changed without prior notice.

Please contact customer service for details if necessary.

說明書內容以英文版本為準

If there is any inconsistency or ambiguity

between the English version and the Chinese version,

the English version shall prevail.

保養登記

Warranty Registration

於網上登記新產品保養

Register your product online

www.dchtoolbox.com

小電維修服務 - 自攜點

Repair Service - Collection Points

Gilman

since 1841

DCHToolBox

大昌行電器維修中心

4/F, DCH Building, 20 Kai Cheung Road, Kowloon Bay, Hong Kong

客戶服務熱線 Customer Service Hotline: [phone]
