Product Type	Air Fryer
Model	FR3507
Brand	DCG
Power Supply	220-240 V, 50/60 Hz, 1200-1400 W
Temperature Range	80 °C - 200 °C
Timer	0 - 30 minutes (manual knob)
Capacity (Basket)	Up to 800 g (depending on ingredient)
Dimensions (Approx.)	Not specified in the manual; typical air fryer size
Weight (Approx.)	Not specified in the manual; typical weight around 4-5 kg
Main Functions	Hot air frying, rapid air circulation, adjustable temperature and timer
Dishwasher Safe Parts	Yes, basket and frying tray
Cleaning	Non-abrasive sponge, degreasing liquid if needed; heating element brush
Safety Features	Auto shut-off with timer, cool-down period, overheat protection (inferred)
Material	Non-stick coating on basket and tray
Storage	Cord storage compartment at back
Warranty	Not specified in manual; standard DCG warranty applies

Frequently Asked Questions - FR3507 DCG

Do I need to preheat the air fryer?

Yes, it is recommended to preheat for about 3 minutes. Turn the timer to a little more than 3 minutes and wait until the heating-up light goes out. Then add ingredients and set the required time.

Why is my food not cooked evenly?

This can happen if the basket is overloaded or if ingredients need shaking. Refer to the settings table for recommended amounts and shake halfway through the cooking time.

Can I use oil in the air fryer?

Yes, you can add a small amount of oil (e.g., 1/2 tablespoon) to potatoes for crispiness, but do not fill the tray with oil. The air fryer uses hot air circulation.

How do I clean the air fryer?

Unplug and let cool. Clean the basket and tray with hot water and mild detergent using a non-abrasive sponge. They are dishwasher safe. Wipe the exterior and interior with a damp cloth.

Why is white smoke coming out of the appliance?

White smoke can occur if cooking greasy ingredients or if there are leftover residues from previous use. Ensure the tray is clean and keep temperature below 180°C for fatty foods.

Can I cook frozen foods directly?

Yes, frozen foods like fries, nuggets, and fish fingers can be cooked directly. Follow the settings table for recommended times and temperatures.

How do I make homemade fries crispy?

Peel and cut potatoes into sticks, soak in water for 30 minutes, dry thoroughly, then toss with 1/2 tablespoon of oil. Fry at 180°C and shake halfway.

What should I do if the basket does not slide in properly?

Check if the basket is overloaded or not properly inserted. Ensure the basket is pushed down into the pan until it clicks. Do not fill beyond the Max mark.

Is the air fryer safe to leave unattended?

No, do not let the appliance operate unattended. It has an auto shut-off when the timer reaches zero, but always stay nearby during use.

Can I use the air fryer to reheat food?

Yes, set the temperature to 150°C and the timer to about 10 minutes. This method works well for leftovers.

USER MANUAL FR3507 DCG

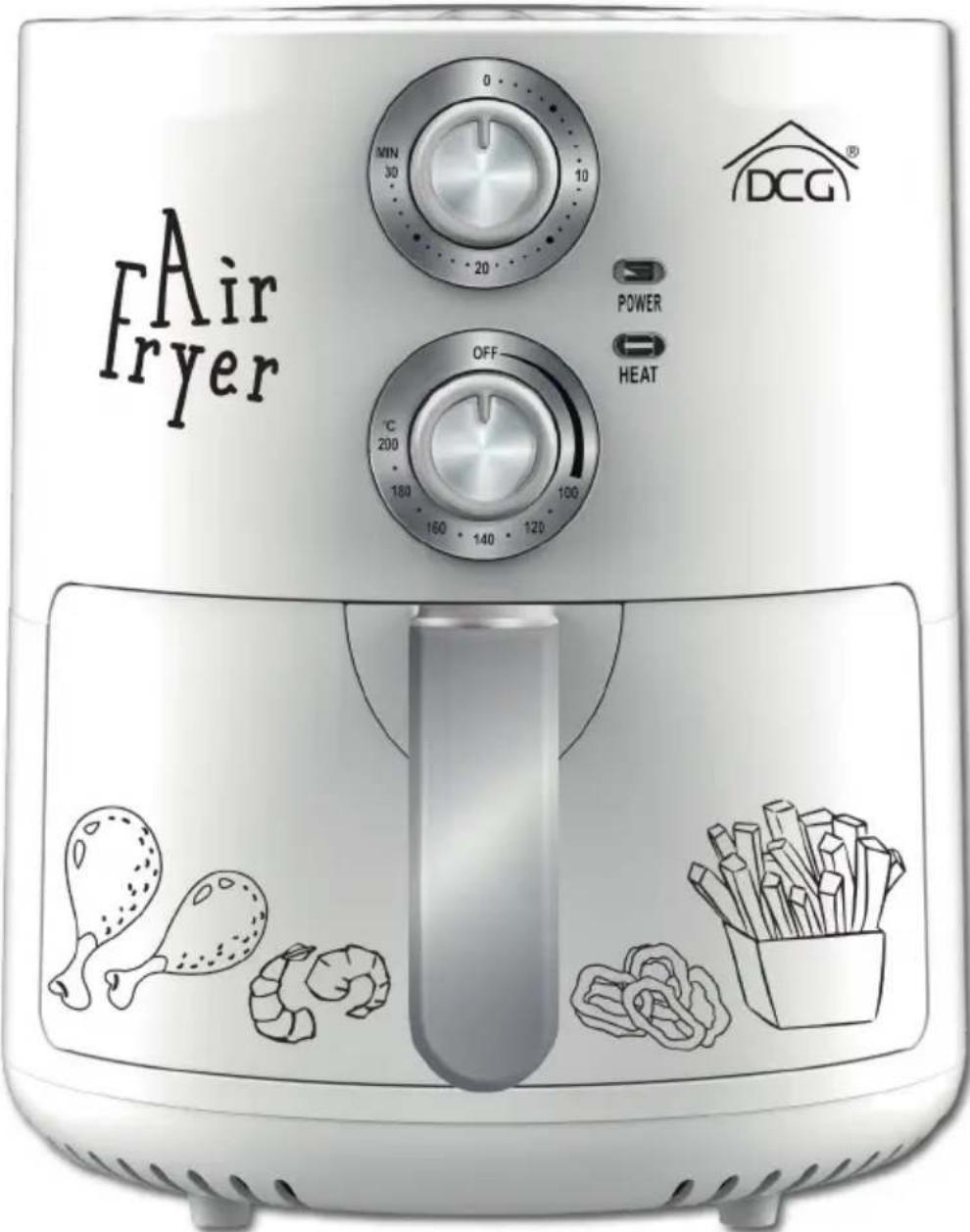

FR3507 FRIGGITRICE AD ARIA AIR FRYER

CARATTERISTICHE TECNICHE:

220-240V\~, 50/60Hz, 1200-1400W

INTRODUZIONE

IMPORTANTE

Thank you for buying this top quality air fryer. You will now be able to cook a wide assortment of food in a healthier manner – with little or no oil! The air fryer uses hot air, in combination with high-speed air circulation, and a top grill to prepare your dishes quickly and easily. The ingredients are heated from all sides, at once, and there is no need to add oil in most cases.

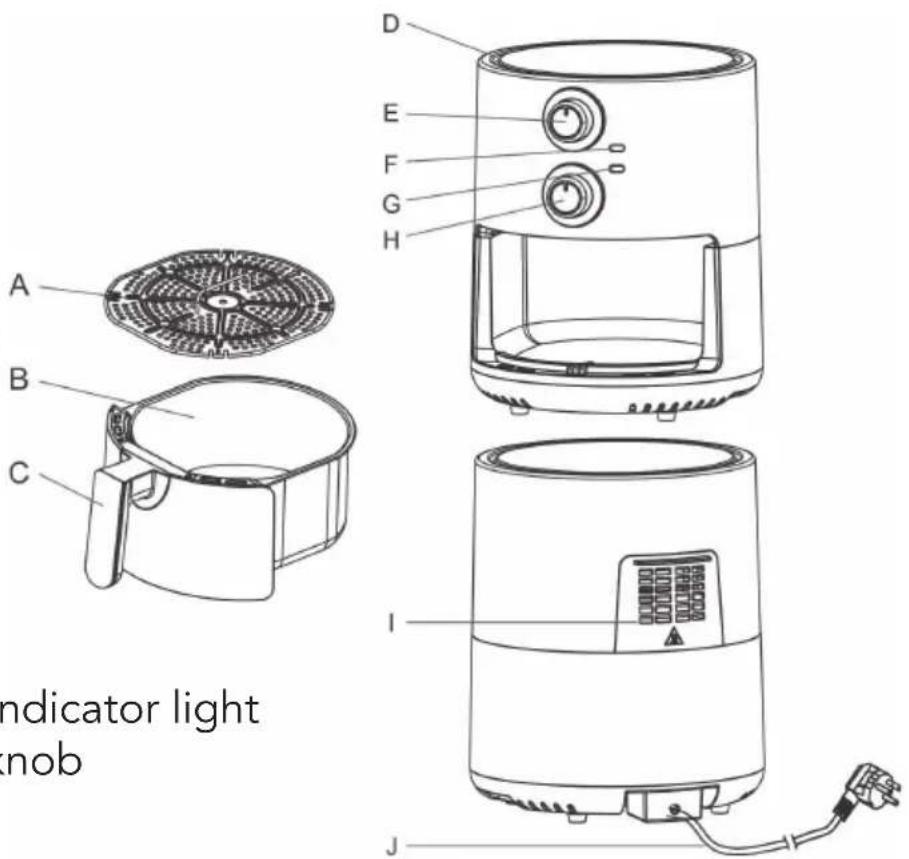

GENERAL DESCRIPTIO:

A: The tray

B: Basket

C: Basket handle

D: Air inlet

E: Timer knobs

F: Time indicator

G: Temperature control indicator light

H: Temperature control knob

I: Vent windows

J: Power cord

IMPORTANT

Read this user manual carefully before you use the appliance and keep it safely for future reference.

Danger

• Never immerse the housing, which contains electrical components and the heating elements, in water nor rinse it under the tap.
• Do not let any water or other liquid enter the appliance – to prevent electric shock.
• Always put the ingredients to be fried in the basket, to prevent it from coming into contact with the heating elements.
• Do not cover the air inlet and the air exhaust openings while the appliance is operating.
• Do not fill the frying tray with oil as this may cause a fire hazard.
• Never touch the inside of the appliance while it is operating.
• Check whether the voltage indicated on the appliance corresponds to the local mains voltage in your country before you connect the appliance.
• Do not use the appliance if the plug, the power cord or the appliance itself is damaged.
• If the power cord is damaged, you must have it replaced at a service center authorized by similarly qualified persons in order to avoid a hazard.
• This appliance is not suitable for children or for people who are either physically or mentally handicapped or who lack experience and knowledge. Should you want anyone else to use the appliance, that person should be properly guided on its use.
• Keep the appliance and its mains cord out of the reach of children when the appliance is switched on or is cooling down.
• Keep the mains cord away from hot surfaces.
• Do not plug in the appliance or operate the control panel with wet hands.

• Only connect the appliance to an earthed wall socket. Always make sure that the plug is inserted into the wall socket properly.

• Never connect this appliance to an external timer switch.

• Do not place the appliance on or near combustible materials such as a tablecloth or curtains.
• Do not place the appliance against a wall or against other appliances. Leave at least 10cm free space at the back and sides and 10cm free space above the appliance. Do not place anything on top of the appliance.
• Do not use the appliance for any purpose other than described in this manual.
• Do not let the appliance operate unattended.
• During hot air frying, hot steam is released through the air exhaust openings. Keep your hands and face at a safe distance from the steam and from the air exhaust openings. Also be careful of hot steam and hot air when you remove the frying tray from the appliance.
• The surface below the appliance may become hot during use.
• Immediately unplug the appliance if you see dark smoke coming out of the appliance. Wait for the smoke emission to stop before you remove the frying tray from the appliance.
• Place the appliance on a horizontal, level and stable surface.
• This appliance is intended for normal household use only. It is not intended for use in environments such as staff kitchens, offices, farms or other work environments. Nor is it intended to be used by clients in hotels or other similar environments.
• If the appliance is used improperly or if it is not used according to the instructions in the user manual, the warranty becomes invalid and refuses any liability for any damage that may be caused.
• Always unplug the appliance after use.
• Let the appliance cool down for approx. 30 minutes before you handle or clean it.
• Remove burnt remnants. Do not fry fresh potatoes at a temperature above 180^ C (to minimize the production of acryl amide).

Caution

Automatic switch-off

This appliance is equipped with a timer. When the timer has counted down to 0, the appliance produces a bell sound and switches off automatically. To switch off the appliance manually, turn the timer knob anticlockwise to 0.

BEFORE FIRST USE

1. Remove all packing material.
2. Remove any stickers or labels from the appliance – other than the rating label.
3. Thoroughly clean the basket, and frying tray, with hot water and some liquid washing soap using a non-abrasive sponge.

Note: You can also clean these parts in the dishwasher.

1. Wipe the inside and outside of the appliance with a moist cloth.

PREPARING FOR USE

1. Place the appliance on a stable, horizontal and level surface that is also heat resistant.
2. Place the basket in the frying tray properly.
3. Pull the mains cord out of the cord storage compartment at the back of the appliance.

Do not fill the frying tray with oil or any other liquid.

Do not put anything on top of the appliance. This disrupts the airflow and affects the air-frying result.

USING THE APPLIANCE

Hot air frying

1. Put the mains plug in an earthed wall socket.
2. Carefully pull the frying tray out of the air fryer.
3. Put the ingredients in the basket.

Note: Never fill the basket beyond the Max amount indicated in the table shown in the section 'Settings', as this could affect the quality of the end-result.

1. Slide the basket back into the air fryer.

Never use the frying tray without the basket in it.

Caution: Do not touch the pan during and about 30mins after use, as it gets very hot.

Only hold the pan by the handle.

1. Turn the temperature control knob to the required temperature. See section 'Settings' to determine the right temperature.

2. To switch on the appliance, turn the timer knob to the required preparation time.

Add 3 minutes to the preparation time when the appliance is cold.

Note: You can also let the appliance preheat without any ingredients inside. In that case, turn the timer knob to a little more than 3 minutes and wait until the heating-up light goes out (after approx.3 minutes). Then fill the basket and turn the timer knob to the required preparation time.

- The power-on light and the heating-up light will come on.

- The timer starts counting down the set preparation time.

- During the hot air frying process, the heating-up light comes on and goes off from time to time. This indicates that the heating element is switched on and off to maintain the set temperature.

- Excess oil from the ingredients is collected at the bottom of the frying tray.

1. Some ingredients require shaking halfway through the preparation time (see section 'Settings' in this chapter). To shake the ingredients, pull the frying tray out of the appliance by the handle and shake it. Then slide the frying tray back into the air fryer.

Caution: Do not press the basket release button during shaking.

Tip: To reduce the weight, you can remove the basket from the pan and shake the basket only. To do so, pull the pan out of the appliance, place it on a heat-resistant surface and press the basket release button.

Tip: If you set the timer to half the preparation time, you hear the timer bell when you have to shake the ingredients. However, this means

that you have to set the timer again for the remaining preparation time after shaking.

1. When you hear the timer bell, the set preparation time has elapsed. Pull the pan out of the appliance and place it on a heat-resistant surface.
   Note: You can also switch off the appliance manually. To do this, turn the temperature control knob to 0.
2. Check if the ingredients are ready.

If the ingredients are not ready yet, simply slide the frying tray back into the appliance and set the timer to a few extra minutes.

1. To remove small ingredients, press the basket release button and lift the basket out of the frying tray.

Do not turn the basket upside down with the frying tray still attached to it, as any excess oil that has collected on the bottom of the frying tray will spill out and leak onto the ingredients.

After hot air frying, the frying tray and the ingredients are hot. Depending on the type of ingredients in the air fryer, steam may escape from the frying tray.

1. Empty the basket into a bowl or onto a plate.
   Tip: To remove large or fragile ingredients, use a pair of tongs to lift the ingredients out of the basket.
2. When a batch of ingredients is ready, the air fryer is instantly ready for preparing another batch.

Settings

This table below helps you to select the basic settings for the ingredients you want to prepare.

Note: Keep in mind that these settings are only for reference. As ingredients differ in origin, size, shape as well as brand, we cannot guarantee the best setting for your ingredients.

Because the Rapid Air Technology instantly reheats the air inside the appliance, pulling the frying tray briefly out of the appliance during hot air frying barely disturbs process.

Tips:

• Smaller ingredients usually require a slightly shorter preparation time than larger ingredients.
• A larger amount of ingredients only requires a slightly longer preparation time, a smaller amount of ingredients only requires a slightly shorter preparation time.
• Shaking smaller ingredients halfway through the preparation time optimized the end result and can help prevent unevenly fried ingredients.
• You can coat fresh potatoes with a little oil for a crispy result. Fry your ingredients in the air fryer within a few minutes after you have added the oil.
• Do not prepare extremely greasy ingredients such as sausages in the air fryer.
• Snacks that can be prepared in an oven can also be prepared in the air fryer.
• The optimal amount for preparing crispy fries is 500 grams.
• Use pre-made dough to prepare filled snacks quickly and easily. Pre-made dough also requires a shorter preparation time than home-made dough.
• You can also use the air fryer to reheat ingredients by setting the temperature to 150^ C and the timer to about 10 minutes.

Min-Max Amount (g)

Time (min.)

Temperature (°C)

Shake

Extra information

Potatoes & fries

Thin frozen fries	300-700 12-16 200 Shake
Thick frozen fries	300-700 12-20 200 Shake
Home-made fries (8x8mm)	300-800 18-25 180 Shake			add1/2 tbsp of oil
Home-made potato wedges	300-800 18-22 180 Shake			add1/2 tbsp of oil
Home-made potato cubes	300-750 12-18 200 Shake			add1/2 tbsp of oil
Rosti 250 15-18 180
Potato gratin 500	18-22 180

Meat & Poultry

Steak 100-500 8-22 180
Pork chops 100-500 10-14 180
Hamburger 100-500 7-14 180
Sausage roll 100-500 13-15 200
Drumsticks 100-500 18-22 180
Chicken breast 100-500 10-15 180

Snacks

Spring rolls 100-400 8-10 200 Shake Use oven-ready
Frozen chickenNuggets	100-500 6-10 200 Shake Use oven-ready
Frozen fishfingers	100-400 6-10 200 Use oven-ready
Frozen Bread-crumbedcheesesnacks	100-400 10 200 Use oven-ready
Stuffed vegetables	100-400 10 160 Use oven-ready

Note: Add 3 minutes to the preparation time before you start frying if the appliance is cold.

Making home-made fries

For the best results, we advise to use pre-baked fries. If you want to make home-made fries, follow the steps below:

1. Peel the potatoes and cut them into sticks.
2. Soak the potato sticks in a bowl of water for at least 30 minutes, take them out and dry them with kitchen paper.
3. Pour 1/2 tablespoon of olive oil in a bowl, put the sticks on top and mix until the sticks are coated with oil.
4. Remove the sticks from the bowl with your fingers or a kitchen utensil so that excess oil stays behind in the bowl. Put the sticks in the basket.

Note: Do not tilt the bowl to put all the sticks in the basket in one go, to prevent excess oil from collecting at the bottom of the frying tray.

1. Fry the potato sticks according to the instructions in this chapter.

CLEANING

Clean the appliance after every use.

The frying tray, basket and the inside of the appliance have a non-stick coating. Do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the non-stick coating.

1. Remove the mains plug from the wall socket and let the appliance cool down.

Note: Remove the frying tray to let the air fryer cool down more quickly.

1. Wipe the outside of the appliance with a moist cloth.

2. Clean the frying tray and basket with hot water, some washing liquid soap and a non-abrasive sponge.

You can use a degreasing liquid to remove any remaining dirt.

Note: The frying tray and basket are dishwasher-proof.

Tip: If dirt is stuck to the basket, or at the bottom of the frying tray, fill the frying tray with hot water and with some washing liquid

soap. Put the basket in the frying tray and let the frying tray and the basket soak for approximately 10 minutes.

1. Clean the inside of the appliance with hot water and a non-abrasive sponge.
2. Clean the heating element with a cleaning brush to remove any food residues.

STORAGE

1. Unplug the appliance and let it cool down.
2. Make sure all parts are clean and dry.
3. Push the cord into the cord storage compartment as far as it can go. Fix the cord by inserting it into the cord fixing slot.

Troubleshooting

Problem Possible cause Solution
The air fryer does not work	The appliance is not plugged into the mains.	Put the mains plug in an earthed wall socket.
	You have not set the timer.	Turn the timer knob to the required Preparation time to switch on the appliance.
The ingredients fried with the air fryer are not done.	The amount of the ingredients in the basket is too much.	Put smaller batches of ingredients in the basket. Smaller batches are fried more evenly.
	The set temperature is too low.	Turn the temperature control knob to the required temperature setting (see section ‘Settings’).
	The preparation time is too short.	Turn the timer knob to the required preparation time (see section ‘Settings’).
The ingredients are fried unevenly in the air fryer.	Certain types of the ingredients need to be shaken halfway through the preparation time.	Ingredients that lie on top of or across each other (e.g. fries) need to be shaken halfway through the preparation time (see section ‘Settings’).
Fried snacks are not crispy when they come out of the air fryer	You used a type of snacks meant to be prepared in a traditional deep fryer.	Use oven snacks or lightly brush some oil onto the snacks for a crispier result.
I cannot slide the pan into the appliance properly.	There is too much food in the basket.	Do not fill the basket beyond the Max amount indicated in the table on the earlier page.
	The basket is not placed in the pan correctly.	Push the basket down into the pan until you hear a click.
white smoke comes out of the appliance	You are preparing greasy ingredients.	Pay attention that the temperature is well-controlled to be under 180°C, when you fry greasy ingredients in the air fryer.
Problem	Possible cause Solution
	The pan still contains greasy residues from previous use.	White smoke is caused by grease heating up in the pan.Make sure you clean the pan properly after each use.
Fresh potato fries are fried unevenly in the air fryer.	You did not soak the potato sticks properly before you fried them.	Soak the potato sticks in a bowl of water for at least 30 minutes; take them out and dry them with kitchen paper.
	You did not use the right potato type.	Use fresh potatoes and make sure they stay firm during frying.
Fresh potato fries are not crispy when they come out of the air fryer.	The crispiness of the fries depends on the amount of oil and water in the fries.	Make sure you dry the potato sticks properly before you coat them with oil.
		Cut the potato into thinner sticks for a crispier result.
		Add slightly more oil for a crispier result.

Symbol of a trash bin crossed with a diagonal line, no text or numbers present
