Product Type	Range Hood
Brand	Privileg
Model	SY-103E13-E4-C55-L52-900
Width	90 cm
Installation Type	Wall-mounted or Island (based on model code)
Extraction Output (max)	Approx. 600-700 m³/h
Noise Level (max)	Approx. 65 dB
Lighting	LED lamps, 2x 3W
Controls	Electronic push buttons with timer
Number of Speeds	3 + boost
Grease Filter Type	Aluminum washable
Charcoal Filter (optional)	Yes, for recirculation mode
Ducting Diameter	150 mm
Power Supply	220-240 V ~ 50/60 Hz
Rated Power	Approx. 200 W
Dimensions (W x D x H)	900 x 500 x 400 mm
Net Weight	Approx. 15 kg
Energy Class	A+
Maintenance	Clean grease filter monthly; replace charcoal filter every 3-6 months
Safety Features	Overheat protection, auto shut-off
Spare Parts Available	Filters, lamps, motor (via authorized service)

Frequently Asked Questions - SY-103E13-E4-C55-L52-900 PRIVILEG

How do I install the range hood?

Ensure proper ducting or use recirculation mode. Follow the installation manual for clearances and mounting. For wall-mounted, drill holes and use wall plugs.

How often should I clean the grease filter?

Clean the aluminum grease filter every month or more often if cooking frequently. Wash it with warm soapy water or in the dishwasher.

Can I use the hood without ducting?

Yes, you can use it in recirculation mode. You need to install charcoal filters (not included) to absorb odors.

How do I replace the charcoal filter?

Remove the grease filter, locate the charcoal filter, and replace it every 3-6 months. Ensure it is firmly clicked into place.

What do the speed levels mean?

Speed 1 is for low-intensity cooking, speed 2 for normal use, speed 3 for high steam, and boost for rapid smoke removal.

The hood is noisy. Is that normal?

Noise levels vary by speed. Maximum noise is around 65 dB, similar to a conversation. If excessively loud, check for loose parts or blocked ducting.

How do I reset the filter alarm?

Press and hold the timer button for 3 seconds until the LED turns off. The alarm reminds you to clean/replace filters.

The lights are not working. What should I do?

Check the LED bulbs (replace with same type) and the electrical connection. If still off, contact service as the LED driver may be faulty.

What is the proper maintenance for the hood surface?

Wipe with a damp cloth and mild detergent. Avoid abrasive cleaners. Dry thoroughly to prevent water spots.

Where can I find spare parts or service?

Contact Privileg authorized service centers or check online for parts. Use the model number SY-103E13-E4-C55-L52-900 when ordering.

USER MANUAL SY-103E13-E4-C55-L52-900 PRIVILEG

3D technical illustration of a mechanical assembly with a sloped metal frame and mounting base (no text or symbols)

Gebrauchsanleitung

Privileg Wand-Kopffreihaube Privileg Wand-

Inhaltsverzeichnis

Line drawing of a double-hopper kitchen chimney with airflow arrows indicating airflow direction (no text or symbols)

Technical line drawing of a mechanical component with three upward arrows indicating flow or force (no text or symbols)

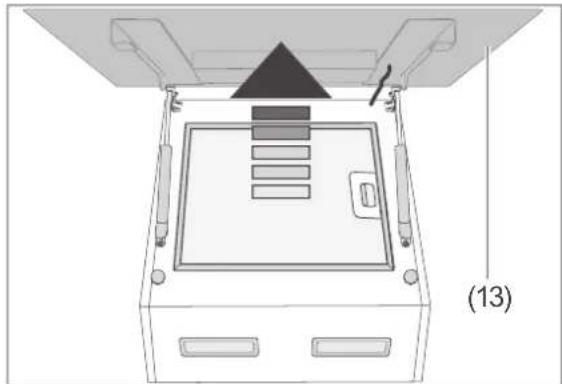

Diagram of a device with a triangular component inserted into a control panel, labeled (13), showing no text or symbols beyond the label.

Technical line drawing of a rectangular metal bracket with mounting holes and a label (6) pointing to its top section (no text or symbols on the object itself)

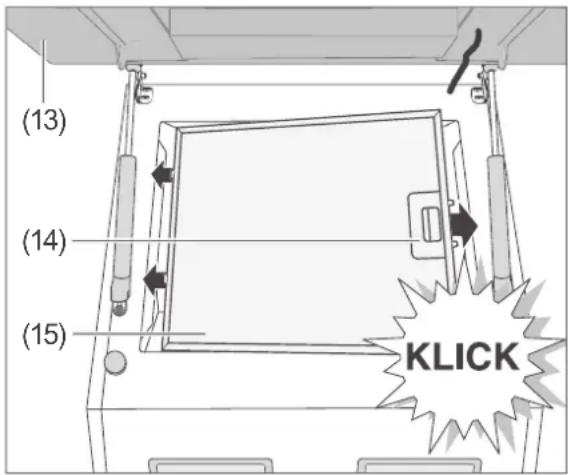

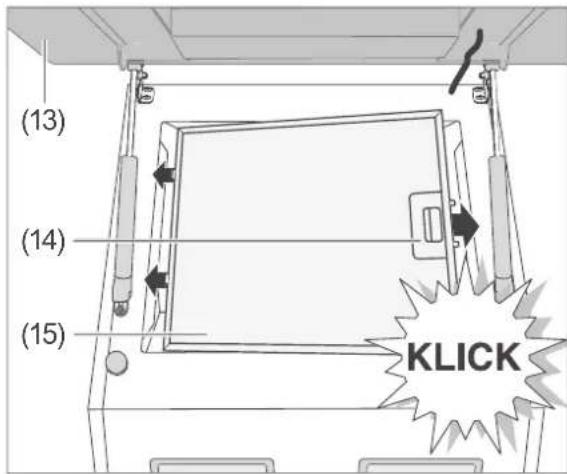

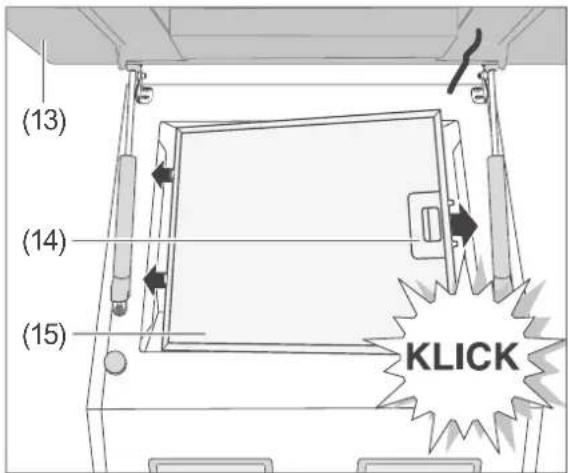

Diagram of a device with a triangular component and labeled parts (13), no readable text or symbols present.

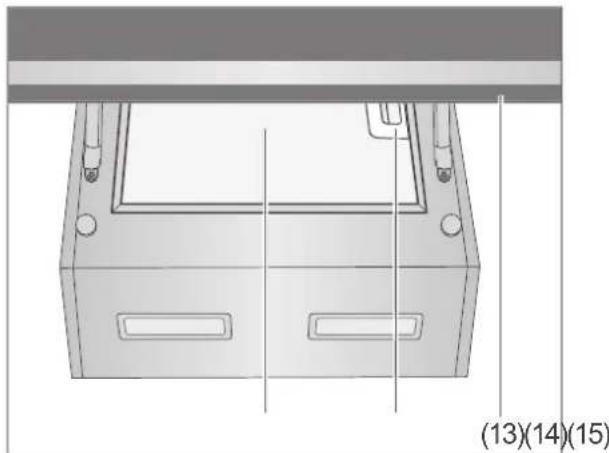

Technical diagram of a mechanical component with labeled parts (13), (14), and (15), showing internal structure without any readable text or symbols.

3D technical illustration of a mechanical device with a sloped top and rectangular base (no text or symbols)

User manual

Manual/version:

196800_EN_20191205

Article no.: 3351 5359

7692 6741

Reproduction, even of ex-

cerpts, is not permitted!

Privileg

Wall-mounted headroom hood

Table of contents

Please read through the safety notices and user manual carefully before using the appliance.

This is the only way you can use all the functions reliably and safely. Be sure to also observe the national regulations in your country, which are valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the product.

Delivery.... EN-3

Package contents ..... EN-3

Check the delivery ..... EN-3

Packaging tips ..... EN-3

Safety EN-4

Intended use..... EN-4

Explanation of terms ..... EN-4

Explanation of symbols ..... EN-4

Safety notices....EN-4

Circulation or exhaust air operation? . EN-8

Circulation air operation ..... EN-8

Exhaust air operation ..... EN-8

Prerequisites for installation ..... EN-9

For exhaust air operation ..... EN-9

Connection for power supply ..... EN-9

Materials required for assembly . . . . EN-10

Parts list.... EN-10

Tools and aids EN-10

Screws EN-10

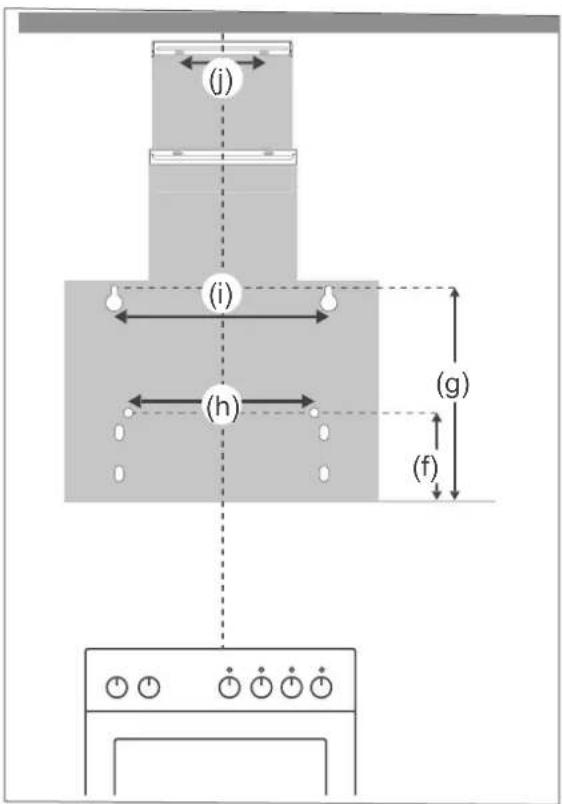

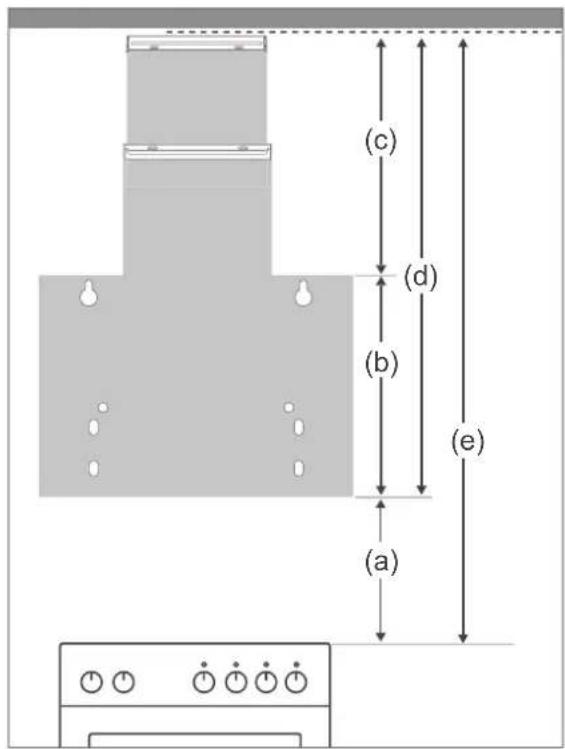

Space requirements and attachment

dimensions....EN-11

Space requirements .....EN-11

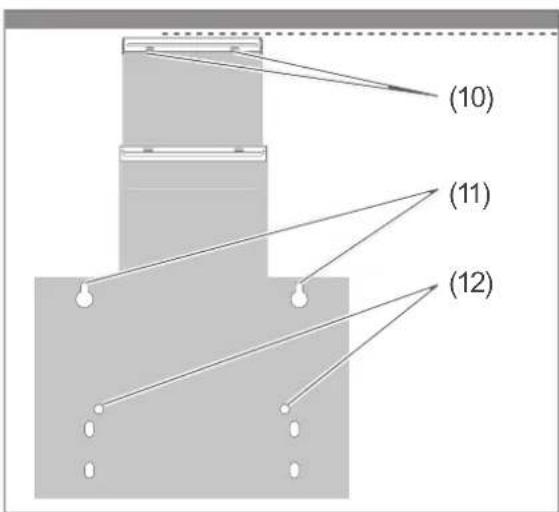

Attachment dimensions .....EN-11

Assembly EN-12

Place the drill holes ..... EN-12

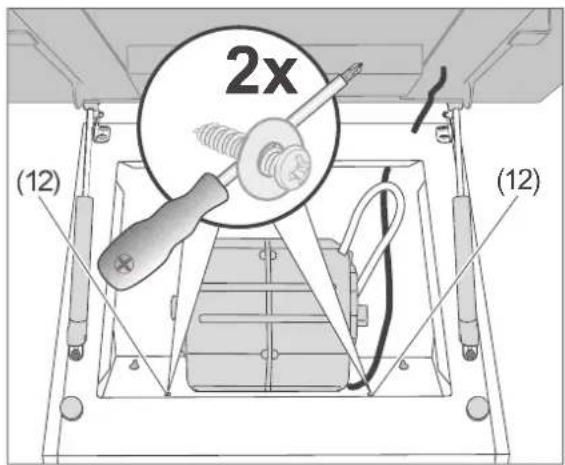

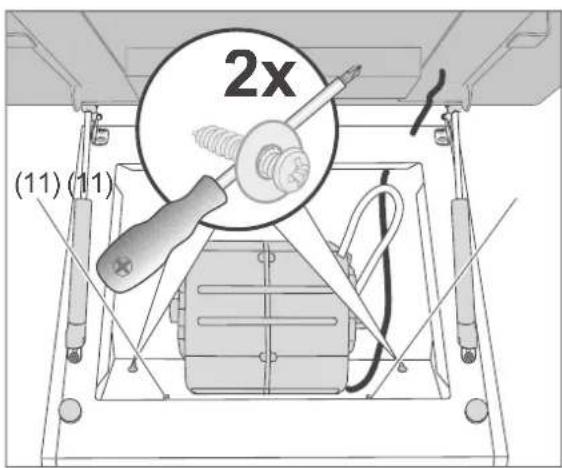

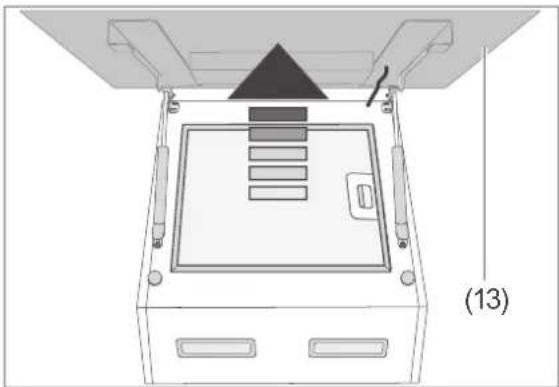

Attaching the Exhaust hood ..... EN-12

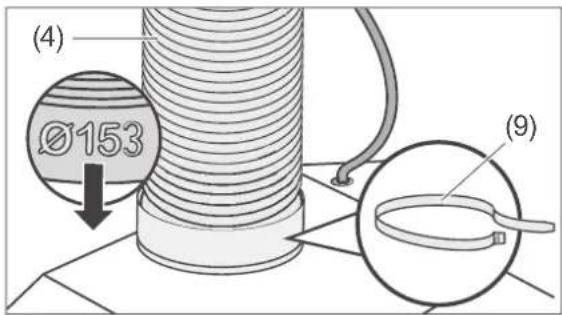

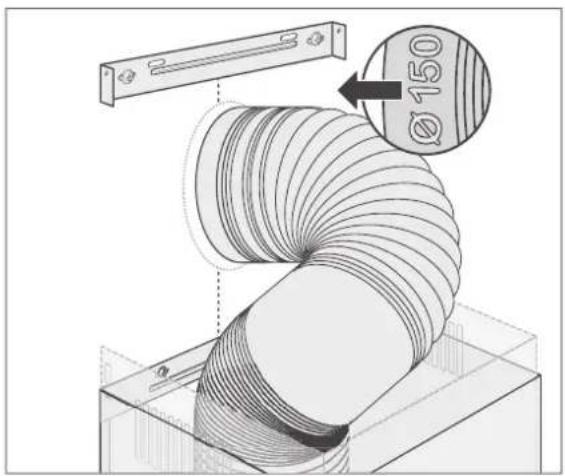

Attaching the exhaust air hose . . . EN-14

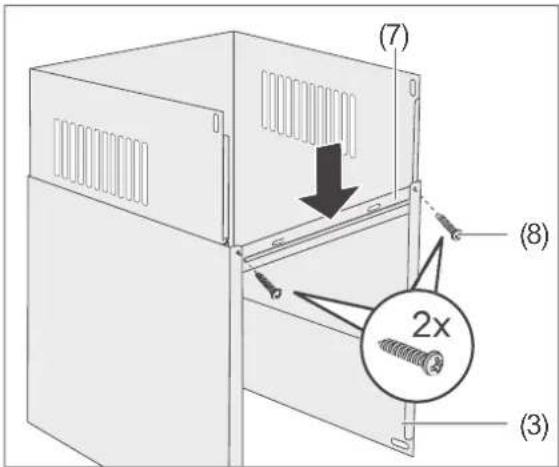

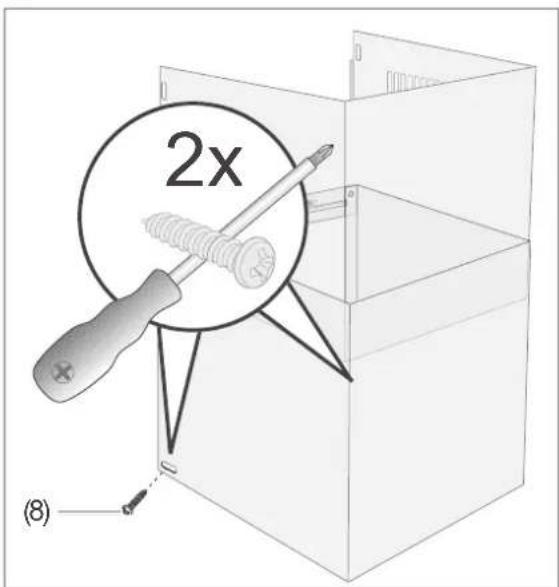

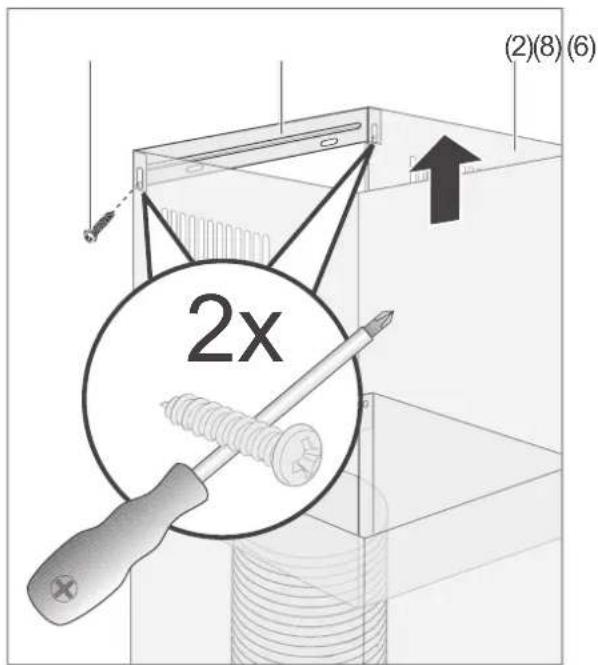

Installing the flue screen ..... EN-14

Operation EN-16

Requirements EN-16

Activated charcoal filter ..... EN-16

Switching the lighting on ..... EN-16

Switching appliance on/off ..... EN-16

Changing the fan setting ..... EN-16

Timer function ..... EN-16

Tips on saving energy ..... EN-16

Care and maintenance ..... EN-17

Cleaning the housing ..... EN-17

Cleaning the grease filters ..... EN-17

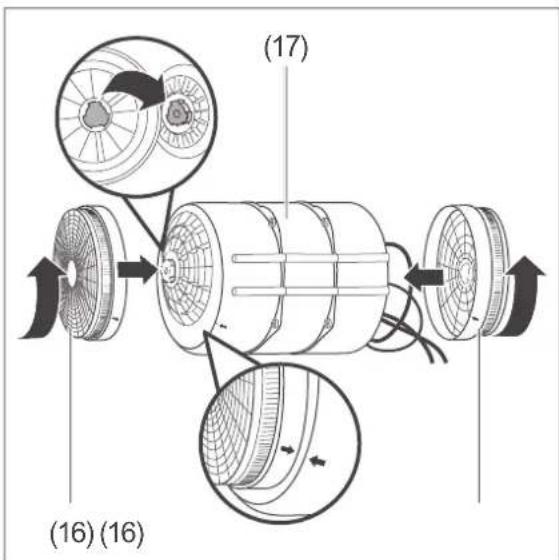

Inserting/replacing activated charcoal filters ..... EN-18

Lighting EN-19

Troubleshooting table ..... EN-20

Our Service Centre ..... EN-21

General customer service ..... EN-21

Spare parts ..... EN-21

Ordering activated charcoal filters . EN-21

Environmental protection ..... EN-22

Disposing of old electrical devices in an environmentally friendly manner .... EN-22

Disposing of activated charcoal filters ..... EN-22

Packaging....EN-22

Product fiche concerning

Regulation (EU) No 65/2014 ..... EN-23

Product information concerning

Regulation (EU) No 66/2014 ..... EN-25

Technical Specifications ..... EN-27

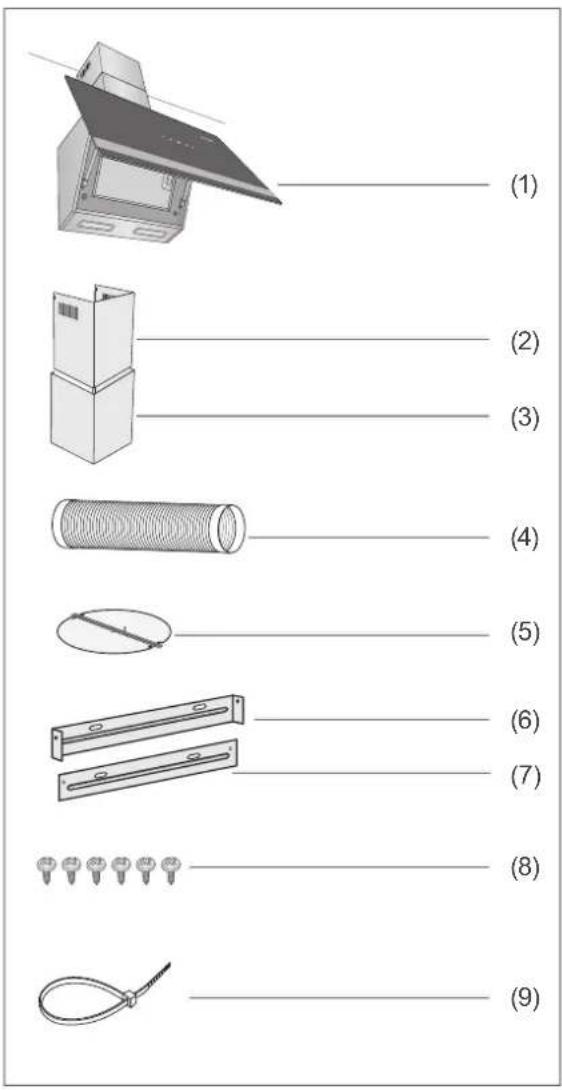

Delivery

(1) Exhaust hood
(2) Upper part of the flue screen
(3) Lower part of the flue screen
(4) Exhaust air operation: Exhaust air hose

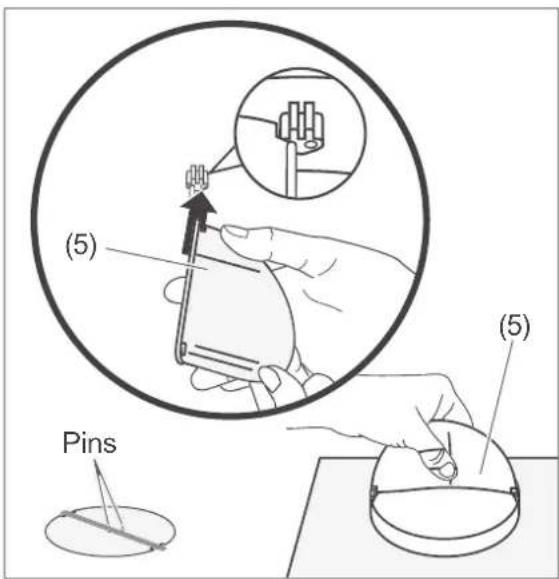

(5) Exhaust air operation: Check valve
(6) Wall bracket for upper flue screen
(7) Retaining plate for lower flue screen
(8) 6 plate screws 4.0 × 8 mm
(9) Cable ties

Check the delivery

1. Unpack the appliance.
2. Remove all parts of the packaging, plastic profiles, tape and foam padding.
3. Check that the delivery is complete.
4. Check whether the appliance was damaged during transit.
5. If the delivery is incomplete or the appliance has been damaged during transport, please contact our Service Centre (see page EN-21).

Items not included in the package contents are

- the screws and dowels required to mount the appliance on a wall, as their type and dimensions will vary depending on the characteristics of the wall. Please have a specialist advise you as to which ones you need see „Materials required for assembly“ on page EN-10. - an activated charcoal filter. This is only required for recirculation operation. To order accessories, see see „Our Service Centre“ on page EN-21.

WARNING!

Risk of electric shock!

■ Never use a damaged appliance.

Packaging tips

If you have sufficient space, we recommend keeping the packaging, at least during the warranty period. If

the appliance needs to be sent out for repairs, only the original packaging will provide sufficient protection.

If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Safety

Intended use

This appliance is intended to be used to remove cooking fumes and airborne grease from a cooktop in a private household. It is not designed for use in a commercial setting.

Use the appliance exclusively as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.

Explanation of terms

The following symbols can be found in this user manual.

WARNING

This symbol indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION

This symbol indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This symbol warns against possible damage to property.

This symbol refers to useful additional information.

Explanation of symbols

Broken glass

Protection class I

Safety notices

In this chapter you will find general safety notices which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters.

WARNING

Risks in handling household electrical appliances

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ If the mains plug is no longer accessible after installation, an all-pole disconnecting device complying with over-voltage category III must be connected to the house wiring with a contact gap of at least 3 mm; this includes fuses, circuit breakers and contactors.
■ Do not kink or pinch the mains cord or lay it over sharp edges.
- Keep the appliance, the mains plug and the mains cord away from open flames and hot surfaces.
■ Always touch the mains plug, not the mains cord.
■ Never touch the mains plug with wet hands.

■ Never immerse the mains cord or plug in water or any other liquids.
■ Do not put any objects in or through the housing openings, and also make sure that children cannot insert any objects into them.
■ Do not operate or continue to operate the appliance, if

– it shows visible signs of damage, e.g. the power cord is defective,
– it starts smoking or there is a smell of burning,
- it makes unfamiliar noises.

In such cases, pull out the mains plug or unscrew/isolate the fuse and contact our service department (see page EN-21).

■ Do not remove the covers of the lamps.
■ Do not attempt to replace the bulbs.
■ If the mains cord of the appliance is damaged, it must be replaced by the manufacturer, through customer service or by a qualified specialist.

Inspections and repairs to the appliance may only be carried out by authorised specialists.

■ Only parts corresponding to the original appliance specifications may be used for repairs. This appliance contains electrical and mechanical parts which are essential for protection against potential sources of danger.
■ Independent or improper repairs made to the appliance may cause damage to property and personal injury; any liability and warranty claims will be forfeited. Never try to repair a defective or suspected defective appliance yourself.

■ In the event of a fault, as well as before extensive cleaning, pull out the mains plug or isolate/unscrew the fuse.
■ The appliance corresponds to protection class I and may only be connected to a plug with a protective conductor that has been installed properly.

Risks for certain groups of people

Risk of suffocation!

■ Do not allow children to play with the packaging fi lm. They may get caught up in this or suffocate.
■ Prevent children from pulling small parts from the device or taking them out of the accessory bag and putting them in their mouths.

CAUTION

Dangers for children and people with limited physical, sensory or mental capacity!

■ This appliance can be used by children aged eight years and above and by persons with reduced physical, sensory or mental abilities, or who lack experience and/or knowledge, if they are supervised or have been instructed in the safe use and understand the dangers associated with its use.
■ Cleaning and maintenance must not be carried out by children unless they are supervised.
■ Children must not be allowed to play with the appliance.

Risks in handling exhaust hoods

Risk of electric shock!

■ Before drilling the holes to mount the appliance on the wall, ensure that no wires or cables (power, gas, water etc.) will be damaged (check with a line locator).
■ If a glass cover is broken, the exhaust hood must not be used until the glass cover has been replaced. If this is the case, contact our customer service (see page EN-21).

Risk of injury!

■ When mounting, please note that some parts may have sharp edges.
■ Use a stable stepladder to mount.
■ Only use mounting materials that are suitable for the characteristics of the ceiling and walls. When in doubt, consult an expert.

Fire hazard!

■ The distance between the cooking surfaces and the lower edge of the Exhaust hood must be at least 65 cm for gas cookers.
■ For gas stovetops, you must read the user manual for the stovetop! If the manual stipulates a larger distance, this must be observed.
■ Do not fl ambé foods under the ex-haust hood!
■ Only deep-fry foods under the exhaust hood under constant supervision.
- Keep the exhaust hood clean. Grease build-ups can ignite when heated to high temperatures.
■ Clean the exhaust hood according to the instructions.

■ Do not connect to a multiple socket outlet, power strip, timer or to a separate remote-controlled system for distance monitoring and control.

Risk of burns!

■ Touchable parts may become hot if used with cooking appliances.

Risks during exhaust air operation

Risk of suffocation/explosion!

The air in the room where the exhaust hood is operating is extracted by fan and released outside. If, in this room, a fi replace requiring indoor air – such as a gas fi re or other fuel-based heating system – is also in use, the oxygen that is necessary for combustion may also be extracted. This can result in the flame being extinguished and gas being released or the room becoming saturated with exhaust fumes.

■ It is possible to run the appliance without any risk by, for example, providing non-sealable openings in doors, windows or ventilation conduits through which the combustion air can escape, and by achieving a negative pressure level in the installation space of maximum 0.04 mbar. This prevents the exhaust fumes from being sucked back into the room.
■ In order to determine the necessary measures, the entire ventilation system throughout the home must be reviewed. Consult the gas safety consultant who is responsible for the home.
■ Never attach the exhaust hood to a ventilation shaft, chimney or smokestack! The air being extracted must

not travel through a channel in which warm air circulates. The extracted air may only be released to the outside through a separate air channel intended exclusively for the exhaust hood.

NOTICE

Risk of damage!

■ To operate the air extraction, a wall or ceiling break of at least 15.5 cm in diameter is required.
■ We recommend having a specialist (electrician) carry out this break (core drilling).

■ If the exhaust air hose passes through an exterior wall, the air outlet on the outside must have a cover with self-opening slits (not included in the package contents). Have this installed by the same specialist that is carrying out the wall break.
■ Please note: The shorter and straighter the exhaust hose, the more powerful the Exhaust hood function will be.
■ In Germany, statutory requirements for extracting exhaust air vary from state to state.

Consult a gas safety consultant.

Circulation or exhaust air operation?

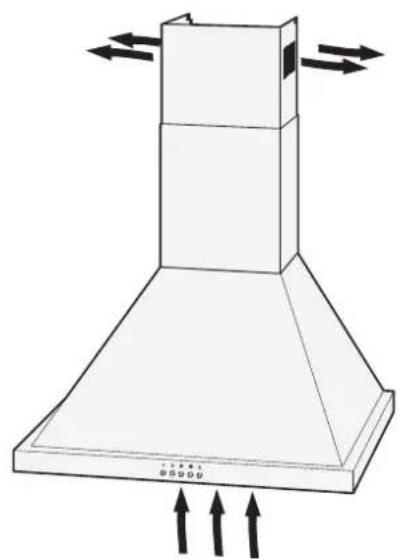

Line drawing of a three-tiered kitchen chimney with airflow arrows indicating direction (no text or symbols)

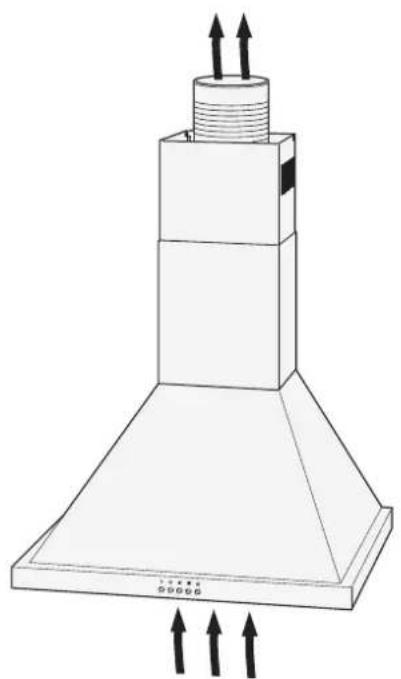

Technical line drawing of a mechanical component with three upward arrows indicating flow or movement (no text or symbols)

The images show an example of where the extracted fumes are conducted to. They do not show the appliance described here.

Circulation air operation

When air is circulated, the cooking fumes are sucked in and, following filtering, returned to the indoor air through the air outlets at the top of the appliance.

Filtering takes place through the grease filter and also through an activated charcoal filter (odour filter with activated charcoal; not included in the package contents). Source of supply see „Our Service Centre“ on page EN-21.

- Advantage: Simple assembly - Disadvantage: Increasing clogging of the activated charcoal filter reduces the effectiveness of the filter and exhaust functions. The activated charcoal filter must be replaced depending on use; check it at least every six months.

Exhaust air operation

When air is extracted, the cooking fumes are sucked in, filtered through the grease filter, and released to the outdoors through the exhaust air hose.

- Advantage: Charcoal filter not required; very little odour.

- Disadvantages:

– Wall break with hose connection necessary.

- Open fireplaces may only be used in the same room with limitations. Ask your local gas safety consultant about local regulations before installing.

If you rent your home, you must obtain approval from the owner before installing the appliance.

Prerequisites for installation

For exhaust air operation

WARNING

Risk of suffocation/explosion!

■ Never attach the exhaust hood to a ventilation shaft, chimney or smokestack! The air being extracted must not travel through a channel in which warm air circulates. The extracted air may only be released to the outside through a separate air channel intended exclusively for the exhaust hood.

NOTICE

Risk of damage!

■ We recommend having a specialist carry out all preparations.

Before you can begin assembly, all of the following conditions must be met:

- There must be a wall or ceiling break of at least 15.5cm in diameter. - If the exhaust air hose passes through an exterior wall, the air outlet on the outside must have a cover with self-opening slits (not included in the package contents).

To keep subsequent energy usage as low as possible, we recommend

- placing the exhaust air channels as straight as possible and avoiding any sharp angles (curves or bends are preferable). Each bend increases energy usage. - not reducing the cross-section of the fan connector. The wider the diameter of the exhaust air hose and the smoother its interior surface, the better the extraction function will be. - selecting a ventilation conduit with exterior shutters that can open completely during use.

Connection for power supply

WARNING

Risk of electric shock!

■ The mains plug must be as accessible as possible during use, i.e. the plug must be accessible even after the exhaust hood has been installed.
■ If the mains plug is no longer accessible after installation, an all-pole disconnecting device complying with over-voltage category III must be connected to the house wiring with a contact gap of at least 3 mm; this includes fuses, circuit breakers and contactors.
■ Electrical installation may be performed only by a certified specialist. If an additional socket is required, have an electrician perform the installation.
■ Do not connect to a multiple socket outlet, power strip, timer or to a separate remote-controlled system for distance monitoring and control.

To ensure that the exhaust hood will perform optimally and that no obtrusive cabling is visible, plan the connection for power supply carefully before installation: The exhaust hood must be placed over the centre of the cooking zone.

Materials required for assembly

(1) Exhaust hood
(2) Upper part of the flue screen
(3) Lower part of the flue screen
(4) Exhaust air operation: Exhaust air hose
(5) Exhaust air operation: Check valve
(6) Wall bracket for upper flue screen
(7) Retaining plate for lower flue screen
(8) 6 plate screws 4.0 × 8 mm
(9) Cable ties

Tools and aids

You will need:

• Screwdriver
• Drill with stone bit (ø 8 mm)
• Measuring tape / ruler
• Level
• Pencil
• Stable stepladder
• Work gloves

We also recommend having a second person with you to help.

Screws

The screws and dowels required to mount the appliance on a wall are not included in the package contents as their type and dimensions will vary depending on the characteristics of the wall. Please have a specialist advise you as to which ones you need.

In total, you will need

• 2 round-head screws (10) to attach the wall bracket for the upper flue screen (6)
• 2 round-head screws (11) for hanging the Exhaust hood.
• 2 round-head screws (12) with flat washers to secure the Exhaust hood.
• 6 suitable wall plugs

Space requirements and attachment dimensions

Space requirements

Important units	Dimensions in cm
(a) Minimum distance between stovetop and lower edge of exhaust hood (1)	65 - 75
(b) Height of exhaust hood (1) 36.4
(c) Height of the entire flue screen: (2) and (3)	40 - 78
(d) Height of the entire appli-ance: (1), (2) and (3)	76.4 - 114.4
(e) Space required above the stovetop	141.5 - 189.5

The images and tables show the minimum distances that must be complied with and how much leeway you have while installing.

The figures in brackets refer to circulation air operation; the ventilation slits must be kept clear.

Attachment dimensions

Calculating drill holes	Dimensions in cm
(f) Height of the safety screws (12) for exhaust hood (1)	19
(g) Height of the attachment screws (11) for exhaust hood (1)	35.2
(h) Distance between the safety screws (12) for exhaust hood (1)	22
(i) Distance between the attachment screws (11) for exhaust hood (1)	35
(j) Distance between the attachment screws (10) for the wall bracket (6) for the upper flue screen (2)	10.5

Assembly

Place the drill holes

WARNING

Risk of injury!

Improper installation of the appliance can lead to injury.

■ Before drilling the holes, ensure that no wires or cables (power, gas, water etc.) will be damaged (check with a line locator).

CAUTION

Fire hazard!

- The distance between the cooking surfaces and the lower edge of the Exhaust hood must be at least 65 cm for gas cookers. - For gas stovetops, you must read the user manual for the stovetop! If the manual stipulates a larger distance, this must be observed.

1. In order to place the appliance exactly over the centre of the stovetop, first use the pencil to draw a vertical guiding line on the wall. Ideally, use a level or a plumb bob from the ceiling of the room to the middle of the stovetop.
2. Following the diagram shown above, draw the six drill holes on the wall. Make sure the distances between the holes are correct.
3. Drill holes at the marked points, using a diameter that can accommodate the dowels.
4. Place the dowels into the holes.

Attaching the Exhaust hood

1. Place the two halves of the check valve (5) into the opening on the top of the Exhaust hood(1).
2. Make sure that the pins on the valve are facing outwards.
3. Screw the two round-head screws (11) for hanging the Exhaust hood into the wall plugs.
   There must be enough space between the wall and the heads of the screws so that the Exhaust hood exhaust hood can be hung by the keyhole openings.

Diagram of a device with an arrow pointing to a component, labeled (13), showing no text or symbols beyond the number.

1. Flip the cover (13) up.

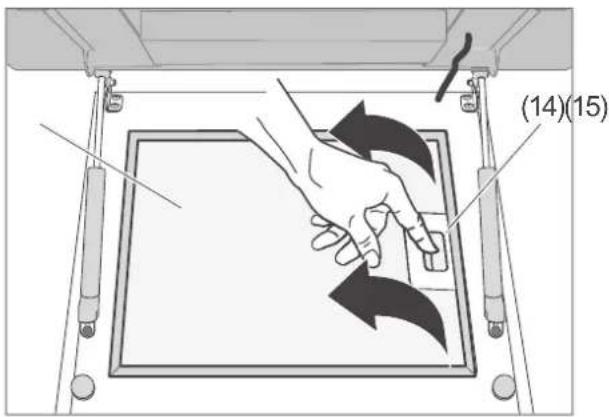

1. Open the locks (14) on the grease filters (15) and carefully pull the grease filters downwards to remove them.

1. Turn two round-head screws (12) into the prepared wall plugs to secure the Exhaust hood, and screw the Exhaust hood tightly to the wall.

1. Carefully hang the Exhaust hood on the two round-head screws (11) using the keyhole openings.

1. Place the grease filter (15) with the pins into the openings.
2. If necessary, remove the Exhaust hood again to loosen or tighten the screws in order to ensure that the hood is flush with the wall.
3. Push the locks (14) up; snap the grease filters (15) in and release the locks.
4. Close the cover (13) again and allow it to click into place. The Exhaust hood is now mounted to the wall.

Attaching the exhaust air hose

The exhaust air hose (4) must be installed if you intend to use the exhaust hood with exhaust air operation.

1. Insert the end of the exhaust air hose (4) with the larger diameter (153 mm) into the connection with the check valve.
2. Secure the lower end of the exhaust hose with the cable tie (9).

Installing the flue screen

Technical line drawing of a rectangular metal bracket with mounting holes and a label (6) pointing to its edge (no text or symbols on the object itself)

1. Screw the wall bracket for the upper flue screen (6) into the prepared wall plugs using 2 round-head screws (10).

1. Push the upper part (2) of the flue screen halfway into the lower part (3) of the flue screen.

1. Place the retaining plate (7) onto the lower flue screen (3) so that it lines up with the chamfers on the inside. (Screws and elongated holes should point upwards).
2. Turn two plate screws (8) from the outside through the retaining plate (7) and the lower flue screen (3). Tighten the screws somewhat, but only loosely.
3. Place both parts (2) and (3) the flue screen onto the exhaust hood (1), with the closed side of the flue screen facing upwards.

1. Screw the lower part (3) of the flue screen with 2 plate screws (8) to the sides of the exhaust hood (1).

1. Only for exhaust air operation: Insert the exhaust air hose (4) into the connection at the wall break (hose end with 150 mm diameter).
2. Connect the mains plug to a properly installed socket.

For a short time, all sensors will be illuminated on the cover.

1. Pull the upper part of the flue screen (2) all the way up to the wall bracket for the upper flue screen (6).
2. Screw the upper flue screen on tightly using two plate screws (8).

Installation is now complete.

Operation

Requirements

- You have read the chapter entitled see "Safety" on page EN-4.

- The exhaust hood is assembled as described in chapter „Assembly“ from page EN-12.

Activated charcoal filter

• When using the appliance for air circulation, only do so with activated charcoal filters inserted.
• If neighbours complain about odours, it may be a good idea to insert activated charcoal filters for exhaust air operation, too.
• For the source of supply, please see chapter „Our Service Centre“ on page EN-21.
• To insert see „Inserting/replacing activated charcoal filters“ on page EN-18.

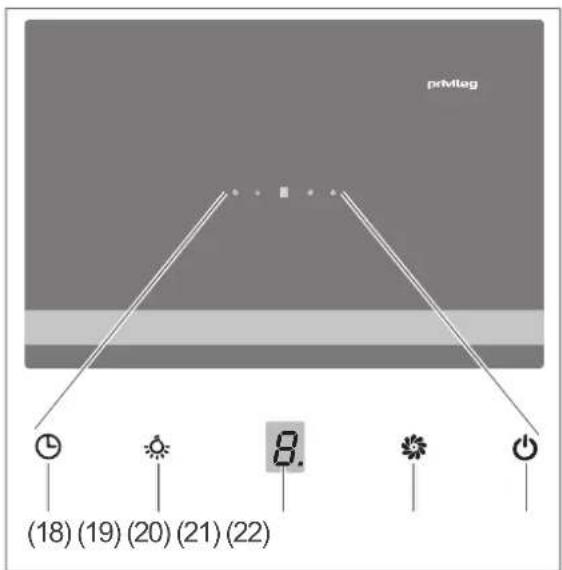

Switching the lighting on

Your exhaust hood is equipped with two LED lights on the underside. The lighting can be switched on or off independently of the fans.

To switch the lighting on or off, press the (19) button.

Switching appliance on/off

To switch the appliance

• on, tap the sensor (22)
The fan will start, and the display (20) will show the current fan level.
• off, tap the sensor once again (22) ⏻.
The fan will switch off and the display will go out.

Changing the fan setting

You can select between fan levels 1, 2 and 3.

- In order to change the fan level, tap the sensor (21) ❄️.

Timer function

The timer function ensures that the fan switches off automatically after running for 9 minutes. To switch the function

• on, tap on the sensor (18) Ⓤ.
The display will show 9 and will count the time down. After 9 minutes have elapsed, the fan will switch off.
• off, tap the sensor again (18)
.The display now once again shows the current fan level.

Tips on saving energy

• Only switch on the fan when needed; otherwise, energy will be wasted.
• Let the fan run as long as cooking fumes or steam are present.
• The fan is not needed when cooking only briefly or warming up foods that have little or no odour.
• Ensure that there is enough supply air; otherwise, the exhaust hood may not function optimally. If necessary, open the window or kitchen door.
  – Clean the grease filters (15) regularly.

Care and maintenance

WARNING

Risk of injury!

■ Before cleaning the exhaust hood or changing the filter, pull out the mains plug. If the mains plug is difficult to access, switch off or pull out the corresponding fuse.

CAUTION

Fire hazard!

Improper handling of the appliance or incorrect maintenance can result in grease residue catching fire.

■ Grease residue on the exhaust hood or in the grease fi Iters can catch fi re if exposed to high temperatures. For this reason, clean the surfaces of the exhaust hood and grease fi Iters regularly.

Cleaning the housing

NOTICE

Risk of damage!

■ Do not use any sharp objects or scouring powders, as these can scratch the surface.

We recommend cleaning the surfaces of the exhaust hood after every use.

• Wipe the surfaces with a soft, damp cloth and a little dishwashing detergent.
• Clean glass surfaces with standard glass cleaner.

Cleaning the grease filters

NOTICE

Risk of damage!

■ Handle the grease fi Iters carefully to avoid bending or creasing the fine mesh.
■ Only reinsert the grease filters after cleaning once they are fully dry.

Clean the grease filters once a month – or more frequently if necessary – in the dishwasher (up to 60 °C), or soak in lukewarm water with detergent.

1. Unplug the mains plug or switch off the corresponding fuse.

Diagram of a device with a triangular component inserted into a tray, labeled (13), showing no text or symbols beyond the label.

1. Flip the cover (13) up.

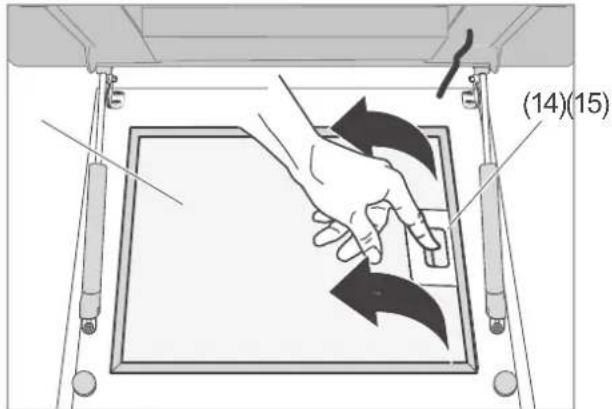

1. Open the locks (14) on the grease filter (15) and carefully pull it downwards to remove.
2. Wash the grease filter (15) in a dishwasher or in the sink like ordinary dishware.

1. Once the grease filter (15) is fully dry, insert it with the pins into the openings.
2. Push the locks (14) upwards; snap the grease filters (15) in and release the locks.
3. Close the cover (13) again and allow it to click into place.
4. Switch the power back on.

Inserting/replacing activated charcoal filters

Activated charcoal filters are required for circulation air operation. They help combat odours. They have to be replaced as soon as the cooking odours can no longer be adequately filtered.

If used frequently, you should change the filters regularly. Check them at least every 6 months.

For the source of supply, please see chapter see „Our Service Centre“ on page EN-21.

Preparation:

1. Unplug the mains plug or switch off the corresponding circuit.

Technical line drawing of a mechanical component with mounting holes and internal channels (no text or symbols)

1. Flip the cover (13) up.
2. Open the lock (14) on the grease filter (15) and carefully pull the grease filter downwards to remove it.

The two charcoal filters (16) are located to the right and left of the motor (17).

1. If available, loosen the two charcoal filters and remove them.
2. Place the new charcoal filters to the right and left of the motor and tighten them in an anti-clockwise direction. Allow the lock to click into place.

1. Place the grease filter (15) with the pins into the openings.
2. Push the locks (14) up; snap the grease filters (15) in and release the locks.
3. Close the cover (13) again and allow it to click into place.
4. Switch the power back on.
5. Dispose of the used charcoal filters with household waste.

Lighting

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Do not remove the covers of the lamps.
■ Do not attempt to replace the bulbs.

Maintenance-free LEDs are used as lights. If a light does not work, contact our customer service department (see page EN-21).

Note for the service technician:

This exhaust hood requires LEDs with the ILCOS D-Code DDS-1.5/65-S-120/33, 12 V DC, 1.5 W.

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, please check the tables to see if you can correct the malfunction.

WARNING

Risk of electric shock in case of improper repair!

Never try to repair a defective or suspected defective appliance yourself. You can put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.

Problem Possible causes Solutions, tips
Fans and lighting not working.	The appliance is dis-connected from the mains.
Lighting not working. LED bulb is defective. Contact our service team for this (see page EN-21).
Grease is dripping off the appliance.	Grease filter is clogged.
Circulation air operation: Odours are not adequately removed; weak airflow.	Grease filter is clogged.
Exhaust air operation: Poor performance.	The exhaust hood does not have a sufficient air supply.
	The exhaust air hose is bent or too long.

Our Service Centre

In order for us to help you quickly, please tell us:

Name of appliance Model Article no.
Privileg Wall-mounted headroom hood	SY-103E13-E4-C55-L52-600	3351 5359
	SY-103E13-E4-C55-L52-900	7692 6741

Please note: You are responsible for the condition of the appliance and its proper use in the household. If you call out for customer service due to an operating error, you will incur charges, even during the guarantee/warranty period.

Damage resulting from non-compliance with this user manual unfortunately cannot be recognised.

General customer service

Please contact your mail order company's product advice centre if you have questions, complaints, repair orders or accessory orders.

Spare parts

Customers in Germany

Please contact Hermes Fulfilment GmbH:

Tel. [phone]

Monday–Thursday 8.00 a.m.–3.00 p.m., Friday 8.00 a.m.–2.00 p.m.

Customers in Austria

Please contact your mail order company's customer service centre or product advice centre.

Ordering activated charcoal filters

An activated charcoal filter is only required for air circulation and is not included in the package contents. You can order it under the following article number:

Model CF110: Article number 812 120

Environmental protection

Disposing of old electrical devices in an environmentally friendly manner

Electrical appliances contain harmful substances as well as valuable resources.

Every consumer is therefore required by law to dispose of old electrical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

Disposing of activated charcoal filters

You can dispose of activated charcoal filters with your household waste.

Packaging

Our packaging is made from environmentally friendly, recyclable materials:

– Outer packaging made of cardboard
– Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of polyethylene (PE)
– Straps made of polypropylene (PP).

Product fiche concerning Regulation (EU) No 65/2014

Trade mark	privileg
Model identifier	3351 5359 / SY-103E13-E4-C55-L52-600
Annual Energy Consumption	43,5 kWh/a
Energy Efficiency class on a scale from A+++ (most efficient) to D (least efficient)	A
Fluid Dynamic Efficiency	31,4
Fluid Dynamic Efficiency class on a scale from A (most efficient) to G (least efficient)	A
Lighting Efficiency	32,3 k/W
Lighting Efficiency class on a scale from A (most efficient) to G (least efficient)	A
Grease Filtering Efficiency	74,6 %
Grease Filtering Efficiency class on a scale from A (most efficient) to G (least efficient)	D
Air flow at minimum speed in normal use	345 m3/h
Air flow at maximum speed in normal use	599 m3/h
Air flow at intensive or boost setting	- m3/h
A-weighted sound power emissions at minimum speed available in normal use	69 dB
A-weighted sound power emissions at maximum speed available in normal use	73 dB
A-weighted sound power emissions at intensive or boost setting	- dB
Power consumption in df mode	0,43 W
Power consumption in standby mode	- W

The values indicated above have been measured under standardised laboratory conditions pursuant to EN 61591.

Trade mark	privileg
Model identifier	7692 6741 / SY-103E13-E4-C55-L52-900
Annual Energy Consumption	43,5 kWh/a
Energy Efficiency class on a scale from A+++ (most efficient) to D (least efficient)	A
Fluid Dynamic Efficiency	31,4
Fluid Dynamic Efficiency class on a scale from A (most efficient) to G (least efficient)	A
Lighting Efficiency	28,6 k/W
Lighting Efficiency class on a scale from A (most efficient) to G (least efficient)	A
Grease Filtering Efficiency	74,6 %
Grease Filtering Efficiency class on a scale from A (most efficient) to G (least efficient)	C
Air flow at minimum speed in normal use	345 m3/h
Air flow at maximum speed in normal use	599 m3/h
Air flow at intensive or boost setting	- m3/h
A-weighted sound power emissions at minimum speed available in normal use	69 dB
A-weighted sound power emissions at maximum speed available in normal use	73 dB
A-weighted sound power emissions at intensive or boost setting	- dB
Power consumption in off mode	0,43 W
Power consumption in standby mode	- W

The values indicated above have been measured under standardised laboratory conditions pursuant to EN 61591.

Product information concerning Regulation (EU) No 66/2014

Model identification	3351 5359 / SY-103E13-E4-C55-L52 -600
Annual Energy Consumption	43,5 kWh/a
Time increase factor	0,9
Fluid Dynamic Efficiency	31,4
Energy Efficiency Index	51,1
Measured air flow rate at best efficiency point	320,0 m3/h
Measured air pressure at best efficiency point	434 Pa
Maximum air flow	599,2 m3/h
Measured electric power input at best efficiency point	122,7 W
Nominal power of the lighting system 4,4	W
Average illumination of the lighting system on the cooking surface	142 lux
Measured power consumption in standby mode	- W
Measured power consumption off mode	0,43 W
Sound power level 7	3 dB

The values indicated above have been measured under standardised laboratory conditions pursuant to EN 61591.

Model identification	7692 6741 / SY-103E13-E4-C55-L52-900
Annual Energy Consumption	43,5 kWh/a
Time increase factor	0,9
Fluid Dynamic Efficiency	31,4
Energy Efficiency Index	51,1
Measured air flow rate at best efficiency point	320,0 m3/h
Measured air pressure at best efficiency point	434 Pa
Maximum air flow	599,2 m3/h
Measured electric power input at best efficiency point	122,7 W
Nominal power of the lighting system 4,4 W
Average illumination of the lighting system on the cooking surface	126 lux
Measured power consumption in standby mode	- W
Measured power consumption off mode	0,43 W
Sound power level 7	3 dB

The values indicated above have been measured under standardised laboratory conditions pursuant to EN 61591.

Technical Specifications

Item number	3351 5359
Model	SY-103E13-E4-C55-L52-600
Supply voltage / frequency	220-240 V, 50 Hz
Protection class	I
Device measurements (Width × Depth)	60,0 cm × 38,2 cm
Total height	114,4 cm
Height of the flue screen	40 cm - 78 cm
Exhaust air hose connection	∅ 15,0 cm
Weight	17,0 kg
Lighting, pieces LED: 2 x 1,5 W

Item number	7692 6741
Model	SY-103E13-E4-C55-L52-900
Supply voltage / frequency	220-240 V, 50 Hz
Protection class	I
Device measurements (Width × Depth)	9 0,0 cm × 38,2 cm
Total height	114,4 cm
Height of the flue screen	40 cm - 78 cm
Exhaust air hose connection	∅ 15,0 cm
Weight	19,5 kg
Lighting, pieces LED: 2 x 1,5 W
