Product Type	Air Purifier
Brand	Airthereal
Model	Pure Morning APH260
CADR	152 CFM (260 m³/h)
Applicable Area	Up to 355 sq. ft. (33 m²)
Filtration System	7-in-1 HEPA Filter
HEPA Filter Lifetime	>6 months (replace every 6-8 months)
Noise Level	<49 dB (High), <40 dB (Medium), <28 dB (Low/Sleep)
Anion Density	20×10⁶ pcs/cm³
Power Supply	AC 120V, 60Hz
Power Consumption	50W (operating), <0.8W (standby)
Operating Temperature	-10°C to 55°C (14°F to 131°F)
Ozone Density	0 ppmv (ETL tested)
UV-C Light	254 nm, lifetime >50,000 hours
Display	LED touch-control panel
Fan Speeds	3 speeds (Low, Medium, High)
Modes	Auto Mode, Sleep Mode, Timer (1-12h)
Special Features	Anion generator, UV-C light, PM2.5 detection, Air quality indicator
Safety	Polarized plug, auto-off when front shell removed
Certifications	Intertek ETL, UL Std. 867, CSA C22.2 No.187, CARB compliant
Warranty	2-year limited manufacturer warranty
Maintenance	Clean every 2 months, replace filter every 6-8 months
Replacement Filter	Airthereal Pure Morning APH260 filter (Amazon B07G74NYG6)

Frequently Asked Questions - Pure Morning APH260 Airthereal

How do I install the filter for the first time?

Open the front shell, remove the plastic bag from the HEPA filter, place the filter with the pull-tab facing outward, and reattach the front shell. The unit will not power on if the front shell is not properly installed.

How often should I replace the HEPA filter?

It is recommended to replace the filter every 6-8 months for optimal performance. The replacement icon (PM2.5 light flashes red) alerts you when it's time to check or change the filter.

How do I reset the filter replacement reminder?

After replacing the filter, press and hold the ⚙️ and ⏱ buttons simultaneously for 3 seconds to reset the reminder.

What does Auto Mode do?

Auto Mode automatically adjusts the fan speed based on the real-time PM2.5 reading. The air quality indicator light changes color (green for good, yellow for moderate, red for unhealthy) to reflect the current air quality.

What is the Anion function?

The Anion function generates negative ions to help eliminate airborne bacteria and reduce static electricity. It can be turned on or off via the touch panel.

What does the UV-C light do?

The UV-C light (254 nm wavelength) destroys harmful microorganisms in the air. It has a rated lifespan of over 50,000 hours and does not require replacement under normal maintenance.

How do I clean the air purifier?

Unplug the unit. Use a soft cloth moistened with mild soap to clean the plastic housing. Open the front panel and vacuum the interior and air outlet. Clean every 2 months for best performance.

Why is the unit making unusual noise?

Possible causes: dirty filters (replace them), improperly installed filter (check placement), foreign object inside (discontinue use and contact support), or an uneven surface (place on a flat, hard surface).

What safety features does this purifier have?

The unit uses a polarized plug that only fits one way. It automatically shuts off if the front shell is not properly installed. The power cord should not be routed under furniture or carpet. The purifier is ETL, UL, CSA, and CARB certified.

What is the warranty coverage?

Airthereal provides a 2-year manufacturer's limited warranty covering defects in materials and workmanship. It applies to the original purchaser only. For warranty service, contact [e-mail] or visit airthereal.com/pages/warranty.

USER MANUAL Pure Morning APH260 Airthereal

Pure architectural floor plan lines without any text, numbers, or symbols

CONTENTS

▼ English

COMPONENTS 3

SPECIFICATIONS 4

IMPORTANT SAFETY INSTRUCTIONS 4

INSTALLATION INSTRUCTIONS 6

OPERATION 7

MAINTENANCE 9

TROUBLESHOOTING 11

WARRANTY 12

German

Teileübersicht 14

Spezifikationen 15

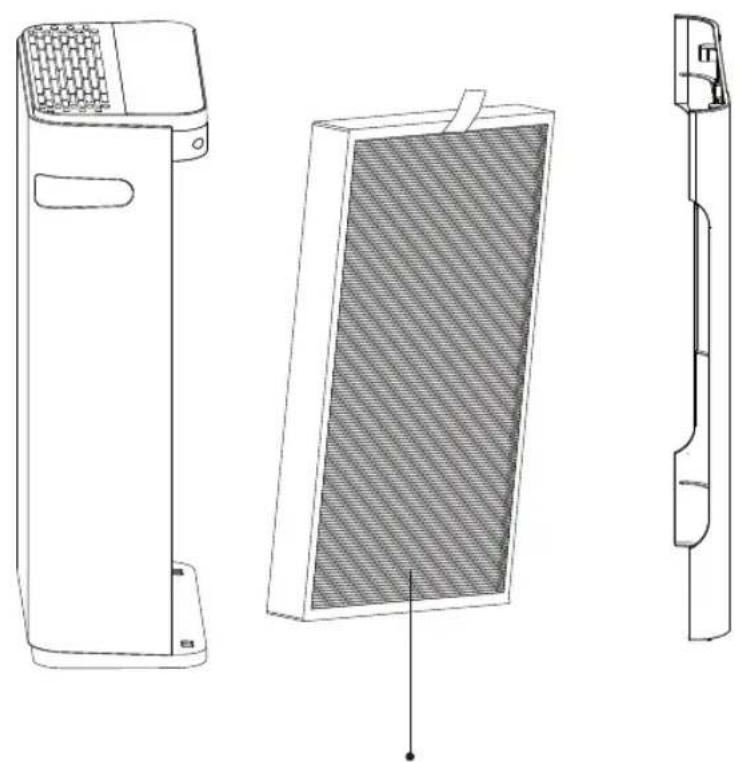

Technical line drawings of a device with three views: front, side, and top (no text or symbols)

7-in-1 HEPA Filter

SPECIFICATIONS

CADR	152CFM (260 m3/h)
Applicable Area	355sq.ft. (33m2) max.
HEPA Filter Lifetime	>6 months
Noise Level	<49dB (High Speed)
	<40dB (Medium Speed)
	<28dB (Low Speed or Sleep Mode)
Anion Density	20*10^6 pcs/cm3 (1.22*10^6 pcs/in3)
Power Supply	AC 120V, 60Hz US. CA.
Related Power	50W
Standby Power	<0.8W
Operating TEMP	-10°C~55°C (14°F~131°F)
Ozone Density (ETL Tested)	0ppmv
UV Light Wavelength	254nm
UV Light(LED) Lifetime	>50,000Hrs

Intertek

5012499

COMFORMS TO UL STD.867

CERTIFIED TO CSA STD.C22.2 NO.187

CALIFORNIA

AIR RESOURCES BOARD

OZONE DENSITY about HEPA AIR PURIFIER

This product complies with the maximum allowable concentration of ozone of 0.050 parts per million by volume (ppmv) in a 24-hour period.

The Health Canada Guideline 2010 recommends that the maximum exposure limit, based on an averaging time of 8 hours, is 0.020 ppmv or less when tested in a sealed, controlled room approximately 30 m ^4 .

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT:

Please read and comply with all of the instructions and warnings in the manual before using.

Failure to comply with the instructions and warnings provided herein may result in inaccurate results and/or damage to the product itself.

General Safety

Only use this air purifier as described in this manual.

• Ensure the plug fits properly into an AC power outlet.
• When not being used, turn the air purifier off and disconnect it from its power source by unplugging from the electrical outlet.
• DO NOT operate the unit if its cord or plug is damaged. It may result in damage to the unit or injury. It must be replaced by the manufacturer or other qualified person so as to avoid all risks.
• NOT recommend using an extension cord. If necessary, the extension cord should be same size as the original one.
  • Thoroughly dry your hands before operation.
• DO NOT immerse air purifier in water or liquids. It may result in damage to the appliance, electric shock, or fire.
• DO NOT use the air purifier outdoors. This appliance is designed for indoor use only.
• DO NOT use the air purifier in an enclosed space where flammable, combustible, or explosive gases are present.
• DO NOT use in an area where toxic vapors, flammable dust or oxygen tanks are present.
• DO NOT insert fingers or objects into the air outlet.
• Child supervision is required while the air purifier is on. Do not allow children to play on or near the air purifier.

Use & Care

• Always make sure to place the air purifier on a flat, level surface before operation.
  • Always allow 15 inches (38 cm) of clearance on all sides of the purifier.
• DO NOT ROUTE CORD UNDER FURNITURE OR APPLIANCES. Do not run the power cord under carpeting. Do not cover cord with throw rugs, runners or similar coverings. Place the power cord away from high traffic areas.
• DO NOT sit on or place anything on top of the purifier.
• DO NOT place the air purifier near sources of heat, such as stoves, ovens, radiators or computers.
• DO NOT use this appliance with indoor smoke-type insect repellents or in places with oily residues, burning incense or chemical fumes.
• DO NOT open the back shell while the air purifier is on. It will automatically turn off the unit.
  • Always unplug the appliance from the power supply before servicing.
• DO NOT clean the appliance with water or any other liquid to avoid electric shock or injury.
• DO NOT attempt to repair this device in any way or use any replacement components or parts to modify the air purifier. Contact Customer Support immediately if your appliance is no longer working.
• Only use Airthereal Pure Morning APH260 replacement filters for this unit.
• If you experience any problems while operating the air purifier, refer to the Troubleshooting section in the manual. If the problem is NOT solved, contact Customer Support.
• If the unit is damaged or NOT functioning properly, discontinue use and contact Customer Support.

INSTALLATION INSTRUCTIONS

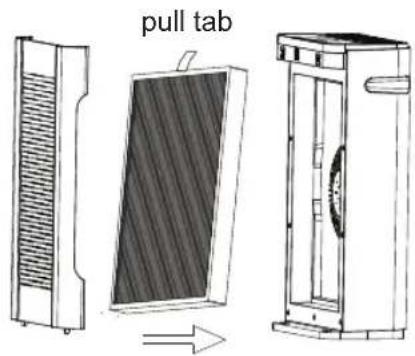

1. Open the front shell of the air purifier and unwrap the plastic package of the HEPA filter.

Technical line drawings of a device with internal structure, showing transformation from left to right (no text or symbols)

1. Reinstall the HEPA filter. Make sure the pull-tab is facing outward. Then install the front shell.

NOTE: If the front shell is not installed properly, it will remain power off.

1. Place the air purifier where desired.

Place at least 15 inches away from TVs, radios, and other electronic products. Electromagnetic interference from certain electronics may cause product malfunction. Only use the unit on the firm and flat surfaces. Flimsy or slanted surfaces may result in abnormal noise and vibrations.

OPERATION

1. Insert the power cord into an electrical outlet.

Illustration of a plug inserted into a wall socket connected to a cable, with a blue arrow indicating the cable's direction (no text or symbols present)

WARNING

Follow these instructions to reduce the risk of serious injury or death and to reduce risk of damaging the unit.

Follow these instructions to reduce the risk of serious injury or death and to reduce risk of damaging the unit.

Please make sure the operating voltage is the same as parametric label.

For American and Canadian users, our product will be equipped with a POLARIZED AC PLUG that will fit into the power outlet only one way. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, contact qualified personnel to install the proper outlet.

1. Touch-control panel Introduction

Power Button

Power on/off. Press the button to process power. The blue breath light of the air quality indicator will twinkle for 30 seconds. Meanwhile, it starts to detect the PM2.5 value on the LED display.

Fan Speed

Press to start air circulation. 3 fan speeds are available (low, medium, and high, corresponding with the values 1, 2, and 3 on the LED Display).

Anion

Press to activate/inactivate the Anion Mode.

When the anion function is on, it becomes an air ionizer that uses high voltage to ionize air molecules.

Anions are particles with one or more extra electron, conferring a net negative charge to the particle. It's used to eliminate the occurrence of air-borne bacterial infections and to reduce static electricity buildup in electronics.

Timer

Press to switch to timing mode. (Timing can be set from 1-12 hours or to NO TIMER, corresponding to values 1-12 and 00 on the LED display.)

Sleep Mode

Press to turn on / off the Sleep Mode.

NOTE:

• Sleep Mode is the lowest fan speed.
• When Sleep Mode is activated, the Air Quality Indicator is disabled.
• Tap ‘💡’ or ‘Ⓐ’ to exit Sleep Mode.

Auto Mode

• Press to activate auto mode. It will operate depending on the current air quality index.
  • Real-time PM2.5 value will also illuminate on the LED display.
• The air quality indicator light at the top will also brighten with its respective color.
• Tap ' ☐' or ' ☺' to exit Auto Mode.

PM2.5 ( g/m^3 )	Levels of Health Concern	AQI (EPA of USA)	Fan Speed
0.0-12.0	Good	0-50	Low
12.1-35.4	Moderate	51-100	Medium
35.5-150	Unhealthy	101-200	High

Instant PM2.5 value is one of the core references for indoor air quality index (AQI). Regarding the AQI, working modes, and lights indicators, Airthereal APH260 Air Purifiers comply with EPA regulations.

For additional Information, please reference the United States Environmental Protection Agency (EPA): https://cfpub.epa.gov/airnow/index.cfm?action=aqi_brochure.index#particle

UV-C Light

Press to activate/inactivate the UV-C Light mode.

UV-C refers to ultraviolet light with wavelengths between 200 - 280 nanometers (nm). It can be used for destroying harmful micro-organisms in food products and in the air.

Airthereal Pure Morning APH260 Air Purifier has passed the ETL stringent testing requirements. The UV-C light is rated at 50,000 hours, or slightly longer than 5 years. It's no need to replace the UV light for normal maintenance.

MAINTENANCE

Know the 7-in-1 HEPA Filter

When the replacement icon lights up (PM2.5 light turn RED and keep flashing), it is a reminder to check and change the air filter.

■ Recommend replacing the air filter every 6-8 months for optimal use. Or according to your air filter status.
■ Time to replace the air filter when below signals appear:

• Increased noise
  • Decreased airflow
• Clogged filters
  • Presence of odors from the unit

Purchase a new Airthereal Air Filter Replacement:

www.airthereal.com

Search on Amazon: APH260 filter / B07G74NYG6

Only use Airthereal Pure Morning APH260 replacement filters for this unit.

Replace the Air Filter

■ Power off and unplug before operating.
■ Remove the front shell.

Technical line drawing of two industrial air conditioning units, one with a mesh grille and the other with a vertical slatted structure (no text or symbols)

■ Take out the old filter by pulling the tab. Unwrap a new one.

Simple line drawing of a folded paper or sheet with scissors cutting through it (no text or symbols)

■ Install a new filter in the unit. Make sure the pull-tab on the filter is facing outward and put the front shell on.

■ Process power. Press and hold the button ⚙️ & ⏱ simultaneously for 3 seconds to reset the replacement reminder.

Note: Automatic Power Off when the front shell not installed properly.

Cleaning

Unplug the power cord before cleaning.

■ Plastic housing should be cleaned with a soft cloth moistened with mild soap. Thoroughly remove soap film with dry cloth.
■ Open the front panel and clean the interior and air outlet with a vacuum cleaner.
■ For better maintenance, clean the unit every 2 months.

TROUBLESHOOTING

Problem Cause	Solution
No power or response.	Unit is not plugged into an electrical outlet.	Connect the plug to a powered electrical outlet.
	Outlet is not working properly.	Try plugging the air purifier into a different outlet.
	Front cover is not properly placed on the unit.	Properly replace the front cover as noted in the Getting Started section.
	Power cord is damaged.	Immediately discontinue use and contact Customer Support.
	Air purifier is defective or malfunctioning.
Any faulty display of the LED numbers.	Auto Mode has just been turned on.	Allow the air purifier to run for 30S. They will change a stabilized status based on the detected air quality
	Unit is defective or malfunctioning.	Immediately discontinue use and contact Customer Support.
Unusual noise while operating.	Dirty filters.	Replace the air filters as instructed in the Replacing the Air Filters section on page 9-10.
	Filters installed improperly.	Properly place filter as noted in the Getting Started and Replacing the Air Filters sections (page 9-10).
	Foreign object inside the unit.	Immediately discontinue use and contact Customer Support. DO NOT attempt to open the air purifier.
	Flimsy or slanted surfaces resulting in abnormal noise and vibrations.	Place air purifier on hard, flat surfaces.
Significantly reduced airflow.	Not enough space around the unit.	Ensure that there is at least 15 inches (38 cm) between the unit and other objects.
Poor air purification quality.	Surrounding area exceeds the applicable area.	APH260 is applicable to 355 ft2(33 m2).
	Air inlet or outlet is blocked.	Remove objects that block the air inlet or outlet.
	Filter(s) not properly placed in housing.	Properly place filter as noted in the Getting Started and Replacing the Filters sections (page 9-10).

WARRANTY

Product Name True HEPA Air Purifier
Model Pure Morning APH260
Manufacturer Warranty Period 2	Years
For your own reference, we strongly recommend that you record your order number and date of purchase.

TERMS & POLICY

Quality has always been Airthereal's top priority. For your 100% hassle-free shopping experience, Airthereal provides a 2-Year manufacturer's limited warranty for APH260 Air Purifiers. Internet information: airthereal.com/pages/warranty

• What's covered?

Defects due to faulty materials and workmanship of the product.

• What's NOT covered?

1. Damage caused by the owner when attempting to fix or altering the product by him or herself.
2. Damage caused by misuse, abuse, neglect, alterations, or unauthorized repair.
3. Natural depreciation.

- Warranty Period

Warranty becomes effective since the date of original purchase and will last for two (2) years.

• Who's covered?

This limited warranty is only effective for the original purchaser. It is NOT transferable.

• How to request warranty services?

To obtain the benefit of this warranty, please leave a message online (https://airthereal.com/pages/warranty), or send an email to [e-mail]. Our customer service will address your issue in 24hs.

• What will Airthereal do?

1. Repair the item.
2. Replace the item if repairable.
3. Refund the item under certain circumstances.

ALL EXPRESSED AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

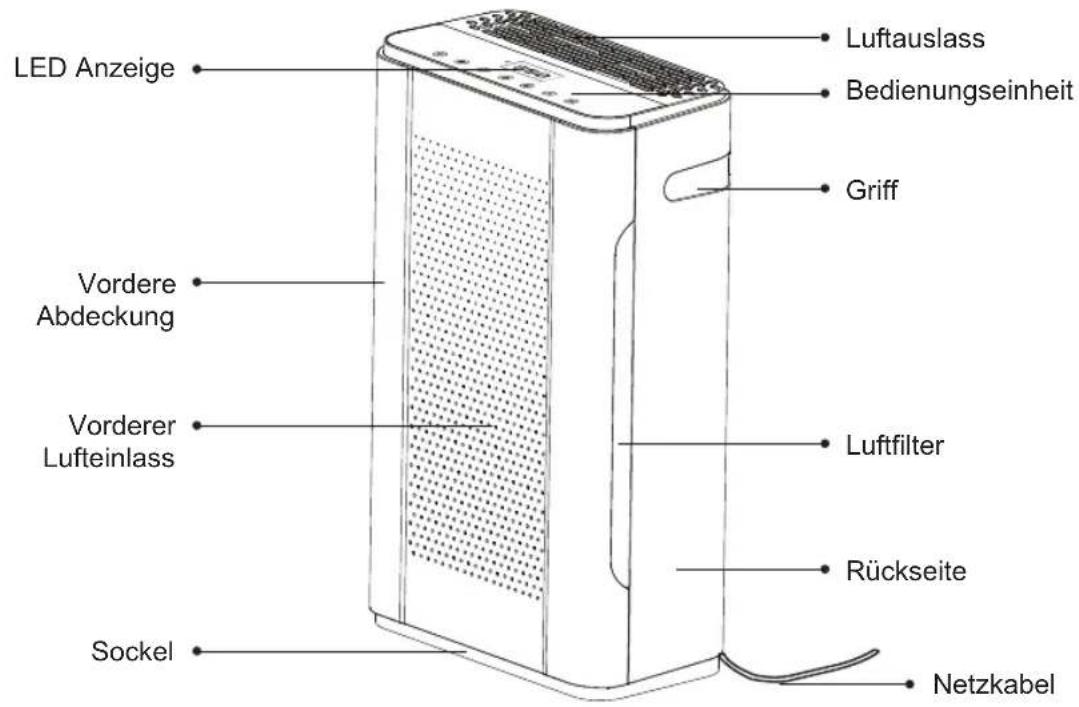

Teileübersicht

Technical line drawings of a device with three views: front, side, and top (no text or symbols)

7-in-1 HEPA Filter

Spezifikationen

Diagram showing three stages of a device: front panel, side panel with internal structure, and back panel with scissors cutting the cover (no text or symbols)

Vorgang

Illustration of a plug inserted into a wall socket connected to a cable, with no text or symbols present.

WARNING

Technical line drawing of a dual-panel industrial device with meshed panels and ventilation slots (no text or symbols)

Simple line drawing of a folded paper or sheet with scissors cutting through it (no text or symbols)

This product must not be disposed of via normal household waste after its service life but must be taken to a collection station for the recycling of electrical and electronic devices. The symbol on the product, the operating instructions or the packaging indicate such disposal procedures. The materials are recyclable in accordance with their respective symbols. By means of re-use, material recycling or any other form of recycling old appliances you are making an important contribution to the protection of our environment. Please ask your local council where your nearest disposal station is located.

ENTSORGUNG
