USER MANUAL ZI-UVGW1 Zipper

Green stylized letter 'Z' on black background, no text or symbols present

Operation Manual Garden Cart

Handmade gardening tools including hammers, leavers, and a green Zippers cart (no text or symbols visible)

CE

ZI-UVGW 1

EAN : 912003923022 1

Read the operation manual carefully before first use.

ATTENTION! Ignoring the safety signs and warnings applied on the machine as well as ignoring the security and operating instructions can cause serious injuries and even lead to death.

READ THE MANUAL! Read the user and maintenance manual carefully and get familiar with the controls n order to use the machine correctly and to avoid injuries and machine defects.

CE-KONFORM! - Dieses Produkt entspricht den EG-Richtlinien. CE-Conformal! - This product complies with the EC-directives.

1 DE

BEDIENUNGSANLEITUNG

Fig A.

Simple line drawing of a mechanical component with no text or symbols

Fig. B

Simple line drawing of a circular object with a small arrow inside, labeled Fig. C (no text or symbols on the object itself)

Simple line drawing of a rectangular block with two arrows indicating direction and a vertical line passing through it (no text or symbols)

Fig. D

Product photo of a green ZIPPER bucket with black buckets and handle (no text or symbols visible)

This manual contains important information and advice for the correct and safe use and maintenance of the ZIPPER garden cart ZI-UVGW1. The manual is part of the machine and may not be stored separately. Read it profoundly before first use of the machine and keep it for later reference. When the machine is handed to other persons always put the manual to the machine.

Please follow the security instructions!

Due to continuous development of our products illustrations, pictures might differ slightly.

Attention!

Technical changes reserved!

Copyright

© 2012

This manual is protected by copyright law – all rights reserved. Especially the reprinting as well as the translation and depiction of pictures will be prosecuted by law. Court of jurisdiction is WELS, Austria.

Customer Support

Unpack the ZIPPER garden cart ZI-UVGW and check the machine for any transport damage and for completeness of delivery.

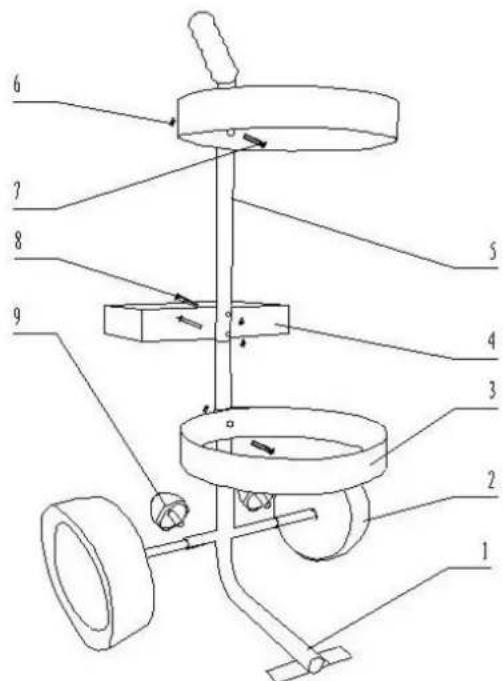

2 COMPONENTS

Fig. A

1	Lower rail
2	wheel
3	cirque
4	box
5	Top rail
6	Nut M6
7	Screw M6X40
8	Screw M6X35
9	Knob M8

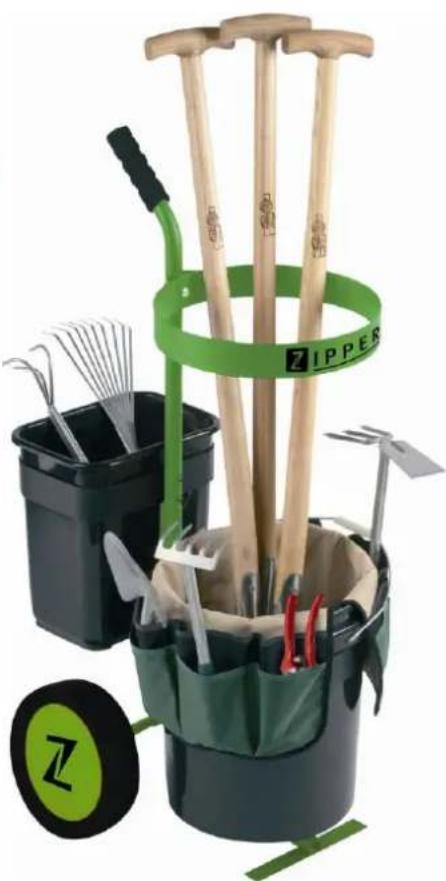

The Garden Tool Cart helps to keep your gardening tools handy and organized in this ergonomically designed caddy with easy rolling solid tires. Stash gloves, seeds, and twine in the 16-pouch tool organizer. Removable five-gallon bucket is great for holding trash, weeds or even vegetables and flowers from your gardens.

3 ASSEMBLY

Simple line drawing of a mechanical component with no text or symbols

Fig. B

1. Use 2 knob M8 to fix the axis with wheel on the lower rail. pls noted that the hole must be fit, as picture 1.

Simple line drawing of a circular tank with a handle and small object inside (no text or symbols)

Fig. C

1. Fix the two circle on the steel tube with M6X40 screw and nut M6, as picture 2.

Fig. D

1. Join the two steel tube, fix the box on the steel tube with two M6X35 screw and two M6 nut, as picture 3.
2. Put the circle bucket on the circle, and place the bag.
3. Put the square bucket in the box.

Two buckets with a green ZIPPER-branded handle, one black and one white, no visible text or symbols on the buckets themselves.

4 MAINTENANCE

The machine does not require intense maintenance. However, to ensure a long lifespan, we strongly recommend following the upkeep and maintenance plan.

Repairs must be carried out by specialists! Use original ZIPPER parts only!

4.1 Upkeep and Maintenance schedule

Activities	Frequency
Loose or lost screws, nuts, bolts	Regularly prior to each operation
Damage of any part of the machine	Regularly prior to each operation
Machine cleaning	Regularly after operation

4.2 Disposal

Do not dispose your ZI-UVGW1 in the residual waste! Contact your local authorities for information about best available disposal possibilities in your area.

4.8 Spare part order

With original ZIPPER spare parts you use parts that are attuned to each other and shorten the installation time and elongate your machines lifespan.

ATT ENR I ON

The installation of non-original parts renders the warranty null and void.

Exempted is the replacement of the spark plug if carried out by a specialist.

You find the order address in the preface of this operation manual.

5 GUARANTEE

Warranty claims based on your sales contract with your ZIPPER retailer, including your statutory rights, shall not be affected by this guarantee declaration.

Zipper Maschinen grants 1 year of spare part guarantee, reduced to 6 months for tools in commercial use, valid from the purchase date on the sales receipt.

The guarantee covers the replacement of defect/deficient machine parts/components whose defect/deficiency can be verified adequately that the deficiencies were caused by a material or manufacturing fault.

The Guarantee does not cover:

Wear and tear parts like belts, cutters etc., except to initial damage which has to be claimed immediately after receipt and initial check of the machine.

Defects of the tool caused by non-compliance with the operating instructions, improper assembly, improper use, impact of foreign forces like stones, tree trunks etc ..., insufficient servicing or maintenance.

Damages being the causal effect of performed manipulations, changes, additions made to the machine.

Slight deviations from the specified quality or slight appearance changes that do not affect functionality or value of the tool.
