PSC-WG-1020AA - Refrigerator Sam Cook - Free user manual and instructions
Find the device manual for free PSC-WG-1020AA Sam Cook in PDF.
| Brand | Sam Cook |
| Model | PSC-WG-1020AA |
| Type | Fridge-Freezer |
| Net Fridge Capacity | 185 L |
| Net Freezer Capacity | 115 L |
| Total Net Capacity | 300 L |
| Energy Efficiency Class | A+ |
| Annual Energy Consumption | 314 kWh/year |
| Climate Class | ST (16°C - 38°C) |
| Noise Level | 43 dB(A) |
| Freezing Capacity | 15 kg/24h |
| Refrigerant | R600a (50 g) |
| Power Supply | 220-240 V ~ 50 Hz |
| Defrost Type | No Frost (Automatic) |
| Control Panel | Electronic with LED Display |
| Temperature Control | Separate for Fridge and Freezer |
| Special Modes | ECO, Holiday, Super Freezing, User Defined |

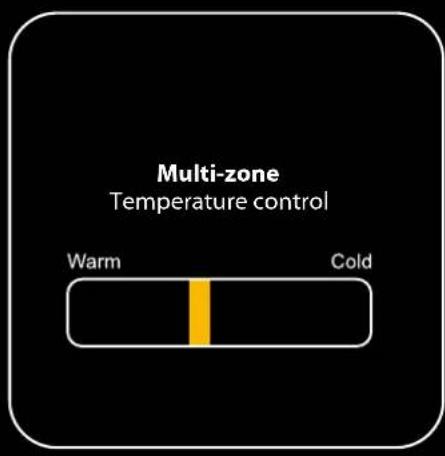

| Fresh Zone | Adjustable temperature (Warm/Cold) for fruits, vegetables, fish |
| Shelves | Adjustable glass shelves in fridge |
| Crisper | Yes, dedicated drawers |
| Freezer Drawers | Yes |
| Door Balconies | Yes, in fridge door |
| Leveling Feet | Adjustable front feet |
| Child Lock | Yes, automatic lock after 25 seconds |
| Cleaning | Use lukewarm water and mild detergent; avoid abrasives |
| Safety Features | Children safety lock, overheating protection, earthed plug |
Frequently Asked Questions - PSC-WG-1020AA Sam Cook
User questions about PSC-WG-1020AA Sam Cook
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Refrigerator in PDF format for free! Find your manual PSC-WG-1020AA - Sam Cook and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. PSC-WG-1020AA by Sam Cook.
USER MANUAL PSC-WG-1020AA Sam Cook
PL
INSTRUKCJA OBSŁUGI 5
GB
USER MANUAL....20
OPIS URZĄDZENIA/DEVICE DESCRIPTION:

Uwaga: Powyższy obrazek ma jedynie charakter poglądowy. Note: Above picture is for reference only. Real appliance probably is different.
MASTERCHEF LINE
EXECUTIVE
Cooking today has become an art. In preparing food, art means experimenting and breaking stereotypes. Nevertheless, achieving great art requires us to combine the artist's talent with excellent equipment. That is the case with Sam Cook.
Sam Cook products are designed for demanding people, based on the efforts of many professionals who consider cooking a living passion. Their arti stry in cooking is characterized by risk-taking and the courage to experiment with taste. Try our superb cookware and become a master chef in your own kitchen.
INFORMACJE DOTYCZĄCE BEZPIECZEŃSTWA
OGÓLNE ZASADY BEZPIECZEŃSTWA
CZYSZCZENIE
3. GWARANCJA NIE SĄ OBJĘTE:
In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operati on and safety features. Save these instructi ons and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.
For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.
CHILDREN AND VULNERABLE PEOPLE SAFETY
-
This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruct on concerning use of the appliance in a safe way and understand the hazards involved.
• Children should be supervised to ensure that they do not play with the appliance. -
Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.
- Keep all packaging well away from children. There is risk of suff ocati on.
- If you are discarding the appliance pull the plug out of the socket, cut the connection on cable (as close to the appli-
ance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
- If this appliance featuring magneti c door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

GENERAL SAFETY
- WARNING! Keep venti lati on openings, in the appliance enclosure or in the built-in structure, clear of obstructi on.
- WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- WARNING! Do not damage the refrigerant circuit.
- WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.
- WARNING! Do not touch the light bulb if it has been on for a long period of ti me because it could be very hot. ^1
- The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compati bility, which is nevertheless fl ammable.
- During transportati on and instal- lati on of the appliance, be certain
that none of the components of the refrigerant circuit become damaged:
- avoid open flames and sources of ignition
- thoroughly venti late the room in which the appliance is situated.
- It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fi re and/or electric shock.
- This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices and other working environments;
-farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
- WARNING! Any electrical components(plug, power cord, compressor and etc.) must be replaced by a certi fi ed service agent or qualifi ed service personnel.
• In order to ensure your children's safety, please keep all packaging
(plastic bags, boxes, polystyrene etc.) out of their reach.
- Store the appliance and its cord out of reach of children under 8 years of age.
- WARNING! Do not allow small children to play with the foil as there is a danger of suff ocati on!
- WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not usable for domestic lighting.
- Power cord must not be lengthened.
- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
• Make sure that you can come to the mains plug of the appliance.
- Do not pull the mains cable.
- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
- You must not operate the appliance without the lamp.
- This appliance is heavy. Care should be taken when moving it.
- Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
- Avoid prolonged exposure of the appliance to direct sunlight.
DAILY USE
Do not put hot on the plastic parts in the appliance.
Do not place food products directly against the rear wall.
Frozen food must not be re-frozen once it has been thawed out.
Store pre-packed frozen food in accordance with the frozen food manufactures instructions.
Appliances manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.
Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
Ice lollies can cause frost burns if consumed straight from the appliance.
CARE AND CLEANING
Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
- Do not clean the appliance with metal objects.
- Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
▶ Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the
drain. If the drain is blocked, water will collect in te bottom of the appliance.
INSTALLATION
Important! For electrical connecti on carefully follow the instructi ons given in specifi c paragraphs.
Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
Adequate air circulati on should be around the appliance, lacking this leads to overheati n To achieve sufficient venti lati on follow the instructi ons relevant to installati on.
Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
The appliance must not be located close to radiators or cookers.
Make sure that the mains plug is accessible after the installation of the appliance.
SERVICE
Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.
ENERGY SAVING
Don't put hot food in the appliance;
Don't pack food close together as this prevents air circulating;
Make sure food don't touch the back of the compartment(s);
If electricity goes off, don't open the door(s); Don't open the door(s) frequently;
Don't keep the door(s) open for too long time;
- Don't set the thermostat on exceeding cold temperatures;
Some accessories, such as drawers, can be removed to get larger storage volume and lower energy consumption.
ENVIRONMENT PROTECTION
This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation on materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger. The materials used on this appliance marked by the symbol

are recyclable.
Packaging materials

The materials with the symbol are recyclable. Dispose the packaging in a suitable collection on containers to recycle it.
Disposal of the appliance
The image contains no text. The horizontal line is a stylistic or background element and must be ignored according to the rules.
- Disconnect the mains plug from the mains socket.
- Cut off the mains cable and discard it.

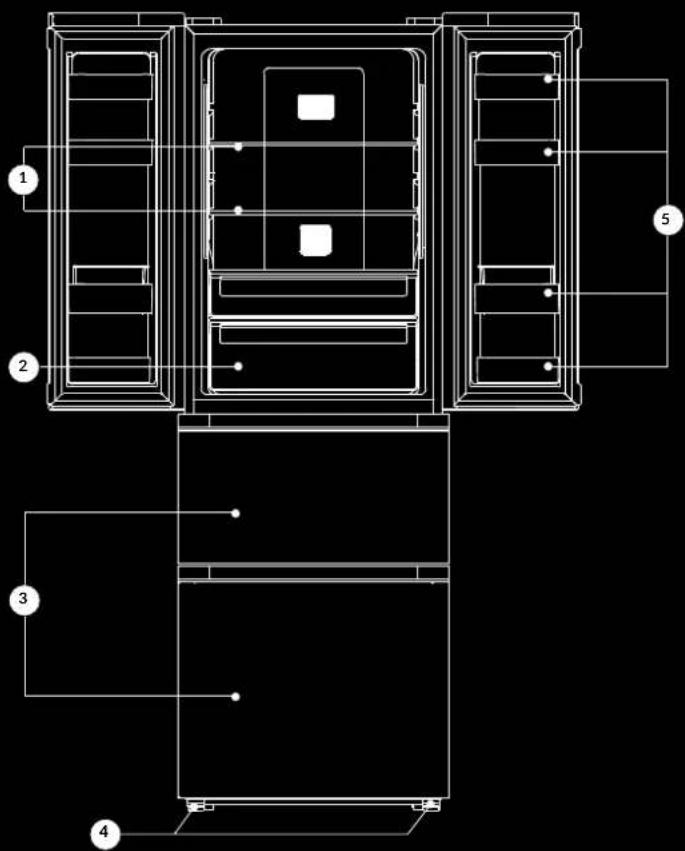

OVERVIEW
- Fridge Shelves
-
Crisper
-
Freezer Drawers
-
Leveling Feet
-
Fridge Balconics
INSTALLATION
SPACE REQUIREMENT
Select a location without direct exposure to sunlight;
Select a location with enough space for the refrigerator doors to open easily;
Select a locati on with level (or nearly level) flooring;
Allow sufficient space to install the refrigerator on a flat surface;
Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep your energy bills lower.
LEVELLING AND ANCHOR THE REFRIGERATOR
Positi oning
[Non-Text]
Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance.

| Climate class | Ambient temperature |
| SN | +10°C to +32°C |
| N | +16°C to +32°C |
| ST | +16°C to +38°C |
| T | +16°C to +43°C |
Location
The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate
freely around the back of the cabinet. To ensure best performance, if the appliance is positi oned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positi oned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.
WARNING! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical connection
Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply
cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.
The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives.
DAILY USE
USING THE CONTROL PANEL
KEY OPERATION
A. Temperature Control of Fridge Compartment
B. Temperature Control of Freezer Compartment
C. Mode/ Locking / Unlocking
LED DISPLAY
- Temp. of Fridge Comparment
- Temp. of Freezer Compartment
- ECO Mode
- Holiday Mode
- Super Mode
- Locking / Unlocking




OPERATING CONDITION
a. The control panel is 100% lit up for 3 seconds, which operates exactly as per the setting (mode and temperature) before the poweroff. The system will be automatically locked 25 seconds after the last key operation. After locking, the light of the panel would be out 30 seconds after the last key operation.
b. Both preset temperatures of fridge compartment and freezer compartment would be shown on the display.
DISPLAY
a. The panel will be lit up for 2 minutes once the door of fridge compartment or freezer compartment is opened. (one door signal is sensed at a time).
b. The panel will be lit up by any key operation whereas the light would be out 2 minutes after the last operation.
c. Display during normal operation
d. Temperature Display of the Fridge Compartment: Indicating the temperature of the current setting.

TEMPERATURE CONTROL OF THE FRIDGE COMPARTMENT
a. Temperature Control of the Fridge Compartment: This key is workable both in User Defined Mode as well as Super Mode. After entering the temperature control of the fridge compartment, this key flakes. By touching the key consecutively, the temperature would change in a circle of "2 °C, 3 °C, 4 °C, 5 °C, 6 °C, 7 °C, 8 °C, OFF", after which 5-second flashing means the selection of temperature is sett led.
b. Shutoff of the Fridge Compartment: Press the key of "Temperature Control of Fridge Compartment", choose "OFF", a 5-second flashing means the selection of temperature is made, namely the fridge compartment would stop refrigeration.
TEMPERATURE CONTROL OF THE FREEZER COMPARTMENT
Temperature Control of the Freezer Compartment:
This key is workable both in User Defined Mode as well as Holiday Mode. After entering the Temperature control of the freezer compartment, the key fl ashes. By touching the key consecutively, the temperature would change in a circle from -14 °C to -22 °C, after which a 5-second flashing means the selection of temperature is sett led.
MODE/ LOCKING / UNLOCKING
a. By touching this key consecutively, the operation mode of the refrigerator will change in a circle of "ECO Mode-Holiday Mode-Super Mode-User Defined Mode. A
5-second flashing means the selection of temperature is sett led.
b. Long Press to Enter / Exit Locking Mode Unlocking: Press for 3 seconds in the mode of locking, all the keys would be unlocked aft or the a beep. Locking: Press for 3 seconds in the mode of unlocking, all the keys would be locked aft or the a beep.
PRESS BUTTON
Short beep aft er per press butt on All butt ons will only valid under unlock mode.
LOCK FUNCITON
No operation in 25 sec will lock the display automati cally.
ECO MODE

Press mode to choose ECO mode, ECO icon keeps bright aft er 5 sec fl ashing.
5" in fridge compartment and
-18° in freezer compartment under eco mode, "Freezer" & "Fridge" butt on in vain while eco icon will flash three times in alarm.
Exit eco mode
Press mode again to exit eco mode after 5 sec, entering the selected mode.
HOLIDAY MODE

Press mode to choose Holiday Mode, the icon keeps bright aft er 5 sec flashing, entering holiday mode.
Temperature fix 17° in fridge compartment, "fridge" butt on in vain, while holiday icon will flash three times in alarm.
Exit holiday mode: choose mode, exit holiday mode after 5 sec, entering the selected mode.
SUPER FREEZING MODE

Choose mode, icon keeps bright aft or 5 sec flashing, entering freezing mode. Freezing mode:
Temperature nonadjustable in freezing compartment, "freezer" butt on in vain, while freezing icon will flash three times in alarm. Exit freezing mode: meeting below conditions.-manually exit freezing mode -freezing period more than 50 hours Mode remains the same before entering super freezing mode.
FIRST USE
Cleaning the interior
......
Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.
IMPORTANT! Do not use detergents or abrasive powders, as these will damage the finish.
FREEZING FRESH FOOD
The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.
- Place the fresh food to be frozen in the bottom compartment.
- The maximum amount of food that can be frozen in 24 hours is specified on the rating plate.
- The freezing process lasts 24 hours: during this period do not add other food to be frozen.
STORING FROZEN FOOD
When first starting-up or after a period out of use. Before putting the product in the compartment let the appliance run at least 2 hours on the higher settings.
Important! In the event of accidental defrost-ing, for example the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooked).
THAWING
Deep-frozen or frozen food, prior to be used, can be thawed in the freezer compartment or at room temperature, depending on the time available for this operation.
Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.
DEFROST DESCRIPTION (NO FROST)
It is a total no frost refrigerator-freezer which will be defrosted automati cally..
HELPFUL HINTS AND TIPS
Hints for freezing
......
To help you make the most of the freezing process, here are some important hints:
the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
the freezing process takes 24 hours. No further food to be frozen should be added during this period;
only freeze top quality, fresh and thoroughly cleaned, foodstuff s;
prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;
lean foods store better and longer than fatty ones; salt reduces the storage life of food;
water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
it is advisable to show the freezing in date on each individual pack to enable you removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
It is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.
Hints for storage of frozen food
To obtain the best performance from this appli- ance, you should:
make sure that the commercially frozen food-stuffs were adequately stored by the retailer;
be sure that frozen foodstuff s are transferred from the food store to the freezer in the shortest possible ti me;
not open the door frequently or leave it open longer than absolutely necessary.
Once defrosted, food deteriorates rapidly and cannot be refrozen.
Do not exceed the storage period indicated by the food manufacture.
Hints for fresh food refrigerati on
To obtain the best performance:
Do not store warm food or evaporating liquids in the refrigerator
Do cover or wrap the food, particularly if it has a strong flavour.
Hints for refrigerati on
......
Useful hints:
Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.
For safety, store in this way only one or two days at the most.
Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.
Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
Butter and cheese: these should be placed in special airlight containers or wrapped in aluminum foil or polythene bags to exclude as much air as possible.
Milk bottle: these should have a cap and should be stored in the balconies on the door.
Bananas, potatoes, onions and garlic, if not packed, must not be kept in the fridge.
FRESH ZONE TEMPERATURE CONTROL
Temperature of the fresh can be adjusted according to the type of storage food.
▶ Push the knob upward from the bottom, temperature in the fresh zone will be gradually decreased.
When the knob is placed at the "WARM" position, the fresh zone can be functioned as a crisper zone and maintain the appropriate temperature and humidity for fruits and vegetable.
When the knob is placed at the "COLD" position, it is suitable for short-term storage of fish or other fresh food. The food will keep fresh but not frozen which makes it the best choice for storing fresh food.
Tips: When you choose "COLD" function, it is recommended to set the refrigerator temperature below 4°C and preserved lead-time no more than 3 days, in order to keep the best freshness.

CLEANING
For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.
CAUTION! The appliance may not be connected to the mains during cleaning. Danger
of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.
IMPORTANT! Ethereal oils and organic solvents can attack plasti c parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain aceti c acid.
Do not allow such substances to come into contact the appliance parts.
Do not use any abrasive cleaners.
Remove the food from the freezer. Store them in a cool place, well covered.
Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
After everything is dry place appliance back into service.
TROUBLESHOOTING
CAUTION! Before troubleshooting, disconnect the power supply. Only a qualified elec-
trician of competent person must do the troubleshooting that is not in this manual.
IMPORTANT! There are some sounds during normal use (compressor, refrigerant circulation).
| Problem Possible cause Solution | ||
| Appliance dose not work | 1. Mains plug is not plugged in or is loose2. Fuse has blown or is defective3. Socket is defective | 1. Insert mains plug.2. Check fuse, replace if necessary.3. Mains malfunctions are to be corrected by an electrician. |
| The food is not frozen enough. | 1. Temperature is not properly adjusted.2. Door was open for an extended period.3. A large quantity of warm food was placed in the appliance within the last 24 hours.4. The appliance is near a heat source. | 1. Please look in the initial Temperature Setting section.2. Open the door only as long as necessary.3. Turn the temperature regulation to a colder setting temporarily.4. Please look in the installation on locali on section. |
| Appliance freezes or cools too much | 1. Temperature is set too cold or the appliance runs at SUPER modes. | 1. Turn the temperature regulator to a warmer setting temporarily. |
| Unusual noises | 1. Appliance is not level.2. The appliance is touching the wall or other objects.3. A component, e.g., a pipe, on the rear of the appliance is touching another part of the appliance or the wall. | 1. Re-adjust the feet.2. Move the appliance slightly.3. If necessary, carefully bend the component out of the way. |
| Water on the floor | 1. Water drain hole is blocked. | 1. See the Cleaning and Care section. |
If the malfunction shows again, contact the Service Center.
TECHNICAL SPECIFICATIONS
Power Supply: 220-240V \~50Hz
Net fridge capacity : 1851
Net freezer capacity: 115 l
Refrigerant: R600a - 50 g
Climate class: ST
Energy Efficiency Class: A+
Power consumption: 314 kWh/year
Noise level: 43 dB(A)
Freezing capacity in 24hrs (kg) : 15kg/24h
CAUTION! MPM agd S.A. may change the technical features of the product without notice.
The kitchen is the best place to make your culinary dreams come true, and allow your cooking prowess to grow.
Test out new ideas and find better ways of doing things!
Never be afraid of new challenges, of fusing the old with the new, or of innovati ve tastes and ingredients.
New opportuniti es
Plan your culinary success with the right appliances.
Choosing the Sam Cook household brand is like enlisting professional help in your kitchen.
Surprise yourself with how easy it is to make something new and feel like a professional chef!
PROPER DISPOSAL OF THE PRODUCT (waste electrical and electronic equipment)
Poland

This symbol on the product indicates that the product, after its lifeti me, should not be disposed with other household wastes. To avoid harmful influence on the environment and human health due to uncontrolled waste disposal, dispose the waste device to the service point of waste household appliances or report collecting it from home. In order to obtain detailed information about the location
and how to dispose the waste electrical and electronic equipment in a safe way, contact your retailer or local Department of Environmental Protection. Do not dispose the device with other municipal waste.
