Panama 59097 - Fan Casablanca - Free user manual and instructions
Find the device manual for free Panama 59097 Casablanca in PDF.
| Product Type | Ceiling Fan |
| Brand | Casablanca |
| Model | Panama 59097 |
| Power Supply | 120V AC, 60Hz |
| Motor | Solid state speed control compatible |
| Speed Settings | 4 speeds (1-4) |
| Light Control | On/off and dimmable (remote) |
| Reverse Function | Yes, for seasonal air flow |
| Remote Control | Wall control included |
| Mounting Options | Standard, low-profile, angled (up to 34°) |
| Downrod Lengths | Standard (8-10 ft ceilings), shorter, longer (sold separately) |
| Blade Span | 30 inches minimum clearance from walls |
| Height from Floor | Minimum 7 feet from blade to floor |
| Weight Capacity | Support box rated for up to 70 lbs (31.8 kg) |
| Safety Standards | UL 507, FCC Class B |
| Energy Star | Yes |
| Blades | Sold separately |
| Replacement Parts | Use only Casablanca parts |
| Cleaning | Soft brush or cloth; no harsh chemicals |
| Warranty | Refer to Casablanca website |
Frequently Asked Questions - Panama 59097 Casablanca
User questions about Panama 59097 Casablanca
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fan in PDF format for free! Find your manual Panama 59097 - Casablanca and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Panama 59097 by Casablanca.
USER MANUAL Panama 59097 Casablanca
To register your fan, please visit: www.CasablancaFanCo.com/register
Save your receipt for proof of purchase.
Congratulations on purchasing your new Casablanca® ceiling fan! It will provide comfort and performance in your home or office for many years. This installation and operation manual contains complete instructions for installing and operating your fan.
We are proud of our work and appreciate the opportunity to supply you with the best ceiling fan available anywhere in the world.




M6011-01·06/13/14·Casablanca Fan Company
What to Expect with Your Installation
www.CasablancaFanCo.com
1.888.227.2178
Must be able to
secure the fan to
building structure or
fan-rated outlet box
If you are unfamiliar with wiring, use a qualified electrician.


Know your wiring


Assess location
Read and Save These Instructions
This product conforms to UL Standard 507.
WARNINGS
w.1 - To reduce the risk of fire, electrical shock, or personal injury, mount fan directly from building structure and/or an outlet box marked acceptable for fan support of 70 lbs (31.8 kg) and use the mounting screws provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing or servicing your fan, disconnect the power by turning off the circuit breakers to the outlet box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely fasten a prominent warning device, such as a tag, to the service panel.
w.3 - To reduce the risk of fire, electrical shock, or motor damage, use only Casablanca Solid State Speed Controls.
w.4 - To reduce the risk of personal injury, do not bend the blade brackets when installing the blade brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between rotating fan blades.
CAUTIONS
c.1 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualified electrician.
c.2 - Use only Casablanca replacement parts.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference to radio communications.
You may need a friend to help you.


Check box to see
fan weight

Ceiling angles greater than 34irc will require an Angled Mounting Kit. See page 4 for details.

Assess ceiling angle

Standard Downrod
for ceilings 8-10 feet high

Shorter Downrod
for fans installed close to ceiling

Longer Downrod
for ceilings 10 feet or higher

Select a downrod length

M6011-01 · 06/13/14 · © Casablanca Fan Company

Tools Needed
www.CasablancaFanCo.com
1.888.227.2178

If mounting to a support structure, you will also need these tools.

M6011-01·06/13/14·Casablanca Fan Company

CEILING
If you have a flat ceiling:
Hang your fan by a standard downrod (included).

OPTION 1
If you have an angled ceiling:
- You will need a longer downrod (sold separately).
- If your ceiling angle is greater than 34°, you will also need an Angled Mounting Kit (sold separately).

OPTION 2
Use the three steps below to determine if your ceiling angle is greater than 34irc





Mounting Options
1.888.227.2178

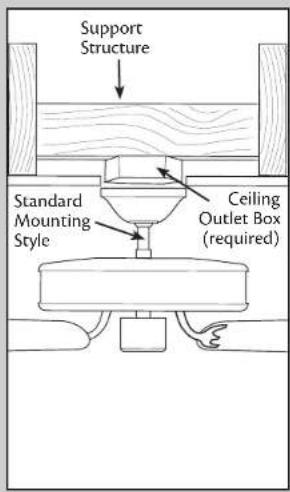

Use Standard Mounting or Low-Profile Mounting to hang the fan from a flat ceiling.

Use Angled Mounting
to hang the fan from a
vaulted or angled ceiling.

M6011-01·06/13/14·Casablanca Fan Company

If you are unable to do this, call Technical Support at 1-888-277-2178.

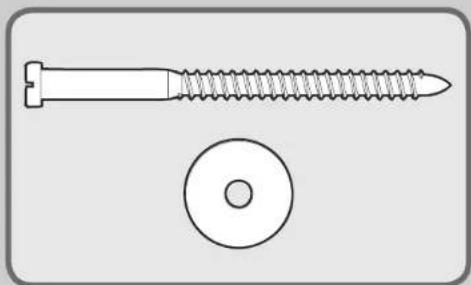

(included) when securing to support structure with approved electrical outlet box. Drill 9/64" pilot holes in support structure to aid in securing ceiling bracket with hardware found in the ★ hardware bag.
Use machine screws
(provided with outlet box) when securing to existing ceiling fan-rated outlet box. Make sure it is securely installed and is acceptable for fan support of 31.8 kg (70 lbs) or less.
Refer to warning w.1 on pg. 2


M6011-01·06/13/14·Casablanca Fan Company
Preparation
www.CasablancaFanCo.com
1.888.227.2178

Remove the shipping blocks from the motor. Save the screws. They will be needed for blade iron installation.
Note: Some fans will have a shipping ring instead of shipping blocks. Please remove the ring and save the screws.
If you are installing multiple remote-controlled fans on the same circuit breaker,
you may need to perform a few extra steps to prevent interference or faulty operation of your remote controls.
Go to www.CasablancaFanCo.com/FAQs and click "How do I properly install multiple remote-controlled fans?" for more information.

M6011-01·06/13/14·Casablanca Fan Company
2 Downrod
www.CasablancaFanCo.com
1.888.227.2178

M6011-01·06/13/14·Casablanca Fan Company

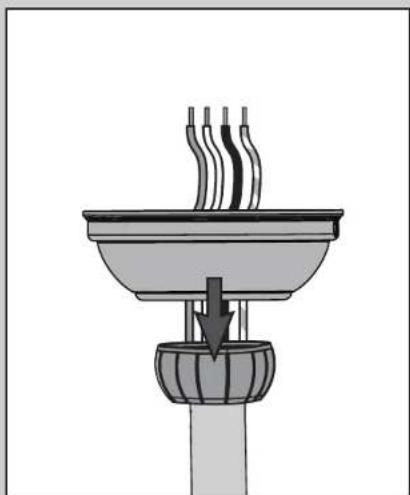

Remove the pre-installed setscrew so that the downrod can be inserted.


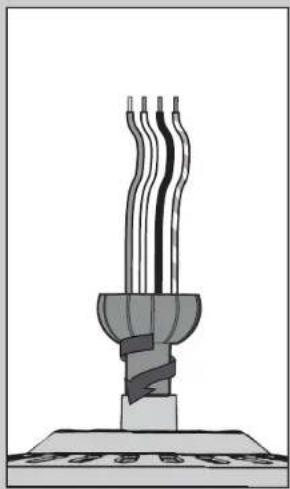

The wires can be cut, but leave at least 8" extending from the top of the downrod.
8"
3/8"

M6011-01·06/13/14·Casablanca Fan Company
If the setscrew is not tightened securely, the fan may fall.

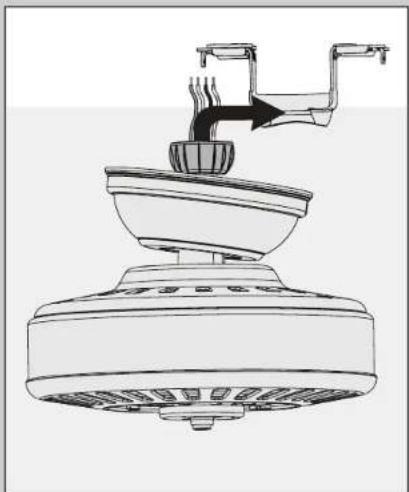

Downrod (continued)
www.CasablancaFanCo.com
1.888.227.2178

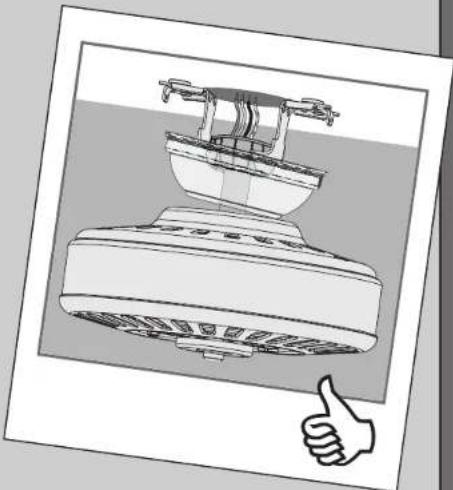

M6011-01·06/13/14·Casablanca Fan Company

1.888.227.2178
the ★ hardware bag, connect the three grounding wires (green, green/yellow stripe, or bare copper) coming from the ceiling, downrod, and hanging bracket.
Using the blue wire connectors from the remote control hardware bag, connect the white wire from the receiver (marked "common out") to the white wire from fan. Connect the black wire from the receiver (marked "fan out") to the black wire from the fan. Connect the blue wire from the receiver (marked "light out") to the blue wire from the fan. The red wire from the receiver will not be used, it has a pre-installed wire terminator.
Using an orange wire connector from the ★ hardware bag, connect the black wire (ungrounded) from the ceiling to the black wire from the receiver (marked "live in"). Connect the white wire (grounded) from the ceiling to the white wire from the receiver (marked "neutral in" or "common in").
Refer to CAUTION c.1 on pg. 2
Turn the splices upward and push them carefully back through the hanger bracket into the outlet box. Spread the wires apart, with the grounded wires on one side of the outlet box and the ungrounded wires on the other side of the outlet box.
M6011-01·06/13/14·Casablanca Fan Company
Wall Control
www.CasablancaFanCo.com
1.888.227.2178

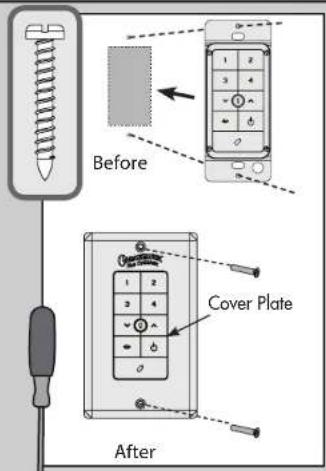

- Tape the provided wall control template with painter's tape at the desired installation area.
- Drill holes inside the four corners of the template.
Note: Make sure the wall control template is level before proceeding to the next step.

- Using a 9/64 drill bit, drill a hole in each screw cut-out on the wall control template.
- Using a hammer, tap a drywall anchor found in the wall control hardware bag into each hole until the drywall anchor is flush with the wall.

- Using a drywall punch saw, cut out the interior shape of the template using one of the four drilled corners as a starting point.
- Remove the template and the cut-out section of drywall.

- Insert the wall control into the dry wall cut out.
- Align the screw holes in the wall control with the drywall anchors.
- Install the cover plate using a Phillips Head screwdriver to secure the two cover plate screws found in the wall control hardware bag through the wall control and into the drywall anchors.
If you are using a outlet box for wall control installation, the wires coming from the wall control must be grounded using the attached green wire. If not placed in an outlet box, cap the green wire coming from the wall control with an included wire nut.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

M6011-01·06/13/14·Casablanca Fan Company
Canopy
www.CasablancaFanCo.com
1.888.227.2178


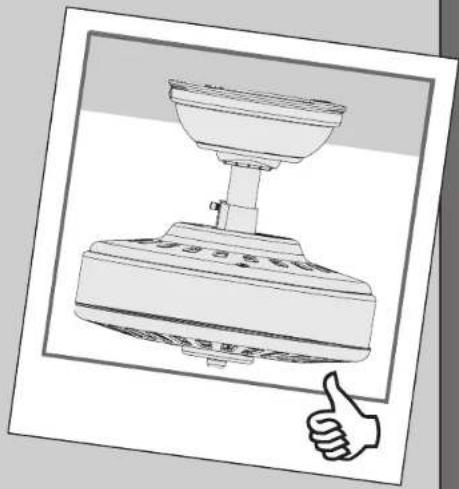

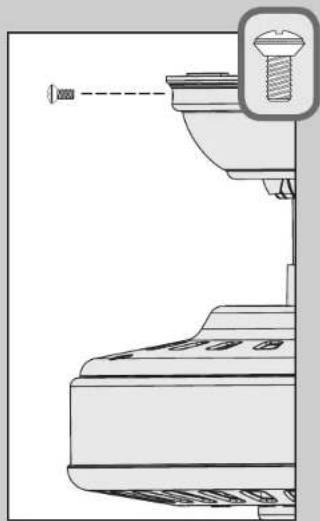

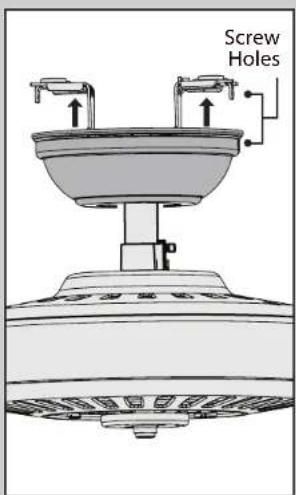

Lift the canopy into place so that the screw holes are aligned.

M6011-01·06/13/14·Casablanca Fan Company

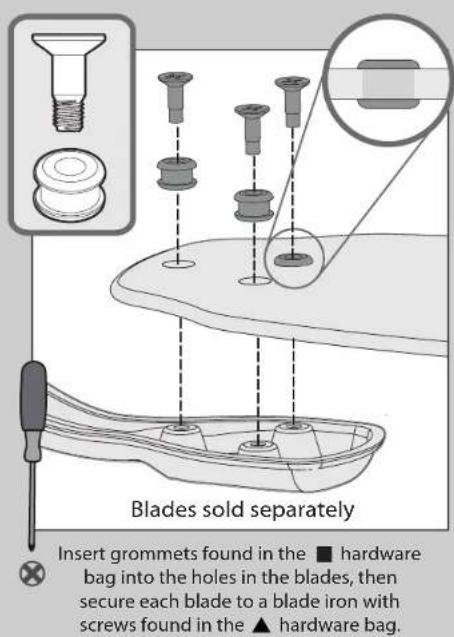

Blades
www.CasablancaFanCo.com
1.888.227.2178

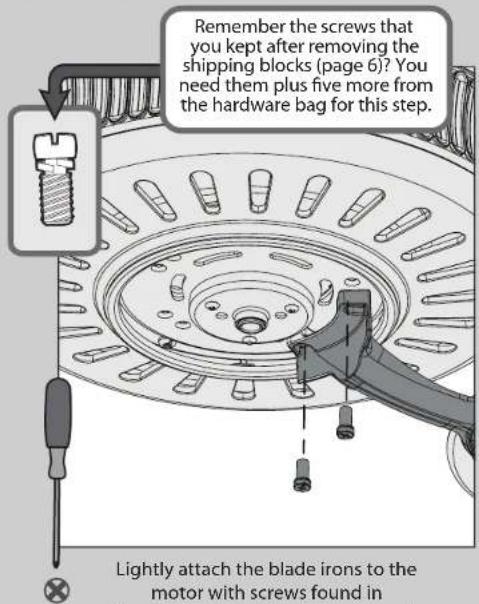

M6011-01·06/13/14·Casablanca Fan Company

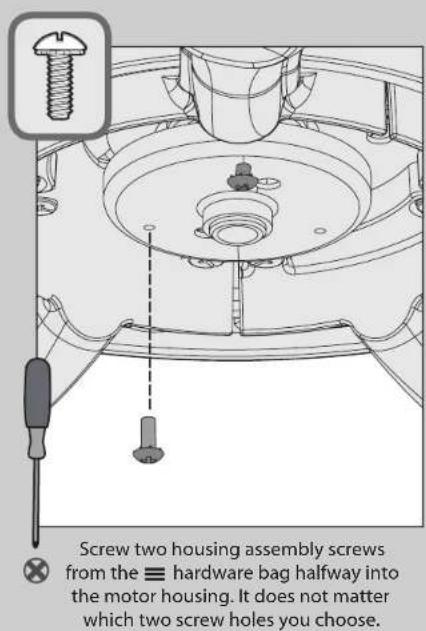

Switch Housing
www.CasablancaFanCo.com
1.888.227.2178



Make sure the upper switch housing is securely attached to the mounting plate. Failure to properly secure all 3 assembly screws could result in the switch housing fixture falling.

M6011-01·06/13/14·Casablanca Fan Company

Switch Housing (continued)

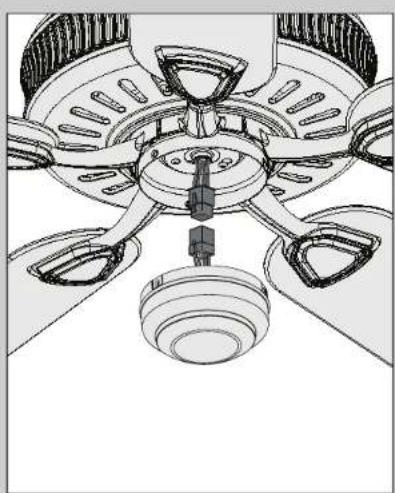


Make sure the lower switch housing is securely attached to the upper switch housing. Failure to properly secure all 3 assembly screws could result in the switch housing fixture falling.

M6011-01·06/13/14·Casablanca Fan Company
Operation
www.CasablancaFanCo.com
1.888.227.2178

Before operating the wall control, press on the battery door to eject it. Unscrew the battery holder. Insert the battery, found in the control hardware bag, with the positive (+) side facing downward. Reinstall the battery holder and reinsert the battery door into the wall control.

Once the power is turned on, the remote must be paired within three minutes. Pairing is only required once after initial installation.
If you are installing multiple remote-controlled fans on the same circuit breaker, you may need to perform a few extra steps to prevent interference or faulty operation of your remote controls. Go to www.CasablancaFanCo.com/FAQs and click "How do I properly install multiple remote-controlled fans?" for more information.

The fan must be paired before it will operate. Press the "4" button and the fan power button simultaneously for at least three seconds. The fan will turn at the lowest speed signifying that the remote pairing process is complete.

Quickly press the up or down arrow to turn the lights off and on. Hold the up or down arrow to dim or raise the light level. The reverse button changes the direction that the blades turn. The power button turns the fan off and on.

M6011-01·06/13/14·Casablanca Fan Company

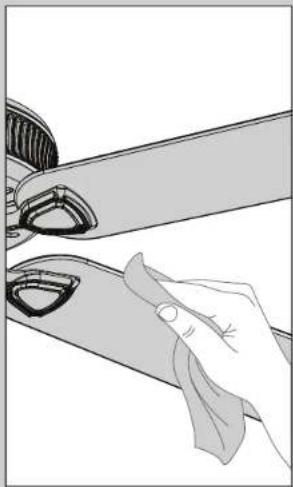

Maintenance & Cleaning
www.CasablancaFanCo.com
1.888.227.2178

The reverse button on the wall control changes the air flow direction. In warm weather, use (a) downward air flow pattern. In cold weather, use (b) upward air flow pattern.

To change the battery, push on the battery door to eject it. Remove the battery using a small Phillip's head screwdriver. Replace with same type battery, making sure the (+) side is facing down. Replace battery holder and battery door.

M6011-01·06/13/14·Casablanca Fan Company
Troubleshooting
www.CasablancaFanCo.com
1.888.227.2178
Fan doesn't work
• Make sure power switch is on.
- Press a fan speed button (1-4).
- Check the circuit breaker to ensure the power is turned on.
- Check the wall control battery.
• Make sure that you have paired the wall control.
• Make sure the blades spin freely.
- Turn off power from the circuit breaker, then loosen the canopy and check all the connections according to the wiring diagram on pages 10.
- Check the plug connection in the switch housing.
If you have multiple remotes or multiple remote-controlled fans installed on the same circuit breaker and you are
experiencing interference or faulty operation of your remote controls, please go to www.CasablancaFanCo.com/FAQs and click "How do I properly install multiple remote-controlled fans?" for information on how to correct this issue.
Excessive wobbling
• Tighten all of the blade and blade iron screws until they are snug.
- Use the provided balancing kit and instructions to balance the fan.
Noisy Operation
- Tighten the blade and blade iron screws until they are snug.
- Check to see if any of the blades are cracked. If so, replace all of the blades.
Remote doesn't work
• Install a fresh battery in the wall control.
• Make sure you have paired the remote.
AUTHORIZED SERVICE CENTERS
For the most updated list of Casablanca Authorized Service Centers, visit www.CasablancaFanCo.com or call toll free 1-888-227-2178.

Casablanca fans have the power to cut your cooling costs up to 40%.
Beat the High Cost of Cooling
The air movement created by a Casablanca ceiling fan lets you set your thermostat higher and still stay comfortable. Every degree you raise the thermostat saves up to 7% on energy costs. So, you can cut back on expensive air conditioning ... and save up to 40%* on cooling. In winter, your Casablanca fan recirculates warm air and saves up to 10%* on heating bills. * On average at low speed settings. Your savings may vary based on climate, building type and thermostat setting.
Save Energy and Money While Protecting the Environment
Congratulations! You're saving energy and money while protecting the environment by purchasing this ENERGY STAR qualified Casablanca ceiling fan! With this purchase, you are doing your part to protect the environment. Your new ceiling fan has earned the ENERGY STAR label because it meets high energy efficiency specifications set by the Environmental Protection Agency (EPA). ENERGY STAR labeled ceiling fans save energy because they have more efficient fan motors and air delivery due to more aerodynamic blade configurations. Ceiling fan models bearing the ENERGY STAR label move air 14 - 20% more efficiently than typical ceiling fan models. For more information on ENERGY STAR, visit www.energystar.gov.

M6011-01 · 06/13/14 · © Casablanca Fan Company
