TL-ANT5830MD - TV Antenna TP-LINK - Free user manual and instructions

Product Type	Outdoor Dish Antenna for Wireless Base Stations
Brand	TP-Link
Model	TL-ANT5830MD
Frequency Range	5.0 - 6.0 GHz
Gain	30 dBi
VSWR	1.8 Max
Beamwidth (3 dB)	6° (both H and V)
Front-to-Back Ratio	34 dB Min
Polarization	Horizontal & Vertical (Dual Linear)
Impedance	50 Ω
Connector	RP-SMA (male pins)
Antenna Diameter	600 mm
Weight	6.0 kg
Rated Wind Velocity	241 km/h
Mounting Type	Pole Mount (1.5 to 4.0 inch diameter)
Package Contents	Dish Reflector, Antenna Feed, RF Cables, M10x35 Carriage Bolts (3), M10x150 Carriage Bolts (4), Washers, Nuts, Pole-mount Clamps, Protective Shroud
Safety	Keep away from power lines; avoid installation in rain or thunderstorms; use qualified technician if unsure.
Compatible Base Stations	TP-Link WBS510 (5GHz) or similar outdoor base station with RP-SMA connectors
Maximum Distance	Up to several kilometers in point-to-point links (dependent on environment)
Maintenance	Periodically check for loose bolts and clean dish with a soft, dry cloth; avoid abrasive cleaners.

Frequently Asked Questions - TL-ANT5830MD TP-LINK

What is the TL-ANT5830MD antenna used for?

The TL-ANT5830MD is a high-gain 5GHz dish antenna designed for long-range point-to-point wireless communication when paired with a compatible outdoor base station like the TP-Link WBS510.

What is the gain and frequency of the TL-ANT5830MD?

It has a gain of 30 dBi and operates in the 5.0 - 6.0 GHz frequency band.

Does the antenna require an outdoor base station?

Yes, it is designed to be used with a separate outdoor base station (sold separately) such as the TP-Link WBS510 for the 5GHz band.

What tools are needed for installation?

You will need a Phillips screwdriver, wrenches, and a level for alignment. The antenna mounts to a pole (1.5-4 inches diameter).

How do I align the antenna for optimal signal?

Adjust the azimuth by loosening the pole-mount clamp nuts and pivoting the antenna. Adjust the elevation by tightening or loosening the nuts on the elevation rod. Use a level and signal strength indicator for fine-tuning.

Is the antenna weatherproof?

Yes, it is designed for outdoor use and can withstand wind speeds up to 241 km/h. However, avoid heavy rain during installation and ensure the protective shroud is properly placed.

What type of connector does the antenna use?

It uses RP-SMA connectors (male pins) for the RF cables, which connect to the base station's antenna ports.

Can I use this antenna with a 2.4GHz base station?

No, it is optimized for 5GHz frequencies. For 2.4GHz, use the TP-Link TL-ANT2424MD dish antenna.

How do I mount the antenna to a pole?

Use the included pole-mount clamps and M10x150 carriage bolts. Wrap the clamps around the pole and secure with washers and nuts. The pole diameter should be between 1.5 and 4.0 inches.

What is the beamwidth of the antenna?

The 3 dB beamwidth is only 6° in both horizontal and vertical planes, making it very directional and suitable for long-distance point-to-point links.

USER MANUAL TL-ANT5830MD TP-LINK

Installation Requirements 3

Hardware Overview 3

Hardware Installation 4

Introduction

The TL-ANT2424MD, 2.4GHz 15dBi 2x2 MIMO Dish Antenna, can be used with the outdoor wireless Base Station WBS210 to achieve a stable long-distance point-to-point signal transmission.

The TL-ANT5830MD, 5GHz 19dBi 2x2 MIMO Dish Antenna, can be used with the outdoor wireless Base Station WBS510 to achieve a stable long-distance point-to-point signal transmission.

Specifications

Electrical Specifications TL-ANT2424MD TL-ANT5830MD

Frequency Range	2.3~2.7 GHz	5.0 - 6.0 GHz
Gain	24 dBi	30 dBi
VSWR	1.8 Max	1.8 Max
HPOL Beamwidth (3 dB)	6°	6°
VPOL Beamwidth (3 dB)	6°	6°
Elevation Beamwidth (3 dB)	6°	6°
F/B Ratio	32 dB Min	34 dB Min
Polarization	Horizontal & Vertical	Horizontal & Vertical
Impedance	50 Ω	50 Ω
Connector	RP-SMA	RP-SMA

Mechanical Specifications

Antenna Dimension	600 mm
Weight	6.0 Kg
Rated Wind Velocity	241 Km/h
Mounting	Pole Mount

Safety Notice

Heed all warnings:

• Mount the antenna at a safe location, far away from power lines, lamp posts, and other electrical cables.
• Do not mount the antenna in the rain or thunderstorm.
• Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning.
• For your own safety, please seek a qualified service technician for assistance.

Package Contents

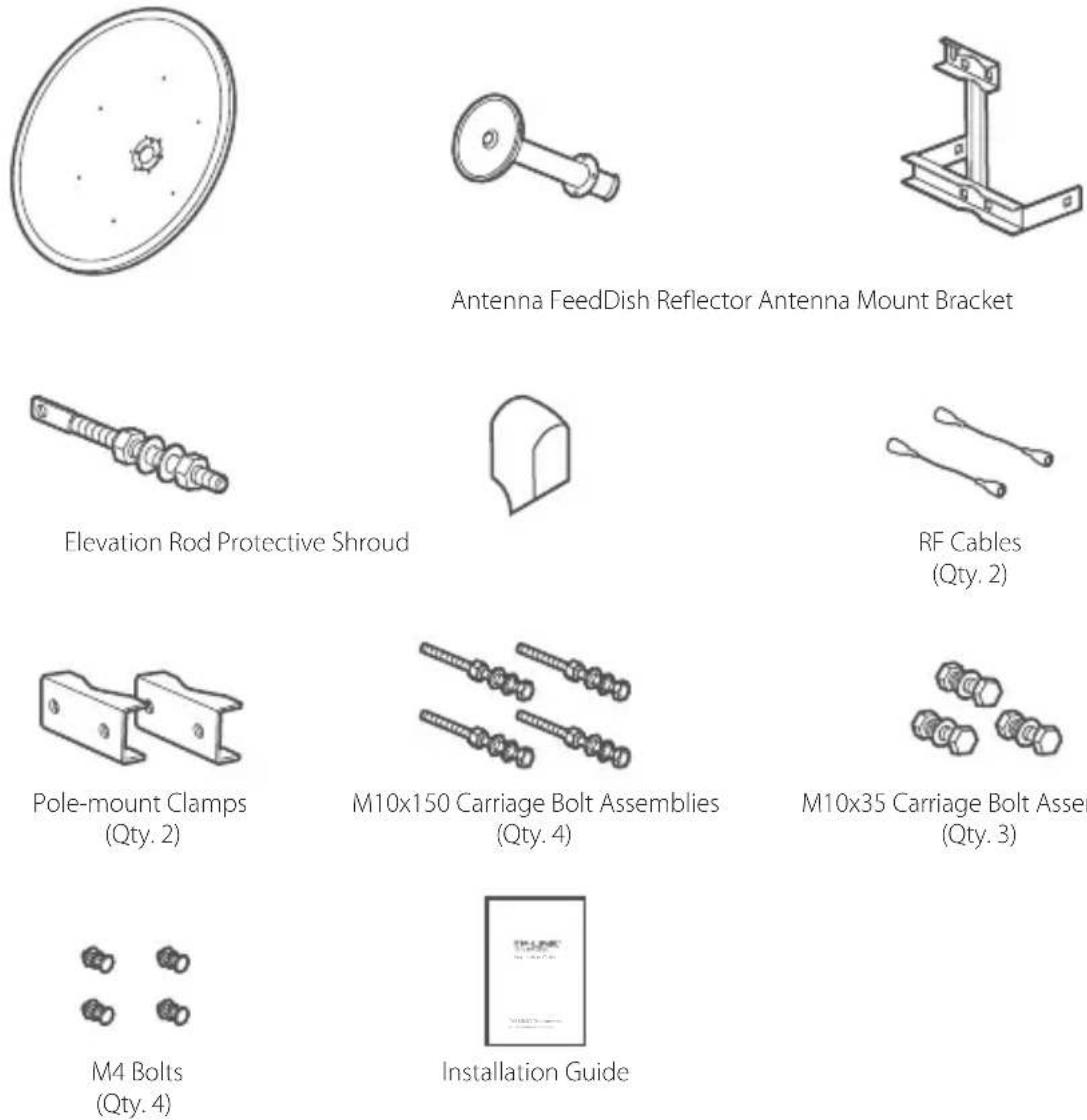

The package contents of the TL-ANT5830MD are shown below. The TL-ANT2424MD comes with the Antenna Feed and RF Cables pre-attached.

M10x35 Carriage Bolt Assemblies (Qty. 3)

Installation Requirements

• Outdoor Wireless Base Station (sold separately) • Phillips Screwdriver - Wrenches

Hardware Overview

Hardware Installation

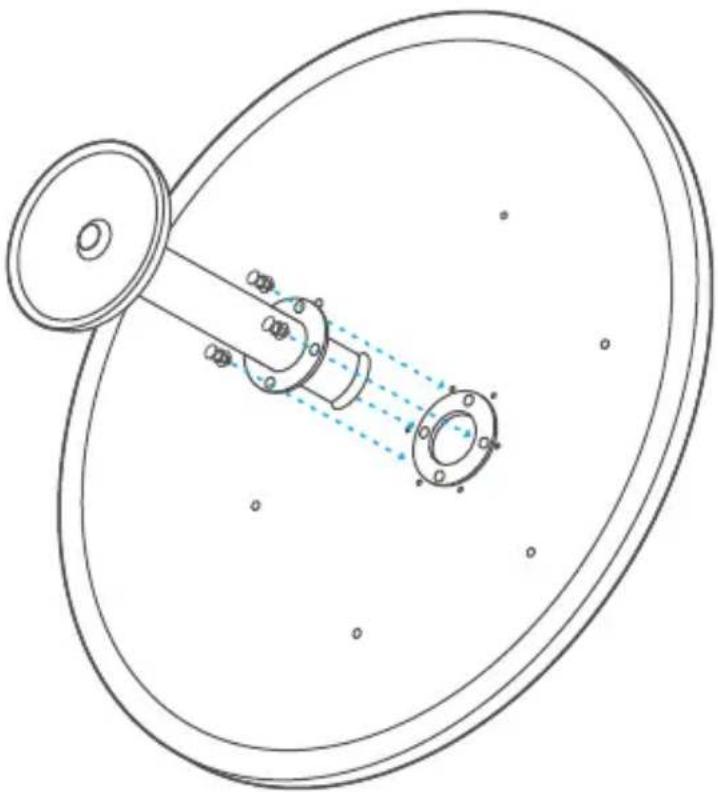

1. Secure the Antenna Feed to the Dish Reflector using the four M4 Bolts and a Phillips screwdriver.

Note: Do not handle the Dish Reflector by the Antenna Feed once the feed is installed.

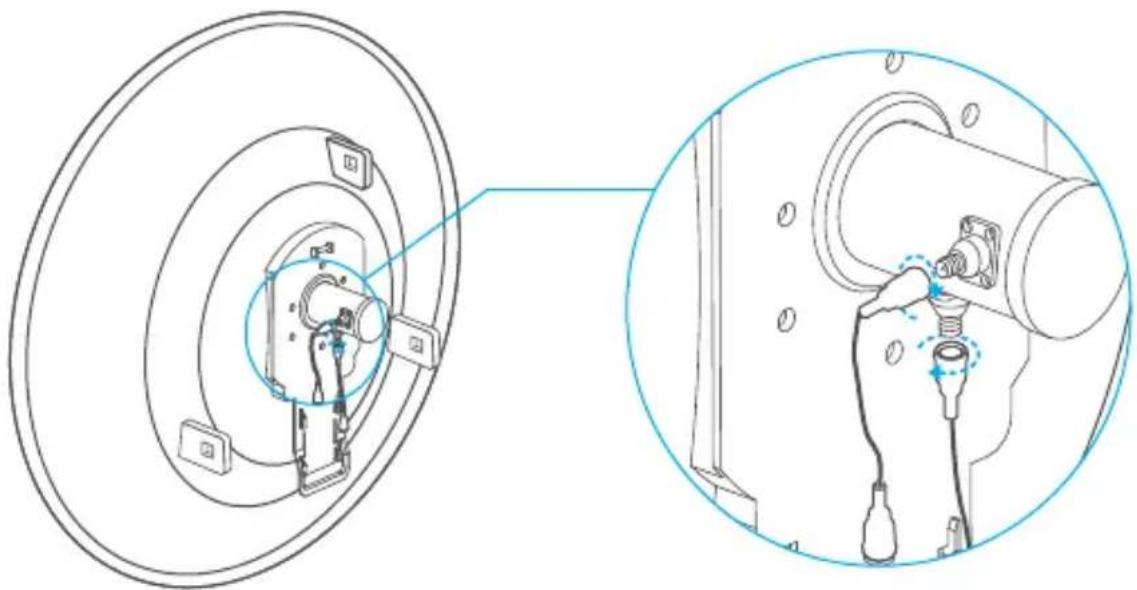

1. Connect the RF Cables to the RF Connectors on the Antenna Feed. Note: TL-ANT 2424MD doesn't require this step, please go directly to step 3.

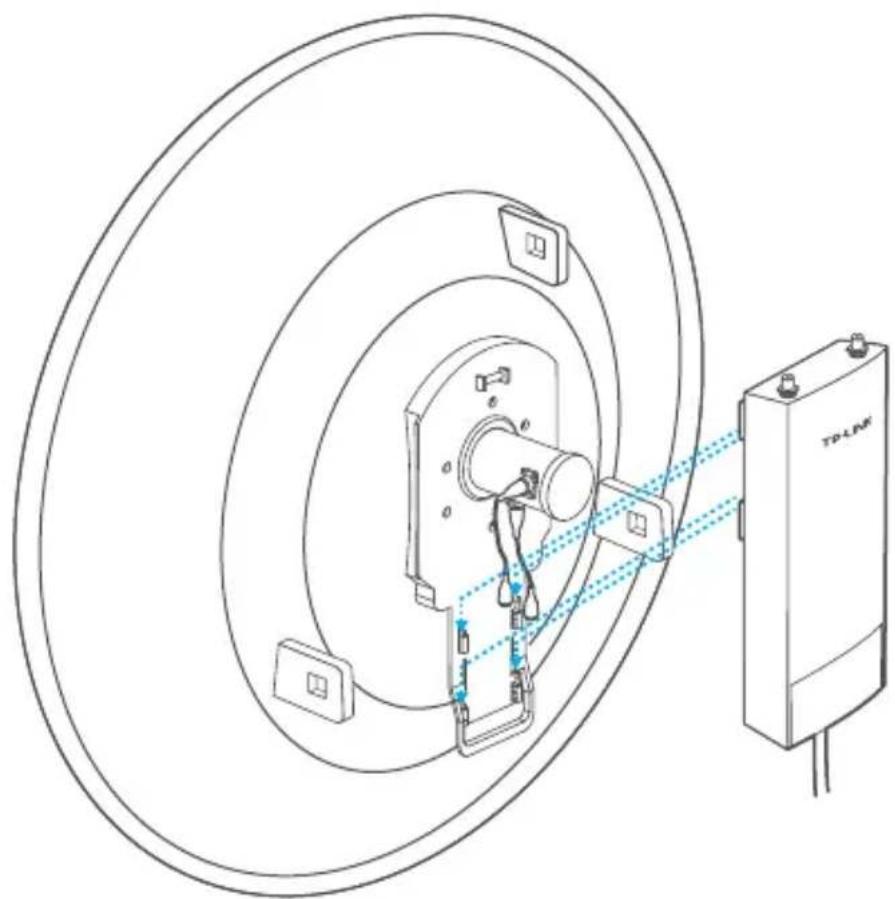

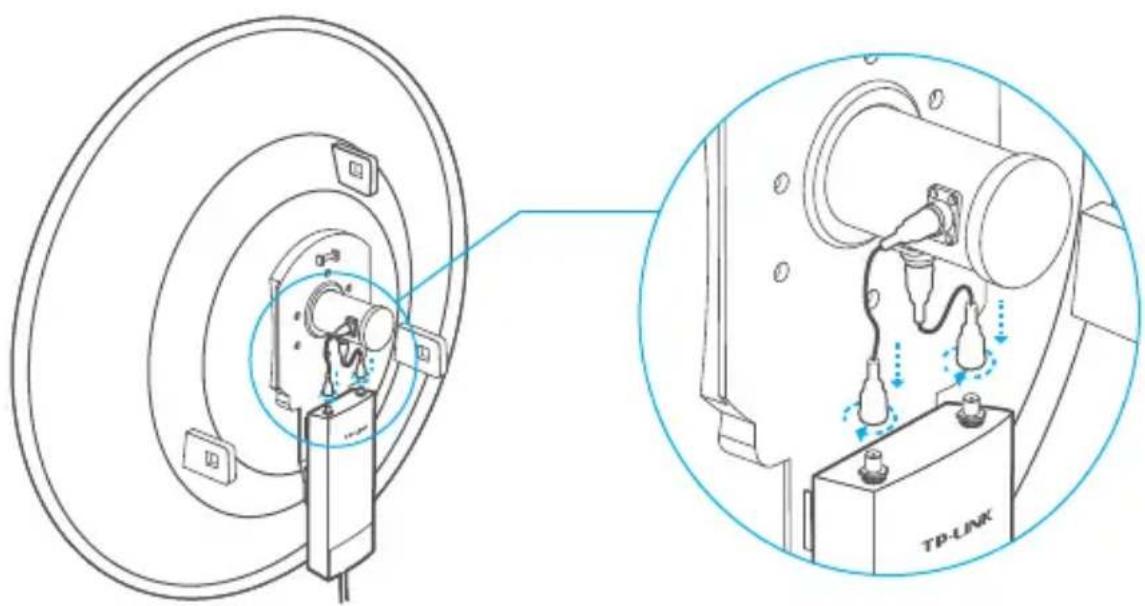

1. Attach the Base Station to the Dish Reflector as follows:

a. Align the mounting tabs on the back of the Base Station with the four mounting slots on the Base Station mounting bracket.

b. Slide the Base Station down until it locks into place.

1. Connect the other ends of the RF Cables to the Base Station.

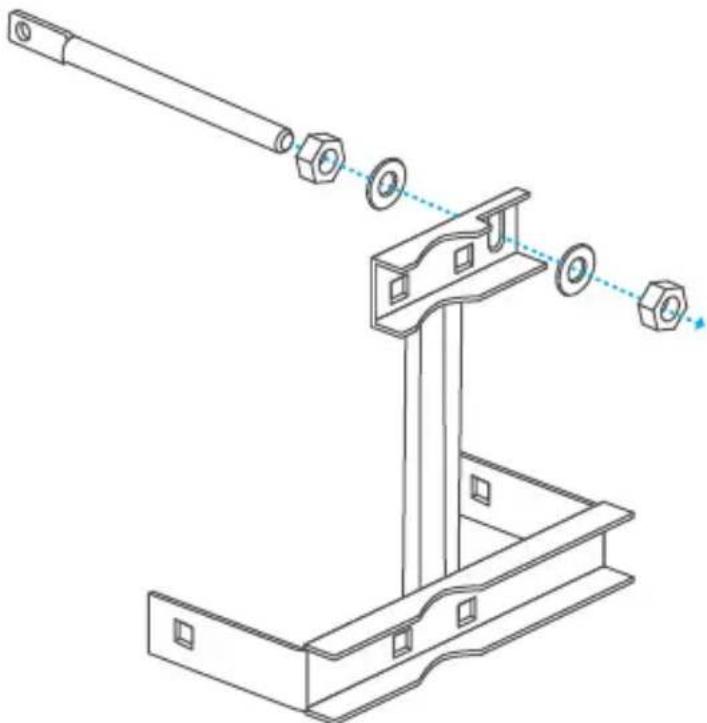

1. Attach the Elevation Rod to the Antenna-mount Bracket using the flat washers and nuts as shown below.

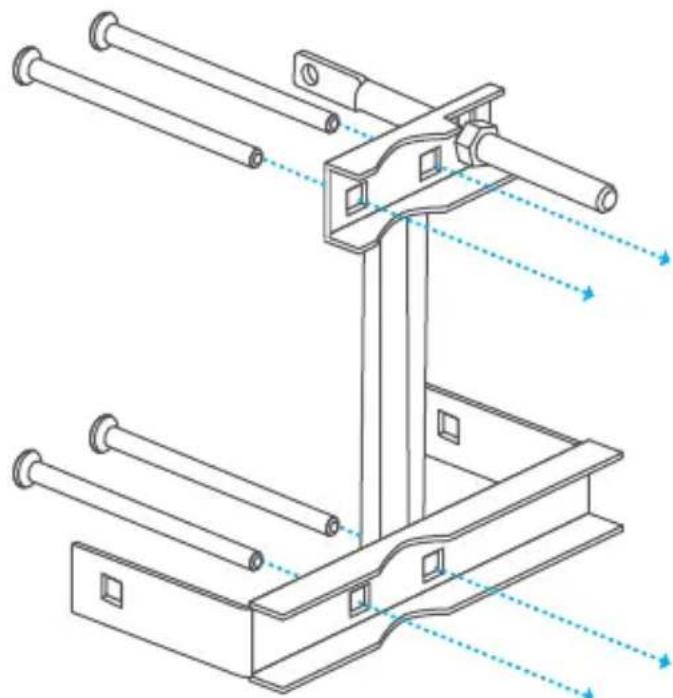

1. Attach the M10x150 Carriage Bolt Assemblies to the Antenna-mount Bracket:

a. Remove the flat washer, spring washer, and nut that are threaded on each M10x150 Carriage Bolt Assembly. Set them aside as they will be used to secure the antenna to a pole in step 8.

b. Insert the four M10x150 Carriage Bolts into the Antenna-mount Bracket.

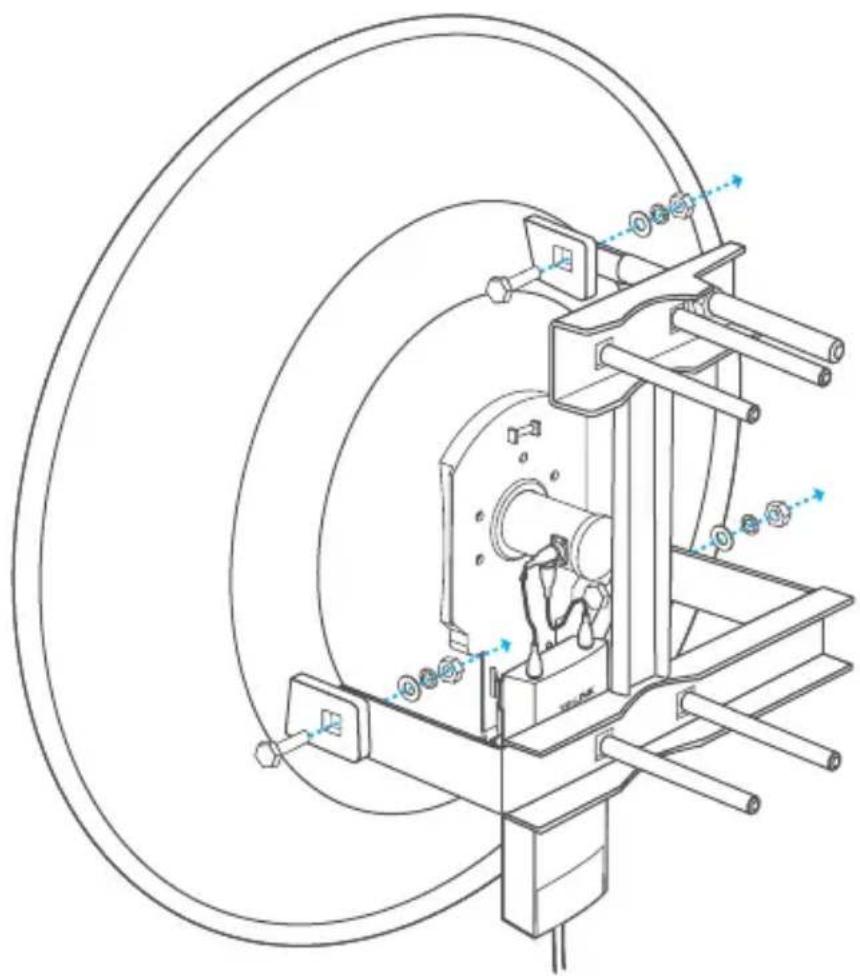

1. Attach the Dish Reflector to the Antenna-mount Bracket:

a. Secure one M10x35 Carriage Bolt Assembly to attach the Dish Reflector to the Elevation Rod.

b. Secure two M10x35 Carriage Bolt Assemblies to attach the Dish Reflector to the lower section of the Antenna-mount bracket.

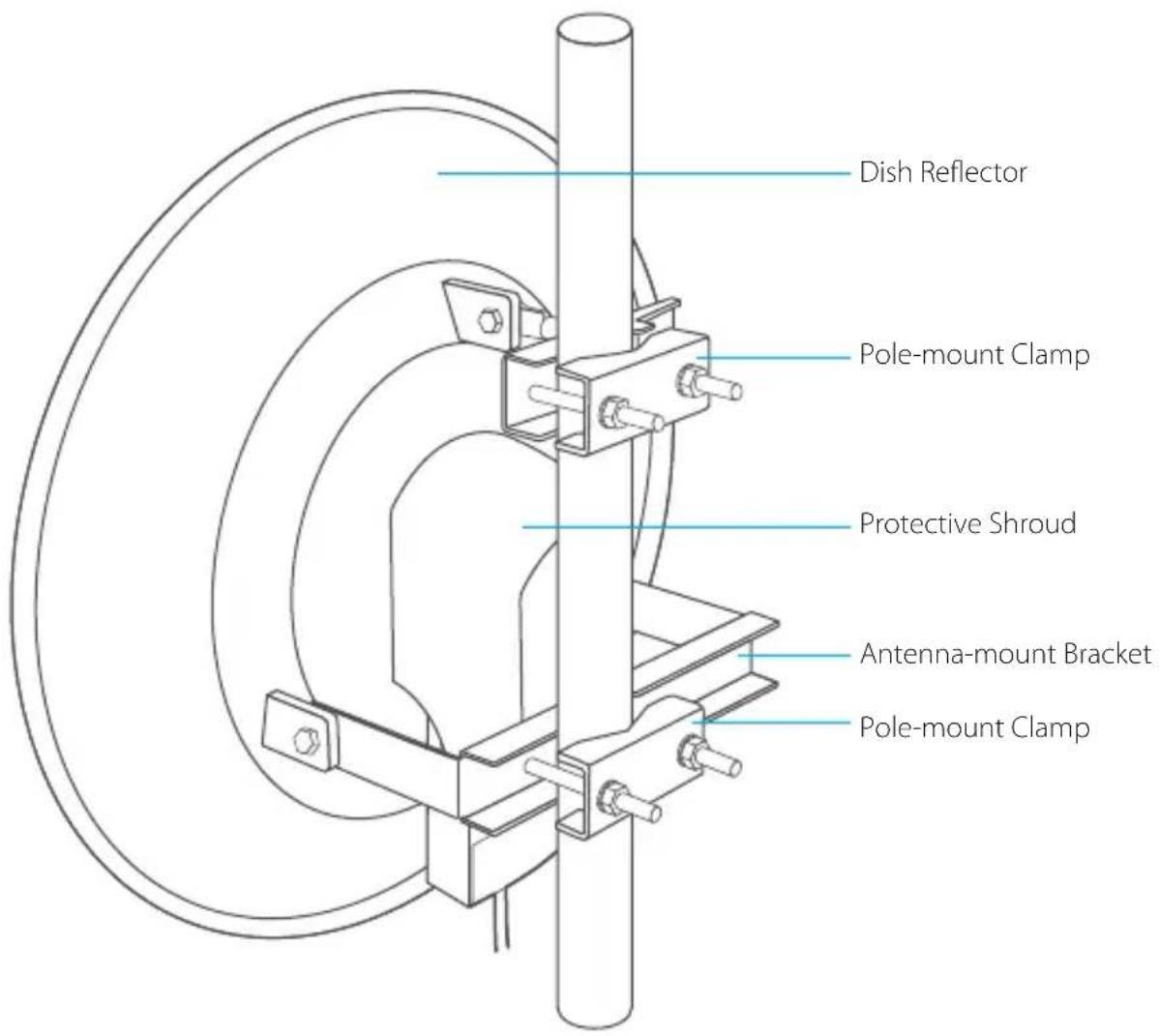

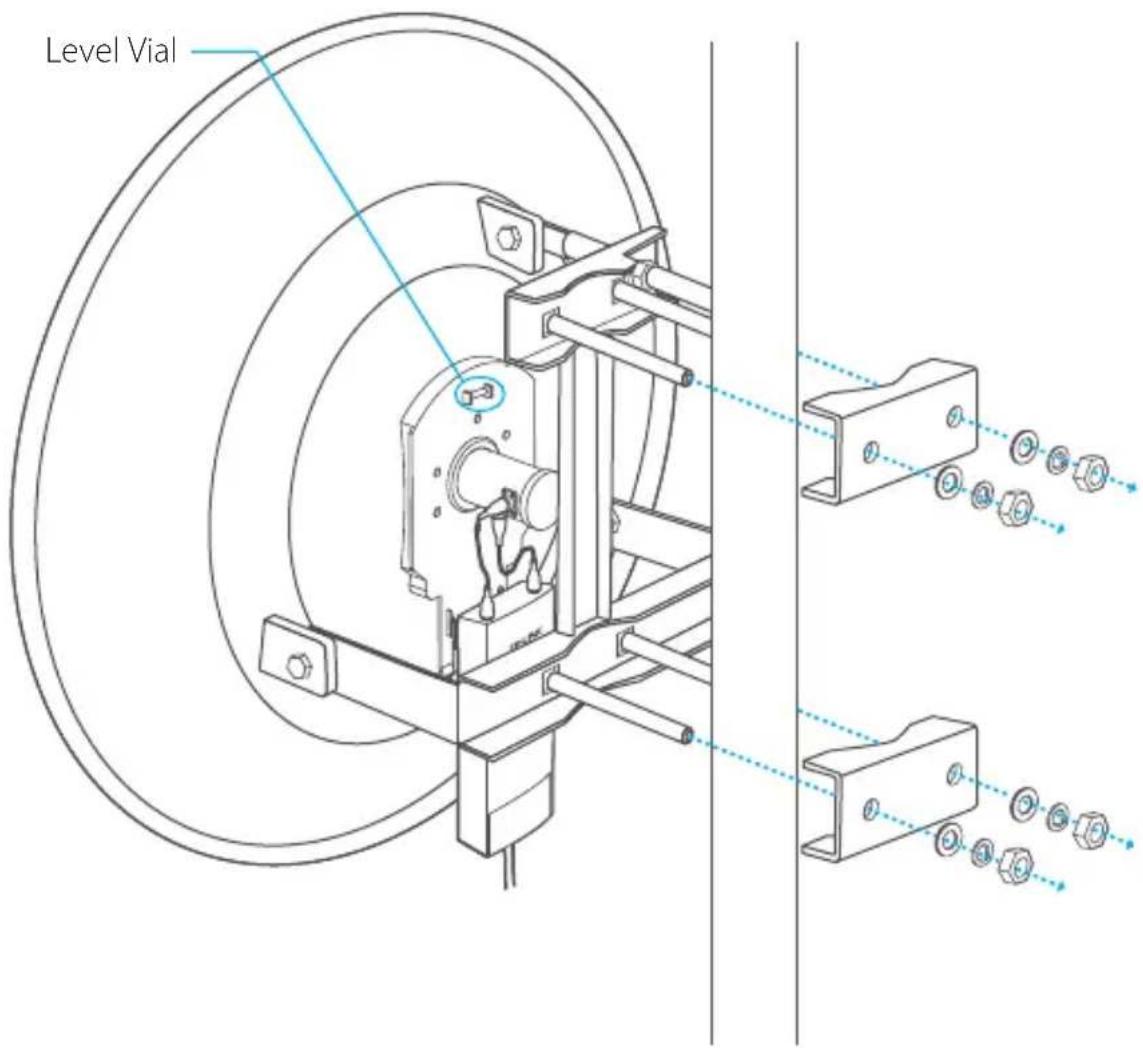

1. Mount the antenna assembly to the pole using the two Pole-mount Clamps and the four sets of flat washers, spring washers and nuts of the M10x150 Carriage Bolt Assemblies.

Note:

1. Pole diameter ranges from 1.5 in to 4.0 in.
2. Do not over-tighten these bolts and nuts to allow angle adjustment later.
3. In step 8 to 9, use the Level Vital to ensure proper alignment.

1. Adjust the antenna azimuth and elevation angles with the front facing the intended signal receiving devices to achieve maximum signal strength:

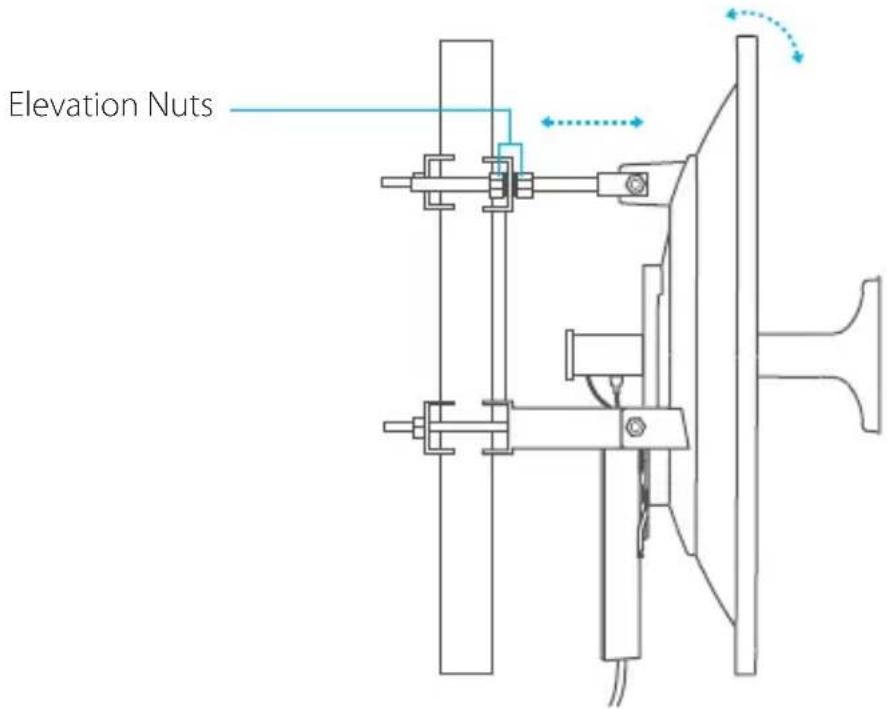

a. To adjust azimuth, loosen the four nuts on the Pole-mount Clamps slightly to pivot the antenna, then tighten the nuts. b. To adjust the elevation angle, tighten or loosen the Elevation Nuts on the Elevation Rod to the desired tilt.

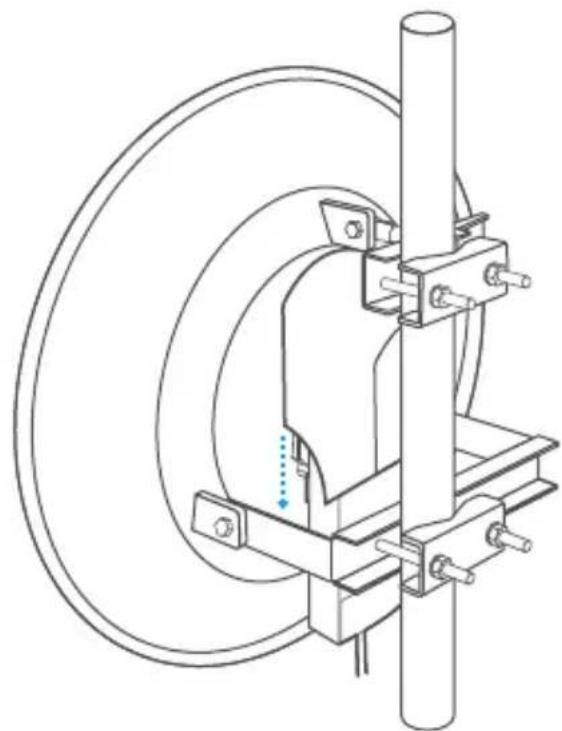

1. Slide the Protective Shroud down over the Base Station until it locks into place.
