Product Type	Multi-function oscillating tool
Brand	Graphite
Model	59G021
Power Supply	230 V AC, 50 Hz
Rated Power	300 W
Idle Oscillation Speed	15000 - 21000 min⁻¹
Oscillation Angle	2.8°
Pad Dimensions	80 x 80 x 80 mm (triangular)
Protection Class	II (double insulated)
Weight	1.45 kg
Speed Adjustment	6 levels (dial 1-6)
Quick-Change System	Lever for fast tool change without tools
Sanding Pad Attachment	Hook-and-loop (Velcro) system
Included Accessories	6 working tips, 5 sanding sheets (80#), transport case
Materials	Wood, plastics, non-ferrous metals, soft ceramics, joints
Applications	Cutting, sanding, scraping in corners and tight spaces
Dust Extraction	Compatible with external vacuum system
Noise Level (Sound Pressure)	79.67 dB(A) (K=3 dB(A))
Vibration Level	2.941 m/s² (K=1.5 m/s²)
Year of Production	2014
Maintenance	Clean with dry cloth; replace carbon brushes when <5 mm
Safety Features	Double insulation; automatic stop if jammed; ventilation slots
Wet Operation	Not suitable (dry use only)

Frequently Asked Questions - 59G021 Graphite

How do I change the working tool on the Graphite 59G021?

Pull out the quick-release lever (3), insert the tool between the washers aligning with the pins, select the desired position, then push the lever back down. Ensure it is securely fastened before starting.

What types of materials can I cut with this oscillating tool?

You can cut wood, wood-based materials, plastics, non-ferrous metals, soft ceramic tiles, and joining elements like nails and bolts. Use the appropriate blade for each material.

How do I adjust the oscillation speed?

Turn the oscillation speed adjustment dial (4) to a number between 1 (lowest) and 6 (highest). Higher speeds are suitable for harder materials or faster cutting.

Can I use the tool for sanding?

Yes, attach the delta sanding pad (included) with hook-and-loop sandpaper. It is ideal for sanding in corners and tight areas. Apply moderate, even pressure for best results.

What safety precautions should I take before using the tool?

Always unplug the tool before changing accessories. Wear a dust mask, safety glasses, and hearing protection. Ensure the work area is free of hidden electrical wires or gas pipes. Keep the power cord away from moving parts.

How do I replace the sanding paper on the pad?

The sanding pad uses a hook-and-loop system. Simply peel off the old paper and press a new piece onto the pad. Ensure it is centered and firmly attached.

What should I do if the tool overheats or emits smoke?

Immediately switch off the tool and unplug it. Allow it to cool down. Check that ventilation slots are not blocked. If the problem persists, contact an authorized service center.

Can I use the tool for wet sanding or scraping?

No, the Graphite 59G021 is designed for dry operation only. Using water or other fluids can damage the tool and create electrical hazards.

How do I maintain the carbon brushes?

Check the carbon brushes periodically. If they are shorter than 5 mm, burnt, or cracked, replace both brushes at the same time. Use only original parts and have the replacement done by a qualified person.

What is the purpose of the transport case?

The included transport case stores the multi-tool and all accessories (6 working tips, 5 sanding sheets) safely and conveniently, making it easy to carry and organize your equipment.

USER MANUAL 59G021 Graphite

Line drawing of a handheld electric shaver with base mount (no text or symbols)

PL URZĄDZENIE WIELOFUNKCYJNE
GB MULTI-FUNCTION TOOL
DE MEHRFUNKTIONSGERÄT
RU МНОГОФУНКЦИОНАЛЬНЫЙ ИНСТРУМЕНТ
UA БАГАТОФУНКЦІЙНИЙ ПРИСТРІЙ
HU TÖBBFUNKCIÓS BERENDEZÉS
RO DISPOZITIV MULTIFUNCTIONAL
© CZ MULTIFUNKČNÍ ZAŘÍZENÍ
SK MULTIFUNKČNÉ ZARIADENIE
SI VEČFUNKCIJSKA NAPRAVA
LT DAUGIAFUNKCINIS IRANKIS

LV DAUDZFUNKCIONÄLÄ IEKÄRTA
EE MULTIFUNKTSIONAALNE SEADE
BG МУЛТИФУНКЦИОНАЛНО УСТРОЙСТВО
HR VIŠENAMJENSKI UREĐAJ
SR VIŠEFUNKCIONALNI UREĐAJ
GR ΕΡΓΑΛΕΙΟ ΠΟΛΛΑΠΛΩΝ ΧΡΗΣΕΩΝ
ES DISPOSITIVO MULTIFUNCIÓN
IT DISPOSITIVO MULTIFUNZIONE
NL MULTIFUNCTIONEEL TOESTEL

59G021

Technical diagram of a mechanical component with three cross-shaped parts and central hub (no text or symbols)

PL INSTRUKCJA OBSŁUGI 5
GB INSTRUCTION MANUAL ....11
DE BETRIEBSANLEITUNG....16
RU РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ .....21
UA ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ .....26
HU HASZNÁLATI UTASÍTÁS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
RO INSTRUCTIUNI DE DESERVIRE .....36
© INSTRUKCE K OBSLUZE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
SK NÁVOD NA OBSLUHU....46
SI NAVODILA ZA UPORABO .....51
LT APTARNAVIMO INSTRUKCIJA....56
LV LIETOŠANAS INSTRUKCIJA .....61
EE KASUTUSJUHEND ....66
BG ИНСТРУКЦИЯ ЗА ОБСЛУЖВАНЕ .....71
HR UPUTE ZA UPOTREBU....76
SR UPUTSTVO ZA UPOTREBU .....81
GR OΔΗΓΙΕΣ ΧΡΗΣΗΣ .86
ES INSTRUCCIONES DE USO....91
IT MANUALE PER L'USO .96
NL GEBRUIKSAANWIJZING 101

INSTRUKCJA ORYGINALNA (OBSŁUGI)

/Declaration of Conformity/

/Multi Function Tool/

/The above listed product is in conformity with the following UE Directives:/

/Machinery Directive 2006/42/EC/

/ 2006/42/EK Gépek /

/EMC Directive 2004/108/EC/

/and fulfi ls requirements of the following Standards:/

/Last two figures of CE marking year:/

/GRUPA TOPEX Quality Agent /

CAUTION: BEFORE USING THE POWER TOOL READ THIS MANUAL CAREFULLY AND KEEP IT FOR FUTURE REFERENCE.

DETAILED SAFETY REGULATIONS

DETAIL SAFETY RULES (MULTI PURPOSE TOOL)

During operation hold the tool firmly in closed hand. ●

Before switching the tool on make sure it does not touch processed material. ●

- Before cutting floor, wall or other surface make sure the cut area is free from gas or electric installation. Cutting a live wire may cause electric shock and cutting gas pipe may cause explosion.

Do not touch moving parts of the tool. ●

Do not put the tool aside before it stops completely. ●

Hold the tool firmly in your hand before switching it on. ●

- Do not touch blade and processed material just after the work has been finished, these pieces may be very hot and may cause burns.

- To replace blade or sanding paper, first switch the tool off with the switch and wait until it stops working, then disconnect the tool from mains socket.

- Prior to operation check if there is enough space under processed material to avoid table or floor damage with the blade.

Use anti-dust mask. Dust produced during operation is harmful to health.

- Do not eat, drink or smoke in a room, where paint with lead compounds is removed with this tool. There should be no bystanders in the room. Contact with or inhalation of dusts with lead compounds may be harmful to health.

Before sanding connect dust extraction system to the tool.

The tool is not designed for wet operation.

- Keep the power cord away from moving parts of the tool at all times.

- When you see unusual behaviour of the tool, smoke or hear strange noises, immediately switch off the tool and remove the plug from mains socket.

- To ensure proper cooling during tool operation keep the ventilation holes unobstructed.

CAUTION! This device is designed to operate indoors.

The design is assumed to be safe, protection measures and additional safety systems are used, nevertheless there is always a small risk of injuries at work.

CONSTRUCTION AND USE

Multi purpose tool is driven by single-phase motor whose rotation is changed to oscillations. Various working tools available for the tool allows for use in various types of tasks. This type of power tool is widely used for: cutting wood, wood-based materials, plastics, non-ferrous metals and joining parts (nails, bolts etc.). It can also be used to process soft ceramic tiles, sanding and dry scraping small surfaces. Possibility of processing abovementioned materials in hardly accessible places and close to edges is an advantage of the tool.

Range of use covers the following tasks: small model making, locksmith, woodworking and any work from the scope of individual, amateur activities (tinkering).

Use the power tool according to the manufacturer's instructions only. Use the power tool only with original equipment.

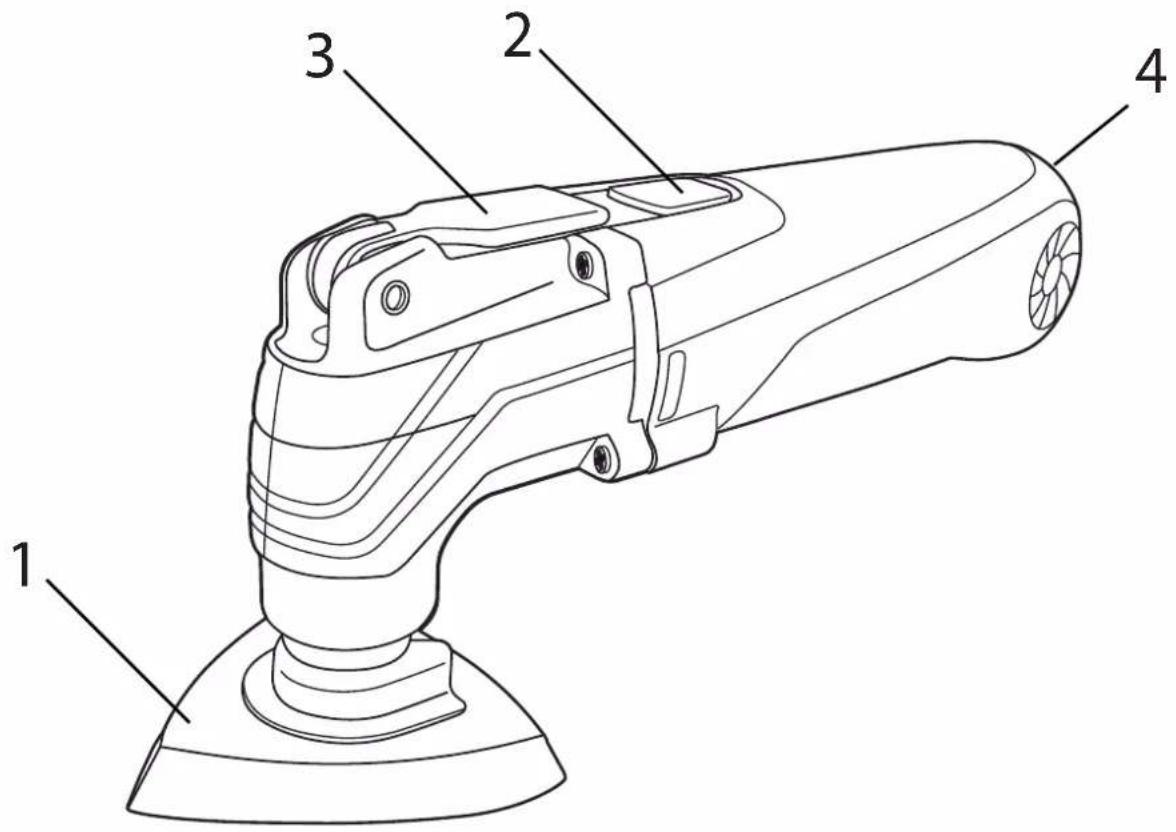

DESCRIPTION OF DRAWING PAGES

Below enumeration refers to the device elements depicted on the drawing pages of this manual.

Sanding pad1.

Switch2.

Lever for quick-fastening of accessories3.

Oscillation speed adjustmant dial4.

* Differences may appear between the product and drawing.

MEANING OF SYMBOLS

CAUTION

WARNING

ASSEMBLY/SETTINGS

INFORMATION

EQUIPMENT AND ACCESSORIES

Various working tips - 6 pcs1.

Sanding paper (80#) - 5 pcs2.

Transport case - 1 pce3.

Below table presents examples of use for various working tools.

	Name Type of material	Intended use	Example
	HSS blade for metal	Metal (e.g. nails, bolts, small sections), non-ferrous metals	Small dividing and plunge cutting	Cutting narrow sections short, cutting joining elements, e.g. clamps
	Half-round HCS wheel for wood	Wood, wood-based materials, plastics	Dividing and plunge cutting in corners and hardly accessible places, near surface	Narrow plunge cuts in solid wood, e.g. for air grates
	HCS blade for wood	Wood, wood-based materials, plastics	Dividing and plunge cutting in corners and hardly accessible places, near surface	Cut outs in furniture boards, cutting cove bases short, plunge cutting for fitting floor panels
	Half-round wheel with tungsten coat	Cement joints, soft ceramic tiles, hard plastics and other materials	Cutting short and cutting off close to edges, in corners and hardly accessible places	Removal of joint, cutting holes in ceramic tiles and plastics
	Delta sanding pad	Wood, wood-based materials, abrasive materials	Sanding in hardly accessible places and in corners on a hard ground	Removal of mortar and glue for ceramic tiles, sanding solid wood, polishing
	Stiff scraper	Linings, floors, ceramic tiles	Scraping soft materials on a hard ground	Removal of mortar residues, glue for lining or ceramic tiles

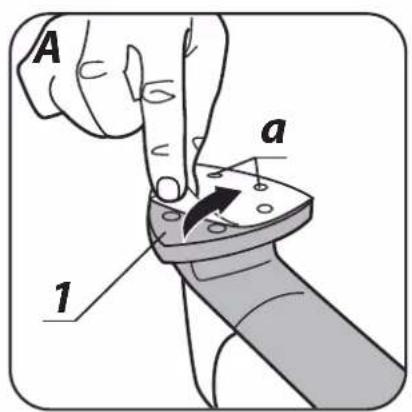

INSTALLATION AND REPLACEMENT OF SANDING PAPER

Sanding pad is equipped with hook-and-loop attachment system for quick and easy replacement of sanding paper. Choose sanding paper with appropriate gradation depending on the processed material and desired level of material removal. All types of sanding paper, abrasive cloths and polishing felt are allowed.

• Put the sanding paper close to the sanding pad (1).
• Press the sanding paper against the sanding pad (1).
• To remove sanding paper, lift edge of it on one side and pull (fig. A).

INSTALLATION OF WORKING TOOLS

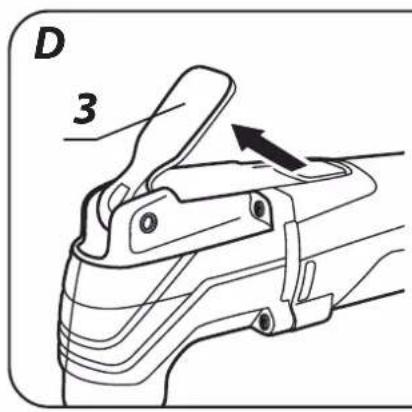

• Pull out the lever for quick-fastening of accessories (3) (fig. D).
• Insert your working tool between both washers of the tool chuck, so that both openings match pins of the upper washer.

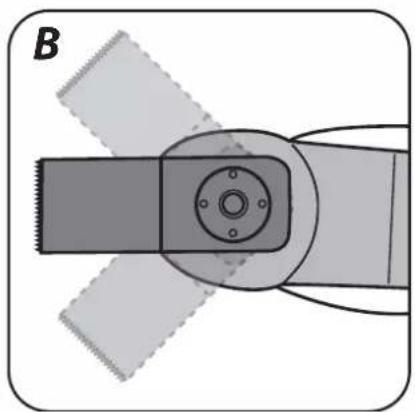

• To ensure operation in the most convenient and safe position for the user, working tools can be placed in the tool chuck in any position provided that they match pins of the upper washer (fig. B).
• Your working tool should be inserted in such a manner, so that it points downward with its bent section.

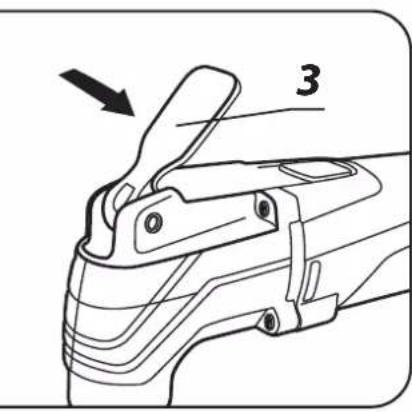

• Fasten the working tool in your selected position and lower the lever for quick-fastening of accessories (3).

Check that the tool is installed properly. Improperly or inaccurately installed working tools can slip during operation and cause risk for the user.

DUST EXTRACTION

Dust of some materials may be hazardous to health, like paint coatings with lead additives, some types of wood e.g. oak or beech or materials with asbestos. Therefore, we recommend use of external dust extraction systems, good workplace ventilation and use of dust-mask with particle filter.

SWITCHING ON / SWITCHING OFF

The mains voltage must match the voltage on the label of the tool.

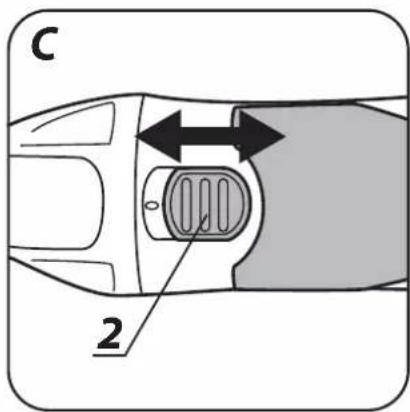

Switching on – slide the switch (2) forward to position I (fig. C). Switching off – slide the switch (2) backward to position O.

Do not cover holes for motor ventilation in the tool body.

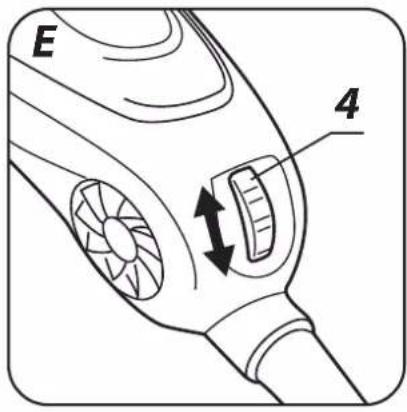

SPEED ADJUSTMENT

The rotational speed of the motor is adjusted by turning and setting the oscillation speed adjustment dial (4) in a required position. This allows adjustment of working speed according to properties of your workpiece. The oscillation speed adjustment ranges from 1 to 6.

The higher the value indicated by the oscillation speed adjustment dial (4), the higher the working speed of the device is (fig. E).

PRINCIPLES OF OPERATION

Oscillation frequency 15000-21000 rpm at 2.8° angle allows to work precisely in small areas and corners with the power tool.

SAWING AND CUTTING

Use only undamaged working tools in good technical condition.

When sawing or cutting wood, fibre board, wood-based materials etc. make sure they do not contain foreign objects like nails, bolts etc before starting the task. Remove foreign objects or use proper blade for removal. You can make plunge cuts only in soft materials like wood, gypsum boards and alike.

Cutting ceramic tiles causes faster wear of working tool.

SANDING

Working efficiency in surface sanding depends mainly on type and quality of sanding paper and pressure applied for processing. Overpressure does not make sanding more efficient, it only causes faster wear of sanding paper and may cause overheating of the power tool. Apply moderate and uniform pressure.

You can use tip or edge of the sanding pad to sand corners or edges in hardly accessible places.

SCRAPING

Scrape soft materials (e.g. wood) at small angle and with small pressure. Otherwise the scraper can damage the surface.

Unplug the power cord from mains socket before commencing any activities related to installation, adjustment, repair or maintenance.

MAINTENANCE AND STORAGE

• It is recommended to clean the device immediately after each use.
• Do not use water or other fluids for cleaning.
• The device should be cleaned using a dry piece of cloth or blown with compressed air of low pressure.
• Do not use any cleaning agents nor solvents, since they may damage plastic parts.
• Clean ventilation slots in the motor casing to prevent the device from overheating.
• Working tools (apart from the delta grinding plate) should be cleaned using a wire brush.
• If the power cord is damaged, it should be replaced with a power cord of the same parameters. This should be performed by a qualified specialist or authorised service point.
• In case of excessive sparking in the commutator, the condition of carbon brushes should be checked by a qualified person.
• The device should be always stored in a dry places, inaccessible to children.

REPLACEMENT OF CARBON BRUSHES

Replace immediately worn out (shorter than 5 mm), burnt or cracked motor carbon brushes. Always replace both carbon brushes at a time.

Entrust replacement of carbon brushes only to a qualified person. Only original parts should be used.

All defects should be repaired by service workshop authorized by the manufacturer.

TECHNICAL PARAMETERS

RATED PARAMETERS

Multi Purpose Tool
Parameter Value
Supply voltage	230 V AC
Input current frequency	50 Hz
Rated power	300 W
Idle oscillation speed	15000-21000 min ^-1
Oscillation angle	2.8°
Pad dimensions	80 x 80 x 80 mm
Protection class	II
Weight	1.45 kg
Year of production	2014

NOISE LEVEL AND VIBRATION PARAMETERS

Sound pressure: Lp_A=79,67 dB(A) ; K=3 dB(A)

Sound power: Lw_A=90,67 dB(A) ; K=3 dB(A)

Vibration acceleration: a_h = 2,941 ~m / s^2 K = 1.5 ~m / s^2

ENVIRONMENT PROTECTION

Do not dispose of electrically powered products with household wastes, they should be utilized in proper plants. Obtain information on wastes utilization from your seller or local authorities. Used up electric and electronic equipment contains substances active in natural environment. Unrecycled equipment constitutes a potential risk for environment and human health.

* Right to introduce changes is reserved.
