Snis KR100 - Slicer Eldom - Free user manual and instructions

Product Type	Slicer (Electric)
Brand	Eldom
Model	Snis KR100
Power	100 W
Voltage	220-240 V ~ 50 Hz
Slice Thickness Range	1 – 15 mm
Maximum Continuous Operation	5 minutes
Required Pause Before Restart	15 minutes (minimum 30 minutes if exceeded)
Maximum Product Size	160 x 140 x 130 mm (length x width x thickness)
Blade Type	Removable, sharp, consumable (not covered by warranty)
Safety Features	Carriage with guard, switch lock, guide alignment for storage
Cleaning	Blade and guard washable in warm water with brush; body wiped with damp cloth
Housing Material	Plastic (white)
Warranty	For household use only; improper use voids warranty
Environmental Disposal	Do not dispose as household waste; recycle at designated collection point

Frequently Asked Questions - Snis KR100 Eldom

Can the Snis KR100 slice frozen food?

Yes, but for best results freeze food for 2-4 hours before slicing. Avoid slicing fresh bread directly; cool it first.

How do I clean the blade?

First unplug and wait for the blade to stop. Remove the blade (see fig. IV). Wash the blade and guard in warm water with washing liquid using a brush. Rinse and dry. Be extremely careful as the blade is very sharp.

What is the maximum slice thickness?

The slice thickness can be adjusted from 1 to 15 mm using the knob (8). Turn left for thinner, right for thicker.

Can I slice bread with this slicer?

Yes, but the bread must be cooled (not fresh) to avoid sticking. For fresh bread, cool it down first.

How long can I run the slicer continuously?

Do not exceed 5 minutes of continuous operation. After that, turn off and let it rest for at least 15 minutes (30 minutes if time was exceeded).

Is the blade covered by warranty?

No, the blade is a consumable part and is not covered by the warranty.

What should I do if the power cord is damaged?

Do not use the appliance. Contact an authorized service centre. Do not attempt to repair yourself.

Can children use this slicer?

Children aged 8 and older can use it under supervision, but cleaning and maintenance should not be done by children.

How do I store the slicer safely?

After use, set the slice thickness knob to '0' to align the guide with the blade, protecting the blade and ensuring safety during storage.

What types of food can I slice?

Hard foods such as bread, cured meat, meat (boneless), cheese, vegetables, and fruit. Remove seeds and strings from meat.

USER MANUAL Snis KR100 Eldom

White plastic electronic device with a circular disc and rectangular base, no visible text or symbols

/EN/ Disposal of used electrical and electronic equipment (applies to the European Union countries and other European countries with separate waste collection systems).

The symbol on the product or its packaging indicates that the product should not be classified as household waste. It should be handed over to a collection point that deals with the collection and recycling of electrical and electronic devices. Correct disposal of the product prevents potential negative consequences for the environment and human health that could be caused by improper disposal of the product. Material recycling helps to preserve natural resources. For detailed information on recycling of this product, please contact your local authority, a cleaning service provider or a shop where the product has been bought.

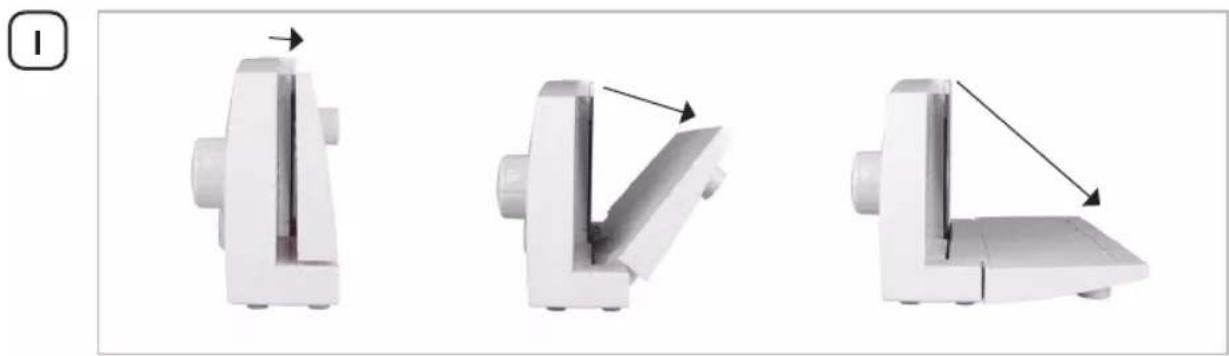

Three sequential views of a white mechanical component with arrows indicating direction, shown from top to side (no text or symbols)

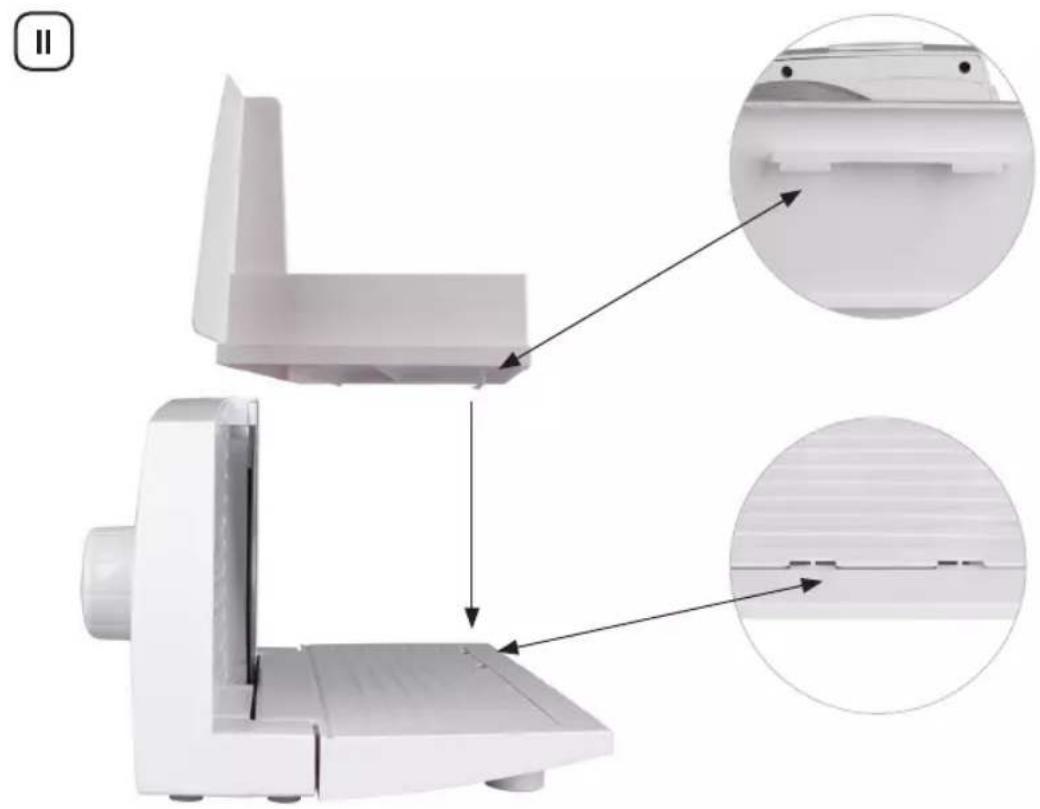

Diagram of a printer or printer device with two views showing internal components (no text or symbols present)

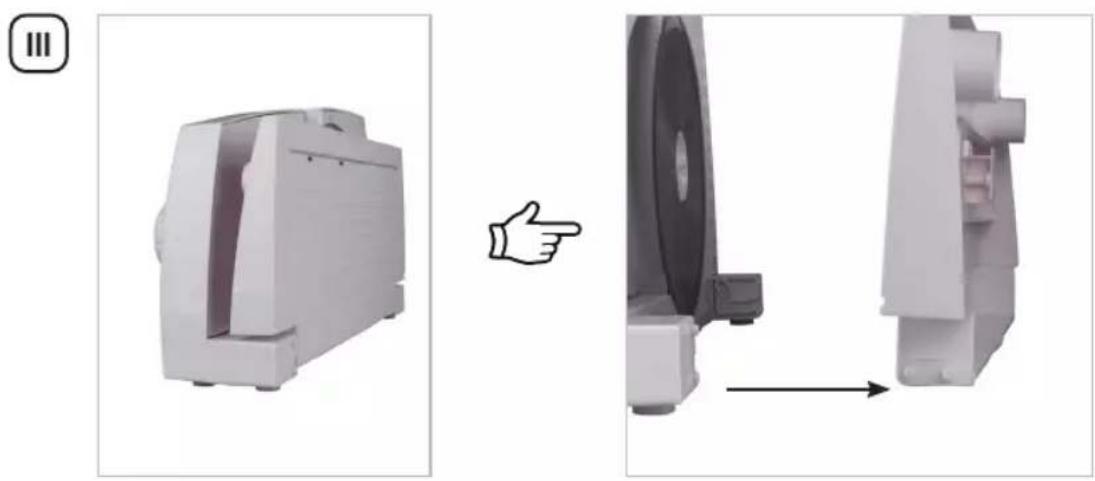

Diagram showing a 3D printer component before and after assembly, with no visible text or symbols.

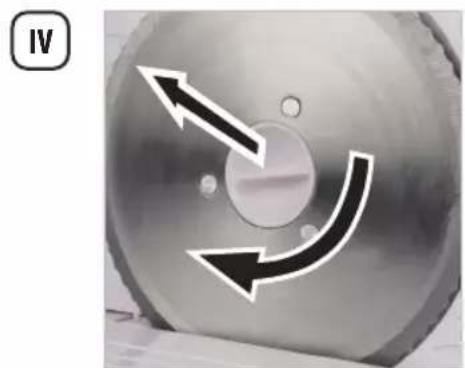

Circular mechanical component with three curved arrows indicating rotational motion (no text or symbols)

WSKAZÓWKI BEZPIECZEŃSTWA

1. Please acquaint precisely with whole of this instruction before
2. using the blender for the first time.
3. The power cable must be plugged in the socket with parameters the same as those given in that instruction manual.
4. Do not immerse the cable or the appliance in water.
5. Do not use the appliance outdoors.
6. The appliance is not meant to be used via an external clock or a separate remote control system.
7. Before switching the appliance on, make sure that all of its elements are appropriately assembled.
8. Do not leave your device without supervision.
9. Always unplug the appliance after operation.
10. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
11. Do not touch the appliance with wet hands.
12. Always pull the plug of the socket before cleaning.
13. Do not exceed the maximum time of continuous operation of the appliance.
14. The slicer must be used with the carriage and the guard, unless it is impossible due to the size and shape of the sliced product.
15. NOTE. Avoid contact with moving parts. Improper use of the appliance may result in injury. Be careful when operating the blade and during cleaning.

16. Do not overload the appliance with excess quantity of the sliced product or its strong pressing (with the guard).

17. Do not remove the remains on the blade when the appliance is on.

18. Do not move during use.
19. Never use the appliance if the supply cord is damaged. If found dama ged in any way, consult the producer's authorized service centre. The list of service centres is to be found in the appendix and on www.eldom.eu.
20. The appliance can be used only with the originally included accessories.
21. Refer servicing to an authorized service centre. Modifying the appliance or using spare parts or elements other than the original ones is forbidden and can expose the user to hazard.

WARNING

Plastic bag can be dangerous, to avoid danger of suffocation keep this bag away from babies and children.

Only intended for household use.

EN

1. Blade

2. Base

3. Carriage

4. Guard

5. Body

6. Guide

7. Slice thickness regulator

8. Indicator

TECHNICAL DATA

- power: 100 W

- supply voltage:

220-240 V \~ 50 Hz

- allowed uninterrupted

operation: 5 minutes

- pause before restarting

operation: 15 minutes

- therange:1–15 mm

INTENDED USE

The KR100 slicer is designed to slice various types of hard food products, in particular bread, cured meat, meat, cheese, vegetables, fruit, etc.

HOW TO USE

Before the first use:

• Read thoroughly this guidebook.
• Make sure that all elements are free of damages.
• Wash the elements that come into contact with food.

OPERATION

- Place the body (6) on flat, hard and stable ground.

• Make sure that the appliance is disconnected from the mains and the switch (1) is set in the "O" position.
• Move the carriage (4) several times back and forth to make sure that it moves freely.
• Place food products on the carriage (4). In case of slicing small bits, pit the guard (5) on the carriage (4).
• Maximum dimensions of the product to be sliced: 160 x 140 x 130 mm (length x width x thickness).
• Select the required slicing thickness with the adjustment knob (8): turning left results in thinner slices, turning right produces thicker slices.
• Connect the appliance to the network compliant with the parameters stated on the device and start it with the switch (1).
• When the blade starts spinning, push the carriage (4) with the product towards the blade, and then slide it back and forth. Press the product gently to the guide.
• Do not exceed the maximum duration of continuous operation of the appliance. If this time is exceeded, immediately switch off the appliance and wait at least 30 minutes before its next use.

- Exceeding the maximum time of work may result in damaging of the appliance and loss of the warranty.

- After the slicing, disconnect the appliance.

- To ensure safety and protect the blade during storage, set the slicing thickness knob (8) to "0" to align the guide (7) with the blade.

RECOMMENDATIONS

The slicer is not intended for slicing fresh bread. To slice fresh bread, first cool it down.

• To slice meat in thin slices, cool it down thoroughly for 2 to 4 hours before the slicing. Meat must be without bone.
• Products with uneven, fish-like texture are often difficult to slice, so they need to be frozen for 2 to 4 hours before slicing.
• If warm roast meat is to be sliced, it has to be taken out of the oven at least 15 to 20 minutes before slicing.
• The size of the roast meat should be appropriate for the appliance; all threads (strings) should be removed.
• Slicing may be used for various vegetables and fruit just before serving. Seeds should be removed from the products.

The cutters are consumables and are not covered by the warranty. Crusher cutter (2) must not be cleaned with bare hands. Use a small brush for cleaning.

• CLEANING AND MAINTENANCE

• Clean the appliance right after its use.
• Before cleaning, switch off the appliance, remove the plug from the socket and wait for the blade (2) to stop rotating.
• Clean the body of the unit, the guide (7) and the carriage (4) with moist cloth. Never immerse the body in water and do not rinse it under running water.
• Do not use abrasive agents, cleaning powders, acetone, alcohol, etc.
• The blade (2) may be dismantled: fig. IV.
• Wash the blade (2) and the guard (5) in warm water with addition of washing liquid, using a brush, rinse under running water, and wipe dry.
• Be extremely careful when washing the blade (2), as it is very sharp.

ENVIRONMENTAL PROTECTION

- The appliance is made of materials which can be recycled.

- It should be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

WARRANTY

• This appliance is designed for domestic use only.
• It cannot be used for professional purposes or for other than the intended use.
• Improper use will nullify the guarantee.
